6S 20A 30A 40A 50A 60A 24V PCMPCBBMS общий порт для 3,7 в LiNCM аккумулятор 18650 литий-ионный аккумулятор Защитная плата

Подставка для мебели

About temperature monitor,If you need pls tell us

80% buyers also order balancer

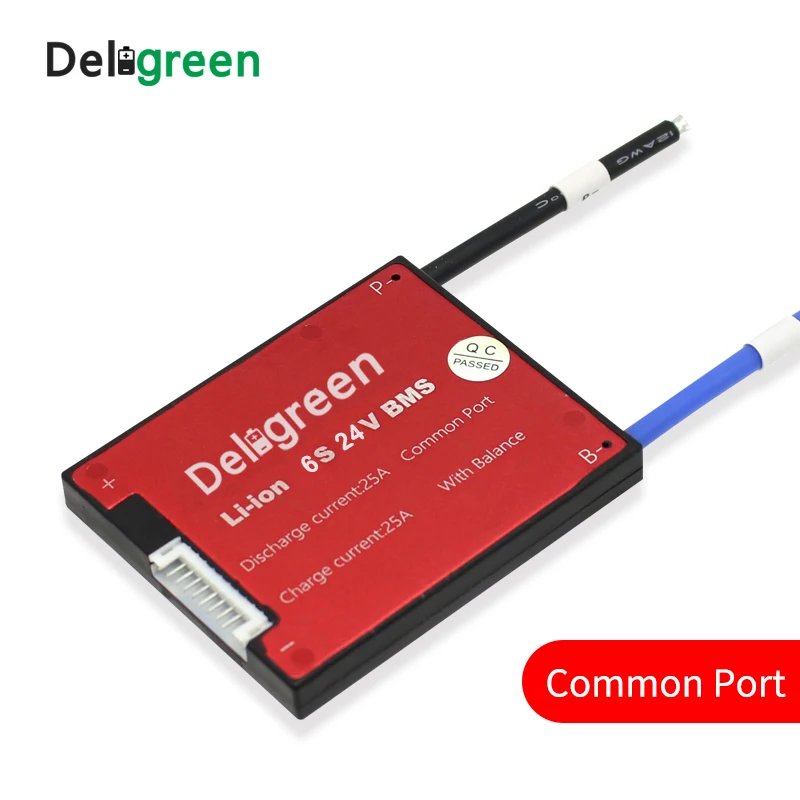

Model: DG6S 20A 30A 40A 50A 60A  for 3.7V rated LiNCM battery

We can customize any PCB from 2S to 24S lithium batteries with different current.

Welcome retail and wholesale both. More discount for volume order!



1.Overview

DG 6S 25A35A45A60A  PCB is used for 6series battery pack.

We can design it for various lithium batteries like LiFepo4, LiMn2O4, and Li-polymer etc.

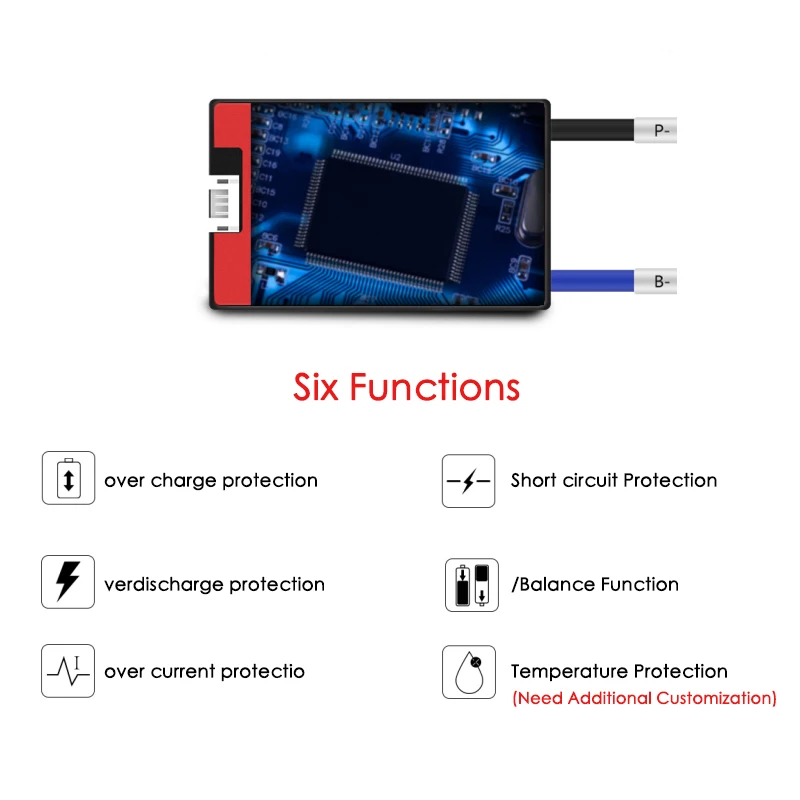

The main functions are: over charge protection, over discharge protection, over current protection, short-circuit protection,

temperature protection etc.

2 Custmers' feedback

​

3. Advantage

4.Technical parameter（The following is an example for 3.7V rated LiNCM battery.       If your battery is 3.2V rated LiFePO4, we will set the parameters for LiFePO4 batteries）  　  Content Spec Unit Remark 10A 15A 20A 30A 40A 50A 60A 　  　  Discharge constant discharge current 10 15 20 30 40 50 60 A 　  peak discharge current 30±5 50±5 60±10 100±20 120±20 150±30 180±30 A 　  Over current protection 30±5 50±5 60±10 100±20 120±20 150±30 180±30 A 　  charge charge voltage Series* 4.25 V 　  charge current 5 8 10 15 20 25 30 A 　  Over charge protection over charge volt 4.25±0.05 V 　  over charge volt protect delay 1 S 　  Over charge volt release 4.15±0.05 V 　  Power balancing Power balance volt 4.18 V 　  balance release volt 4.18 V 　  balance current 30±5 mA 　  Over discharge protection Over discharge detect  volt 2.7±0.05 V 　  Over discharge detect delay 1 S 　  Over discharge volt release 3.0±0.05 V 　  Over  current protection Over current detect delay 1 MS 　  Over current protect release Off load 　  　  Short circuit protection Short circuit protection External load short circuit 　  　  Short circuit detect delay 250 uS 　  Short circuit detect release Off  load 　  　  Temperature protection Temp protection none ℃ Can be customized resistance Main circuit resistor ≤20 mΩ 　  Self-consumption Working current ≤100 uA 　  Sleepy current(when battery is over discharged ) ≤20 uA 　  Working temp temp range -40~80 ℃ 　    5. Product Photo











6. Wiring instruction



7. FAQ

1) Which current of the PCB should i choose?

Take 13S 48V pack as an example: Which PCB you should choose depends on the power of your motor or the current limitation of your controller. Below 350W ,you can choose 16A.Below 500W, you can choose 18A, Below 800W, you can choose 35A,Below 1KW, you can choose 60A. Above 1200W, the same. If you are not sure, please contact us freely.



2) Can I use bigger size of PCB than it should?

Suppose you need 60A PCB but you chose 80A, that is OK.

80A allows higher current.Nothing bad but a bit higher price.

But if you choose 50A, sorry it is too small. So you can choose higher spec but can’t choose lower one than it should have been.



3) What kind of charger should i choose?

Lithium battery must be charged by lithium battery charger. You can’t charge it with a lead acid battery charger. The lead acid battery charger might damage MOS pipe of the PCB.



4) If i have PCB, do i need any balancers?

Yes if you can add QNBBM balancers, that would be perfect.

The Main function of PCB is to prevent batteries from over charged or over discharged,over heated etc.

All the PCB /BMS in the world balance performance is not satisfactory.

With balancers added, the batteries lifespan will be longer and the capacity will be fully used.



5) How to judge if my PCB is broken or not ?

If you’d like to judge if the PCB is fine or not, please use a multi-meter and see if the voltage of each cell is close to each other or not.when the volt difference is 1V, the battery will have such performance:driving distance is short, cut off when started, charging time is very short.under such situation , some battery is defective. When the PCB is broken, the battery can’t be discharged when you measured the battery volt is normal.
