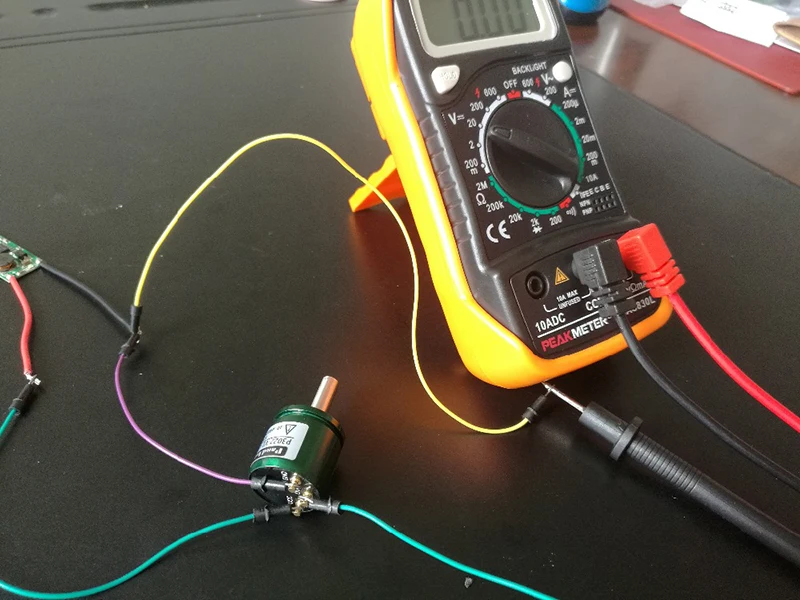

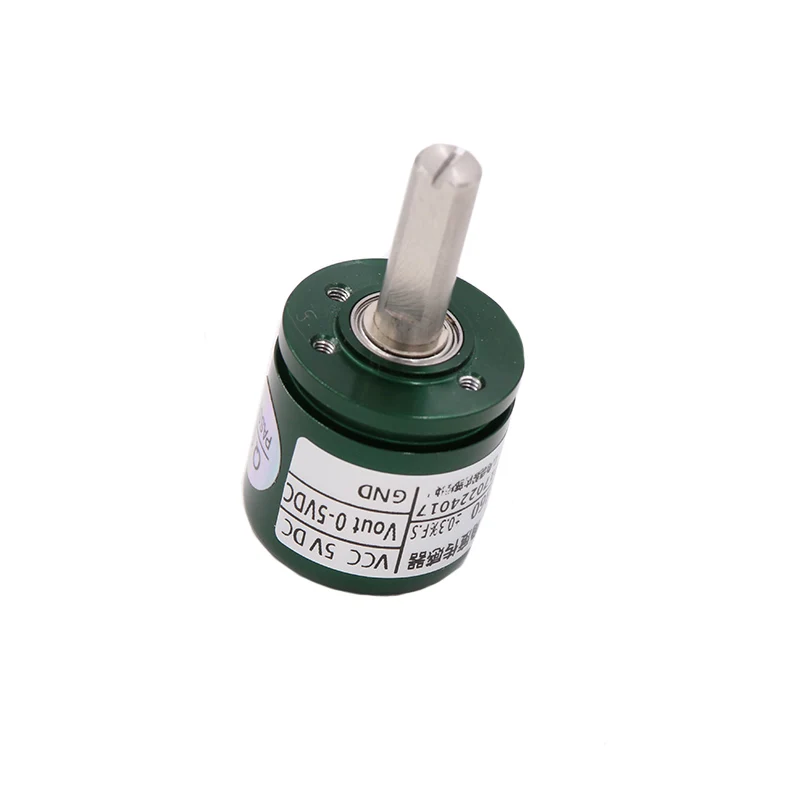

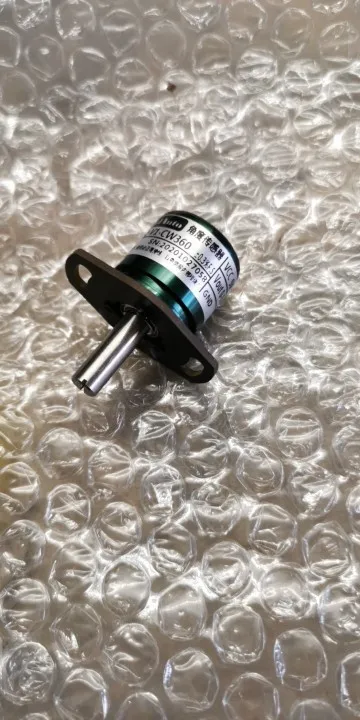

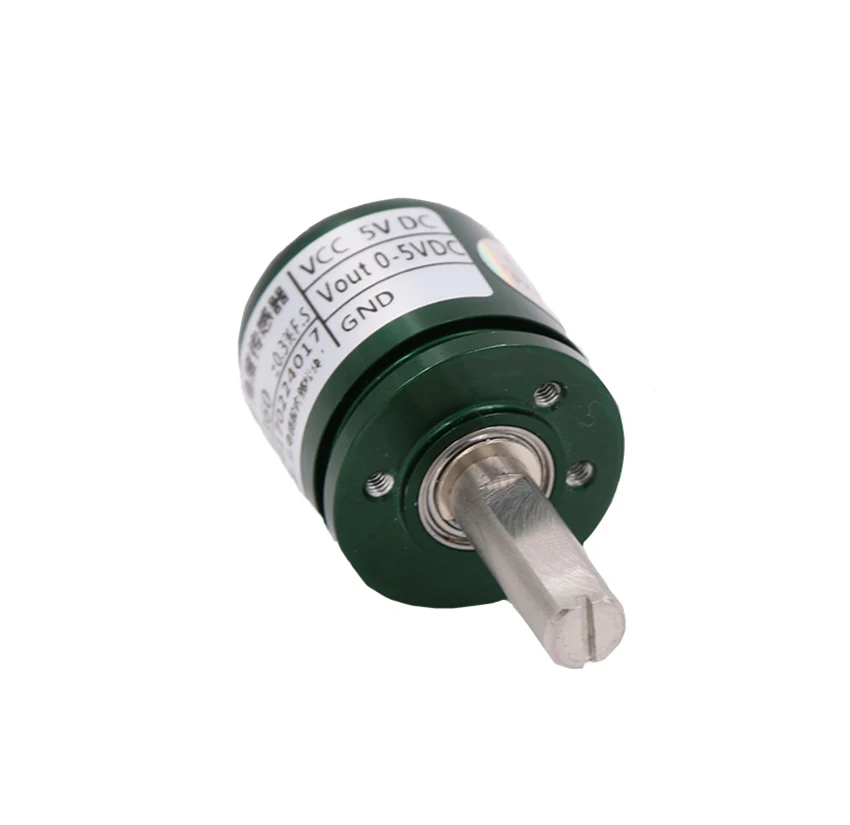

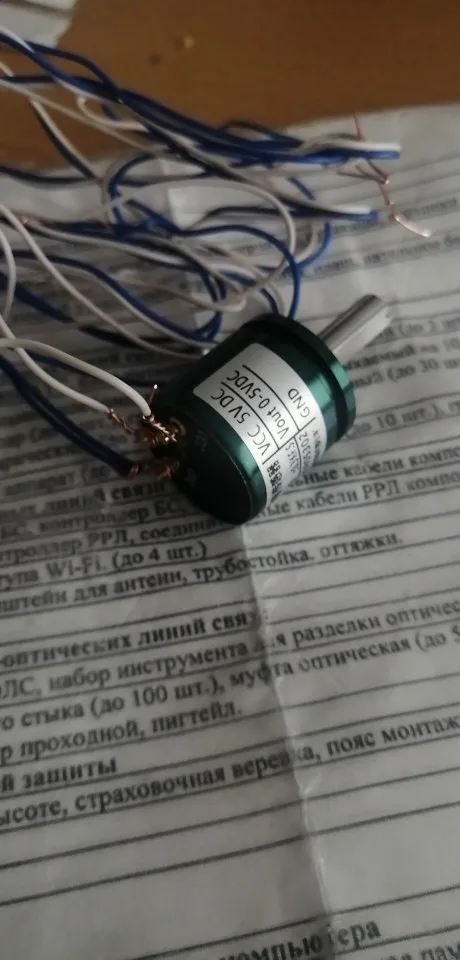

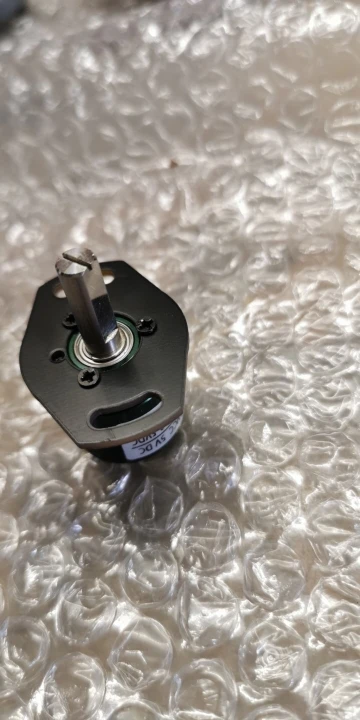

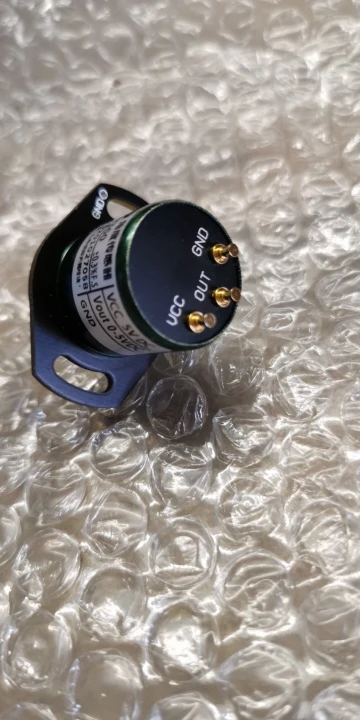

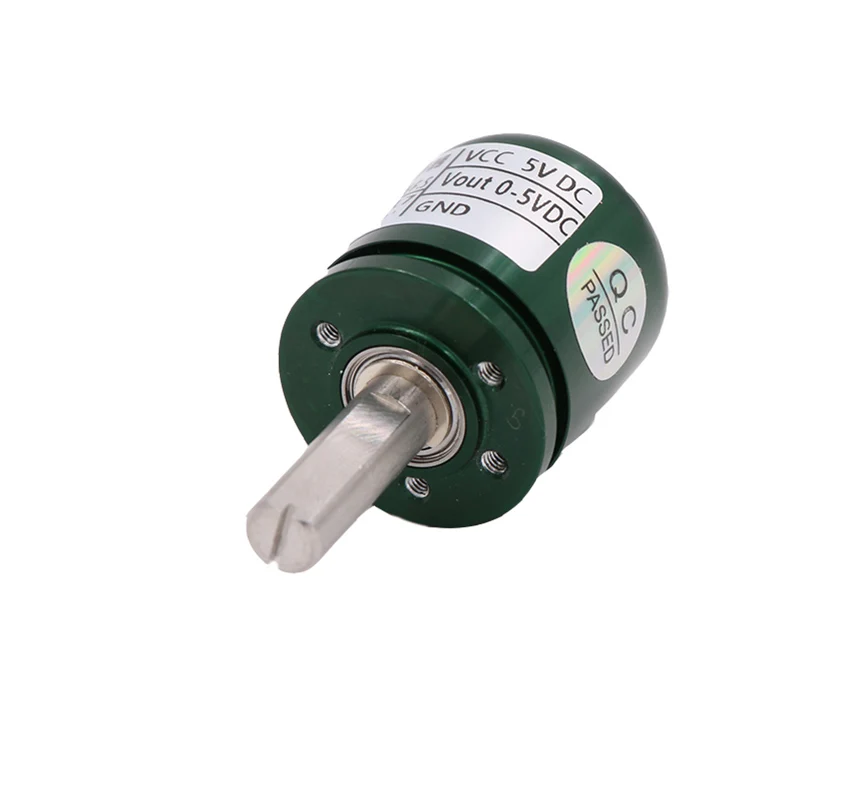

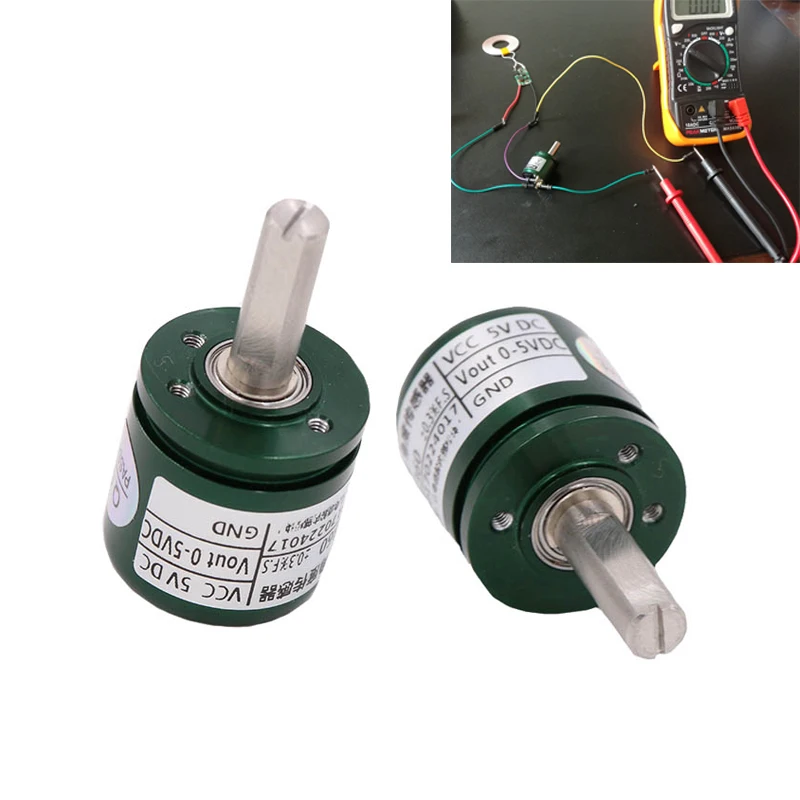

DC 5V Hall Angle Sensor Non contact Industrial 0-360 Degree Rotation Angular displacement Sensor

 Small size, the maximum outer diameter of 22mm

 Full 360 ° no dead angle measurement

 Linearity is ±0.3% F.S.

 Output signal 0-5V DC

Supply voltage 5V DC

Angle Direction: Clockwise rotation of the rotary shaft

Long product life.

Small rotational torque

Aluminum shell

Easy to install

​

Description:

Non-contact hall angle sensor works through the principle of electromagnetic

induction, the angle is converted to an electrical signal. When the rotation angle of the object passed to the axis of rotation sensors, P3022 angle sensor outputs an electrical signal that is proportional to the rotational angle.

This series of products using hard aluminum alloy material shell; Hall-type non-contact technology, P3022 series angle sensor has the advantages of non-contact angle sensor, and the use of high-quality imported high quality stainless steel high speed bearing member, so that it reduced frictional resistance when measuring the minimum, not because of the wear surface measurement component caused decrease measurement accuracy, long service life theoretically unlimited; the product compact structure, small size, optional strong, high resolution, smooth rotation dynamic noise in addition to the excellent performance suitable for electromagnetic interference outside the water,oil,vibration, shock and other harsh industrial environment, is a cost-effective non-contact angle sensor.

​

Application:

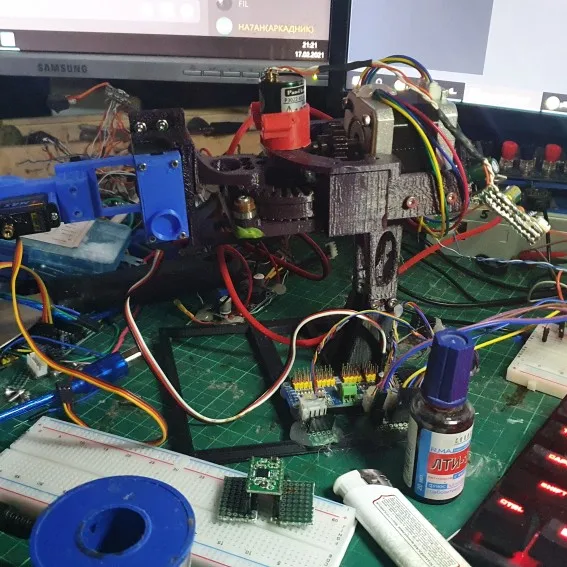

Manipulators

Textile Machinery

Construction machinery

Hydraulic cylinders Systems  Testing Machine

Automotive Test

Medical instrument

Technical Information

​

Effective electrical angle 360º

Resolution 360°/4096（12 bit）≈0.088°

Linearity Standard：0.3%；customizable precision：0.2%；

Super precision：0.15%

Update Speed 0.6ms / 0.2ms（high-speed）

Operating voltage 5V±10%

Output signal 0～5V（ratio）

Operating Current <16mA

Maximum and minimum output deviation

Load resistance >10KΩ

Mechanical parameters

Mechanical angle 360º（No stop）

Protection class IP40

Working temperature -30℃～+80℃

Storage temperature -30℃～+80℃

The rotational torque <5mN·m

Mechanical life >10 million transfer

Weight About 25g

Housing Anodized aluminum surface Shaft Stainless steel

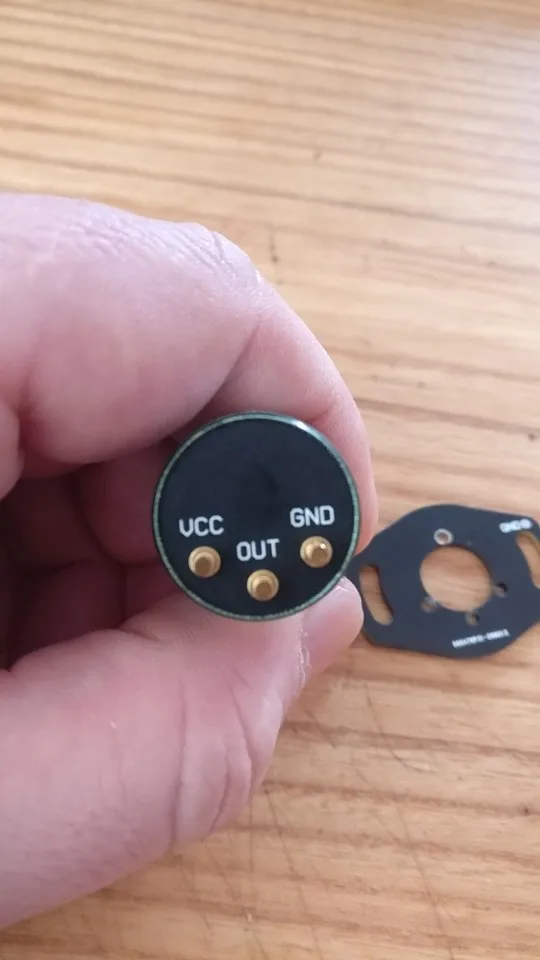

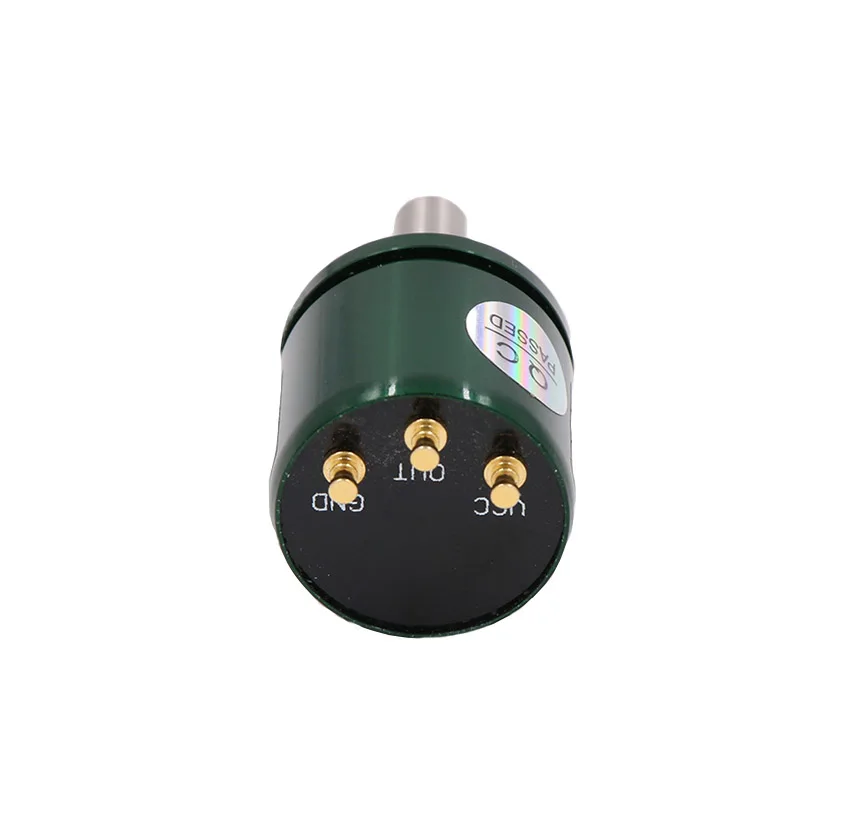

Electrical terminals Thick gold plated brass terminals

Package includ:

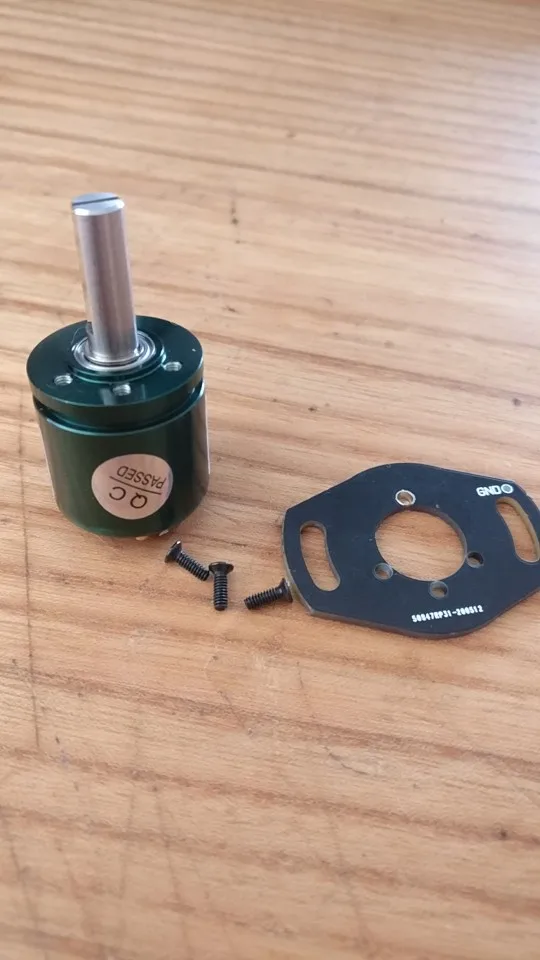

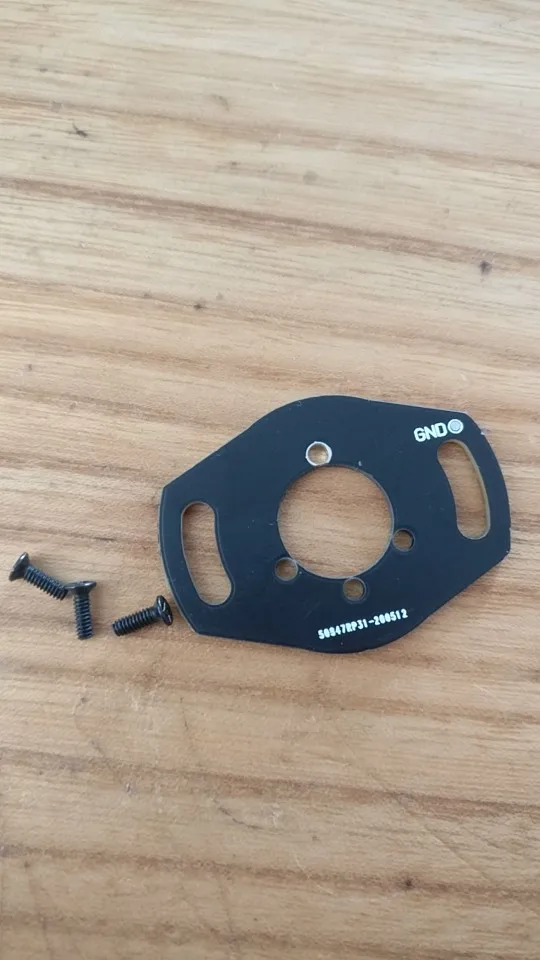

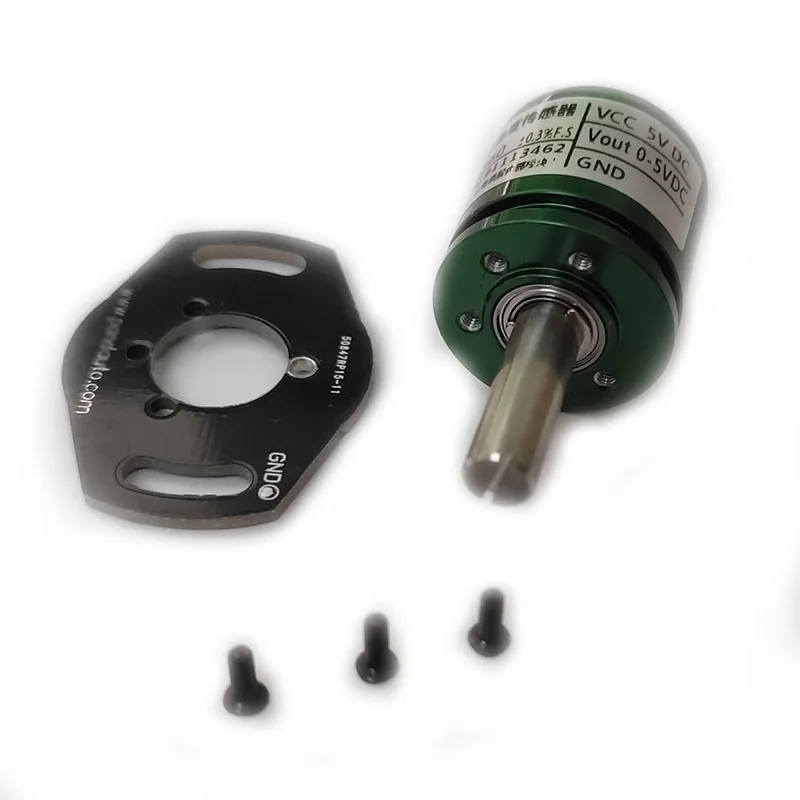

1 * Torque Rotation Hall Angle Sensor

​
