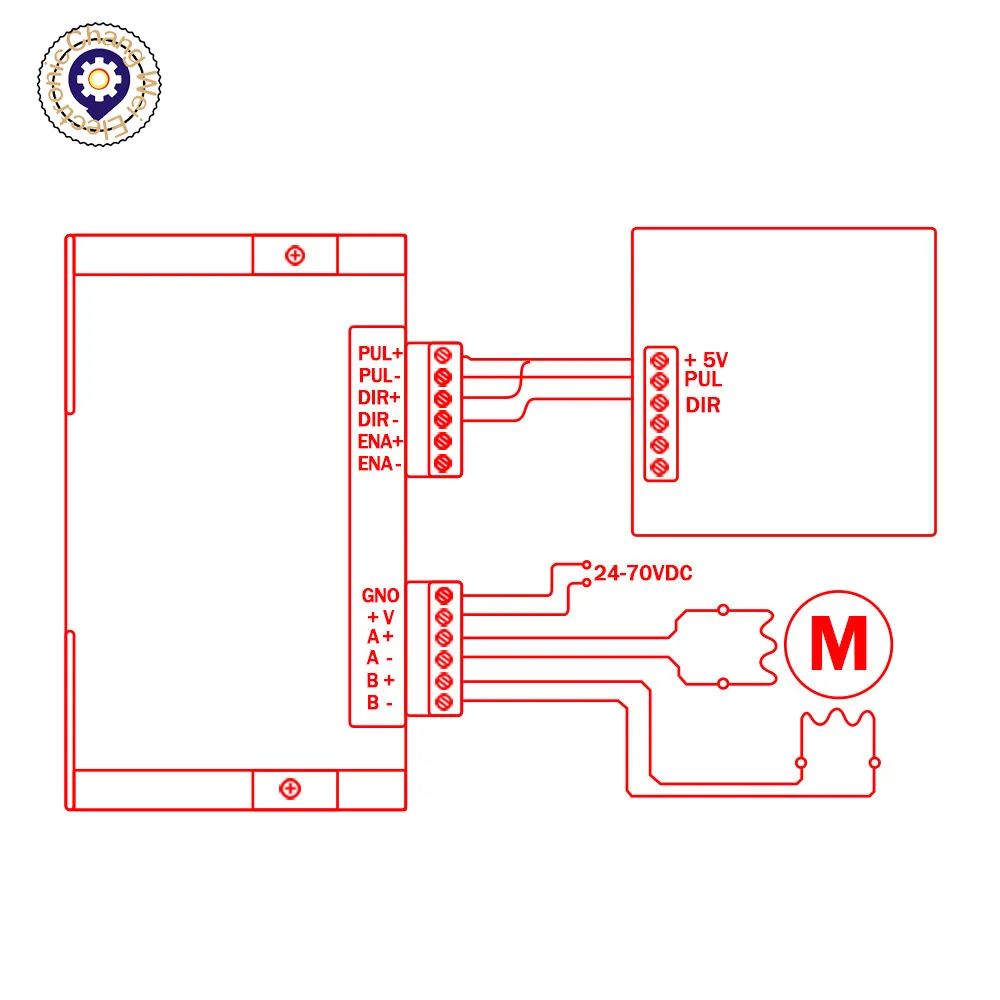

Product connection define and method：
Features:

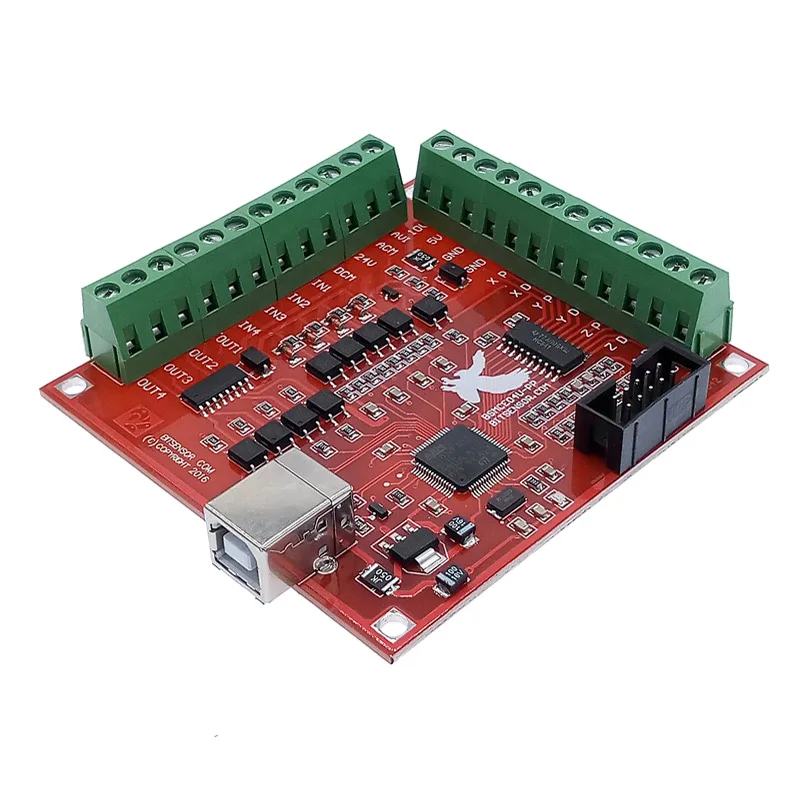

1） Support for 4-axis linkage, you can connect four stepper motor drives or servo drives;2） Maximum step-pulse frequency is 100 KHz, which is suitable for the servo or stepping motor;3） Support automatic probe tool4） Support Emergency input5） Support for limit switch6） Support for connecting electronic handwheel7） Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable.8） Have 0-10V output port, you can use mach3 software to control the spindle motor speed.9） 4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device10）4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device;11）1 status LED, indicate connection status on the board.
Product Description:
Note:The inverter interface (AVI +, AVI-) is isolated from the computer and the main control circuit, and has strong anti-interference ability. No interference signal will be introduced due to the introduction of external strong electrical equipment. This interface can output 0 ~ 10V analog signals, and can also be configured as 0 ~ 5V output.It is recommended that the limit switch and emergency stop switch must be installed first. If these protection switches are not installed, in an emergency, in addition to pressing the emergency stop to return (sometimes too late to press), and turning off the motor power (sometimes too late to turn off), the most convenient way to stop is to pull the USB cable !! As long as the USB cable is pulled, the machine will automatically stop! !! !!

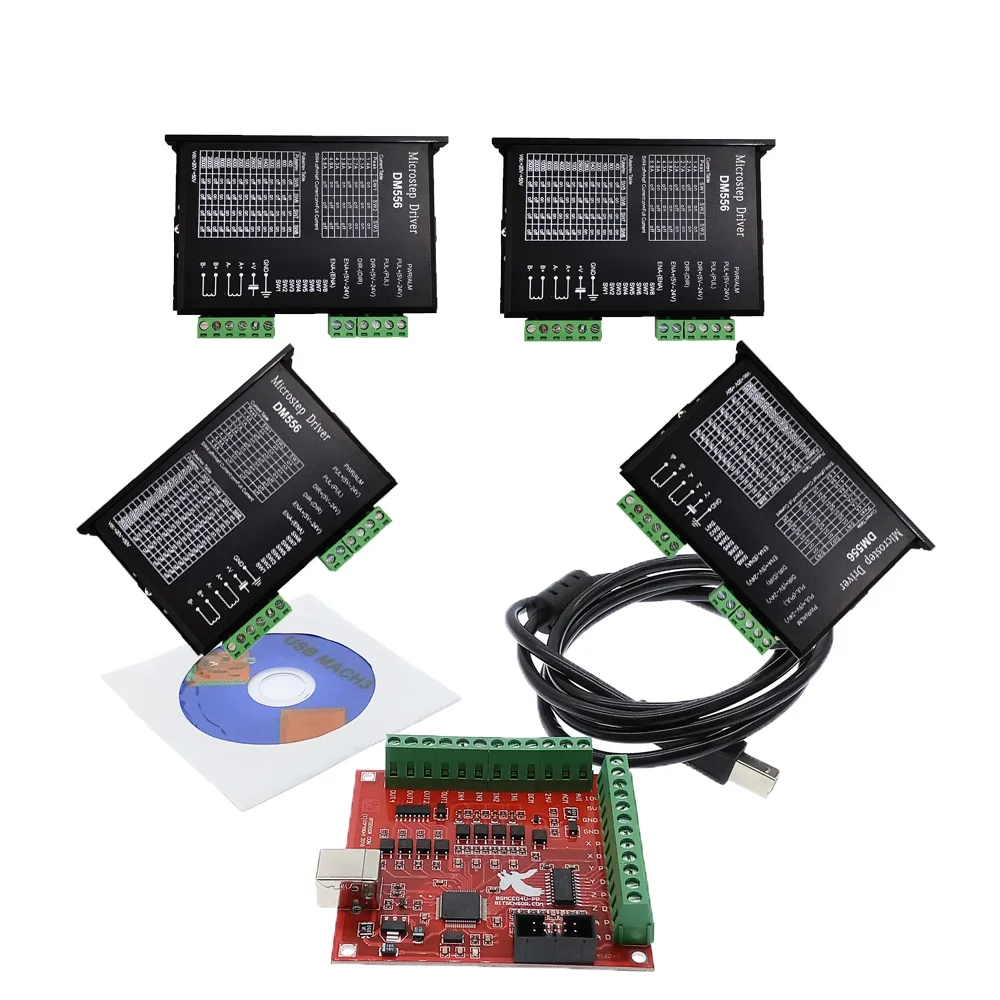

Product packaging

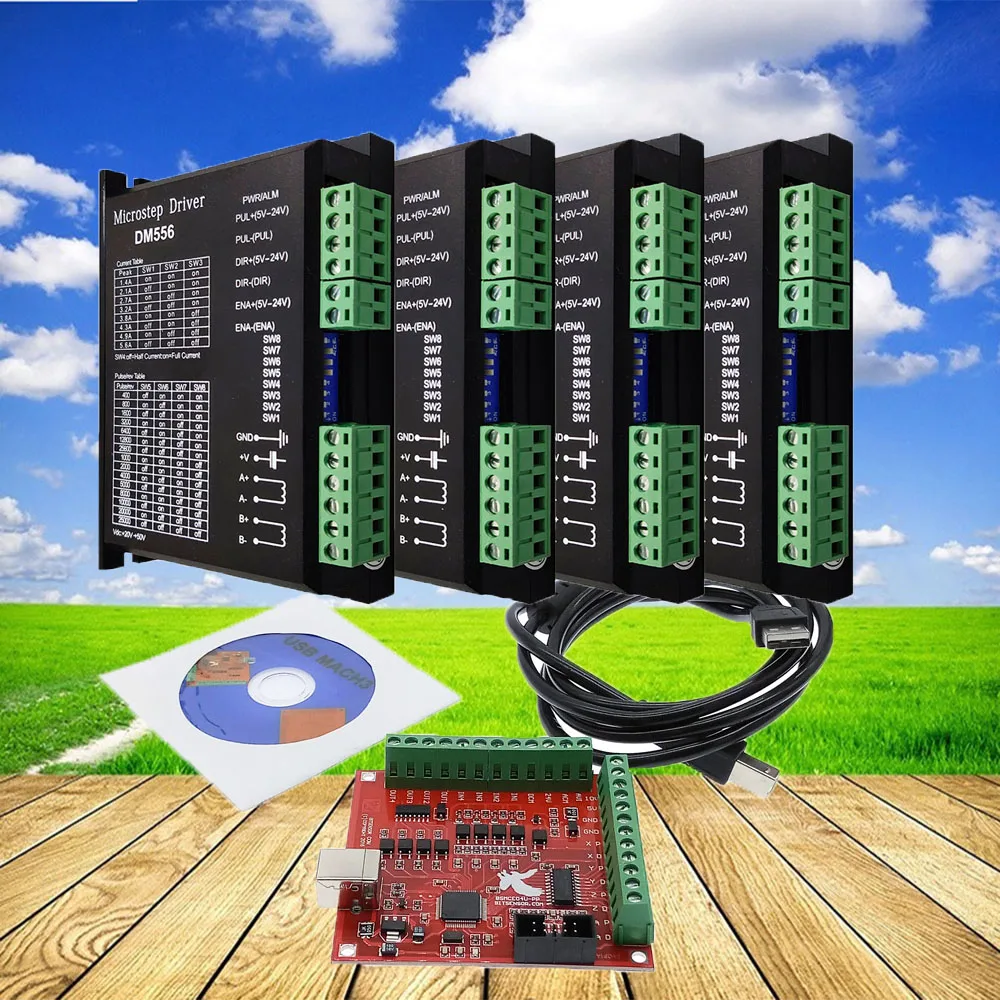

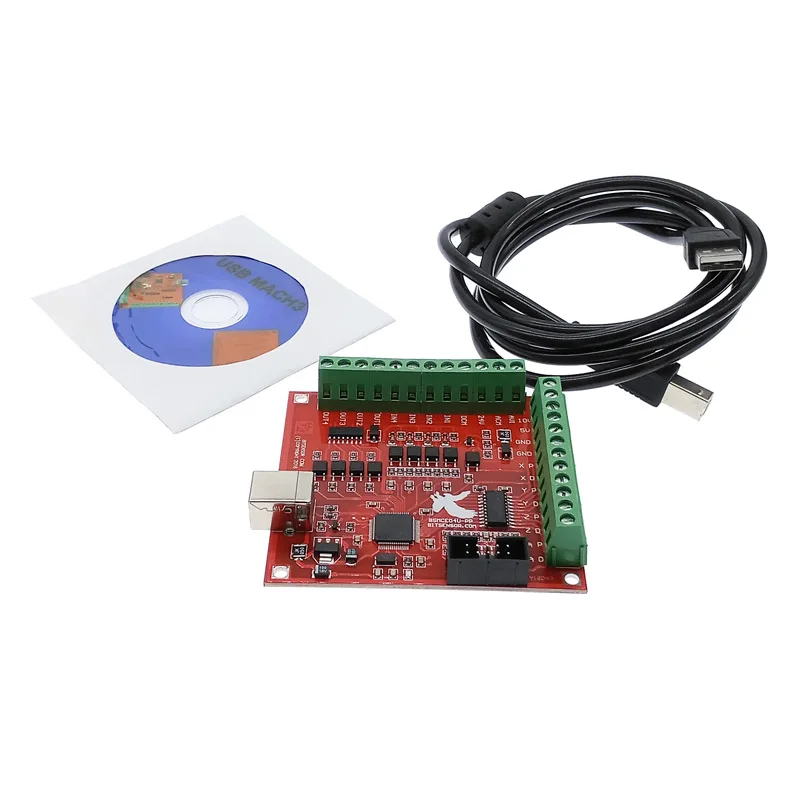

1*Red Flying Eagle Card4*DM556 Drive1*Black USB Flat Cable1*CD

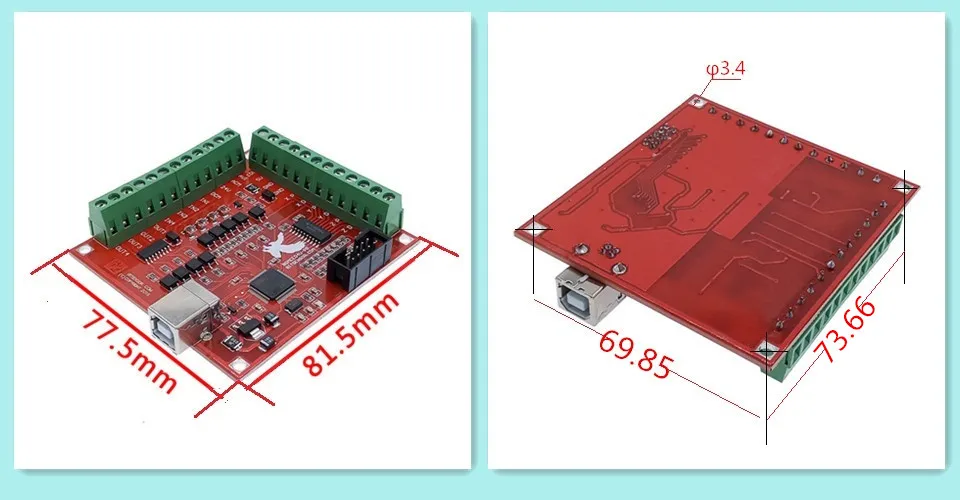

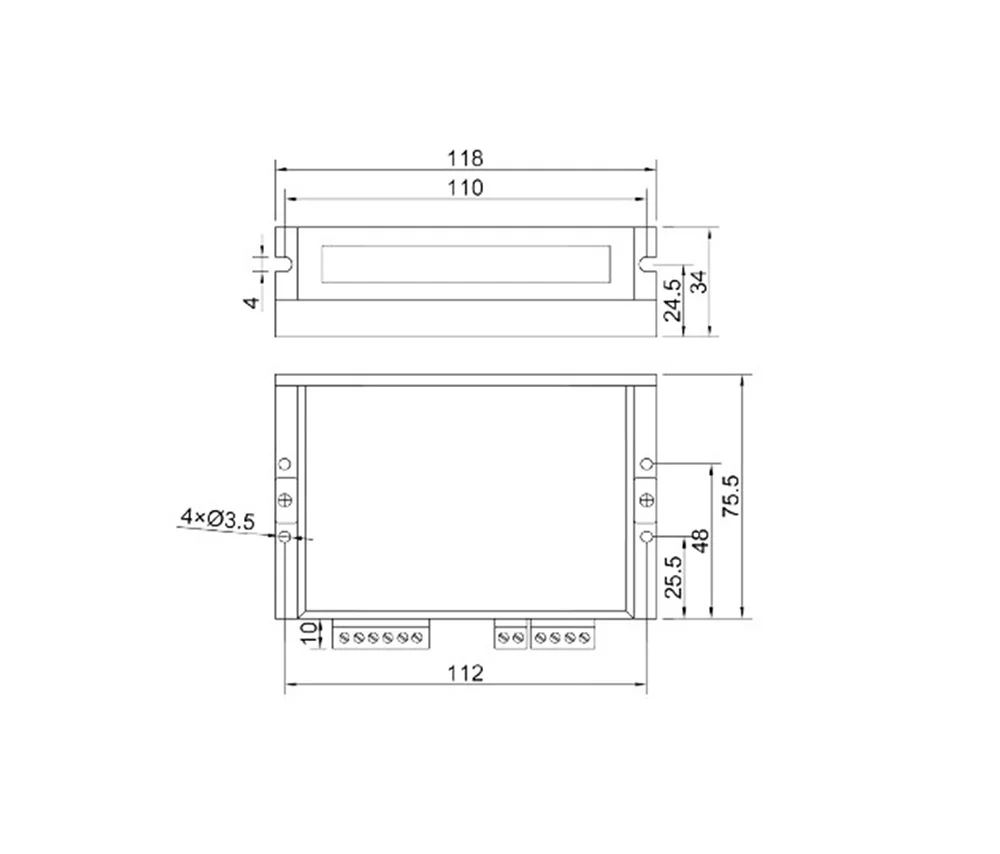

Size:
