20*15mm Suction 2.5KG 25N DC 5V12V24V Mini solenoid electromagnet electric Lifting electro magnet strong holder cup DIY 12 v
Bairun Electric Store - Надежность 93%
Более 880 подписчиков, дата открытия магазина 10.07.2017
- Положительные оценки: 94% (174)
- Соответствие описанию: 94%
- Отвечает на сообщения: 92%
- Скорость отправки: 92%
Последнее обновление: 18.09.2024
123 Отзывов
469 Заказов
1 Отзывов
2 Заказов
Non-standard can be custom,Minimum thickness can be 4MM.
Notes: We often change the lables for convenient production! Please do not care about it!
！！！Precautions！！！：
Electromagnets must meet the following conditions to achieve maximum suction:
1、The object to be sucked must have a good magnetic permeability.
2、Proper use of power supply, rated voltage.
3、The object to be sucked must be flat and clean.
4、The object to be sucked must be greater than or equal to the surface of the magnet

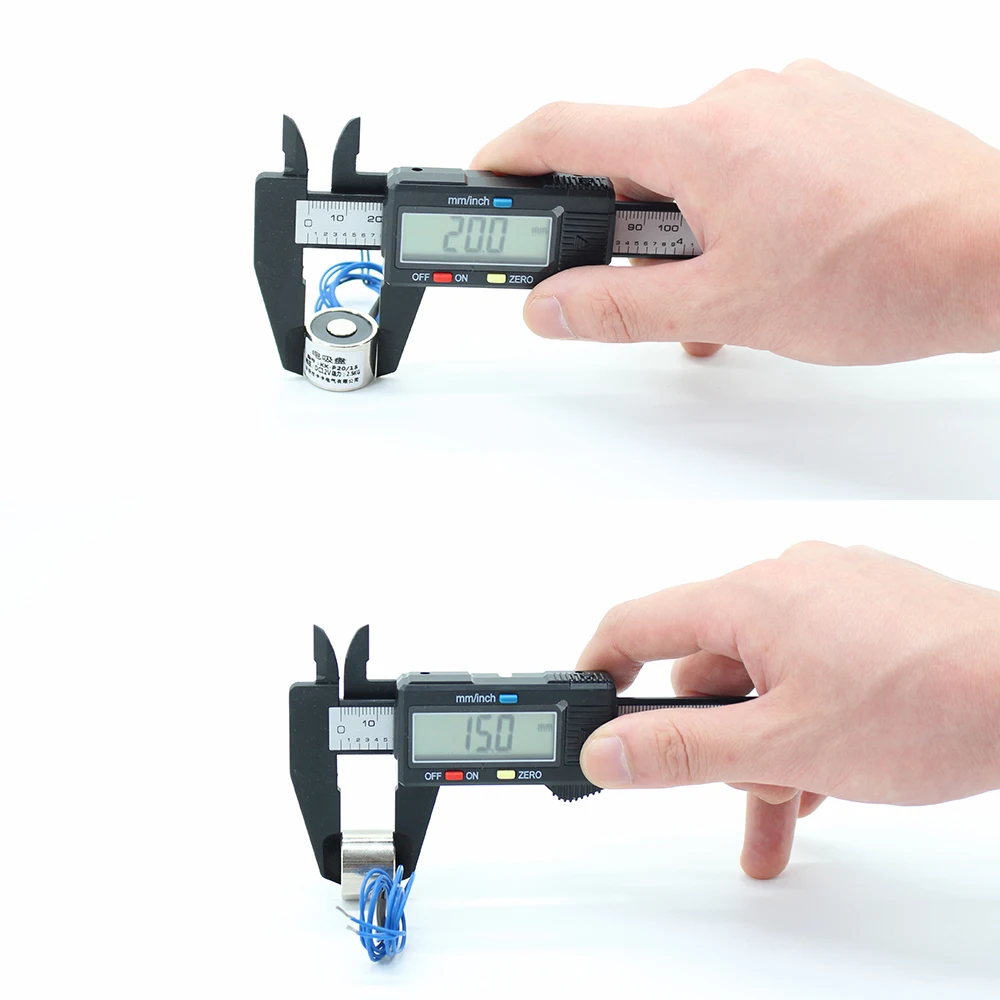

( For example: the magnet is 20*15 mm , so the surface area is
S=r²π=10²π mm²
so the object to be sucked must be greater than or equal to 10²π mm² )
5、The object to be sucked must be greater than 8mm.(If the thickness decreases, the suction decreases)
6、The object to be sucked must be close, the middle can't be interspersed with objects or gaps
！！！Contrary to any conditions, suction will be reduced, not the maximum suction. ！！！Please pay attention when you want to buy. Refused to dispute, at your own risk.
If you need other model , please click on the model in the table
Model
D(mm)
D(mm)
H(mm)
M
Power(W)
Suction(KG)
10/10
10
4
10
2
1
0.3
Click to buy
13/27
13
5
27
3
1
1
Click to buy
13/30
13
5
30
3
1
1
Click to buy
20/15
20
8
15
4
2
2.5
Click to buy
25/11
25
10
11
4
2
5
Click to buy
25/20
25
12
20
4
2
5
Click to buy
30/22
30
12
22
4
3
10
Click to buy
30/25
30
12
25
4
3
12
Click to buy
34/18
34
16
18
4
3
18
Click to buy
34/25
34
16
25
5
3.5
20
Click to buy
36/38
36
38
5
25
Click to buy
40/20
40
18
20
5
3.5
25
Click to buy
40/25
40
18
25
5
4
30
Click to buy
49/21
49
23
21
6
5
40
Click to buy
50/27
50
23
27
6
6
50
Click to buy
50/30
50
23
30
6
7
60
Click to buy
59/34
59
27
34
8
10
70
Click to buy
65/30
65
26
30
8
10
80
Click to buy
65/60
65
27
60
8
16
100
Click to buy
70/9
Car license plate
70
32
9
5
9
15
Click to buy
70/10
Car license plate
70
32
10
5
9
20
Click to buy
80/10
Car license plate
80
34
10
5
9
25
Click to buy
80/38
80
34
38
8
12
100
Click to buy
80/38
80
34
38
8
13
120
Click to buy
80/80
80
37
80
10
20
200
Click to buy
100/40
100
42
40
10
12
150
Click to buy
100/40
100
42
40
10
13
200
Click to buy
120/40
120
58
40
12
15
300
Click to buy
120/50
120
58
50
12
15
350
Click to buy
120/70
120
58
70
12
15
400
Click to buy
150/50
150
80
50
14
15
500
Click to buy
160/50
160
80
50
14
15
600
Click to buy

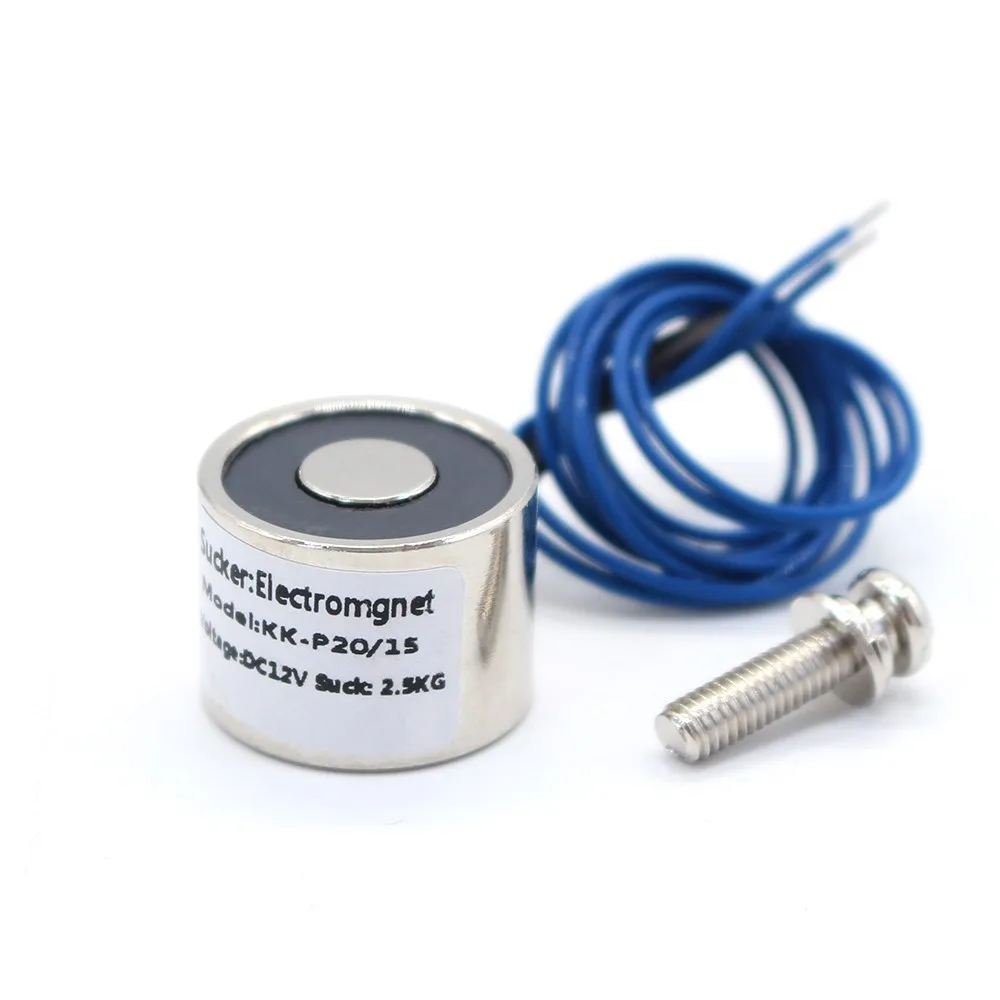

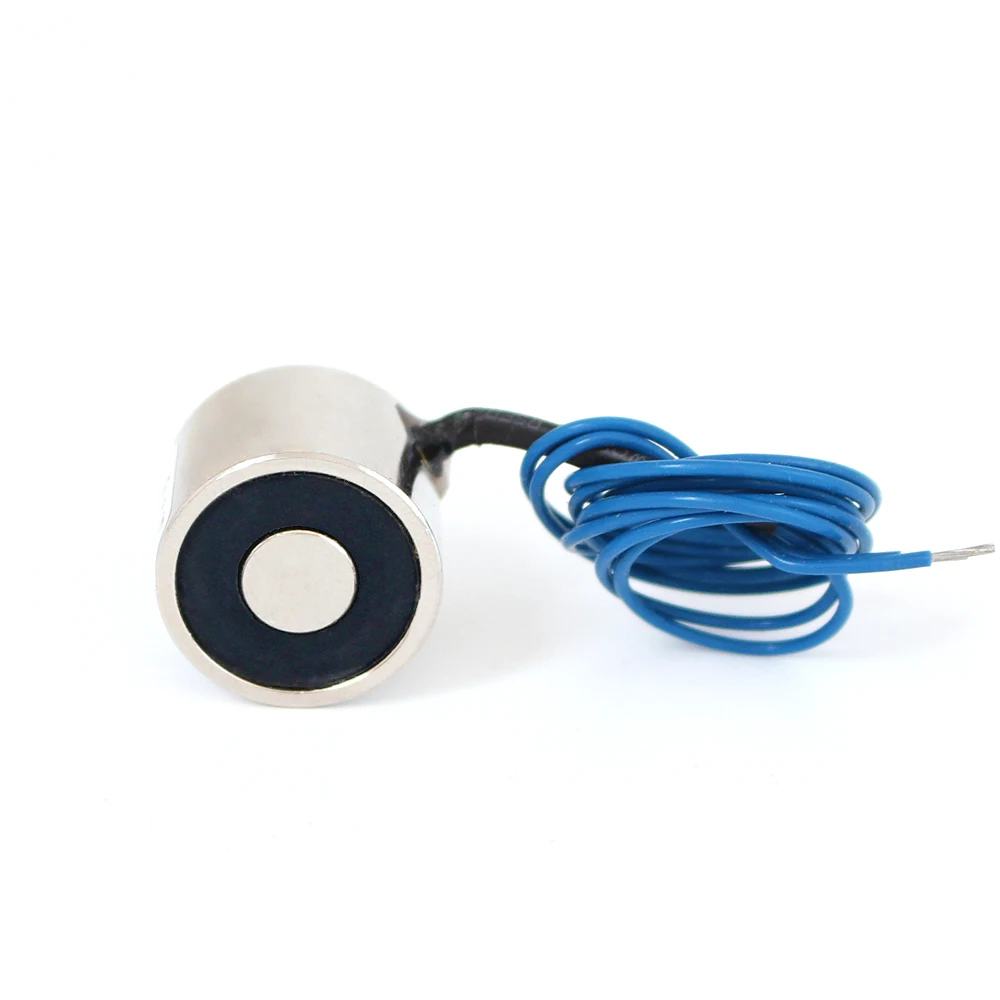

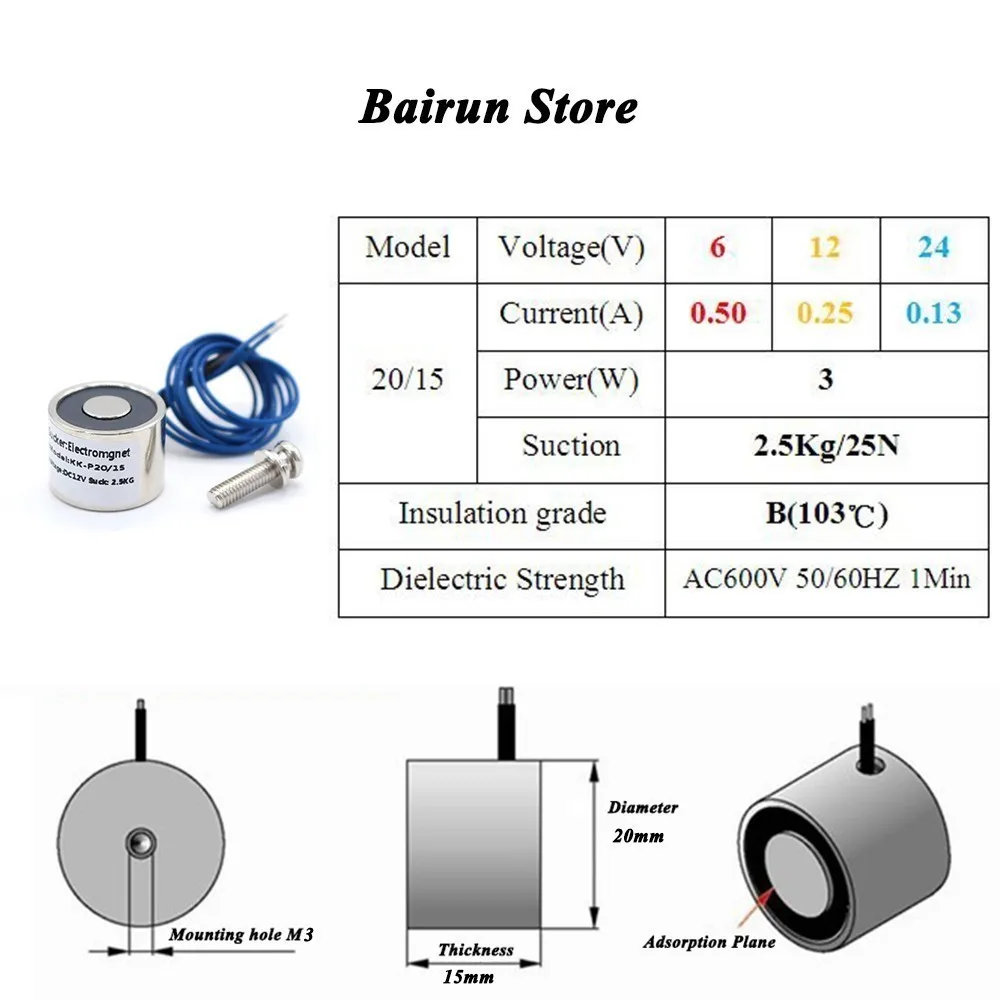

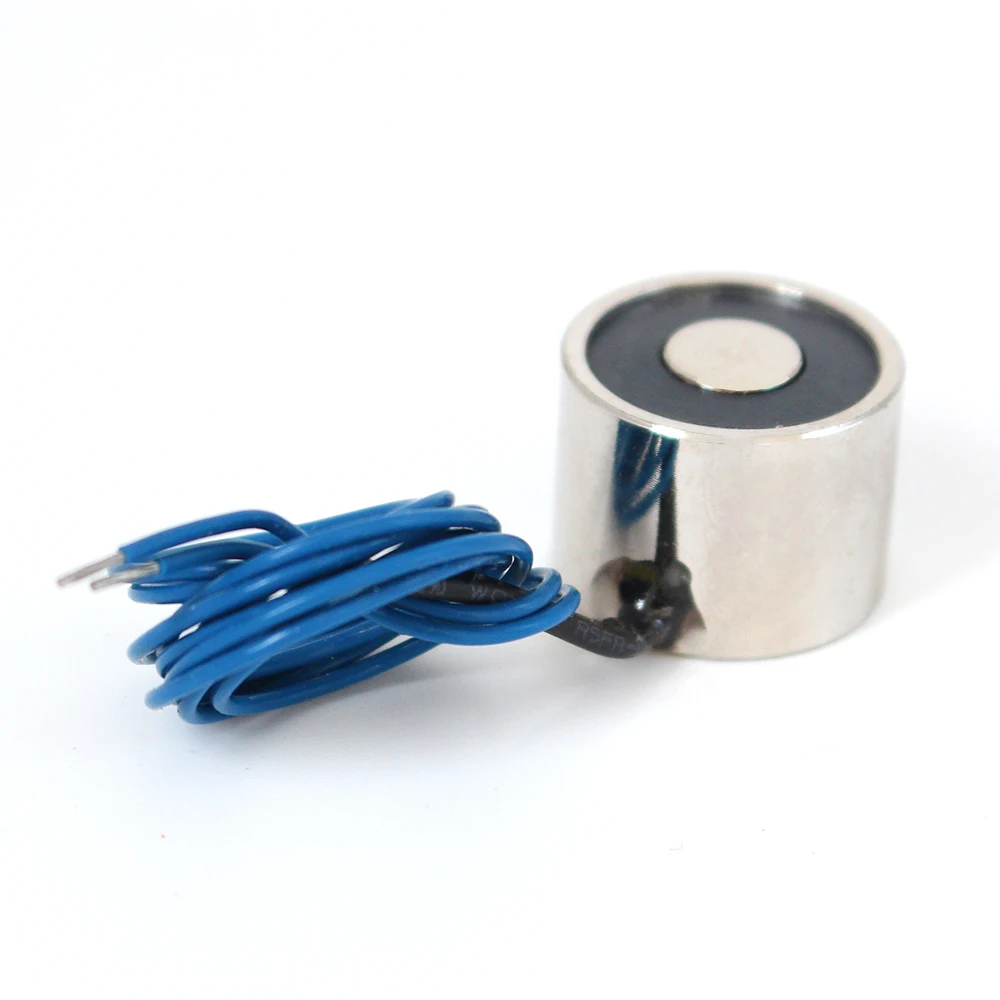

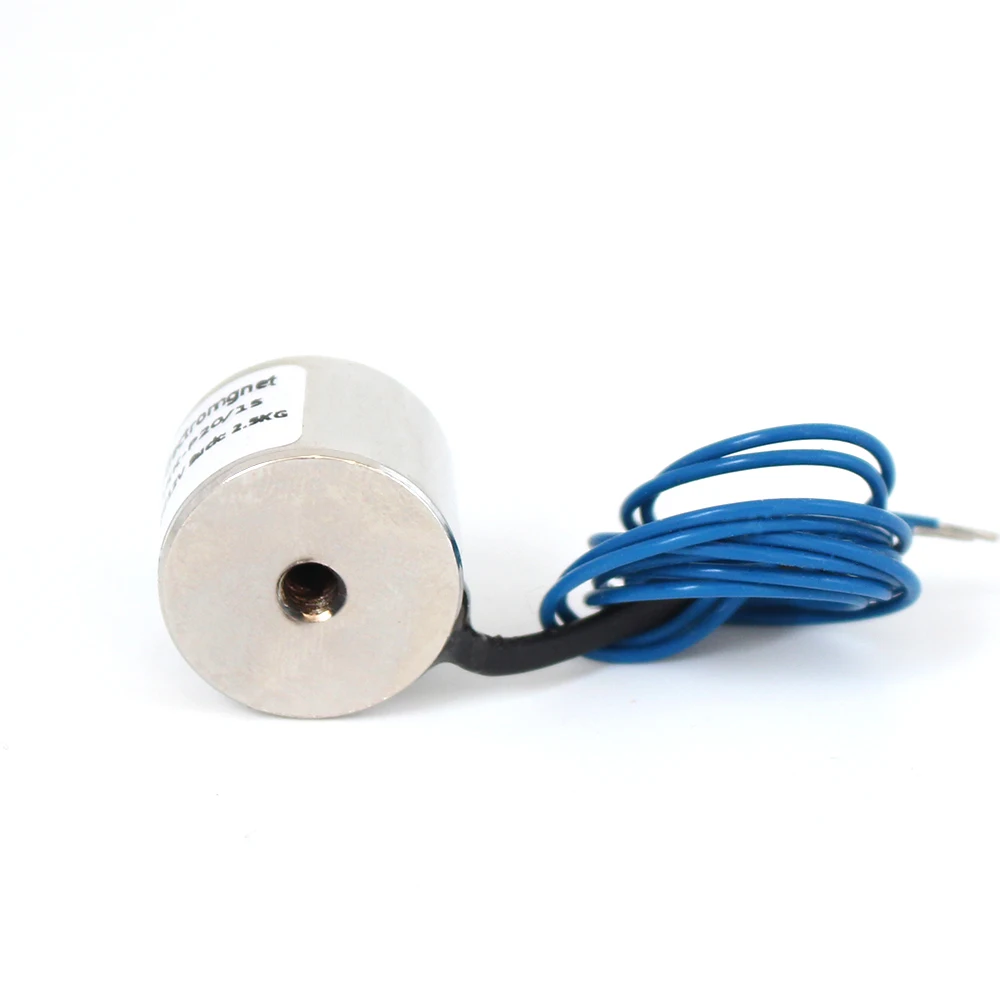

Model:BR20/15Item:Holding Electric MagnetInput Voltage: DC 6V 12V 24V 36VPower Consumption: 2WHolding Force: 2.5kgMaterial: MetalColor: SilveryD: 20 mmd: 8 mmH: 15 mmM: M4P: 10 mmL: 300 mm

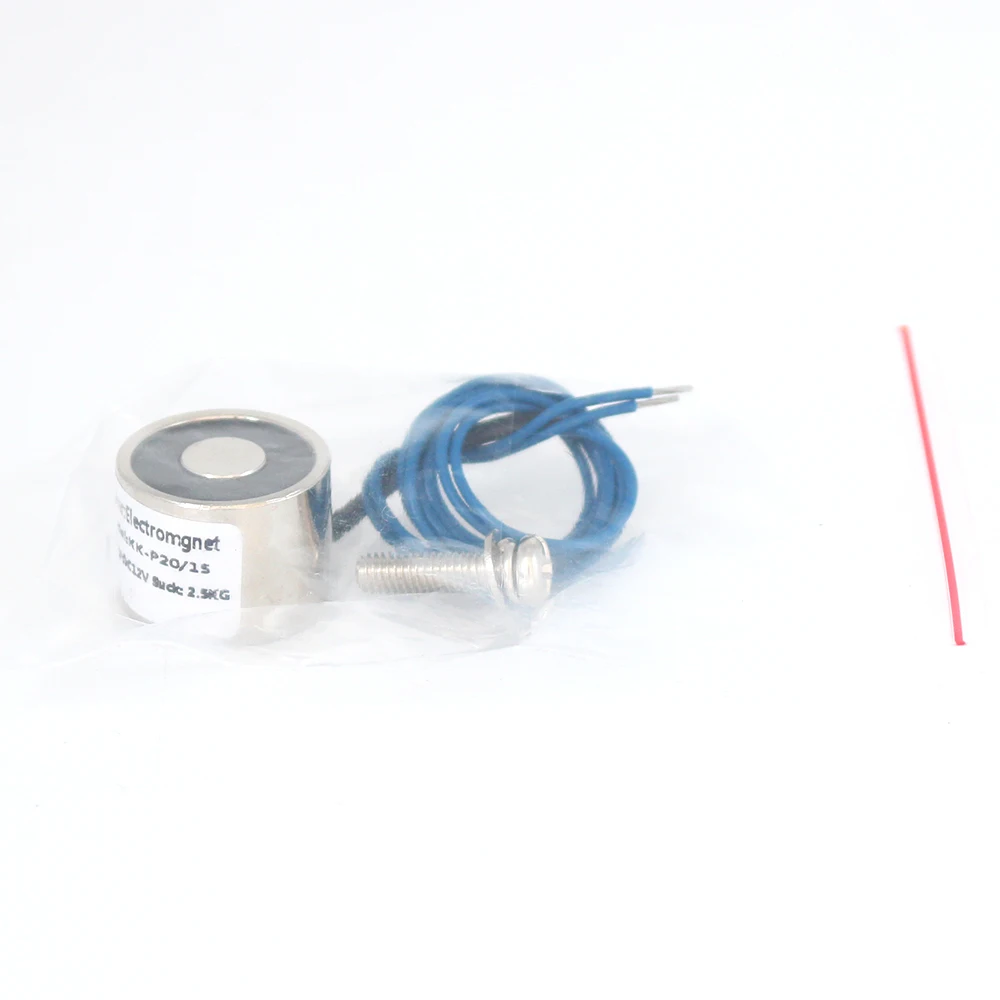

Package Included1 x BR20/15 2W Electric Lifting Magnet Holding Electromagnet Lift 2.5Kg Solenoid
We accept Alipay, T/T, Western Union and Visa payment. Except the Alipay, the transform charge is to customer's side. Please pay the order within 3 days, and we will arrange the shipment 1-2 days.
You have 7 days to contact us and 30 days to return it from the date it was received. If this item is in your possession more than 7 days, it is considered used and WE WILL NOT ISSUE YOU A REFUND OR REPLACEMENT. There are NO EXCEPTIONS! Shipping cost is bear by both seller and buyer in half.
All returned items MUST BE in the original packaging and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your po#.
We will refund YOUR FULL WINNING BID AMOUNT, upon receipt of the item in its original condition and packaging with all components and accessories included, AFTER BOTH Buyer and Seller cancel the transaction from aliexpress. OR, you may choose to have a replacement.
We will bear all the shipping cost if the product(s) is (are) not as advertised.
Your satisfaction and positive feedback is very important to us. Please leave positive feedback and 5 stars if you are satisfied with our items and service. If you have any problems, please feel free to contact us firstly before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.
