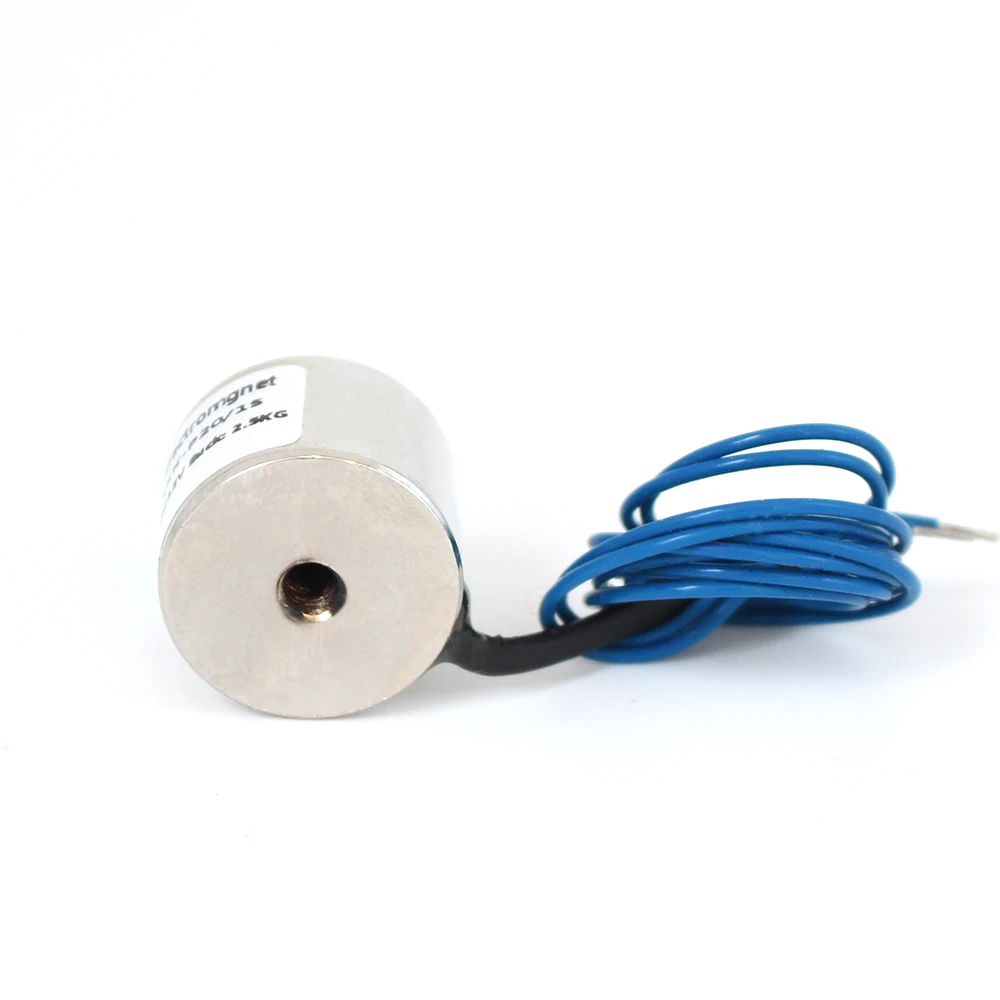

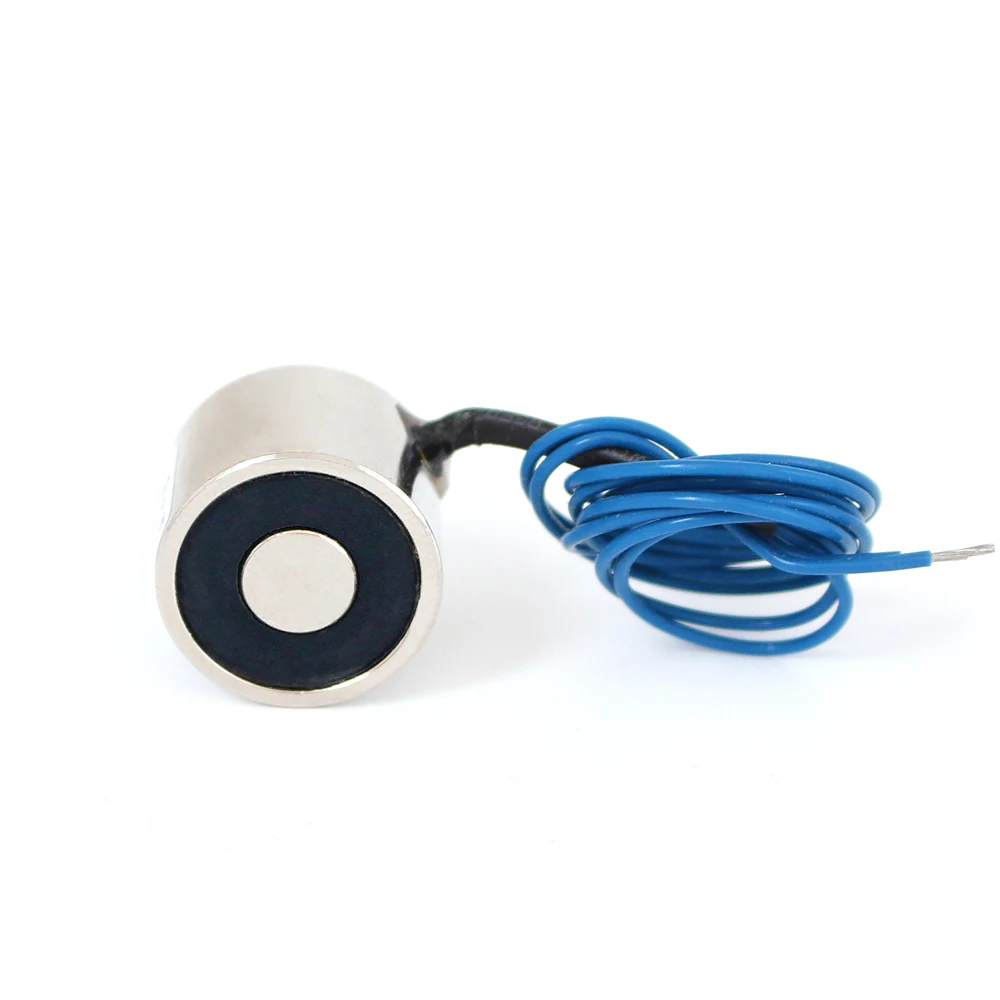

2015 всасывания 2.5 кг 25N мини Электромагнит Электромагнитный 12 В Электромагнит 12 вольт небольшой электро-Магнит 24 В катушки 6 В Электрический магнит

Non-standard can be custom,Minimum thickness can be 4MM.

Notes: We often change the lables for convenient production! Please do not care about it!

！！！Precautions！！！：

Electromagnets must meet the following conditions to achieve maximum suction:

1、The object to be sucked must have a good magnetic permeability.

2、Proper use of power supply, rated voltage.

3、The object to be sucked must be flat and clean.

4、The object to be sucked must be greater than or equal to the surface of the magnet

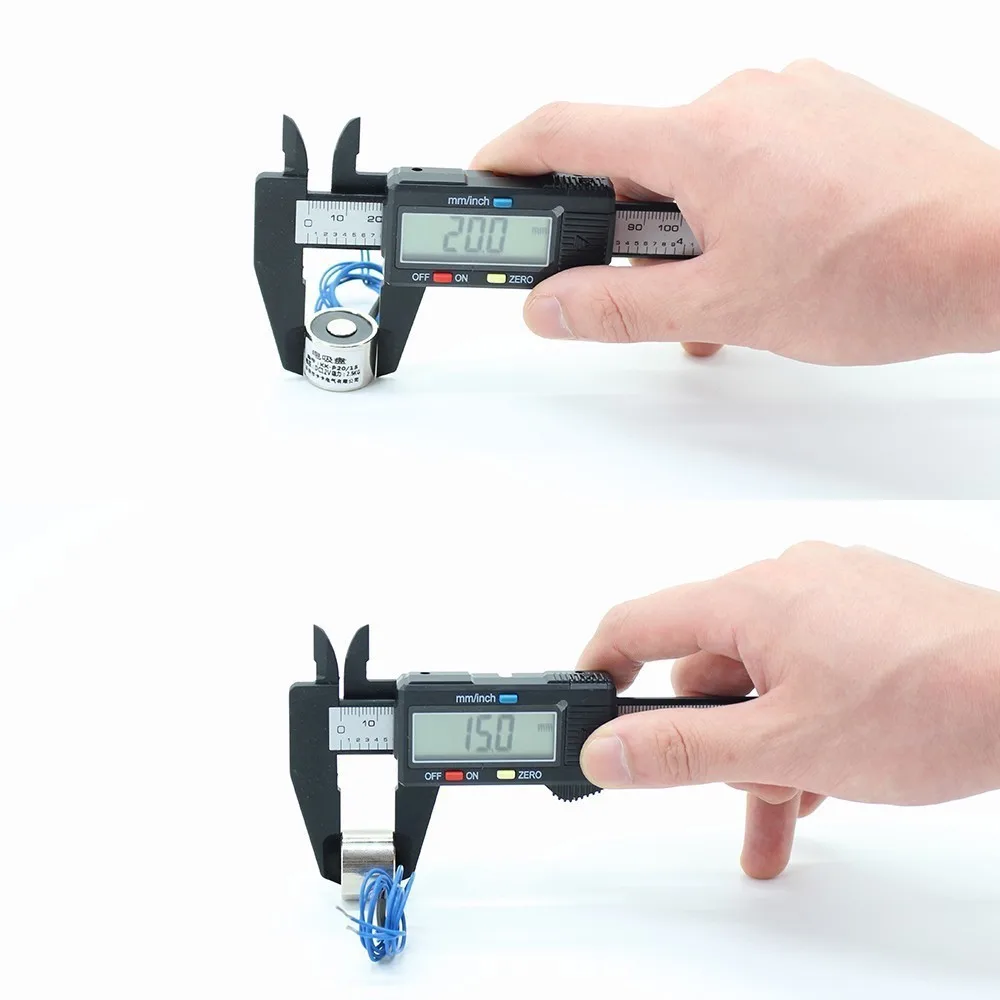

( For example: the magnet is 20*15 mm , so the surface area is

S=r²π=10²π mm²

so the object to be sucked must be greater than or equal to 10²π mm² )

5、The object to be sucked must be greater than 8mm.(If the thickness decreases, the suction decreases)

6、The object to be sucked must be close, the middle can't be interspersed with objects or gaps

！！！Contrary to any conditions, suction will be reduced, not the maximum suction. ！！！Please pay attention when you want to buy. Refused to dispute, at your own risk.

If you need other model , please click on the model in the table

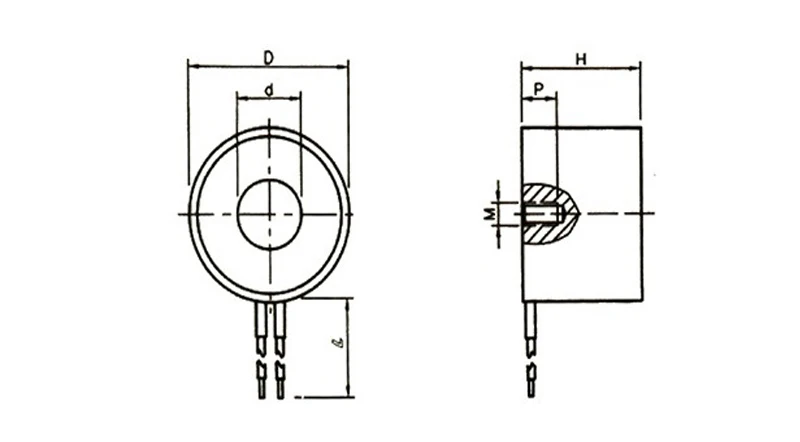

Model

D(mm)

D(mm)

H(mm)

M

Power(W)

Suction(KG)

10/10

10

4

10

2

1

0.3

Click to buy

13/27

13

5

27

3

1

1

Click to buy

13/30

13

5

30

3

1

1

Click to buy

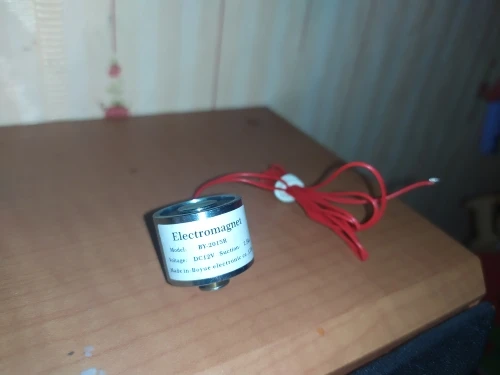

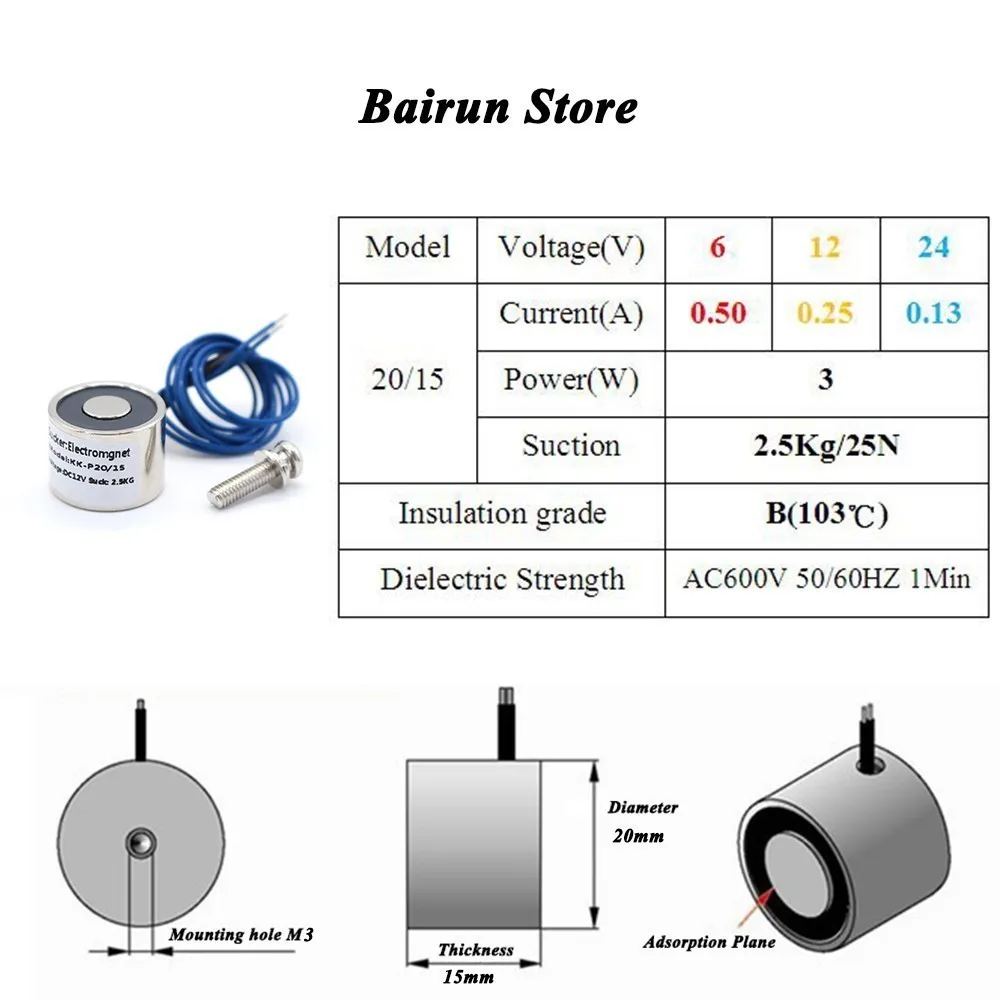

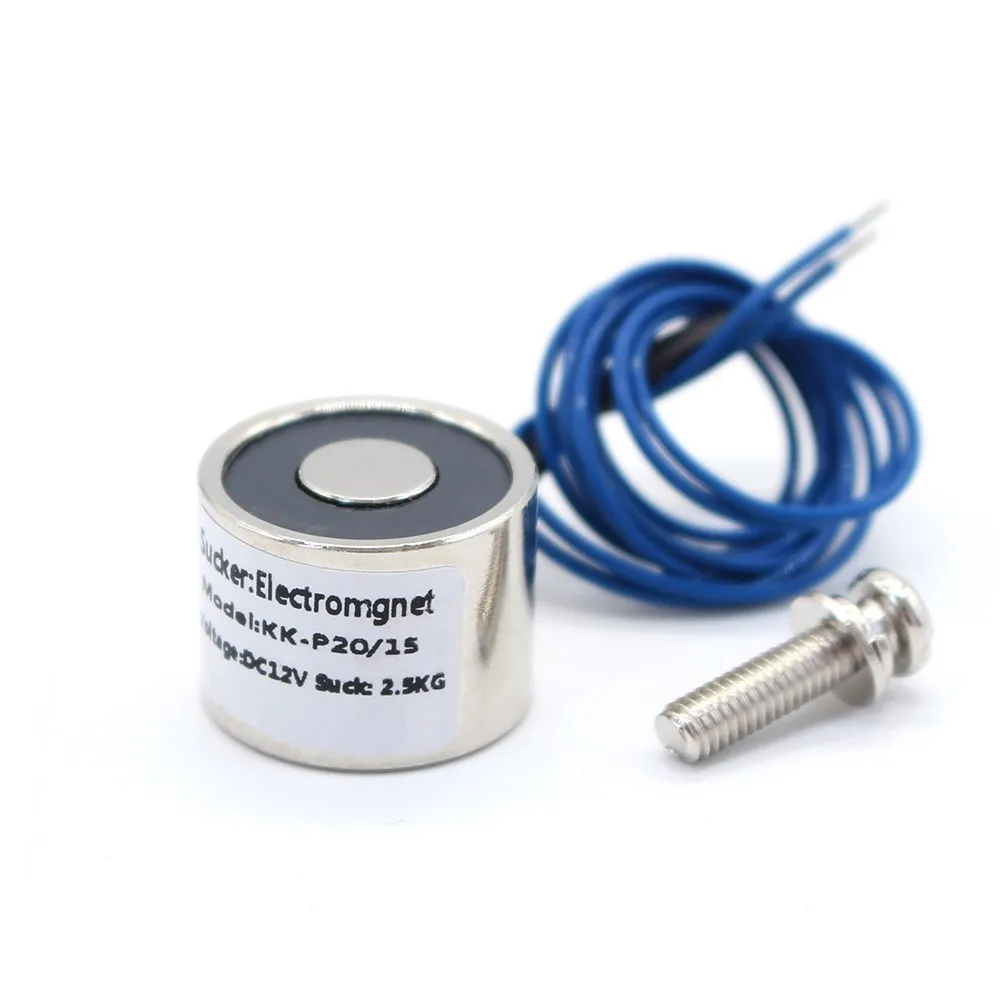

20/15

20

8

15

4

2

2.5

Click to buy

25/11

25

10

11

4

2

5

Click to buy

25/20

25

12

20

4

2

5

Click to buy

30/22

30

12

22

4

3

10

Click to buy

30/25

30

12

25

4

3

12

Click to buy

34/18

34

16

18

4

3

18

Click to buy

34/25

34

16

25

5

3.5

20

Click to buy

36/38

36

38

5

25

Click to buy

40/20

40

18

20

5

3.5

25

Click to buy

40/25

40

18

25

5

4

30

Click to buy

49/21

49

23

21

6

5

40

Click to buy

50/27

50

23

27

6

6

50

Click to buy

50/30

50

23

30

6

7

60

Click to buy

59/34

59

27

34

8

10

70

Click to buy

65/30

65

26

30

8

10

80

Click to buy

65/60

65

27

60

8

16

100

Click to buy

70/9

Car license plate

70

32

9

5

9

15

Click to buy

70/10

Car license plate

70

32

10

5

9

20

Click to buy

80/10

Car license plate

80

34

10

5

9

25

Click to buy

80/38

80

34

38

8

12

100

Click to buy

80/38

80

34

38

8

13

120

Click to buy

80/80

80

37

80

10

20

200

Click to buy

100/40

100

42

40

10

12

150

Click to buy

100/40

100

42

40

10

13

200

Click to buy

120/40

120

58

40

12

15

300

Click to buy

120/50

120

58

50

12

15

350

Click to buy

120/70

120

58

70

12

15

400

Click to buy

150/50

150

80

50

14

15

500

Click to buy

160/50

160

80

50

14

15

600

Click to buy

Non-standard can be custom,Minimum thickness can be 4MM.

Notes: We often change the lables for convenient production! Please do not care about it!

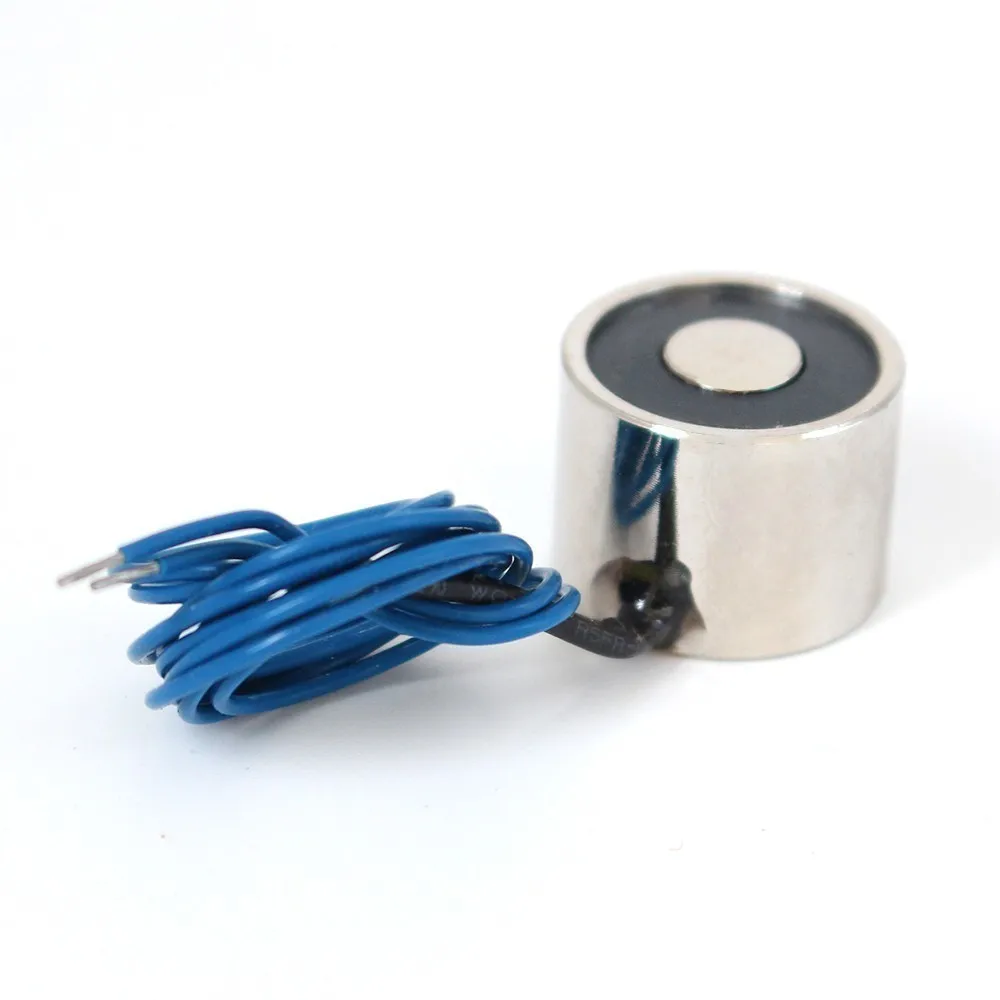

Electric lifting magnet.

Powerful and compact.

Smooth and flat surface.

Low consumption and reliable.

Ambient temperature within 130 degrees.

Widely applied in automations: assembly line, sorting machine, mechanical arm, experimental facility, etc

suction means more than 5cm in thickness, surface roughness, the surface is greater than the cross-sectional area of the electromagnet and maximum suction completely fit together on an iron-based material.

Electromagnet in working condition electromagnetic conversion would produce a certain amount of heat, electricity more frequently the higher temperature, which is a normal phenomenon.
