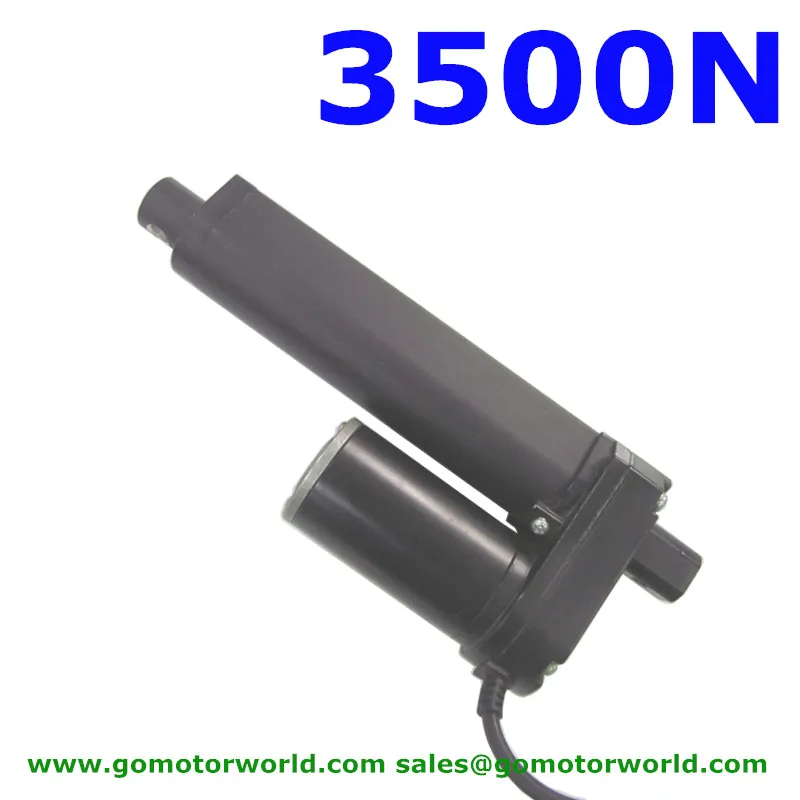

Водонепроницаемый 12V 100mm 4-дюймовый Регулируемый ход 3500N 770LBS нагрузка 170 ммсек. скоростной сверхмощный линейный привод LA1035
GoMotorWorld Automation Tech Store - Надежность 82.5%
Более 1497 подписчиков, дата открытия магазина 15.12.2011
- Положительные оценки: 84% (51)
- Соответствие описанию: 86%
- Отвечает на сообщения: 84%
- Скорость отправки: 76%
Последнее обновление: 11.04.2022





12V DC 3500N=350KG=770LBS load 5mm/sec=0.2inch/sec speed 100mm=4 inches stroke heavy duty linear actuator LA1035
1 Type LA1035 with metal gear
2 Input 12V/24V DC
3 Load 3500N=350KG=770LBS
4 Speed 5mm/sec=0.2inch/sec
5 Limited switch With
6 Duty cycle 25%
7 Inner tube material Aluminum Alloy
8 Stroke length 100mm=4inch
9 Color Black
10 Operation temperature -26 ~ +65 degree
Advantage:
More than 15 years experience,smart size,heavy duty motor.

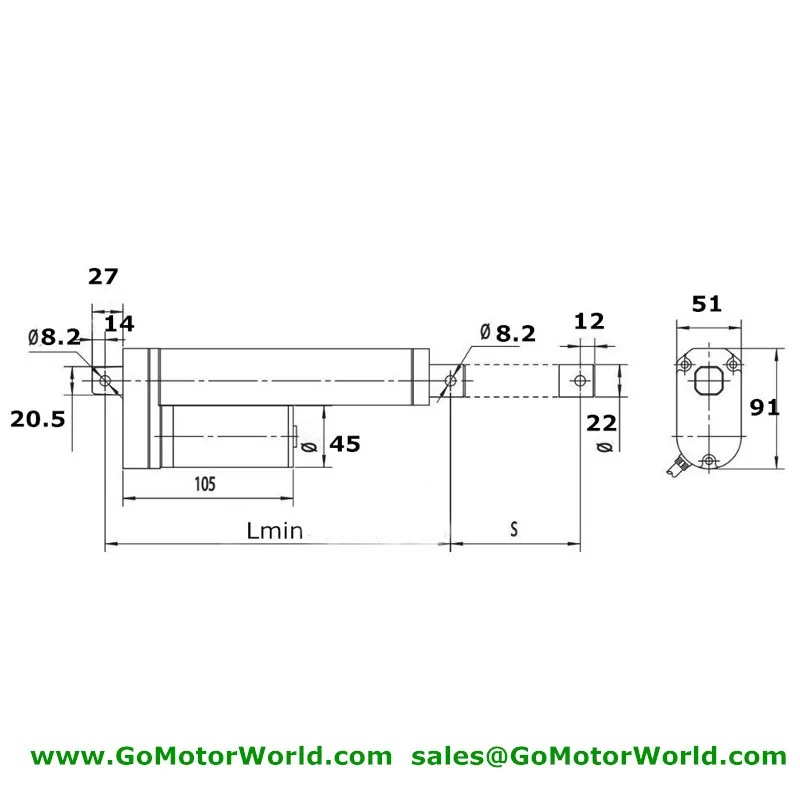

Drawing:

1. Retracted length=Lmin=120+Stroke=120+100=220mm
Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch and stop automatically,very safe.
2. Stroke means the movement length of linear actuator.
3. Lmax=Lmin+Stroke=220+100=320mm
Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch and stop automatically,very safe.

Fast order link
Customized service:
1. Input : 12V or 24V or 36V or 48V
2. Load : 100N or 100KG or 220LBS and so on
3. Speed : 5mm/sec or 10mm/sec or 1inch/sec or 4inch/sec and so on
4. Stroke : 50mm or 200mm or 1000mm 4inch or 16inch or 40inch and so on
5. Rectracted Length=Lmin : The 100% fully retracted length
6. Cable length : 1m or 2m or 20inch or 40inch and so on
7. Customer’s special requirement
Warranty
1. If you do not receive product, we will full refund you.
2. If the product has quality problem, we will full refund you.
3. If the product is damaged by express company, we will full refund you.
Payment
1. We accept paypal, Escrow,Western union and bank transfer.
Shipping
1. Order will be delivered within 3~4 days.
2. Please make sure your address and phone is correct.
Thanks for visiting my store. Any help,please contact with seller.
-
ColorBlack
-
CustomizedYes
-
Input12V DC
-
Limited switchHas
-
Load3500N
-
NameDC heavy duty linear actuator
-
Speed5mm/sec
-
Stroke100mm
-
Working duty25%
-
Вес логистики1.7
-
Выходная мощность108W
-
Каждая упаковка1
-
КоммутацияЩетка
-
КонструкцияПостоянный магнит
-
Крутящий Момент3500N
-
Минимальная единица измерения100000015
-
Название брендаFOCOTECK
-
Непрерывный Ток (A)7.9A
-
Номер моделиLA1035
-
ПрименениеВентилятор
-
Продано Вsell_by_piece
-
Размер логистики - высота (см)5
-
Размер логистики - длина (см)22
-
Размер логистики - ширина (см)10
-
СертификацияUL
-
ТипТрубчатый мотор
-
Функция защитыЗащита от воды
-
ЭффективностьIE 4
