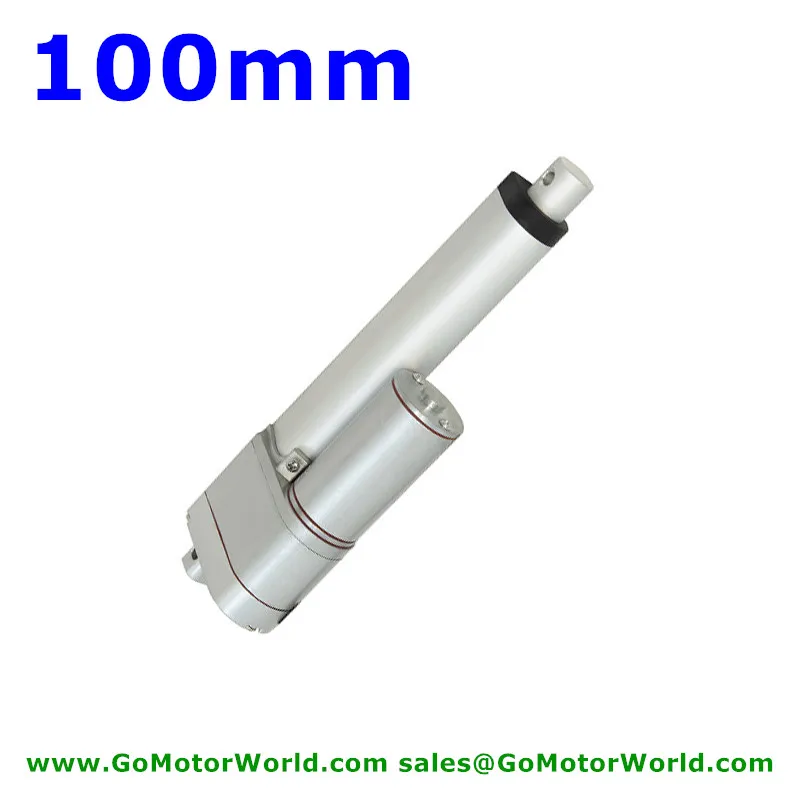

Мини линейный привод с потенциометром позиционный сигнал обратная связь 24 в 12 В 100 мм ход 900N 90 кг нагрузка 80 ммсек. скорость LA10P

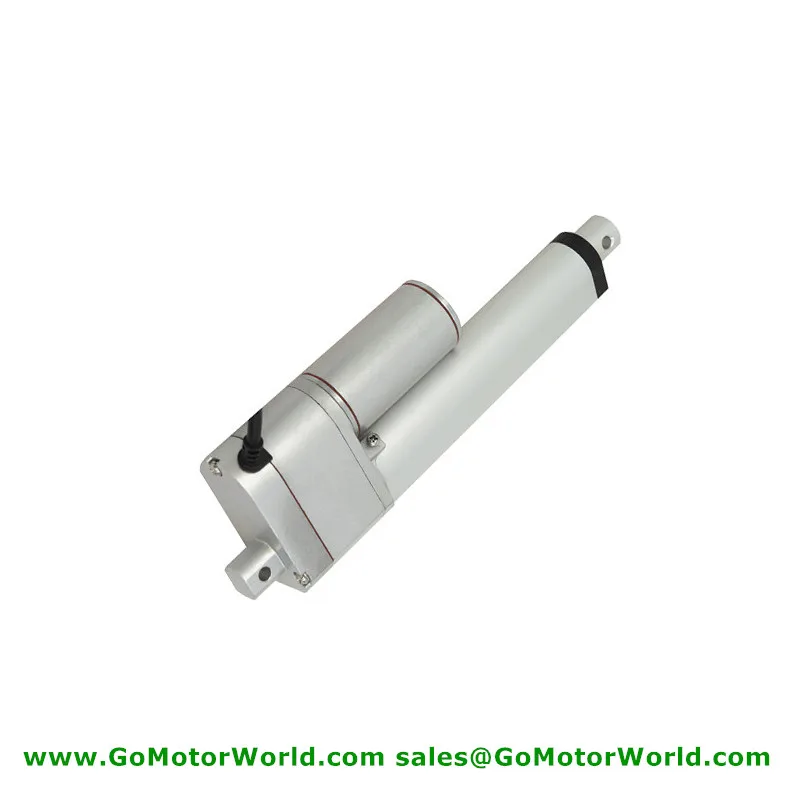

LA10P DC linear actuator is with Potentiometer POT signal feedback. The stroke position can be set by customer for special purpose.

LA10P Linear actuators are widely used in electric bed or door or window, adjustable sofa,car chair,machine tools and industrial machinery.

 1    Type                             LA10P with potetiometer position feedback

 2    Input                            12V 24V DC

 3    Load                             Max 900N=90KG=198LBS

 4    Speed                           Max 80mm/sec

 5    Limited  switch               With

 6    Duty cycle                      25%

 7    Inner tube material         Aluminum Alloy

 8    Stroke length                 Options

 9    Color                             Silver

10   Operation temperature   -26 ~ +65 degree

11   IP                                   Max IP 65

For the video,please visit

https://www.youtube.com/user/GoMotorWorld

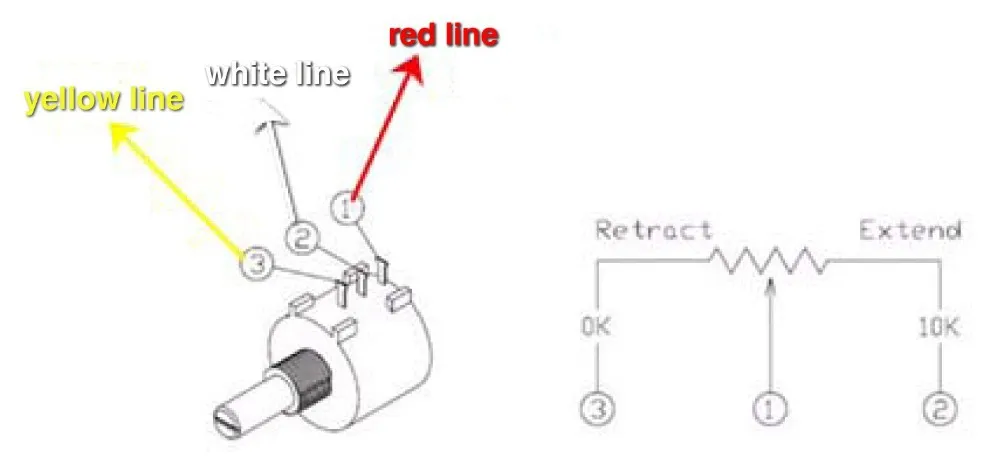

The manual of colorful line:

1 the blue and brown line is the cable

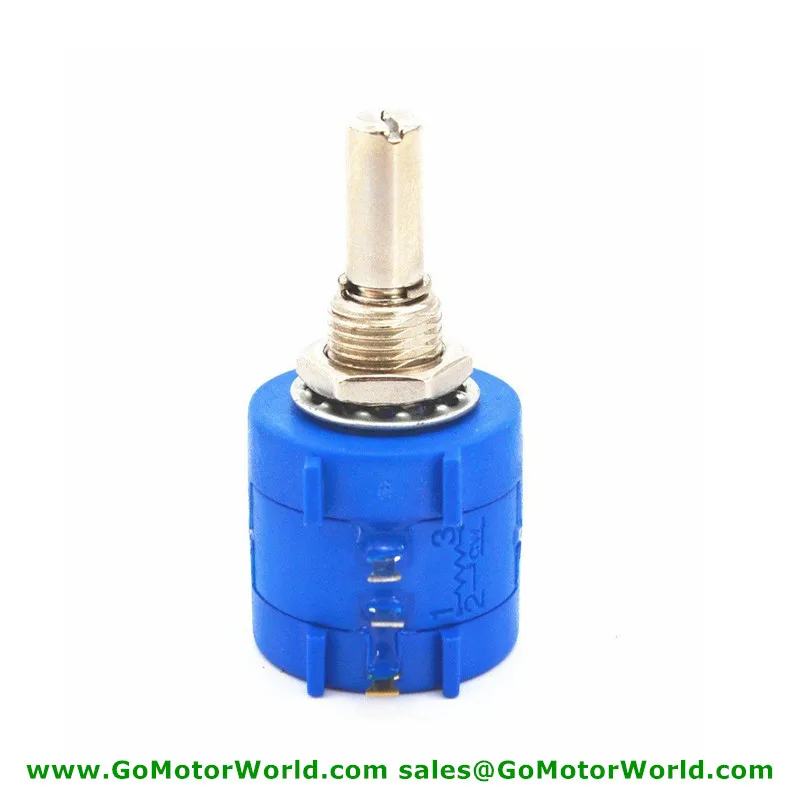

2 the red line is the base line of potentiometer

3 the white and yellow line connect with potentiometer

4 when the lead screw spreads/extends, the resistance of the white and red

line increase, the resistance of the red and yellow line will reduce.

5 when the lead screw goes back/retracts, the resistance of the white and

red line will reduce, the resistance of the red and yellow line will increase.

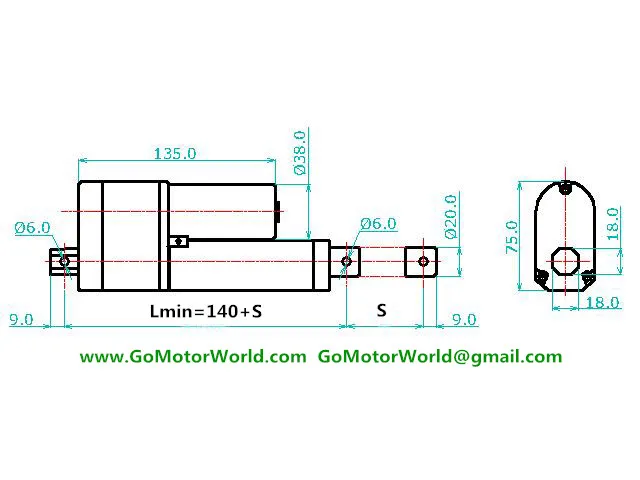

Lmin=140+Stroke=140+100=240mm

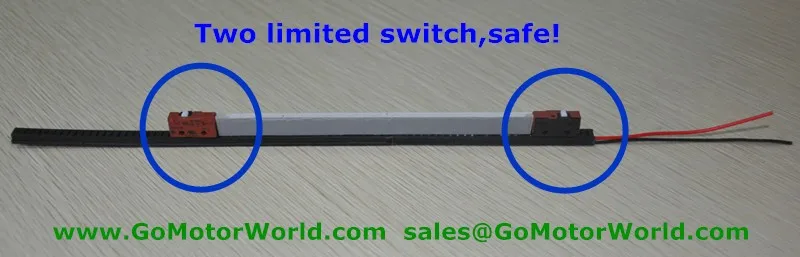

Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch,stop automatically,very safe.

Stroke means the movement length of linear actuator.

Lmax=Lmin+Stroke=240+100=340mm

Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch,stop automatically,very safe.

If you do not find suitable linear actuator, contact with seller, my engineer will offer customized linear actuator for you.

Input : 12V or 24V

Load : 100N or 100KG or 220LBS and so on

Speed : 5mm/sec or 10mm/sec or 1inch/sec or 4inch/sec and so on

Stroke : 50mm or 200mm or 4inch or 16inch and so on

Rectracted Length : The 100% fully retracted length

Cable length : 1m or 2m or 20inch or 40inch and so on

G: Customer’s special requirement
