Product Description

Hardware Specifications

Chipset

MCU32-WROVER-B, AXP192 power management chip

Flash memory

4MB /16MB

Static SRAM

8MB

SRAM

520 kB SRAM

Button

PWR power switch, reset

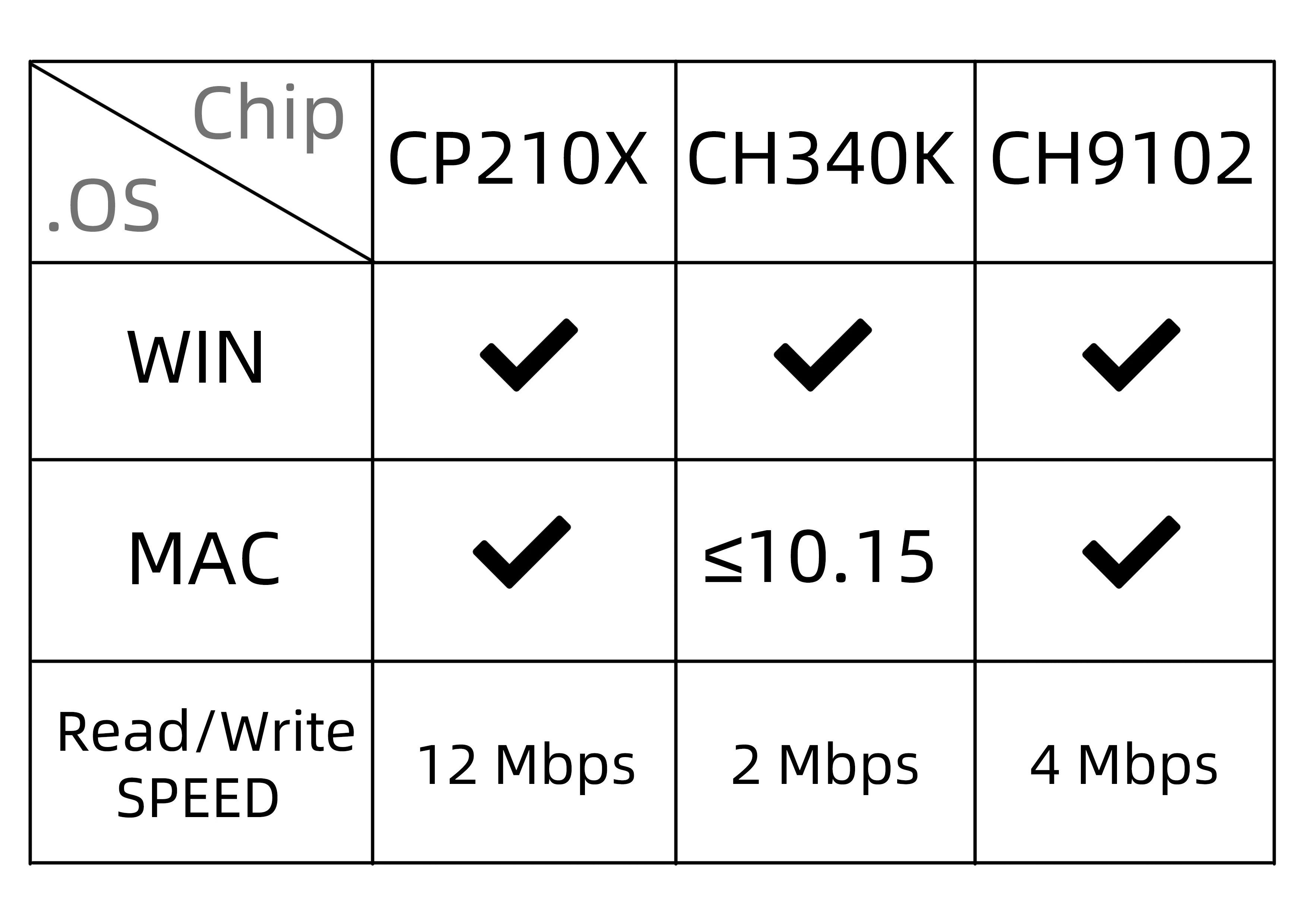

USB to TTL

CP2104 / CH9102F /CH340K

Car clock

40MHz crystal oscillator

Peripheral equipment

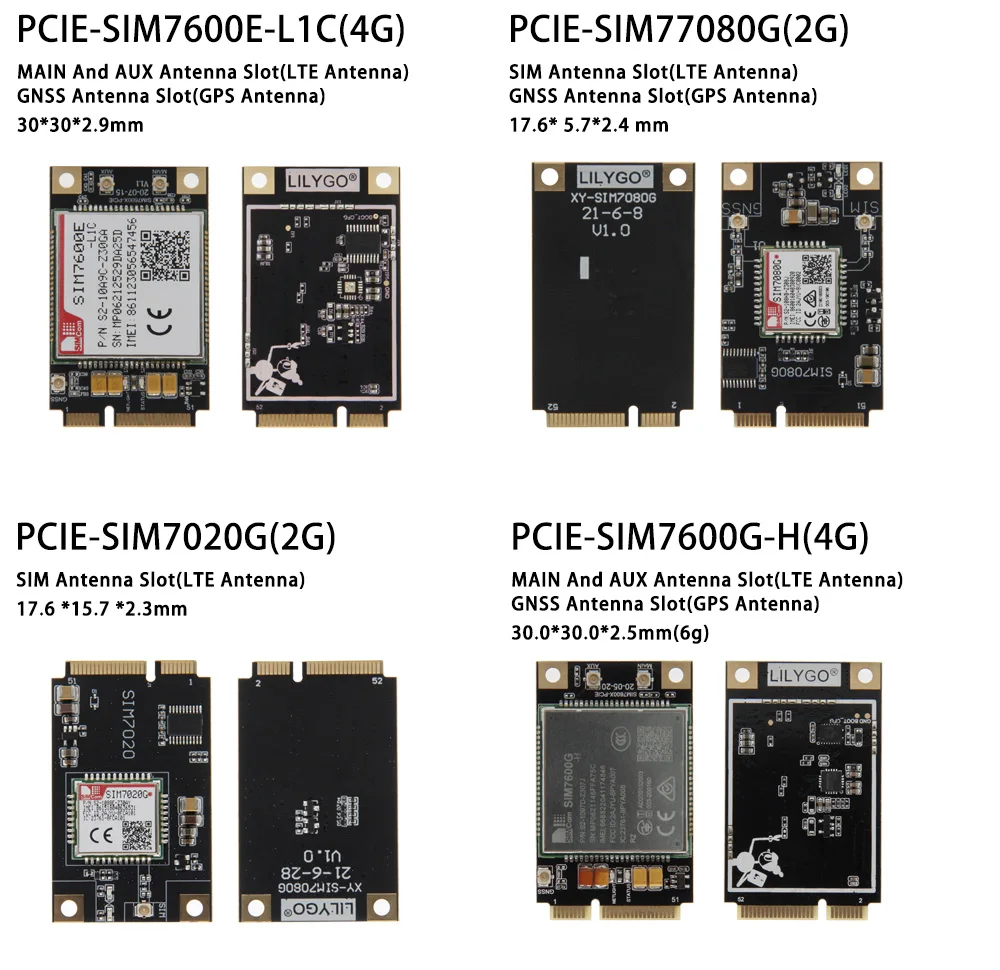

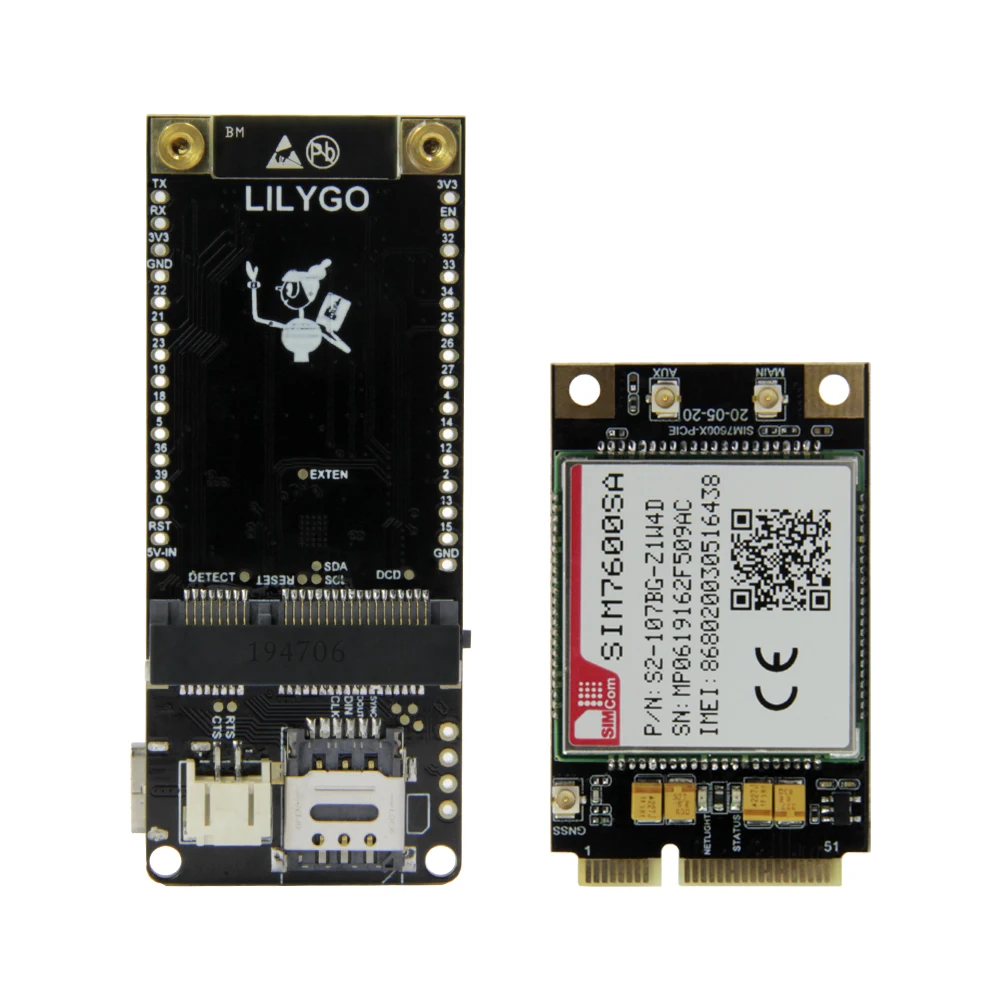

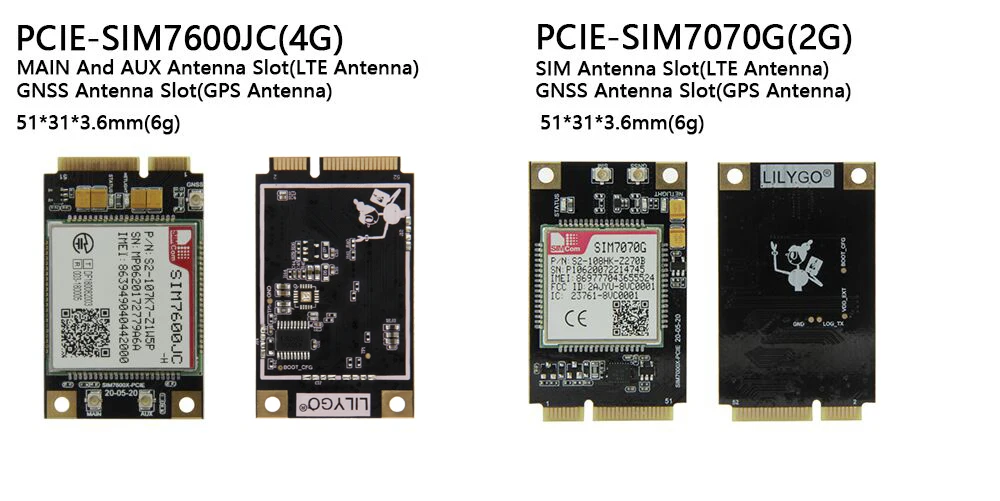

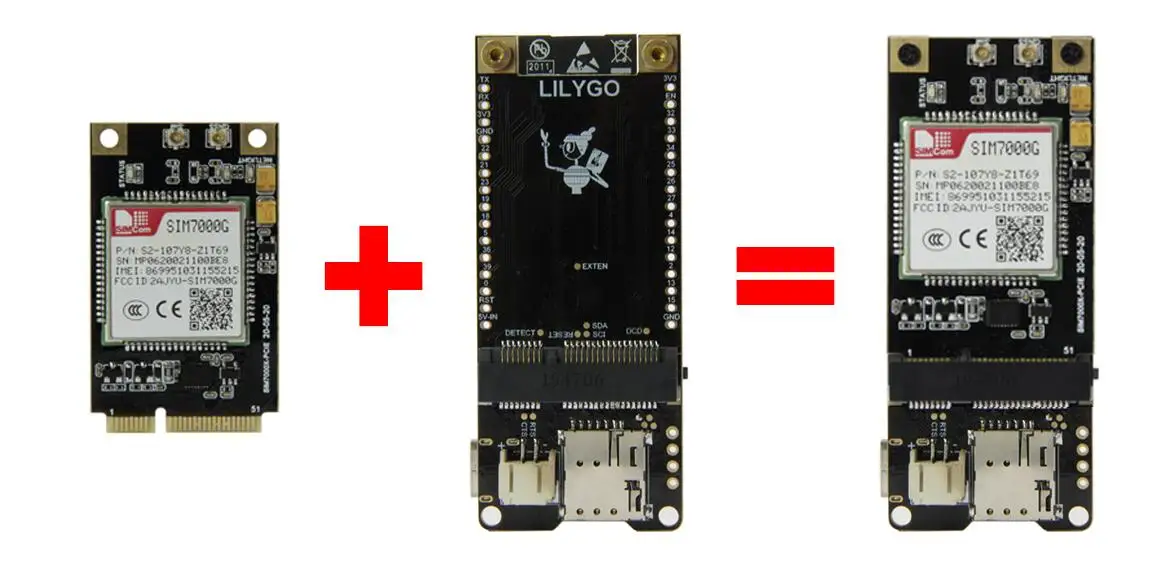

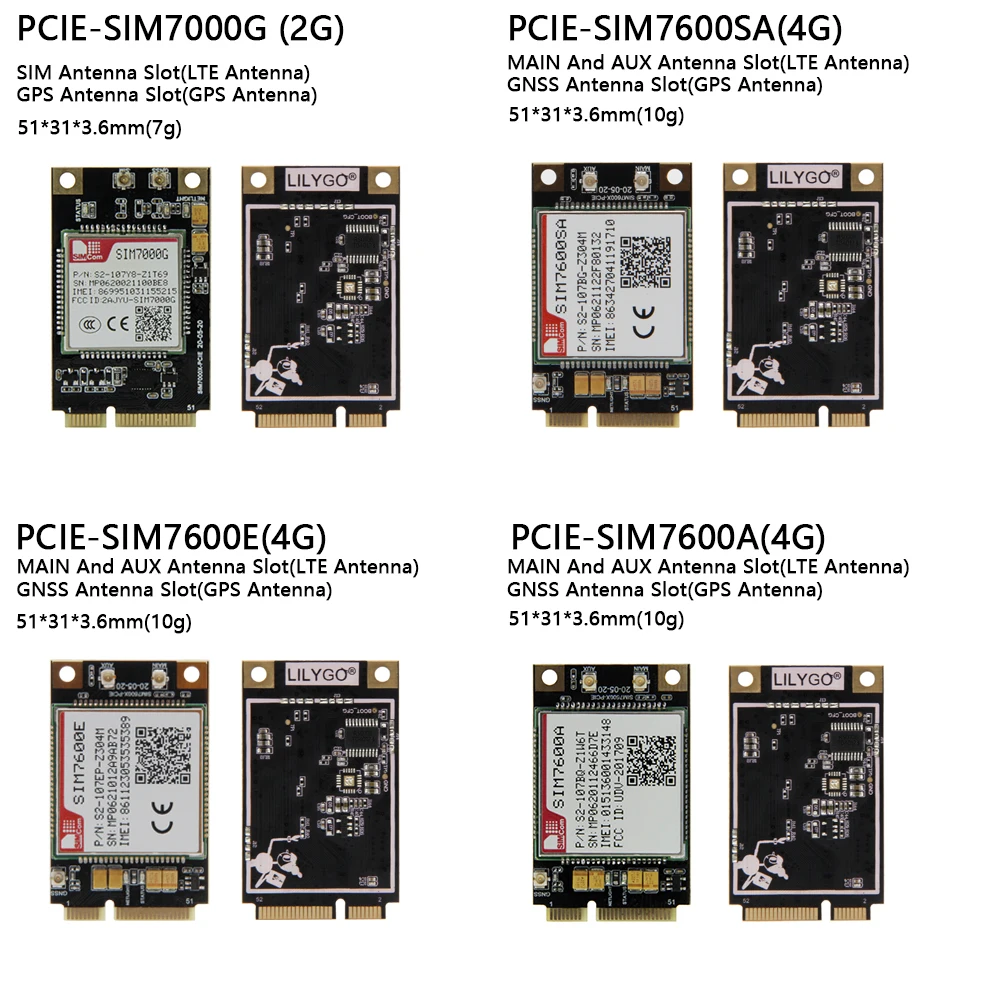

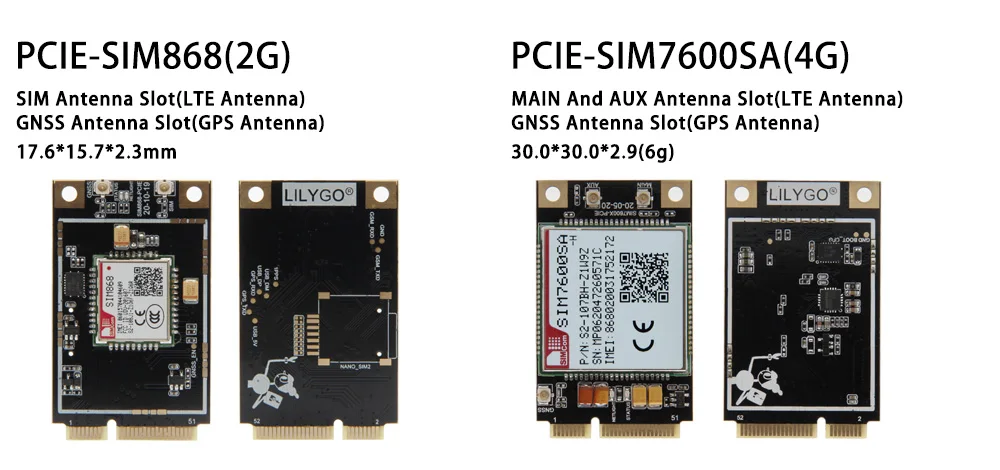

SIM Nano card slot, Mini PCIE card slot

Antenna

Onboard antenna (default)

Operating voltage

2.7V to 3.6V

Working current

Sleep current

about 700ma

Operating temperature range

-40℃~+85℃

Size

75 * 33 * 10.5 mm

Weight

14.5g

Power Specifications

Power input

USB 5V / 1A

Charging current

500 mA

Battery input

3.7-4.2V

Charging IC

AXP192

JST connector

2-pin 2.0mm

USB

Type C

wireless online

Standard

FCC / CE-RED / IC / TELEC / KCC / SRRC / NCC (MCU32 chip)

Protocol

802.11 b/g/n (802.11n, speed up to 150Mbps) A-MPDU and A-MSDU aggregation, support 0.4μS guard interval

Frequency range

2.4GHz 2.5GHz (2400M 2483.5M)

Transmit power

Communication distance

22dBm

Bluetooth

Protocol

complies with Bluetooth v4.2BR/EDR and BLE standards

Radio frequency

NZIF receiver Class-1, Class-2&Class-3 transmitter AFH with sensitivity of -97dBm

Audio

CVSD&SBC audio

Software specifications

Wi-Fi mode

Workstation / SoftAP / SoftAP + Station / P2P

Security mechanism

WPA / WPA2 / WPA2-Enterprise / WPS

Encryption method

AES / RSA / ECC / SHA

Firmware upgrade

UART download/OTA (download and write firmware via network/host)

Software development

Support cloud server development/SDK for user firmware development

Network protocol

IPv4, IPv6, SSL, TCP / UDP / HTTP / FTP / MQTT

User configuration

AT + instruction set, cloud server, Android / iOSapp

Operating system

FreeRTOS

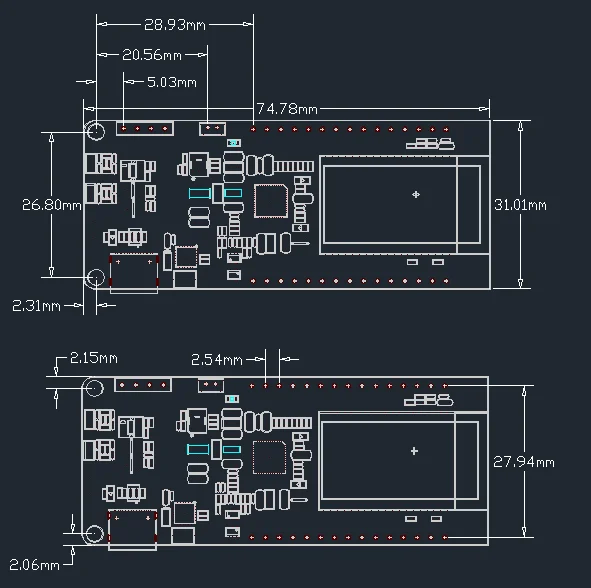

Product size chart
