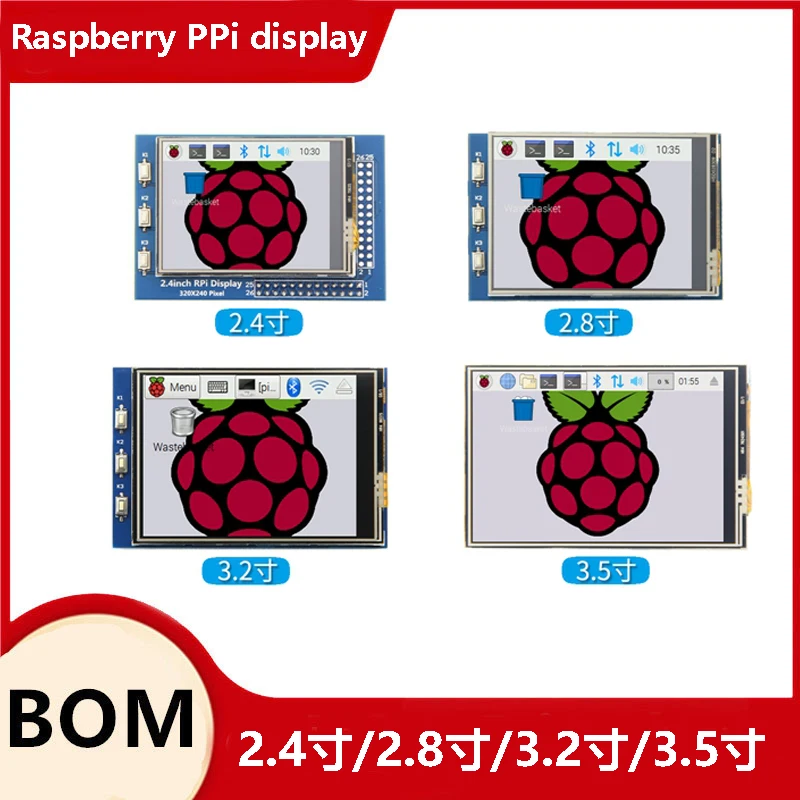

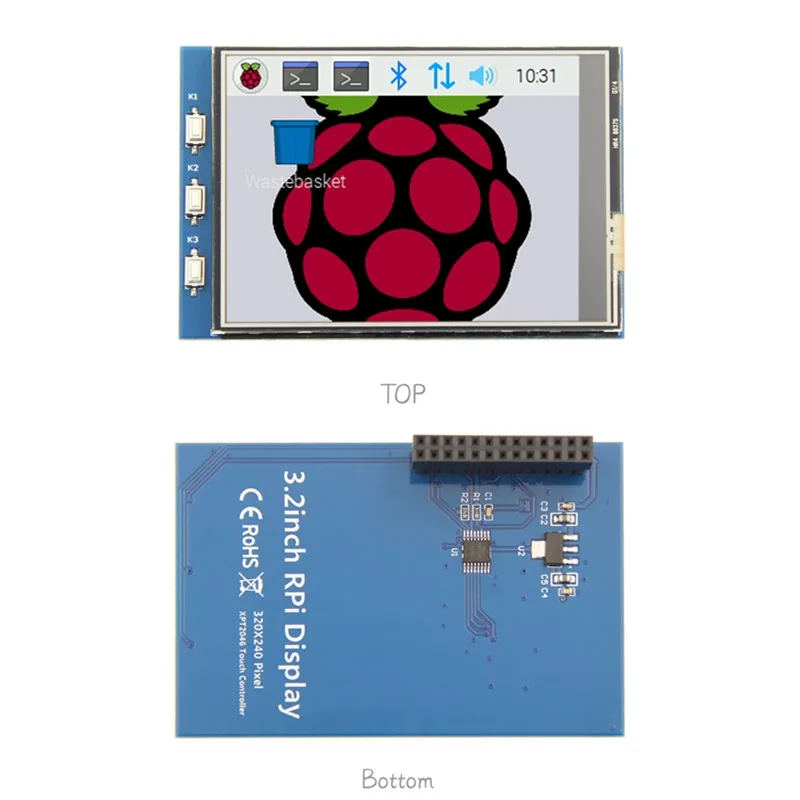

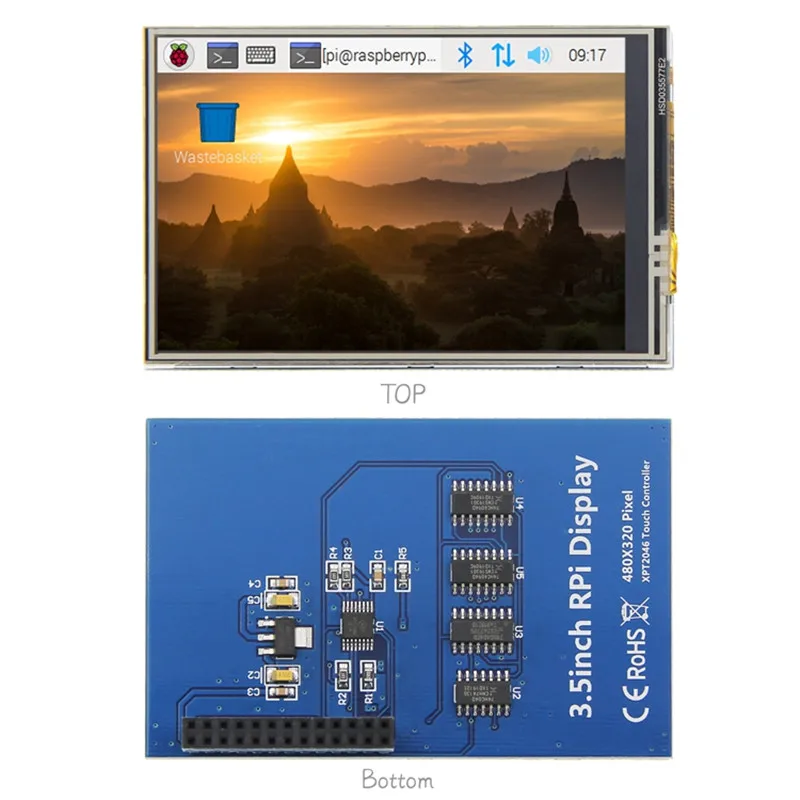

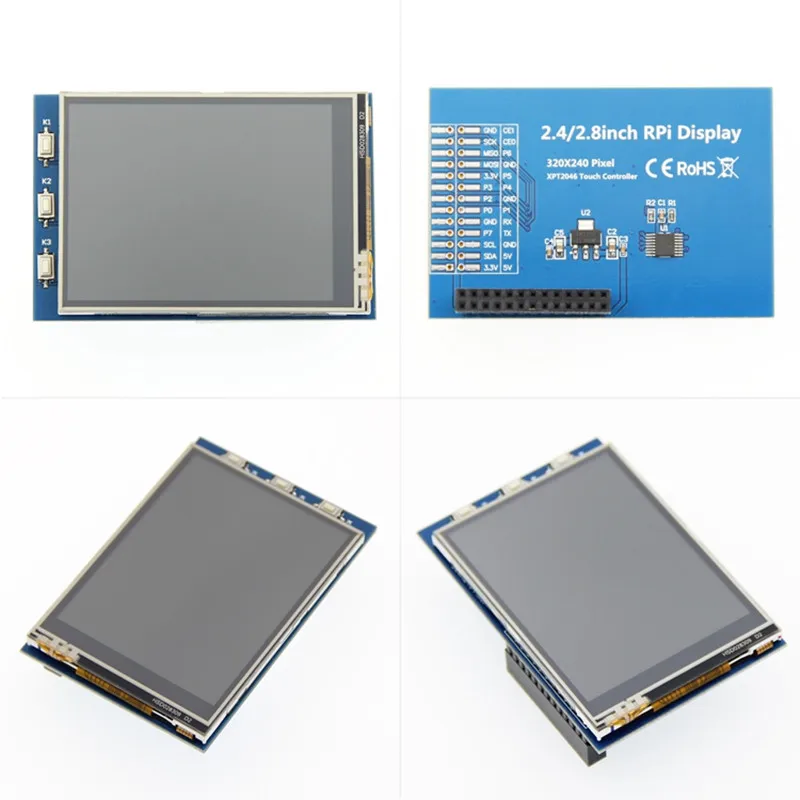

3,22,83,23,5 дюйма серии GPIO, 2,4 дюйма2,8 дюйма3,2 дюйма3,5 дюйма, сенсорный экран для Raspberry Pi 4B 3B B +

Name: 🛍 3,22,83,23,5 дюйма серии GPIO, 2,4 дюйма2,8 дюйма3,2 дюйма3,5 дюйма, сенсорный экран для Raspberry Pi 4B 3B B +
Brand: Разное
SKU: 1005003238478193
Price: 491.28 RUB
Availability: InStock

语言选择(Other languages)：

中文

English

[隐藏]

1Product Pictures

2Product Features

3Main Parameters

4Hardware Description

5How to use in the Raspberry/Ubuntu Mate/Kali system

6How to rotate the display direction

7Download Resources

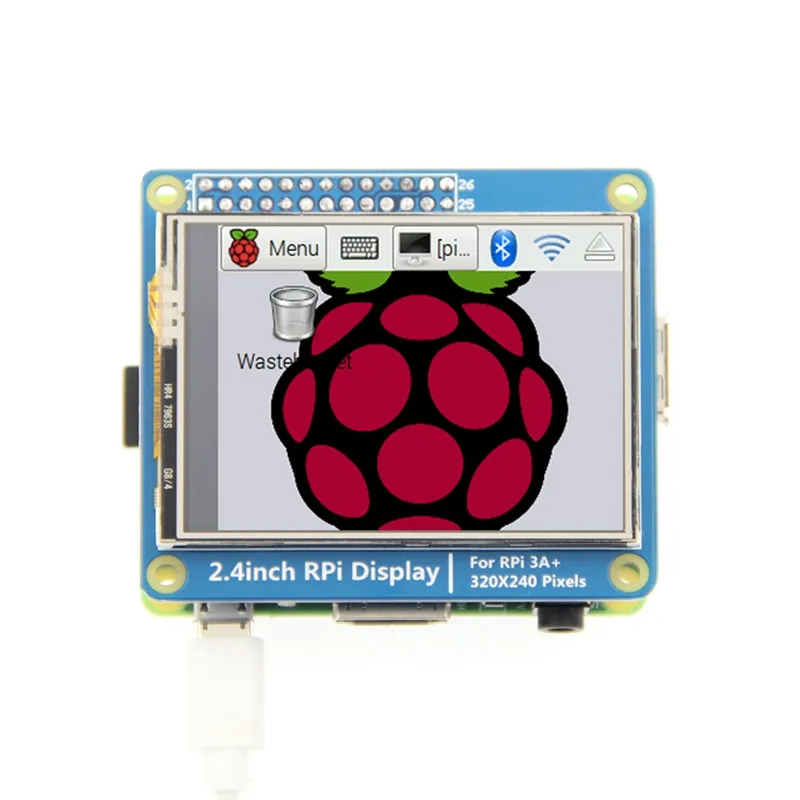

Product Pictures

Product Features

2.4inch standard display with physical resolution of 320×240

SPI interface with resistive touch screen for touch control

perfectly compatible and can be directly inserted into any version of the Raspberry Pi (Raspberry Pi ZeroW, A, A+, B, B+, 2B, 3B, 3B+)

Support for Raspbian/Ubuntu/Kali systems, Provide driver, image, and online wiki guidance documents

This product has passed CE and RoHS certification

Main Parameters

Name

Description

SKU

MPI2411

Screen Size

2.4inch

LCD Type

TFT

Module Interface

SPI

Resolution

320*240 (Pixel)

Active Area

36.72x48.96(mm)

Touch Screen Controller

XPT2046

LCD Driver IC

ILI9341

Backlight

LED

Power Consumption

0.08A*5V

Operating Temperature（℃）

-20~60

Module PCB Size

56.00x65.00(mm)

Rough Weight(Package containing)(g)

37 (g)

Hardware Description

Interface Definition

Pin Number

Identification

Description

1, 17

3.3V

Power supply (3.3V power input)

2, 4

5V

Power supply (5V power input)

3, 5, 7, 8, 10, 12， 16，18，22

NC

Not connected

6, 9, 14, 20, 25

GND

Power ground

11

TP_IRQ

The touch panel is interrupted, and it is detected that the touch panel is pressed low.

15

LCD_RS

Instruction/data register selection, low level is instruction, high level is data

19

LCD_SI / TP_SI

LCD display / touch panel SPI data input

21

TP_SO

Touch panel SPI data output

13

RST

Reset signal, low reset

23

LCD_SCK / TP_SCK

LCD display / touch panel SPI clock signal

24

LCD_CS

LCD chip select signal, low level enable

26

TP_CS

Touch panel chip select signal, low level enable

Product Size

How to use in the Raspberry/Ubuntu Mate/Kali system

There are two ways to use it

The First Method

Directly download the image we created and burn it into the micro SD card and insert it into the RaspberryPi. (Q:How to burn?)Image download see the image download section of the Download Resources

The second method

Step 1, install the latest official image of various systems (Q:How to install？)(1)Download the latestRaspbian/Ubuntu Mate/Kali-linuximage from the official(2) Format the Micro SD card using SDFormatter(3) Use Win32DiskImager to burn the official image to the Micro SD cardStep 2, connect with the Raspberry Pi

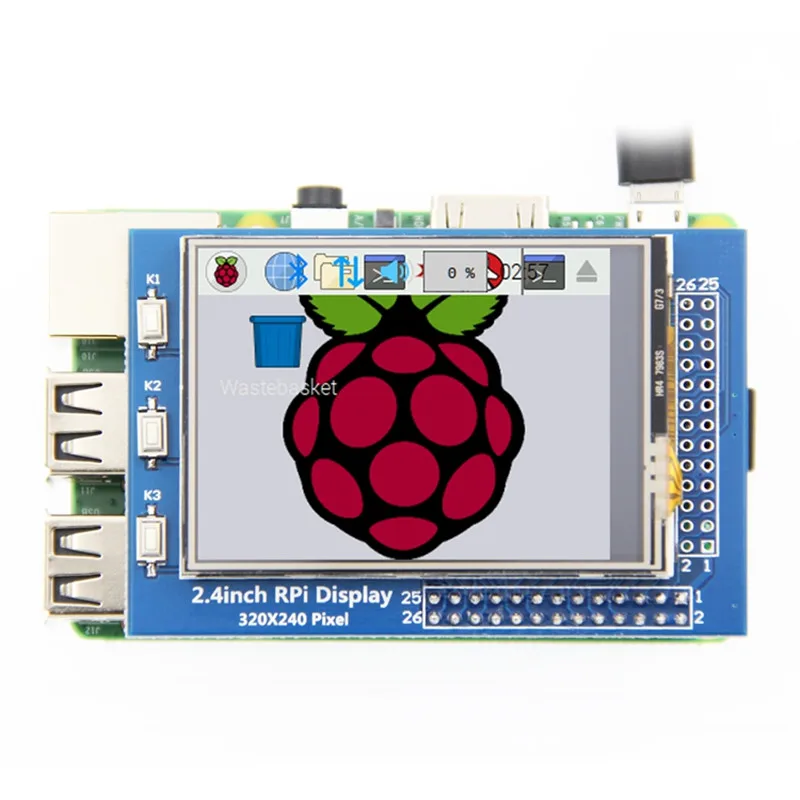

Align right-side to insert the LCD screen Plug-in MicroSD card, connect network and power

Step 3, install the LCD driverA. Install on the Raspbian system (the Raspberry Pi needs to connect to the Internet)(1) Log in to the Raspberry Pi terminal(SSH remote login user name and password, see the image download of the Download Resources) (Q:The ssh can't connect?)(2) Execute the following command to get the LCD driver and install it (after copying, click the right mouse button in the Putty window to paste):

sudo rm -rf LCD-showgit clone https://github.com/goodtft/LCD-show.gitchmod -R 755 LCD-showcd LCD-show/sudo ./LCD24-3A+-show

B. Install on the Ubuntu Mate, Kali system(1) Download the local driver, the download link is as follows: (Because of system differences, the driver downloaded from github cannot run normallyin the two systems Ubuntu Mate, Kali, so only local drivers can be used)Driver download for Ubuntu-mate-18.04 system:LCD-show.tar.gzDriver download for Kali-linux system:LCD-show.tar.gz(2) Log in to the Raspberry Pi terminal(SSH remote login user name and password, see the image download of the Download Resources) (Q:The ssh can't connect?)(3) Copy the local driver to the running Raspberry Pi system and execute the following command to extract it (can be copied by SD card or FileZilla software)

tar -xvzf LCD-show.tar.gz

(4) Execute the following command to install the LCD driver

chmod -R 755 LCD-showcd LCD-show/sudo ./LCD24-3A+-show

Step 4, Check if the driver is successfully installed(1) After the LCD driver is installed, the system will automatically restart. After the startup is successful, the LCD can display and touch normally,indicating that the driver installation is successful.

Note:

A. Ubuntu system default SSH is not enabled, the specific method of opening seeRaspberryPi Ubuntu-mate open ssh instructionsB. Ubuntu-18.04 system ssh connection may fail, the specific solution is shown in RaspberryPi Ubuntu-mate-18.04 ssh connection failure solution descriptionC. After installing this driver, the HDMI output will be disabled. To switch back to the HDMI display, execute:sudo ./LCD-hdmi

How to rotate the display direction

This method only applies to the Raspberry Pi series of display screens, other display screens do not apply.

Method 1，If the driver is not installed, execute the following command (Raspberry Pi needs to connected to the Internet):

sudo rm -rf LCD-showgit clone https://github.com/goodtft/LCD-show.gitchmod -R 755 LCD-showcd LCD-show/sudo ./XXX-show 90

After execution, the driver will be installed. The system will automatically restart, and the display screen will rotate 90 degrees to display and touch normally.（ ' XXX-show ' can be changed to the corresponding driver, and ' 90 ' can be changed to 0, 90, 180 and 270, respectively representing rotation angles of 0 degrees, 90 degrees, 180 degrees, 270 degrees）

Method 2，If the driver is already installed, execute the following command:

cd LCD-show/sudo ./rotate.sh 90

After execution, the system will automatically restart, and the display screen will rotate 90 degrees to display and touch normally.（ ' 90 ' can be changed to 0, 90, 180 and 270, respectively representing rotation angles of 0 degrees, 90 degrees, 180 degrees, 270 degrees）If the rotate.sh prompt cannot be found, use Method 1 to install the latest drivers

Download Resources

Document

2.4inch RPi Display For RPi 3A+ quick start

2.4inch RPi Display For RPi 3A+ user manual

How to install the LCD driver

How to calibrate the resistance touch screen

How to install matchbox-keyboard

How to change display direction GPIO resistive touch

How to use Raspberry Pi(Download,Format,Burn,SSH,PuTTy)

RaspberryPi Ubuntu-mate open ssh instructions

RaspberryPi Ubuntu-mate-18.04 ssh connect

Images Download

If you have difficulty installing the driver, or if you still can't use the display properly after installing the driver,Please Try our Configned images for tested.Just need download and write the image into the TF card. DO NOT need any driver installation steps.

System Name

System Version

Supported Raspberry Pi version

Default user and passwd

Download Link

Raspbian

2021-03-04

PI4/PI3B+/PI3/

PI2/PI1/ZERO/ZERO W

user: pi

password: raspberry

BaiduYun:

MPI2411-2.4inch-for3A+-2021-03-04-raspios-buster-armhf.7z 提取码：1fv0

Mega:

MPI2411-2.4inch-for3A+-2021-03-04-raspios-buster-armhf.7z

Ubuntu-mate

20.04.1-beta2

PI4,PI3B+,PI3,PI2

user: pi

password: raspberry

BaiduYun:

MPI2411-2.4inch-for3A+-ubuntu-mate-20.04.1-beta2-desktop-armhf+raspi.7z 提取码：0idx

Mega:

MPI2411-2.4inch-for3A+-ubuntu-mate-20.04.1-beta2-desktop-armhf+raspi.7z

Kali-linux

2020.4

PI4B,PI3B+,PI3,PI2

user: kali

password: kali

BaiduYun:

MPI2411-2.4inch-for3A+-kali-linux-2020.4 提取码：x52b

Mega:

MPI2411-2.4inch-for3A+-kali-linux-2020.4

MD5 checksum of the image files

Common software

Panasonic SDFormatter

Win32DiskImager

PuTTY
