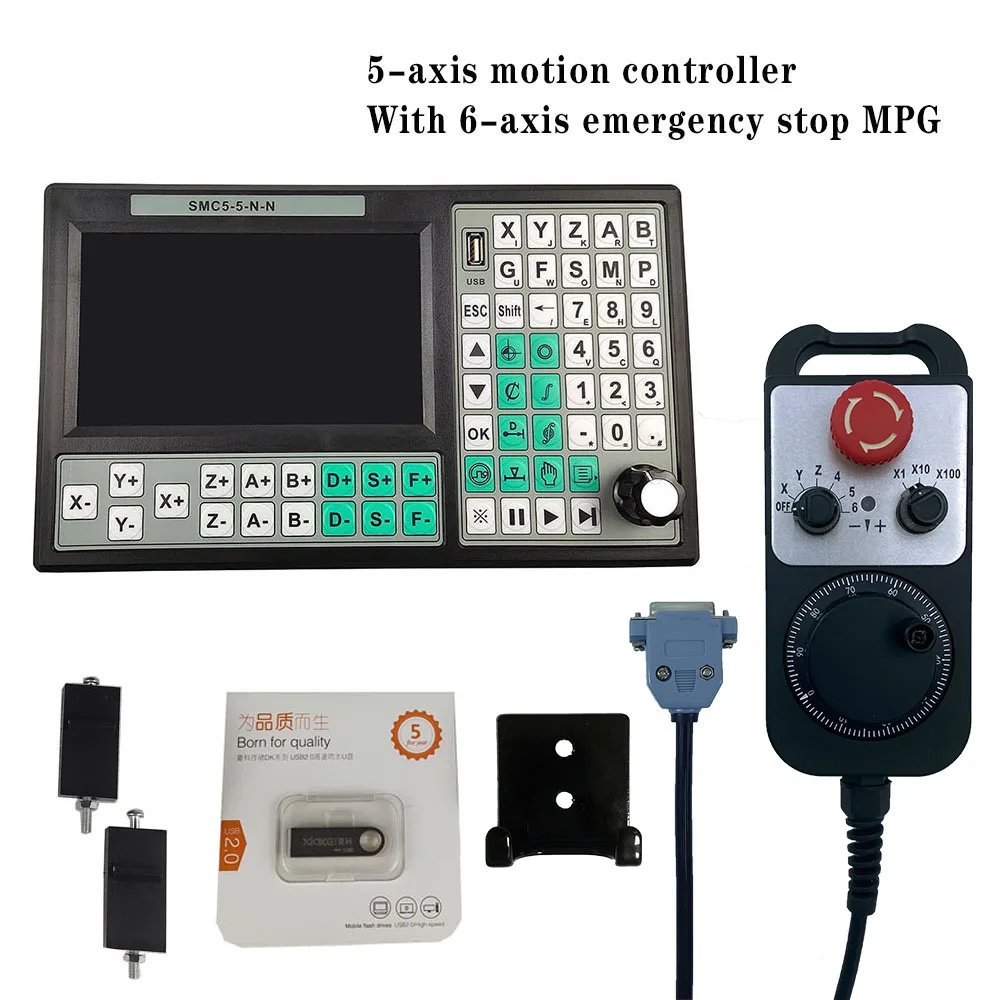

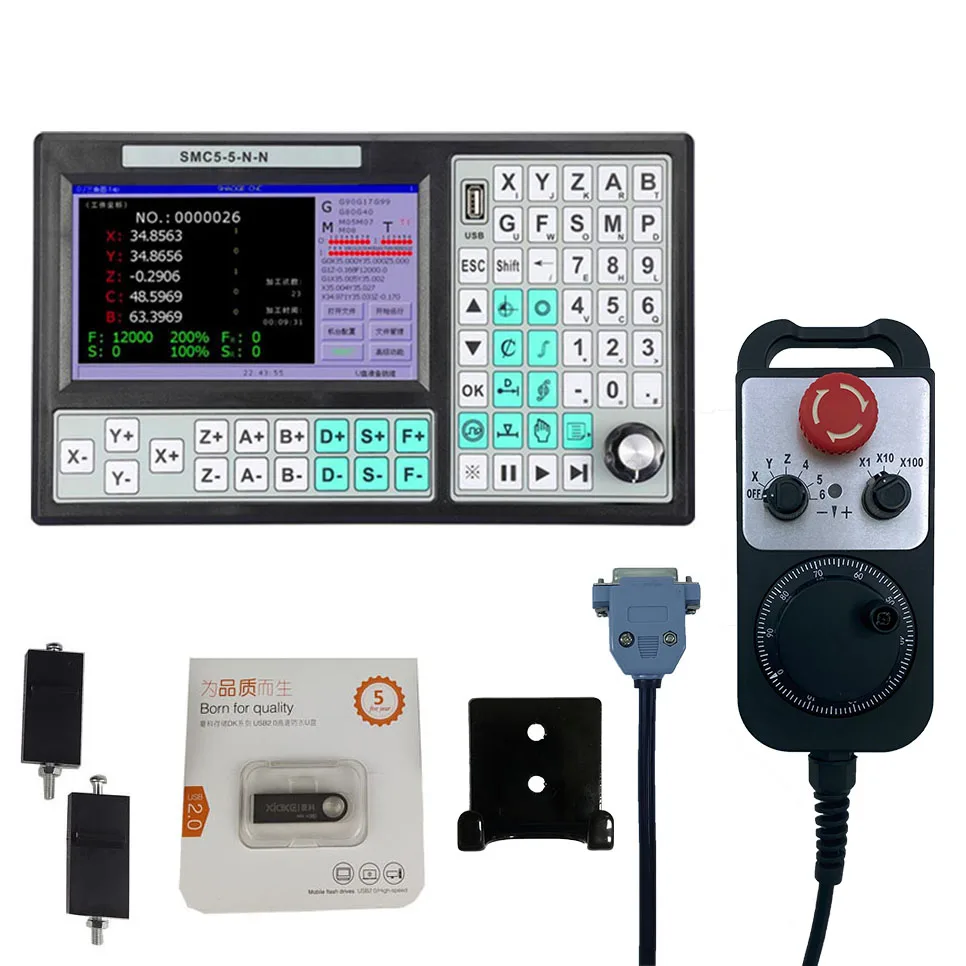

Product Package
1 x 5 aixs Controller
1 x CNC 6 Axis MPG handwheel
1 x U Disk
Electrical characteristics ：
Item
Model
YP11C（P）
FANUC
YP1225C（P）
Mitsubishi
YP11L（P）
Siemens / Fagor
Pulse output
100PPR
25PPR
100PPR
Power range
DC5~15V±5%
DC5±5%
Current (no load)
≤60mA
≤160mA
Voltage output
High
≥VccX0.7v
≥2.5v
Low
≤0.5v
≤0.5v
Current output
≤35mA
±20mA
Fall / Rise Time
5us（Tyn）
<100ms
Frequency response
0~5Khz
Isolation resistance
≥20MΩ
Power indicator
DC5V-DC24V LED
Installation size
165（With hanging handle）X74X26mm
Working/storage temperature
-10~+60℃/20~+70℃

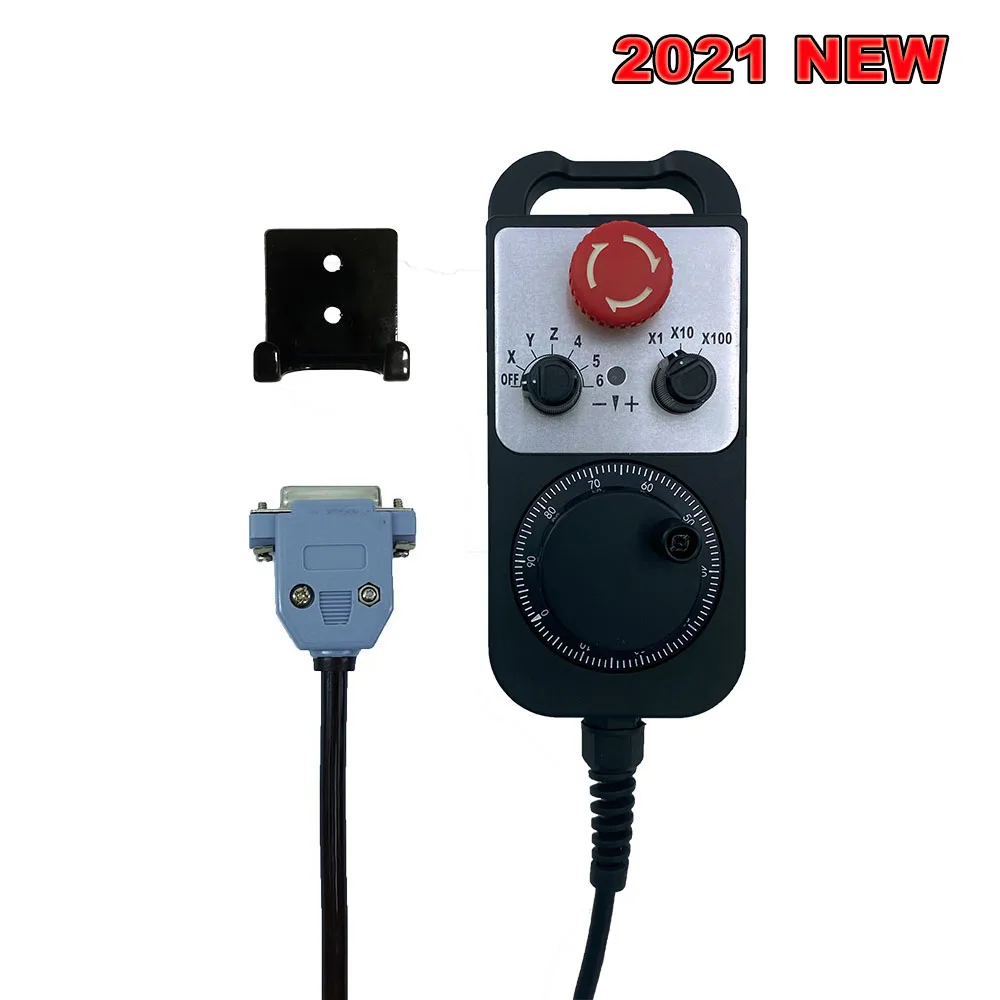

This electronic handwheel can be applied to a variety of CNC numerical control systems, such as FANUC, Siemens, Mitsubishi, Fagor, Heidenhain, Baoyuan, New Generation, Haineck HANUC, Guangzhou CNC GSK, Kaitong CNC, KND KND And other well-known CNC systems.
Customers can choose according to the output voltage value (DC5~15V) and output pulse wave (25PPR or 100PPR), and up to 11 axes can be controlled.
The output voltage can be customized according to customer needs DC24V, PLC control.
Wiring diagram：
Serialnumber
Line color
Function
Project
1
Red
+5V/12V
According to system requirements
Encoder
2
Black
0V
3
Yellow
A
4
White
B
5
Pink
-
A
According to system requirements
6
Dark Green
-
B
According to system requirements
7
Transparent
+LED
Indicator light
8
Purple
-LED
9
Gray
5
Axis selection
10
Brown
X
11
Orange
Y
12
Light Blue
Z
13
Dark bule
4
14
Light Green
6
15
White/Black
OFF
16
Light Green/Black
X1
Magnification
17
Light Blue/Black
X10
18
Transparent/Black
X100
19
Deep purple
COM
Public
20
Red/Black
Emergency stop
Emergency stop control switch
21
Yellow/Black
Emergency stop
Note:
1. The voltage used by the encoder is DC5-24V (DC12V for Mitsubishi systems, 5V for Fagor/Fanuc/Siemens systems, and 24V for PLC control). Connecting the wrong voltage or connecting the wrong line will cause the encoder to burn out. 1. The voltage used by the encoder is DC5-24V (DC12V for Mitsubishi systems, 5V for Fagor/Fanuc/Siemens systems, and 24V for PLC control). Connecting the wrong voltage or connecting the wrong line will cause the encoder to burn out. 1. The voltage used by the encoder is DC5-24V (DC12V for Mitsubishi systems, 5V for Fagor/Fanuc/Siemens systems, and 24V for PLC control). Connecting the wrong voltage or connecting the wrong line will cause the encoder to burn out. 1. The voltage used by the encoder is DC5-24V (DC12V for Mitsubishi systems, 5V for Fagor/Fanuc/Siemens systems, and 24V for PLC control). Connecting the wrong voltage or connecting the wrong line will cause the encoder to burn out. 1. The voltage used by the encoder is DC5-24V (DC12V for Mitsubishi systems, 5V for Fagor/Fanuc/Siemens systems, and 24V for PLC control). Connecting the wrong voltage or connecting the wrong line will cause the encoder to burn out. 1. The voltage used by the encoder is DC5-24V (DC12V for Mitsubishi systems, 5V for Fagor/Fanuc/Siemens systems, and 24V for PLC control). Connecting the wrong voltage or connecting the wrong line will cause the encoder to burn out. 1. The voltage used by the encoder is DC5-24V (DC12V for Mitsubishi systems, 5V for Fagor/Fanuc/Siemens systems, and 24V for PLC control). Connecting the wrong voltage or connecting the wrong line will cause the encoder to burn out. 1. The voltage used by the encoder is DC5-24V (DC12V for Mitsubishi systems, 5V for Fagor/Fanuc/Siemens systems, and 24V for PLC control). Connecting the wrong voltage or connecting the wrong line will cause the encoder to burn out. 1. The voltage used by the encoder is DC5-24V (DC12V for Mitsubishi systems, 5V for Fagor/Fanuc/Siemens systems, and 24V for PLC control). Connecting the wrong voltage or connecting the wrong line will cause the encoder to burn out. 1. The voltage used by the encoder is DC5-24V (DC12V for Mitsubishi systems, 5V for Fagor/Fanuc/Siemens systems, and 24V for PLC control). Connecting the wrong voltage or connecting the wrong line will cause the encoder to burn out. 1. The voltage used by the encoder is DC5-24V (DC12V for Mitsubishi systems, 5V for Fagor/Fanuc/Siemens systems, and 24V for PLC control). Connecting the wrong voltage or connecting the wrong line will cause the encoder to burn out. 1. The voltage used by the encoder is DC5-24V (DC12V for Mitsubishi systems, 5V for Fagor/Fanuc/Siemens systems, and 24V for PLC control). Connecting the wrong voltage or connecting the wrong line will cause the encoder to burn out. 1. The voltage used by the encoder is DC5-24V (DC12V for Mitsubishi systems, 5V for Fagor/Fanuc/Siemens systems, and 24V for PLC control). Connecting the wrong voltage or connecting the wrong line will cause the encoder to burn out. 1. The voltage used by the encoder is DC5-24V (DC12V for Mitsubishi systems, 5V for Fagor/Fanuc/Siemens systems, and 24V for PLC control). Connecting the wrong voltage or connecting the wrong line will cause the encoder to burn out. 1. The voltage used by the encoder is DC5-24V (DC12V for Mitsubishi systems, 5V for Fagor/Fanuc/Siemens systems, and 24V for PLC control). Connecting the wrong voltage or connecting the wrong line will cause the encoder to burn out. 1. The voltage used by the encoder is DC5-24V (DC12V for Mitsubishi systems, 5V for Fagor/Fanuc/Siemens systems, and 24V for PLC control). Connecting the wrong voltage or connecting the wrong line will cause the encoder to burn out.
2. Connect the ground when welding the wire to prevent static electricity from damaging the encoder. The unconnected wire must be cut off the bare copper, and then wrapped individually. Do not touch other circuits, components and casings to avoid short circuits.

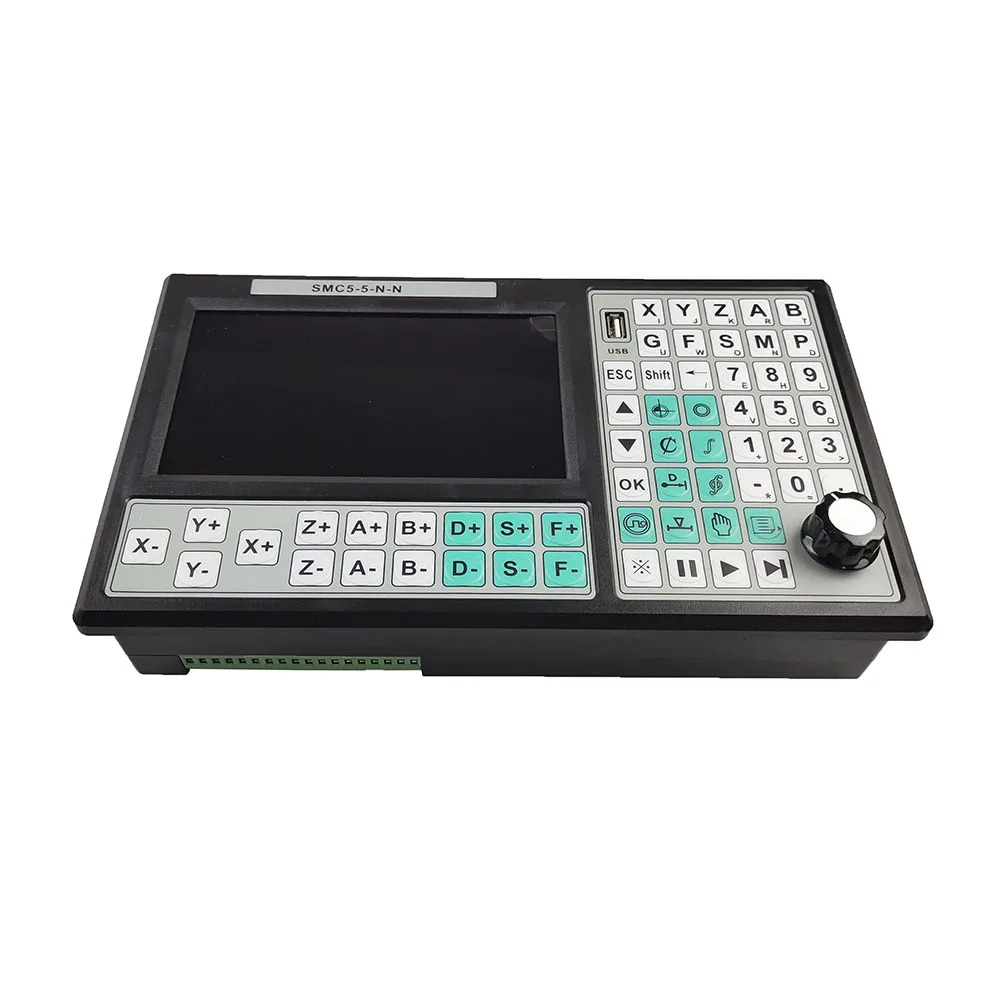

Product Description
Introduction:The control system is the newly developed "motion controller" using high-performance 32-bit CPU and high-performance FPGA, equipped with a seven-inch LCD display, user-friendly window-type human-machine interface, memory with external USB port and built-in TF card (user Optional), large storage space, working voltage 12-24 volts ultra-wide input, touch-operated keyboard.The system has the characteristics of high reliability, high precision, low noise and convenient operation. Simple, clear parameters make your operation easy and fast. The input/output setting function is convenient for your use and maintenance.
1.Features:
Five-axis linkageMulti-micro multi-line segment forward control algorithmFive-axis linear interpolation and five-axis multi-micro multi-line continuous interpolationBroken line continue to controlPower-down storage coordinate functionSupport handwheel control interface.The main function: Parameter setting: It can set various control parameters related to machining and operation to achieve the best processing result.Manual operation: It can realize manual, jog, return to program zero, return to mechanical zero, coordinate clearing and other operations.Program management: New, delete, modify, read, save, copy and paste, automatic processing, continuous, pause and other functions can be performed on the program.External Manual: A variety of external manual functions can be defined for ease of useExternal handwheel controller: You can set the step size of each step, supporting both position and speed modes.Teach function: External input or panel control input can be defined.Free choice of input function: enable limited input ports to achieve various user needs

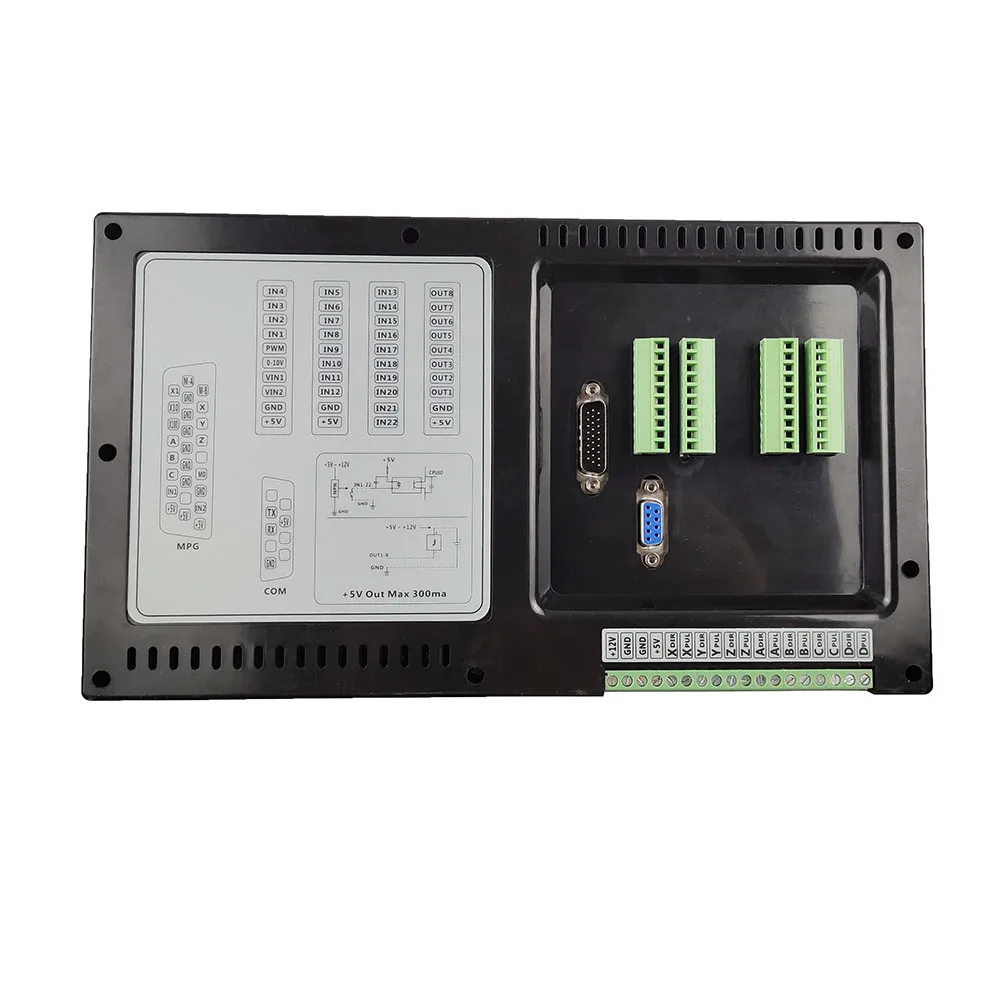

2.Product connection define and method

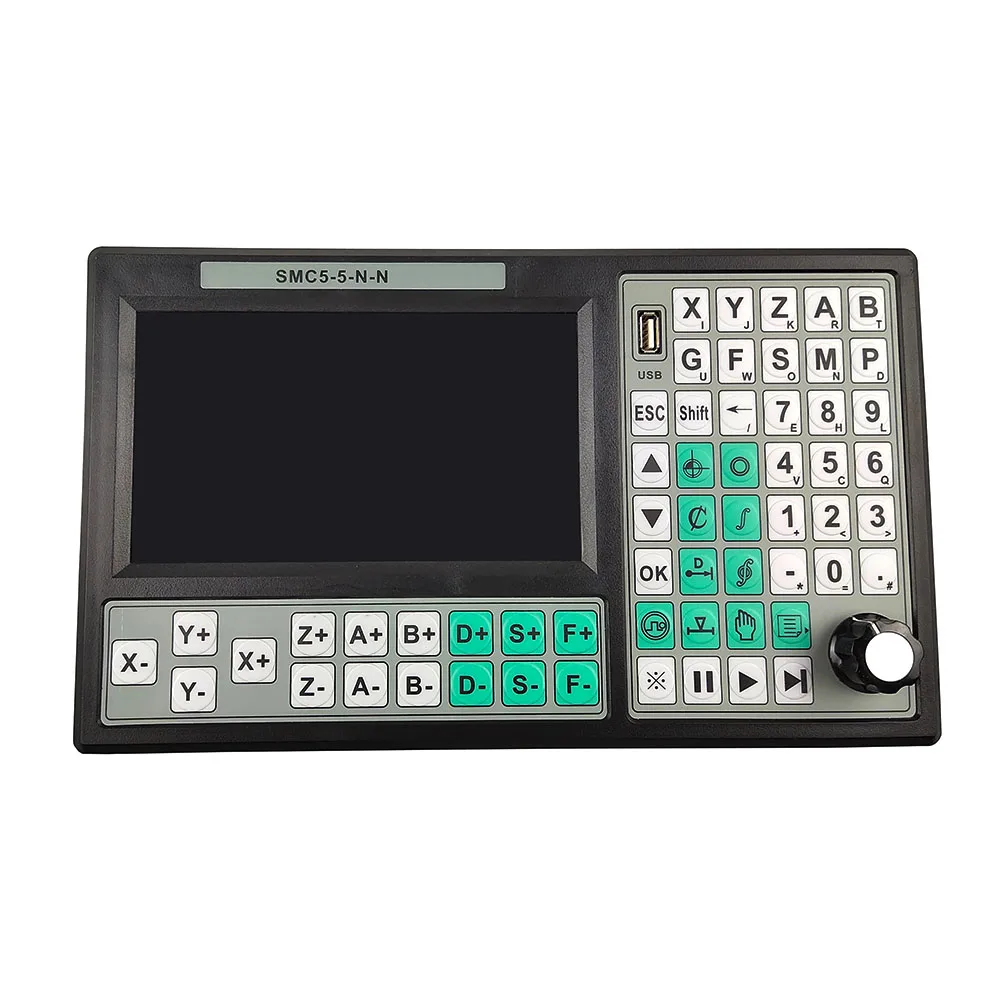

3.Appearance and size：
