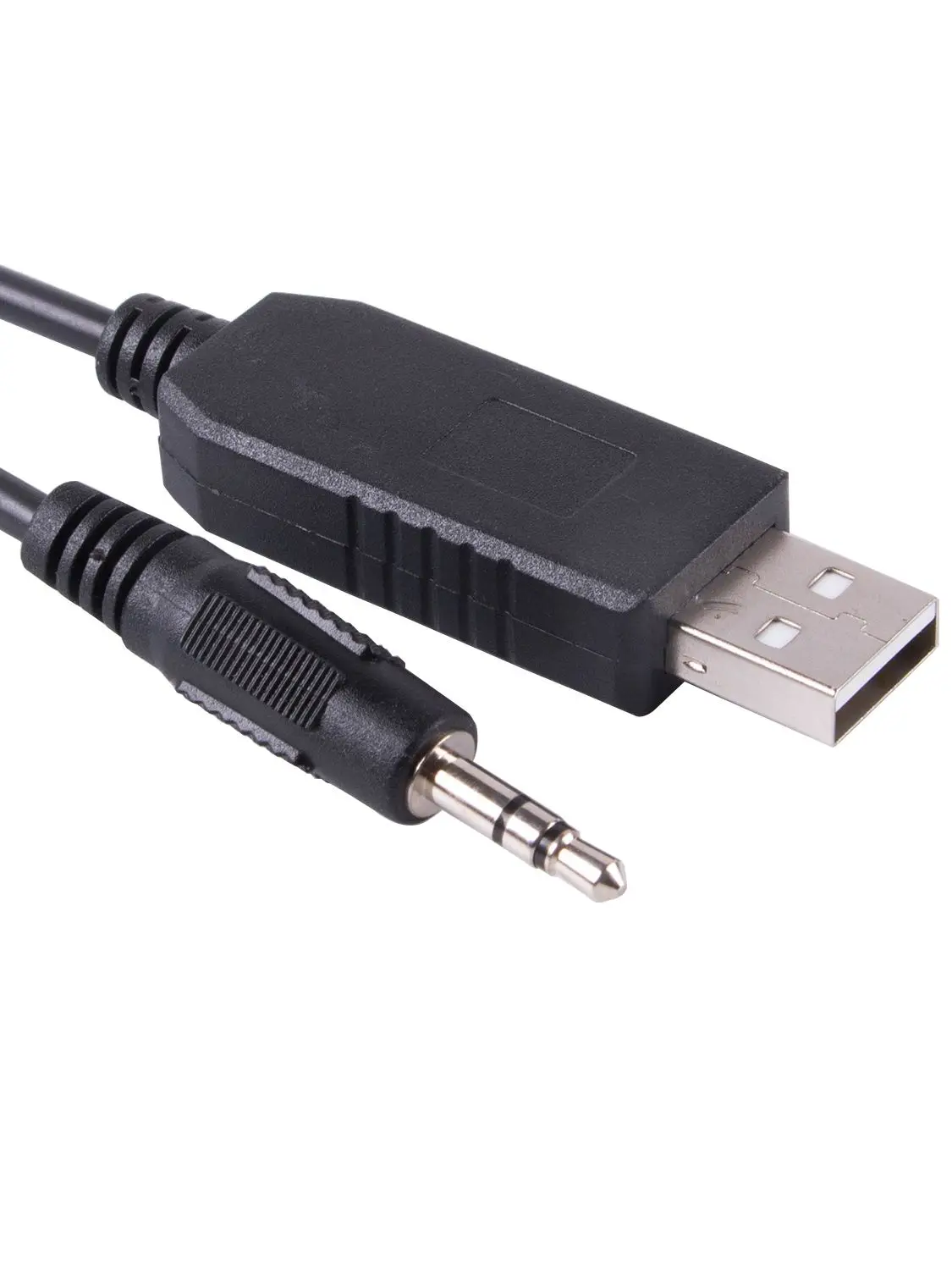

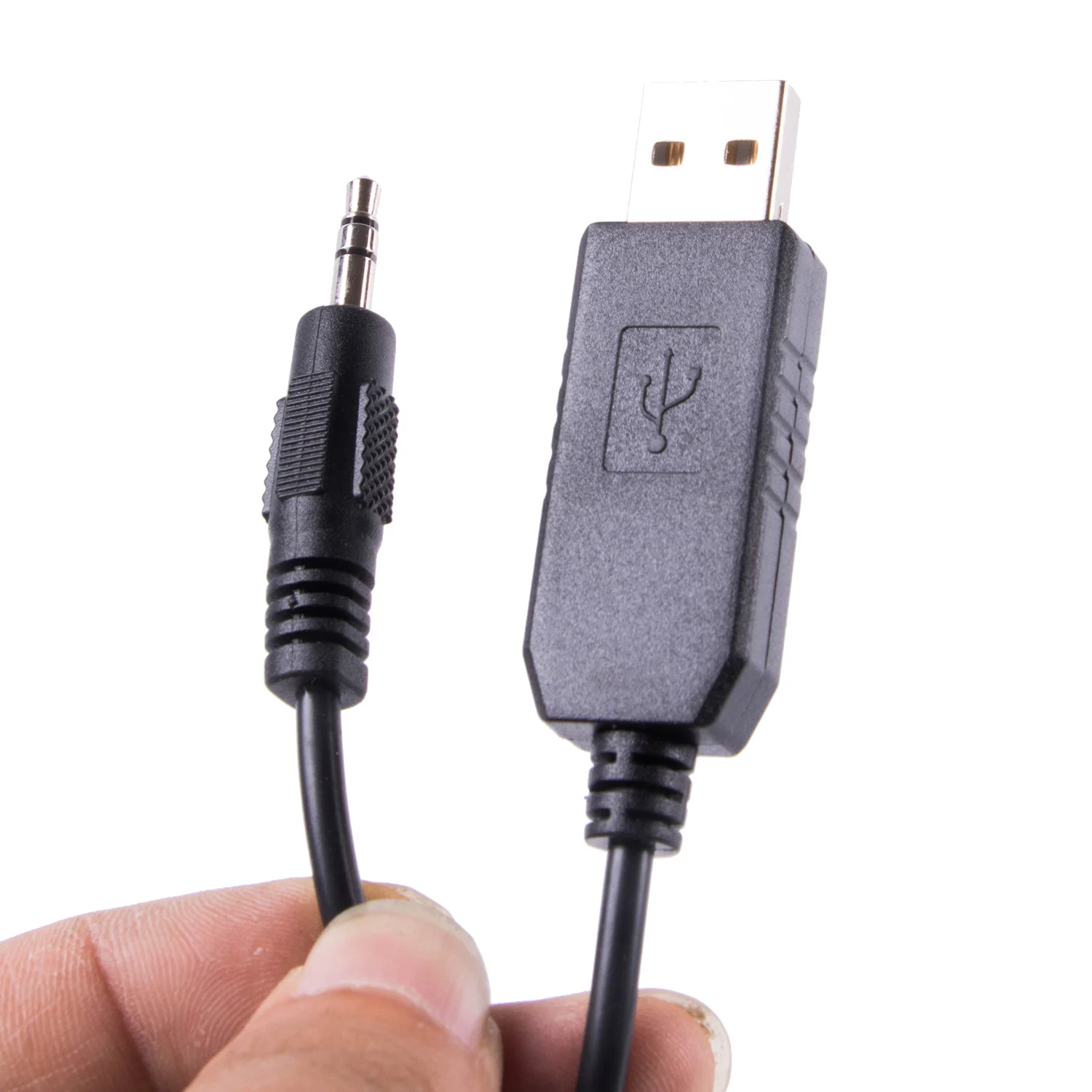

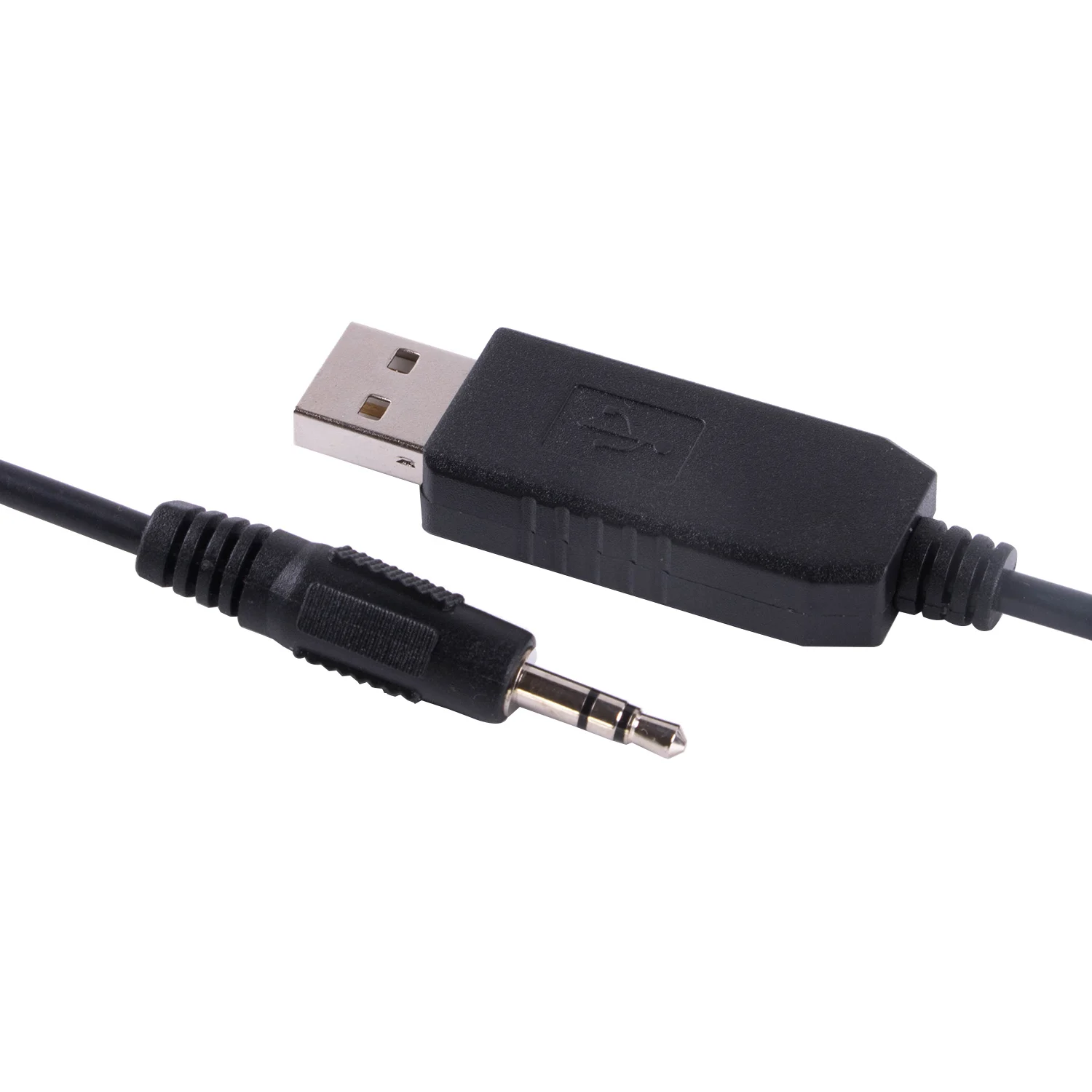

Prolific PL2303HXD USB к RS232 последовательный 3-полюсный 3,5 мм стерео аудио разъем адаптер конвертер кабель передачи данных

3.5mm 3P audio jack male

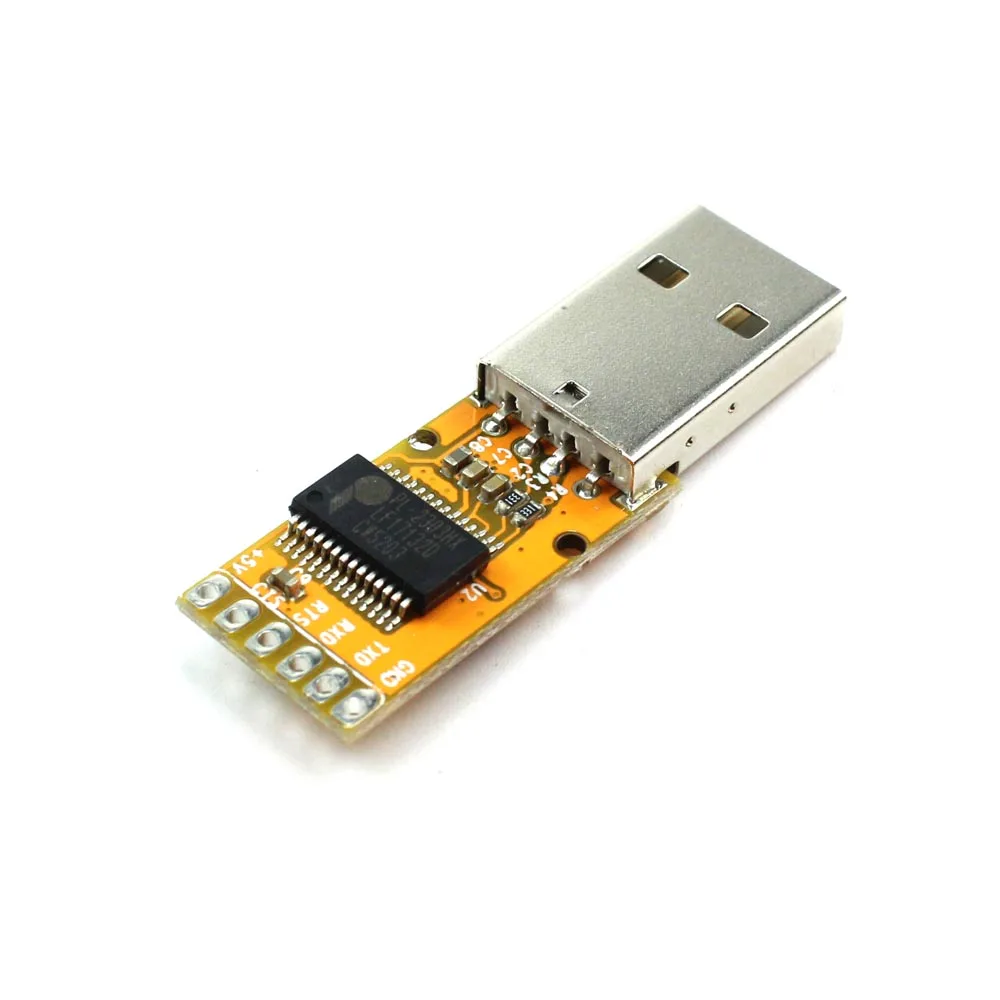

PL2303HXD + ZT232 chip

GND, TXD, RXD optional

PC COM RS232 standard signals, not TTL

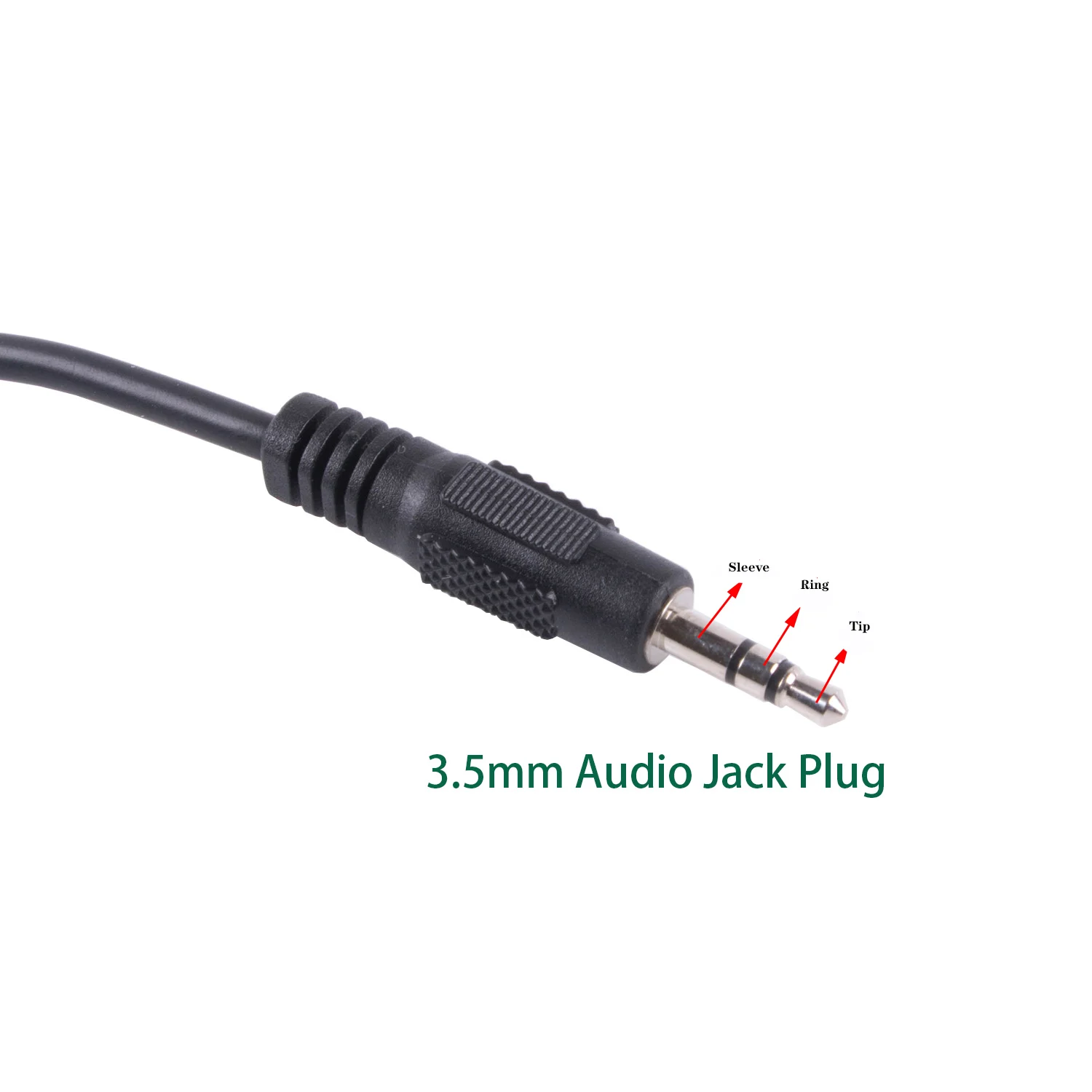

Standard Pinout: Tip-RX, Ring-TX, Sleeve-GND

Customize Pinout: Tip-TX,Ring-RX,Sleeve-GND

Import Notice: RX is match with your TX of device. TX is match with your RX of device.

PL2303HXD driver download,Please click here !

Cable: 3C*28AWG,black PVC jacket, 6FT cable

Support Win XP/9X, Win 7, Linux, CE, Android

See the product Vedio Here !

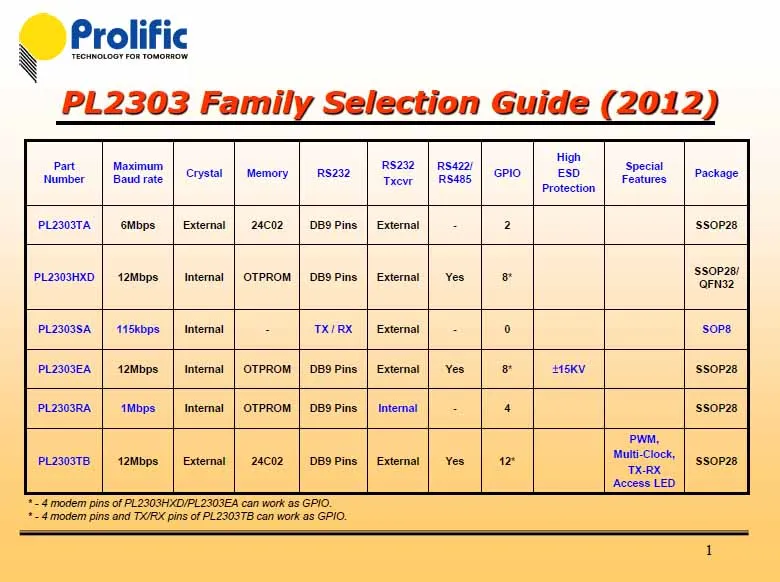

Product Applications:Single-chip upgrade solution for Legacy RS232 devices to USB interfaceUSB to RS232 converters/cables/donglesHealthcare/Medical USB Interface Data Transfer CablePersonal Infotainment/Media Player Docking USB InterfaceCellular/PDA USB Interface Data Transfer CableSerial-over-IP Wireless SolutionUSB Barcode/Smart Card ReadersGPS/Navigation USB InterfacePoint-of-Sale (POS) Terminals/PrintersPC Docking Station/Port ReplicatorsIndustrial/Instrumentation/Automation Control USB InterfaceUSB Modem/Wireless/Zigbee USB InterfaceSet-Top Box (STB) / Home Gateway USB InterfaceBatteryCharger ApplicationMCU-based devices to USB interfaceWindows Driver Installer Setup Program(For PL2303 HXA, XA, HXD, EA, RA, SA, TA, TB versions)Installer version & Build date: 1.9.0 (2013-10-25)Windows XP (32 & 64-bit) WDM WHQL Driver: v2.1.51.238 (10/22/2013)    - Windows XP Certified WHQL Driver  - Compatible with Windows 2000SP4 & Server2003Windows Vista/7/8/8.1 (32 & 64-bit) WDF WHQL Driver: v3.4.62.293 (10/17/2013)- Windows Vista, 7, 8, 8.1 Certified WHQL Driver- Compatible with Windows Server2008/Server2008R2/Server2012- Driver can auto-download via Windows Update (for Windows Vista, 7, 8, 8.1)Installer Language Support: English (default), Chinese (Traditional and Simplified), JapaneseFor Prolific USB VID_067B&PID_2303 and PID_2304 OnlyIncludes Certification Report, User Manual & CheckChipVersion ToolNOTE:Windows 8/8.1 are NOT supported in PL-2303HXA and PL-2303X EOL chip versions.Run PL2303 CheckChipVersion tool program in Windows XP/Vista/7 to check chip version.Windows 98 and Windows ME driver support is discontinued and is no longer provided.Prolific recommends to use PL-2303HXD (HX Rev D) or PL2303TA chip.

Installing the Plugable USB to RS-232 DB9 Serial Adapter on Windows 7

Windows 7 will detect and pop up a wizard to install drivers when the usb serial cable is plugged in, but it’s also easy (as essential on other operating systems) to install the driver software first.

You’ll want to download the driver and unzip it anywhere on your desktop. Once you have, double click on it to start the installation.

The installation is relatively simple and no questions are asked. When it’s done you should see something like this:Now go ahead and connect the adapter. You should get a pop-up looking like this:Finally Windows should report that the device has been installed:On Device Manager you should be looking at something like this:
