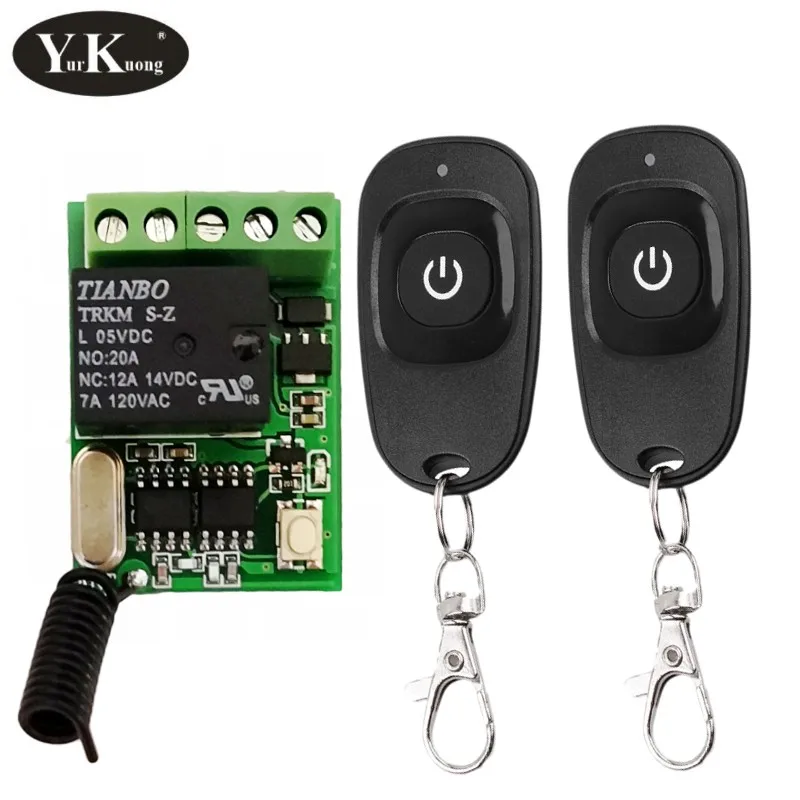

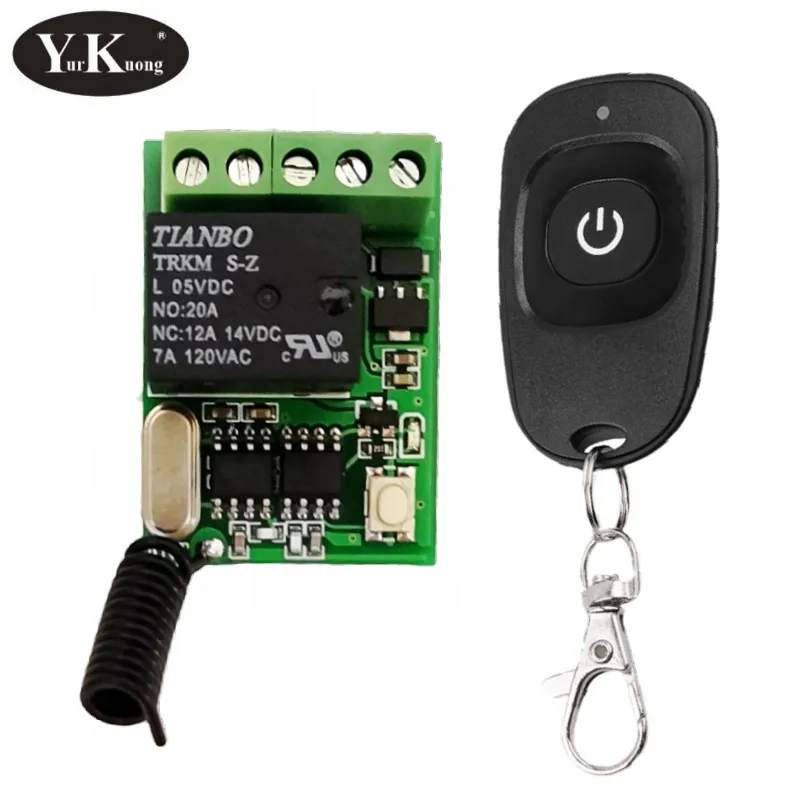

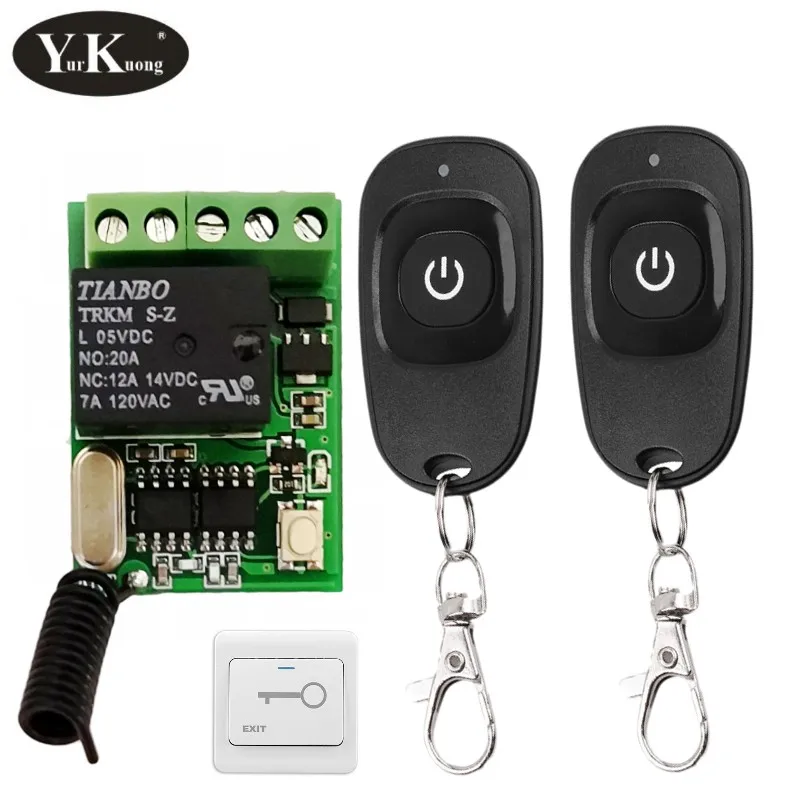

Дверь доступа Электрический замок Кнопка открытия дверей пульт дистанционного управления Кнопка запуска беспроводной пульт дистанционного управления Переключатели 315 433 Learnin

Product Description

Working Voltage: DC4V-12V (DC4V 4.2V 4.5V 5V 6V 7.4V 9V 12V) All is ok Quiescent /Standby Current: 7-9ma Working Current: 70-130ma ( if your power supply is mini battery , you must care how long can it work for you) Relay Standard : 20A (( 14VDC 12A 120VAC 7A) Max Load: 10A (have better load less than 7A) Size : 34*23*15mm Working Frequency: 315MHZ/433.92MHZ Optional Learning Code: Learning Button to add Transmitter Working Mode: Momentary Toggle Latched adjusted by Learning Button Momentary----- Press and Hold---ON, Release----OFF Toggle-------Press one time ----ON. Press it again ----OFF Latched--------Press A ----ON, Press B-----OFF (Latched Mode will ship with 2 Button Transmitter) Momentary 5s Time Delay OFF----- Press and Hold---ON, Release----5s laterOFF V- -------------------Input GND – V+ -------------------Input VCC + NC---------------------Normally Close COM------------------Common NO---------------------Normally Open Momentary Toggle Latched adjusted by learning Button Latched ----------Press the learning button until the receiver LED indicator flash for 1 time then release it Momentary------Press the learning button until the receiver LED indicator flash for 2 times then release it Toggle-------------Press the learning button until the receiver LED indicator flash for 3 times then release it Momentary 5s Time Delay OFF-------Press the learning button until the receiver LED indicator flash for 4 times then release it Clearing Code Press the Receiver learning button and hold ，until the Receiver LED indicator Flash for 1 times ,and Flash fast for 2 times, and Flash fast for 3 times ,and Flash fast for 4 times ,and Flash fast for 5 times ,then release it , it means the code have been cleared Learning Code Momentary/Toggle Mode Press the Receiver learning button, when the Receiver LED indicator is ON then release it , then press the transmitter Button for 1 time , press the same transmitter buttin for Second times , then press the same transmitter button for the third time ，each time receiver LED indicator will flash for one times , it means learning is finished. Latched Mode Press the Receiver learning button, when the Receiver LED indicator is ON then release it , then press the transmitter A button for 1 times ,Receiver LED indicator flash for 1 time,then Press transmitter B button for 1 times ,Receiver LED indicator flash for 1 times. then press the transmitter B Button again , Receiver LED indicator flash for 1 times, it means learning is finished.
