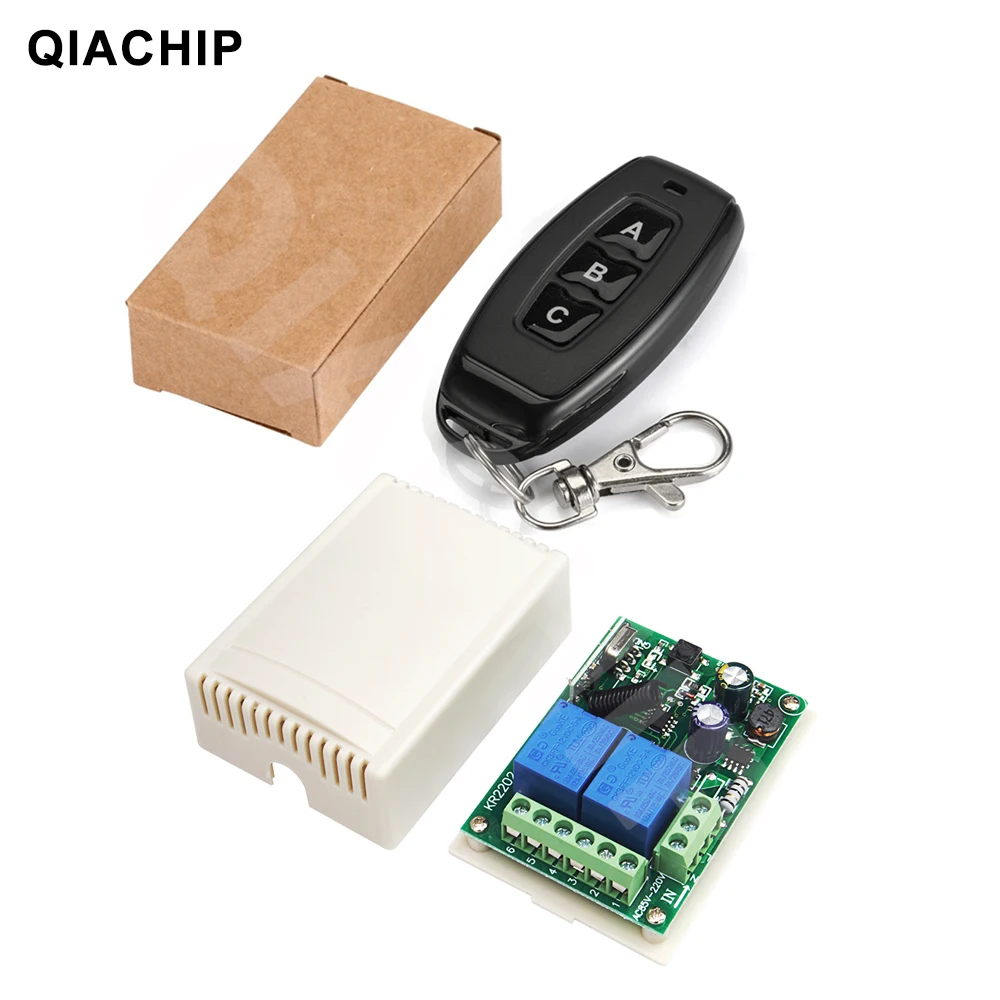

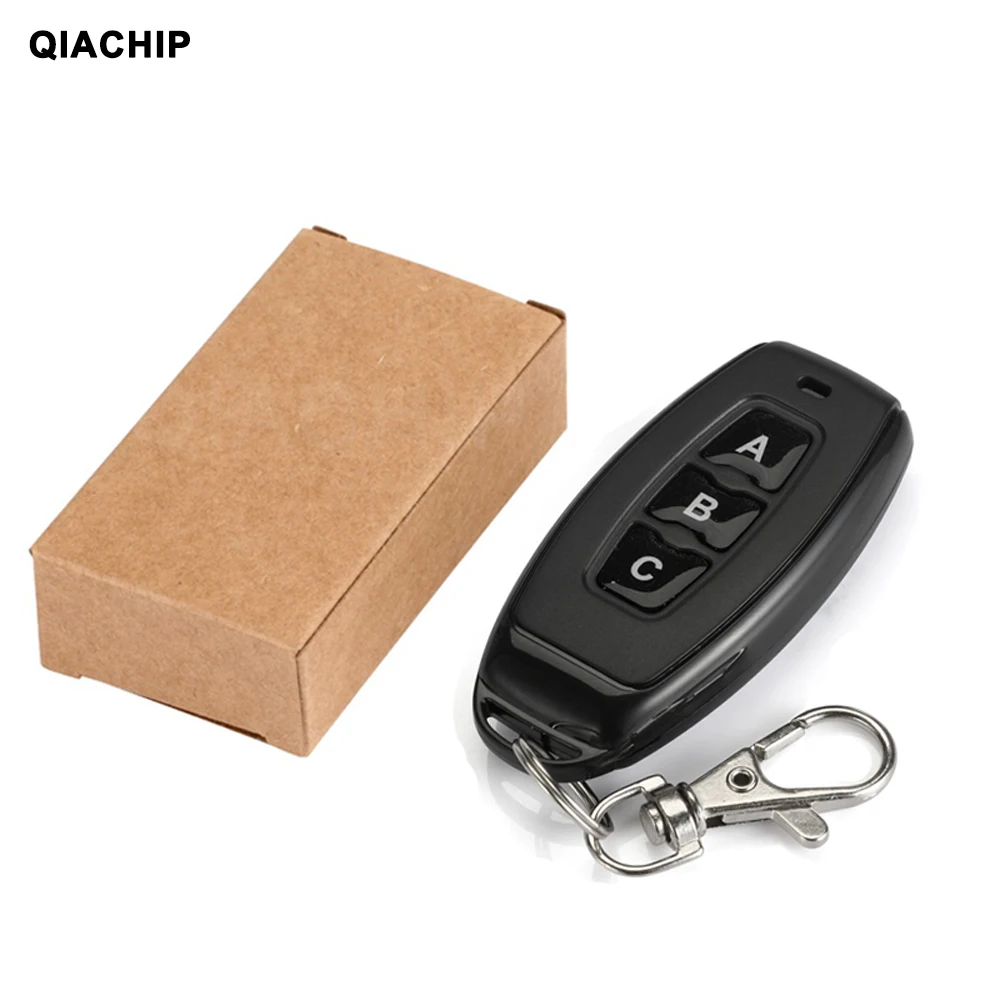

Универсальный пульт дистанционного управления, 433 МГц, 110 В, 220 В, 2 канала
QIACHIP Official Store - Надежность 96.25%
Более 6666 подписчиков, дата открытия магазина 11.04.2016
- Положительные оценки: 97% (2720)
- Соответствие описанию: 96%
- Отвечает на сообщения: 96%
- Скорость отправки: 96%
Последнее обновление: 20.09.2024
Заполнитель

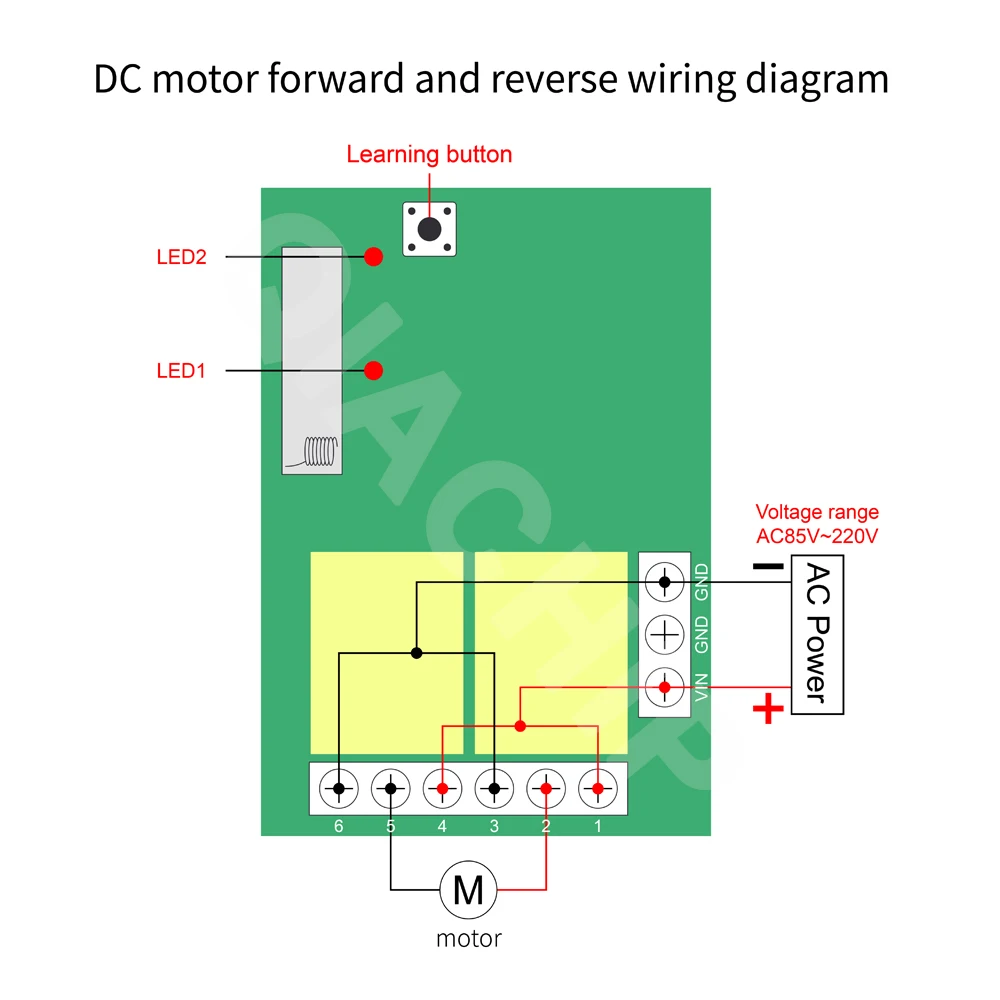

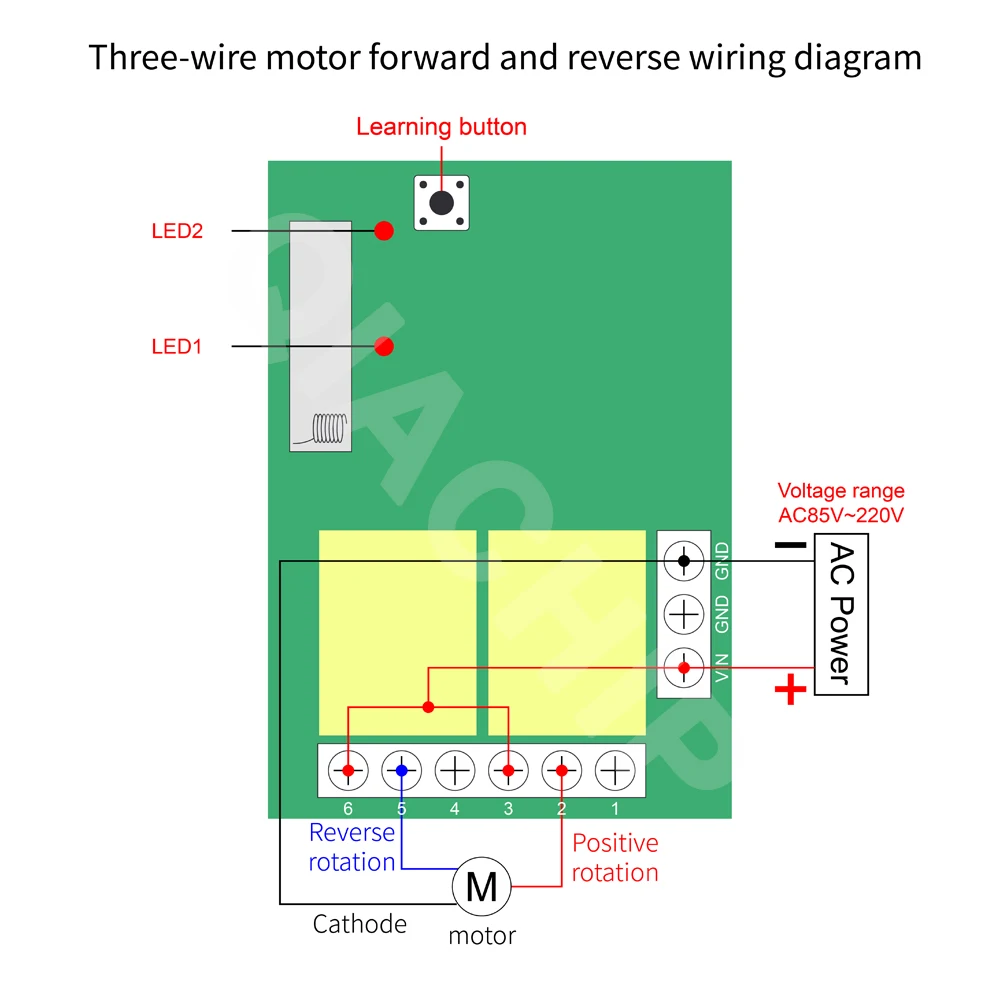

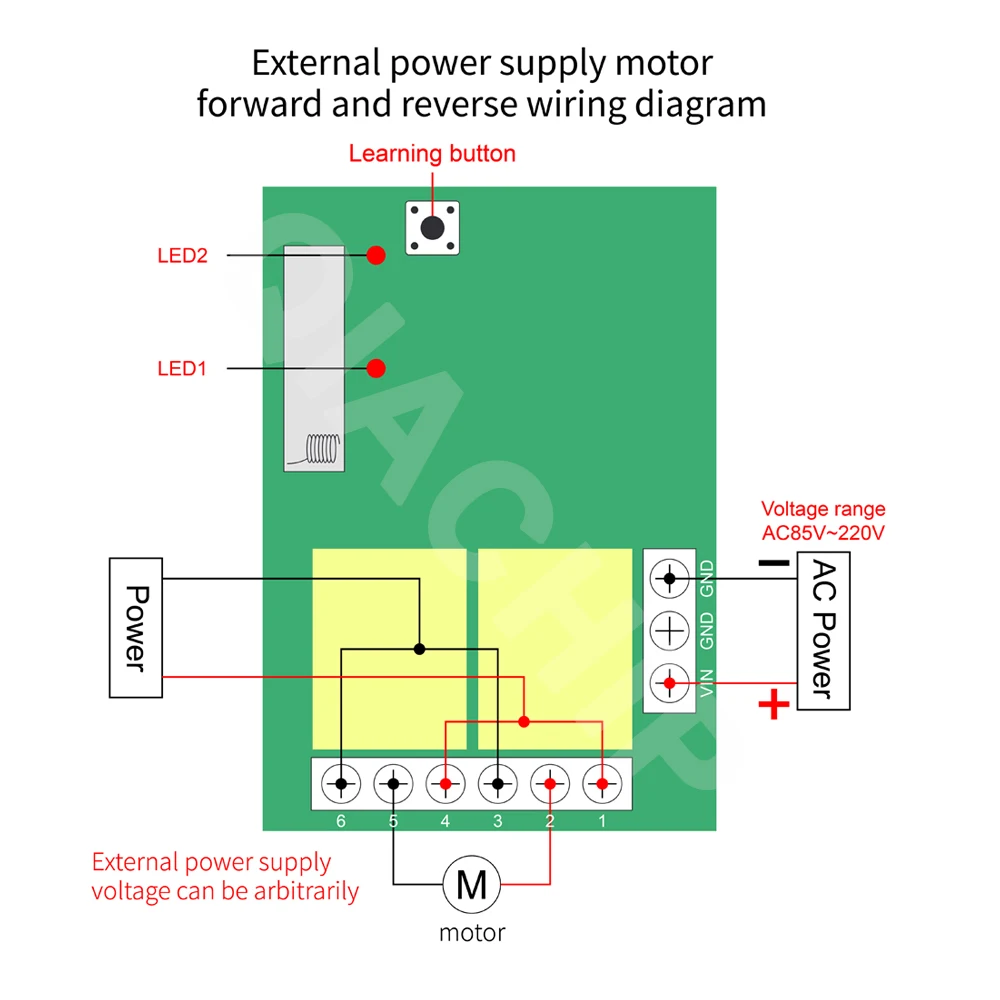

Working Mode for Motor
Clearing the Code:Press the Learning Button on the receivers for 8 times, the codes will be cleaned.After cleaning the code, all the remote control cannot work any more.Learning the Code:( Latching)Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first time learning is for ON, the second time learning for OFF.For example: Button A = ON, Button B = OFFPress the learning key on the receiver triple time, it comes into latching mode .Wait for a moment, the LED indicator on the receiver board will flash then come off.Press the remote button A. LED flash for 5 times.Press the remote button B. LED flash for 5 timesAfter 3 seconds, the LED indicator will be on again, learning successfully.A = ON, B = OFF.A = ON, B = OFF.
Other woking mode
Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.Clearing the Code:Press the Learning Button on the receivers for 8 times, the codes will be cleaned.After cleaning the code, all the remote control cannot work any more.
-
Application Example 1Mando a Distancia,Garage Door, Electronic Gates, Electrical Appliances
-
Application Example 2Universal Remote Control Switch, Light Switch, Motor
-

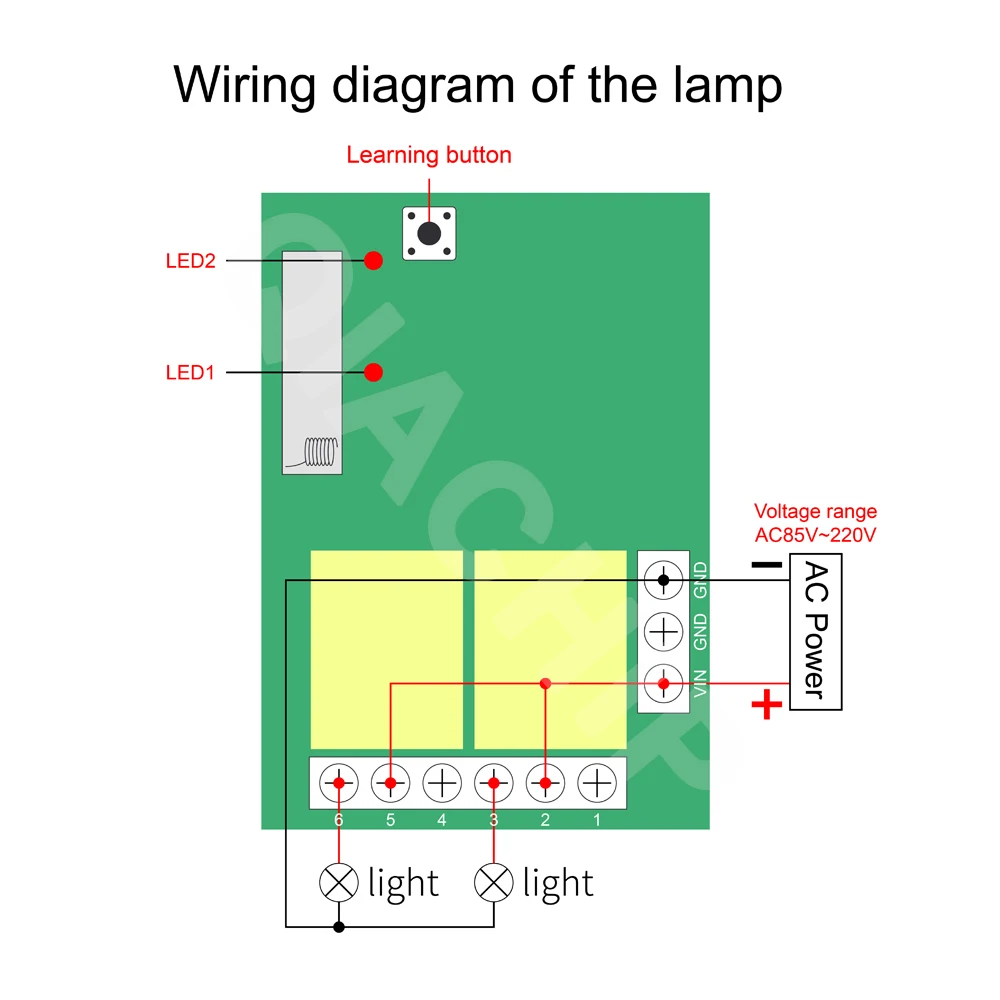

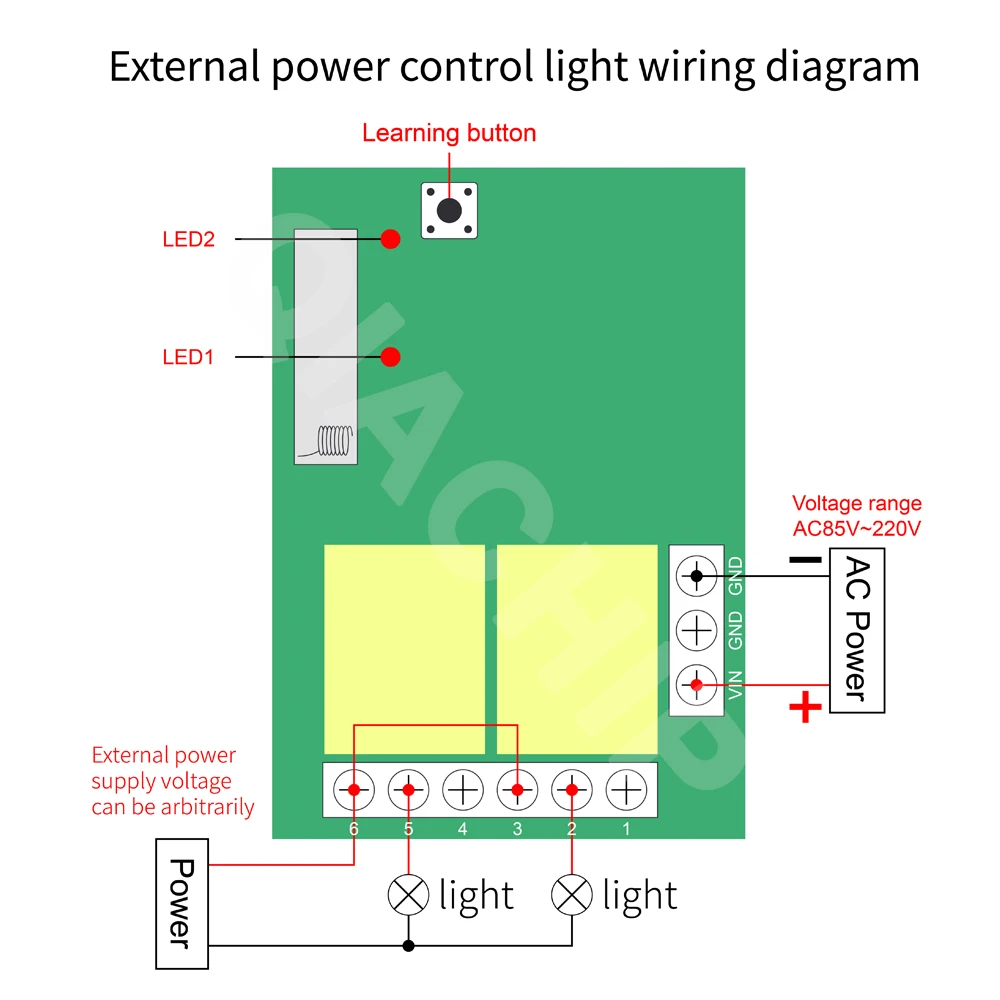

Application Example 3Light, Lamp, Led
-
Application Example 4Light Switch,Home Security Alarm System, Car Sunroofs Control
-
Matching ModeIntelligent Learning code 1527
-
Modulation ModeASK
-
Quiescent Current5mA
-
ShellYes
-
Working Mode for MotorLatching
-
Working Mode for otherMomentary/ Toggle/Latching
-
Working VoltageAC 220V
-
Беспроводная связьРФ
-
Вес логистики0.250
-
Каждая упаковка1
-
Канал2
-
Минимальная единица измерения100000015
-
Название брендаQIACHIP
-
НазначениеЭлектрический дверной
-
Номер модели433Mhz Universal Wireless RF Relay Remote Control Switch Gate Door
-
Поддержка APPНет
-
Продано Вsell_by_piece
-
Размер логистики - высота (см)5
-
Размер логистики - длина (см)10
-
Размер логистики - ширина (см)5
-
УпаковкаДа
-
Частота433 МГц
