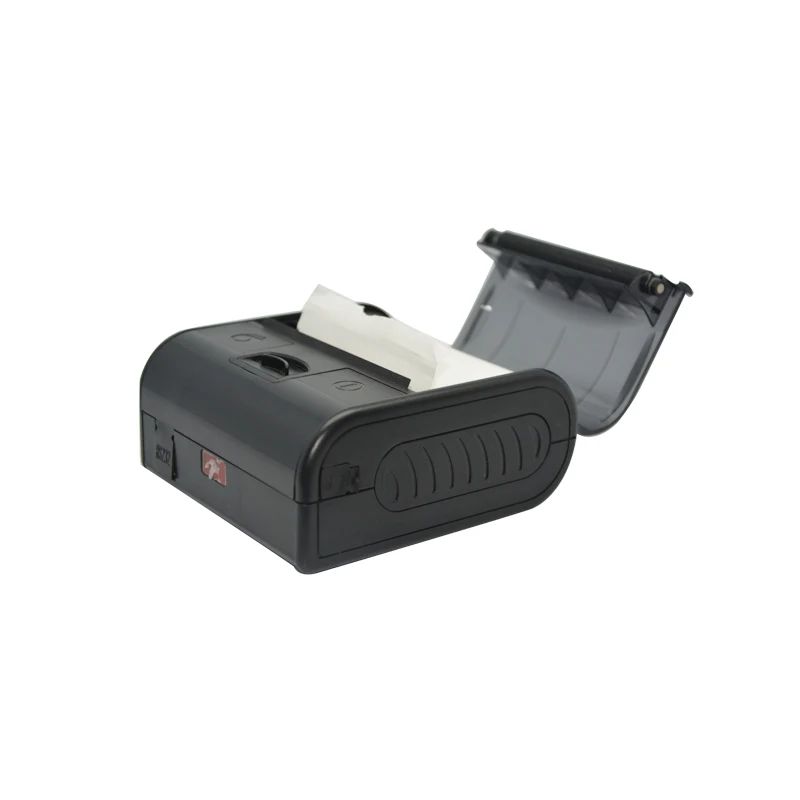

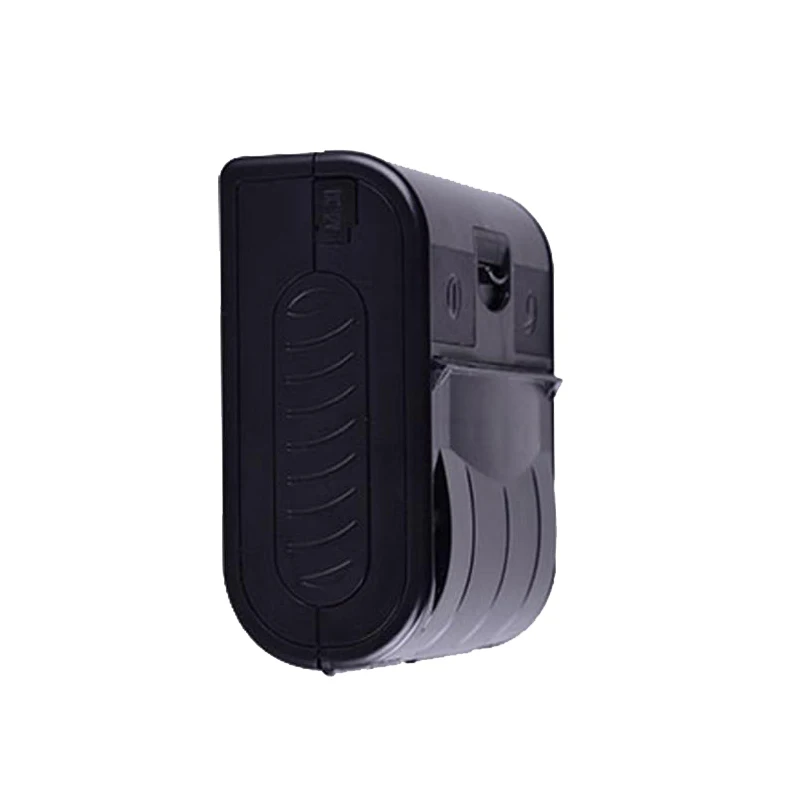

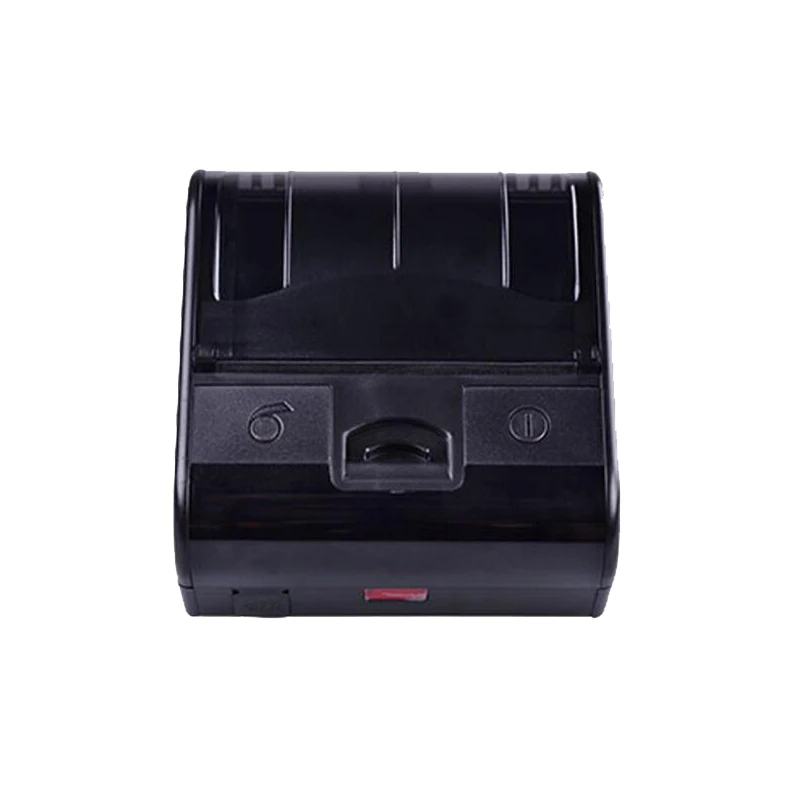

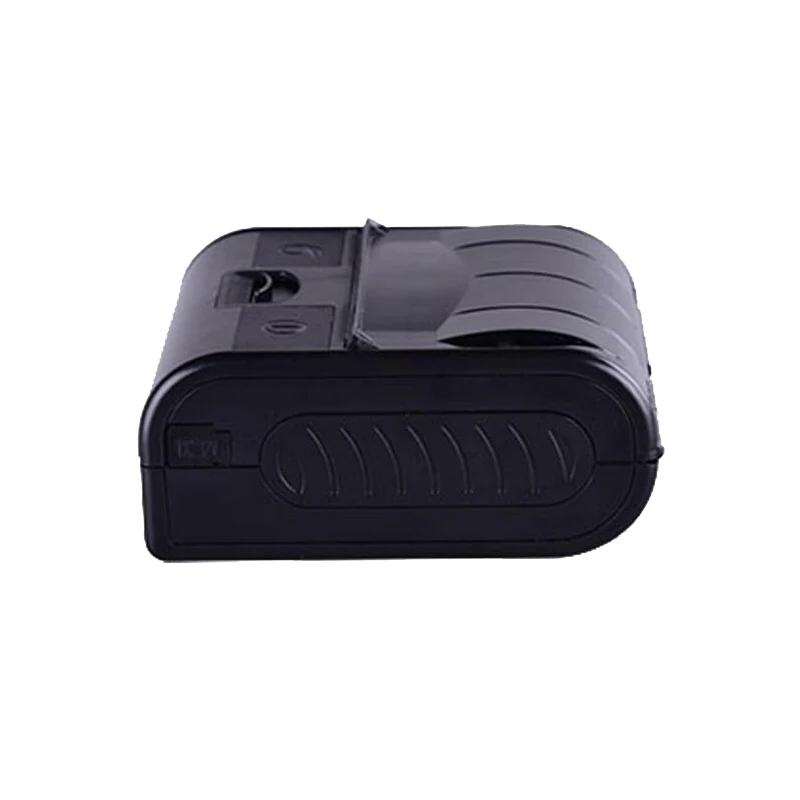

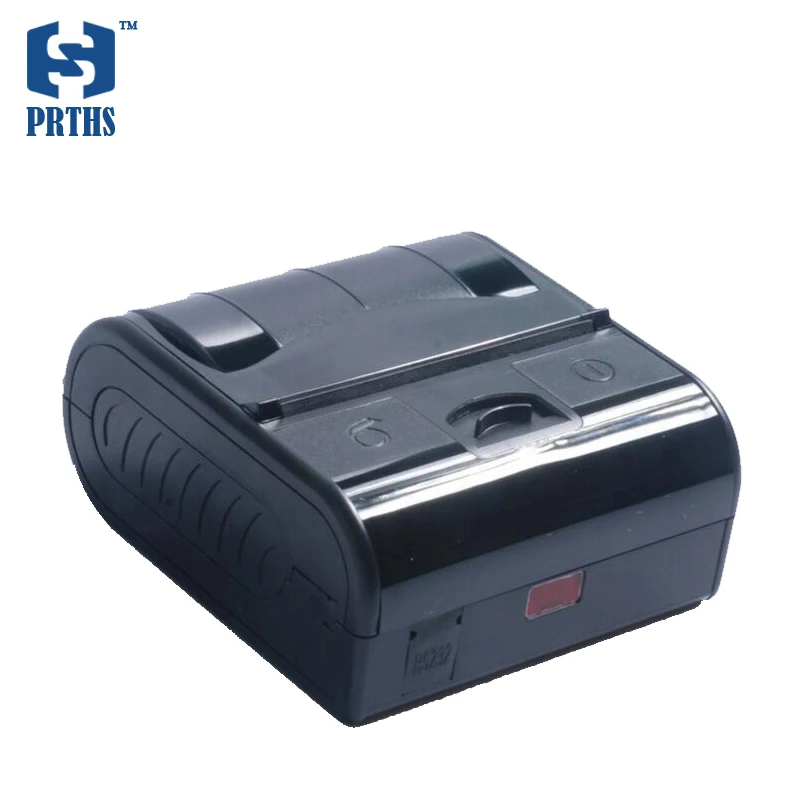

Pos mini bluetooth thermal printer 80mm portable receipt printer MPT-3 Support RS-232 Serial USB print with mobile phone



Pos mini bluetooth thermal printer 80mm portable receipt printer MPT-3 Support RS-232 Serial USB print with mobile phone

Feature:

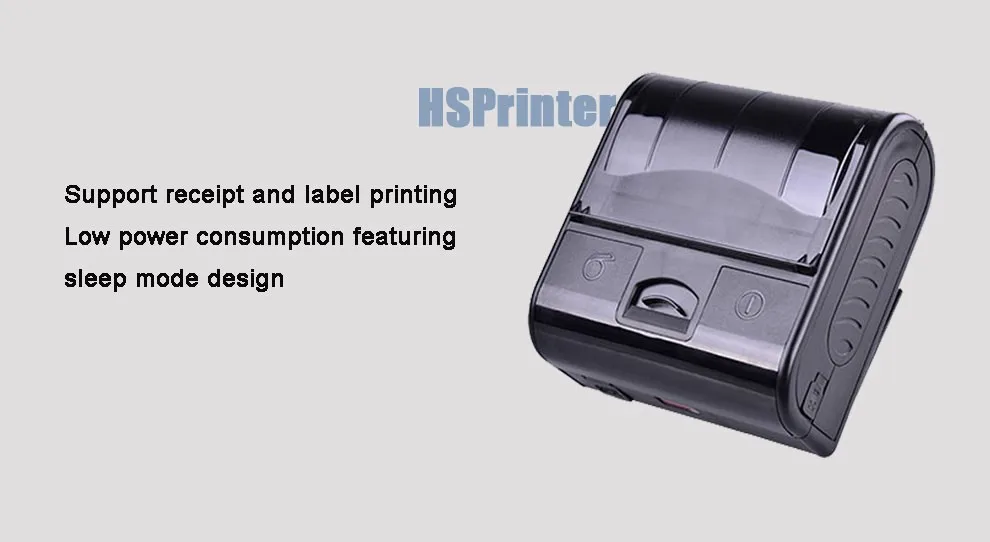

Labels and receipts are available for printing

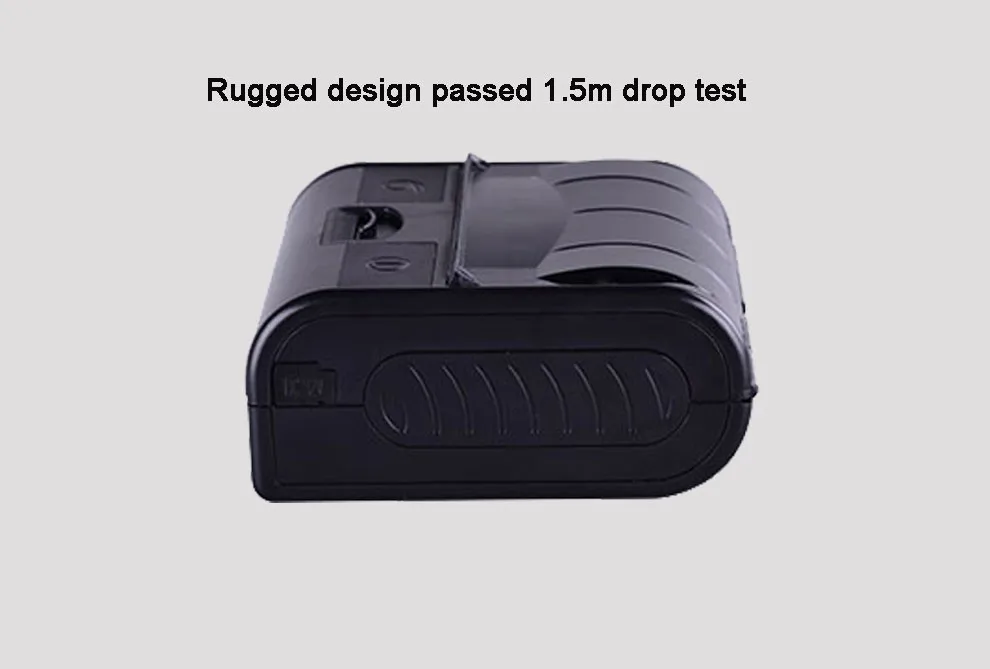

Industrial standard 1.5 meter Free fall onto concrete

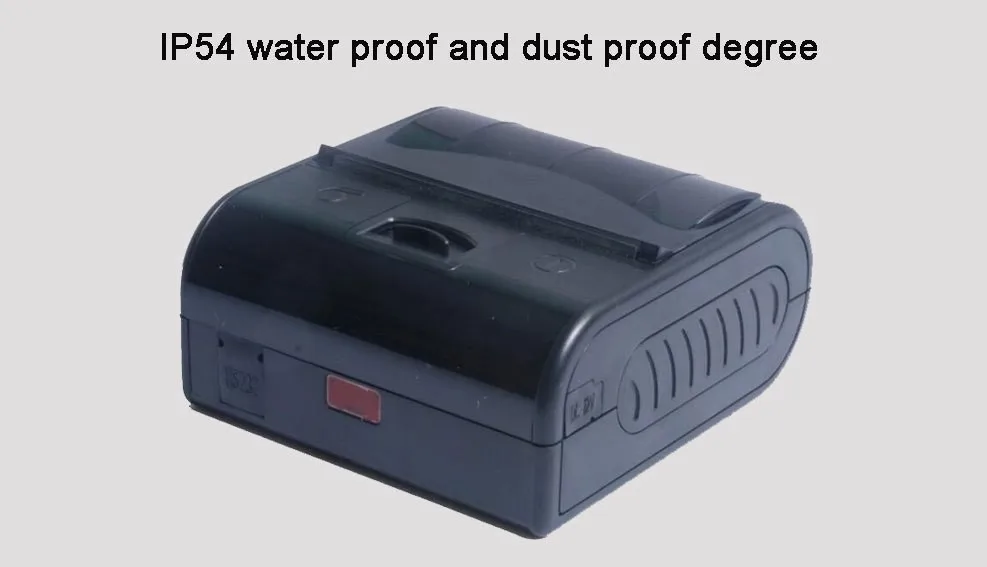

Conform to IP54 resistance to water and dust

Variable interfaces (RS232C, USB, Bluetooth) for option

Support text, barcode and graphic printing

Stand-by and auto turn-off mode for lower power consumption

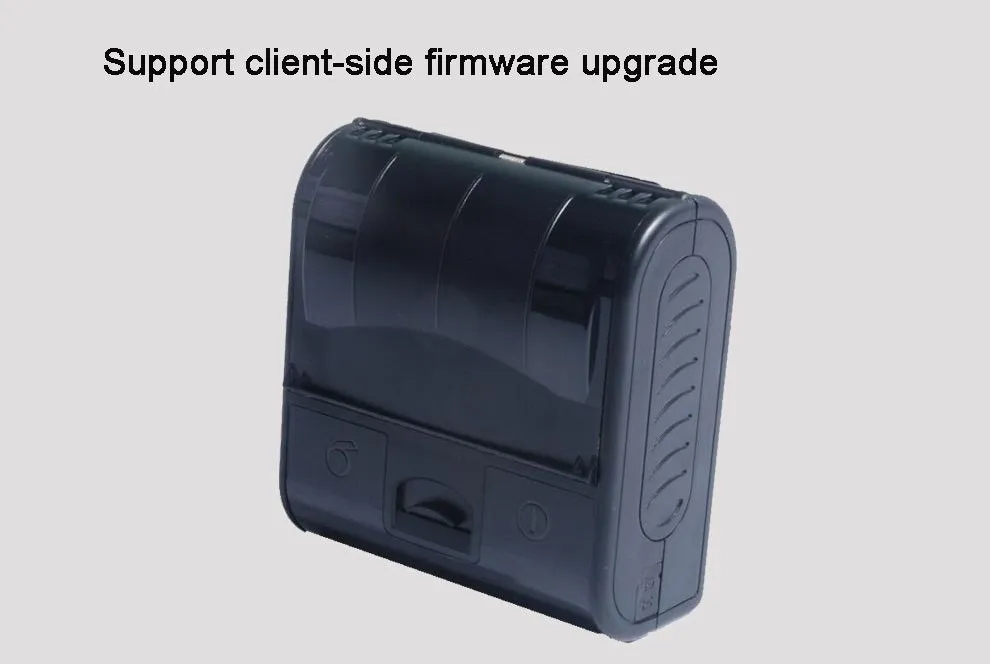

In field programming – Update Firmware, Download Fonts and Logos

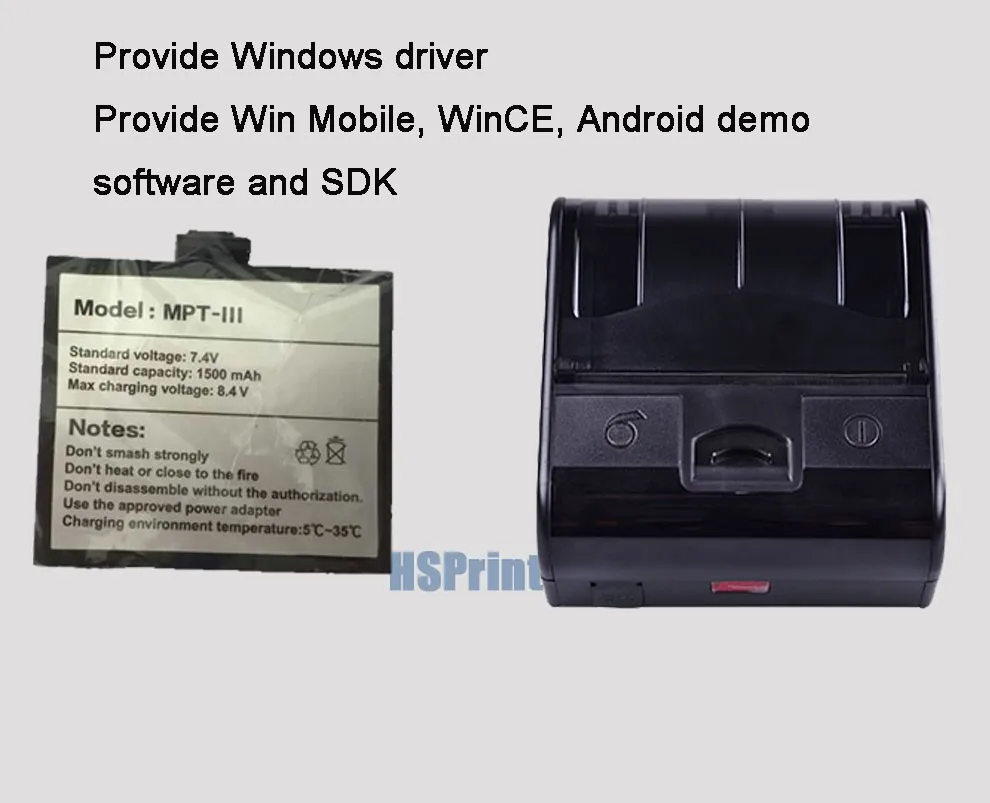

Windows driver for Windows XP/2000/VISTA/7

Demo & SDK for Android

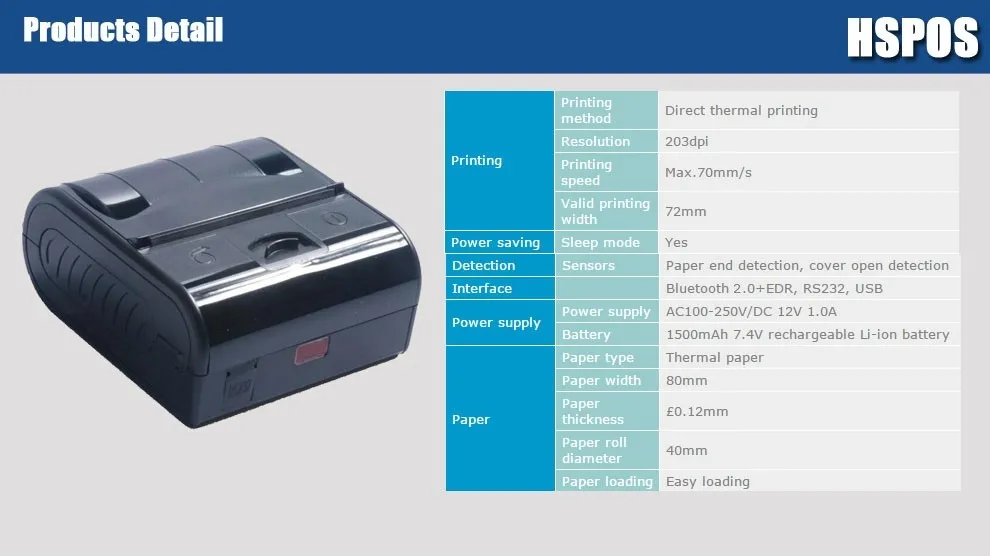

Product Specification:



Item

MPT-III

Printing Method

Thermal Line

Printing Speed

50~80mm/s

Effective Printing Width

72mm

Resolution

8 dots/mm, 576 dots/line

Print Font

ANK: 8x16, 12 x24 GBK:16x16, 24 x 24

Character per Line

48

Paper Type

Thermal paper/lable paper

Paper Width

80±0.5mm

Paper Roll Diameter

Max: 40.0mm

Roll Core Inner Diameter

13mm(min.)

Paper Thickness

0.06 to 0.07mm

Paper Loading Method

Drop-in easy loading

TPH Reliability

100km

Barcode

1-D:UPC-A, UPC-E, EAN-13, EAN-8, CODE39, ITF25, CODABAR, CODE93, CODE128; 2D:PDF417, QR code, DATA Matrix

Emulation

ESC/POS

Sensor

Paper end sensor, Power near end sensor, Cover open sensor

Interface

RS-232C, USB, IrDA, Bluetooth, WIFI(reserved)

Power Adaptor

DC12V/1A

Battery

DC7.4V,1.5A rechargeable Li-ion battery

Battery Duration

150~200m continuous printing(12.5%density); 1200 receipts(150mm each receipt);80~100m continuous printing(25%density)

Weight

340g

Dimension (WxLxH)

102 x 108 x50mm

Color

Black

Operating Temp

-10~50°C

Storage Temp

-20~70°C

Operating Humidity

20~85%

Storage Humidity

5~95%
