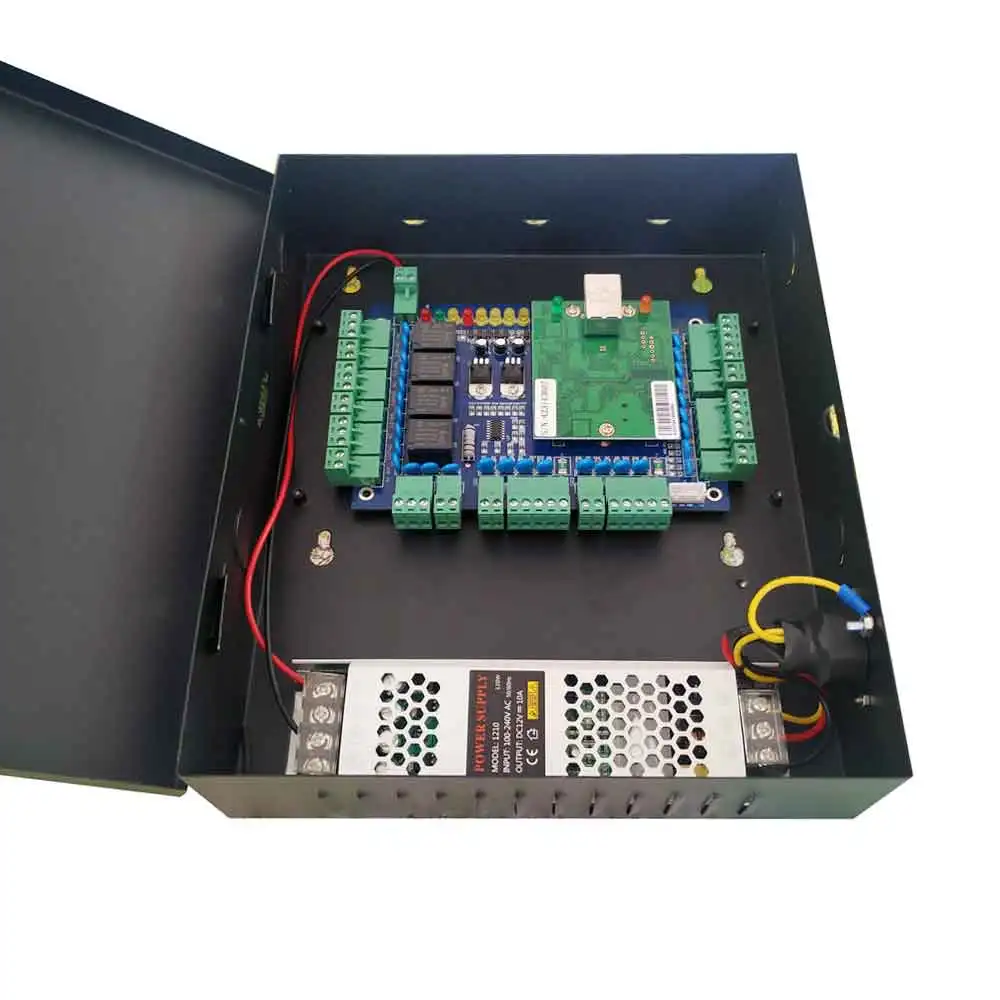

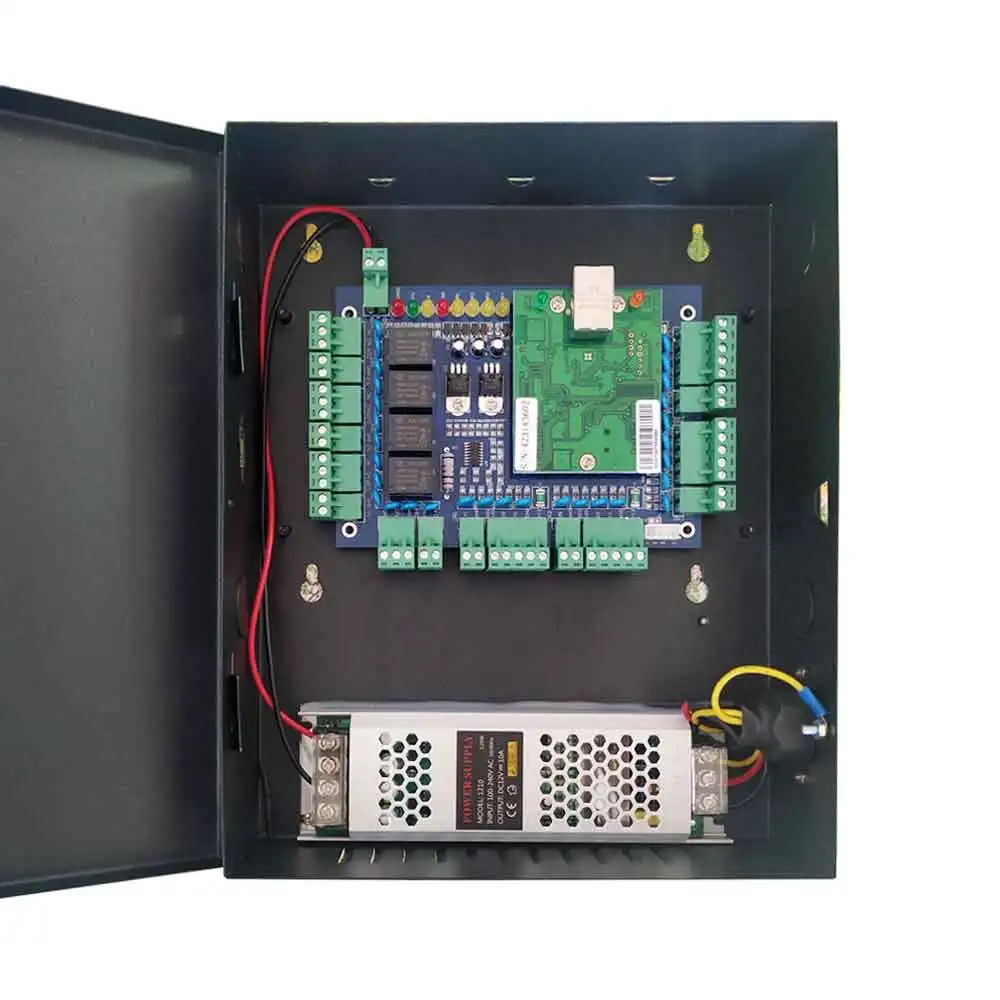

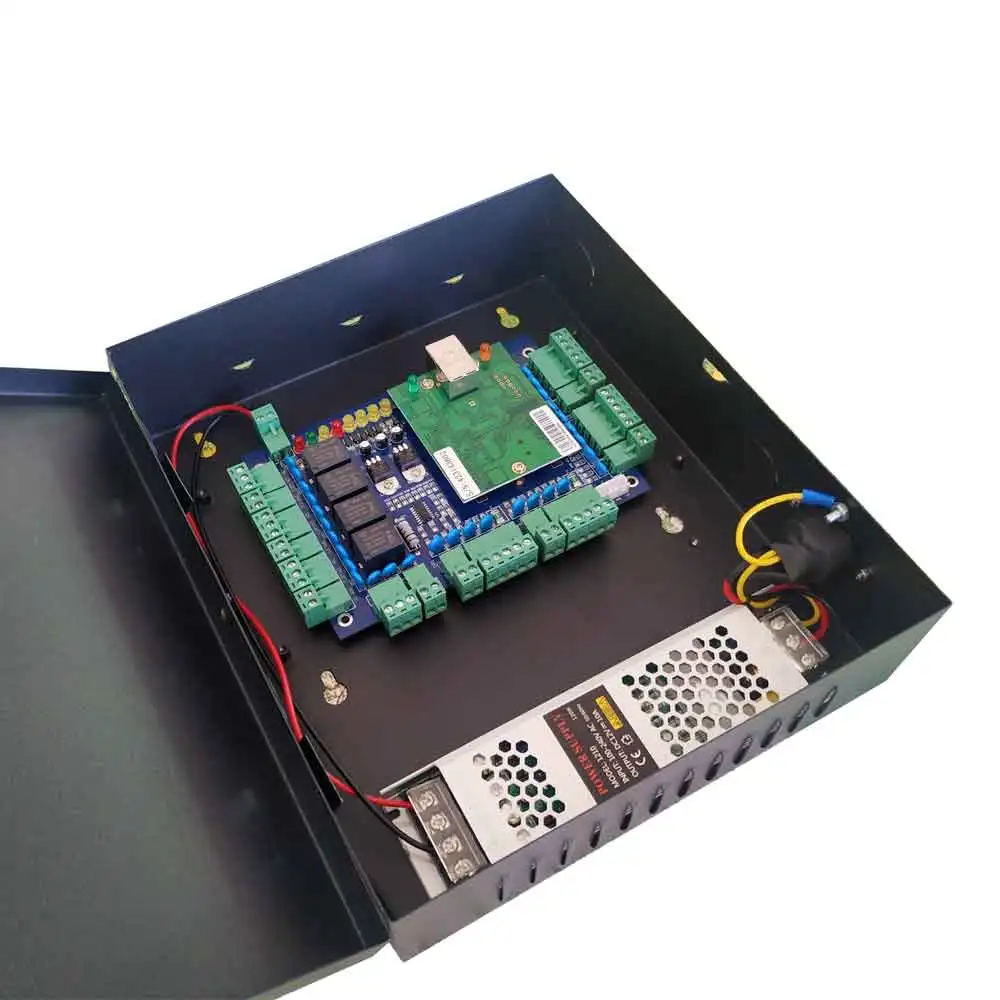

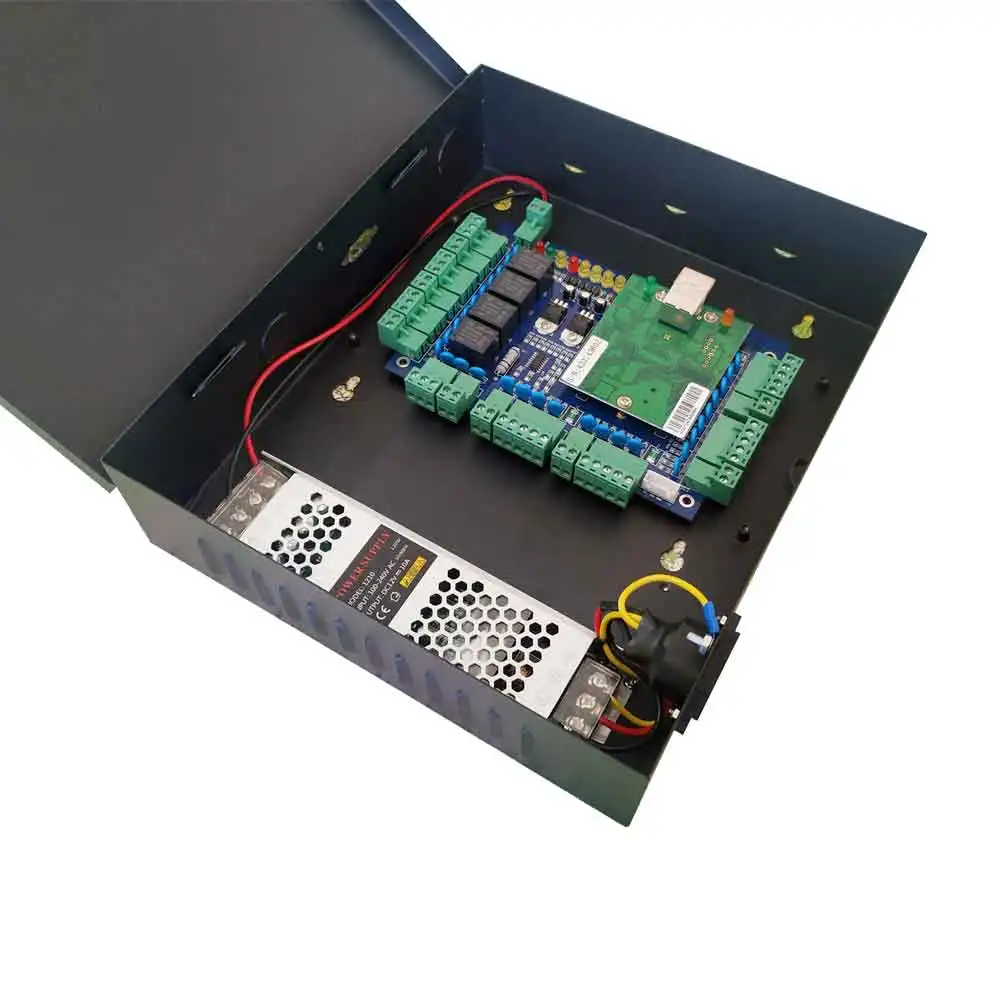

Четырехдверный комплект контроля доступа tcpip, 10 А, большая плата доступа для системы доступаконтроля рабочего времени, поддержка RFID-считывателя QR-ридеров sn:L04

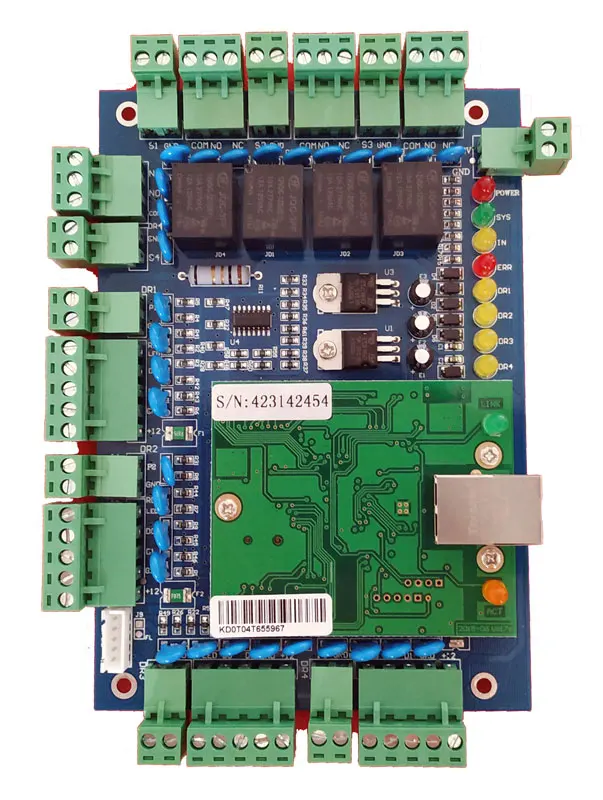

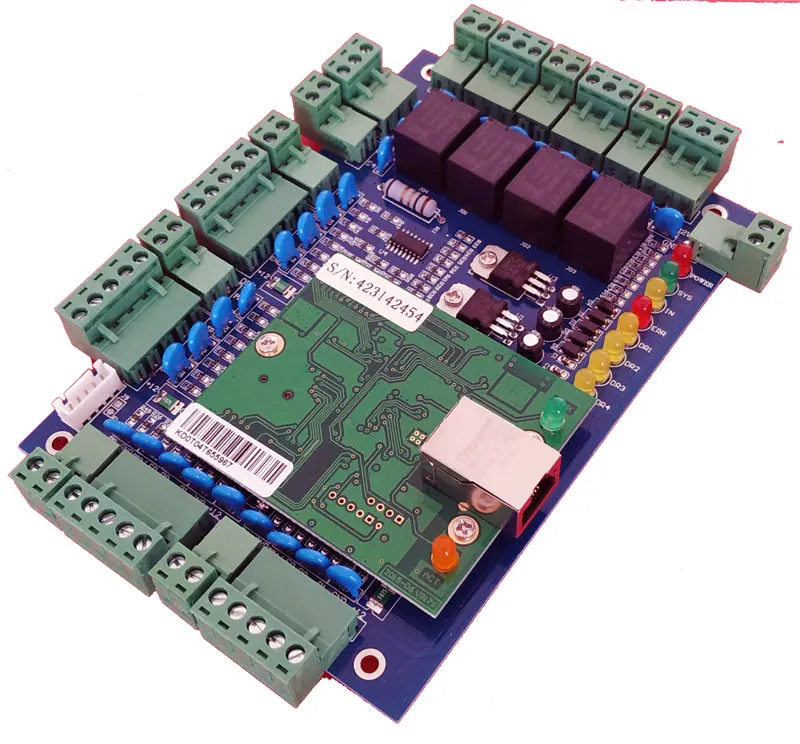

 This L-serial access controller is adopted 32-bit ARM cpu, it have very stronger fucntion. Its main function include: Attendance / Access control / Access alarm / Fingerpint /  Web function  .

Attendance :support normal shif rules and Multi-shif rules ,this can meet variety of attendance needed.

Access control:support Time profile / password manage / anti-passback / inter lock / first card / task list .

Access alarm:support door open too long warm / door forced open / invalid card / fire alarm / Threat code / force lock

Fire alarm: Fire alarm triggered , All doors are opened automatically and alarm is output at the same time

QR  function:support various QR code generators

web function:support PC,tablet ,cell phone use IE or Chrome  browser etc.

Main parameters

Model:L04

Mange door: 4

Card number:40 000

store card record :100 000

Reader Input format:wiegand 26/ wiegand 34

communication: TCP/IP

Database: Access or SQL 2000,SQL2005,SQL 2010, default :Access

support OS: XP, WIN7,WIN8, WIN10

power:12V

***************************************************************************************************************************************************

***************************************************************************************************************************************************

*********************************************************************************************************************************************************

Access control Getting started guide

This software is very eays to use, only through simple four-step ,you can use it

*********************************************************************************************************************************************************

Time attendance function

*********************************************************************************************************************************************************

Access control function

the controller suport Time profile / password manage / anti-passback / inter lock / first card / task list

*********************************************************************************************************************************************************

Access Alarm function

Enble this alarm fucntion, It can add one a expandsion borad, then can use the follow funtion. this is the link

https://www.aliexpress.com/store/product/Free-shipping-Enhanced-Alarm-Output-and-Integrated-Fire-Control-Expansion-Panel-compat-with-L01-L02-L04/612513_586727956.html?spm=2114.12010612.0.0.i4gn5I

*********************************************************************************************************************************************************

Fingerprint function

suport finger reader, it's better use our company Finger device, so it can use one software to manger

Enble fingerprint fucntion, it can add fingerprint reader . this is the link

https://www.aliexpress.com/store/product/Free-Shipping-USB-to-RS232-Serial-9Pin-DB9-Cable-Adapter-for-PC-PDA-GPS-SJX427-sn/612513_591560725.html?spm=2114.12010612.0.0.cXXDbM

*********************************************************************************************************************************************************

Web function

suport PC,tablet ,cell phone use IE or Chrome  browser etc

***************************************************************************************************************************************************

if need reader / exit button and ID card, can add these items.they are access control option

***************************************************************************************************************************************************

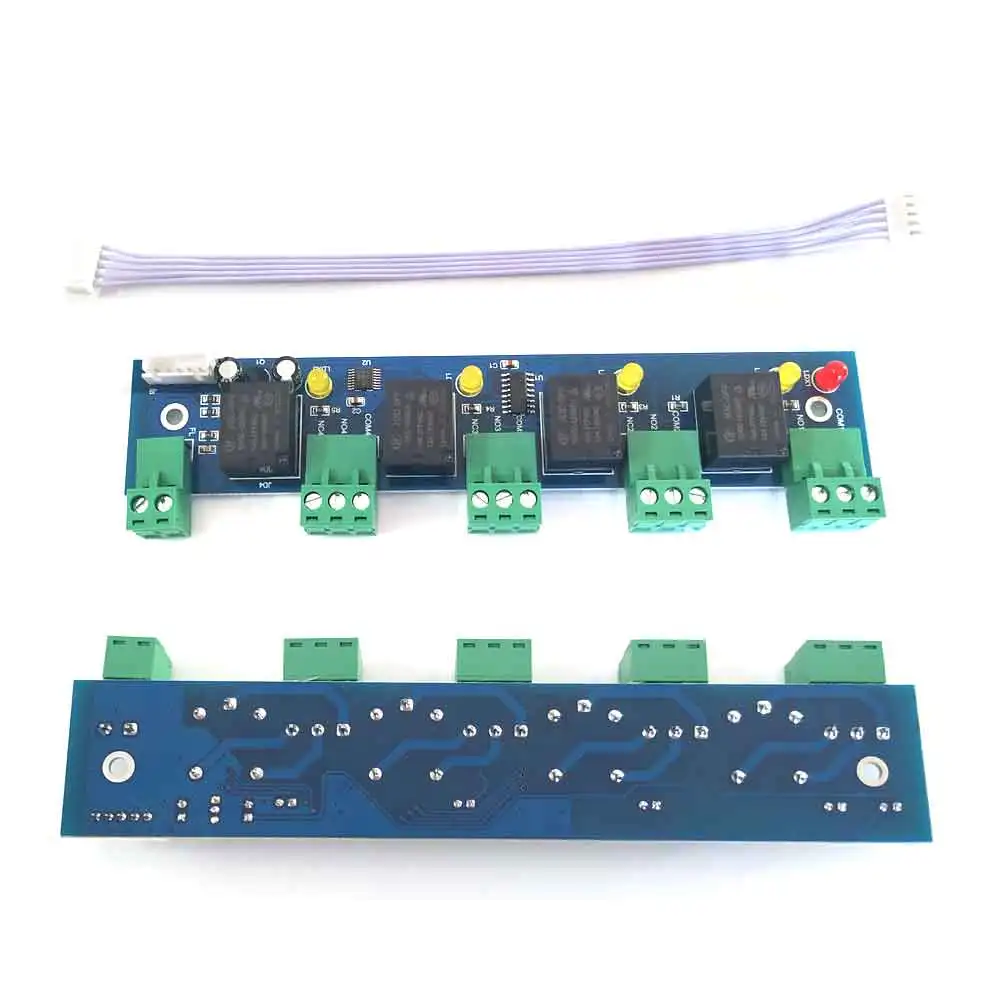

Expansion board (option)

invalid break in alarm, long time unlocking alarm, intimidation break in alarm, unlocking linkage ouput, invalid card swiping alarm, integrated fire control alarm;

1-way input and 4-way alarm output. You can specify which function to which door of the controled area .Can connect the fire control output, when fire signal received, doors in the controlled area will be open automatically, and fire alarm will be recorded.

*****************************************************************************************************************************

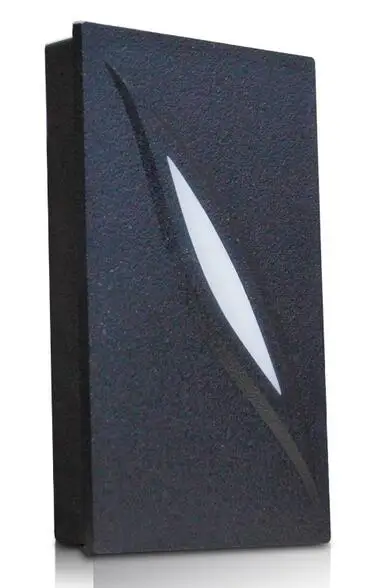

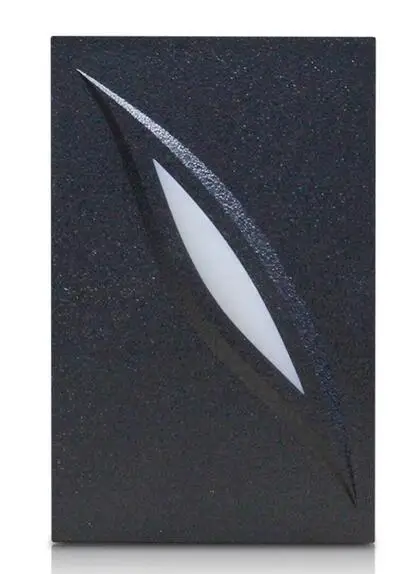

RFID ID reader (option)

Features:

*****************************************************************************************************************************

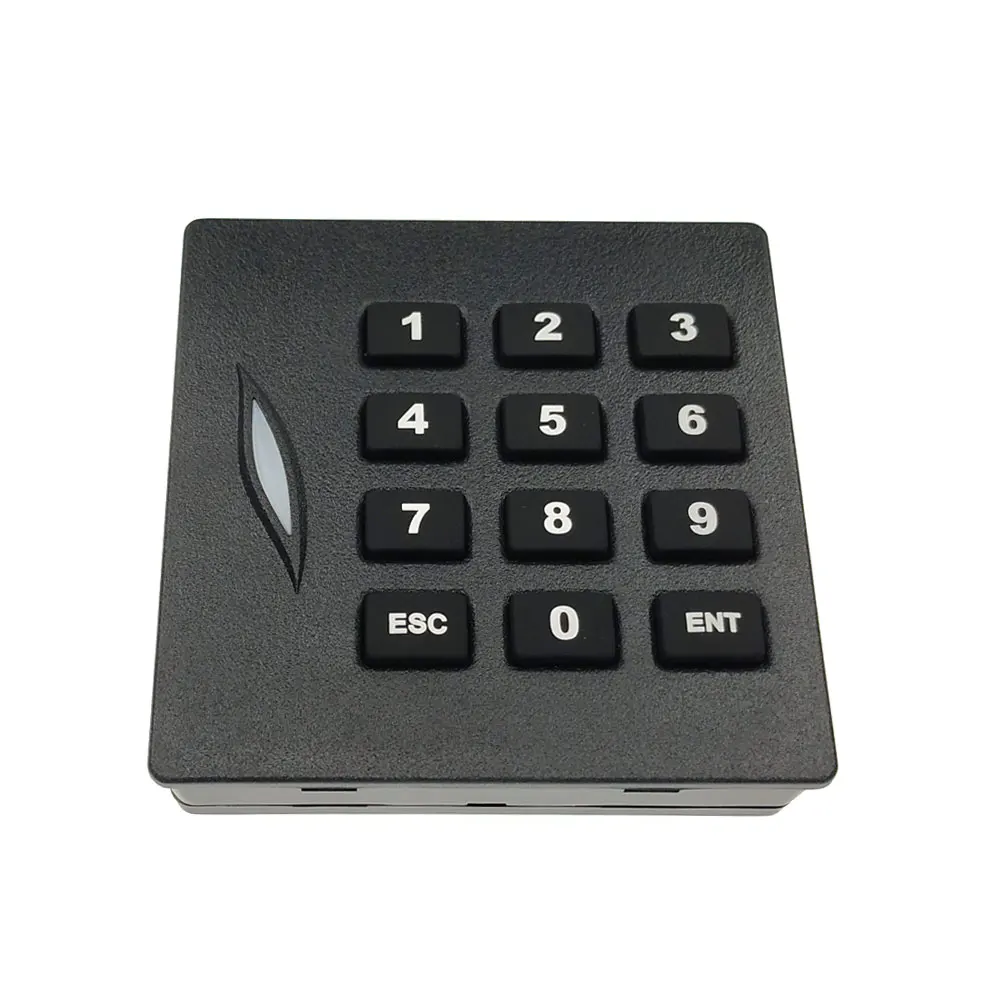

RFID ID keypader reader (option)

*****************************************************************************************************************************

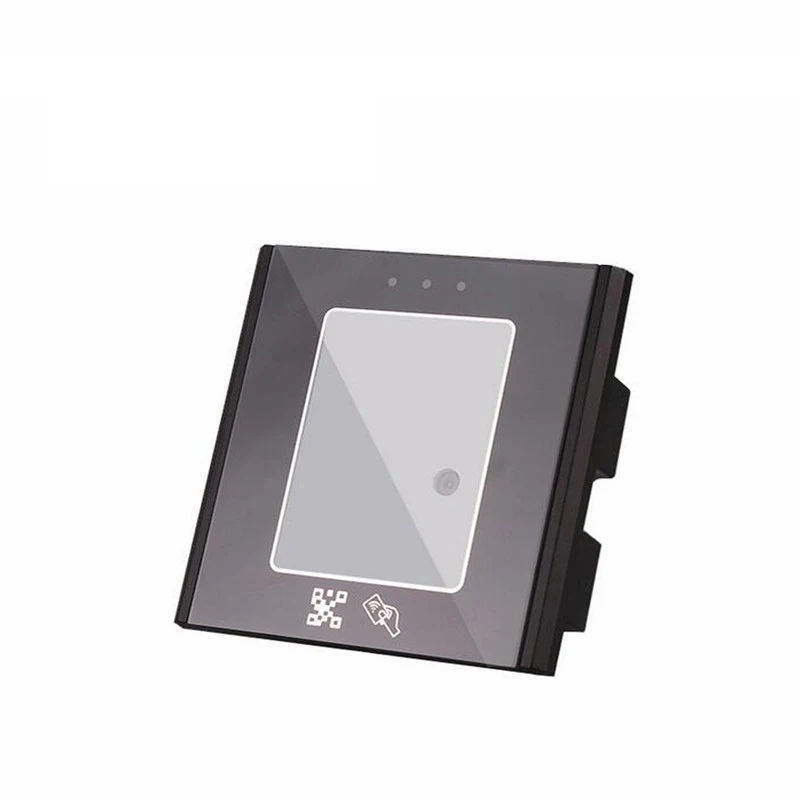

​Product Name:QR Coder card Reader (option)

*********************************************************************************************************************************************************

*****************************************************************************************************************************

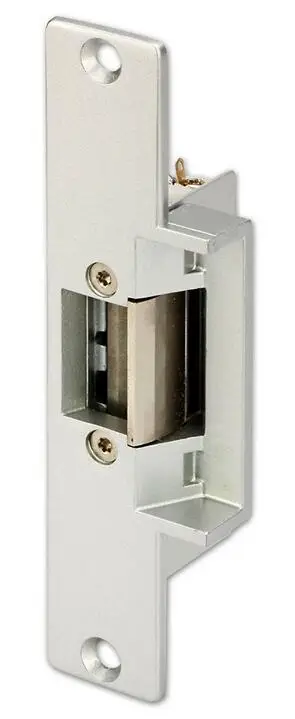

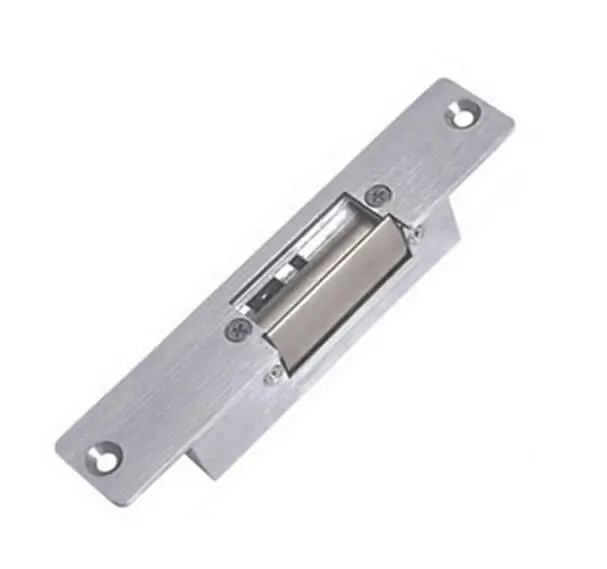

Electric strkie lock (option)

·                     Voltage: 12VDC

·                     Current: 200mA - 450mA

·                     Safety function: Built-out voltage spike suppressor

·                     Opening Mode: 90 degree swinging door

·                     Dimension (Face Plate): 149 (L) x 27 (W) x 34 (H) mm

·                     Weight: 400g

·                     Authority Certification: CE Approved

1x NC type Electric strike Lock

***************************************************************************************************************************************************

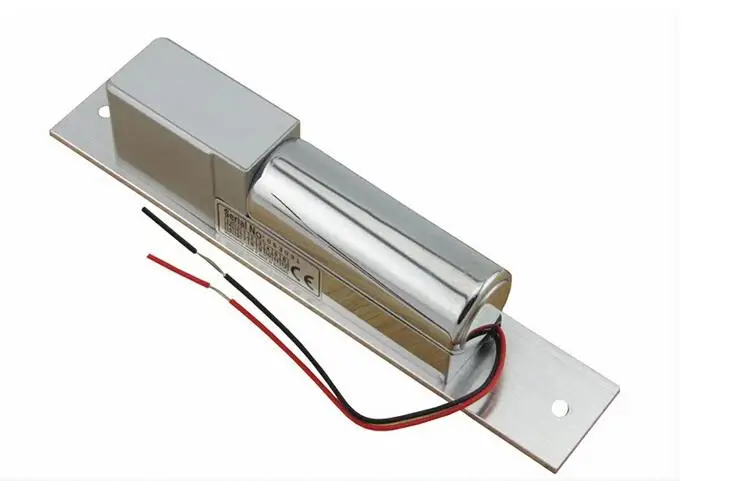

Electric bolt lock 2-lines low temperature (option)

Specifications:

Package Included:

***************************************************************************************************************************************************

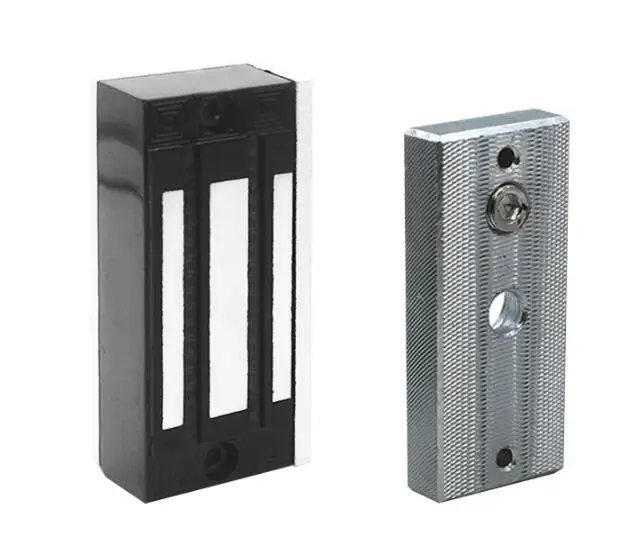

Electric 60kg magnetic lock (option)

***************************************************************************************************************************************************

Electric 180kg magnetic lock (option)

Products Specifications:

***************************************************************************************************************************************************
