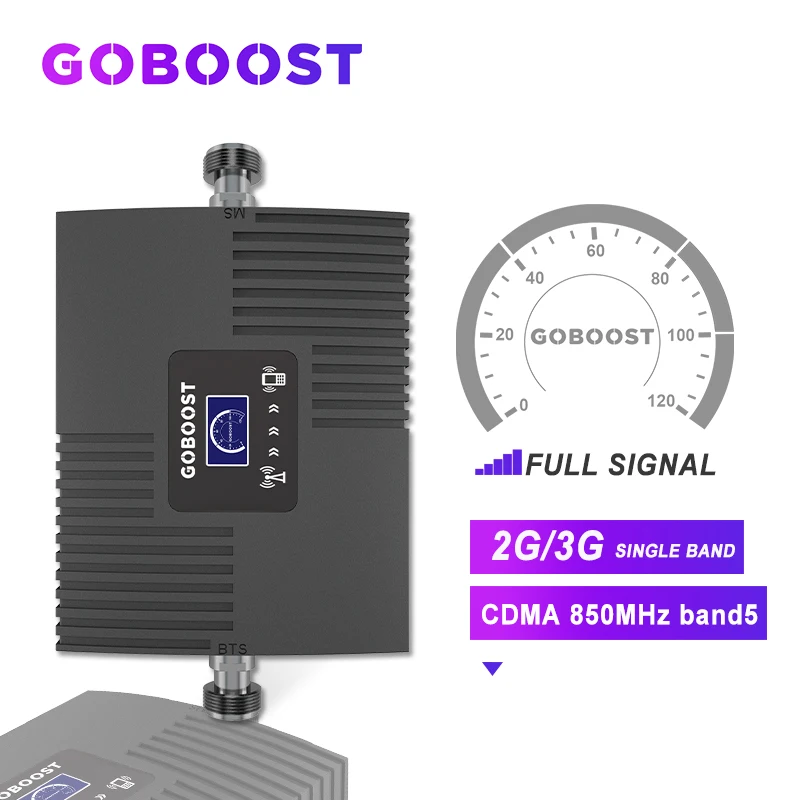

Усилитель сигнала сотовой связи GOBOOST, 2g 3g 850 МГц, усилитель диапазона 5 CDMA с ЖК-дисплеем, gsm 850 МГц
GOBOOST Official Store - Надежность 94.25%
Более 6722 подписчиков, дата открытия магазина 22.04.2019
- Положительные оценки: 95% (394)
- Соответствие описанию: 94%
- Отвечает на сообщения: 94%
- Скорость отправки: 94%
Последнее обновление: 27.03.2022

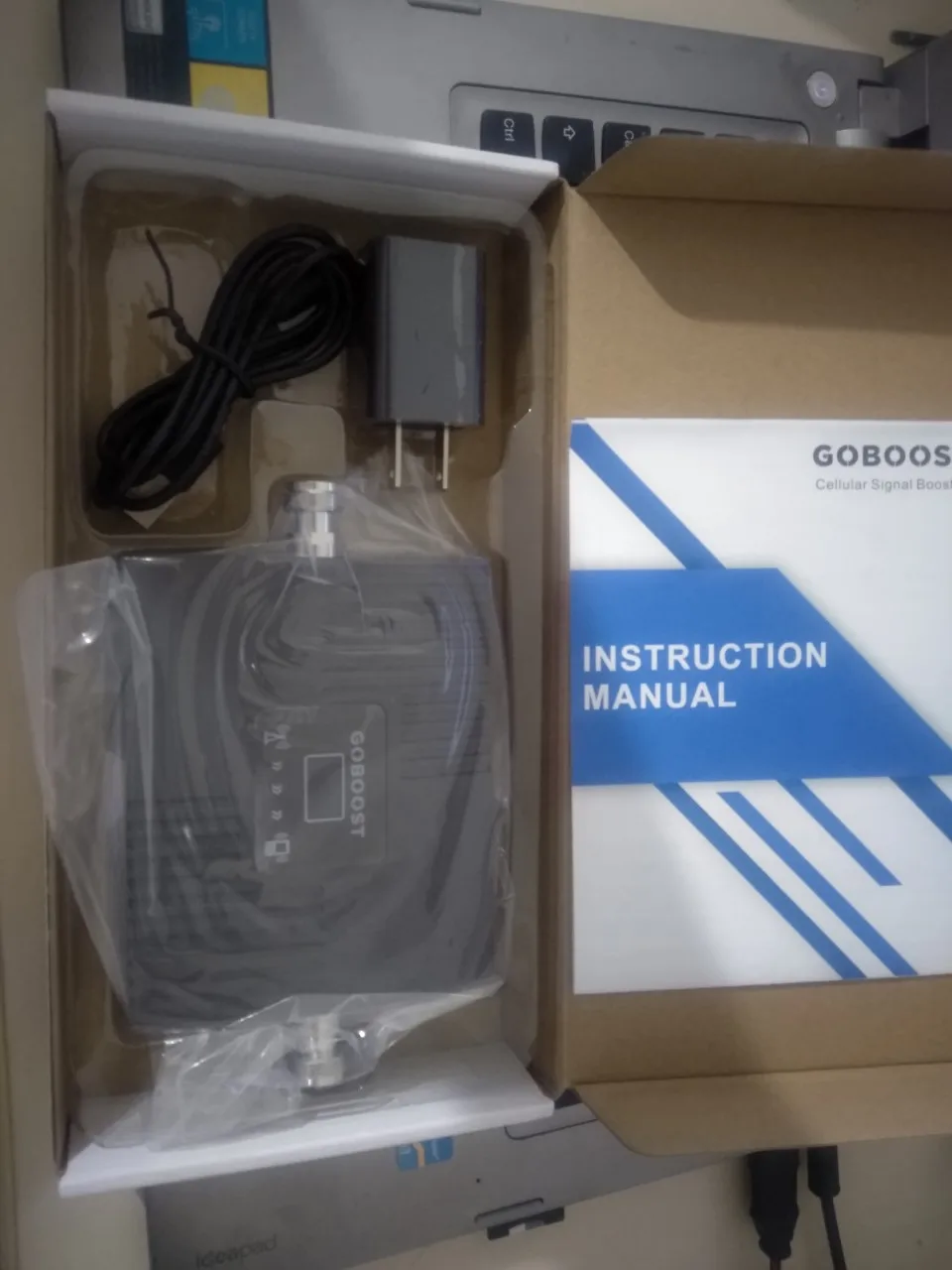

What's in box?
![](https://ae01.alicdn.com/kf/Hb19e7b70bbab4235824b6bf32fcd9f64V.jpg_.webp)

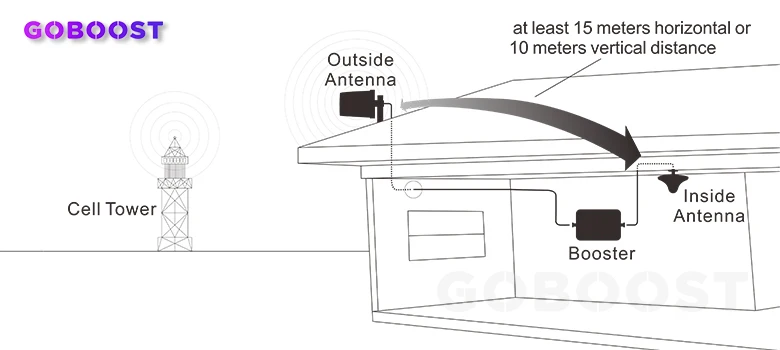

Step1:Search a position where can receive good signal(stronger than -70dB)Parallelly installing the outdoor antenna on that location,towards to the base station or cell tower.
![](https://ae01.alicdn.com/kf/H57f19ae80d61430482699f606ec6661fa.jpg_.webp)
Step2: Use 10m cable to connect the outdoor antenna and singal booster.Please ensure they were tightenned joints,connected well. Step3:Connect the indoor antenna and the singal booster.
![](https://ae01.alicdn.com/kf/H7e9d0bf724fe4370811ab47b44e707e6z.jpg_.webp)
Step4:After finished all parts then check weather all connectors well,then can turn on the power.
Two antennas need to separate by brick wall. The distance between them at least 10 meters.
1. RECEIVES SIGNAL
The powerful antenna reaches out to access a good signal, and delivers it to the booster.
2. BOOSTS SIGNAL
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3. BROADCASTS SIGNAL
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
![](https://ae01.alicdn.com/kf/H4fa43b7f1d6d4d7c8f50deec6e83bb449.jpg_.webp)
Common Problems

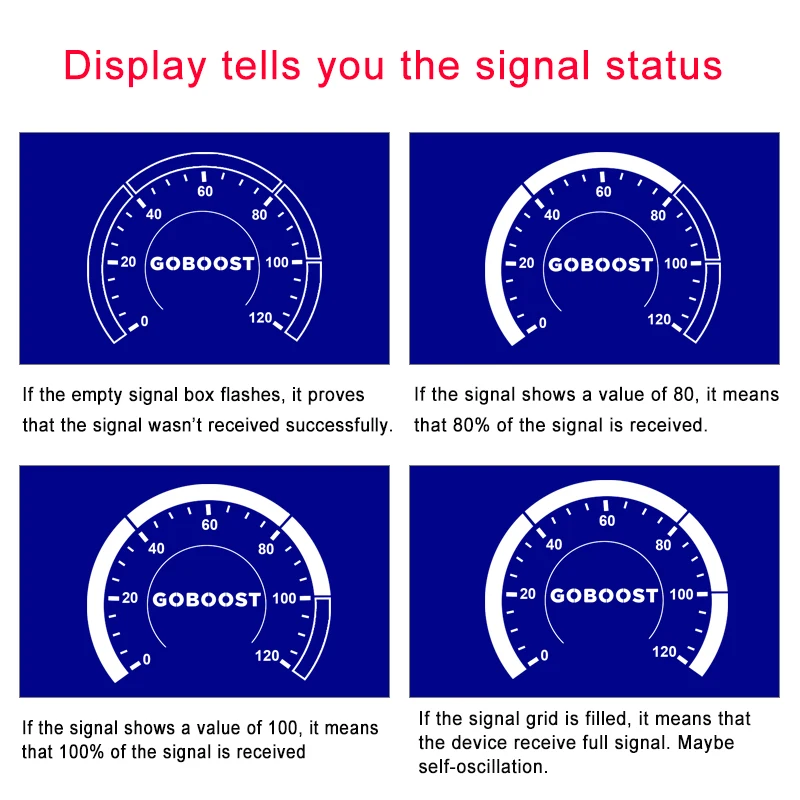

Question: no signal on the display and phone
Solution: adjust outdoor antenna, put it at a higher postion and make sure it could receive good signal from base station.Or please check the freqeuncy of your antenna, if you buy only booster from us. If the frequency doesn't match to the booster's, it could not work either.
Question: the display is blinking and signal light isn't on.
Solution: Also adjust outdoor antennna as above, because blinking means receiving signal is not stable. Adjust the position and direction of outdoor antenna until it stop working.
Queation: the signal is at maximum on booster but the signal on the phone does not improve at all
Solution: It is what we called "self-oscillation phenomenon". You need to increase the distance of indoor antenna and outdoor antenna and separae them with a brick wall. Make sure there is no opening area between them.
Question: The booster works properly but the signal light is not on
Solution: Maybe the cable is too long for the booster or the connection is not well. Please make sure all the antenna are connected well and tightly. It actually does n't matter too much as long as the device works well.
Any other problems about the product or installation, please contact us.
Thank you!
1. We could accept all the payment way accepted by AliExpress.
2.What you pay is for the product and shipping cost only, not including any tax. Please be aware of that whether need to pay tax or not, depends on the policy of your country, we certainly could not change it. If you could not accpt it, we do not suggest you to place order.
1. All the available ways are indicated at the page of product. We would send out the order as per your choice.
2.The parcel would be sent to the exact address that you fill in the order. In order to make you receive the parcel promptly and safely, please provide right contact info.
3.If you do not receive the parcel within the protection time, please contact us at the first time, we would check it for you or extend the protection time.
1. Please note that we always check and test the product twice before shipping and pack them well as far as possible. However we could not control anything during the long transit. Therefor, the product is broken at receiving, please contact us, we would resend you a new one.
2.Our product have one year warranty. But please be cooperative to provide video or pictures to show exact the problem, and listen our suggestions for the installation.
3.Any problem about the parcel or the prodcut, please feel free to contact us at the first time, we would be very glad to help and reply ASAP.
-

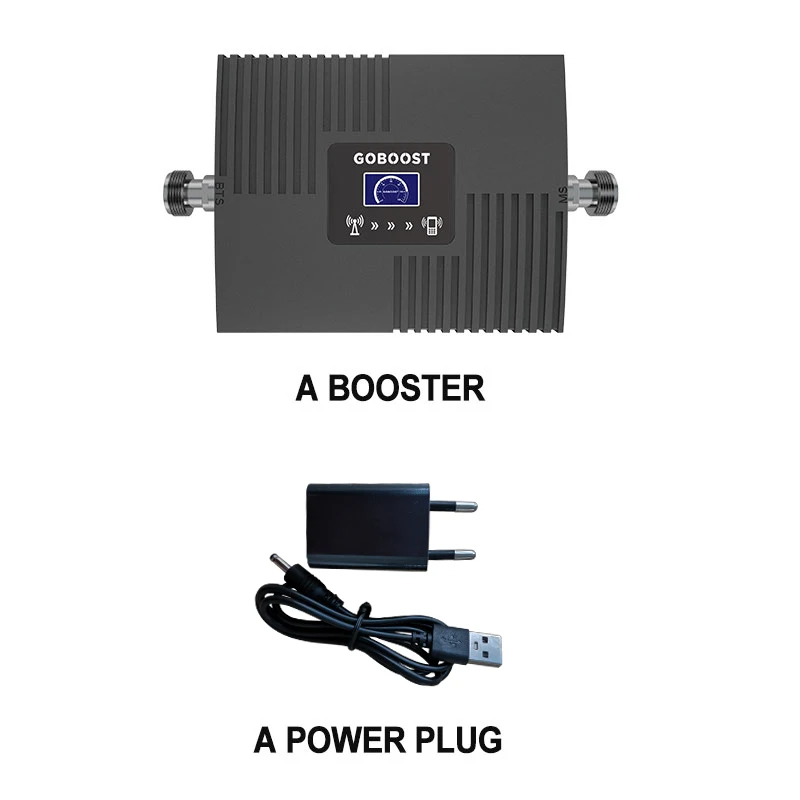

AccessoriesCellular signal booster, Plug
-
Bandwide25M
-
Cellular Network2G 3G 850MHz
-
Coverage200-600sqm
-

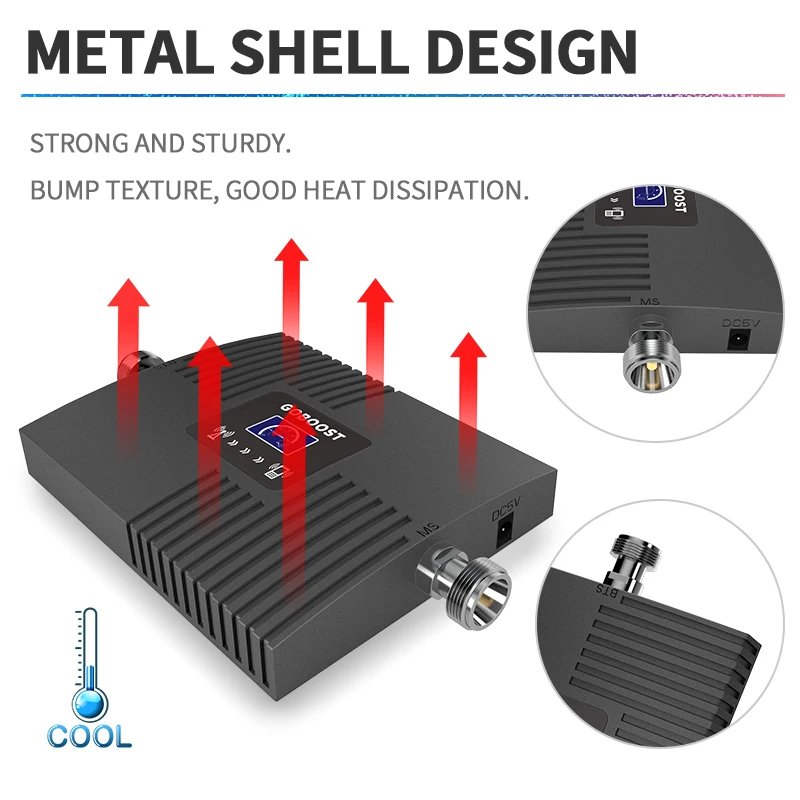

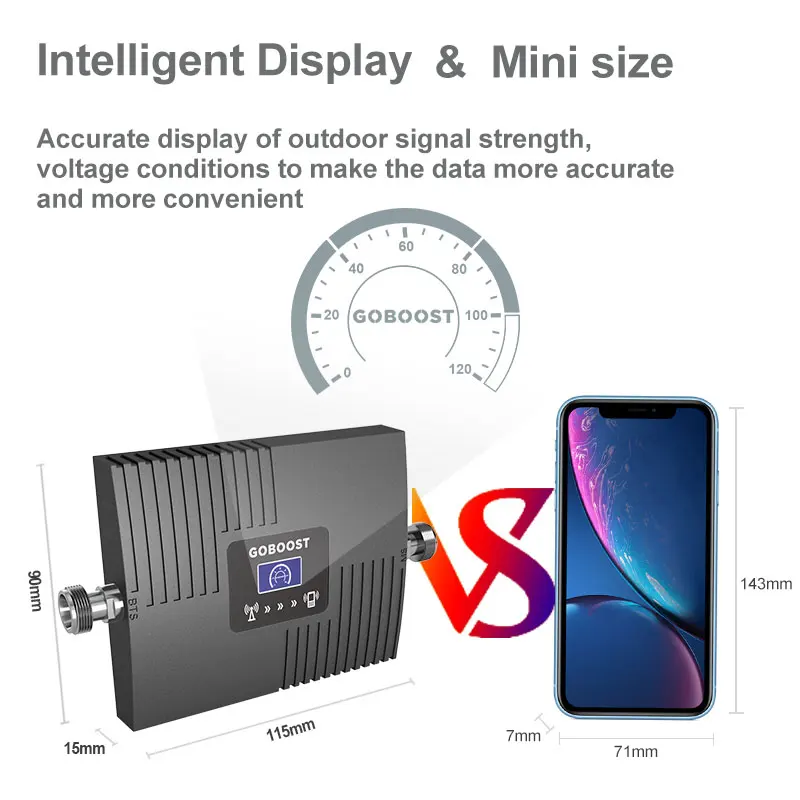

FeatureLCD display to show the signal status;Heat dissipation
-
FrequencyUL:824-849MHz DL:869-894MHz
-
FuntionAs a booster use to strengthen cellular cell phone signal
-
Gain68dB
-

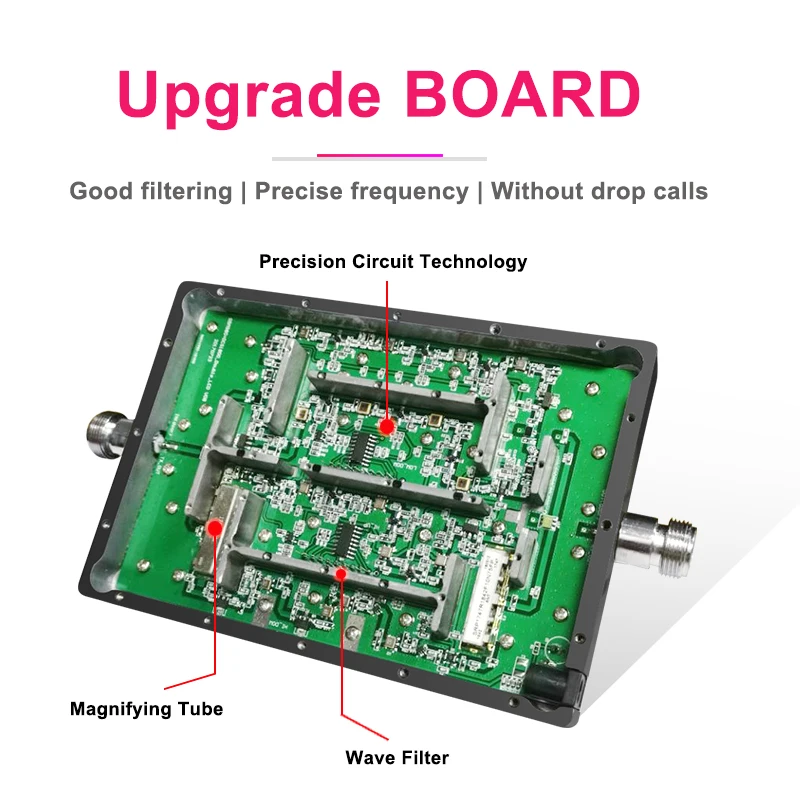

GOBOOSTGOBOOST booster Upgrade board
-
Impedance50 ohm
-
Output Power17dBm
-
Power SupplyAC:100~240V, 50/ 60Hz, DC:5V 1A
-
RF ConnectorN-Female
-
Suitable forBrazil, Europe, Mexico,Colombia,Argentina,etc.
-
Вес логистики0.500
-
Каждая упаковка1
-
Минимальная единица измерения100000015
-
Название брендаGOBOOST
-
Номер моделиGB17-CDMA
-
Продано Вsell_by_piece
-
ПроисхождениеКитай
-
Размер логистики - высота (см)8
-
Размер логистики - длина (см)25
-
Размер логистики - ширина (см)18
-
СертификацияЕвропейский сертификат соответствия
