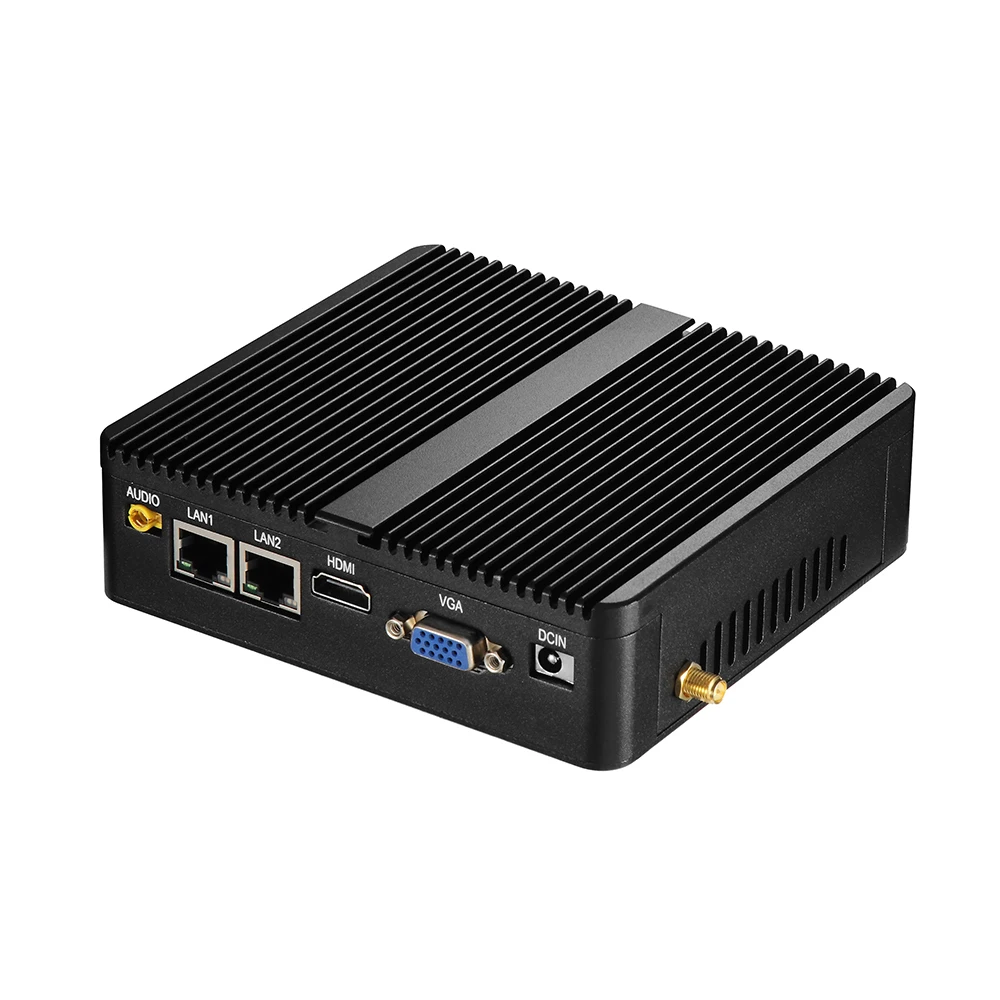

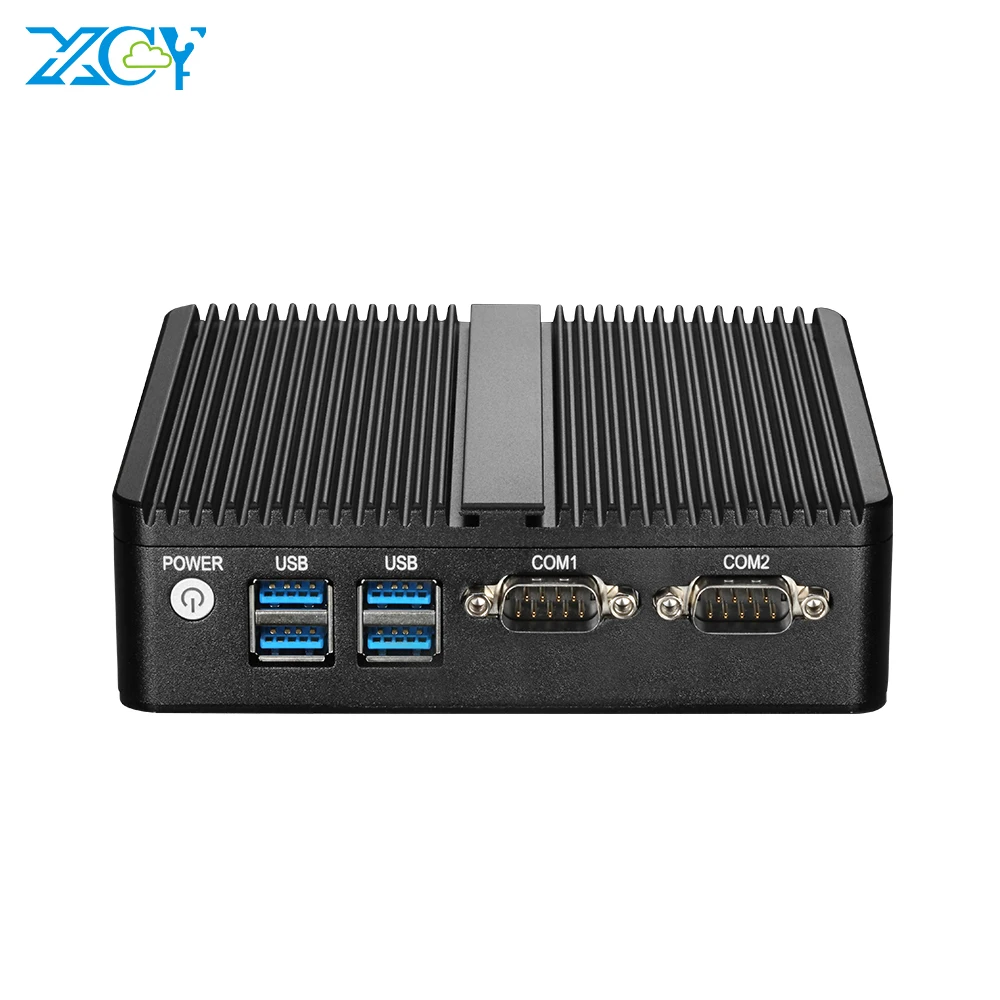

XCY мини-ПК Intel Pentium N3540 четырехъядерный 2x RS232 двойной Ethernet 300M WiFi HDMI VGA 4 * USB безвентиляторный промышленный ПК Windows Linux

Processors

Intel Celeron J4105, 4 cores 4 threads, 1.50GHz, up to 2.50GHz

Intel Celeron N4100, 4 cores 4 threads, 1.10GHz, up to 2.40GHz

Intel Core i3-4010U, 2 cores, 4 threads, 1.70GHz

Intel Core i5-4200U, 2 core, 4 threads, 1.60GHz, up to 2.60GHz

Memory

/i3-4010U/i5-4200U use DDR3L 1333/1600MHz RAM

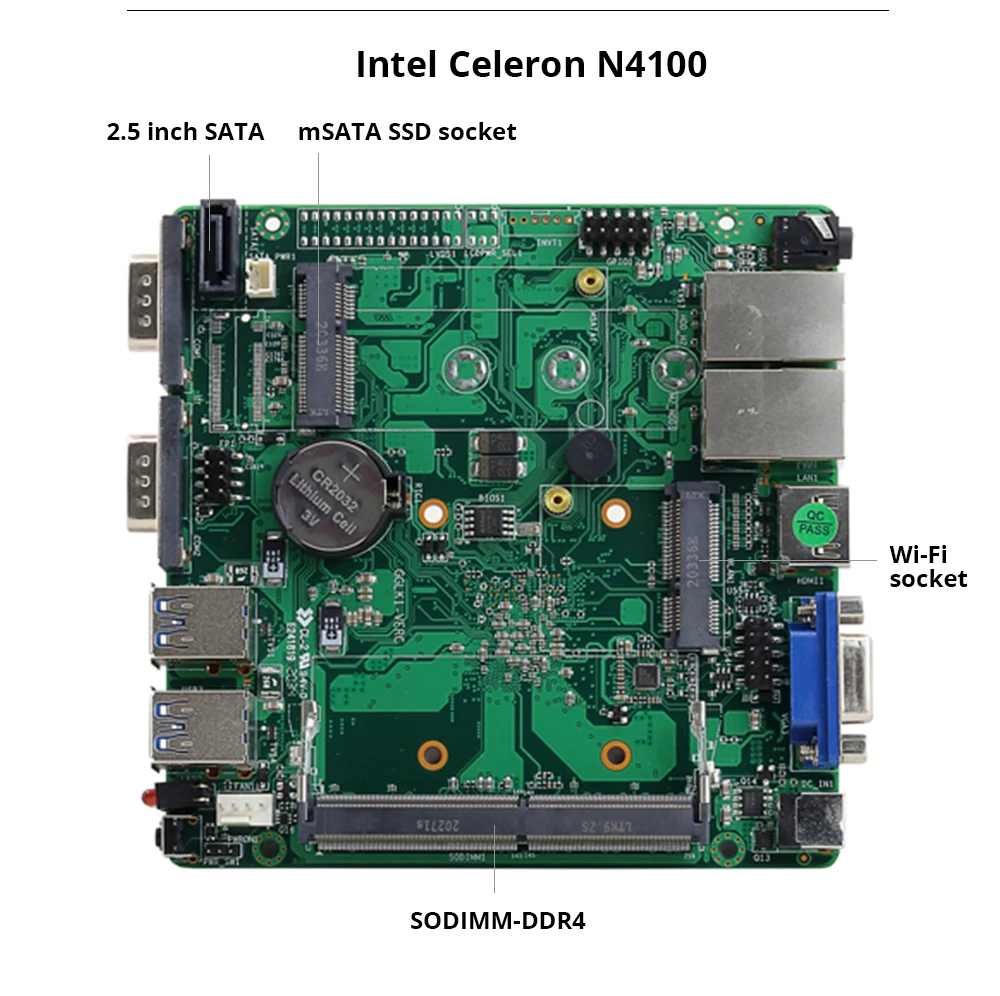

N4100/J4105 model use SODIMM DDR4 2133/2666MHz RAM

max support to 8GB

Storage

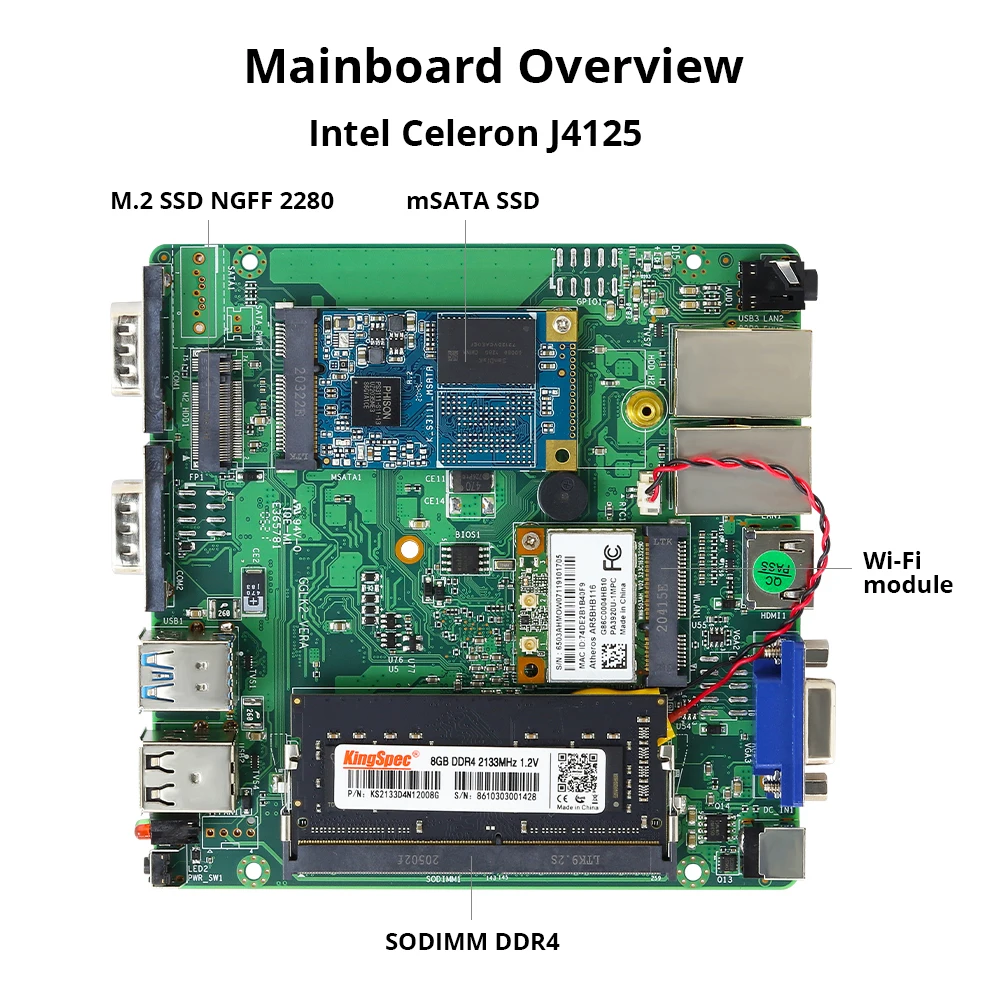

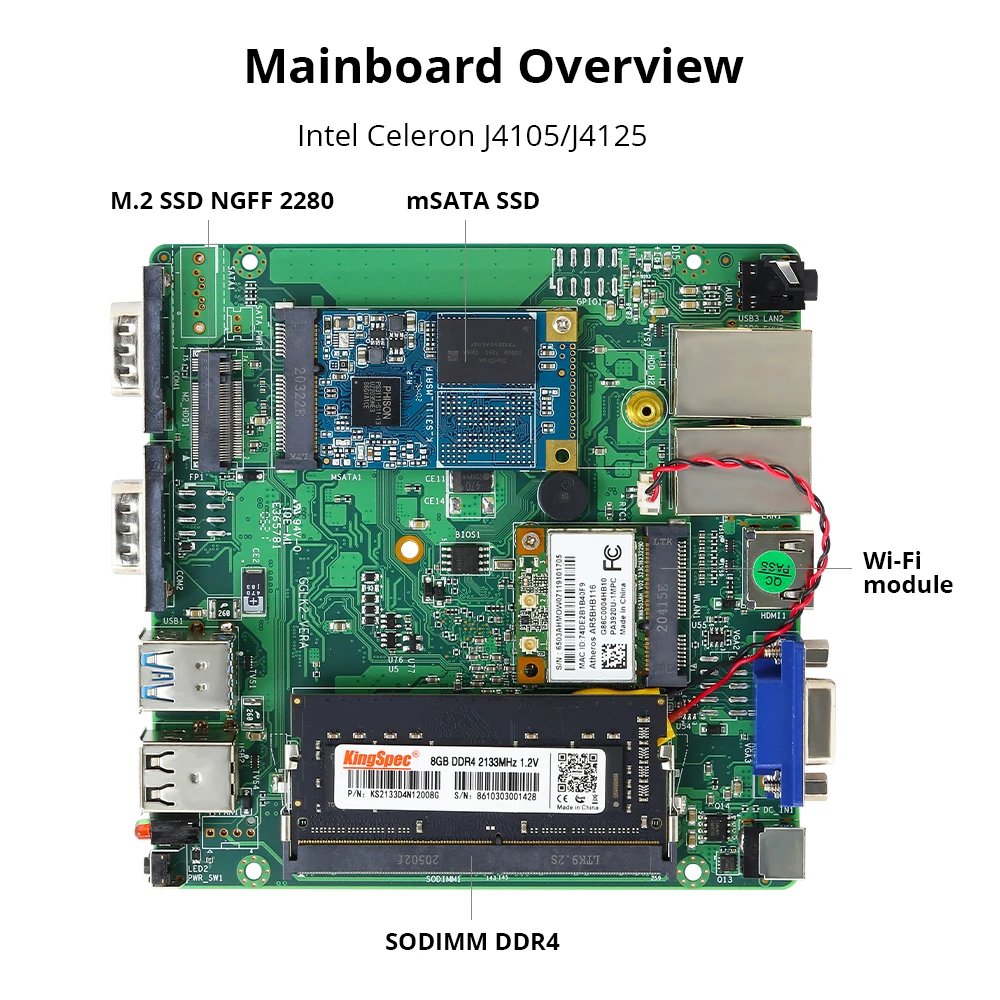

J4105 mode support mSATA SSD and M.2 NGFF SSD

N4100 and i3-4010U/i5-4200U support mSATA SSD and 2.5 inch HDD/SSD

Graphics

Integrated Intel HD Graphics

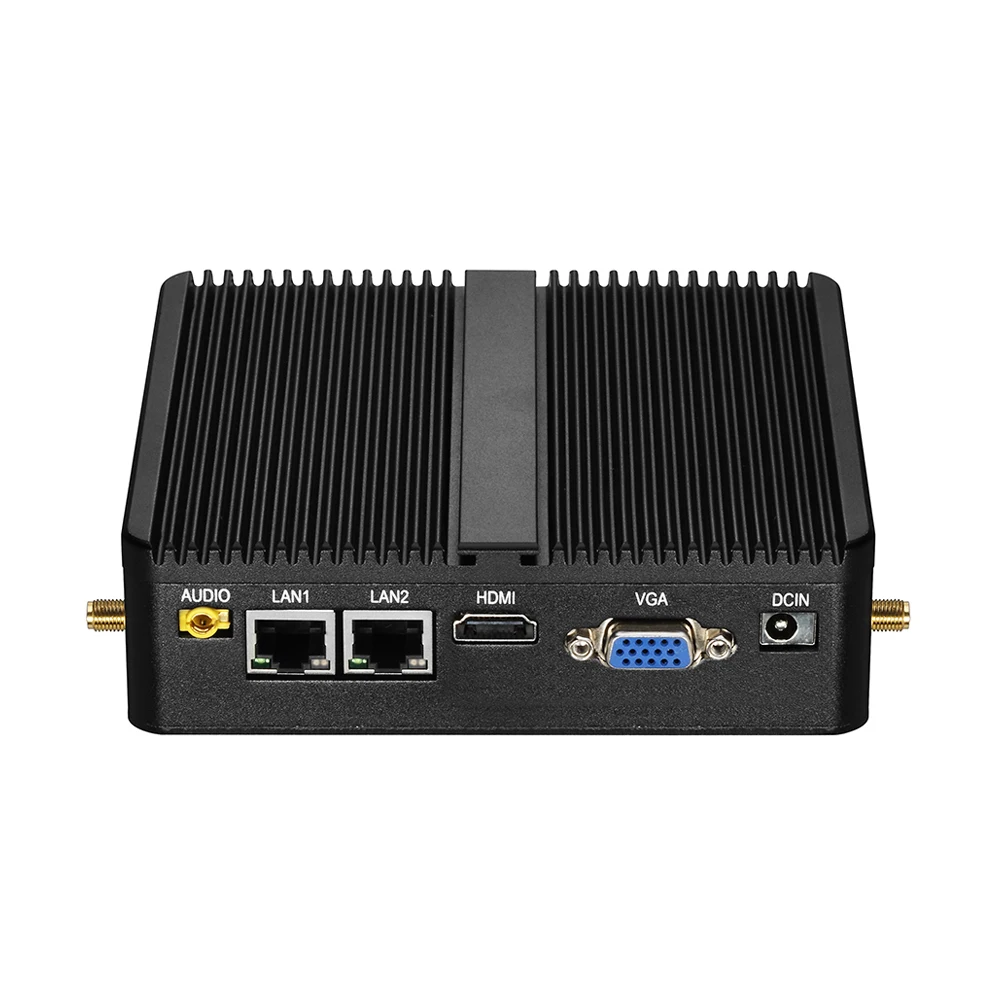

Network Interfaces

2x GbE RJ45 Realtek 8111E

Expansion

1x Mini PCI-E for WiFi/Bluetooth module (half height size )

OS Support

Windows 7/8/10, Linux, Ubuntu, CENTOS, Vxworks, WES7 WES8

N4100/J4105 model can not support Windows 7

USB Ports

4x USB3.0 ( or 2x USB 3.0, 2x USB 2.0 )

Display Port

1x VGA, 1x HDMI

COM Ports

2x RS232 serial ports

Audio Ports

3.5mm combo audio jack

Construction

Fanless passive cooling

Case

Aluminum Case

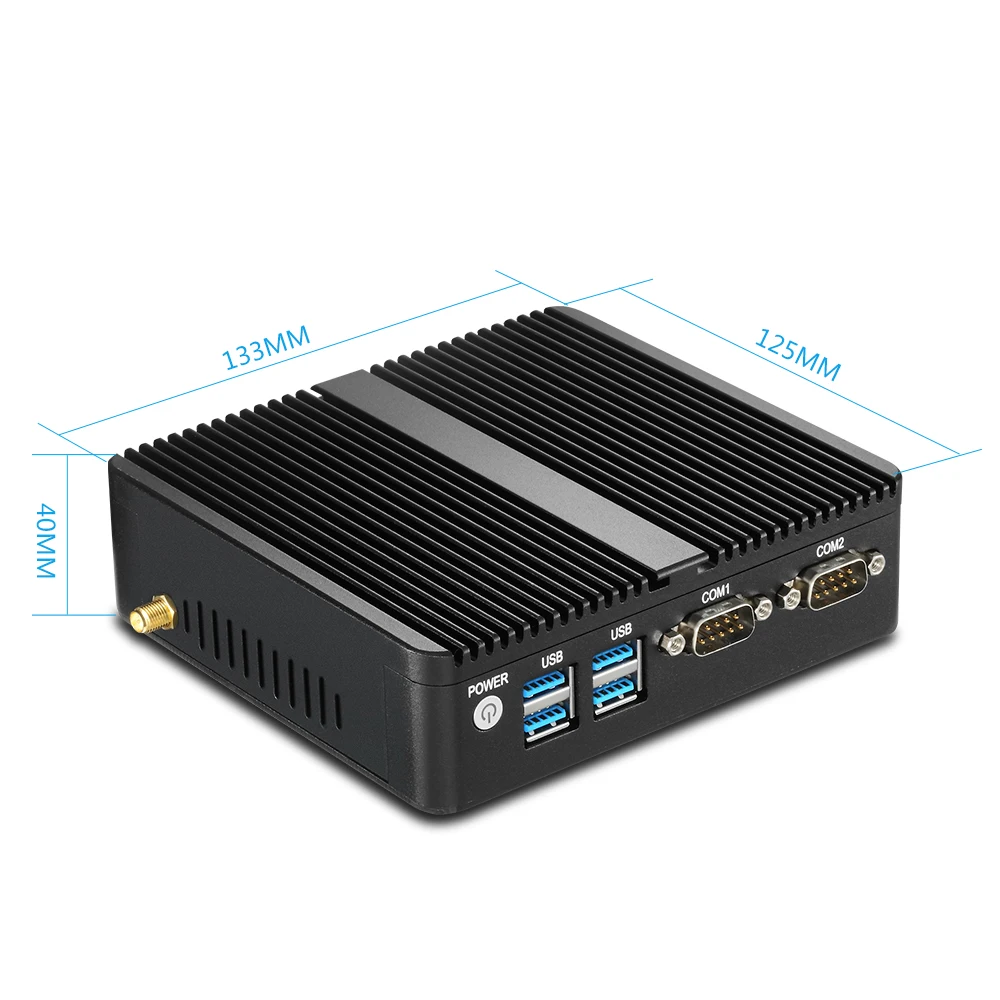

Dimension

135x124x40mm

Netweight

0.8Kg

Operating

Temperature

-20℃ to +60℃

RH

5%~90% @30℃，Non-condensing

Power Adapter

Input AC100-240V, Ouput DC12V-5A

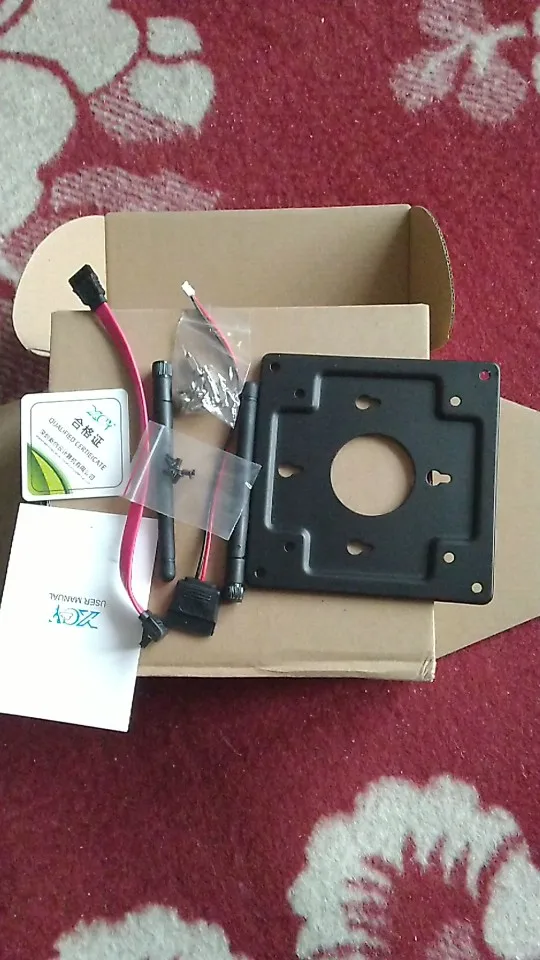

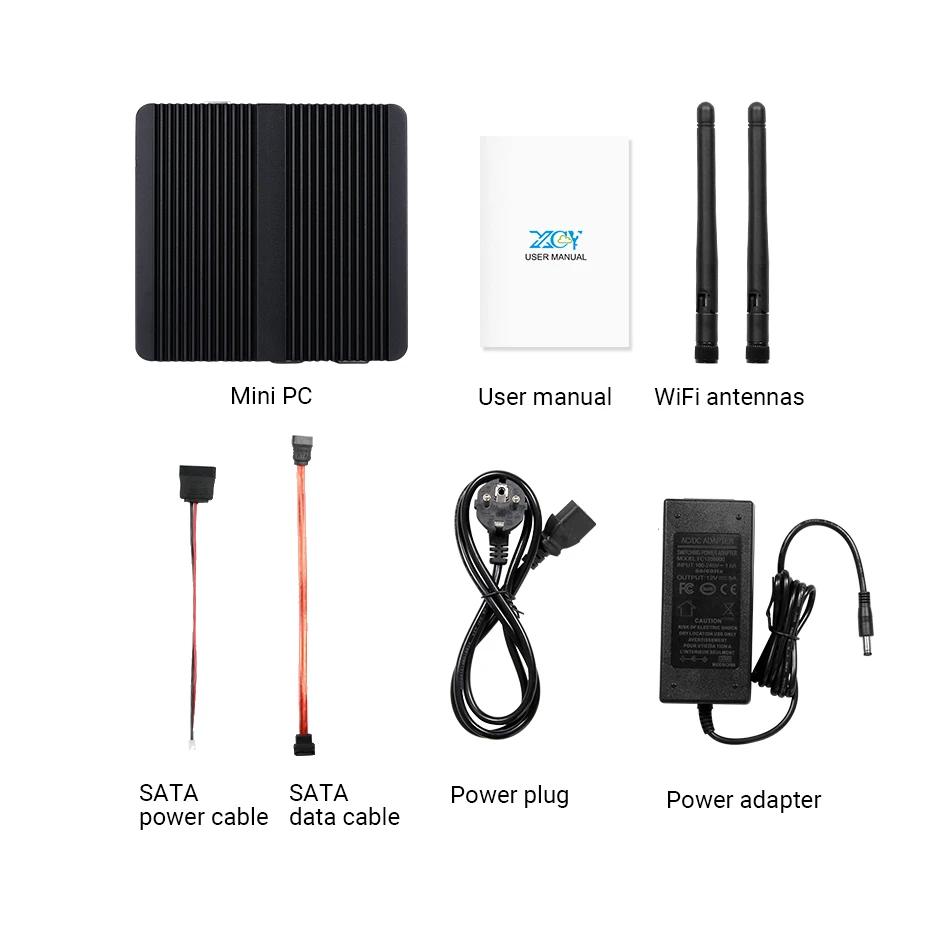

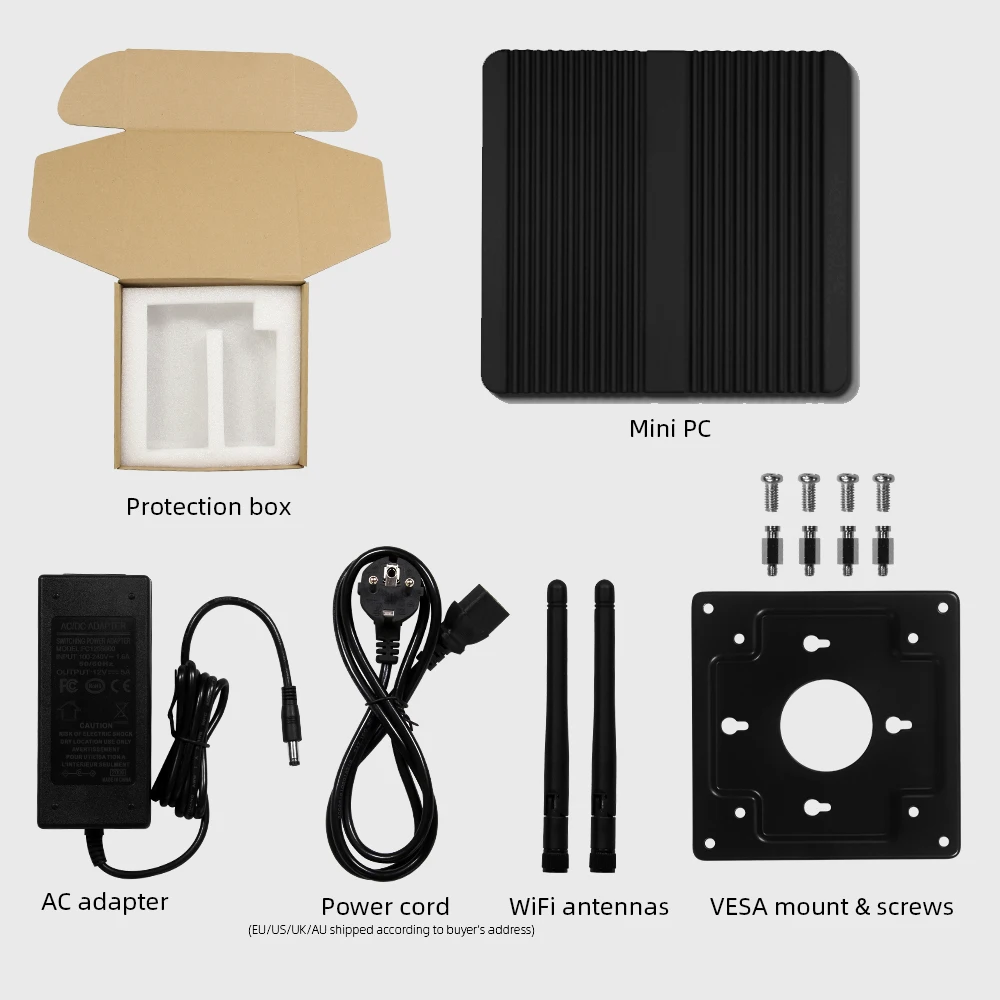

Package List

1x Mini PC X30G

1x AC Adapter

1x Power cord ( EU AU US UK type plug shipped according to buyer’s address )

1x 2.5 inch SATA cables

1x VESA bracket

1x User manual

Note: N4100 model can not support function automatically power on after power restore, buyer need this function please buy other CPU models.
