2.54 2.0 1.27 recording needle spring needle single row double row probe test needle recording download programming

we have these type:

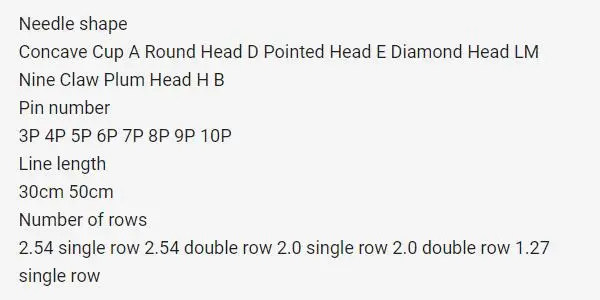

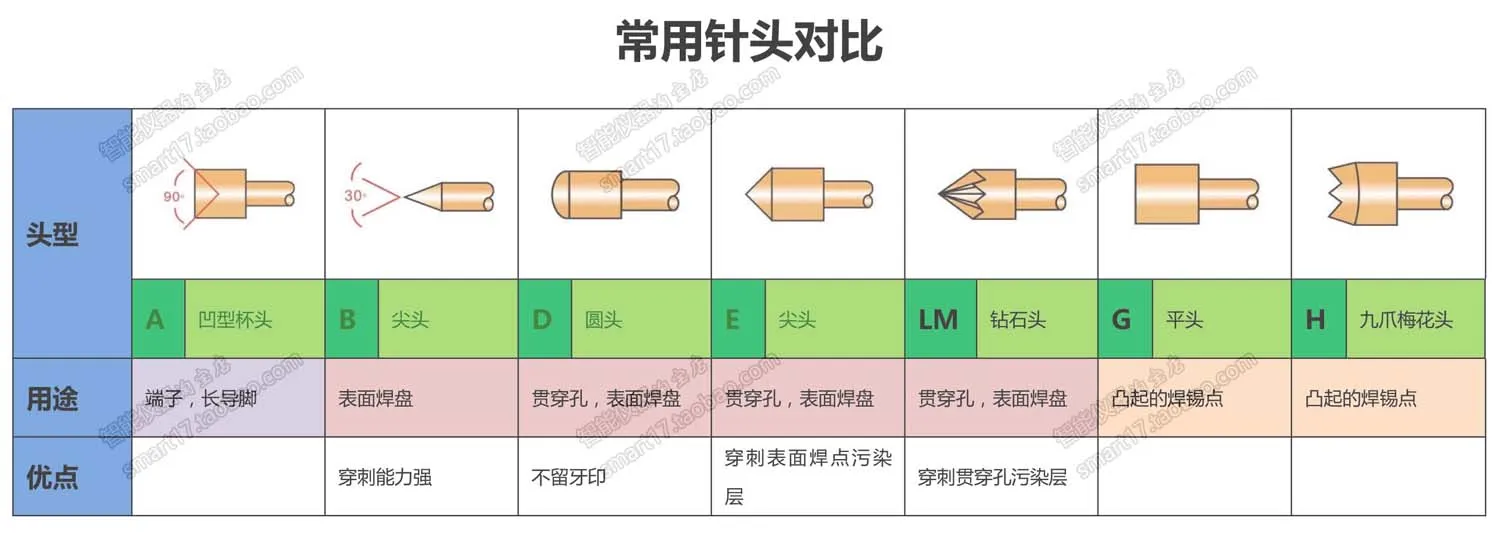

type1 A concave cup 5P x 50 cm x2.0x1 type2 A concave cup 35P x 50 cm x2.0x2 type3 A concave cup 5P x 50 cm x 1.27x1 type4 A concave cup 6P x 30 cm x 2.54x1 type5 A concave cup6P x 30 cm x 2.54x2 type6 A concave cup 6P x 30 cm x 2.0x1 type7 A concave cup 6P x 30 cm x 2.0x2 type8 A concave cup 6P x 30 cm x1.27x1 type9 round head D 5Px50cmx2.54x1 type10 pointed E 5Px50cmx2.54x1 type11 diamond head LM 5Px50cmx2.54x1 type12 Nine-claw plum blossom head H LM 5Px50cmx2.54x1 type13 needle B 5Px50cmx2.54x1

Product name: single and double row probe

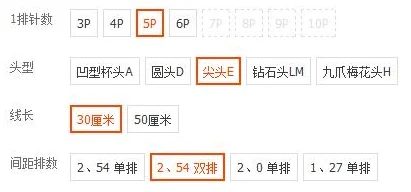

The product above selection On behalf of your choice is2.54 5P*2 A total of ten probe

2.54/2.0Pitch of needle model  PL75；The needle cannula model  RL75-4W   Are gold-plated。

1.27Pitch of needle model  PL50；The needle cannula model RL50-2C   Are gold-plated。

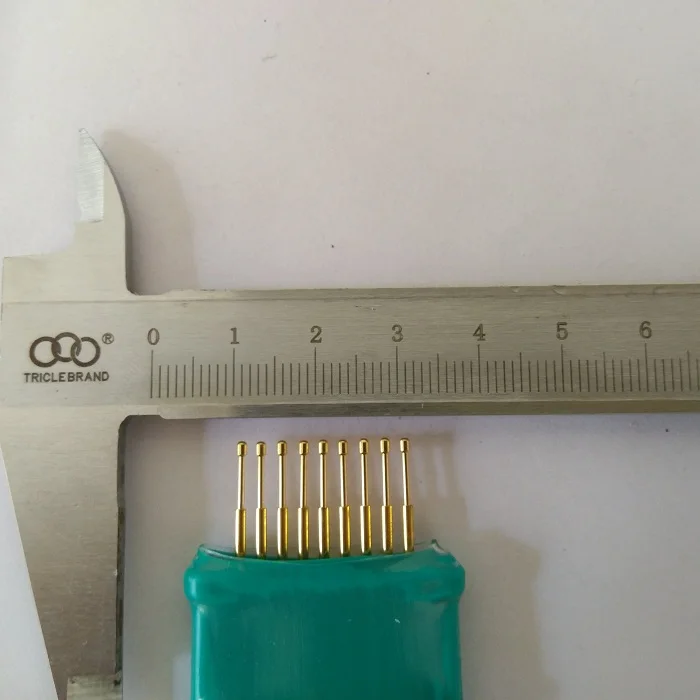

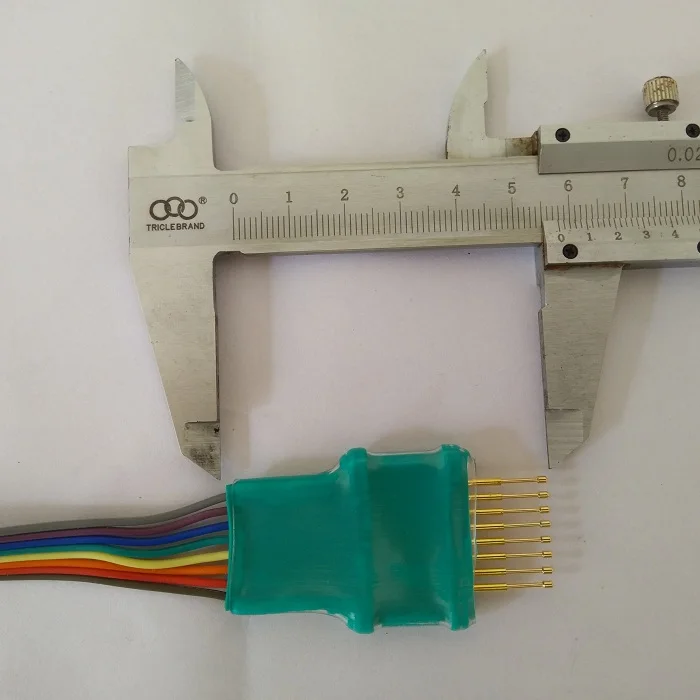

2.54 2.0 1.27A probe of distance Pitch refers to the two adjacent probe distance from the center of

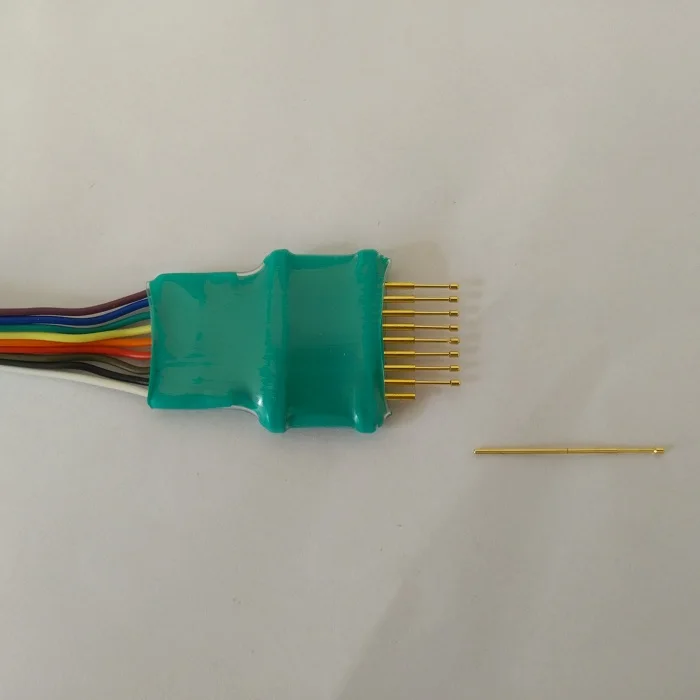

The probe may be from the needle is pulled out of As shown in the following figure:

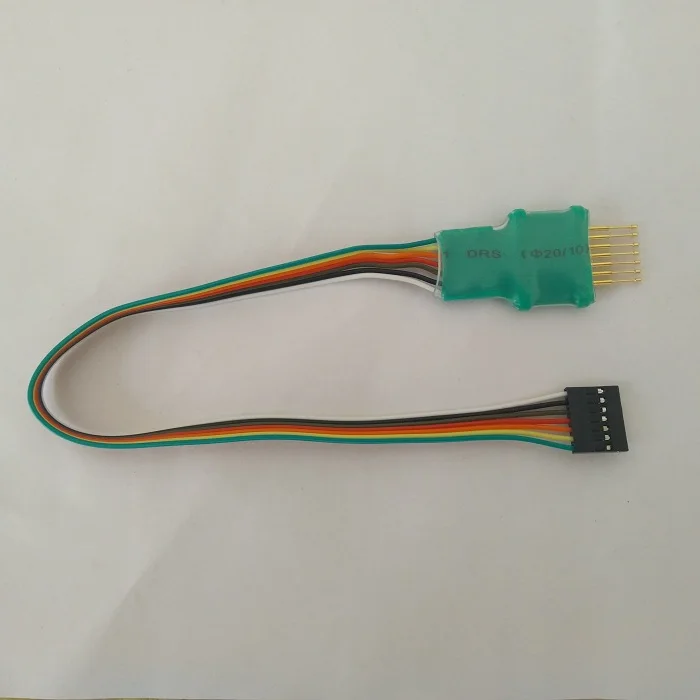

Product Line for DuPont rehearsal terminal  Two terminal The following figure shows respectively2.54 2.0 1.27Pitch wiring Default wiring DuPont shell as a whole of   May also note with separate1PPlastic shell The connection can be connected with different spacing terminal of the patch cord  If you need You can contact customer service

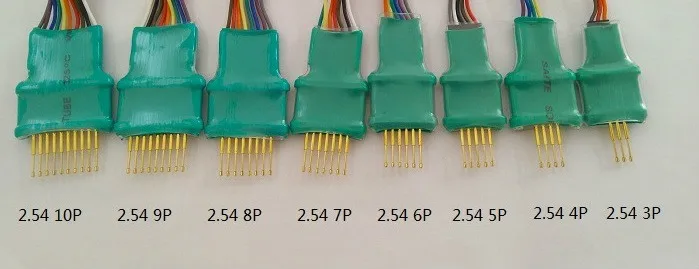

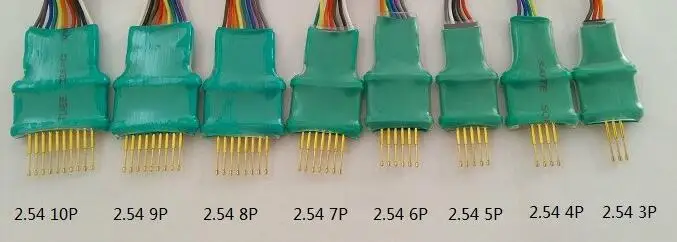

The following illustration is2.54Spacing single row

The following illustration is2.54Spacing double-row

The following illustration is2.0Spacing single row

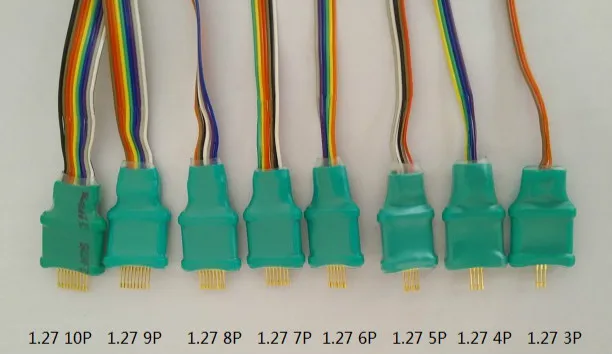

The following illustration is1.27Spacing single row
