12 мм объектив 480P Мини USB веб-камера с UVC для AndroidLinuxWindows ПК компьютера, планшета

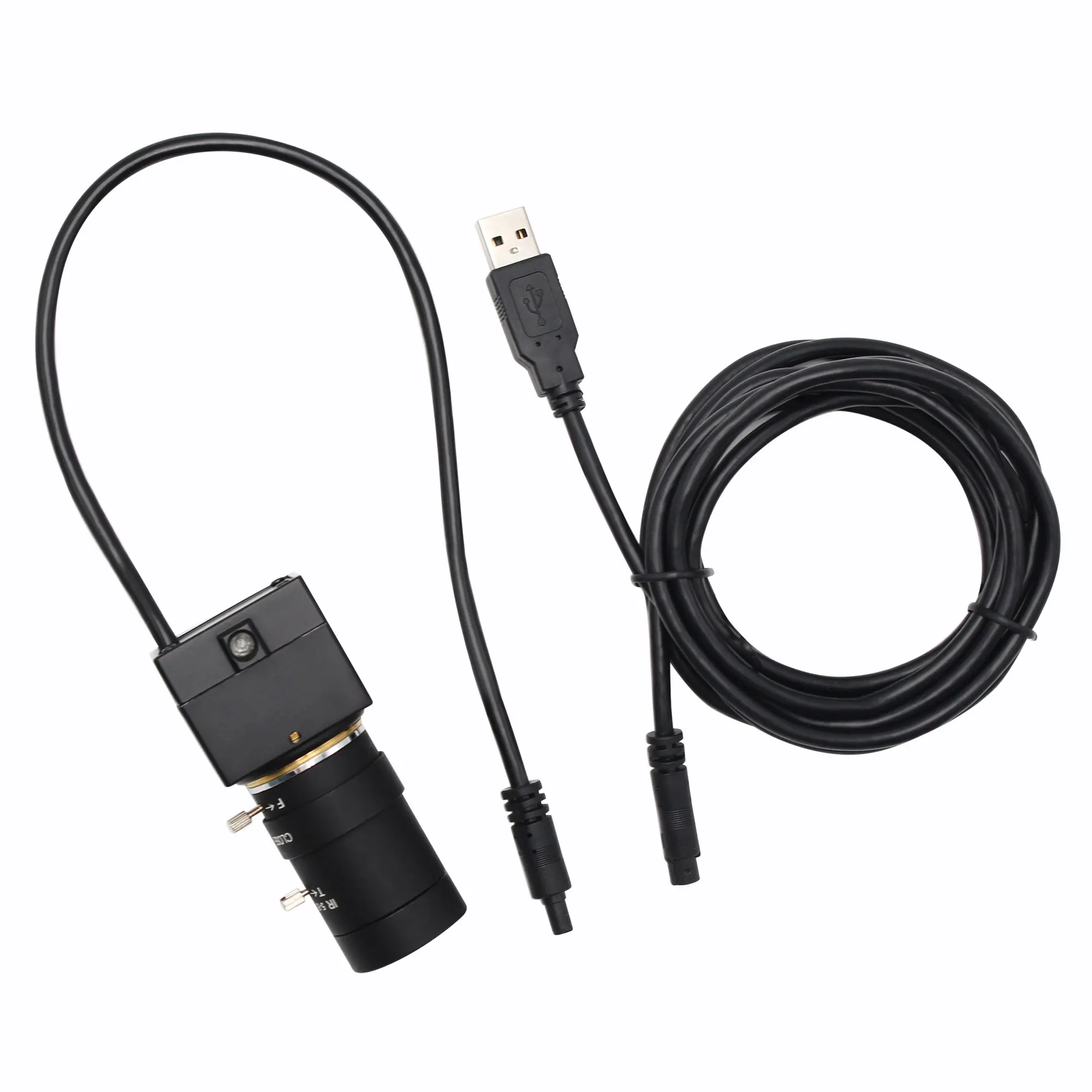

Package includes:

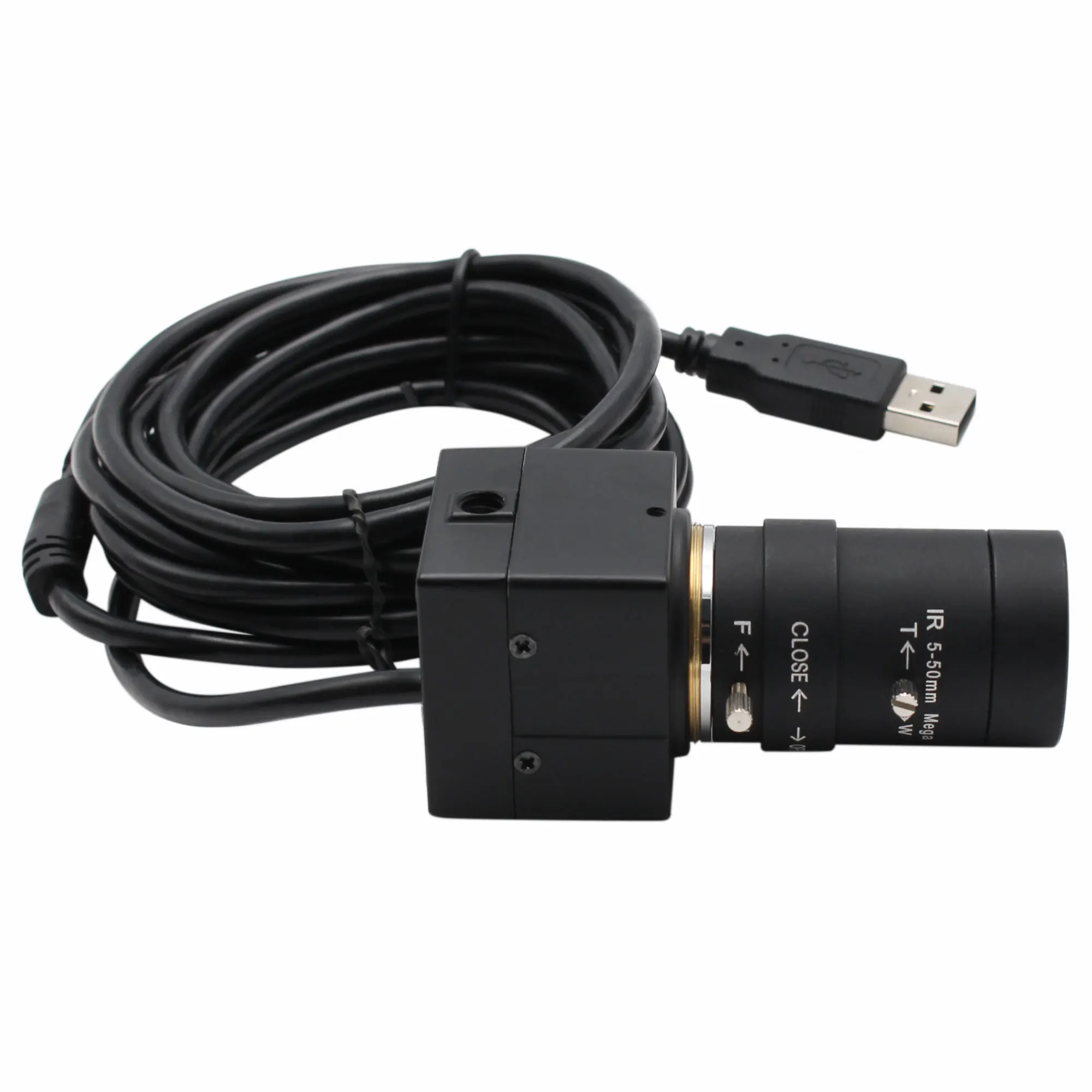

1) 1PC usb camera with  2.8-12/5-50mm CS lens

2) 1PC 3m usb cable

Specifications:

Sensor:OV7725

size: 1/4 inch

Resolution: 640X480 VGA

Picture format: YUY2 and MJPEG optional/USB Protocal:USB2.0 HS/FS

Support free driver: USB Video Class(UVC)1.1

Auto exposure AEC/Support:Auto white blance AEB Support

Effective Pixels: 640 (H) x 480 (V) pixels/480(H) x 480 (V) pixels/450 (H) x 450 (V) pixels/352 (H) x 288 (V) pixels/320 (H) x 240 (V) pixels/288(H) x 288 (V) pixels/240 (H) x 240 (V) pixels (Other special size resolution is customized, such as 480(H) x 480 (V) pixels)

Performance: 640 (H) x 480 (V) pixels    MJPEG 60fps  YUY2 30fps 480(H) x 480 (V) pixels    MJPEG 30fps   YUY2 30fps 450 (H) x 450 (V) pixels    MJPEG 30fps  YUY2 30fps 352(H) x 288 (V) pixels    MJPEG 30fps   YUY2 30fps 320 (H) x 240 (V) pixels    MJPEG 30fps  YUY2 30fps 288(H) x 288 (V) pixels    MJPEG 30fps   YUY2 30fps 240 (H) x 240 (V) pixels    MJPEG 30fps  YUY2 30fps

Adjustable parameters:Brightness/Contrast/Color saturation/Definition/Gamma/WB

voltage: DC 5V/ current: 120mA/ work temperature:DEGREES(-20~70)/Size:32x32mm  26x26mm

Support OS:WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above

Applications

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance,  micro HD surveillance, endoscope, Medical auxiliary equipment, etc.

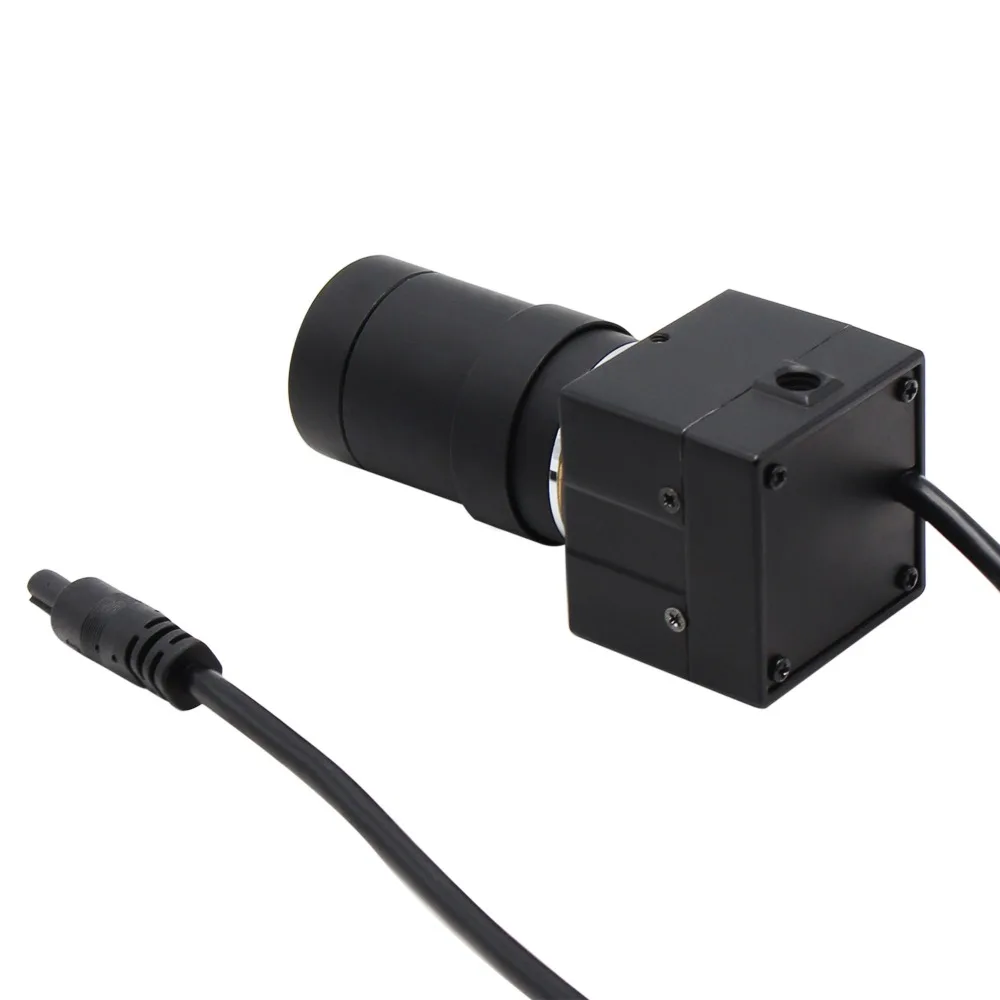

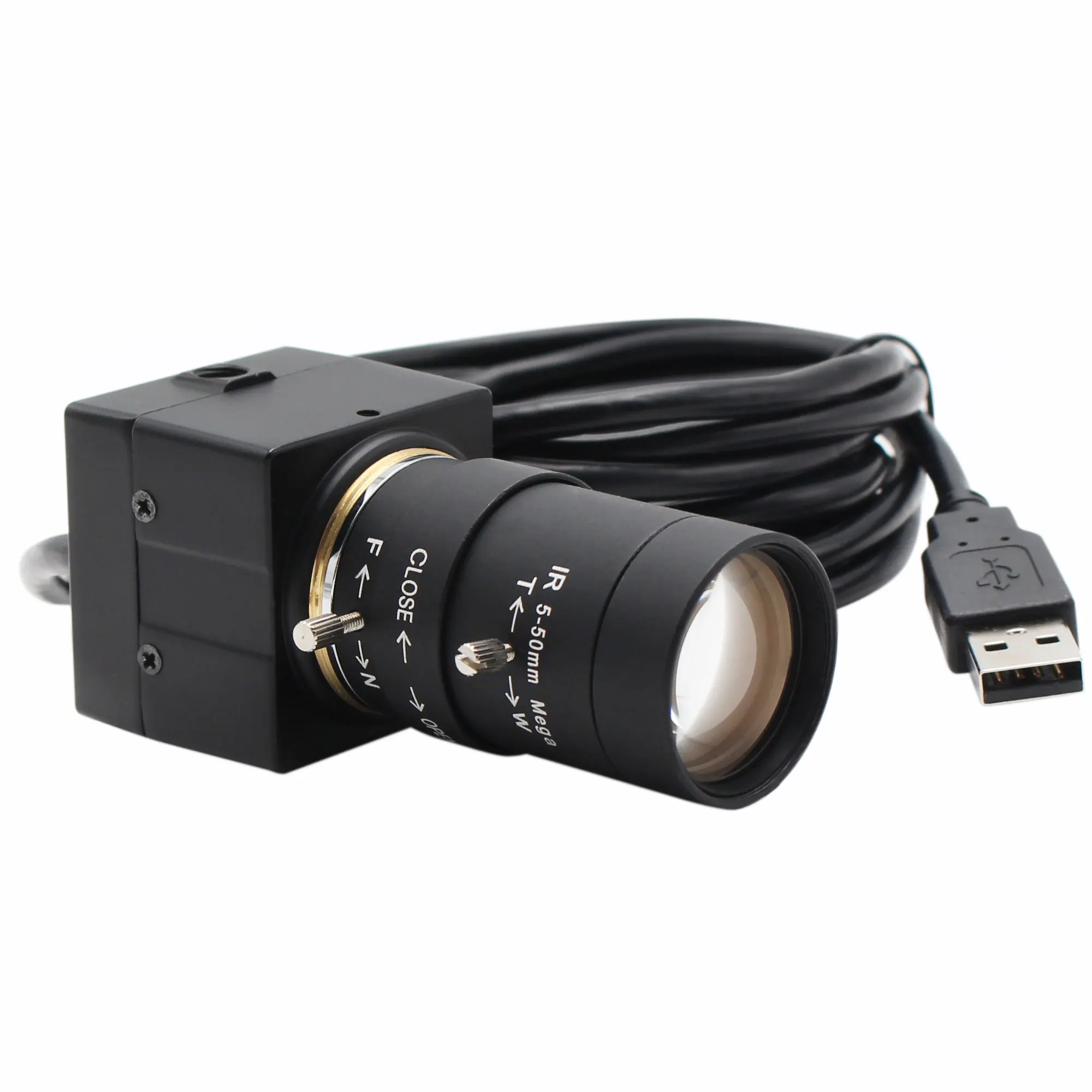

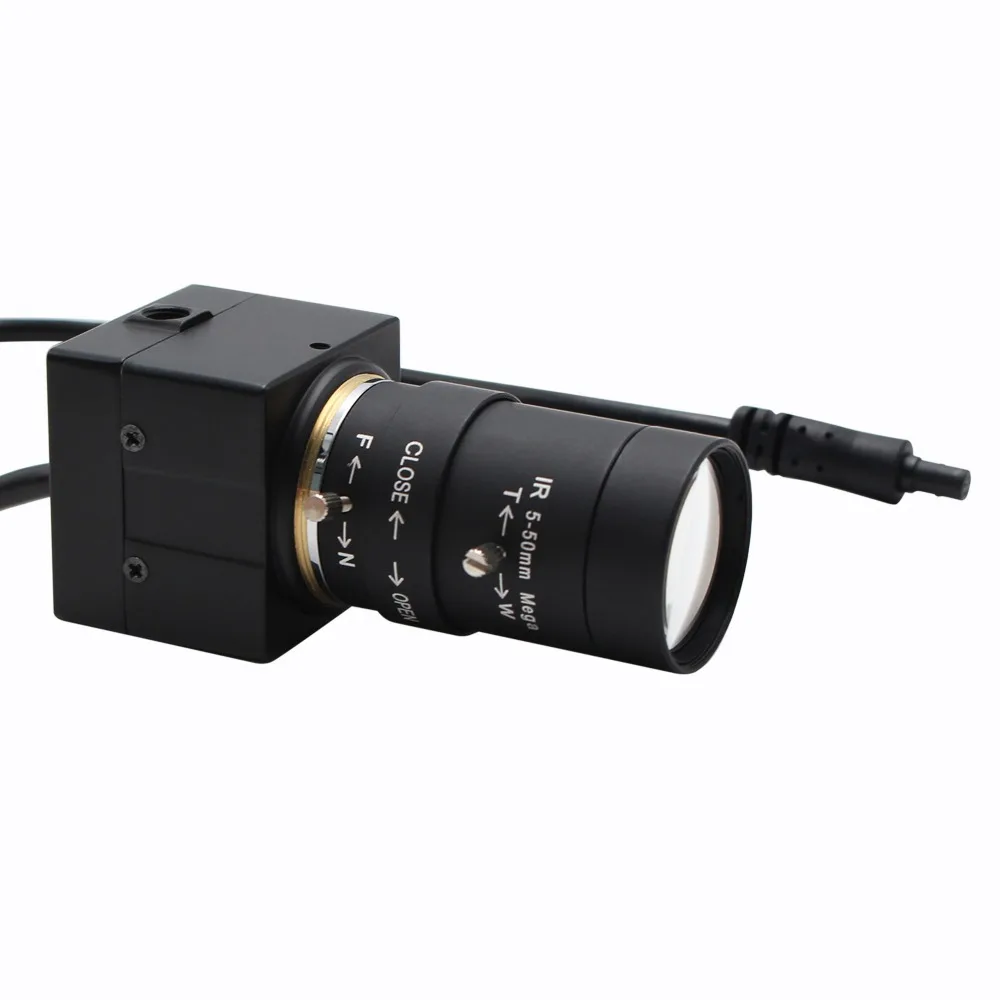

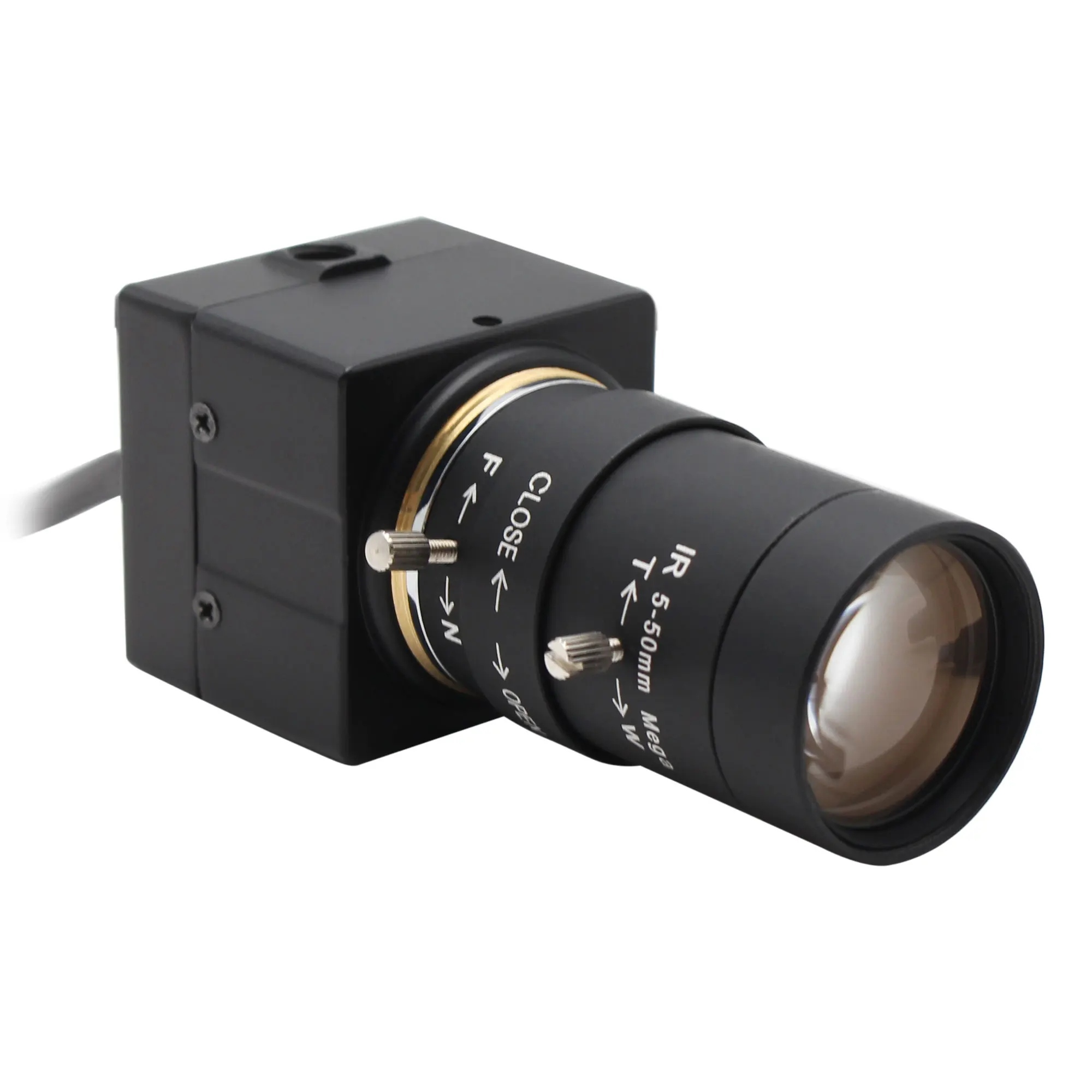

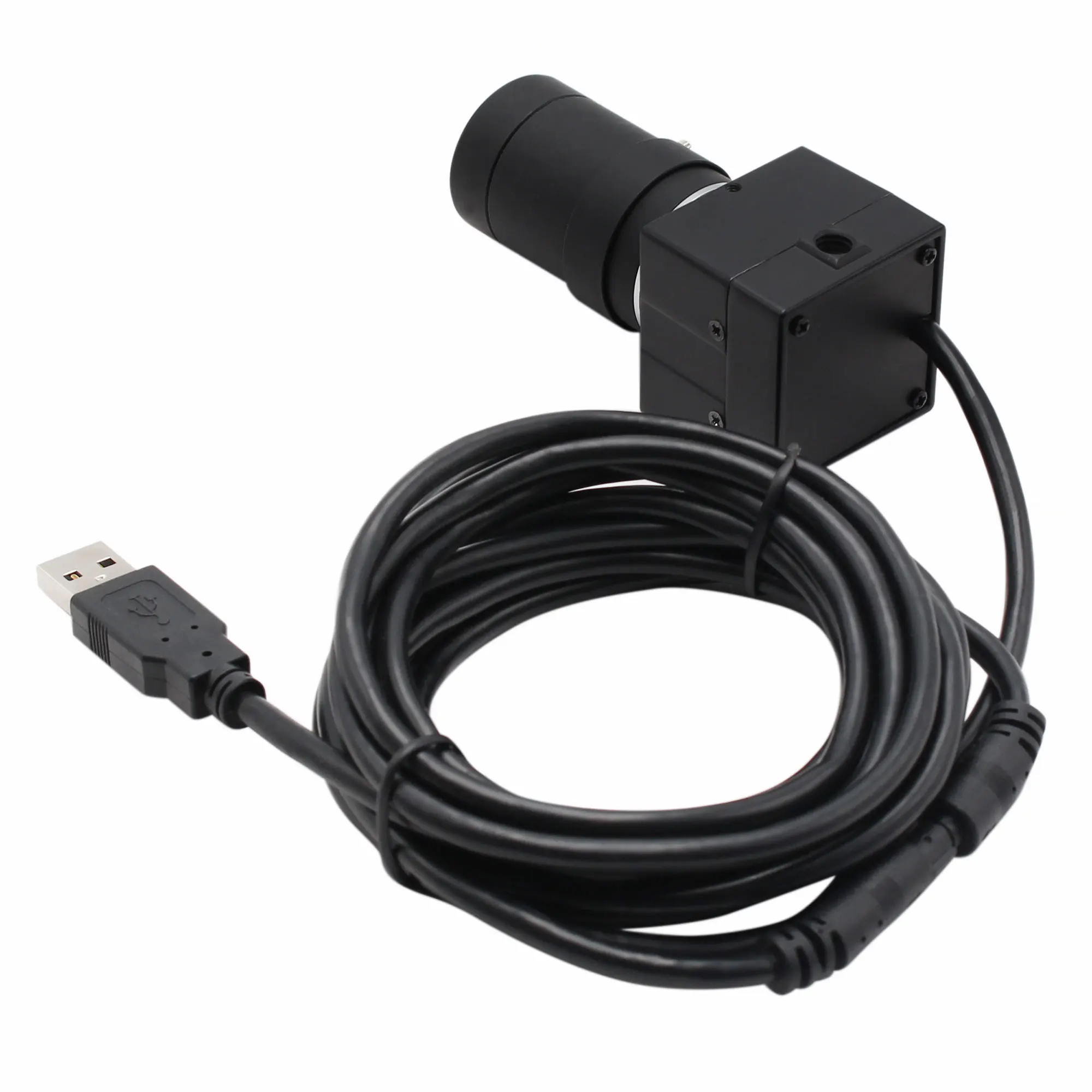

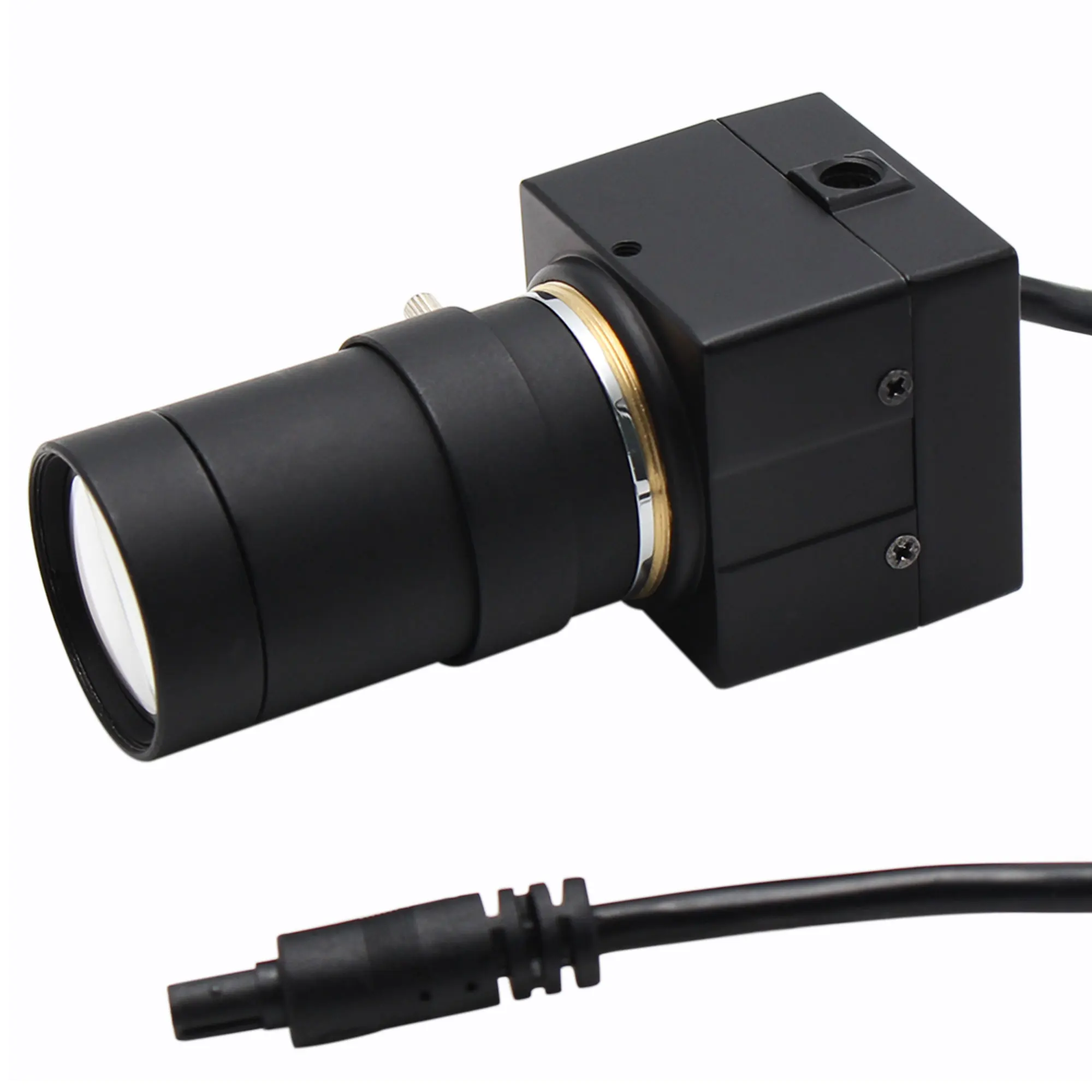

Product details:

Effect show:

Specially designed packing:

Your attention, please:
