Цифровой водонепроницаемый ПИД-регулятор температуры MC901, датчик K-типа PT100, входное реле SSR, выходное измерительное устройство

Features:

1. Built-in high precision chip for high sensitivity and accurate temperature control.

2. Support ℃/℉ temperature display.

3. When the thermocouple signal is input, the resolution of digital display can 0.1 ℃/0.1℉.

4. Relay and SSR integration, users can freely use relay output or SSR output.

5. Short shell design, 85mm depth, easy to mount and use.

6. Robust flame-retardant housing, waterproof, dustproof and anti-shock.

Specification:

Model: MC901

Control type: temperature

Control mode: PID control and self-tuning control

Power consumption: <10VA

Measurement object: temperature

Temperature range: -199~1300°C

Temperature measurement error: ±1°C

Measurement accuracy: ±0.5%FS

Working voltage: 85~265V

Output signal: Relay/SSR output

Display:  °F or °C

Input: Universal input (K, E, J, N, S, T, R, B, Pt100, etc., can be changed by yourself)

Minimum resolution: 0.1°C / 0.1°F

Mounting type: embedded panel

Mounting size: 92*92mm / 3.6*3.6in

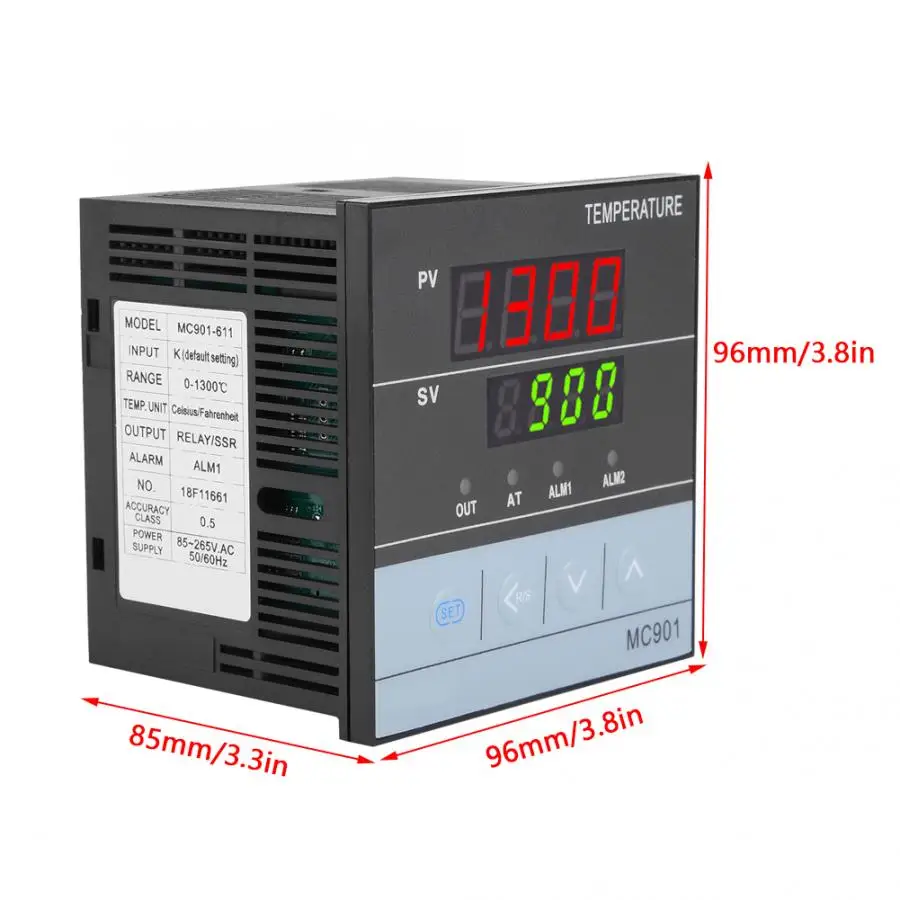

Dimensions: 96*96*85mm / 3.8*3.8*3.3in

Weight: Approx. 252g/8.9oz

Package List:

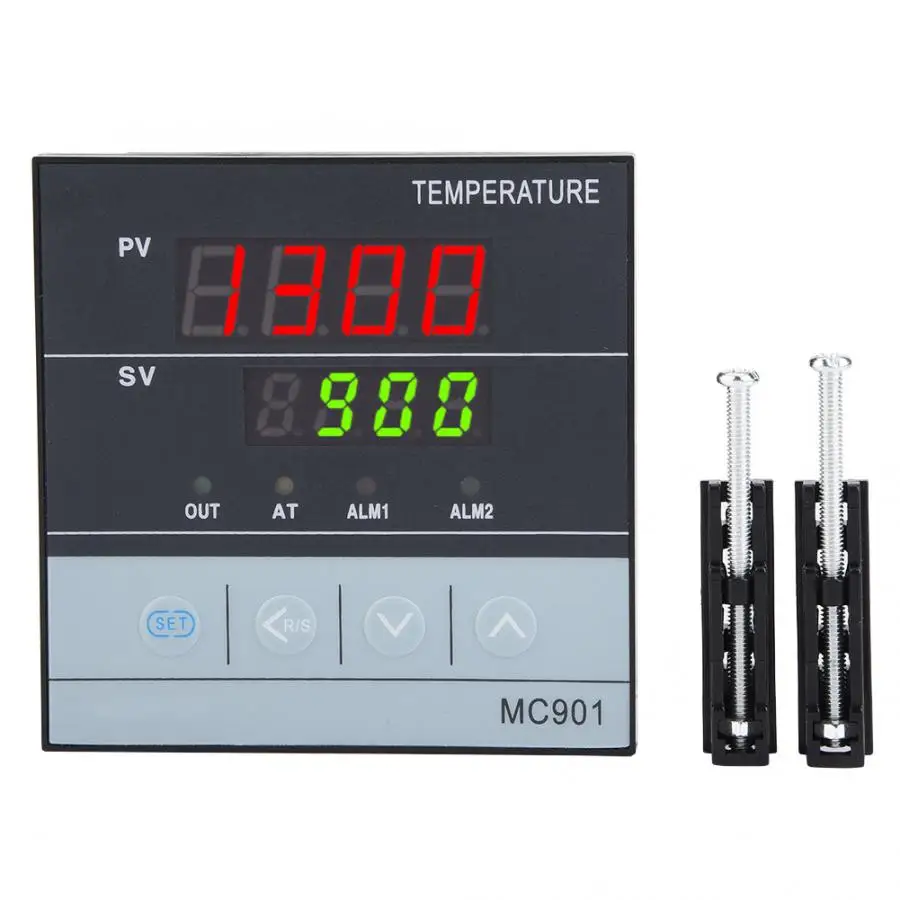

1 * Digital PID Temperature Controller

2 * Bolts

Note:

1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.

2. Please allow slight error due to manual measurement. Thanks for your understanding.
