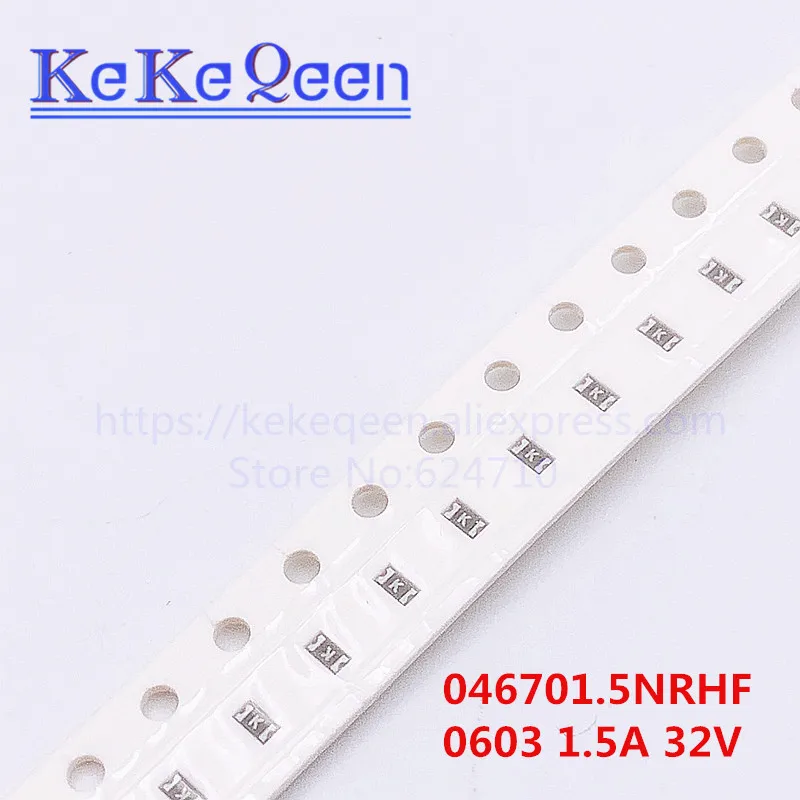

50 шт.лот Новый и оригинальный 046701,5 NRHF SMD 0603 Быстрый действующий предохранитель 1.5A 1500mA 32V 046701,5 Маркировка Код K

Series: 467

Max Voltage Rating: 32 V

Body: Advanced High Temperature Substrate

Interrupt Rating: 35A@32VDC

Nominal Cold Resistance: 0.041 Ohms

Opening: Very Fast-Acting (FF)

Package Size: 0603(1608)

Features

Compatible with leadfree solders and higher temperature profiles High performance materials provide improved performance in elevated ambient temperature applications Marked on top surface with code to allow amp rating identification without testing Low profile for height sensitive applications Flat top surface for pickand- place operations Element covering material is resistant to industry standard cleaning operations Mounting pad and electrical performance is identical to 431 and 434 Series products Halogen free, Lead-free and RoHS compliant
