Промышленный RS485 последовательный порт к Ethernet серверному устройству конвертер с din-рейкой

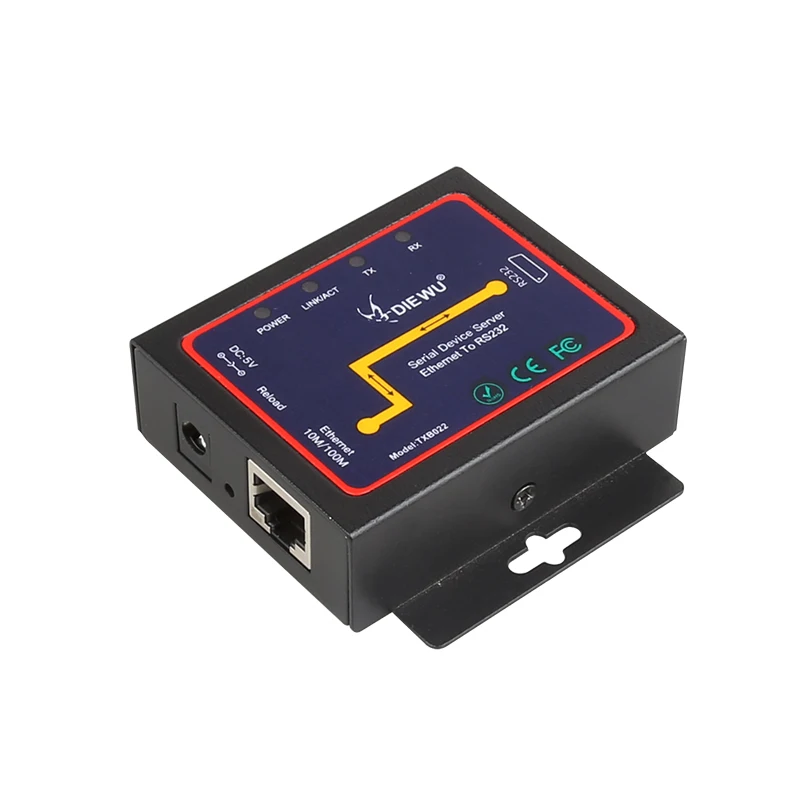

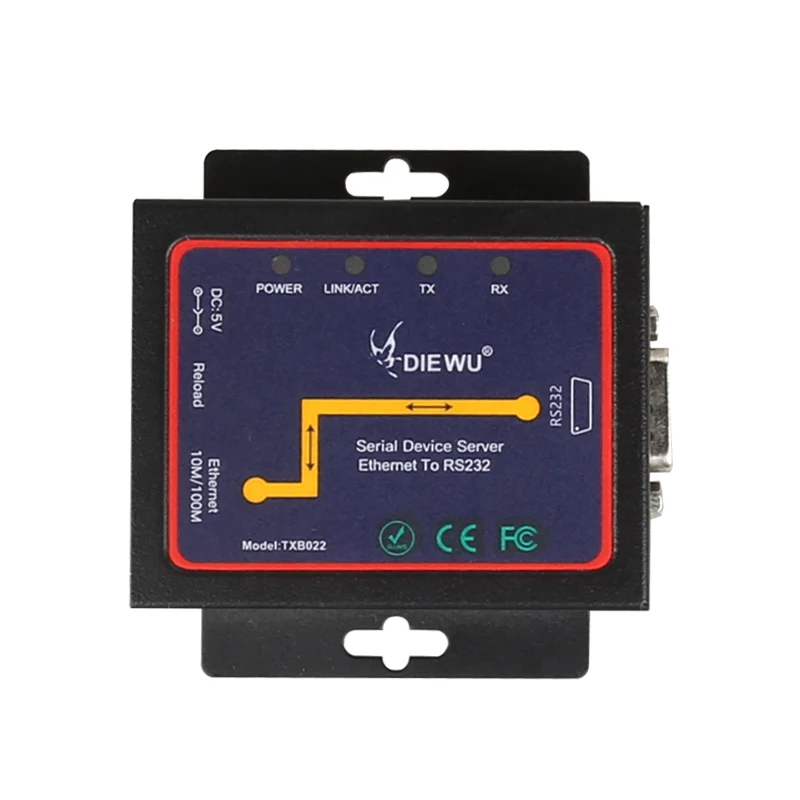

Industrial Grade RS232 Serial Port to Ethernet Server Device Converter with DIN RAIL TYPE



Model number

TXB022

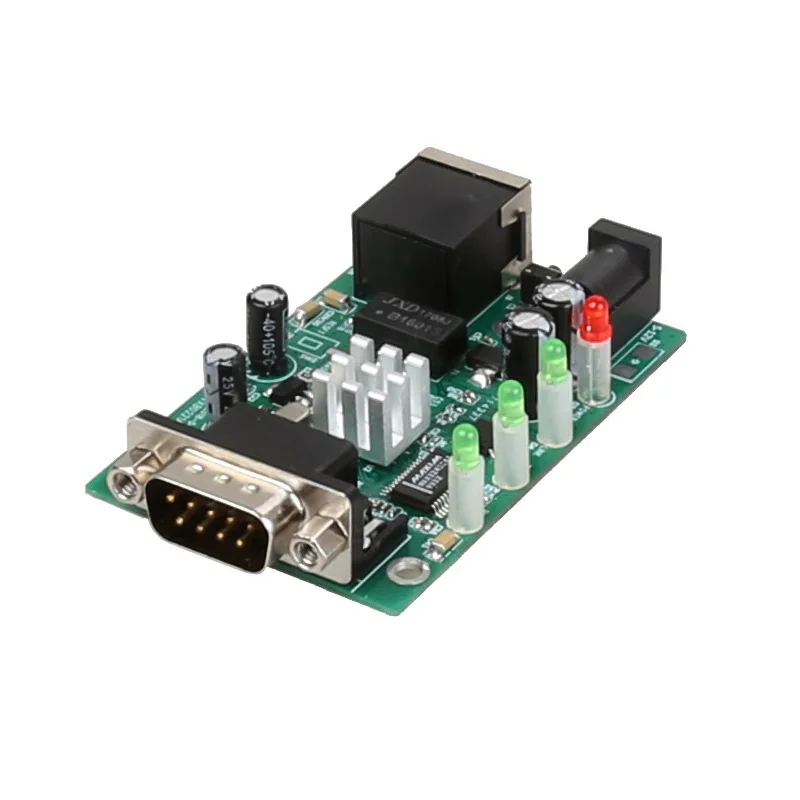

Chipset

IP210

Port number

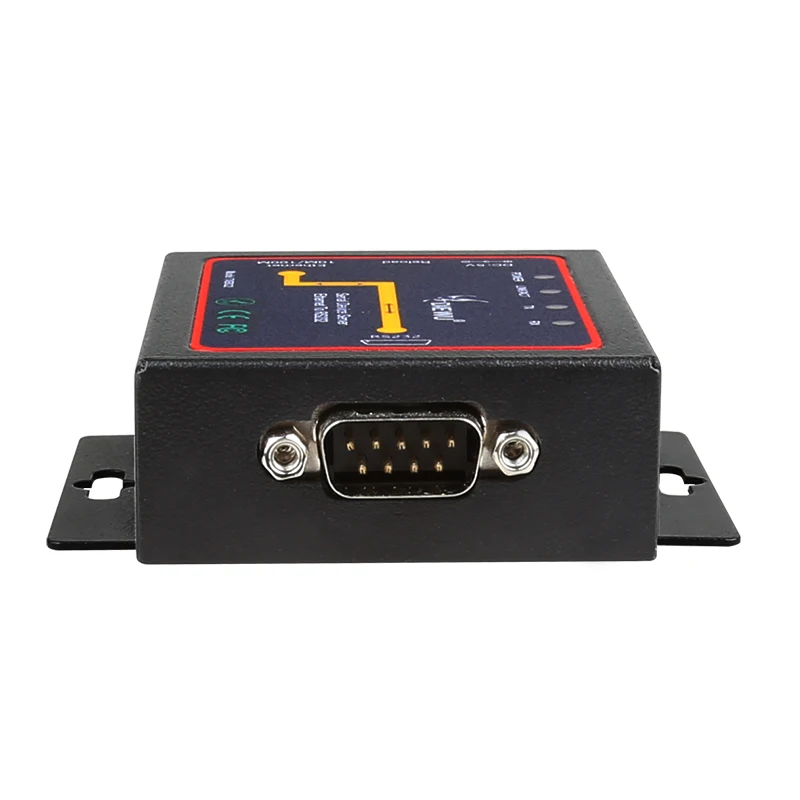

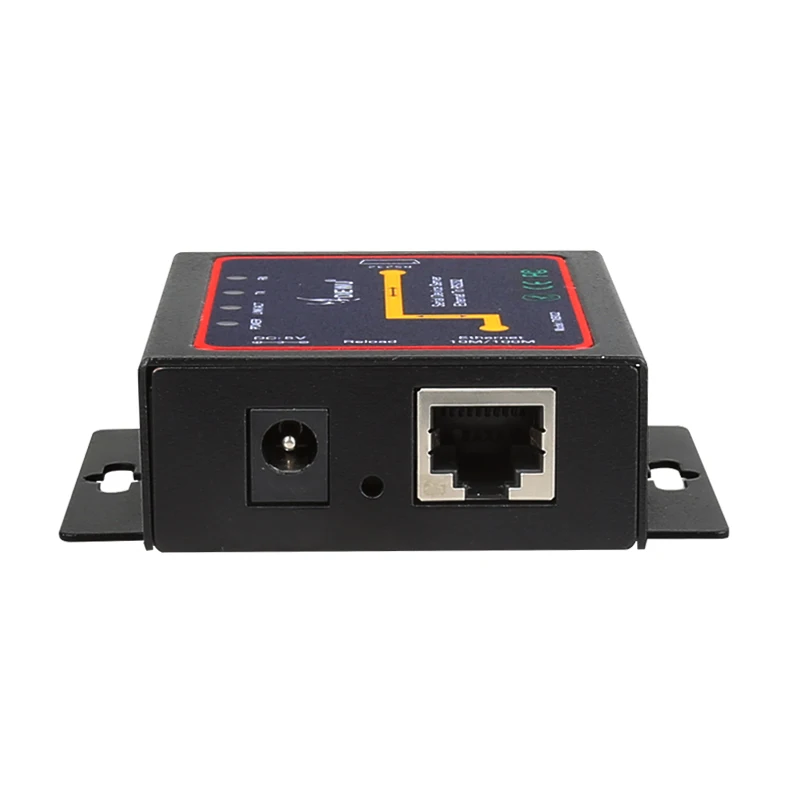

1 port 10/100M Auto MDI-MDIX RJ45，1port RS232

Standard

IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3az

Network media

10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP

Data rate

10/100M

Forwarding rate

10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps

LED Indicator

Link/Act, Power, TX/RX

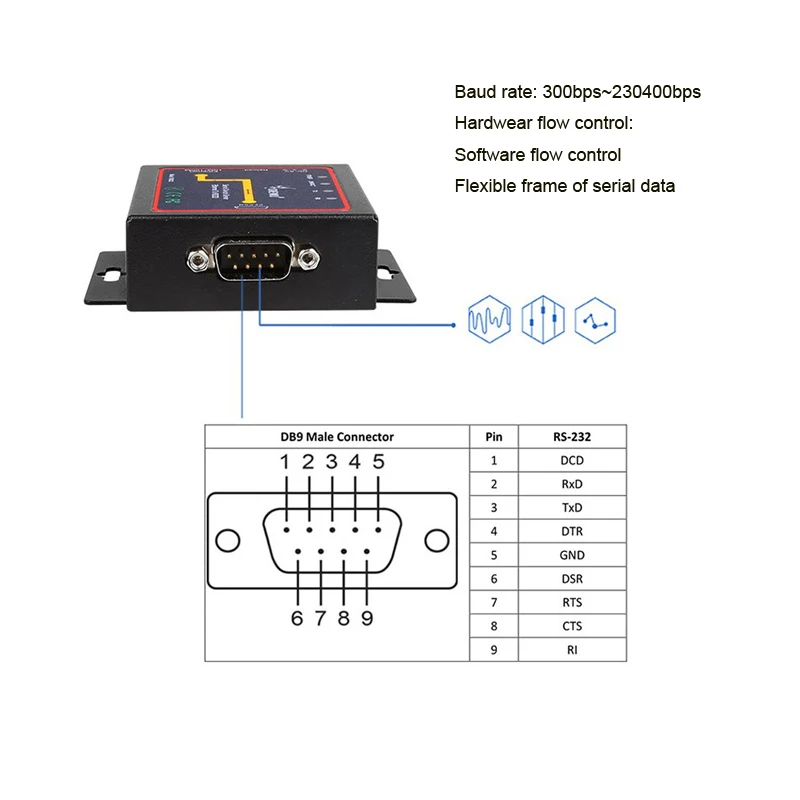

Baud rate

110bps~256000bps

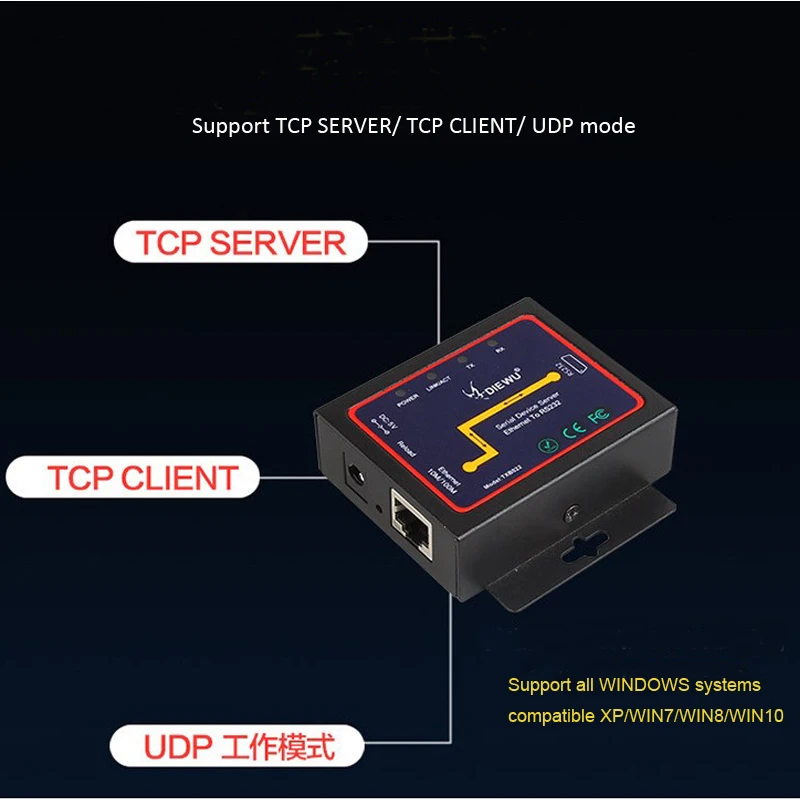

Operation modes

TCP Server, TCP Client, UDP

Dimension

78*72*23mm

Power Input

DC5V

Power Consumption

Max1.5W

Environment

Operating Temperature: -10 ℃-55 ℃



Relative Humidity: 10%-90%(non-condensing)



Storage Temperature: -40℃-85℃



Relative Humidity: 5%-90%(non-condensing)

Other function

Build load default key



 Device Default Parameters:



ID

admin

Password

system

IP address

192.168.2.1

Operation mode

TCP server

Transmission Mode

RS232

Baud rate

57600bps

UART parameters

57600,8,N,1

Local port

TCP:23

UDP:21



Load default

   1. Power off the device

   2. hold the load default button.

   3. power on the device, hold the button for 10 seconds, then release default button
