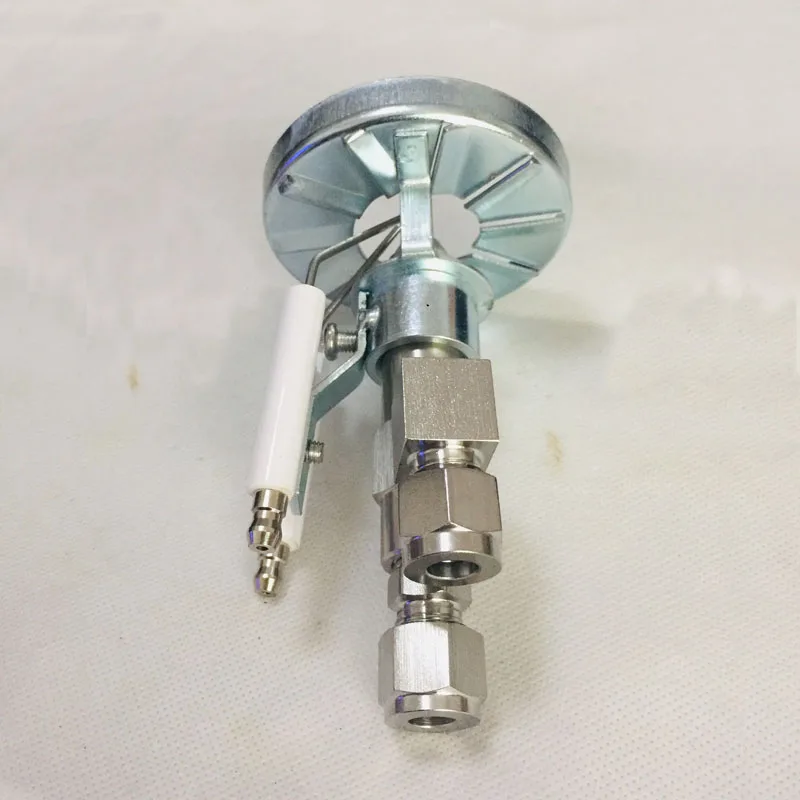

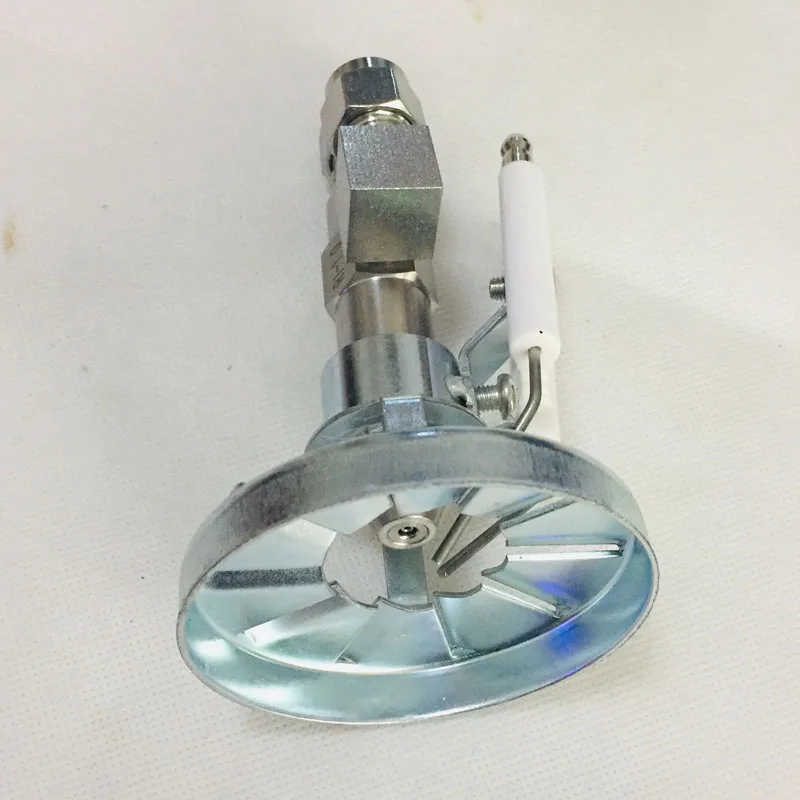

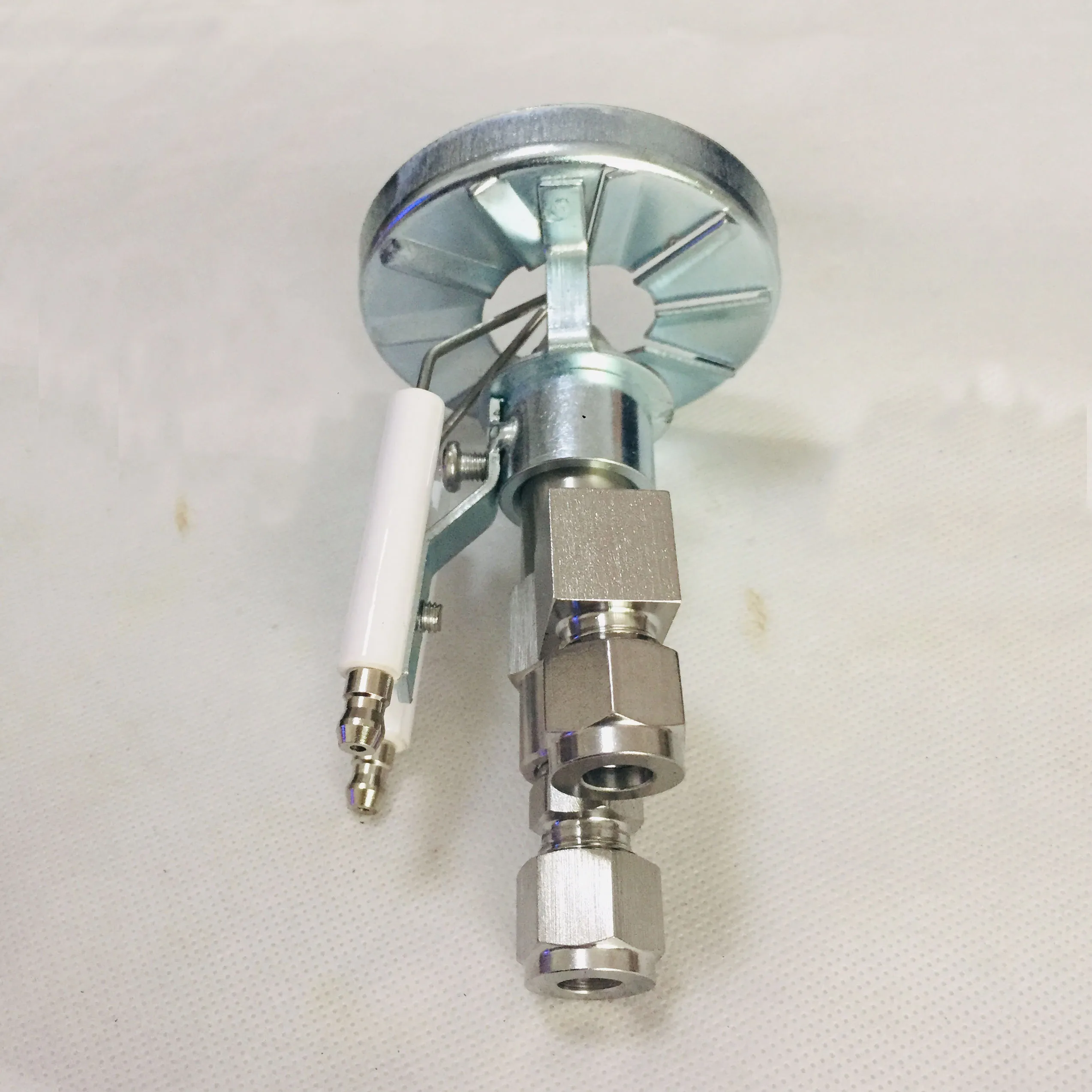

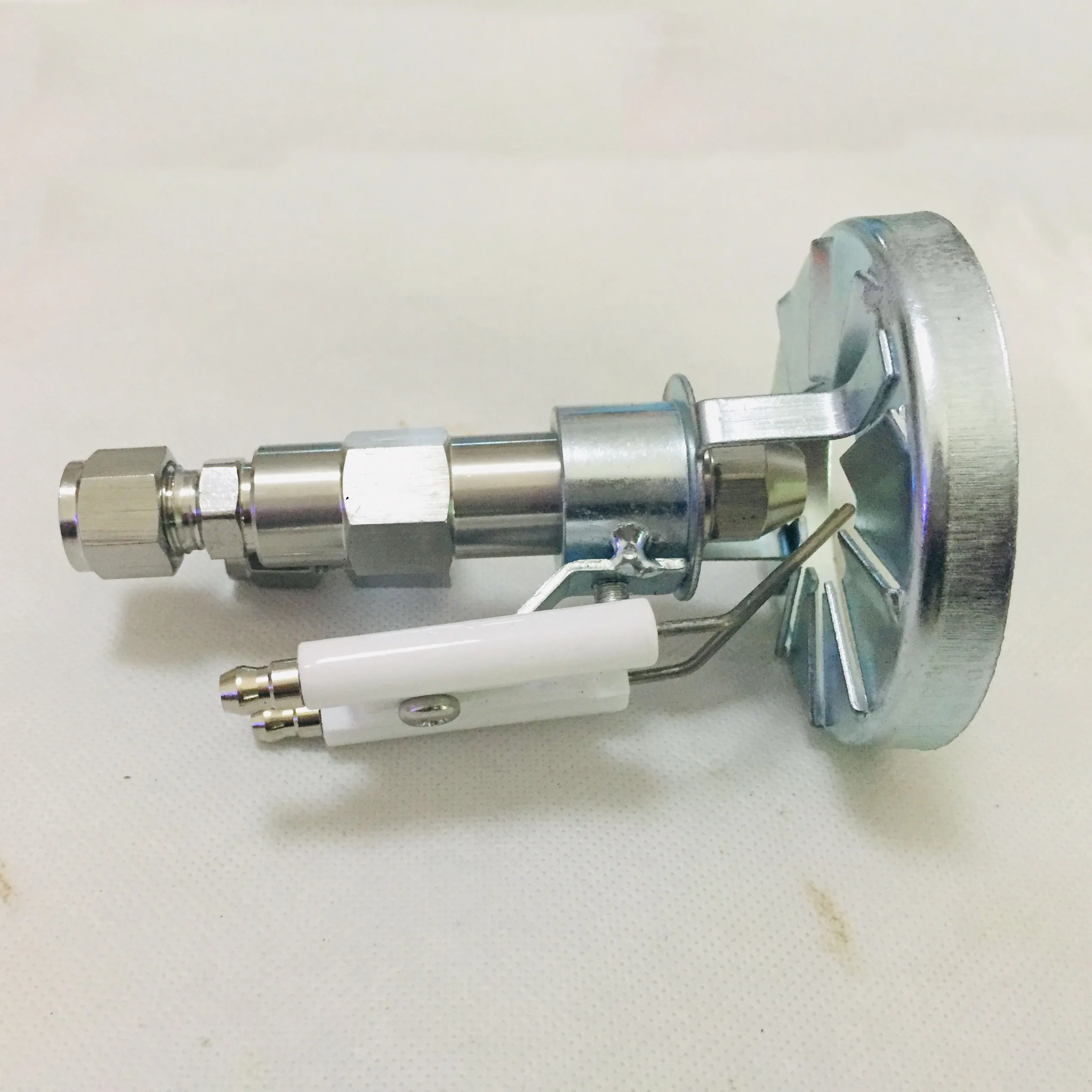

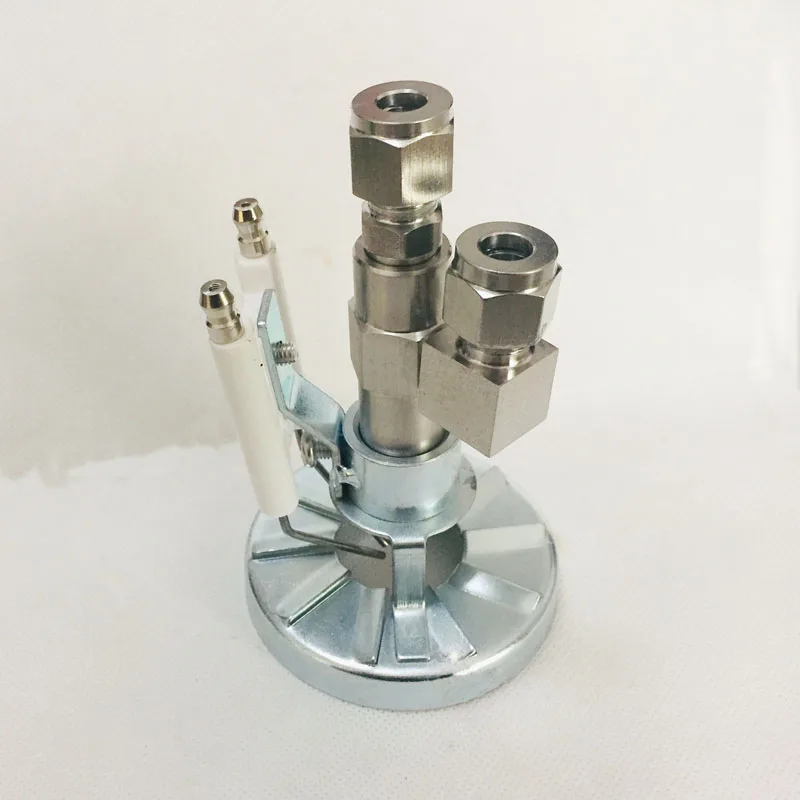

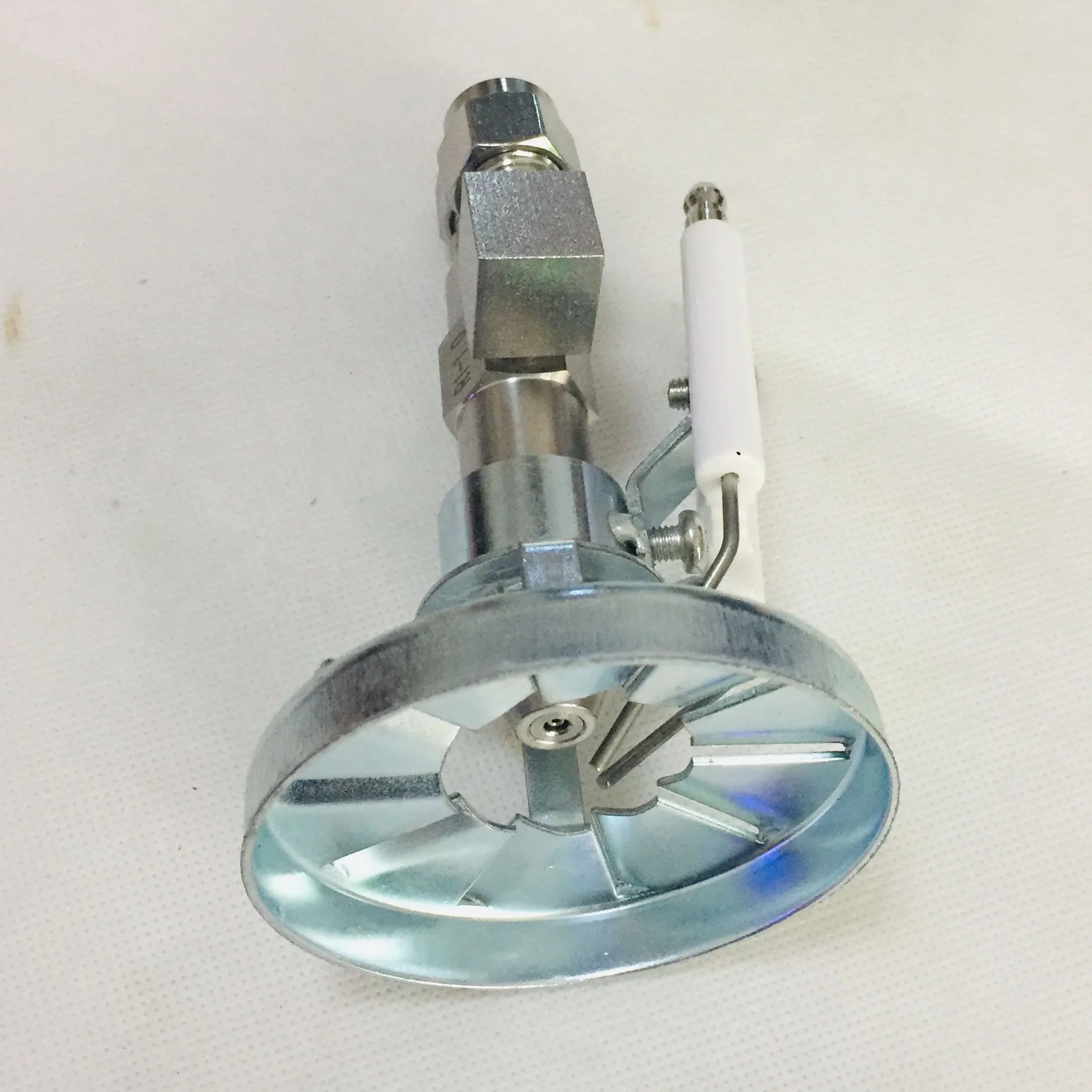

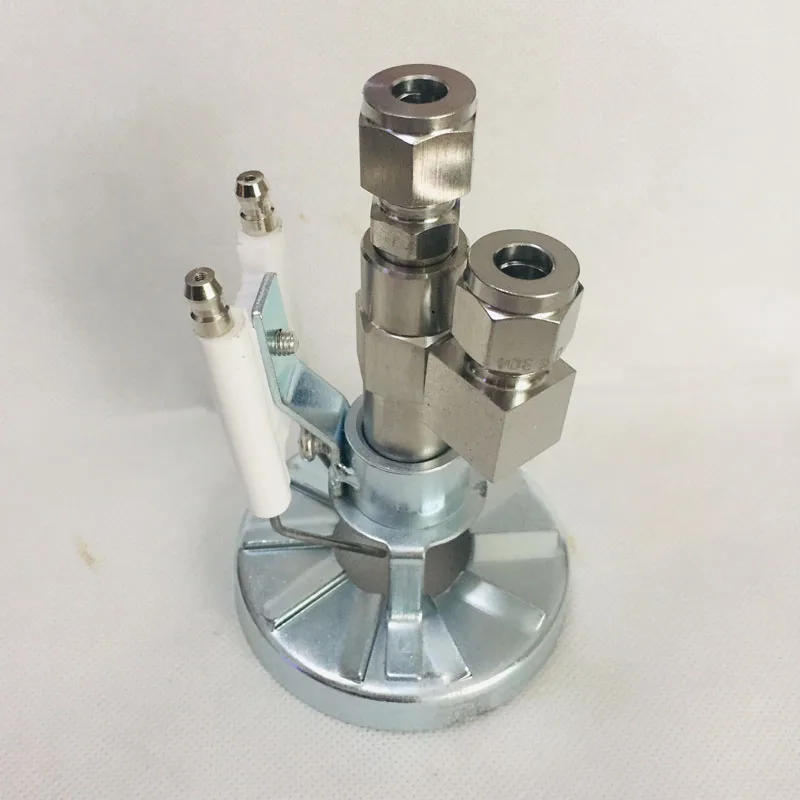

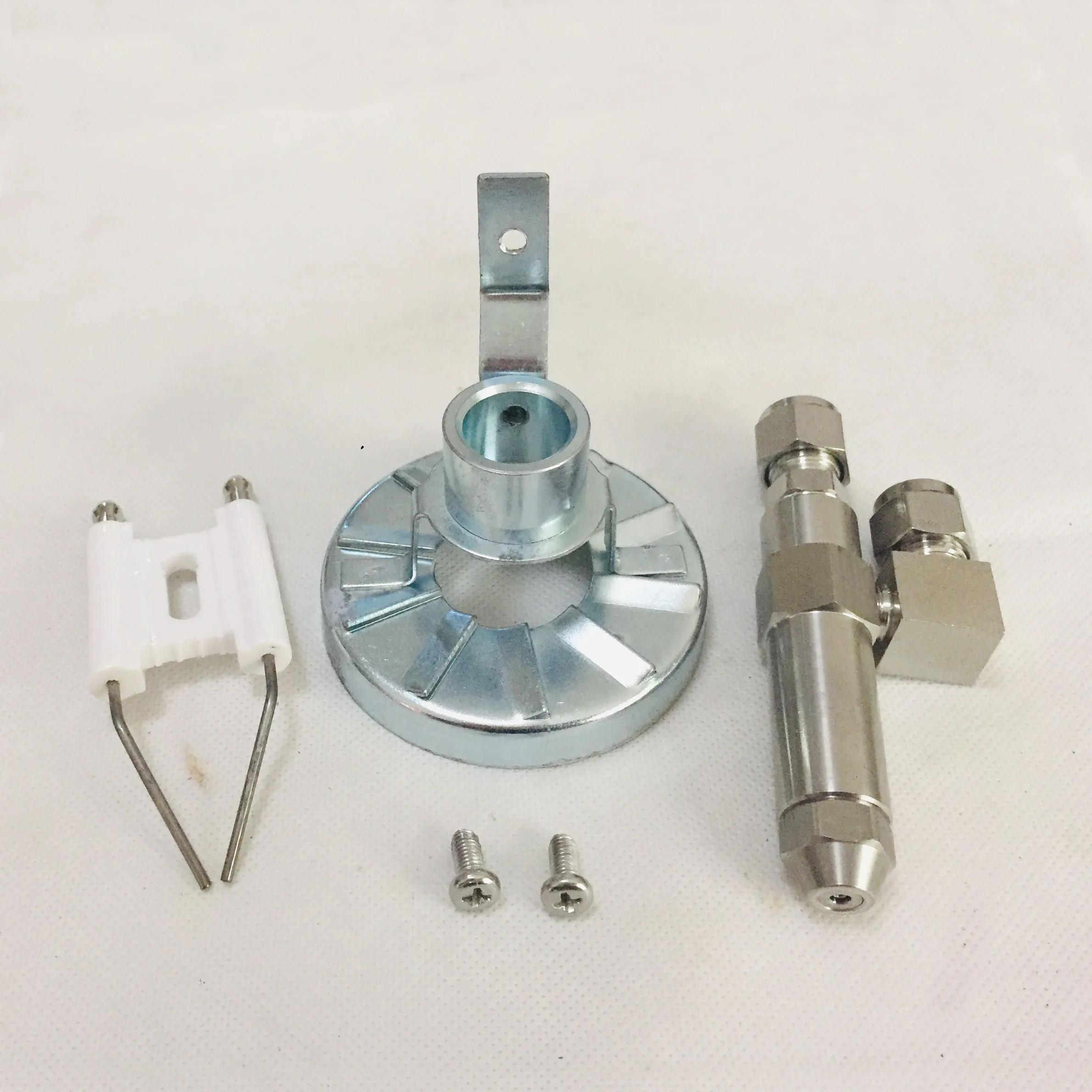

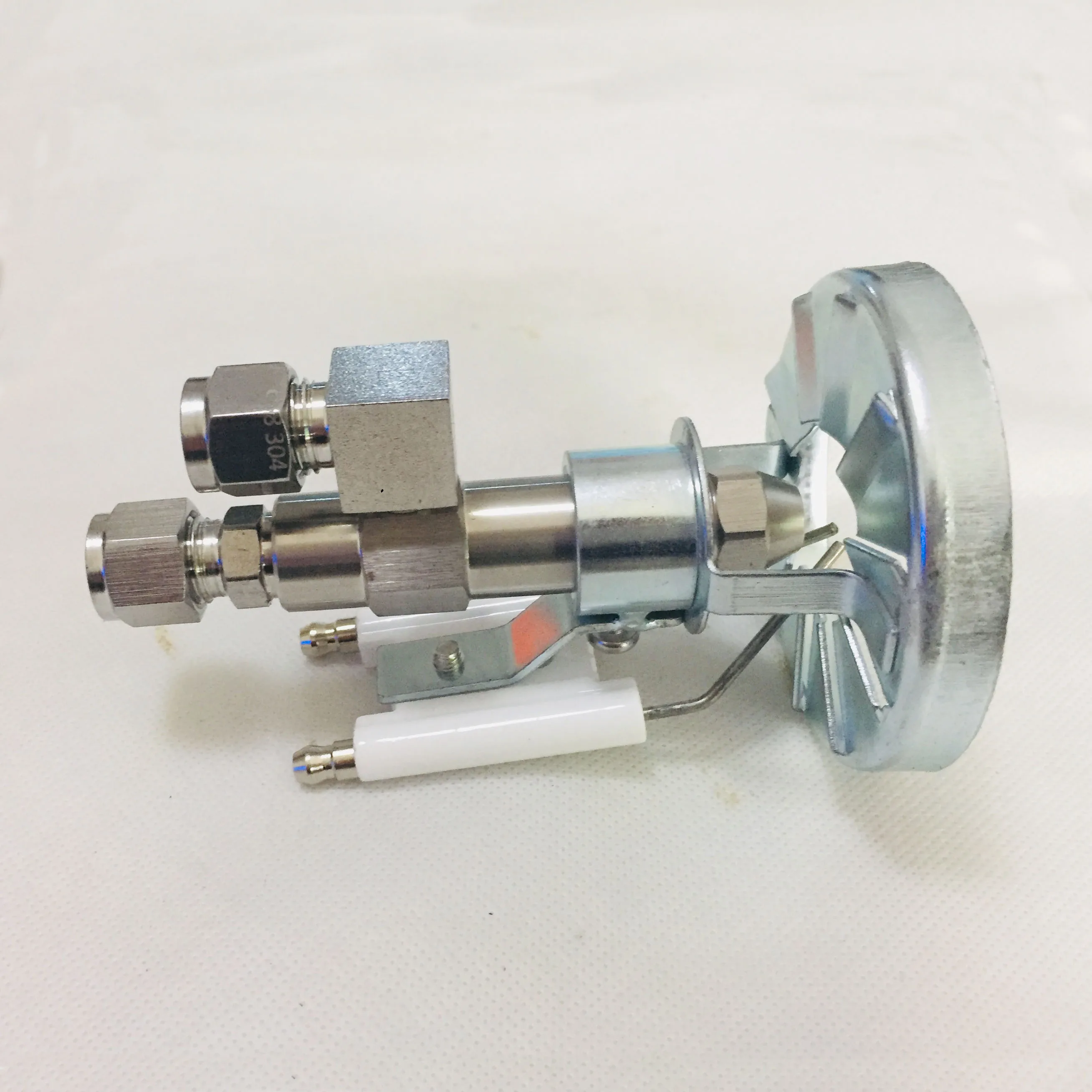

Mistking масляный распылитель, топливная горелка, сопло для горелки, распылитель воздуха, дизельный тяжелый масляный сопло, стабилизатор горелки

Bore diameter: 0.5mm,0.8mm,1.0mm, 1.5mm,2.0mm,2.5mm,3.0mm,3.5mm,4.0mm.

Out diameter: 17.8mm

Total length: 78mm

 oil inlet :1/8"

air inlet: 1/4"

Nozzle size: 9/16"

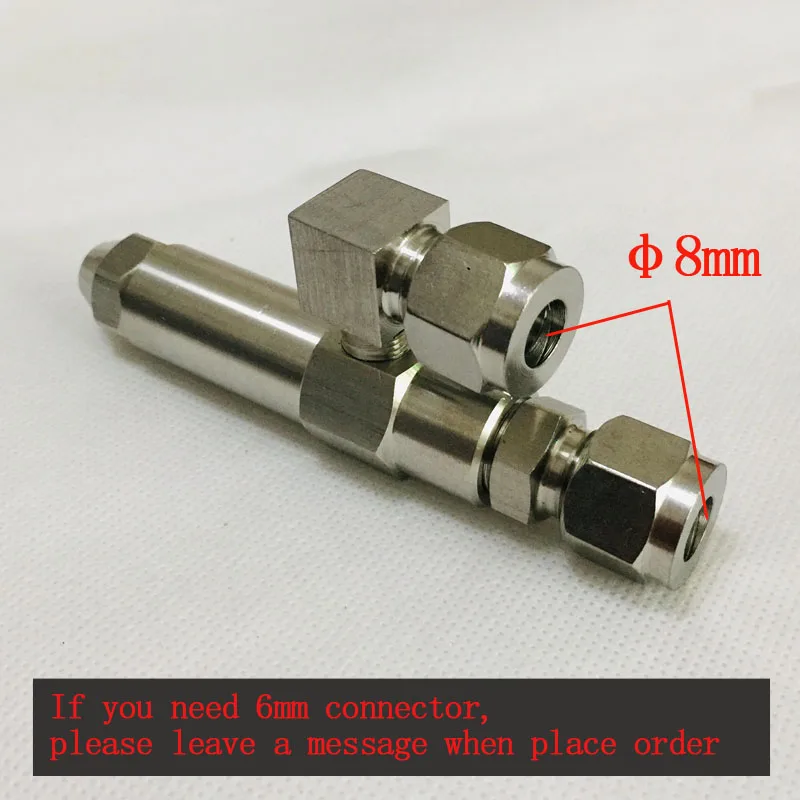

Please note:The connector diameter of this product is 6mm or 8mm.

You can remark the connector size when placing an order. If there is no

remark, we default to connector with diameter of 8mm.

Working pressure is 3 bar:

Product Introduction

Siphon air atomizing nozzle is a low pressure can spray atomization of the best at low pressure air atomizing nozzle.

Widely used in diesel, heavy oil, waste oil, animal and vegetable oils, alcohol-based fuel burner system,

and for kerosene, oil atomization.

Product Features

1. The use of compressed air to s

wirl inside the tubes and mix the atomized droplets impact.

2. Can produce tiny micro particle size mist particles at low pressure and low volume conditions.

3. Can control the air flow and pressure to adjust the spray flow, angle and size granularity.

4. Since the fluid passage has a large, and therefore have a good anti-clogging effect.

5. In the heavy oil, waste oil burner, oil and other application viscosity of the liquid atomization effect is very good.

Application

Widely used in diesel, heavy oil, waste oil, waste oil, animal and vegetable oils,

and other alcohol-based fuel oil, gas, combustion spray systems, spray workshop

humidification cooling system, mechanical cleaning dust,

various types of industrial spray aerosol products.
