12000N 1200 кг 2640LB сила 12В 24В 800 мм регулируемый ход сверхмощный Промышленный линейный привод Бесплатная доставка
GoMotorWorld Automation Tech Store - Надежность 82.5%
Более 1497 подписчиков, дата открытия магазина 15.12.2011
- Положительные оценки: 84% (51)
- Соответствие описанию: 86%
- Отвечает на сообщения: 84%
- Скорость отправки: 76%
Последнее обновление: 31.03.2022

1 Type LA51T
2 Input 24V/12V DC
3 Load Max 12000N=1200KG=2640LBS options
4 Speed Max 60mm/second options
5 Limited switch With
6 Duty cycle 25%
7 Color Black
8 Inner tube material Stainless steel
9 Stroke length Max 2000mm=80inch,options
10 Operation temperature -26 ~ +65 degree
11 Protection IP66

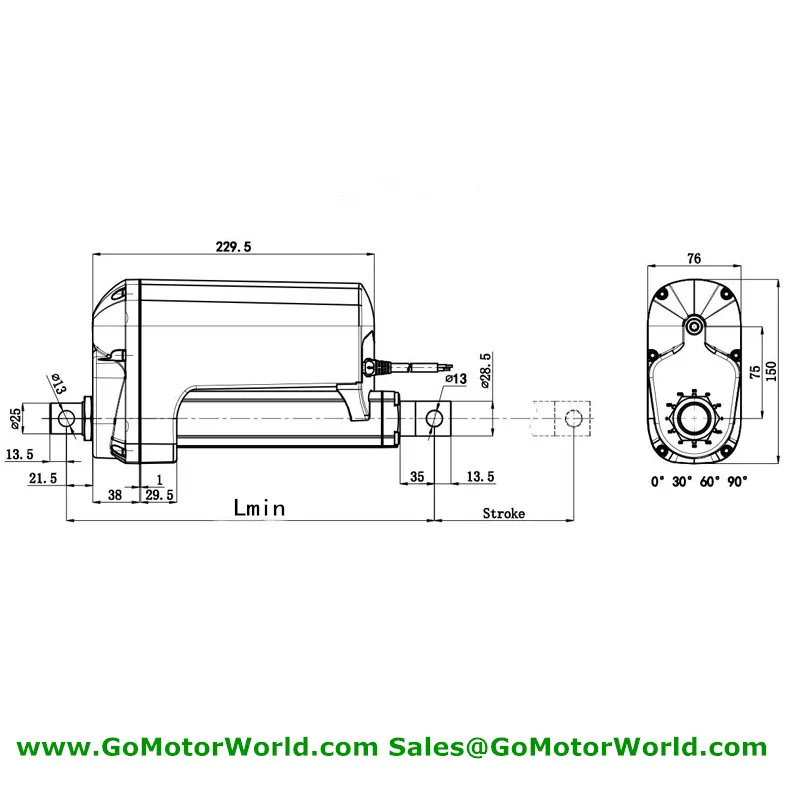

Drawing
Lmini=Stroke+250mm=900+250=1150MM
Max length=Stroke+Lmini=2*stroke+250=2050MM
There is limited switch inside,it will stop automatically when it gets stroke size position,very safe.
Question:
1 Can I get 12V? Yes
2 Can I add hall or POT signal feedback? Yes
3 Can I get customized size or speed or stroke or load? Yes,but price is different.
4 Can you send to other country? Yes
5 Can you supply power supply and hand switch to operate linear actuator? Yes
6 Do you sell bracket? Yes
7 Can you supply customized cable connector? Yes
8 Can you supply OEM service? Yes
If you do not find suitable linear actuator, contact with seller, my engineer will offer customized product for you.
Input : 12V or 24V
Load : 100N or 100KG or 220LBS and so on
Speed : 5mm/sec or 10mm/sec or 1inch/sec or 4inch/sec and so on
Stroke : 50mm or 200mm or 4inch or 16inch and so on
Mini Length : The 100% fully retracted length
Cable length : 1m or 2m or 20inch or 40inch and so on
G: Customer’s special requirement
Warranty
1. If you do not receive product, we will full refund you.
2. If the product has quality problem, we will full refund you.
3. If the product is damaged by express company, we will full refund you.
Payment
We accept paypal, Escrow,Western union and bank transfer.
Shipping
1. Order will be delivered within 3~5 days.
2. Please make sure your address and phone is correct.
Similar link
-
ApplicationHeavy industry
-
CertificateCE
-
Duty cycle25%
-
Input24V/12V
-
IP protectionIP66
-
is_customizedYes
-
Load12000N=1200KG=2640LB
-
MaterialStainless steel
-
Speed60mm per second
-
Stroke900mm
-
Вес логистики10.300
-
Выходная мощность120
-
Каждая упаковка1
-
КоммутацияЩетка
-
КонструкцияПостоянный магнит
-
Крутящий МоментMax 12000N/1200KG/2640LB
-
Минимальная единица измерения100000015
-
Название брендаНет
-
Непрерывный Ток (A)8.5
-
Номер моделиLA51T
-
ПрименениеBoAt
-
Продано Вsell_by_piece
-
Размер логистики - высота (см)10
-
Размер логистики - длина (см)12
-
Размер логистики - ширина (см)20
-
СертификацияЕвропейский сертификат соответствия
-
ТипТрубчатый мотор
-
Функция защитыЗащита от воды
-
ЭффективностьIE 4
