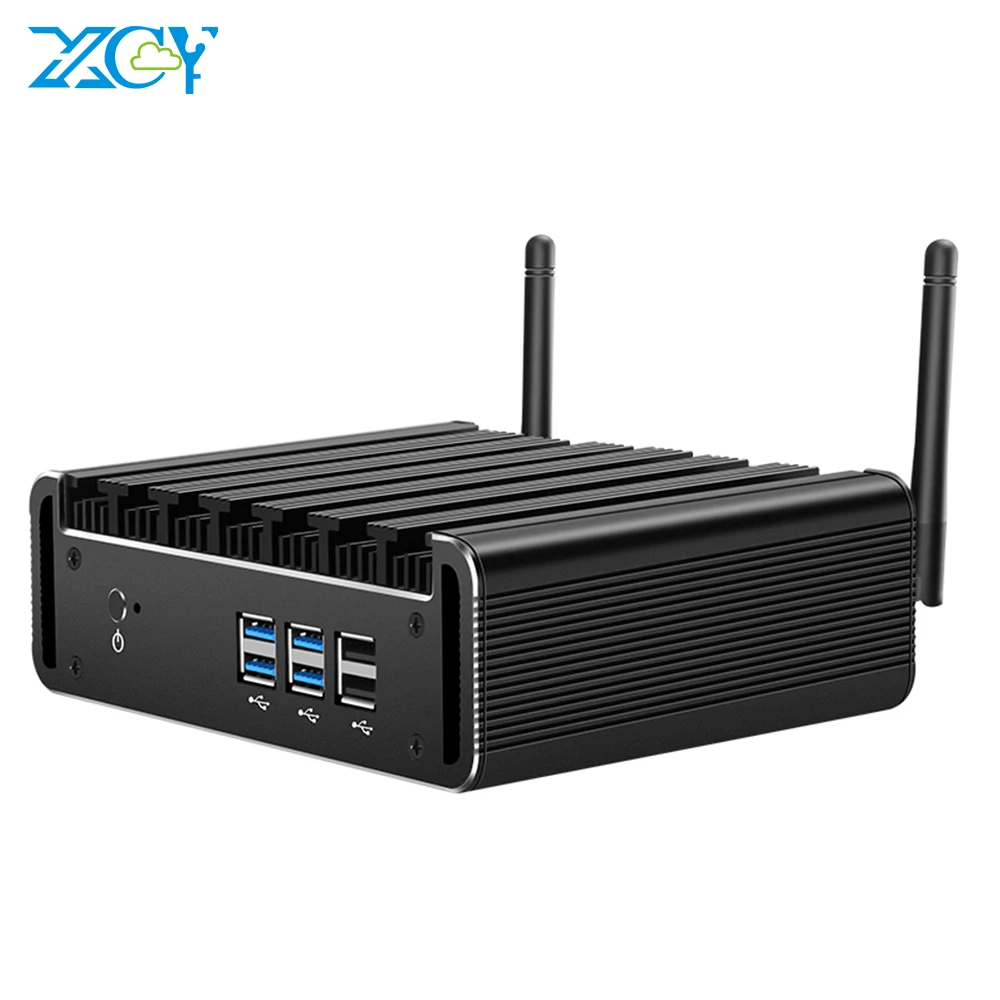

Мини-ПК XCY, Intel Core i7 7560U, i5 7267U, i3 7100U, 8 Гб ОЗУ, 512 Гб SSD, 4K UHD, 300 Мбитс, Wi-Fi, гигабитный, LAN, Windows 10, Linux

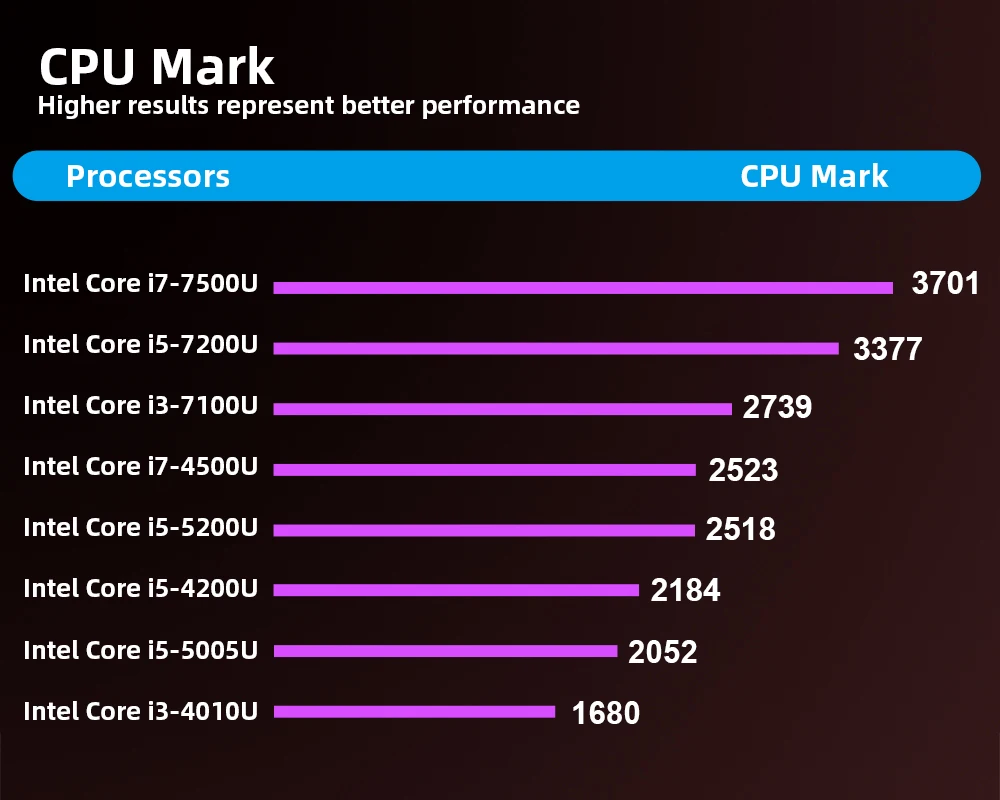

Processors

Intel Core i7-7500U, 2 cores 4 threads, 4M cache, 2.70GHz, up to 3.50GHz

Intel Core i5-7267U, 2 cores 4 threads, 3M cache, 3.10GHz, up to 3.50GHz

Intel Core i3-7100U, 2 cores 4 threads, 3M cache, 2.40GHz

Intel Core i7-5557U, 2 cores 4 threads, 4M cache, 3.10GHz, up to 3.40GHz

Intel Core i5-5287U, 2 cores 4 threads, 3M cache, 2.90GHz, up to 3.30GHz

Intel Core i7-4500U, 2 cores 4 threads, 4M cache, 1.80GHz, up to 3.0GHz

Intel Core i5-4200U, 2 cores 4 threads, 3M cache, 1.60GHz, up to 2.60GHz

Intel Core i3-4005U, 2 cores 4 threads, 3M cache, 1.70GHz

Memory

SODIMM DDR3L 1333/1600MHz

i5-7267U use DDR4 2133/2600MHz

max support to 16GB ( i7-4500U /i5-4200U/i3-4010U max support 8GB RAM )

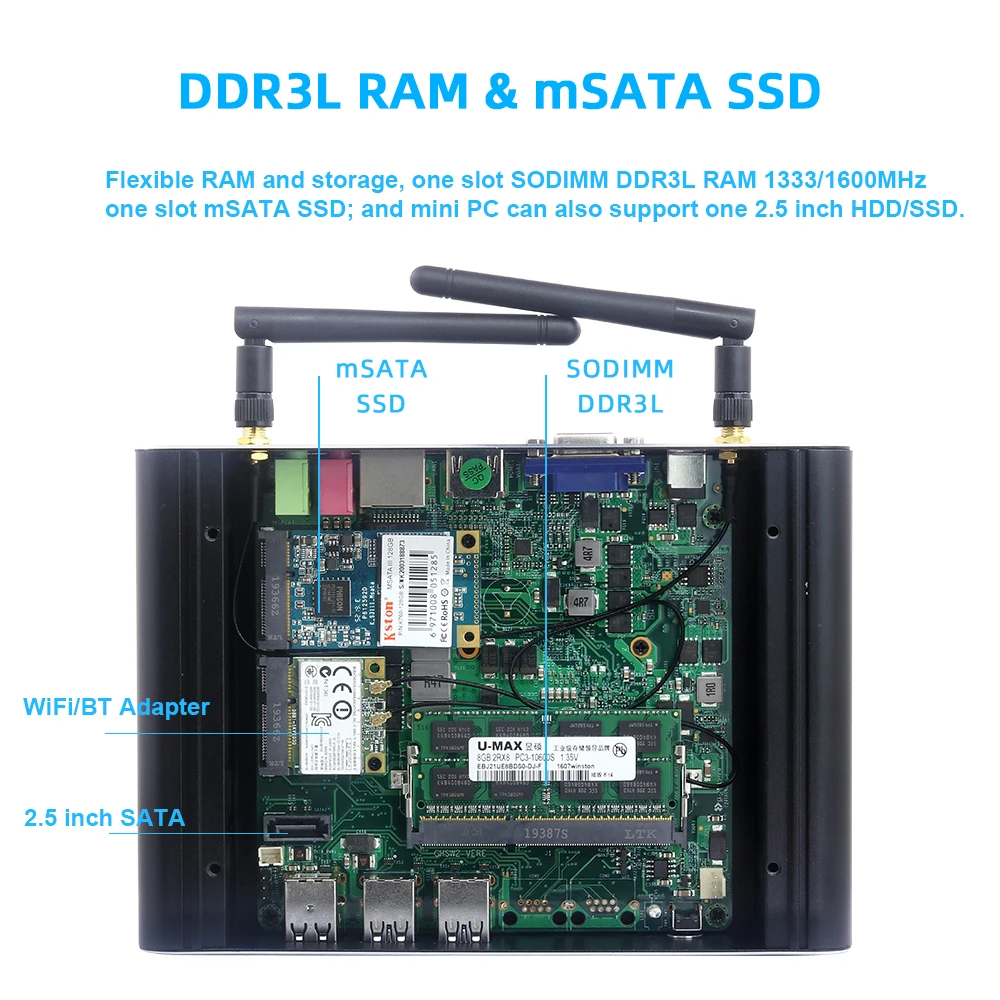

Storage

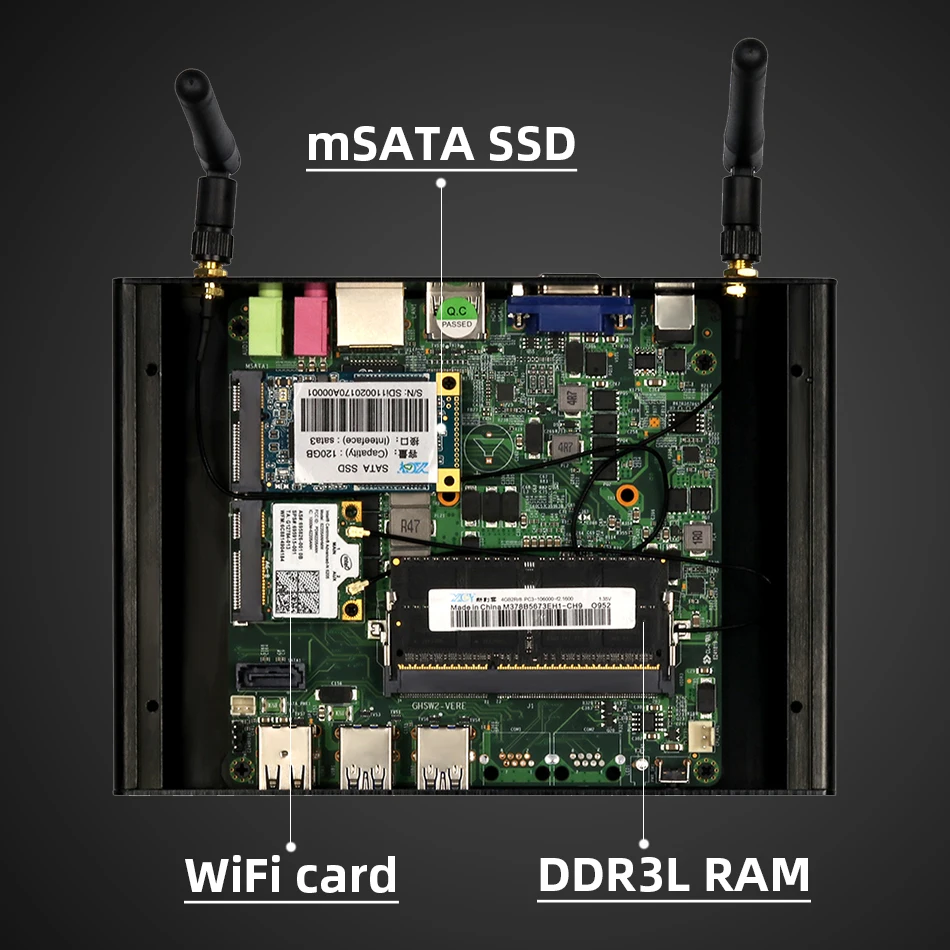

Support 1x mSATA SSD ( we pre-install this type hard drive in mini PC )

Support 1x 2.5 inch HDD

Graphics

Integrated graphics

Network Interfaces

GbE RJ45 Realtek 8111E

Expansion

1x Mini PCI-E for WiFi/Bluetooth module ( half height size )

OS Support

Windows 7/8/8.1/10, Linux, Ubuntu

i7-7500U/i5-7200U/i3-7100U don’t support Windows 7

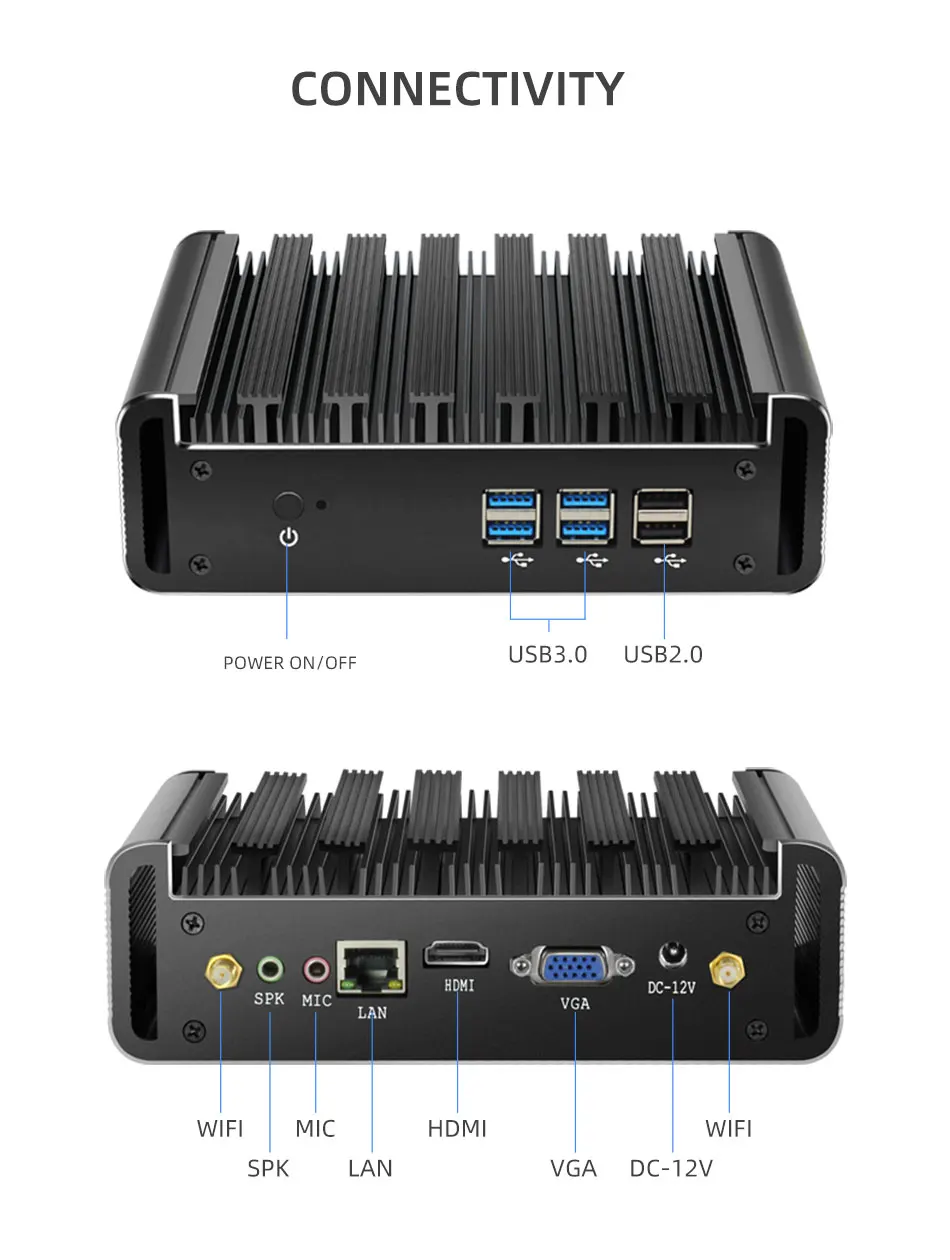

USB Ports

4x USB3.0, 2x USB2.0

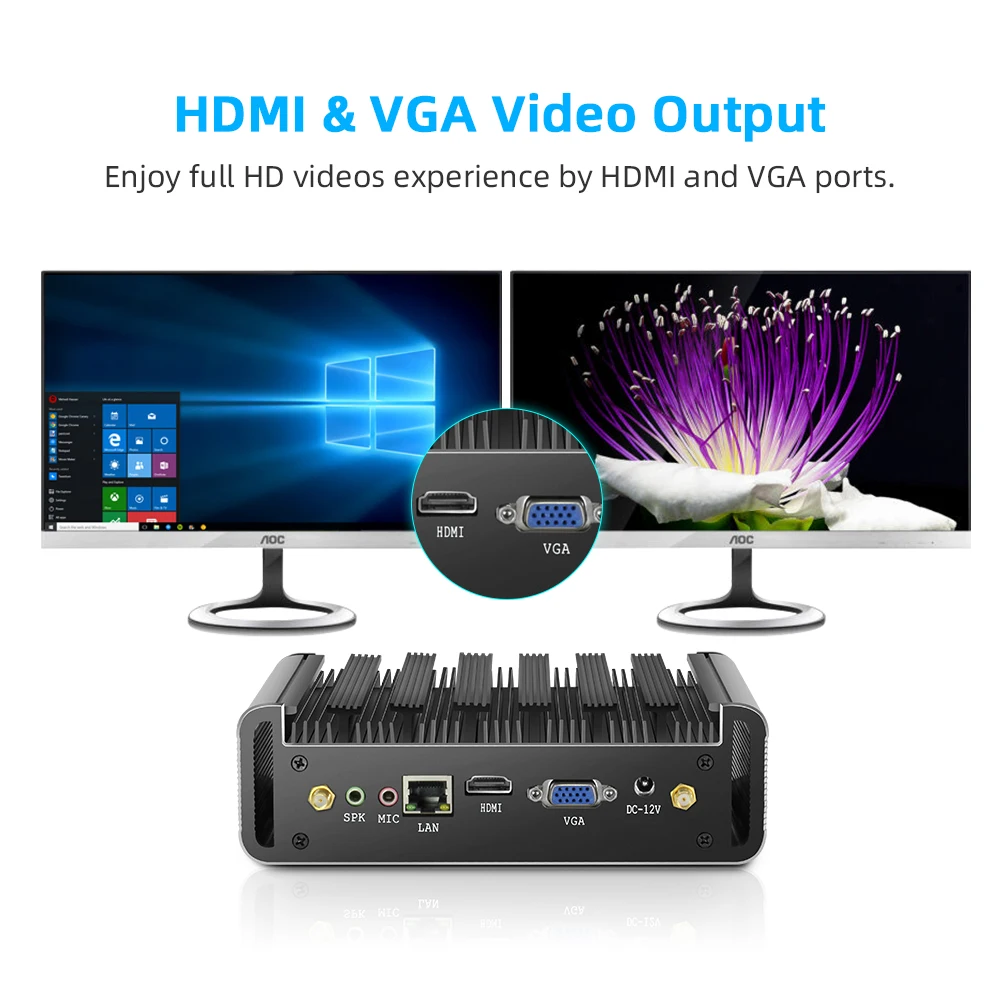

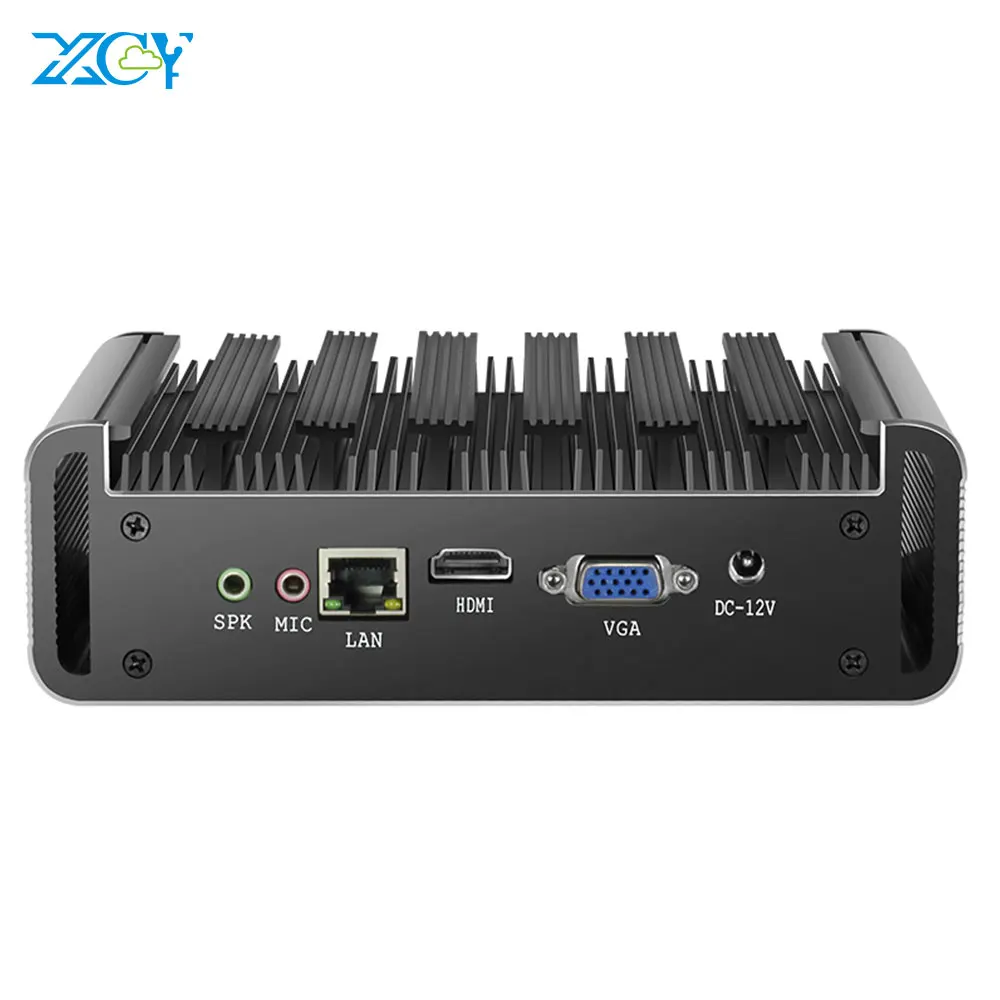

Display Port

1x VGA, 1x HDMI

Features

Support WOL,automatically power on when power restored after a sudden power loss

Audio Ports

1x SPK, 1x MIC audio jack

Construction

Fanless passive cooling

Case

Aluminum Case

Dimension

185x128x55mm

Netweight

0.95Kg

Operating Temperature

-20℃ to +60℃

RH

5%~90% @30℃，Non-condensing

Power Adapter

Input AC100-240V, Ouput DC12V-5A

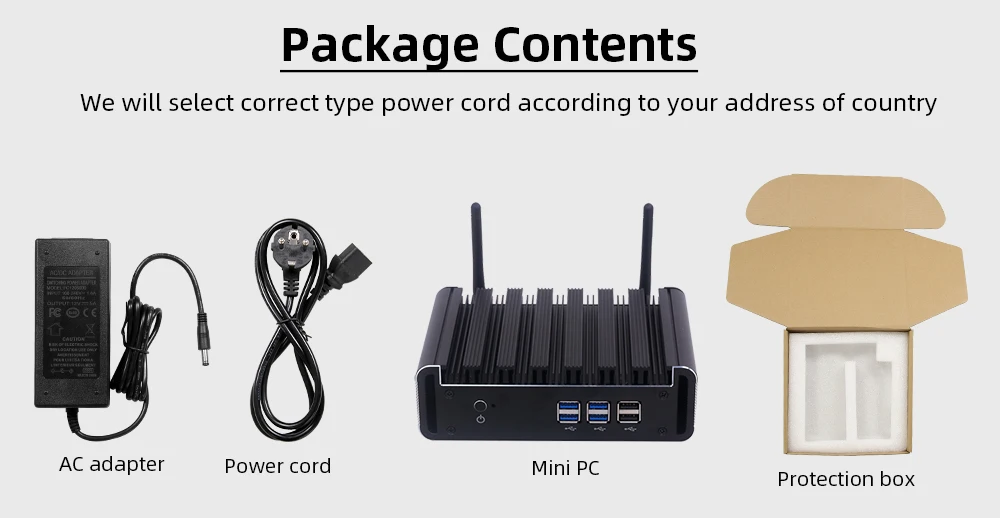

Package List

1x Mini PC

1x AC Adapter

1x Power cord ( EU AU US UK type plug shipped according to buyer’s address )

1x SATA data cable

1x SATA power cable

1x User manual
