1K 2K 3K 6K силиконовый резиновый изолированный инфракрасный, проходящий под полом нагревательная система теплый пол провод, углеродное волокно напольный нагревательный кабель

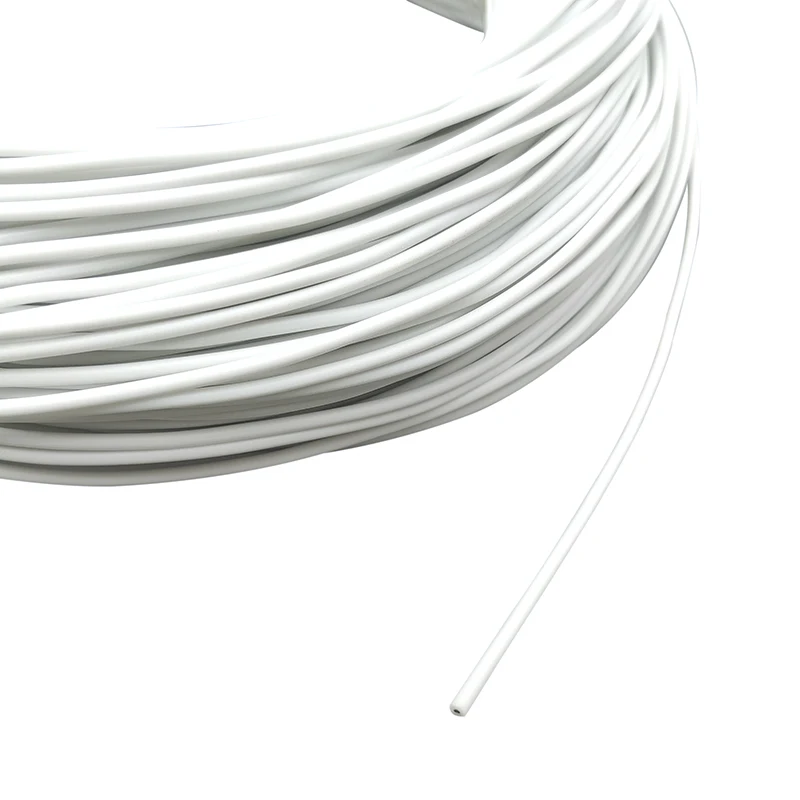

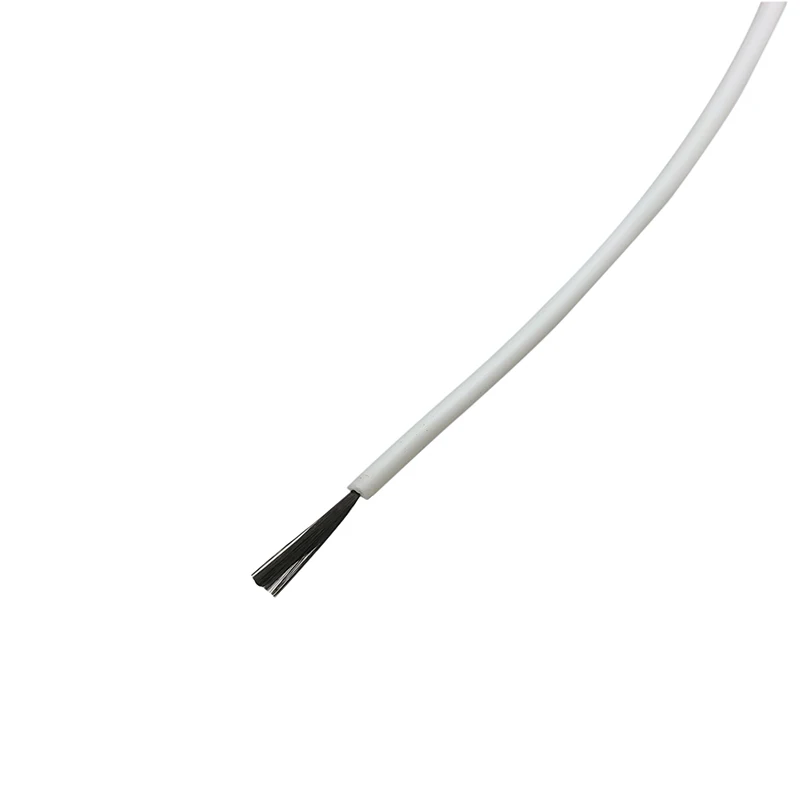

Product Name:  Carbon fiber heating wire

Insulating materials: Silicone rubber

Temperature: 200 degrees celsius limit

Heating conductor: 1K, 2K, 3K, 6K

High voltage test: 3000V

Leakage current: 0.05mA/m

The product can withstand the power of power: 15W/M

Diameter:

1K: 2.0±0.2 MM

2K, 3K, 6K : 2.5±0.2 MM

colors: White / Red (Random)

Infrared wavelength: 8UM-18UM

Conductor resistance:

1K: 400 ± 10% Ω / M

2K: 220 ± 10% Ω / M

3K: 133 ± 10% Ω / M

6K: 80 ± 10% Ω / M

Product Power Calculation:

Temperature:

Product Advantages:

1. High energy-efficient: Don't need other transmission medium, the electrothermal conversion efficiency is above 98%.

2. Comfortable and healthy: New infrared floor heating, make the temperature uniformity, promote blood circulation.

3. Easy to install: The carbon fiber heating wire cost a little, and has a long life span,  an investment, life-long benefit, low maintenance costs.

And etc...

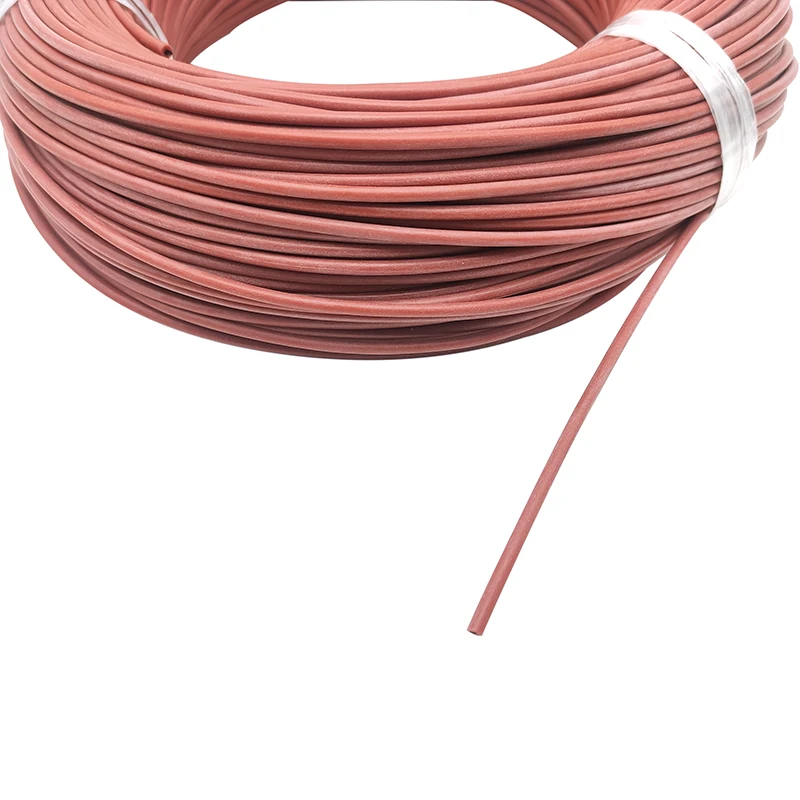

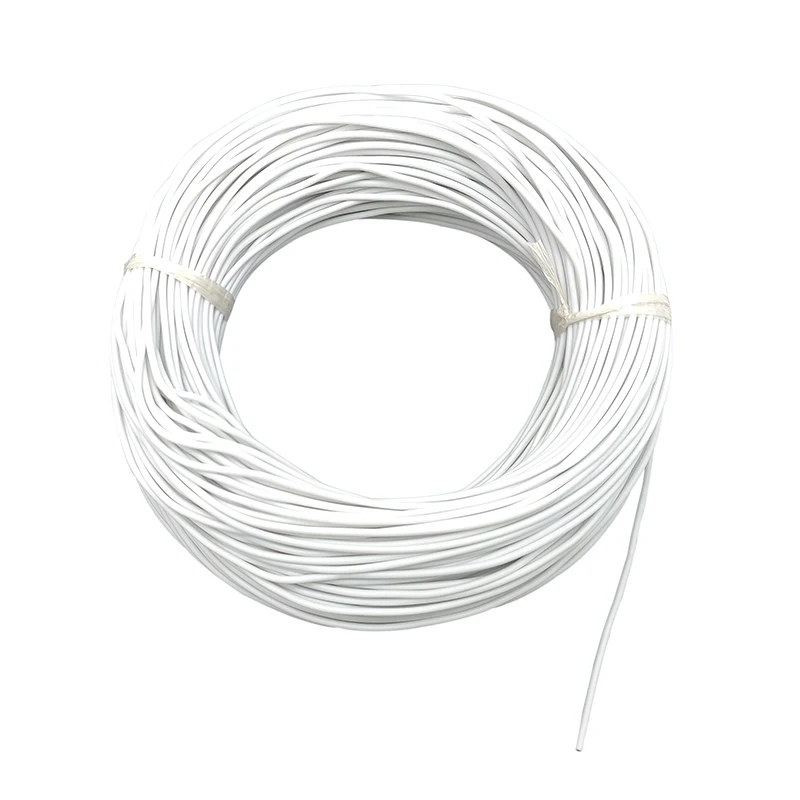

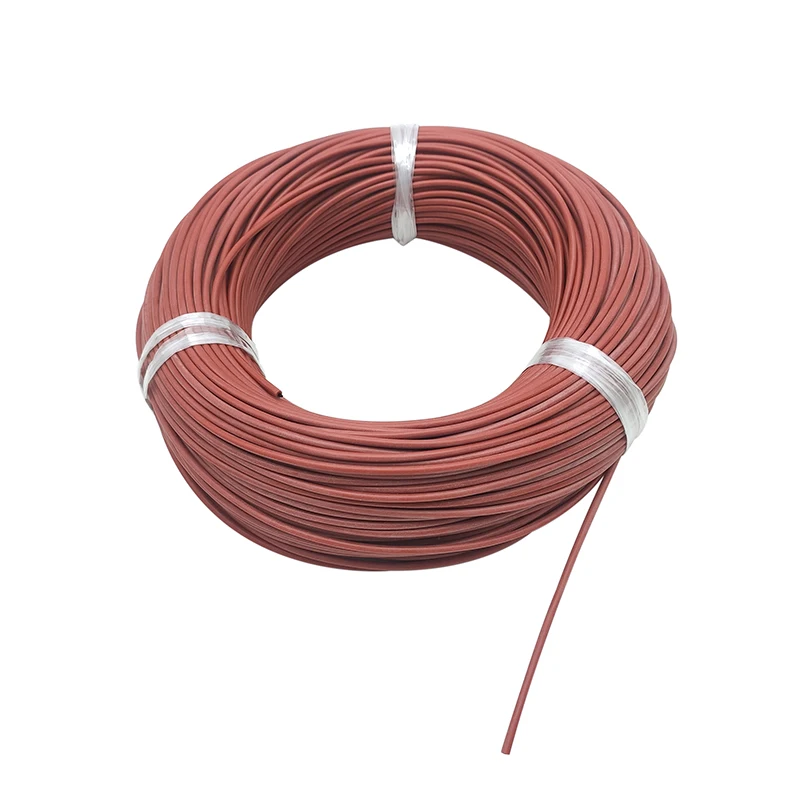

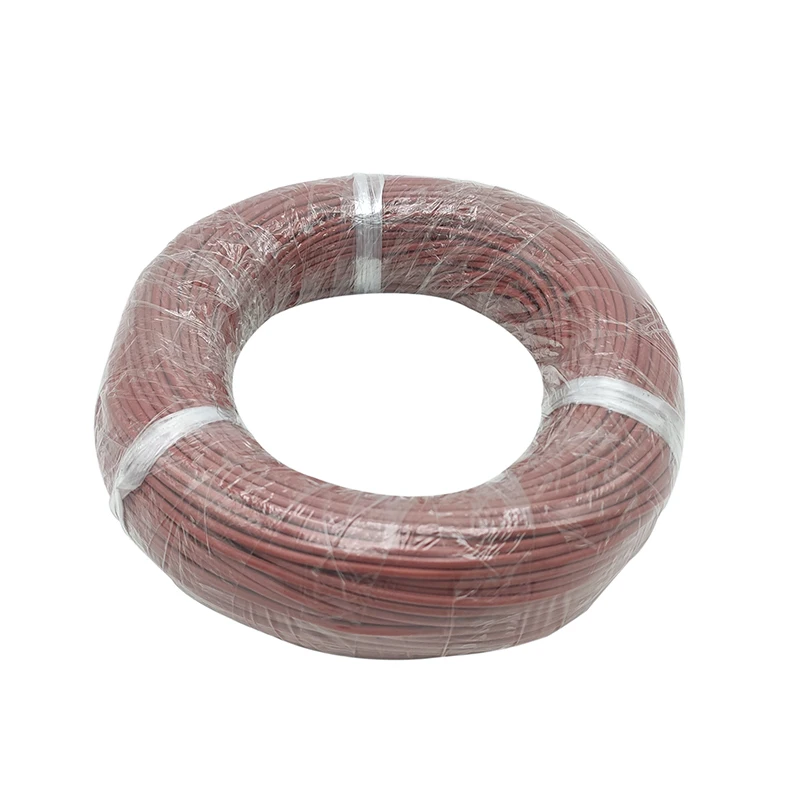

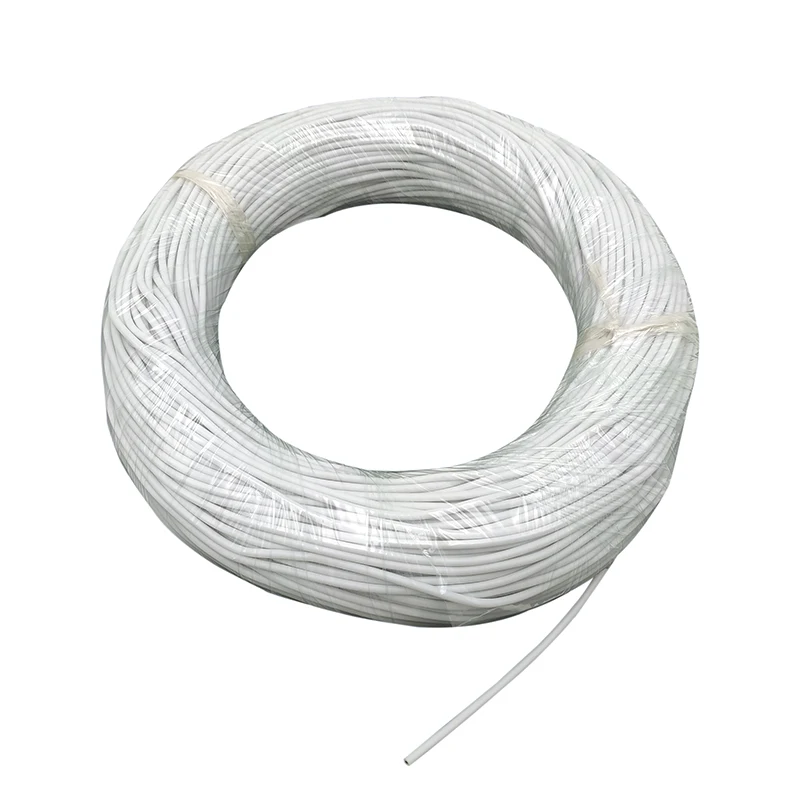

1 roll 100meters 1k / 2k / 3k /6k carbon fiber silicone rubber heating cable( White / Red colors random send)

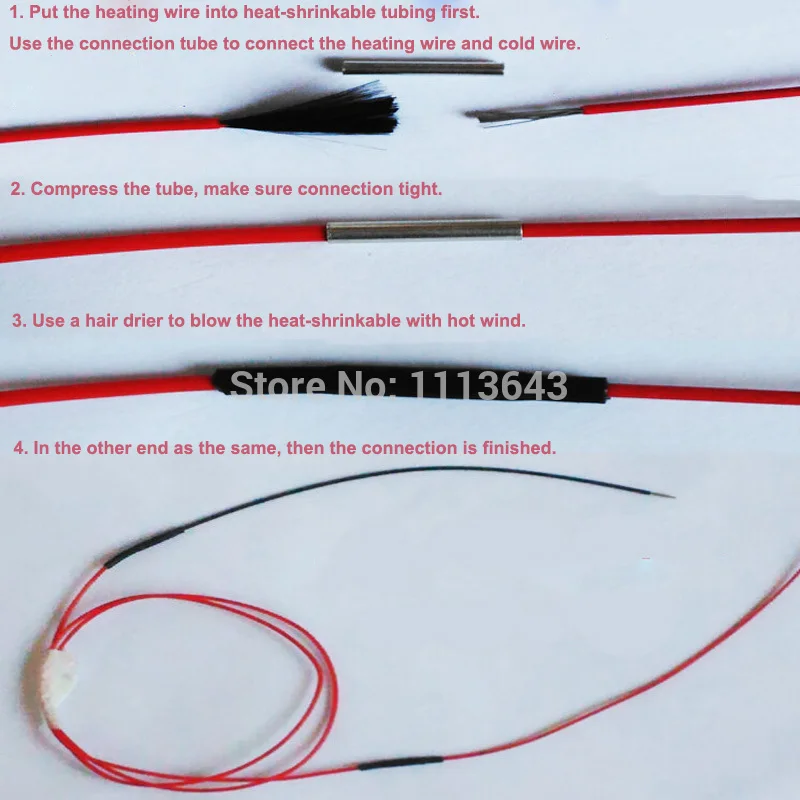

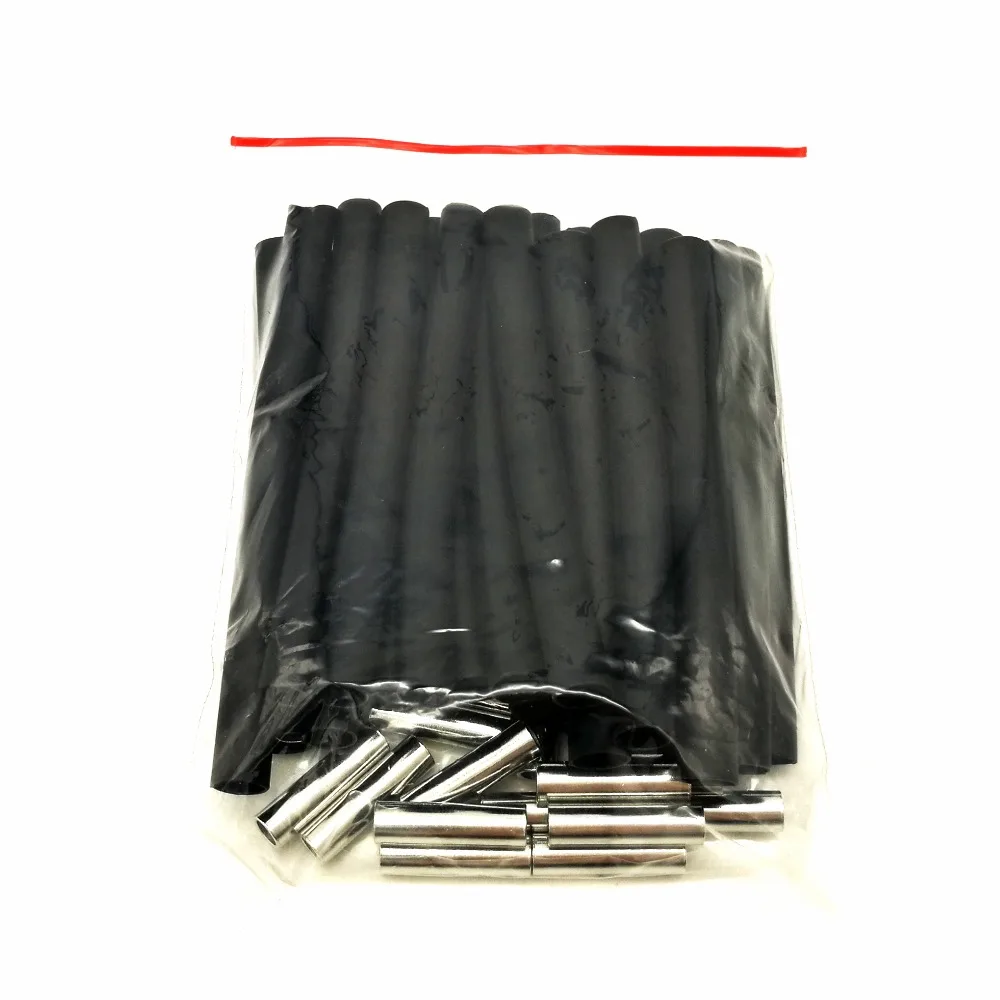

Gift: 40pcs heating sleeves and 40pcs connection copper tubes for 100meters cable

Tips: White / Red colors random send

1. Floor heating for Home and office: Homes, villas, hotels, office buildings, hospitals, shopping malls

2. Floor heating for public areas: Swimming pool, soccer field, gymnasium, museum, memorial hall, the kindergarten

3. Floor heating for large public facilities: Bus terminal, parking lot, airport, highways

4. Floor heating for professional field: Botanical garden, greenhouse, laboratory

And other heating applications..etc...
