Муфты XB
Модель
D1
D2
D
L
L1
L2
L3
М
Крутящий момент гаечного ключа (N.m)
XB14X22
3, 3,17, 4, 5, 6, 6,35
3, 3,17, 4, 5, 6, 6,35, 8
14
22
7
6
3,5
M2.5
1,0
XB20X25
6, 6,35, 7, 7,5, 8, 9, 9,5, 10, 10,5
6,35, 7, 8, 9, 9,5, 10, 10,5
20
25
10
8
8
М3
1,3
XB20X25
3, 3,17, 4, 5
3, 3,17, 4, 5, 6, 7, 8, 9, 9,5, 10
20
25
10
8
5
М3
1,3
XB20X25Black-Красный
5, 6, 8, 9
5, 6, 8, 9
20
25
10
8
5
М3
1,3
XB20X25Black-Blue
5, 6, 8, 9
5, 6, 8, 9
20
25
10
8
5
М3
1,3
XB20X25-Blue
3, 3,17, 4, 5, 6
3, 3,17, 4, 5, 6, 7, 8, 9, 9,5, 10
20
25
10
8
5
М3
1,3
XB20X25-Blue
6, 6,35, 7, 8, 9, 10
6,35, 7, 8, 9, 9,5, 10
20
25
10
8
5
М3
1,3
XB20X30
3, 3,17, 4, 5, 6
3, 3,17, 4, 5, 6, 6,35, 7, 8, 9, 10
20
30
10
8
5
М3
1,3
XB20X30
6,35, 7, 8, 9, 10
6,35, 7, 8, 9, 10
20
30
10
8
5
М3
1,3
XB20X30-Blue
3, 3,17, 4, 5, 6
3,17, 4, 5, 6, 6,35, 7, 8, 9, 9,5, 10
20
30
10
8
5
М3
1,3
XB20X30-Blue
6, 6,35, 7, 8, 9, 10
6,35, 7, 8, 9, 10
20
30
10
8
5
М3
1,3
XB25X30
3, 4, 5, 6
3, 4, 5, 6, 6,35, 7, 8, 9, 10, 11, 12, 12,7
25
30
10
8
5
М3
1,3
XB25X30
6, 6,35, 7, 8, 9, 10, 11, 12, 12,7
6,35, 7, 8, 9, 10, 11, 12, 12,7
25
30
10
8
5
М3
1,3
XB25X35
8, 10, 12
8, 10, 12
25
35
10
8
5
М3
1,3
XB30X35
5, 6, 6,35, 7
5, 6, 6,35, 7, 8, 9,5, 10, 11, 12, 12,7
30
35
11
13
5
M4
1,7
XB30X35
7, 8, 9,5, 10, 11, 12, 12,7
8, 9,5, 10, 11, 12, 12,7, 14, 16
30
35
11
13
5
M4
1,7
XB30X35with Keyway
10
12
30
35
11
13
5
M4
1,7
XB30X40
3, 4, 5
3, 4, 5 ,6, 6,35, 7, 8, 9, 9,5, 10, 11, 12, 12,7, 13, 14, 15, 16
30
40
11
13
5
M4
1,7
XB30X40
5, 6, 6,35, 7
6,35, 7, 8, 9, 9,5 10, 11, 12, 12,713, 14, 15, 16
30
40
11
13
5
M4
1,7
XB30X40
7, 8, 9, 9,5
8, 9, 9,5, 10, 11, 12, 12,7, 13, 14, 15, 16
30
40
11
13
5
M4
1,7
XB30X40
10, 11, 12, 12,7, 13, 14, 15, 16
10, 11, 12, 12,7, 13, 14, 15, 16
30
40
11
13
5
M4
1,7
XB30X40Black-Red
14
14
30
40
11
13
5
M4
1,7
XB35X40
10
19
35
40
11
13
5
M4
1,7
XB35X50
10,19
10,19
35
50
11
13
5
M4
1,7
XB40X45
8
8
40
45
25
16
10
M5
7

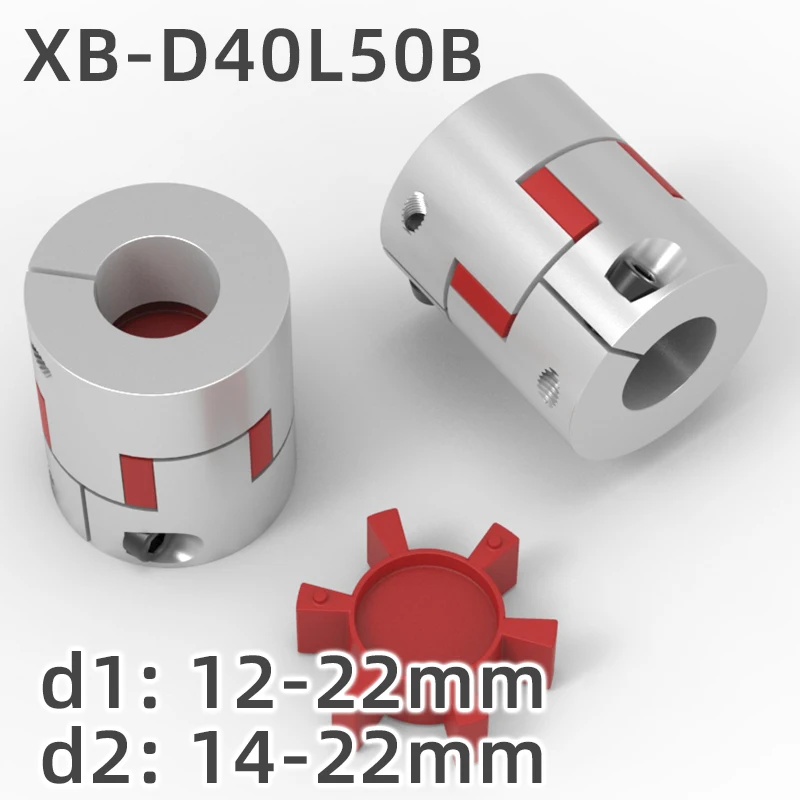

XB40x50
8, 9, 10, 12, 14
8, 9, 10, 12, 14, 15, 16, 19, 20, 22
40
50
25
16
10
M5
7
XB40X50
14, 15, 16, 19, 20, 22
15, 16, 19, 20, 22
40
50
25
16
10
M5
7
XB40x55
8, 12, 14, 15, 16, 18, 19, 22
8, 12, 14, 15, 16, 19, 22
40
55
25
16
10
M5
7
XB40x65
10, 12, 12,7, 14, 15
10, 12, 12,7, 14, 15, 16, 17, 18, 19, 20, 24
40
65
25
16
10
M5
7
XB40X65
15, 16, 17, 18, 19, 20, 24
16, 17, 18, 19, 20, 24
40
65
25
16
10
M5
7
XB55x80
14, 16, 25
14, 16, 25
55
80
30
18
10,5
M6
8
XB65x90
16, 25
16, 30
65
90
35
20
11,5
M8
15
XB65X90
14, 18, 19, 25, 30
14, 18, 19, 25, 30
65
90
35
20
11,5
M8
15
