Беспроводной переключатель с интеллектуальным обучением кода, 433 МГц, 110 В, 220 В переменного тока
joydeal Official Store - Надежность 96.5%
Более 14830 подписчиков, дата открытия магазина 09.04.2018
- Положительные оценки: 98% (2327)
- Соответствие описанию: 96%
- Отвечает на сообщения: 96%
- Скорость отправки: 96%
Последнее обновление: 04.04.2022
![](http://ae01.alicdn.com/kf/HTB1VR10RFzqK1RjSZFvq6AB7VXaC.jpg_.webp)
![](http://ae01.alicdn.com/kf/HTB19VYsQxjaK1RjSZKzq6xVwXXaV.jpg_.webp)
![](http://ae01.alicdn.com/kf/HTB1ukUoXLvsK1Rjy0Fiq6zwtXXaZ.jpg_.webp)
![](http://ae01.alicdn.com/kf/HTB1DP.QXLjsK1Rjy1Xaq6zispXas.jpg_.webp)
![](http://ae01.alicdn.com/kf/HTB1R2yHRFYqK1RjSZLeq6zXppXam.jpg_.webp)
Подставка для мебели
433Mhz Universal Intelligent Learning Code Wireless Remote Control Switch AC 110V 220V 1CH Relay Receiver Home Led Light Switch This remote control only support the learning code (1527) of the receiver Compatible with remote control using these chips: PT1527,EV1527, SCT527, HS1527, SCL1527, FP1527,EV1527 Do not use this remote control to clone other remote controls,you will lose the built-in 1527 encoding. It is a panel 86 wall transmitter that can be stuck onto anywhere. It is a learning code transmitter EV1527 IC Chip. It can be learned into most of the learning code receiver, it can work with any kind learning code receiver in our store. So that the trouble brought by routing is avoided successfully. Working Voltage: CR2032 Alkaline Battery (Package Not Included Battery); Working Frequency: 433mhz; IC Chip: EV1527 ; Working Current : 20-25ma; Material: HDPE(Type2) Plastic. Coding Specification: 1527. Distance: Indoor (20 Meters/65 Feets) , Outdoor (80 Meters/262 Feets). Color: Black. Weight: 60g/2.1ounces. Big Button wall Transmitter is your best choice for home or Public Places remote control system.
Technical Data Of Receiver:
Input Power:AC 85V-250V Standby Current:97dbm Transmitting distance: 20-50m ( open space) Decoding mode: software decoding Remote storage:25pcs Support remote type: Learning code 1527code, Fixed code(Rolling code can be design) Working mode:Momentary, Toggle, Latching Wiring type:fixed termina. Dear Sir and Madam : if you don't know it .please inquiry it . the receiver and transmitter can work together ,their frequency ,IC chip and Shock resistance must be taken in to consideration. If you need it to work with your own receiver, you must make sure 100% that your receiver is 433mhz Frequency,does your receiver have a learning button to learn the transmitter code? and does your receiver can be compatible with 1527 ic chip transmitter.
APPLICATION
![](http://ae01.alicdn.com/kf/HTB12qOKKeGSBuNjSspbq6AiipXaE.jpg_.webp)
Notice: Different options include different packages:

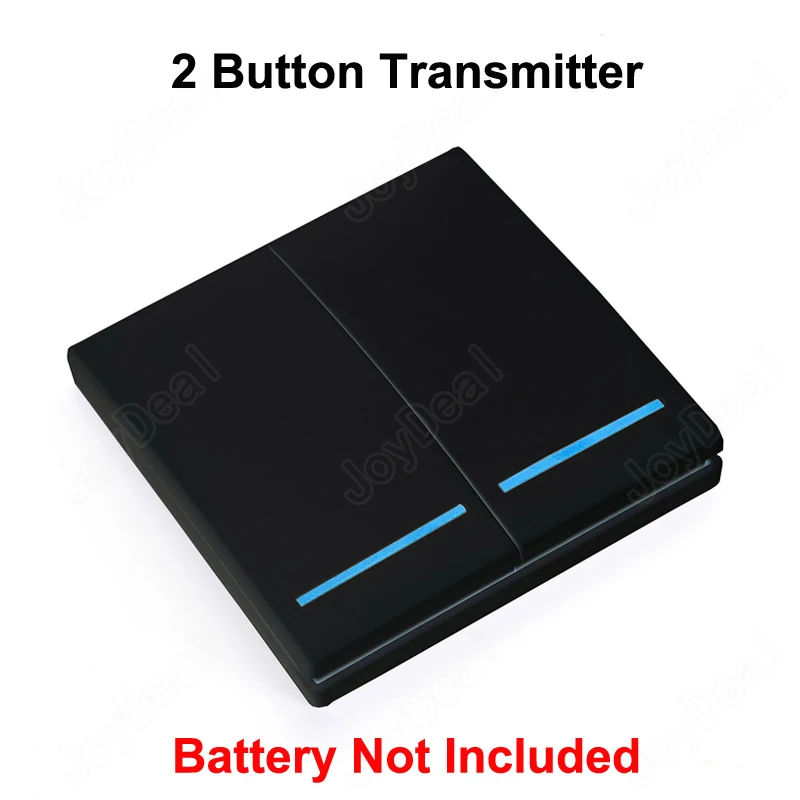

Package 1 Included: Only 2 Button Transmitter (Battery not included) ;
![](http://ae01.alicdn.com/kf/HTB1Bqvcbk9E3KVjSZFGq6A19XXaU.jpg_.webp)
Package 2 Included: Only 1 receiver ( include package );
![](http://ae01.alicdn.com/kf/HTB1GGwJNSzqK1RjSZPxq6A4tVXa2.jpg_.webp)

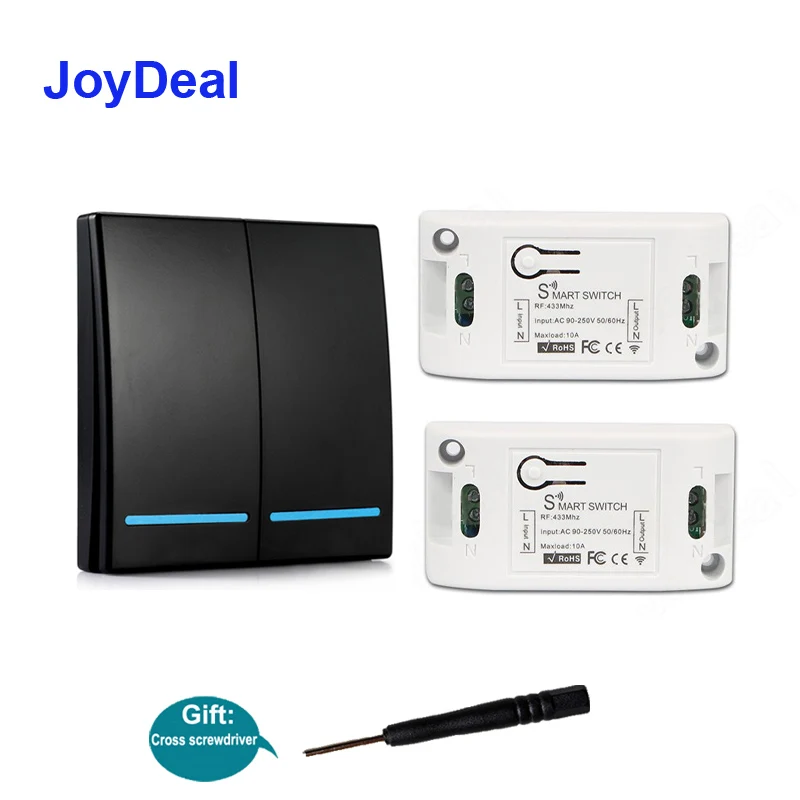

Package 3 Included: 1 RC And 2 Receiver ( include Package )
![](http://ae01.alicdn.com/kf/H8631a124645d485d99eb2d60d50dff63L.jpg_.webp)
Free Gift: Cross screwdriver * 1pcs.
![](http://ae01.alicdn.com/kf/HTB1ISJnj9tYBeNjSspaq6yOOFXah.jpg_.webp)
Attention Please: Every parcel only get 1 pcs cross screwdriver as a free gift whatever how many you order.
![](http://ae01.alicdn.com/kf/HTB1Y_cYNMHqK1RjSZFkq6x.WFXaJ.jpg_.webp)

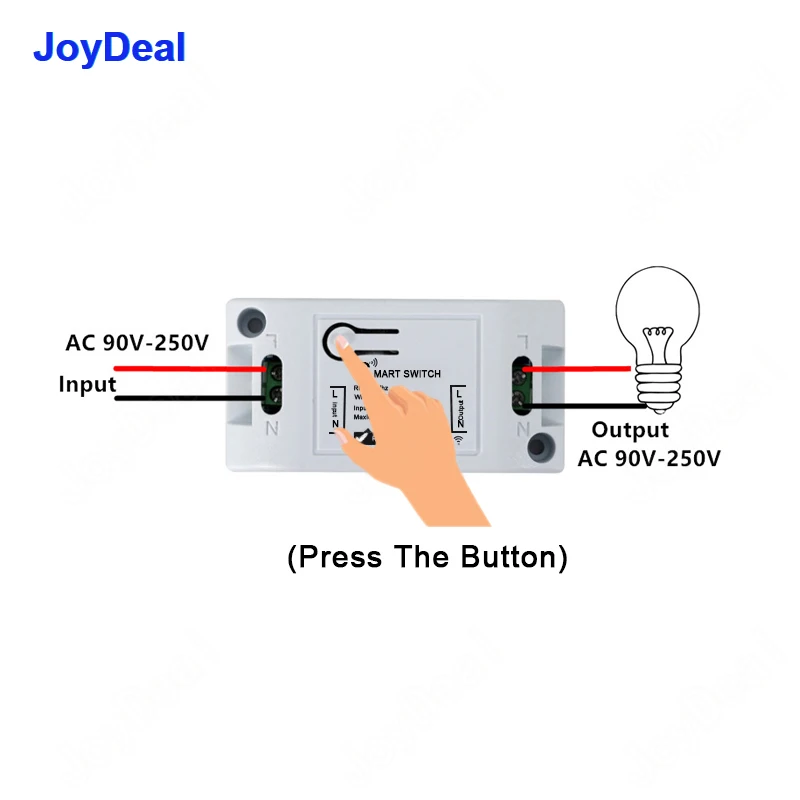

How to install this smart switch:
You don't need to open the outer casing of this smart switch You can wire directly to the terminal block Please note: Please turn off the power before wiring. Please connect the wires according to the following diagram.
![](http://ae01.alicdn.com/kf/HTB1egATNFzqK1RjSZFCq6zbxVXaV.jpg_.webp)
About Working mode:
Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects. Toggle:Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects . Latching:Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.
Clearing the code :
Push the learning button on the receivers for 8 times , the codes will be cleaned . After clearning the code, all the remote control cannot work any more.
Learning the code :(momentary)
Push the learning key on the receiver once time, the LED will be on , it comes into momentary setting learning state mode. Then push the button of remote control ,LED indicator on the receiver board will flash 3 times, and then come off. It means learning successfully .
Learning the code : ( Toggle )
Push the learning key on the receiver twice time , the LED will be on , it comes into toggle setting learning state mode. Then push the button of remote control ,LED indicator on the receiver board will flash 3 times, and then come off. It means learning successfully .
Learning the code :( Latching )
Note: When you choose for latching mode , in order to learn more remote control , you need to learn two different button , the first time learnt is for “ON”, the second time learnt for “OFF”. For example : button A = ON , button B = OFF Push the learning key on the receiver triple time , the LED (on the Receiver)will blink 3 times. When the LED is on, press the button of the remote control(You want to let it learn), Push the remote button A, LED flash for 3 times . Push the remote button B, Led flash for 3 times . After 3 seconds , the LED indicator will be off , Learning to succeed. A = ON , B = OFF .
What's More: The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost .
![](http://ae01.alicdn.com/kf/HTB1KOqHRSzqK1RjSZFLq6An2XXa5.jpg_.webp)
![](http://ae01.alicdn.com/kf/HTB1GGwJNSzqK1RjSZPxq6A4tVXa2.jpg_.webp)
![](http://ae01.alicdn.com/kf/HTB1hcoKNSzqK1RjSZFLq6An2XXa6.jpg_.webp)
![](http://ae01.alicdn.com/kf/HTB1zn.NNSzqK1RjSZFjq6zlCFXar.jpg_.webp)
![](http://ae01.alicdn.com/kf/H8512df8568b24e39a57df2fdf03169fez.jpg_.webp)
![](http://ae01.alicdn.com/kf/HTB1CXBOa13tHKVjSZSgq6x4QFXaI.jpg_.webp)
![](http://ae01.alicdn.com/kf/H9f07e1b22589498783088b52466c545dS.jpg_.webp)
![](http://ae01.alicdn.com/kf/HTB1JMb_jQyWBuNjy0Fpq6yssXXaz.jpg_.webp)
![](http://ae01.alicdn.com/kf/HTB1PK8qj9tYBeNjSspkq6zU8VXaE.jpg_.webp)
![](http://ae01.alicdn.com/kf/HTB1NQ.BctcnBKNjSZR0q6AFqFXa9.jpg_.webp)
![](http://ae01.alicdn.com/kf/HTB1qmoqjHSYBuNjSspfq6AZCpXaW.jpg_.webp)
![](http://ae01.alicdn.com/kf/HTB1ELwMjNGYBuNjy0Fnq6x5lpXaZ.jpg_.webp)
![](http://ae01.alicdn.com/kf/HTB1CAmaXfc3T1VjSZLeq6zZsVXaa.jpg_.webp)
![](http://ae01.alicdn.com/kf/HTB1rTEJXI_vK1RkSmRyq6xwupXau.jpg_.webp)
![](http://ae01.alicdn.com/kf/HTB1Nz.EXLLsK1Rjy0Fbq6xSEXXaT.jpg_.webp)
-
ApplicationWork With 433Mhz RF Receiver 1527 2262 learning code
-
Application example 1Garage doors access control system
-
Application example 2Led Light Lamp Switch,Home Security Alarm System
-
Application example 3Home Security Alarm System,Car Sunroofs Control, Mando Garaje
-
Controller Operating temperature-10 elsius~+70 Celsius
-
Controller working frequency433.92MHZ
-
Encoding TypeIntelligent Learning Code wireless light switch
-
FeatureCaring for the elderly, children, women, pregnant women
-
Modulation ModeASK Smart Home Wireless RF Remote Control Led Light Switch
-
RF Working ModeSuperheterodyne Reception
-
Vibration resistance330K smart wireless led light lamp bulb remote control switch
-
Wired Connection WayFixed Wiring Pillar interrupteur sans fil
-
wireless switch batteryCR2032 Alkaline Battery ( Not Included Battery)
-
Working current10mA wireless rf remote control switch
-
Вес логистики0.180
-
Гарантия1 Year 86 Wall Panel button Bedroom Ceiling Lamp Light wireless switch
-
Каждая упаковка1
-
МатериалПластик
-
Минимальная единица измерения100000015
-
Название брендаjoydeal
-
Номер модели433 Mhz smart push button Wireless Switch Led RF Remote Control Switch
-
Продано Вsell_by_piece
-
Размер логистики - высота (см)10
-
Размер логистики - длина (см)12
-
Размер логистики - ширина (см)12
-
Расстояние Дистанционного УправленияWall Remote Control Switch
-
СертификацияОбязательный сертификат КНР
-
Сила тока10A
-
Тип переключенияПульт дистанционного управления
-
Тип товараПереключатели
-
ХарактеристикиWireless Remote Control Switch AC 110V 220V RF Receiver Led Light Lamp
