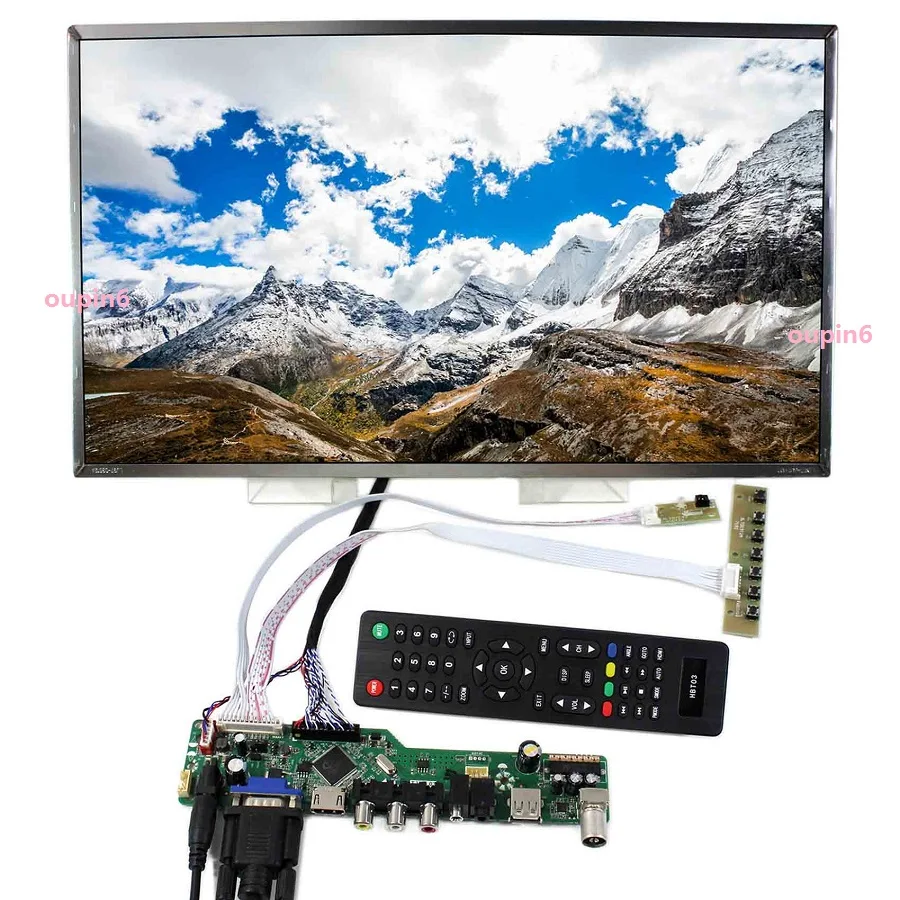

New DIY For TV LED AV VGA HDMI RF laptop AUDIO Mother universal compatible Controller Board with adapter power laptop 40pin kit card Monitor Screen
Note :
When you make the order ,Please tell me your LCD model,the LCD model is on the back of your LCD ,So that I will send the right drive board to you
Send items with tracking number

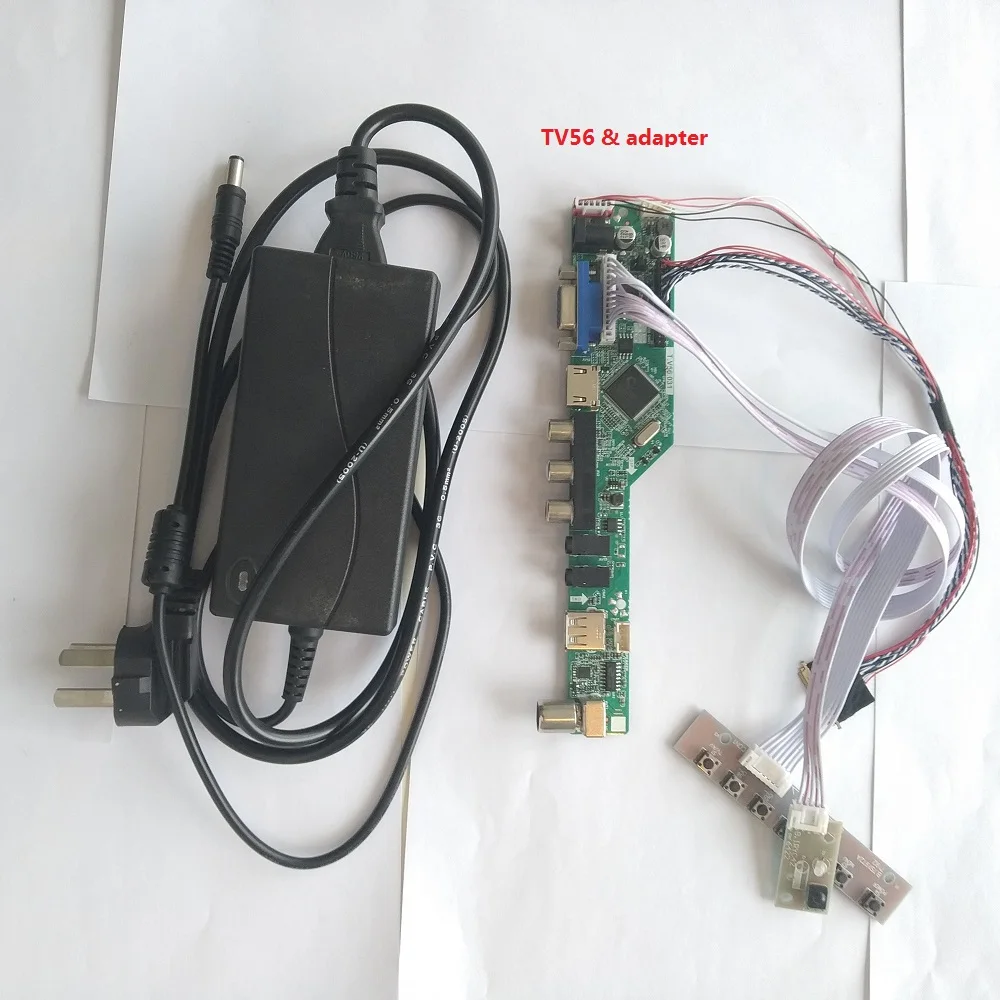

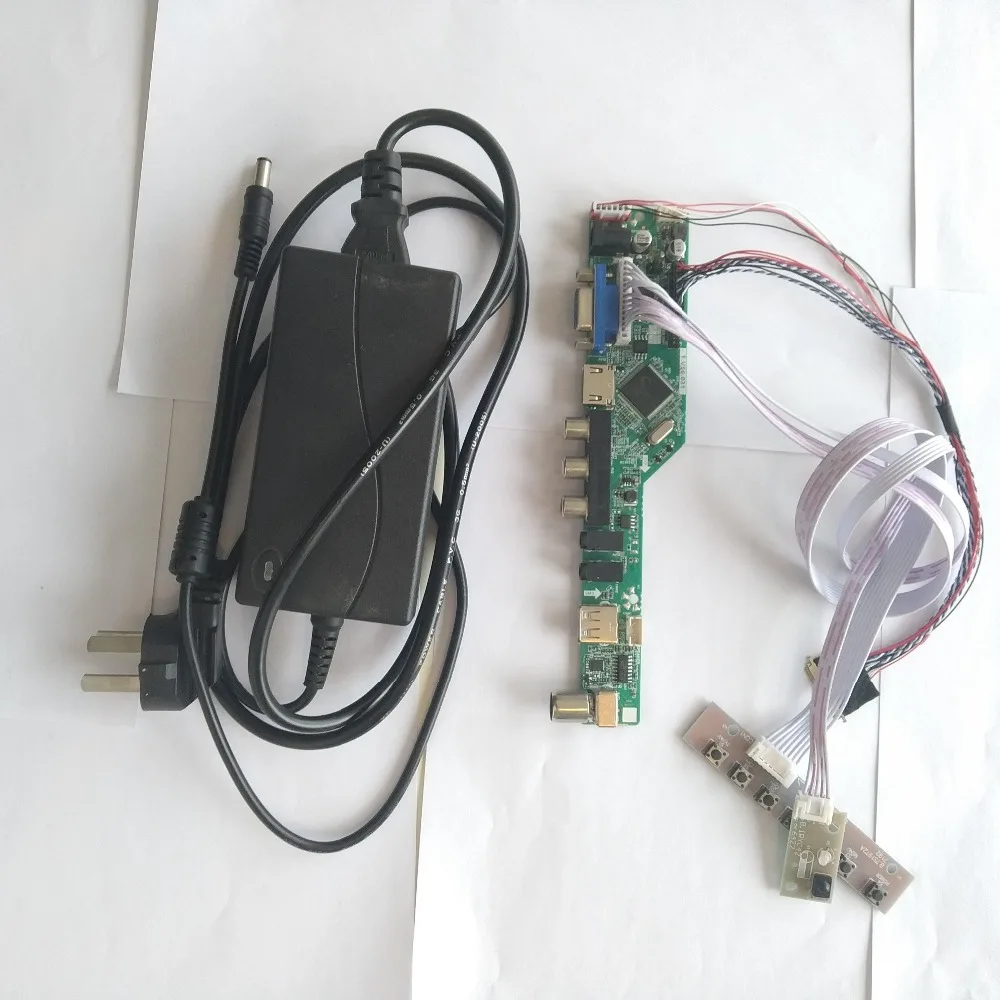

Adapter Feature
Controller board work power is 12V-3A or 12V-4A DC port is 2.5MM and 5.5MM inner + outside -
and there With UK EU and US adapter ,when you make the order ,please mark it or leave message to tell me with thanks
TV56 LCD Controller Board:

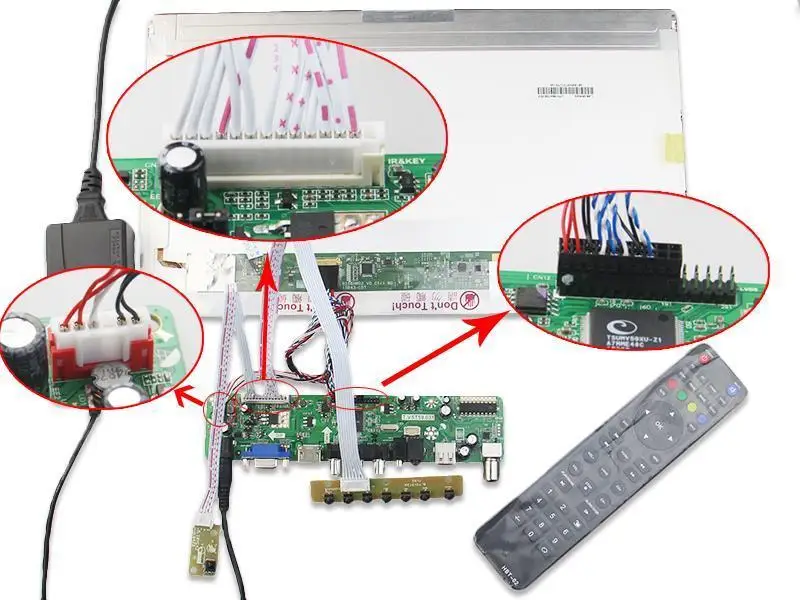

HDMI VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A. DC port 2.5MM and 5.5MM inter + outside -
Come In Standby Model When Not Input Signal
Standby Model <1W
HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4,HDCP 1.2
USB Support Video
AV Compatible With PAL And NTSC

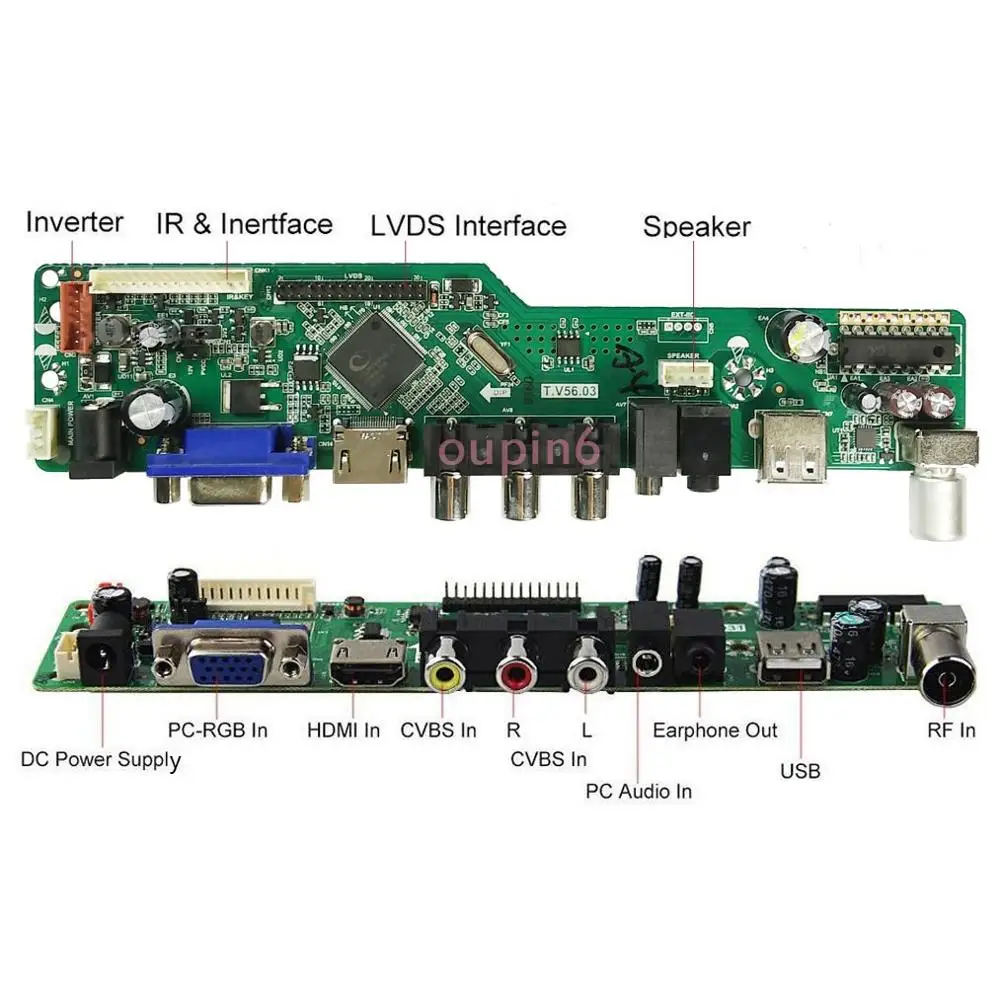

Video Input: HDMI VGA AV USB RF
Audio Input: HDMI PC-Audio
Audio Output:Speakr Connector
OSD: Brigtness Contrast Auto Language And So On
Language:English Chinese
Board Size:188mm x 43mm x 17mm
When you make the order , please help to tell me the LCD model ,the LCD model is on the back of your LCD ,so that I can send the Right controller board ,which is very important . if you not tell me your LCD model ,I can't send the right controller board to you with thanks
Packing list :

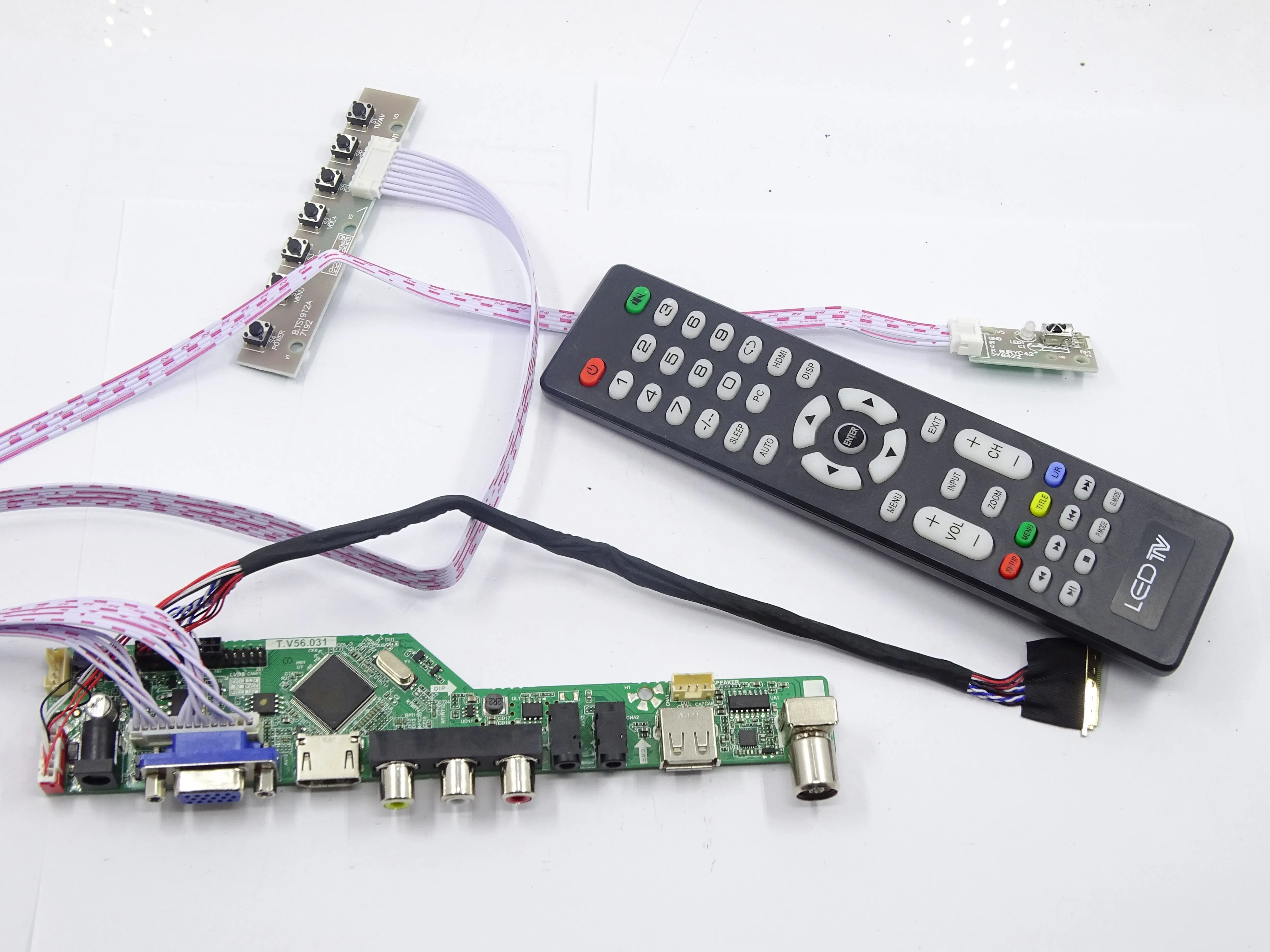

1X TV controller board
1Xa suitable LVDS cable,
1Xa 7-key keypad.
1X contoller remote
1 X adapter power (UK US or EU power charger ,when you buy please let me know that )
