50A 80A 100A 125A 200A бесщеточный ESC электронный регулятор скорости 5 V3A 5 V5A BEC для FPV мультикоптера модель самолёта на радиоуправлении самолета

 Features: 1. Special core program for multi-rotor controllers meets various functional requirements against multi-rotors. 2. Specially optimized software for excellent compatibility with disc-type motors. 3. The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable. Specifications:

12A: Continuous current 12A, short-time current 15A (less than 10 seconds)      Power input: two lithium batteries or 5-6 NiMH / NiCd battery pack      BEC Output: 5V @ 2A (linear regulator mode -linear mode)      Throttle signal frequency range (Refresh rate): 50Hz-432Hz      Maximum speed: 2-pole motor 210000 rev / min, 6-pole motor 70,000 rev / min, 12  pole  motor 35,000 rev / min      Size: 38mm (length) * 18mm (width) * 6mm (H)      Weight: 9g       15A: Constant current: 15A Peak current (10s): 20A BEC: 5V 2A Lipo: 2-3S Net Weight: 14g   20A: Model: Skywalker-20A Continuous Current: 20A Burst Current (>10s): 25A BEC Mode: Linear BEC Output: 5V2A BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo) Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH) Net Weight: 19g Dimension (L x W x H): 42 x 25 x 8mm Cable length: 25cm Package size: 12.5 * 11 * 2.5cm   30A: Constant Current: 30A     Peak Current:40A(10s)     Voltage: 2-3S lixx     BEC: Yes     BEC Output: 5V/2A     Color: black     Programmable:Yes     Size: 70*25*8mm (not including cable length)     Net Weight:38g       40A: Model: Skywalker-40A Continuous Current: 40A Burst Current (>10s): 55A BEC Mode: Linear BEC Output: 5V2A BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo) Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH) Net Weight: 35g Dimension (L x W x H): 68 x 25 x 8mm   50A: COntinuous output: 50A     Burst current: 60A@10S     Power input: 2-4S Lixx/5-12S Nixx     5V/3A BEC output, switch mode     Refresh rate: 50Hz-432Hz     Max.rotation speed: 2-Pole 210000rpm/min; 6-Pole 70000rpm/min; 12-Pole 35000rpm/min     Dimension: 68*25*12mm     Weight: 43g       60A: Item Name: Hobbywing SkyWalker 60A UBEC ESC Constant Current: 60A Burst Current (>10s): 80A BEC Mode: switch mode BEC Output: 5V at 3A Battery Cell: 2-6 cells Lipo,or 5-18 cells NiHH Refresh Rate: 50Hz-432Hz Dimension: 77 x 35 x 14 mm Weight: 63g Maximum speed: 210000 RPM (2 poles motor), 70000 RPM (6 poles motor), 35000 RPM (12 poles motor)   80A: Item Name: SkyWalker 80A UBEC Type: Brushless ESC,Regular voltage Cont./Peak Current: 80A/100A Input: 2-6S LiPo,5-18s Ni-MH BEC Output: Switch Mode--5V,5A Input Wires: Red-12AWG-150mm*1,Black-12AWG-150mm*1 Output Wires: Black-14AWG-100mm*3 Input Connectors: NO Output Connectors: NO ESC Programing via: Transmitter,LED Program Card,Program Port (Program/Throttle Wire) Firmware Upgrade: Not Supported Size: 86.0x38.0x12.0mm Weight: 82g

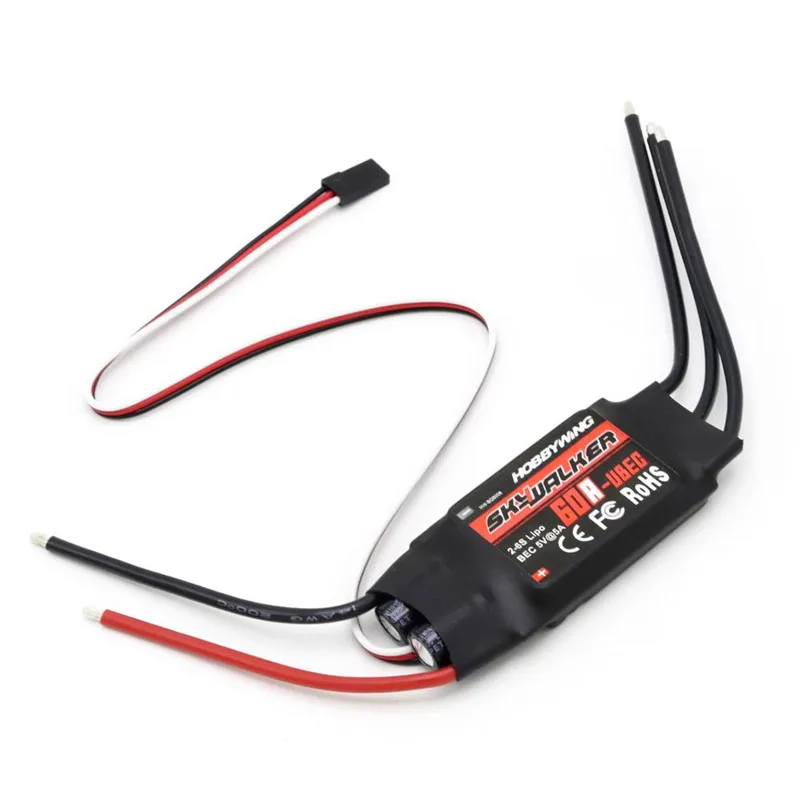

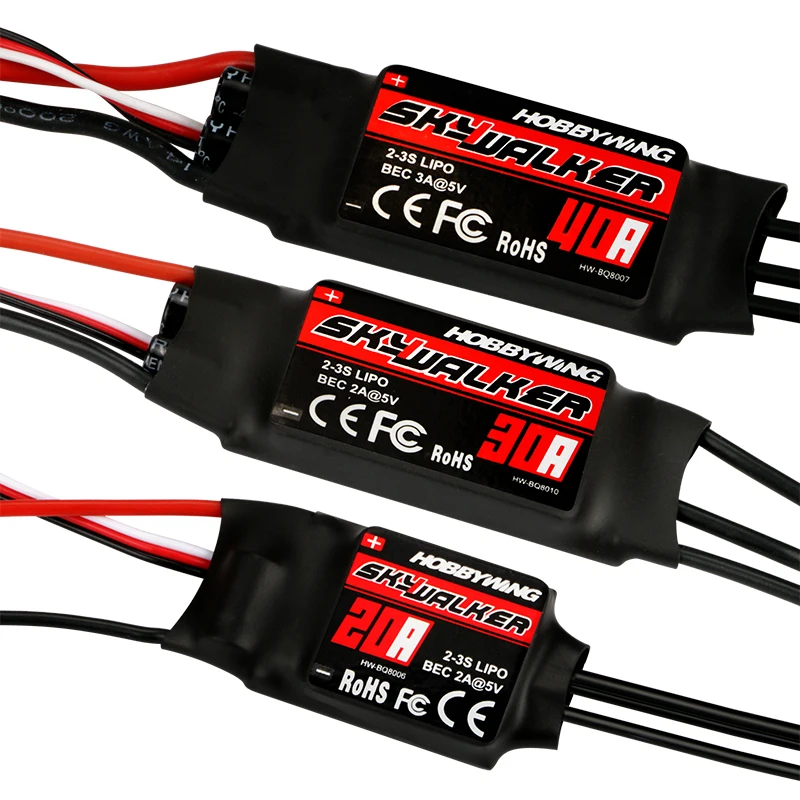

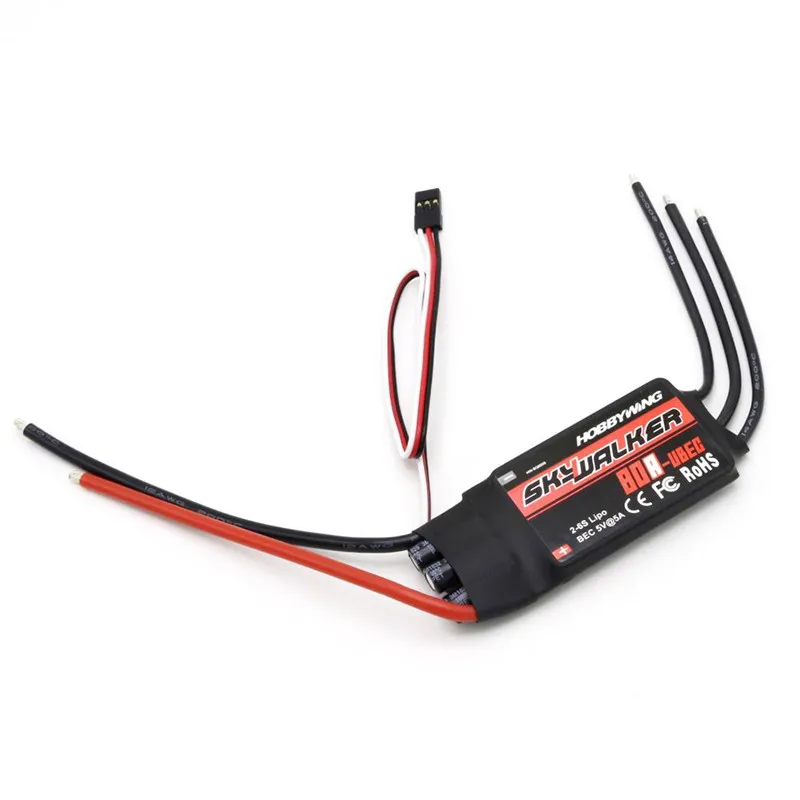

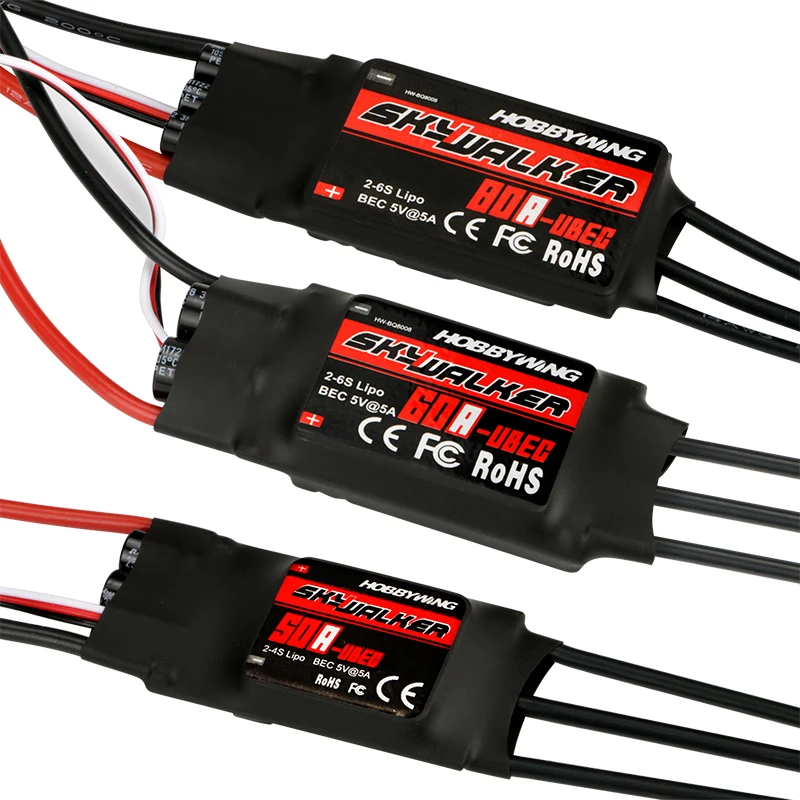

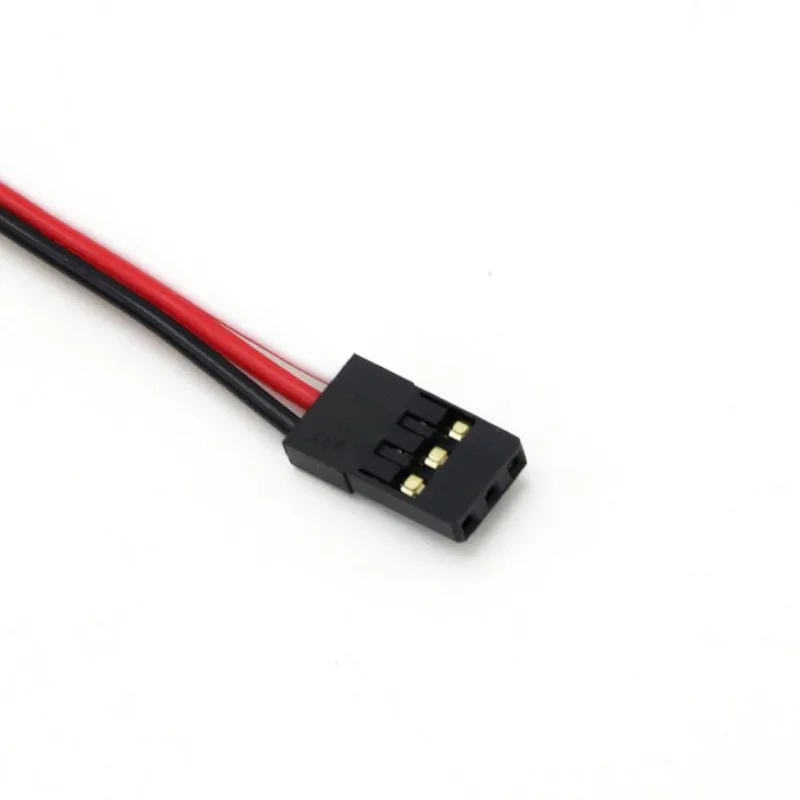

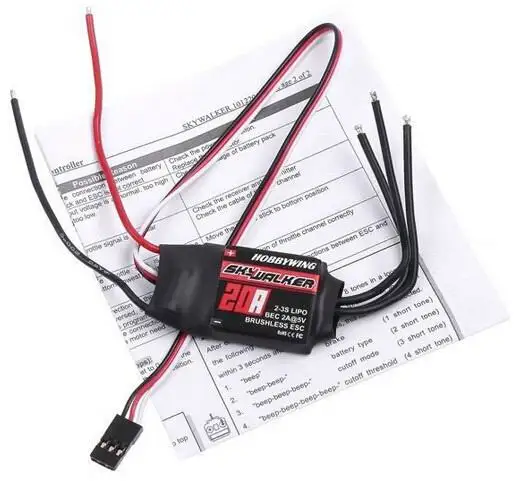

Item Picture:

Package content: 2 x ESC
