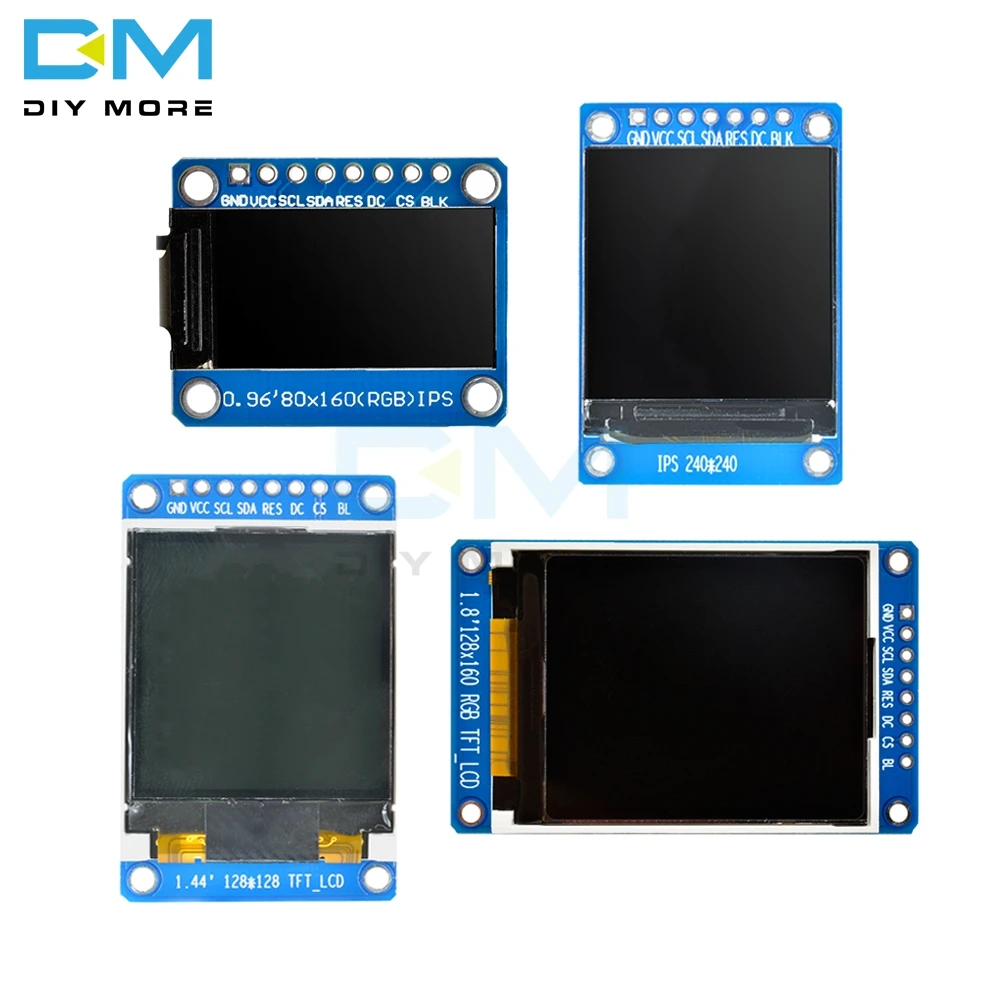

Полноцветный модуль SPI для ЖК-дисплея, 0,961,31,441,8128128128160*160, 240*240, 65K, TFT, IPS
258,32₽
В наличии!
diymore Official Store - Надежность 96.5%
Более 12194 подписчиков, дата открытия магазина 05.05.2016
- Положительные оценки: 98% (11119)
- Соответствие описанию: 96%
- Отвечает на сообщения: 96%
- Скорость отправки: 96%
Последнее обновление: 10.09.2024
ЖК-дисплей diymore ST7735S, полноцветный модуль с ЖК-дисплеем 1,8 д...
15 Отзывов
24 Заказов
357,55₽
Полноцветный ЖК-дисплей TFT ST7735S, модуль с ЖК-дисплеем 1,8 дюйма...
2 Отзывов
4 Заказов
355,09₽
Полноцветный ЖК-дисплей TFT 1,44 дюйма, серийный 128x128 ST7735S, 8...
1 Отзывов
1 Заказов
307,23₽ -20%
Description:

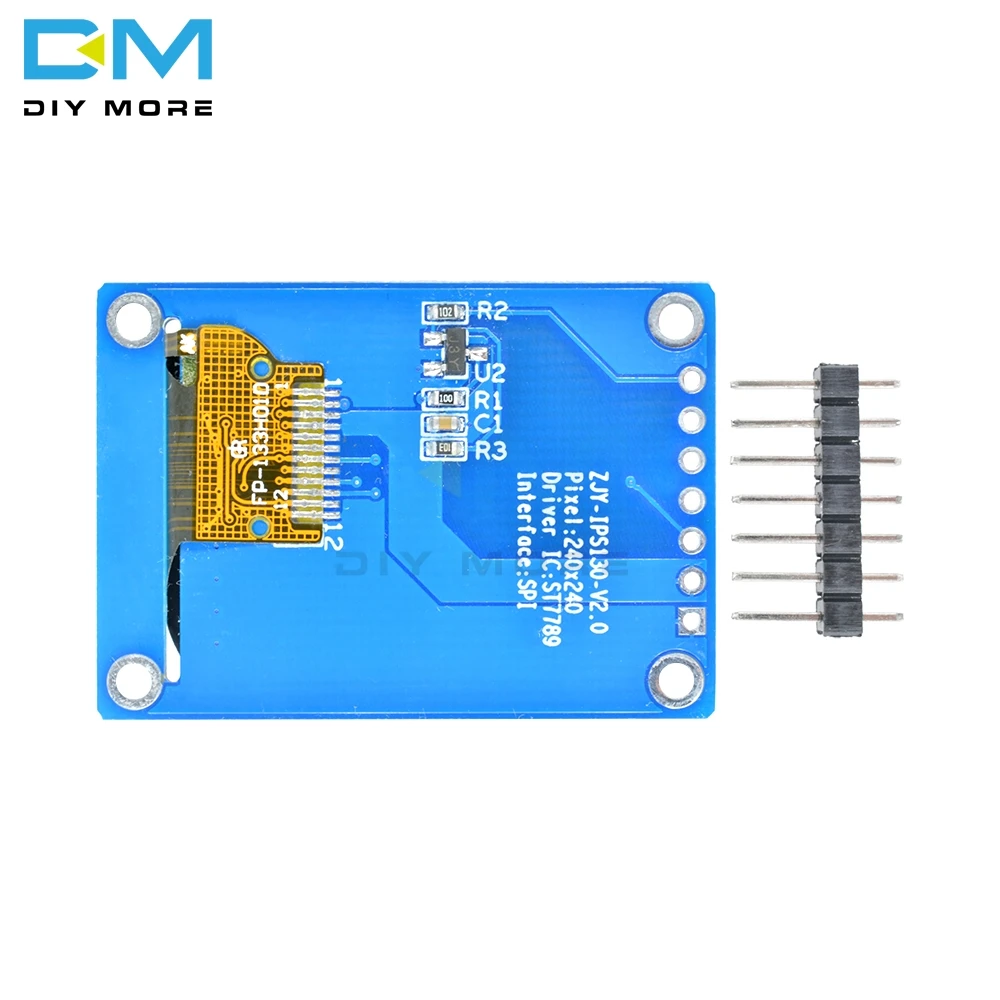

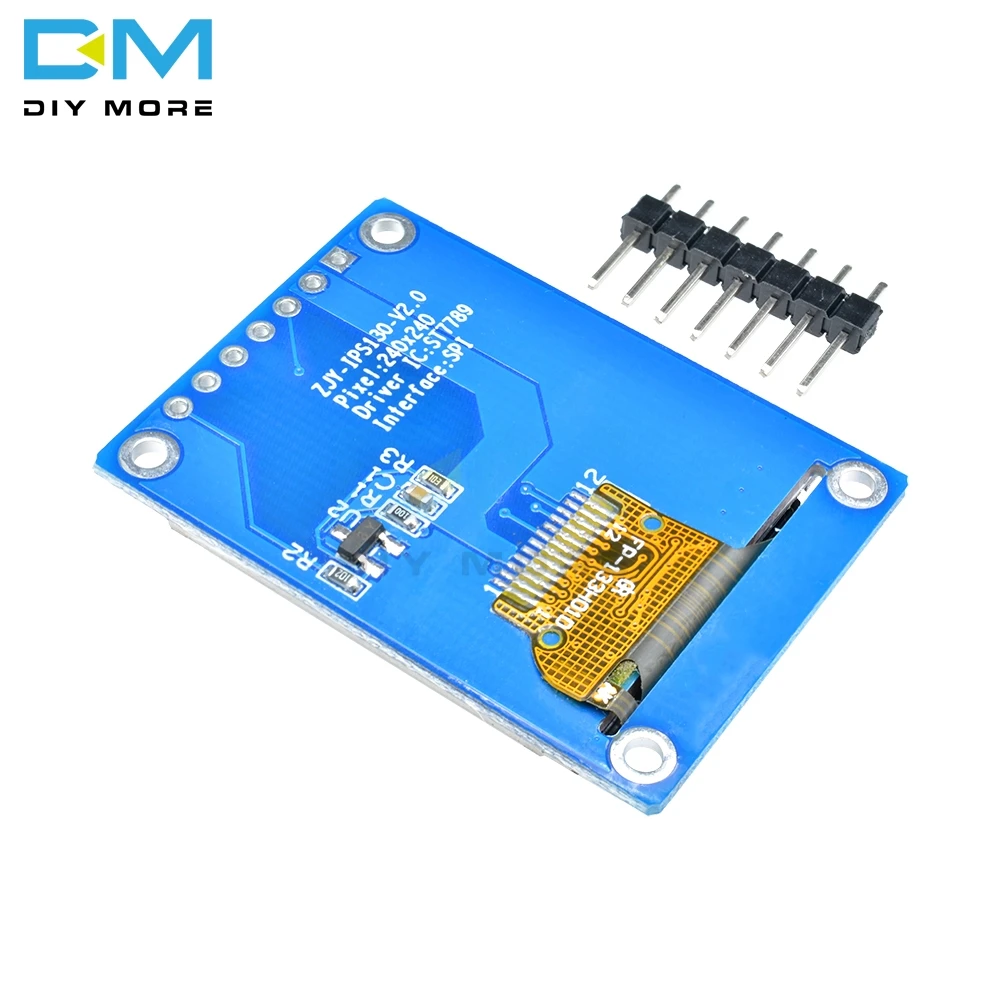

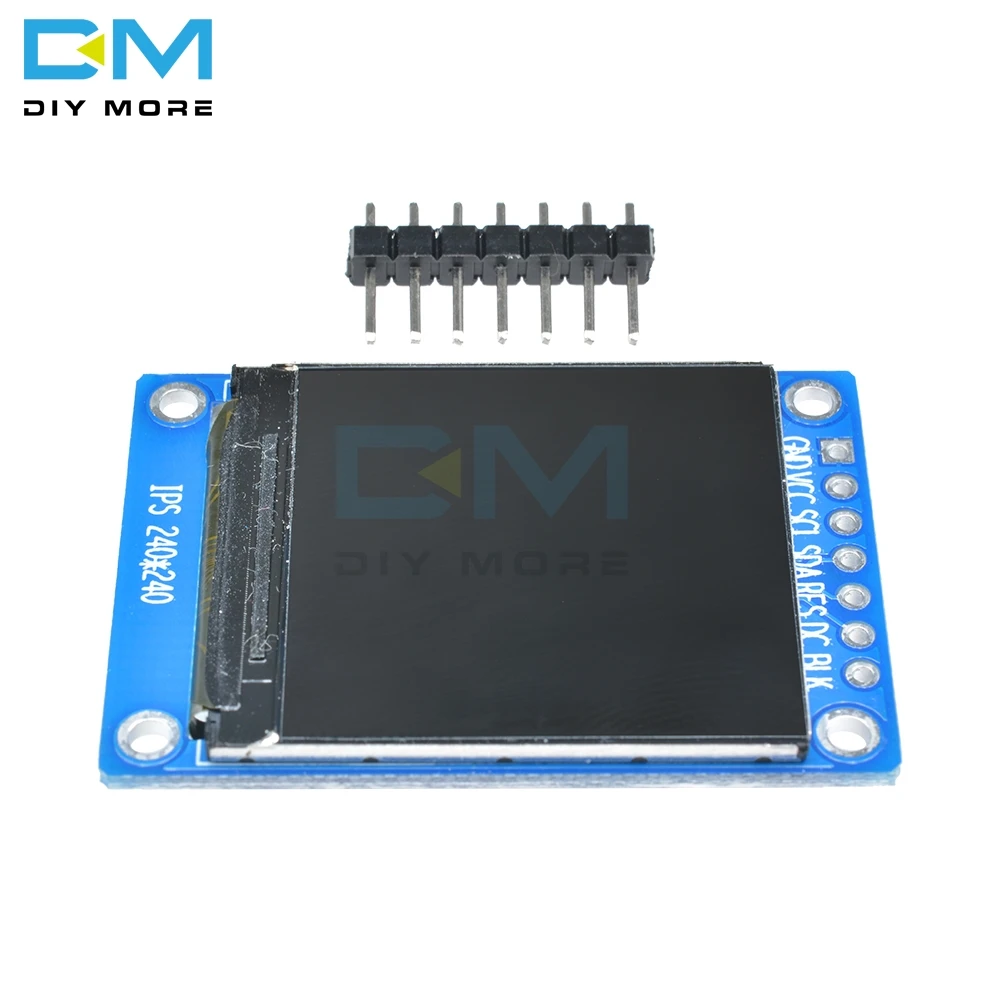

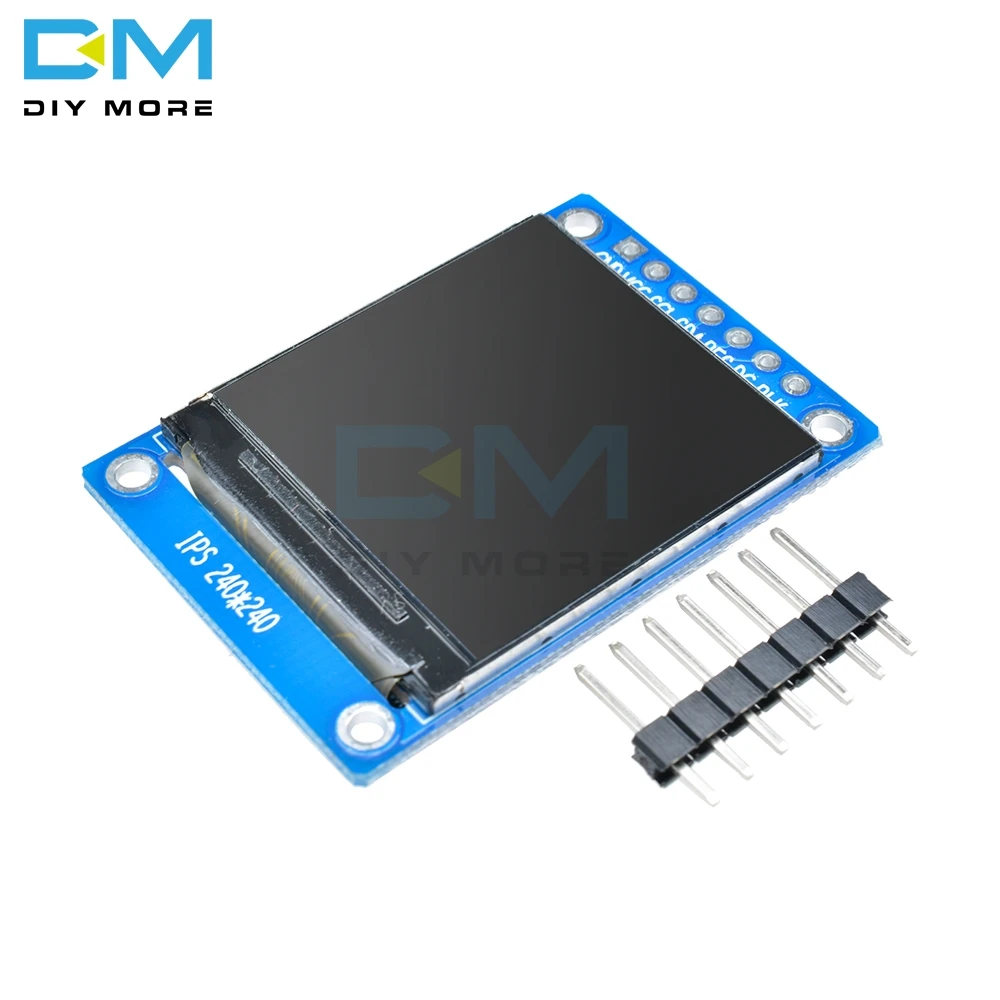

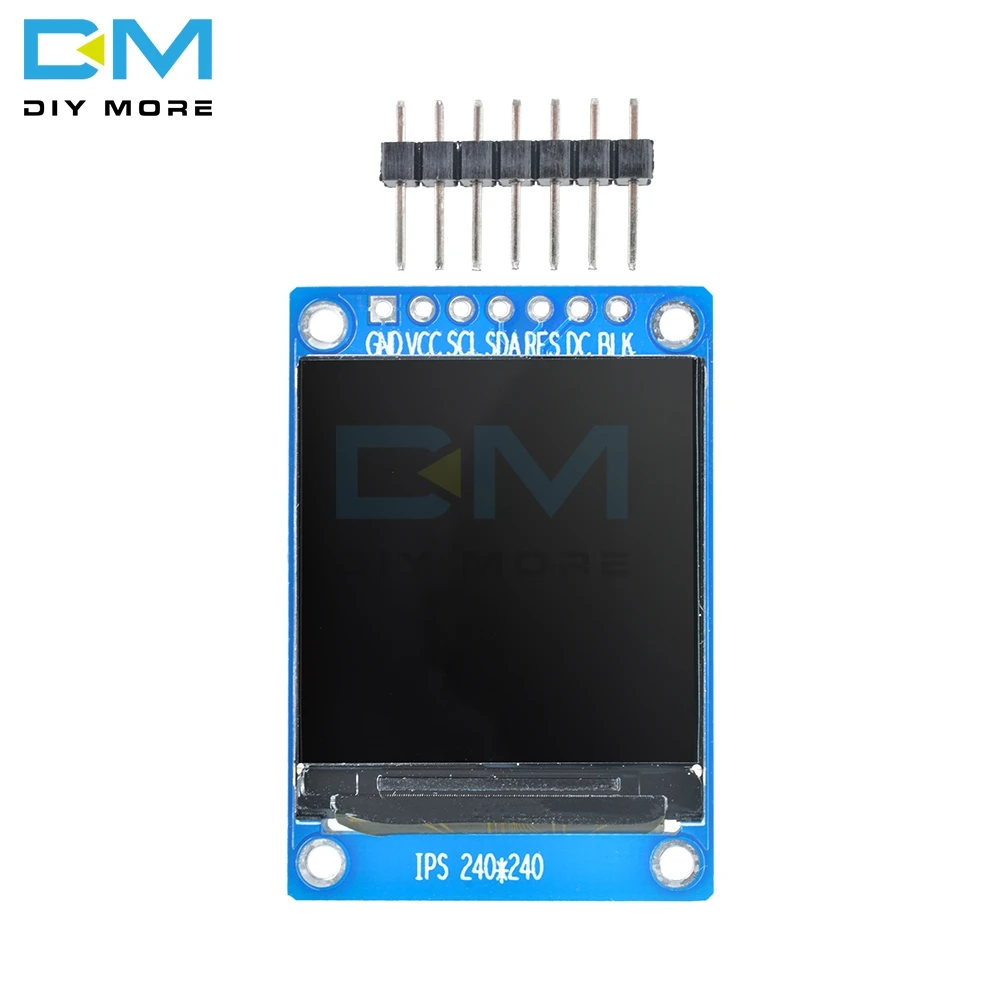

1.3 inch IPS HD TFT ST7789 Drive IC 240*240 SPI Communication 3.3V Voltage SPI Interface Full Color LCD OLED Display
1.Features
SIZE 1.3inch
Display Mode Normally black IPS
Display Format Graphic 240RGB*240 Dot-matrix
Input Data SPI interface
Drive IC ST7789VW
Dimensional outline 27.78(W)*39.22 (H)*3.0+/-0.1(T)mm
Resolution 240RGB*240 Dots
LCD Active area 23.4 (W)*23.4 (H)
Dot pitch 0.0975(H) x 0.0975(V) mm
Viewing Direction All View
Operating Temperature -20～70°C
2.Pin Descriptions:
PIN No Symbol Description
1 GND Ground
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
This pin is reset signal input. When the pin is low, initialization of the chip is
executed. Keep this pin pull high during normal operation.
6 DC Data/Command Control
7 BLK Backlight control pin

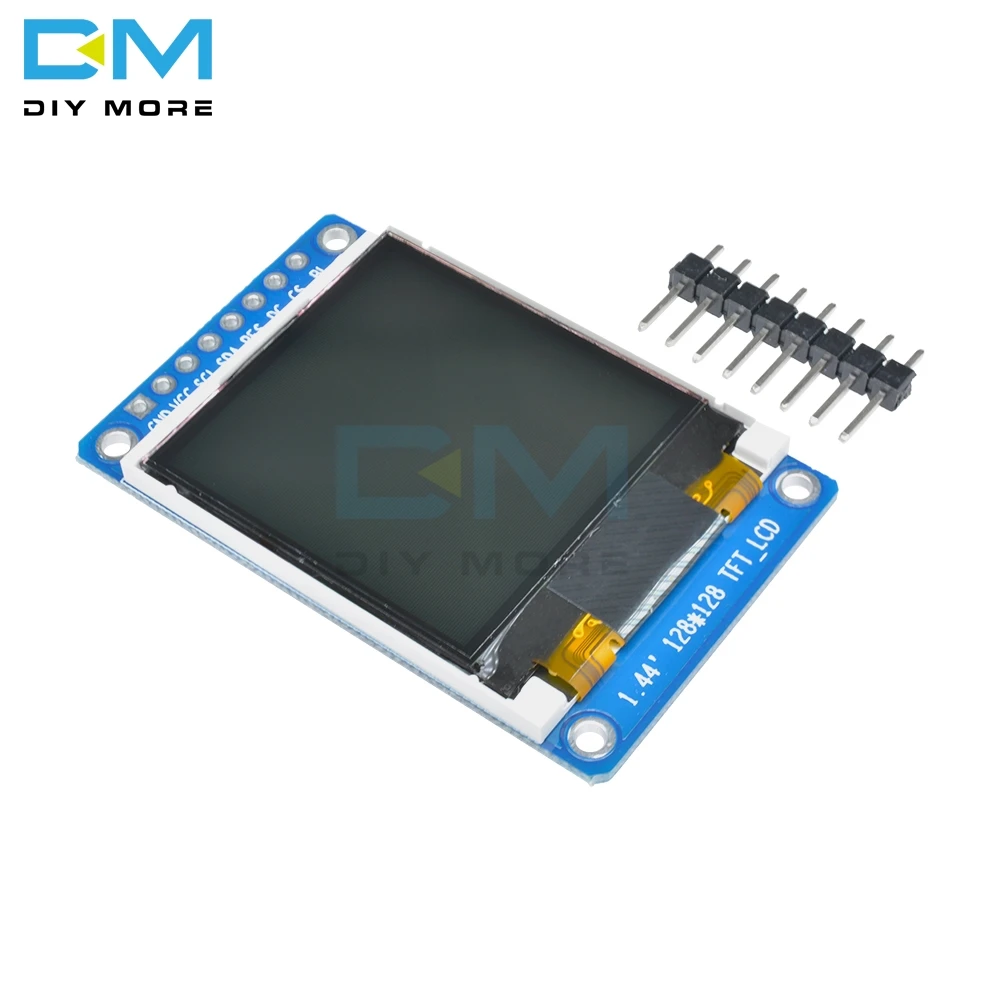

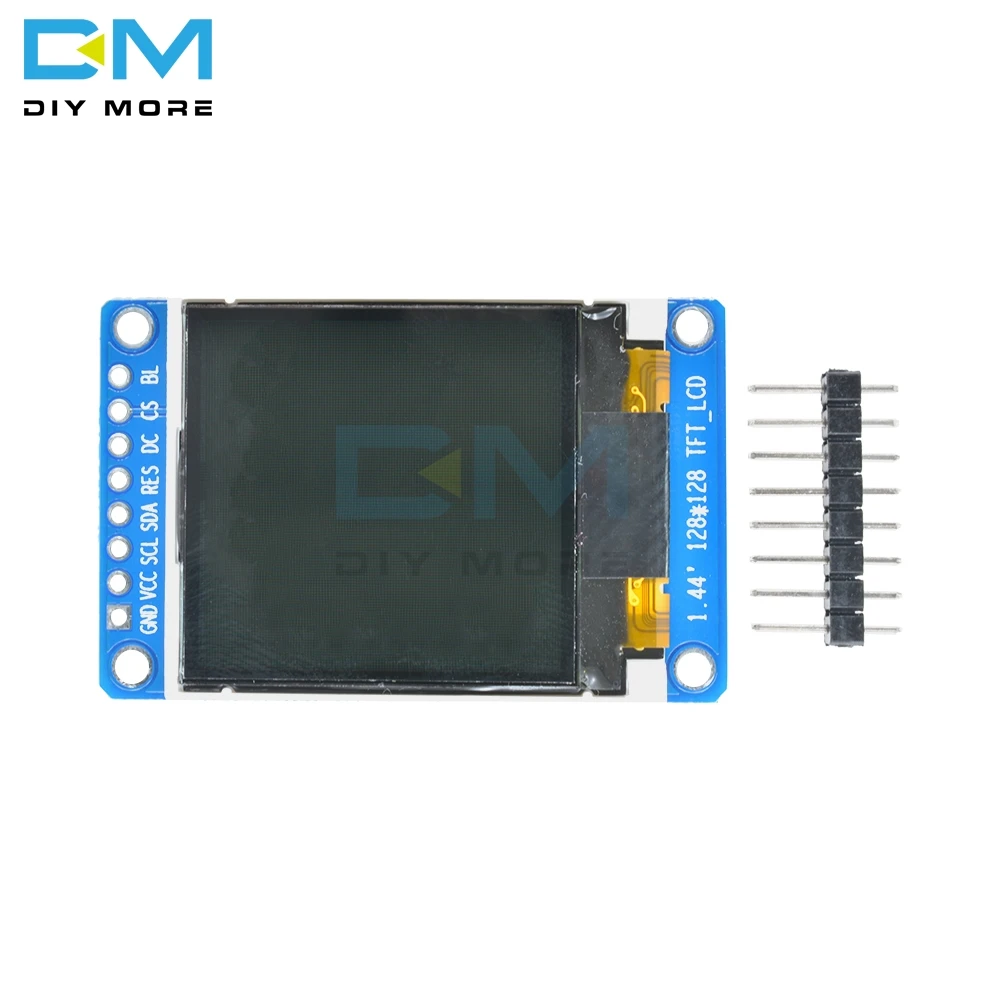

New Arrival 1.44" inch Serial 128x128 128*128 65K SPI Full Color TFT LCD Display Module Board Replace OLED
LCD PANEL : CPT
Driver IC : ST7735S
Resolution : 128*RGBX128
PIN feet :8 pin (SPI serial interface)
PIN feet spacing:2.54mm
connection mode : Row needles
3V3: 3.3V POWER INPUT
GND: Grounding power communication system
SDI: SPI DATA input
SCL : spi clock signal input
CS: spi chip select signal input
RST: reset
RS: command /data signal input selection
BLK : Backlight control signal inpuT

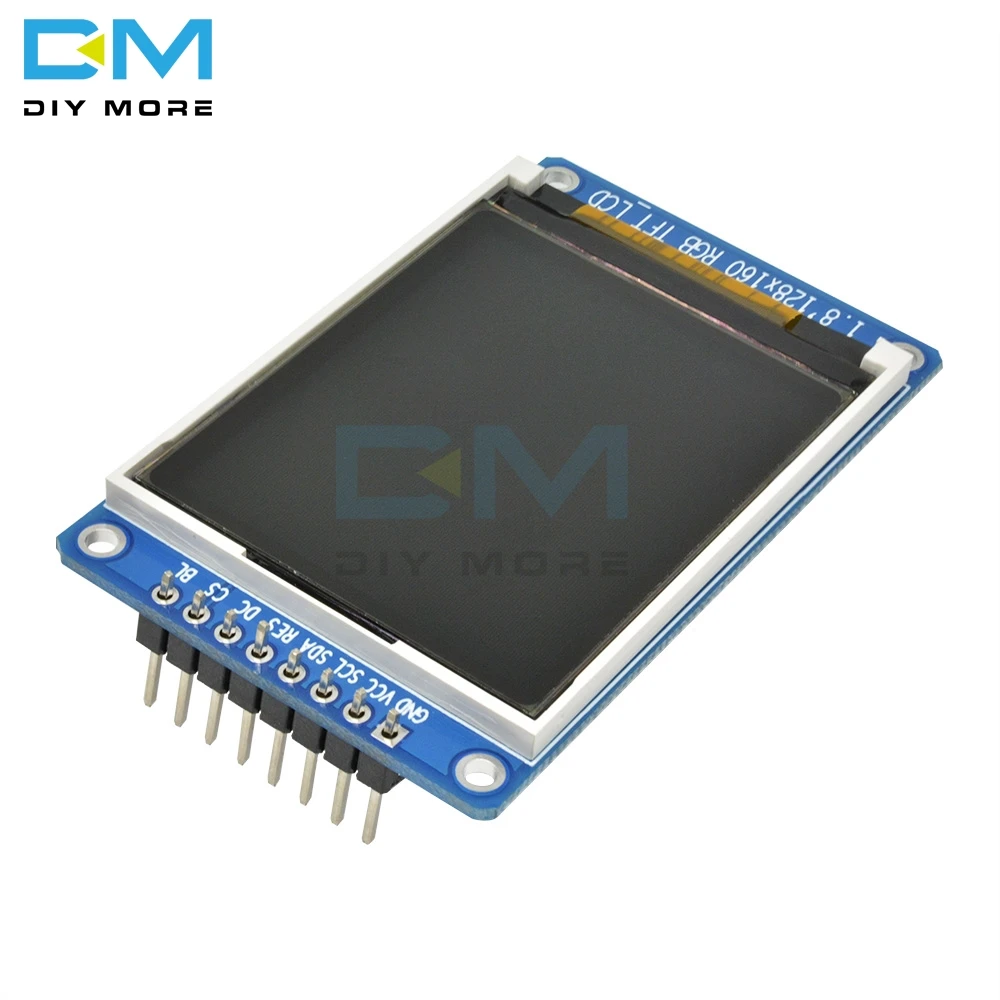

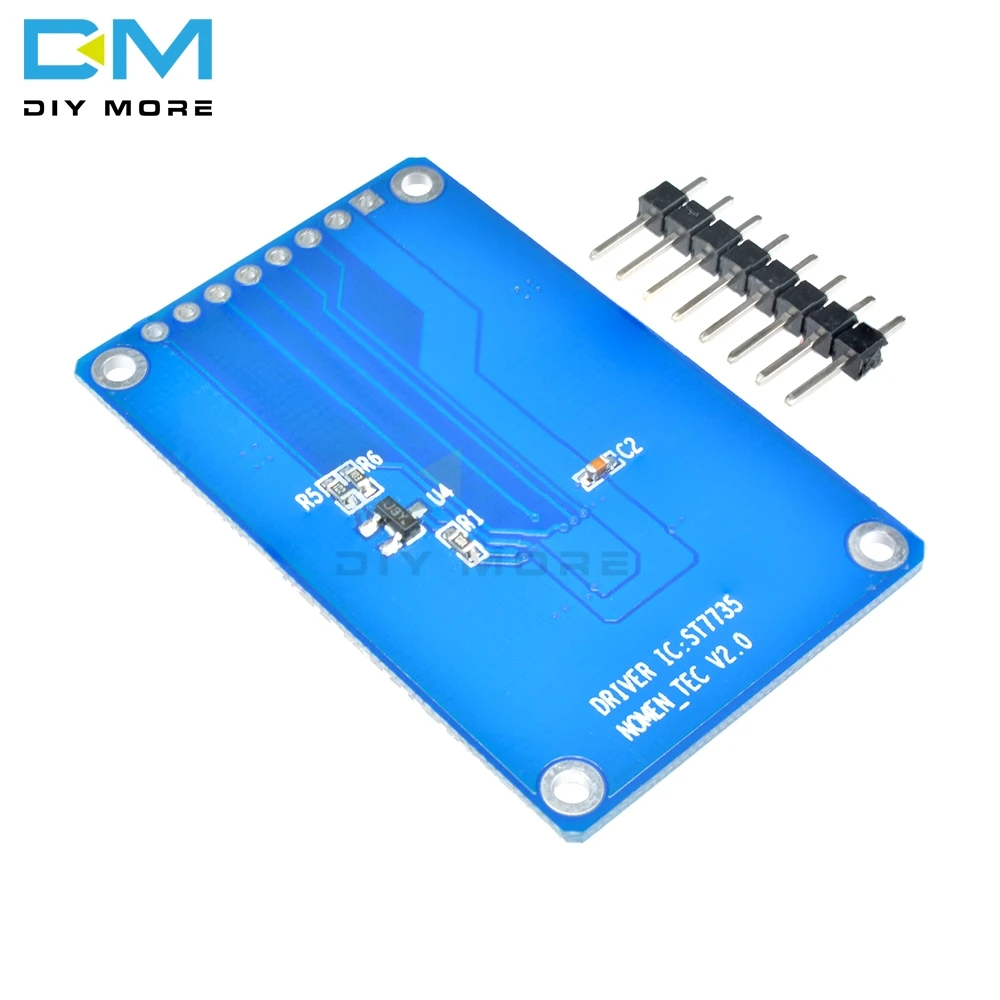

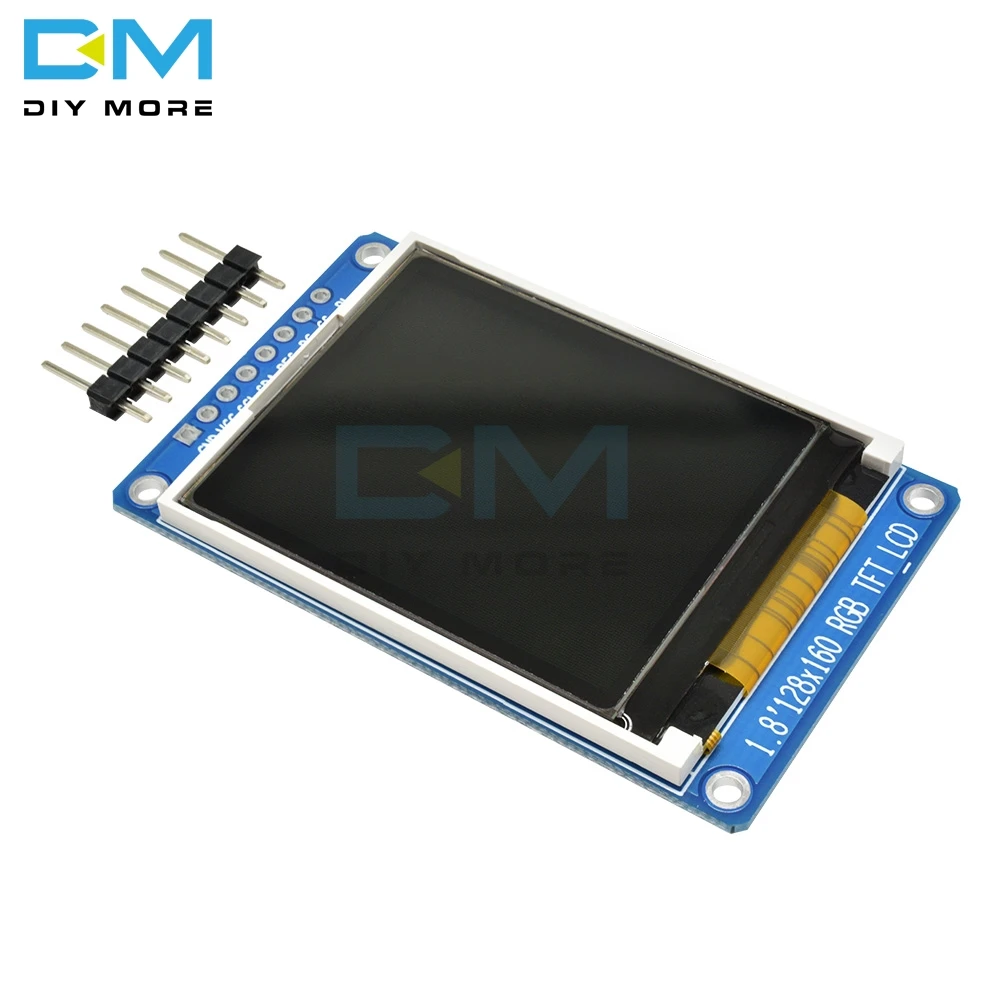

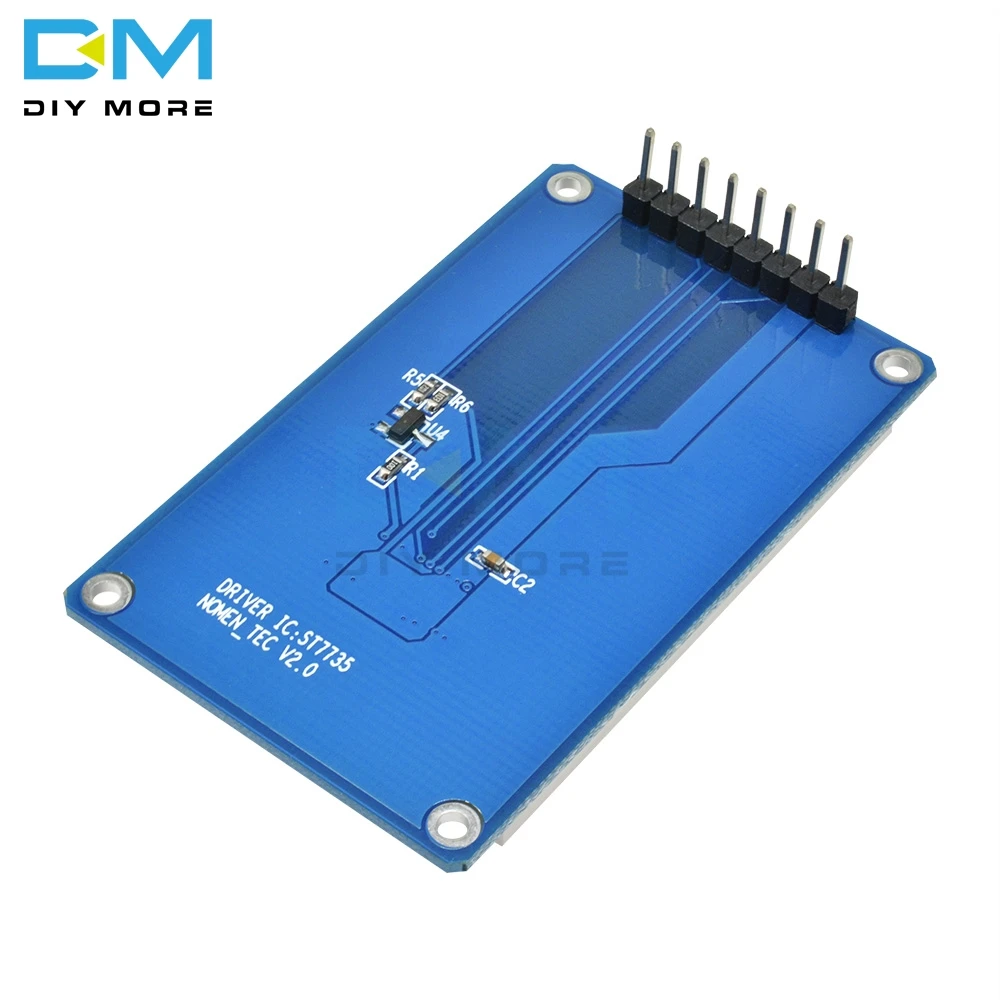

New Arrival 1.8" Inch Full Color 128x160 128*160 SPI Full Color TFT LCD Display Module Board Replace OLED
Resolution 128*RGB*160
PIN feet :8 pin (SPI serial interface)
PIN feet spacing:2.54mm
connection mode : Row needles
GND: Grounding power communication system
VCC: power supply
SDA: SPI DATA input
SCL : spi clock signal input
CS: spi chip select signal input
RST: reset
RS: command /data signal input selection
BLK : Backlight control signal input

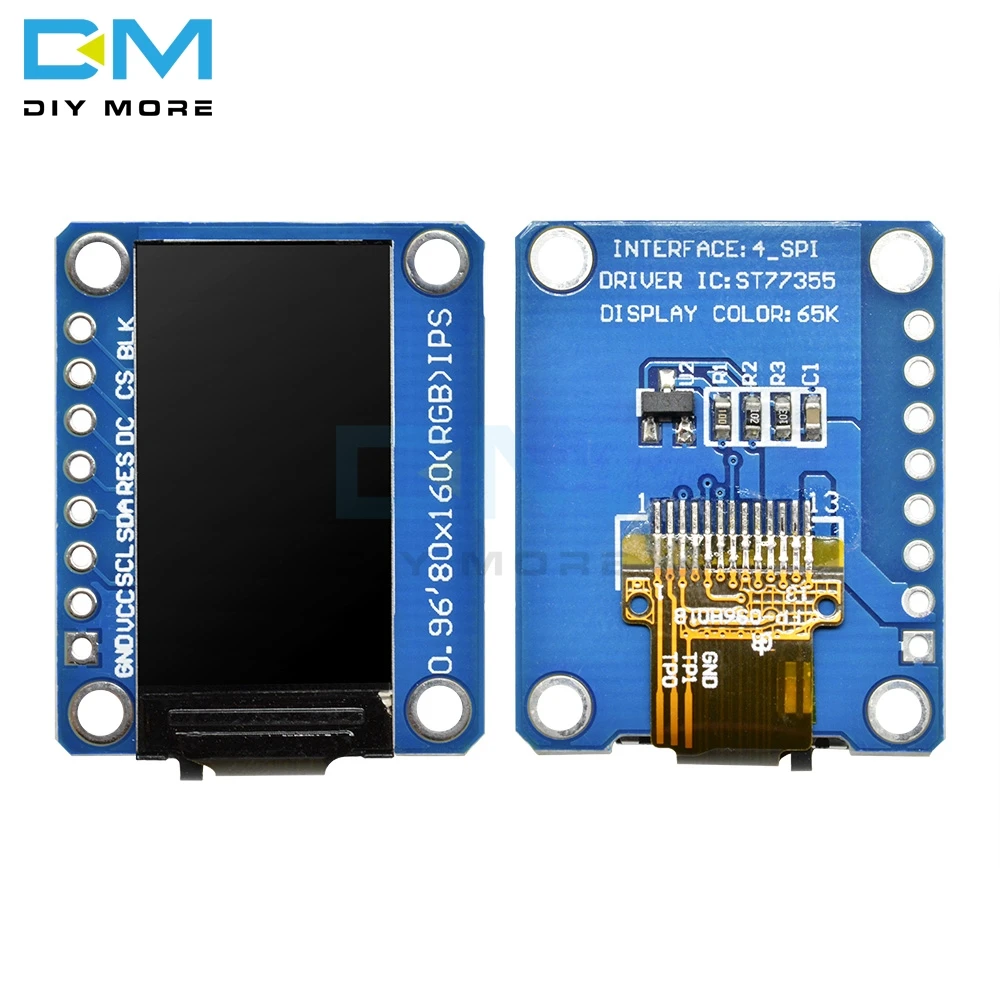

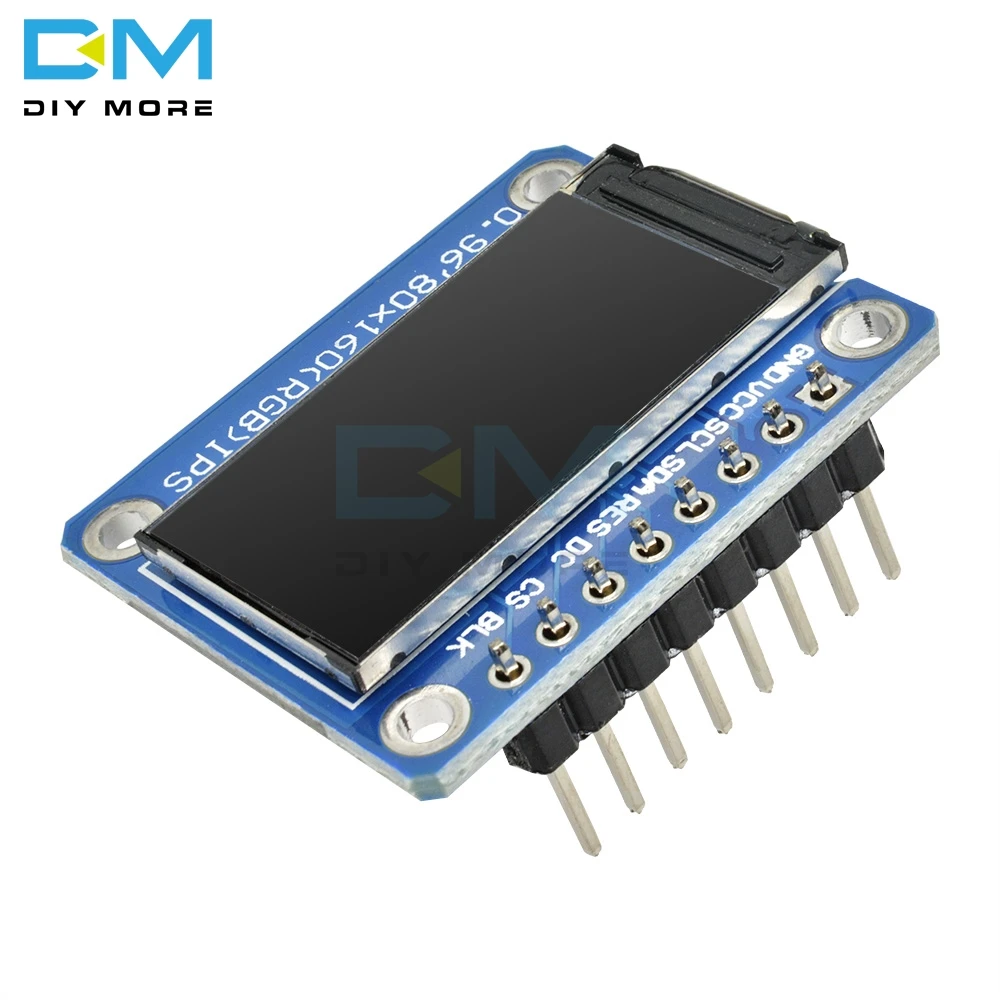

1pcs IPS 0.96 inch 7P SPI HD 65K Full Color OLED Module ST7735 Drive IC 80*160 80x160
1. LCD Size: 0.96 inches
2. Dot Matrix Size: 80*160 (Display direction can be adjusted, horizontal screen and vertical screen are ok)
3. LCD Color: 65K Full Color
4. Hardware Interface: SPI interface
5. Driver IC: ST7735
6. Operating Temperature: -20 - 70
8. Working Power Supply: 3.3V
9. PIN NO: 13Pin
10. Display Area: 10.8*21.696mm
11. Size: 13.3*27.95mm
12 Viewing Direction: Full viewing angle (IPS)
1 GND
2 VCC (3.3-5 v)
3 SCL (SPI clock line)
4 SDA (SPI data cable)
5 RES
6 DC
7 BLCK
Package Include:
1PC x LCD Display Module Board Replace OLED
