Запасная часть лазерного гравировального станка NEJE Master Master 2, 20 Вт, ЧПУ лазер для резки дерева

Заполнитель

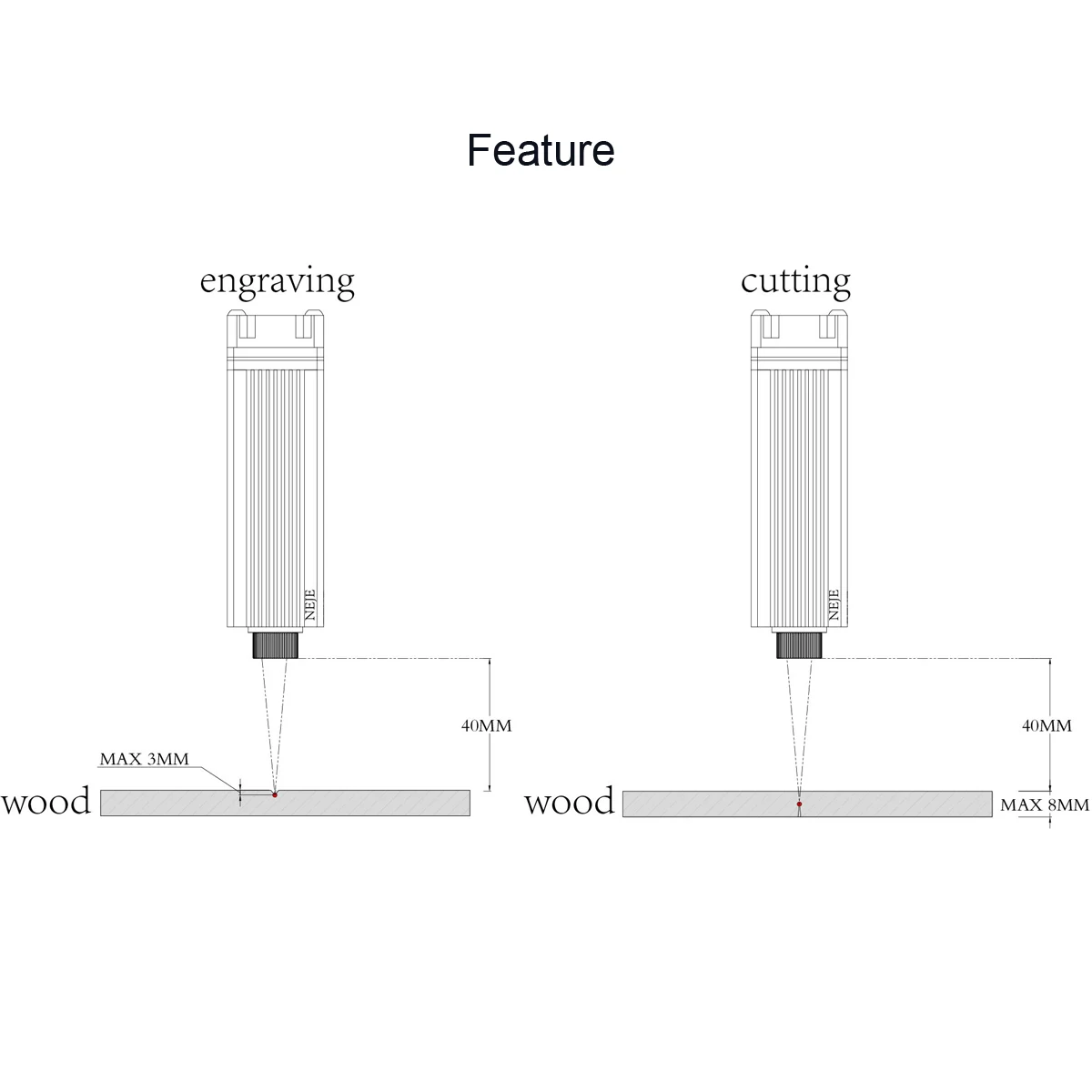

Main applications: Cutting, metal engraving, drawing depth engraving, etc. (Especially good at cutting, It can cut wood (3-7mm). It supports metal engraving including alumina oxide, iron oxide and other non-reflective materials With strong power, the engraving depth can reach 1.5-3mm in the engraving mode, and it can cut for a long time in continuous 100% power mode, which is suitable for cutting wooden blocks with a thickness of 3-5mm ( max 8mm ). The NEJE team continuously optimizes the optical system to make the optical power loss less than 1%, the focus point is clear, and the maximum cutting thickness can reach 8mm with the correct focus adjustment. Supported engraving materials: Wood, gray paper, leather, bamboo, blackening plastics, rubber, alumina oxide, iron oxide, etc. Supported cutting material: Wood/ plywood/ leather/ paper. It is not possible to directly engrave the metal with strong mirror reflectivity, which may cause injury to the operator or burn the laser. ) Note: 1. can not engrave on stainless steel, alumina, Alloy, silver and other reflective metal.

Specifications:

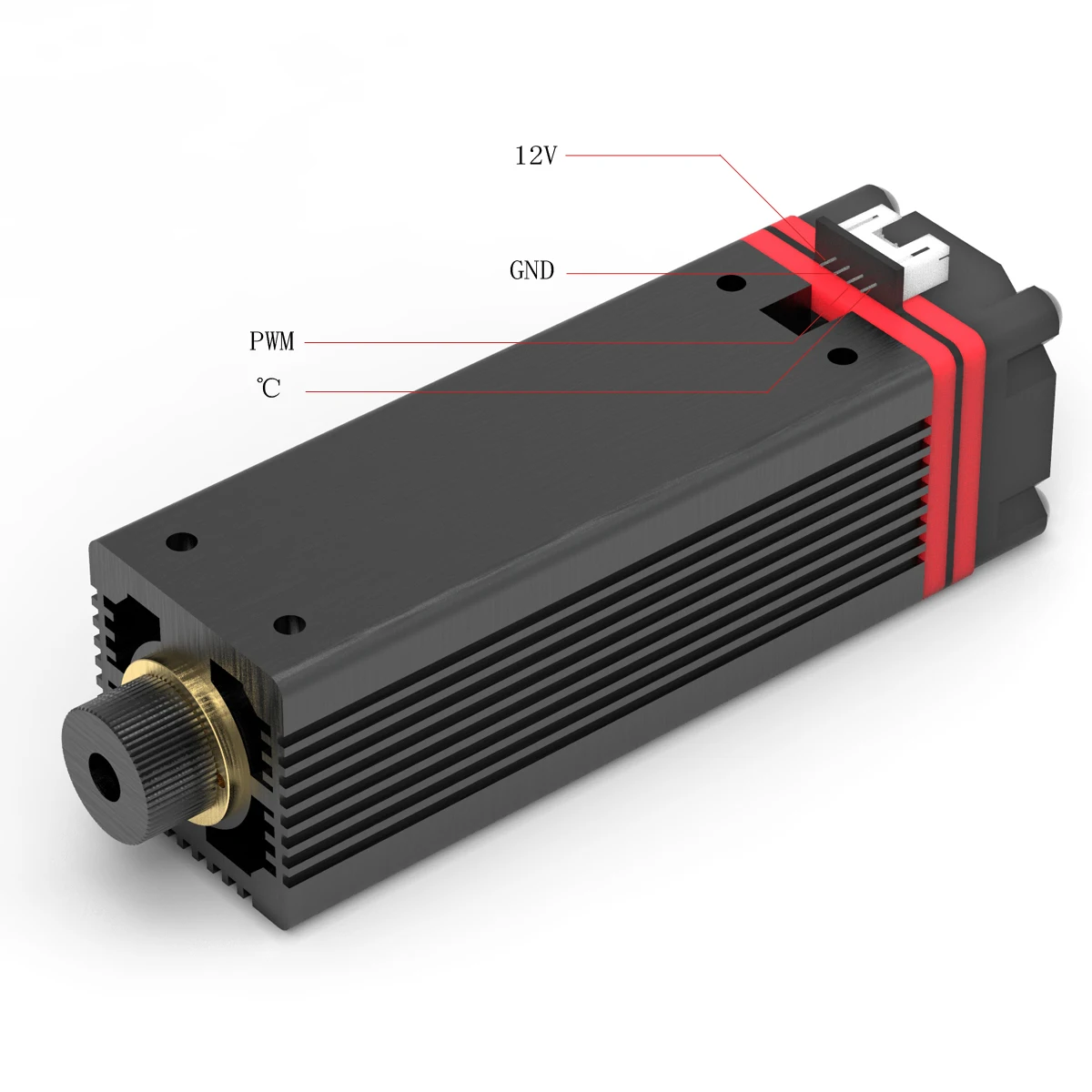

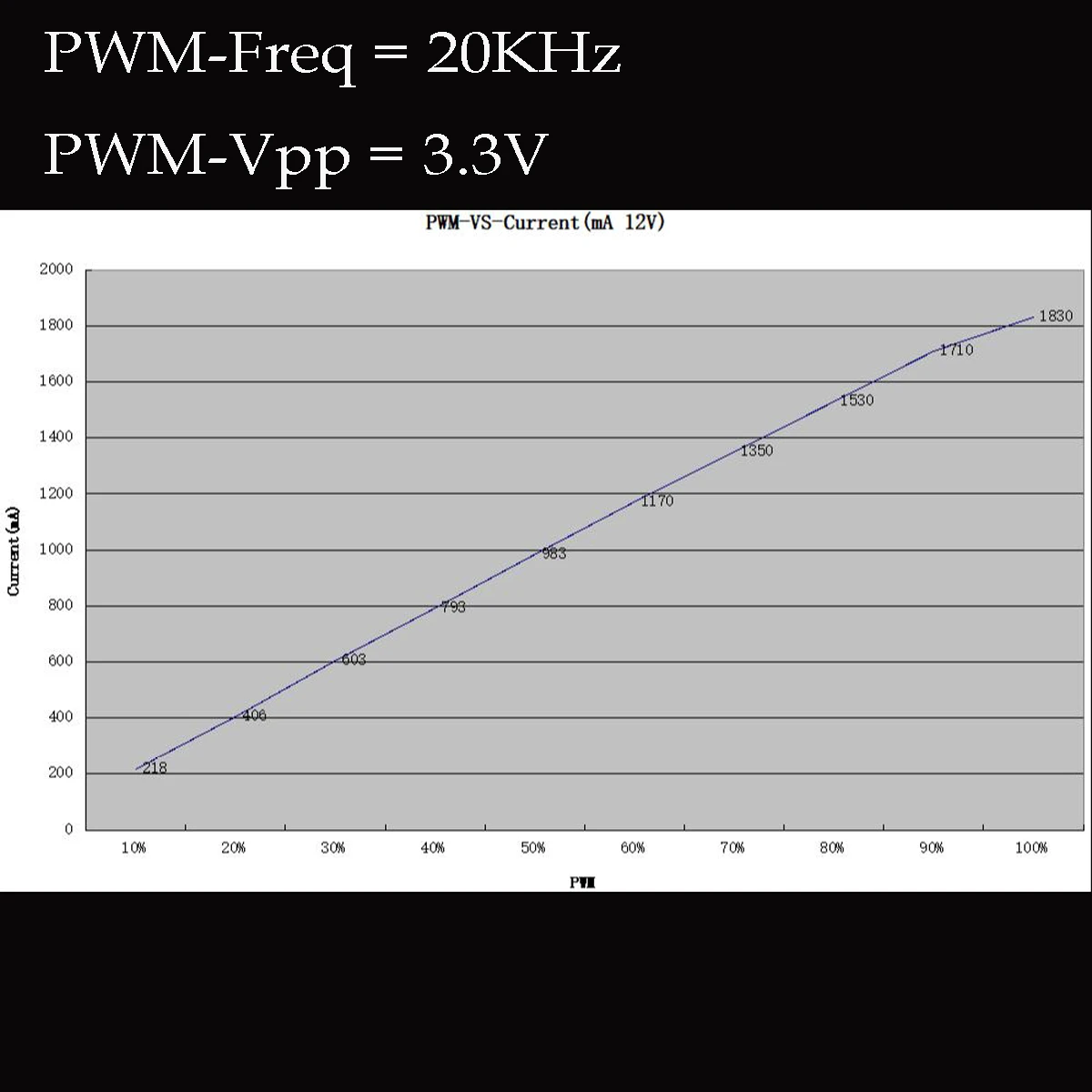

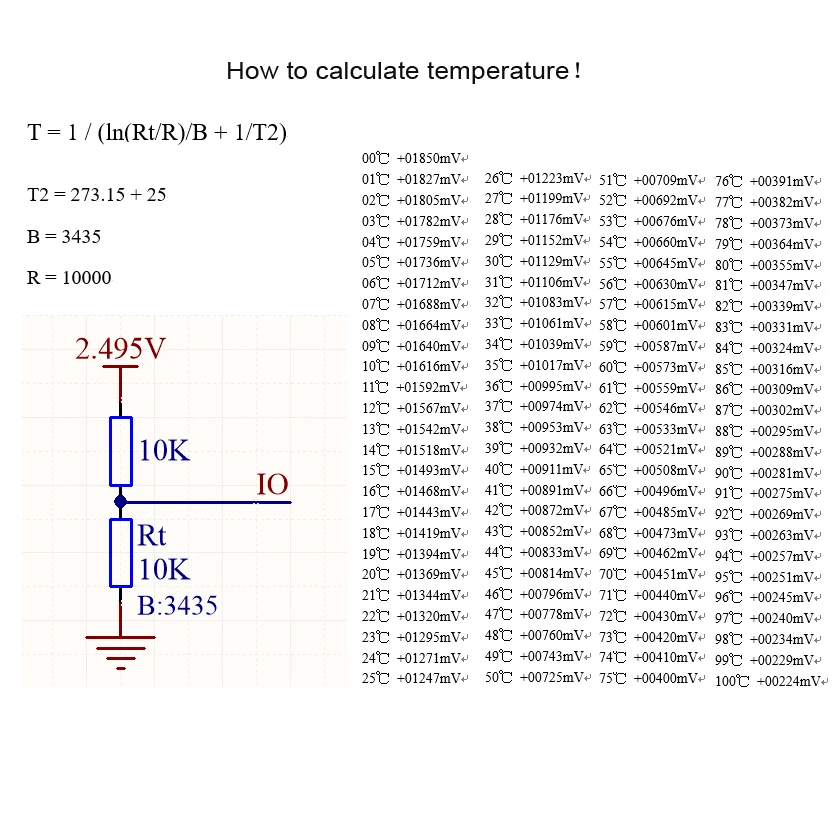

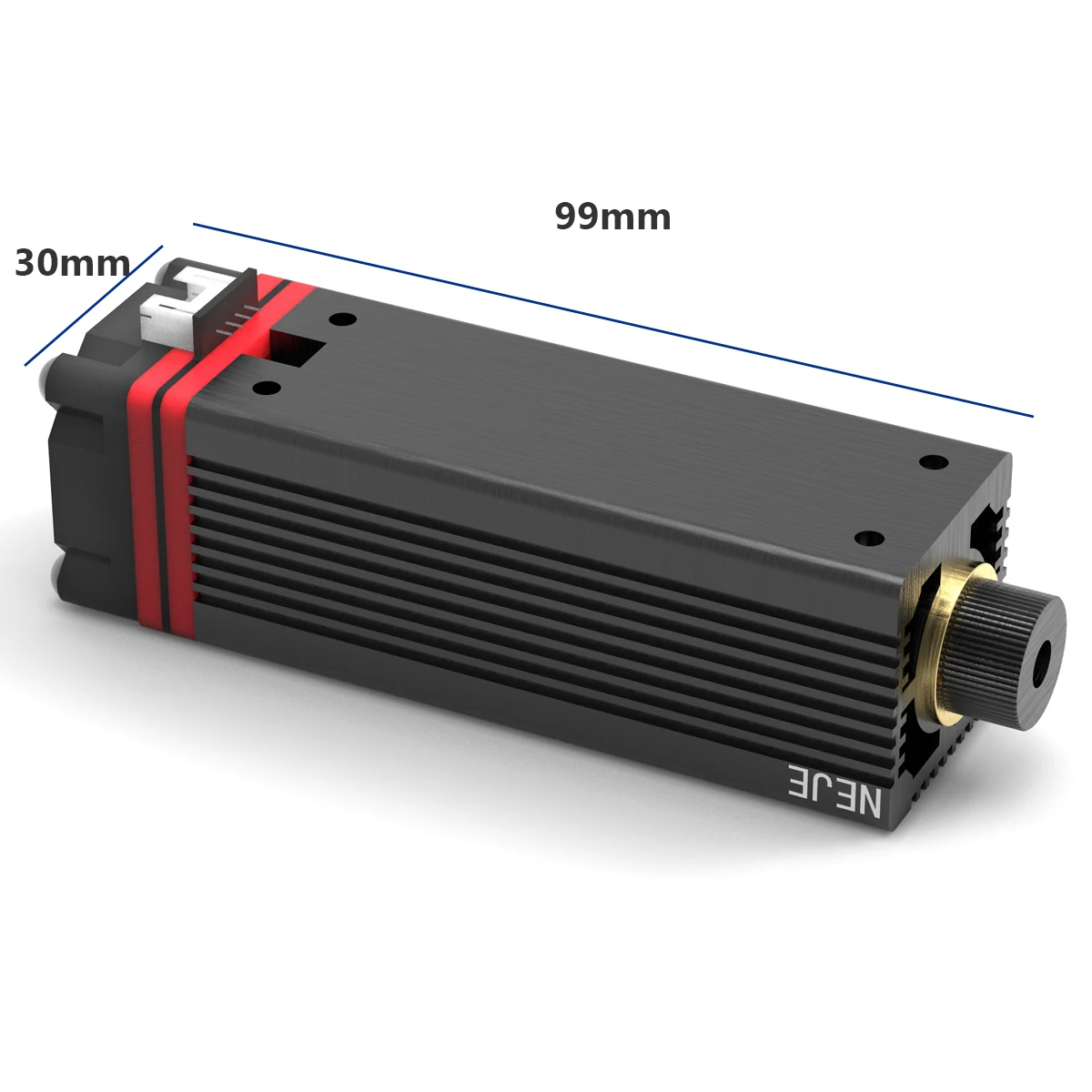

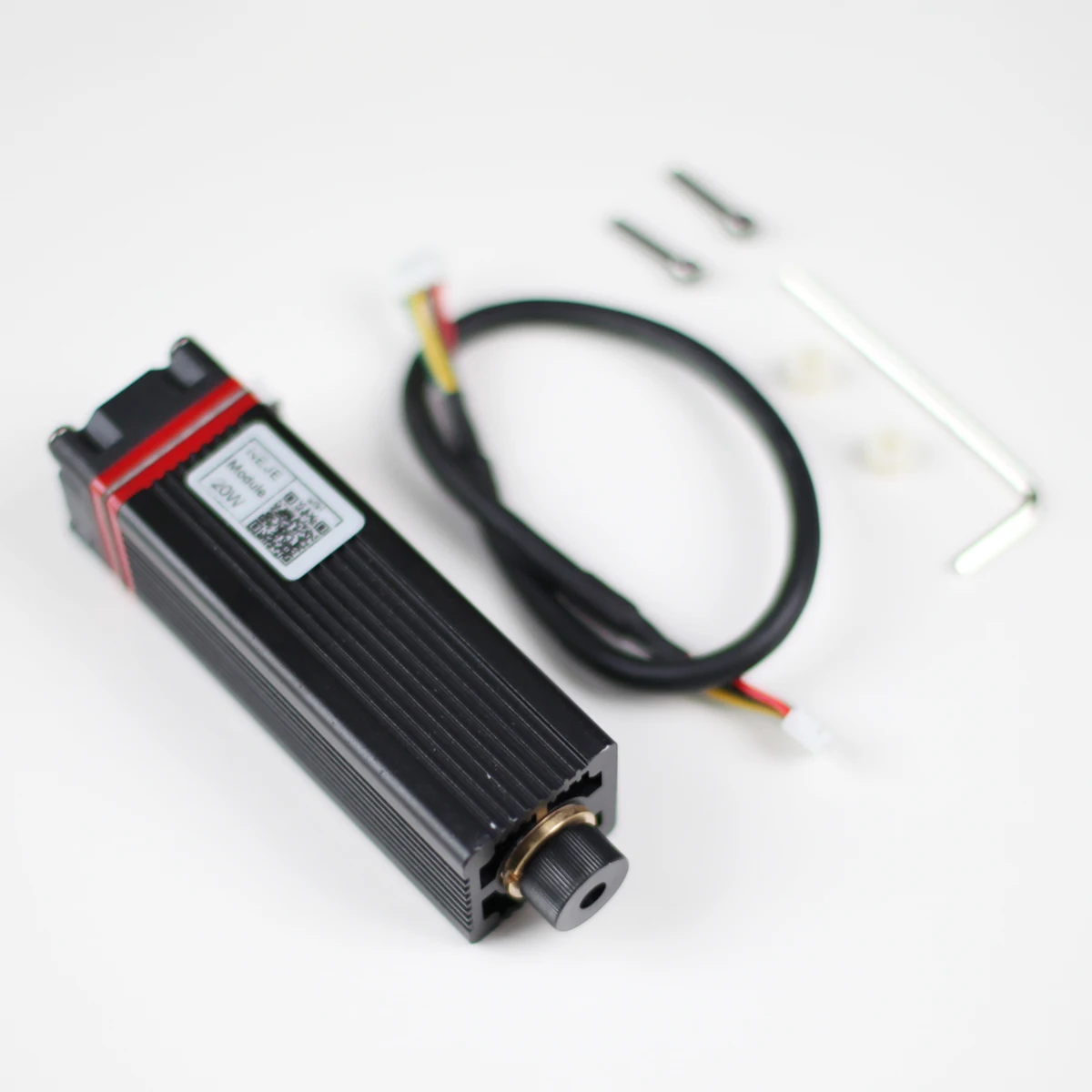

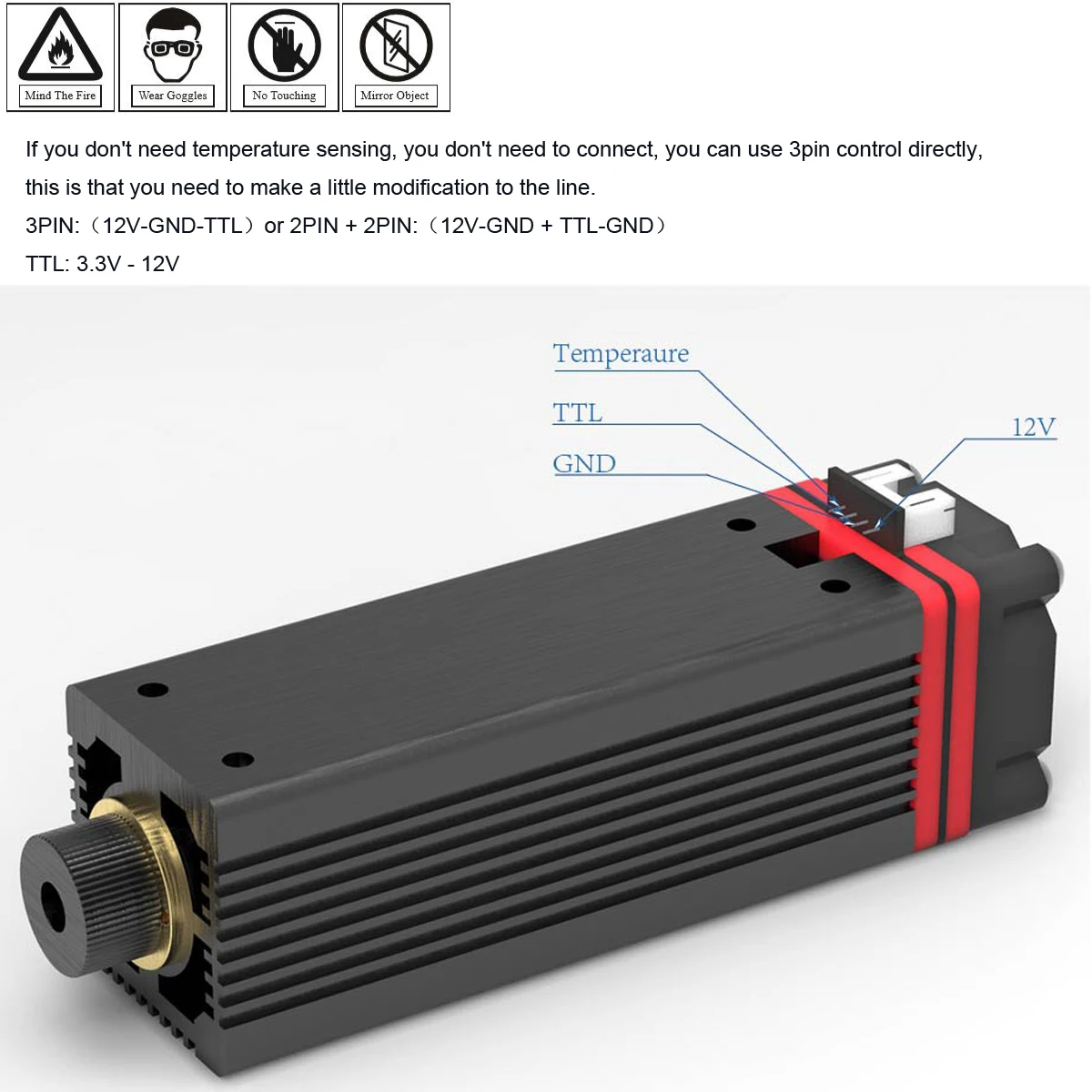

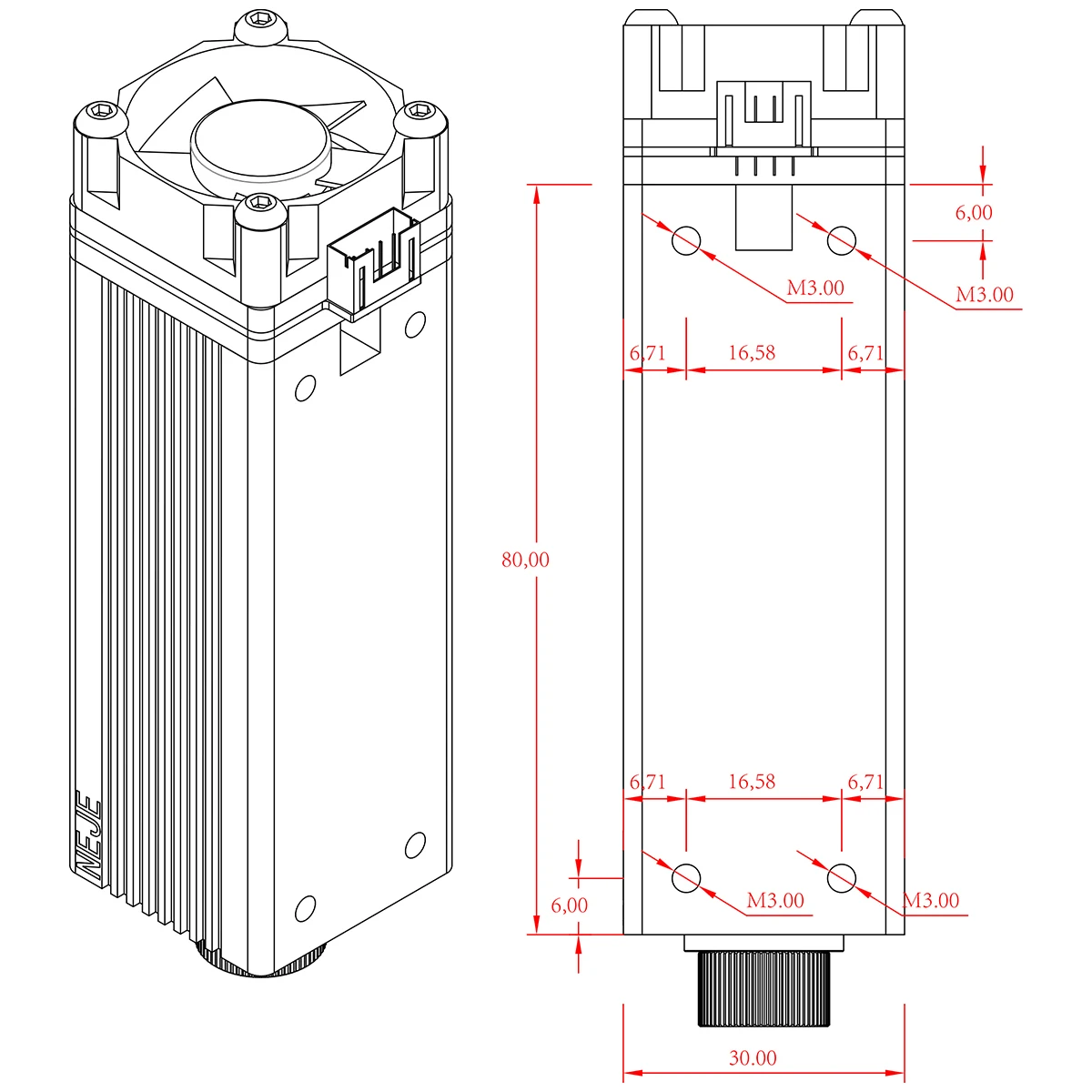

* Interface specification: 4pin PH2.0 (red: 12V, black: GND, yellow: PWM, green: temperature signal) *Wavelength: 450nm *Radiator size: 30*80mm *Material: copper + aluminum *Weight: 202g *Drive position: built-in *Is the power adjustable: PWM can be adjusted *Drive protection: surge protection, overvoltage protection *Input power: approx. 12V2A (without fan power) *Output Optical Power: 5.5W (20W power depends on the whole machine power, including the laser, the fan, and the motor, that's why we recommand it to use on NEJE MASTER machines. We don't accept dispute or negative feedback for inconformity output power) *PWM: 50KHz-20KHz / 3.3V-12V *Temperature Sensor: yes *Line length: 300mm *Control line installation method: pluggable *Fan size: 30*10mm *Fan speed: 15000 rpm *Controllable temperature: less than 60 degrees Celsius *Focus range: 30-50mm *Best focal length: 40mm from the light exit *Safety Warning: Please apply this module under the premise of safety protection! *Recommended application machine: NEJE Master / Master 2 Note: NEJE Master comes standard with 12V2A charger. If you want to upgrade your old machine, you need to prepare another 12V3A power supply. Packing list: 1 x module 2 x screw 2 x gasket 1 x control line
