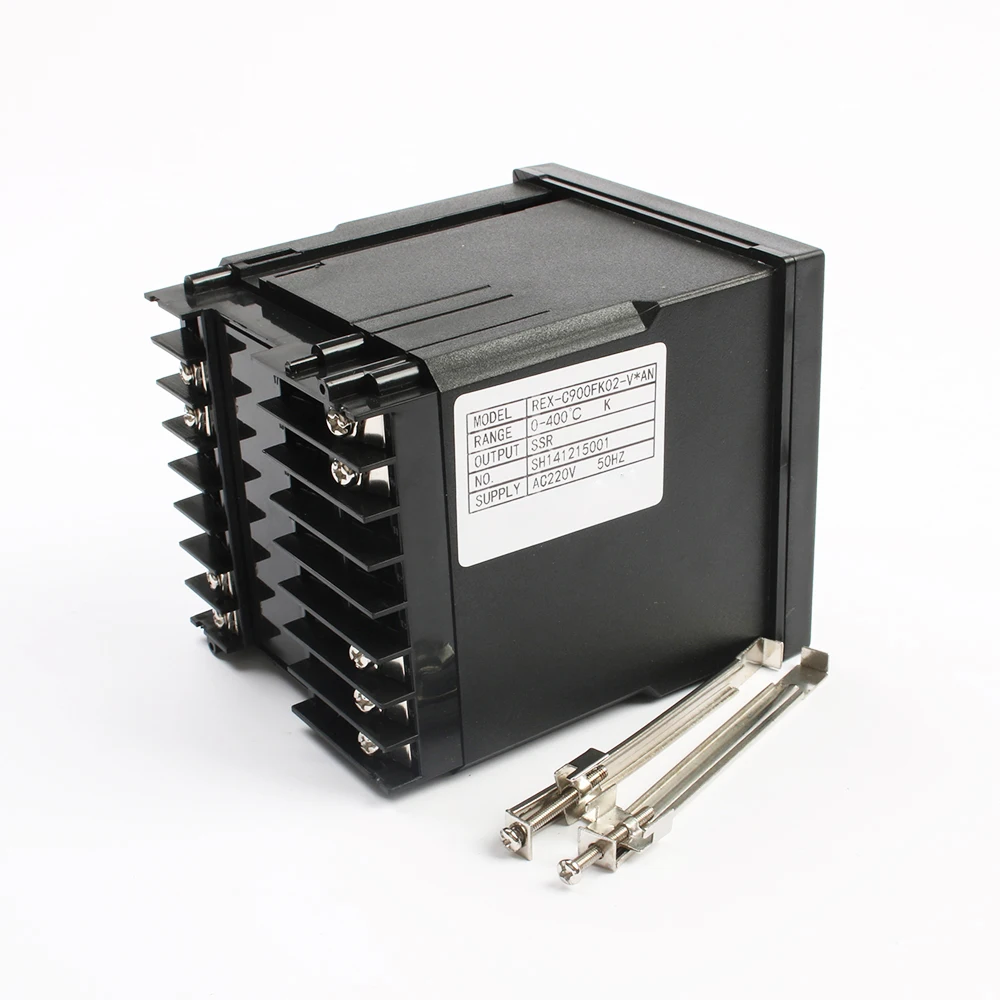

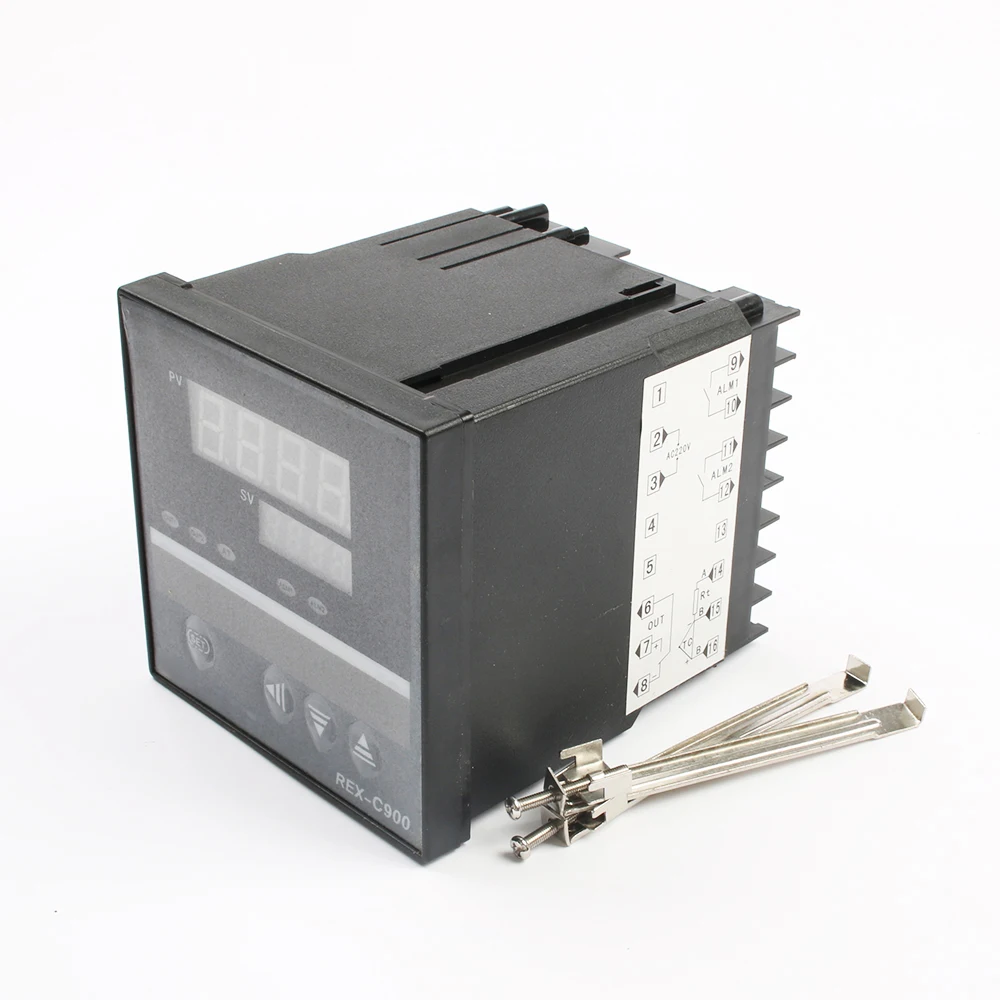

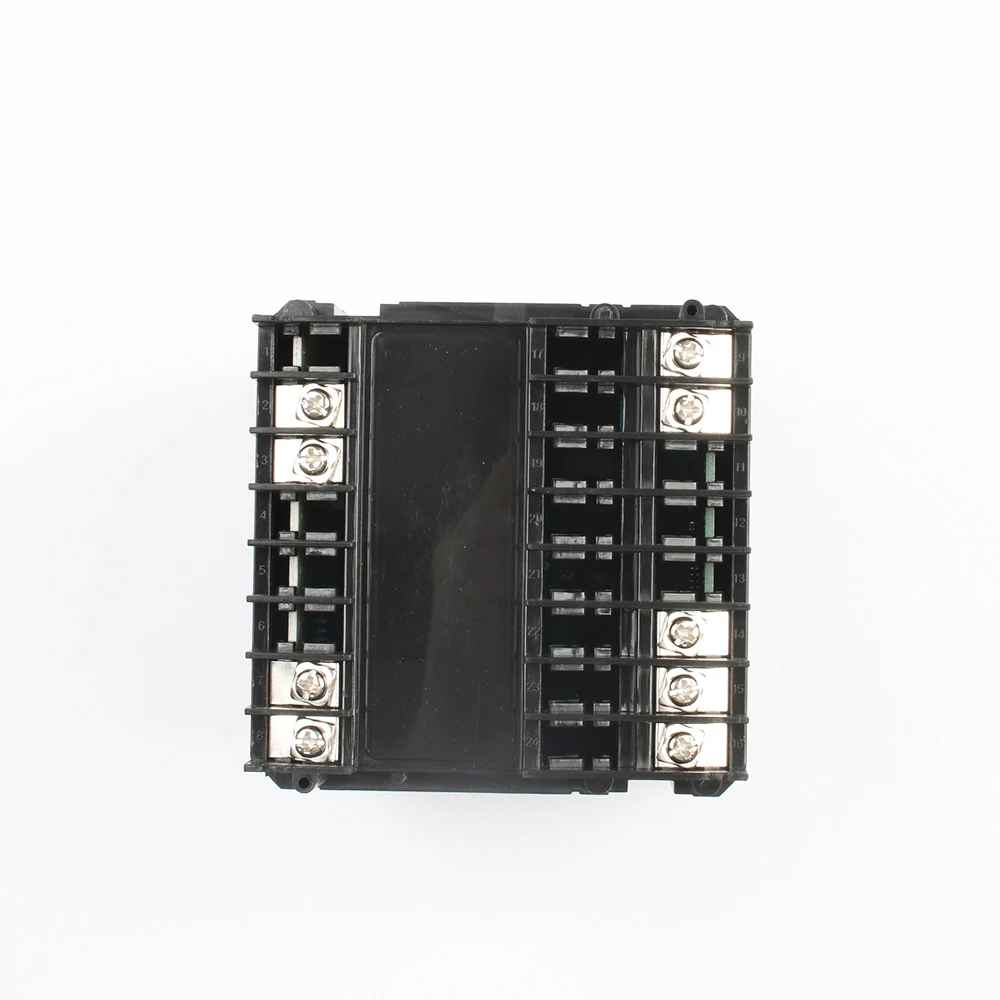

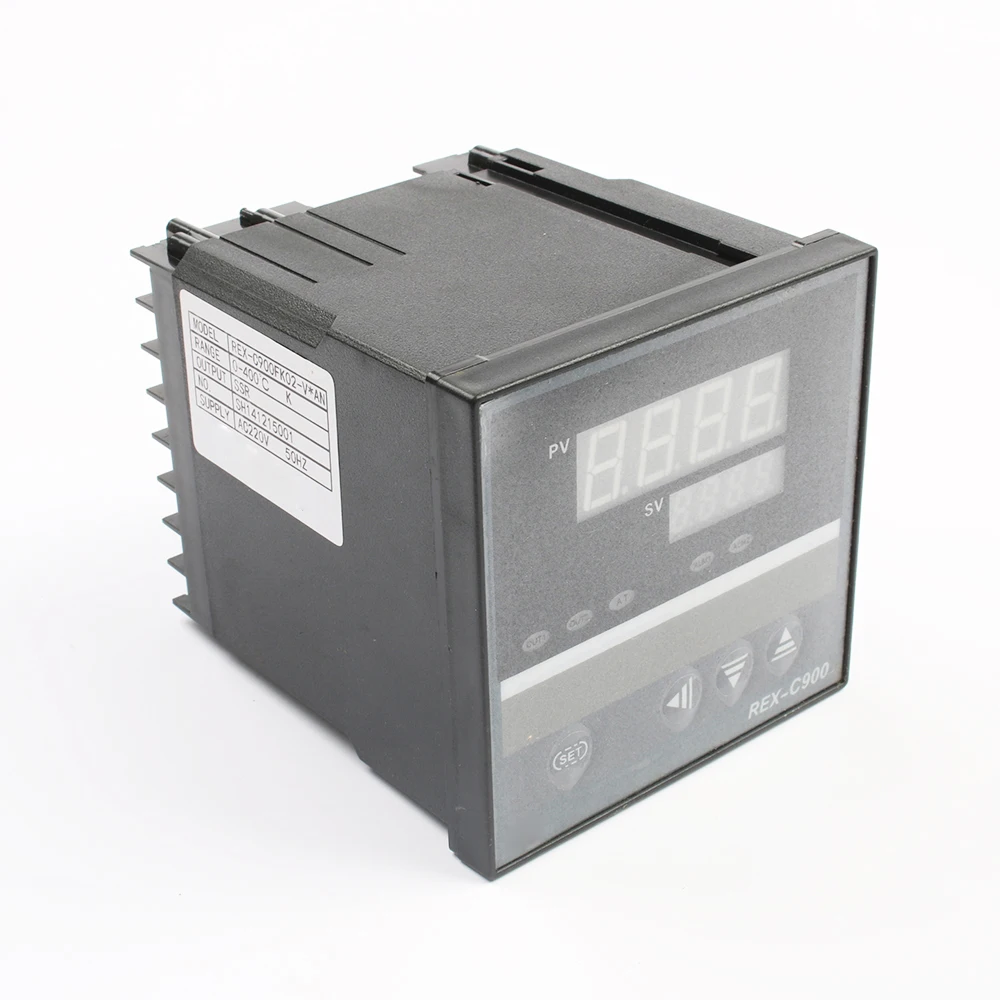

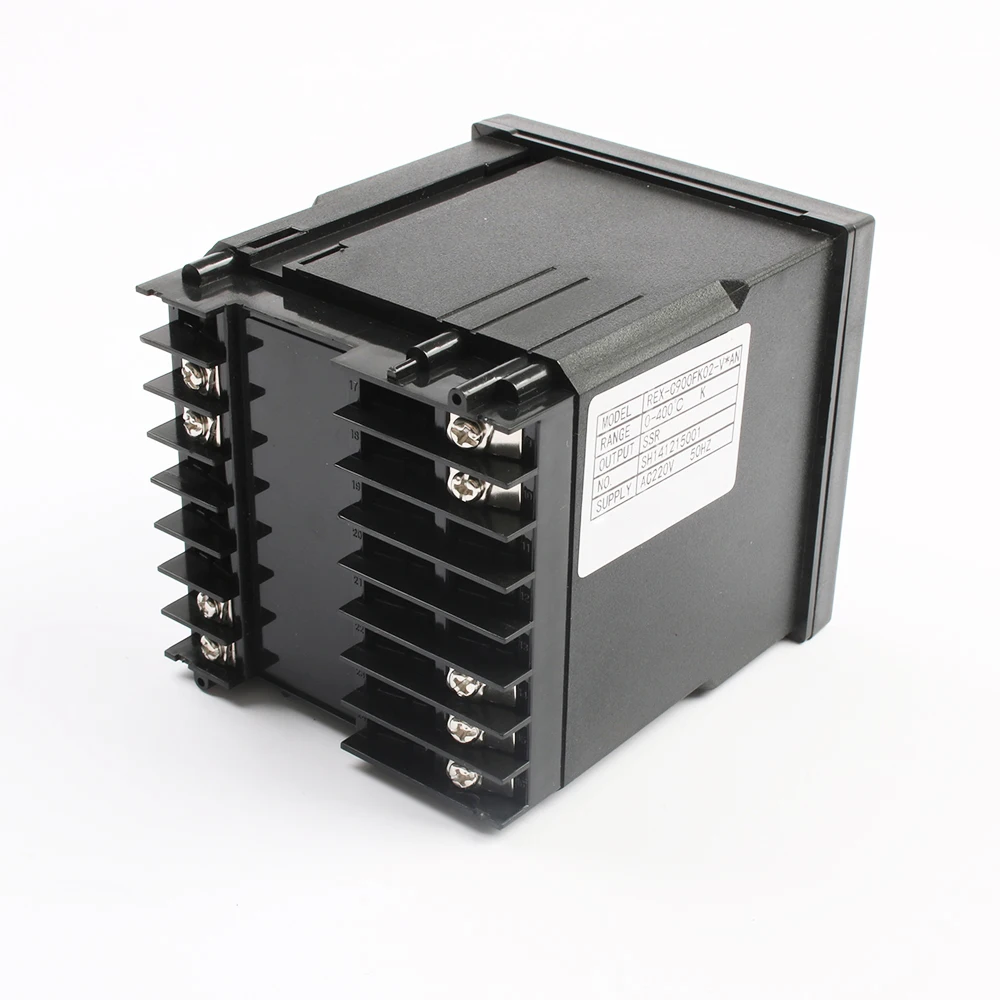

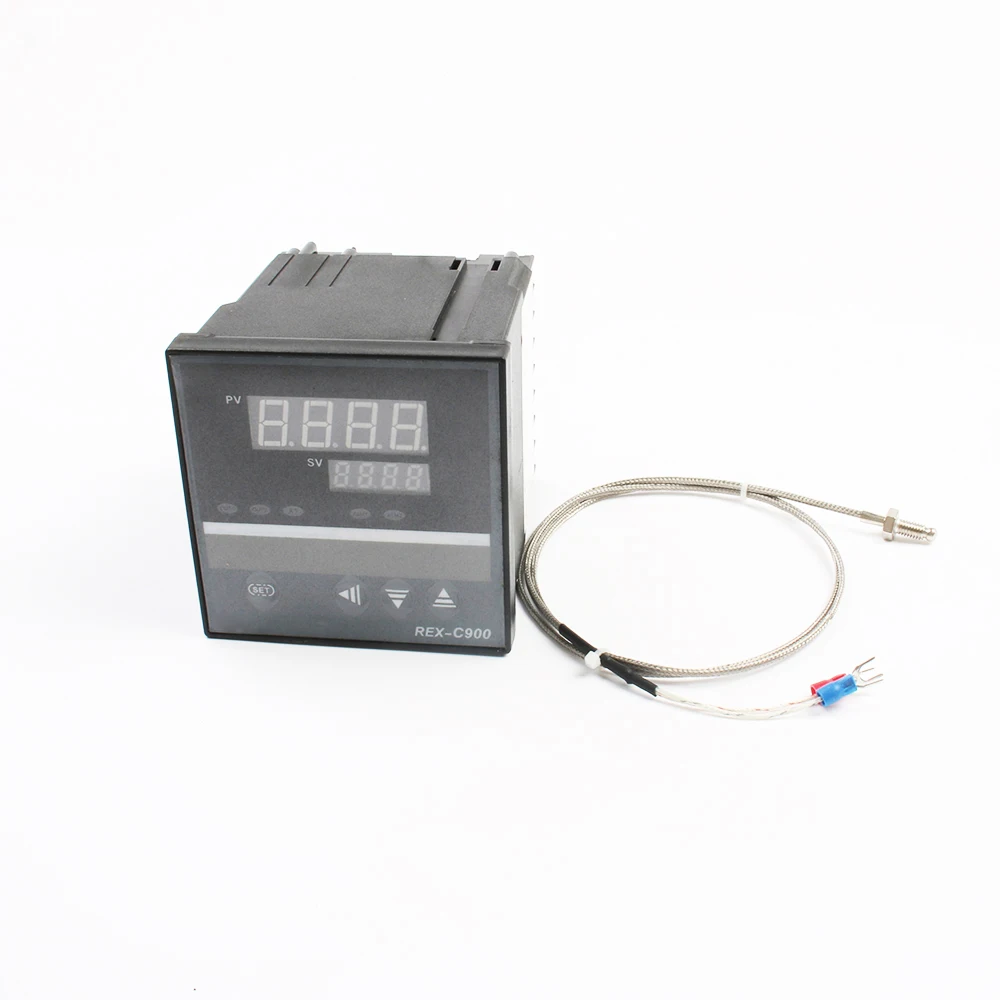

Digital PID Temperature Controller REX-C900 96*96mm

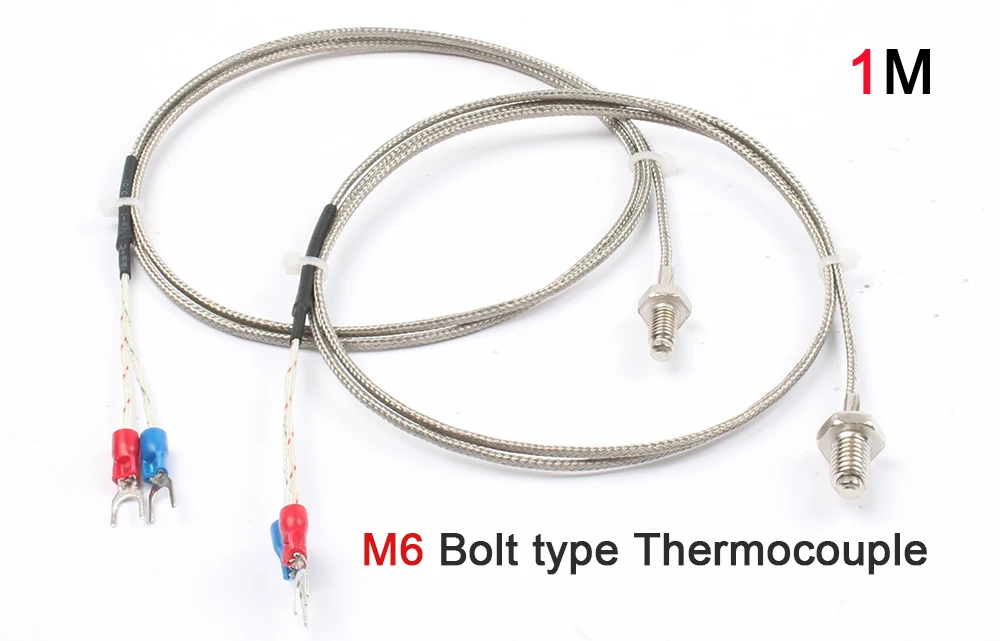

Input: Thermocouple/RTD
Output: SSR or Relay
Alarm: 1
Power: 100-240VAC
Product Features:
Dual display for both set temperature and process temperatureSize, 1/4 DIN 96*96mmUniversal input, support 10 different types of thermocouples and RTD inputs by customers selected at panels.Auto-tune function can find the best PID parameter automaticallyDisplays temperature in CelsiusFour digits LED display can go up to "9999"Can be powered by either DC or AC power sourceUses it for Kiln,Furnace,Oven,Incubator temperature controlUses it in heating control as well as for cooling controlIt is used in various industries to control and monitor process temperatures
Product Main Specifications:
Input type
TC: K, E, S, R, J, T, B, WRe3-WRe25.
RTD: Pt100, Cu50
DC voltage: 0~5V, 1~5V,0~10V.
DC current: 4~20mA
Input range
K (-200~+1300ºC), S (-50~+1600ºC), WRe3-WRe25 (0~2300ºC ), R (-50~+1600ºC), T (-200~400ºC), E (-200~900ºC), J (-200~1200ºC), B (350~1800ºC), Pt100 (-99.9~600.0ºC) or (-200~+600ºC), Cu50 (-50~150ºC)
Display
Two lines, Four digits. °C.
Display Resolution
1°C, 1°F, or 0.1°C, 0. 1°F, with Pt100
Accuracy
±0.5% or ±1 unit of full input range
Control mode
PID, On-Off
Output mode
Relay contact: 3A at 240 VAC.
SSR: 12VDC,
Current: 4~20 mA
Voltage: 0~10V
Or relay output
Alarm
Upper-limit bias alarm
Power consumption
<2 Watt
Power supply voltage rating
85~265VAC/50~60Hz
Dimensions
Rex-C900 96*96*110mm
-
InputUniversal Input
-
TheorySolid State Relay or relay
-
UsageGeneral Purpose
-
Votlage220V~240V
-
Вес логистики0.450
-
Каждая упаковка1
-
Максимальная температура измерения120 ° С и Выше
-
Минимальная единица измерения100000015
-
Название брендаDIANQI
-
Номер моделиC-900
-
ОсновыРегулятор температуры
-
ПрименениеПромышленный
-
Продано Вsell_by_piece
-
ПроисхождениеКитай
-
Размер дисплея7 Дюйм(ов) и Выше
-
Размер логистики - высота (см)8
-
Размер логистики - длина (см)13
-
Размер логистики - ширина (см)10
-
СертификацияЕвропейский сертификат соответствия
-
СтильВстраиваемый
-
Тип дисплеяDIGITAL
-
Тип питанияНет
