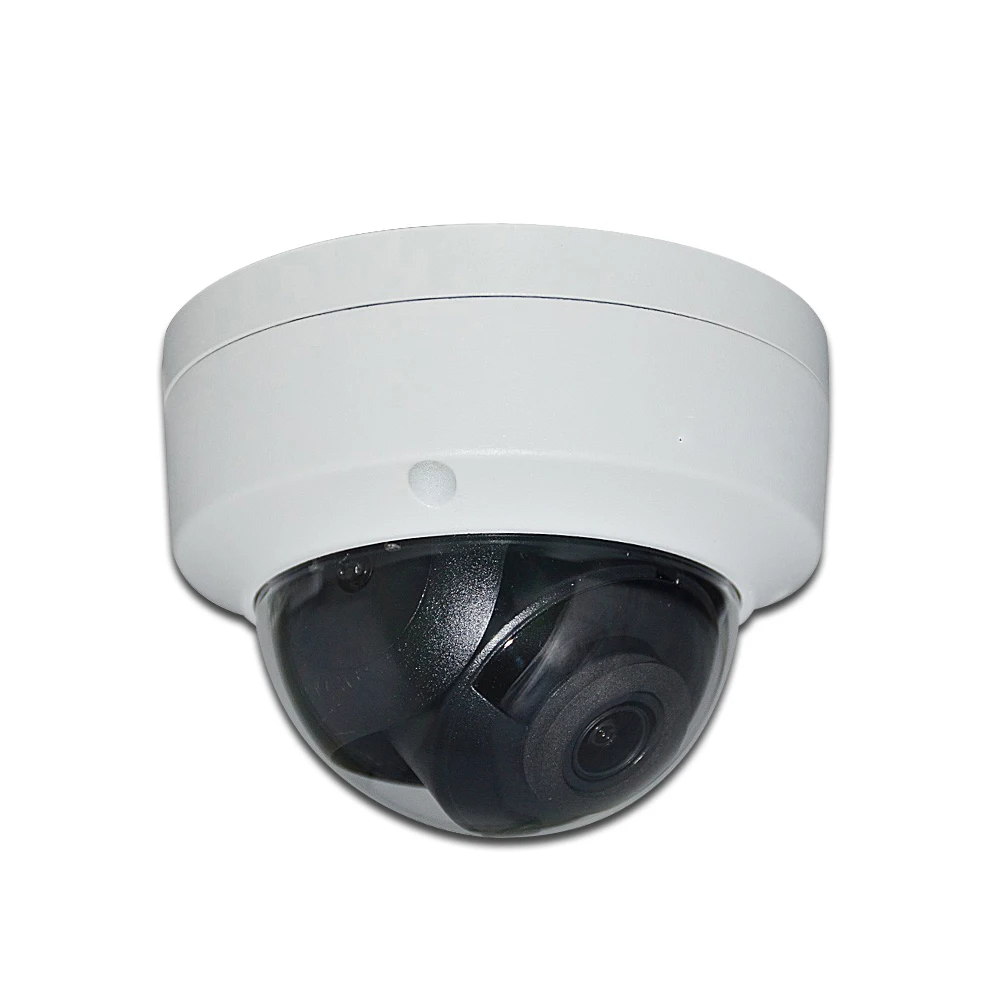

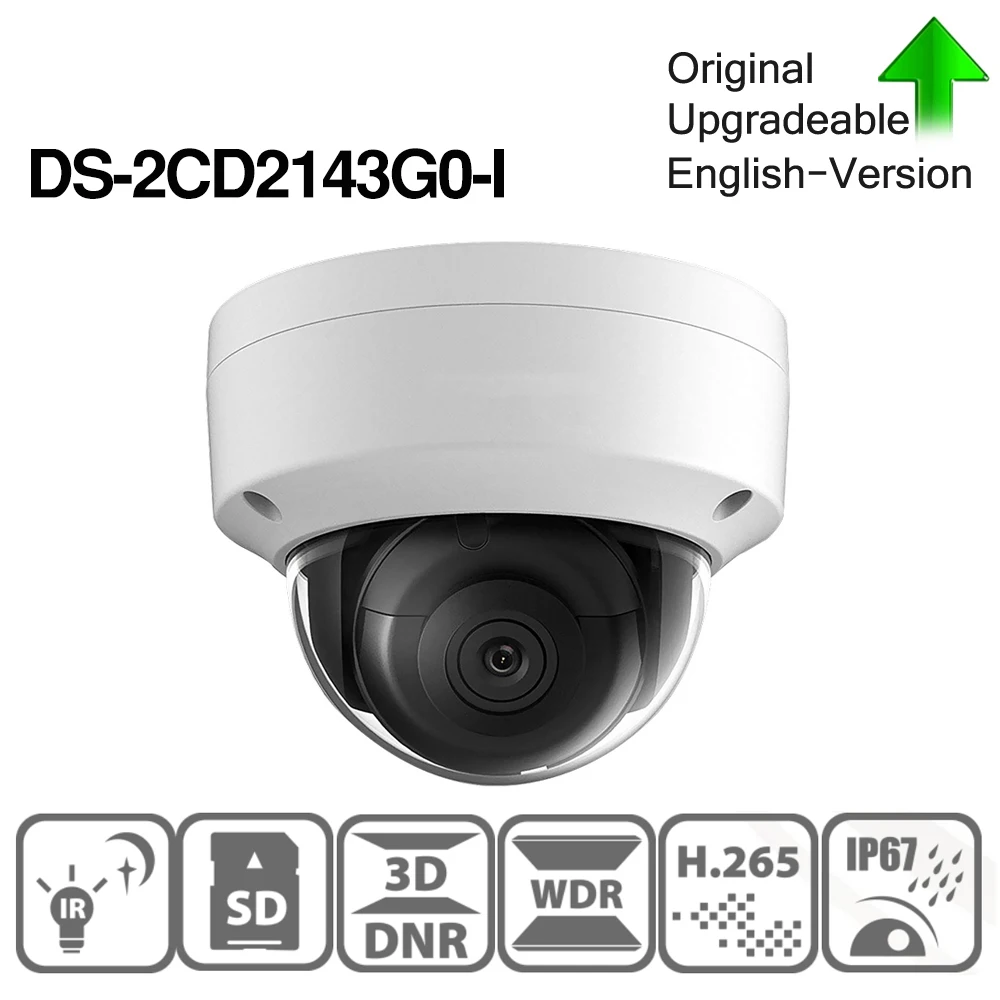

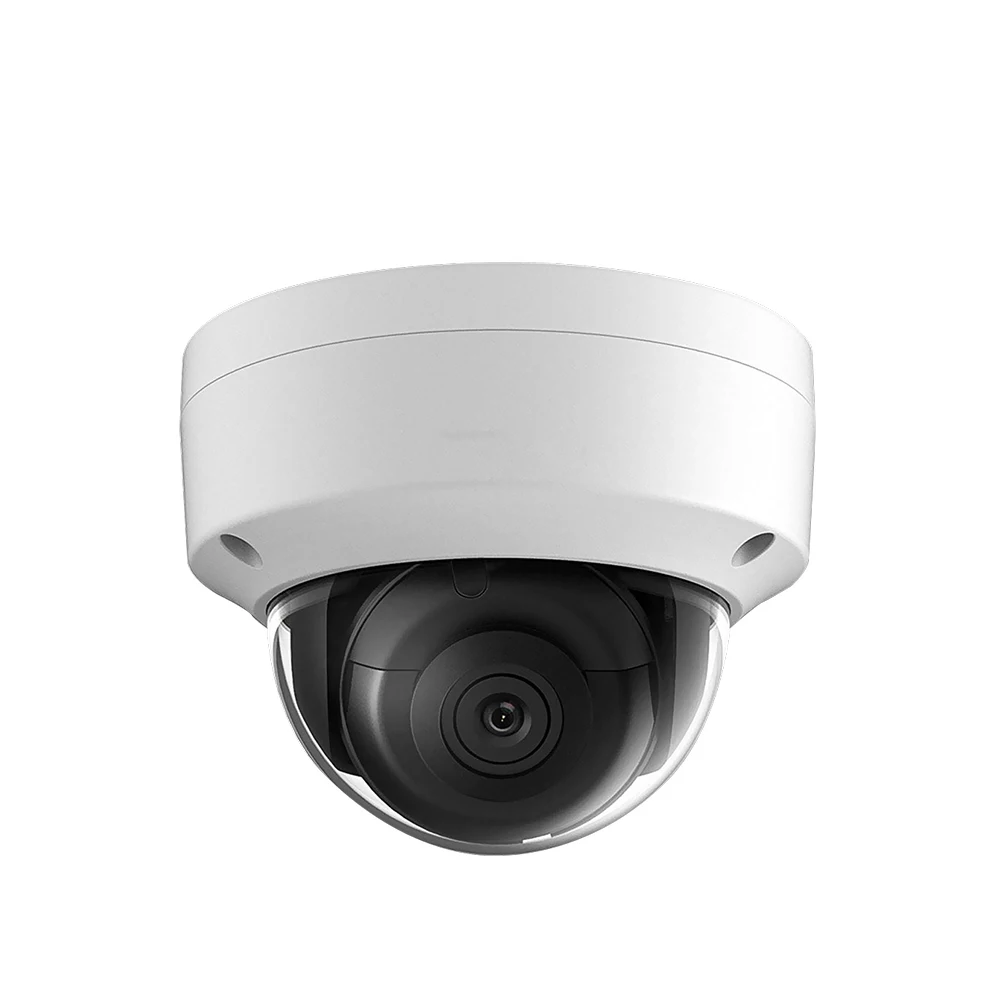

DS-2CD2143G0-I
4 MP IR Fixed Dome Network Camera• 1/3" Progressive Scan CMOS• 2688 ×1520 30fps• 2.8/4/6/8mm fixed lens• Color: 0.01 Lux (F1.2, AGC ON), 0.018 Lux (F1.6, AGC ON), 0 Lux with IR• H.265+, H.265, H.264+, H.264• Three streams• 120dB WDR• 2 Behavior analyses, and face detection• BLC/3D DNR/ROI/HLC• IP67• Built-in micro SD/SDHC/SDXC card slot, up to 128 GB• 3-Axis adjustment
1.Camera DS-2CD2143G0-IImage Sensor:1/3" Progressive Scan CMOSSignal System:PAL/NTSCMin. Illumination:Color: 0.01 Lux (F1.2, AGC ON), 0.018 Lux (F1.6, AGC ON), 0 Lux with IRShutter time:1/3 s to 1/100,000 sSlow shutter:SupportLens:2.8 mm F1.6: horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°4 mm F1.6: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99°6 mm F1.6: horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°8 mm F1.6: horizontal FOV: 39°, vertical FOV: 22°, diagonal FOV: 45°Lens Mount:M12Adjustment Range:Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°Day& Night:IR cut filter with auto switchWide Dynamic Range:120 dBDigital noise reduction:3D DNRFocus:Fixed2.Compression StandardVideo Compression:H.265+/H.265/H.264+/H.264/MJPEGVideo bit rate:256Kbps~16MbpsAudio bit rate:64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)Triple Streams:Yes3.ImageMax. Image Resolution:2688 × 1520Frame Rate:50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)Sub Stream:50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)Third Stream:50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)Image Enhancement:BLC/3D DNR/ROI/HLCImage Settings:Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browserTarget Cropping:NoROI:1 fixed region for main stream and sub-stream4.NetworkNetwork Storage:microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANRAlarm Trigger:Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD errorProtocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, BonjourGeneral Function:One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filteringSystem Compatibility:ONVIF (Profile S, Profile G),ISAPI5.InterfaceCommunication Interface:1 RJ45 10M / 100M Ethernet interfaceOn-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GBReset Button:Yes6.AudioAudio Sampling Rate:8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz7.Smart Feature-setBehavior Analysis:Line crossing detection, intrusion detectionLine Crossing Detection:Cross a pre-defined virtual lineIntrusion Detection:Enter and loiter in a pre-defined virtual regionRecognition:Face Detection8.GeneralOperating Conditions:-30 °C ~ 60 °C (-22 °F ~ 140 °F)Humidity 95% or less (non-condensing)Power Supply:12 VDC ± 25%, PoE (802.3af Class3)Power Consumption:12 VDC, 0.5A, max. 6WPoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5WWeather Proof:IP67IR Range:Up to 30mDimensions:Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″)Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″)Weight:Camera: Approx. 610 g (1.3 lb.)With Package: Approx. 820 g (1.8 lb.)
1.DS-2CD2143G0-I *10
Question : Is this camera original ?
Answer : This item is Original Hikvision EasyIP2.0 Plus Series 4MP POE IR IP Camera, original firmware support upgrade.Question : What's the model of this camera ?
Answer : This Camera's model is DS-2CD2143G0-I .Question : What's the logo on the camera and box ?
Answer : Camera comes with 'Hikvision' logo, Package box is original box from hikvision factory .Question : What client does this camera work with ?
Answer : Client: iVMS-4200Question : How about mobile view on the smart phone?
Answer : Mobile view: Hik-connect or iVMS-4500Question : Can I trust you ? there are many fake items on other stores !
Answer : 100% Genuine Hikvision ! ALL EQUIPMENT FIRMWARE CAN BE UPGRADED AT ANYTIMEQuestion : I do business on hikvision products and I need more discount !
Answer : For bulk purchases and kit customize, please kindly contact us before buying .
