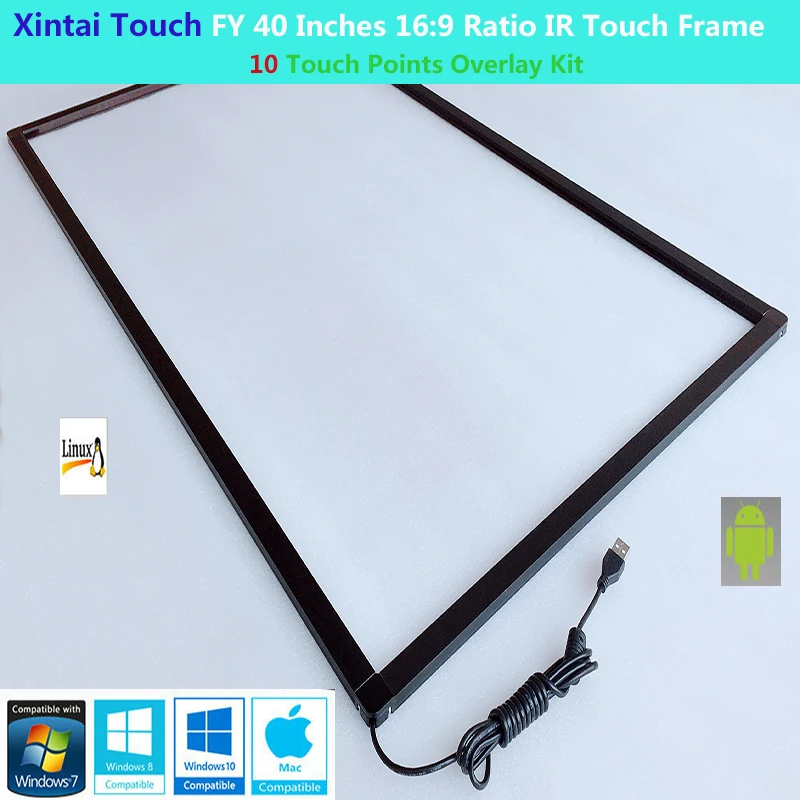

Xintai Touch FY 40 Inches 16:9 Ratio IR Touch Frame Panel Plug&Play (NO Glass)



Specification :





Principle of Technology True multi-point infrared TOUCH Technology Active Area (Display Device) 17''-98'' Screen Thickness 8mm(Without glass thickness) Border Width 19mm Screen Structure The transmitting and receiving control circuit and controller are installed in the aluminum alloy frame.3 ~ 5mmTempered glass Touch resolution 32768x32768 Positioning Accuracy <2mm Response time <7 MS Transmittance ≥90% (Press?ASTM D1003-92Standard) Brightness ≥350cd/m2 Touch Media Fingers, gloves, pens and other opaque objects Touch pressure No need Durability Anti-scratches can withstand more50,000,000More than one touch. Surface Hardness Mo's7.Class, tolerable1 kgSteel Balls1.Meters fall without breaking(Test Methods see Standard GB9963-1988AndIEC-1999 @ 60950) Even if it breaks, the debris will not hurt the human body. MTBF More than 5000Hours. OS supported Windows XP/7/8, Linux, Android, UBUNTU Connection Mode GeneralUSB2.0 Temperature range Operating Temperature:-20 °C ~ 70 °C Storage Temperature:-20 °C ~ 70 °C Humidity range Working humidity: 0% ~ 90% RH (No dew) Storage humidity: 0% ~ 95% RH (No dew)

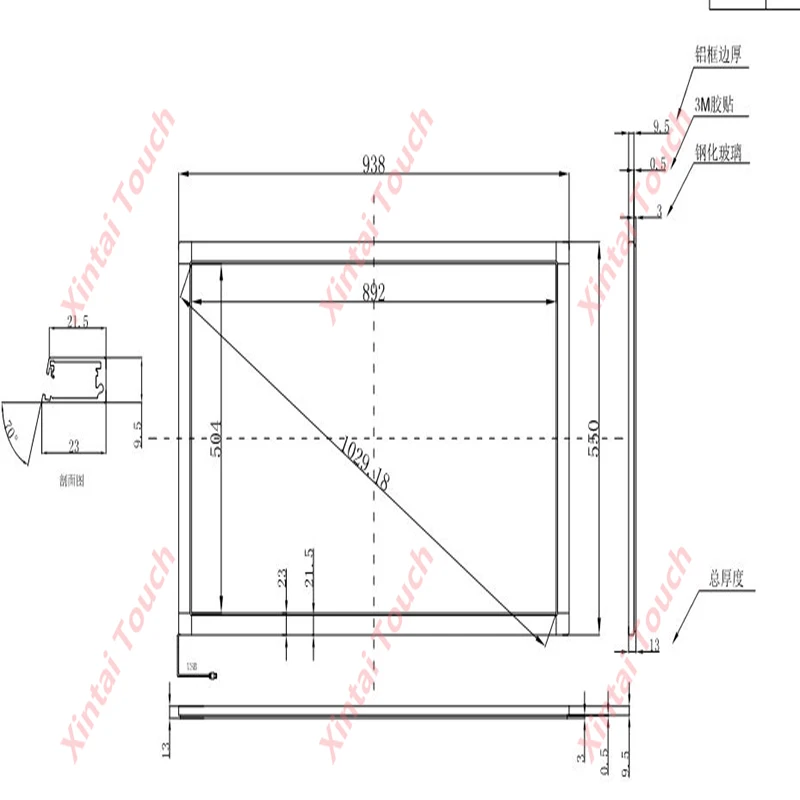

Product  Size DataSheet List:







Applications:



• POS • ATM / Airport • Desktop touch monitor • Education Display • Indoor/outdoor kiosk • Ticket machine

• In-vehicles and transportation

• Medical instrument • Industrial control systems





User Manual:





Warranty:





We offer 1 year free warranty for hardware.





Tax and Duties:



1. For customers from South America Market, we need you provide Tax Number before shipment.



Brazil-CNPJ/CPF, Chile-RUT number, Argentina-CUIT number, Colombia-NIT number, Peru-IVA number, Venezuela-RIF number



2.The goods  price is not  including the destination tariffs  Different coutries have different customs tariffs, it is



buyer's responsibility.







Shipment and Payment:



1.For Payment---------we accept Western Union, TT, Paypal.



2. BY DHL/FEDEX/UPS------(It's commonly Takes 5-7 working days to deliver to destination if everything go well



without customs clearance problem).



3. By EMS --------(normally takes 7-15 working days ------------It's shipping to Russia and Ukaine).



4. By Russia-Line--------(It will take about18-25 days shipping to Russia).



5. In commonly Country (except russia,Ukaine,Brazil)------- below 43 inch (including 43 inch) we will choose DHL to



deliver the package;above 43 inch will choose fedex or ups,please kindly know.



6. Brazil Customer --------



①  Brazil customer should provide CPF/CPNJ tax number to us,then shipment can be arranged,It's used  for



customs clearance



②  Brazil customer should tell us what value should be decalred for customs clearance



As brazil customs clearance problems.







Shipping Method:



We ship in tube package to save shipping cost. We also can ship it with glass as well. Contact us.

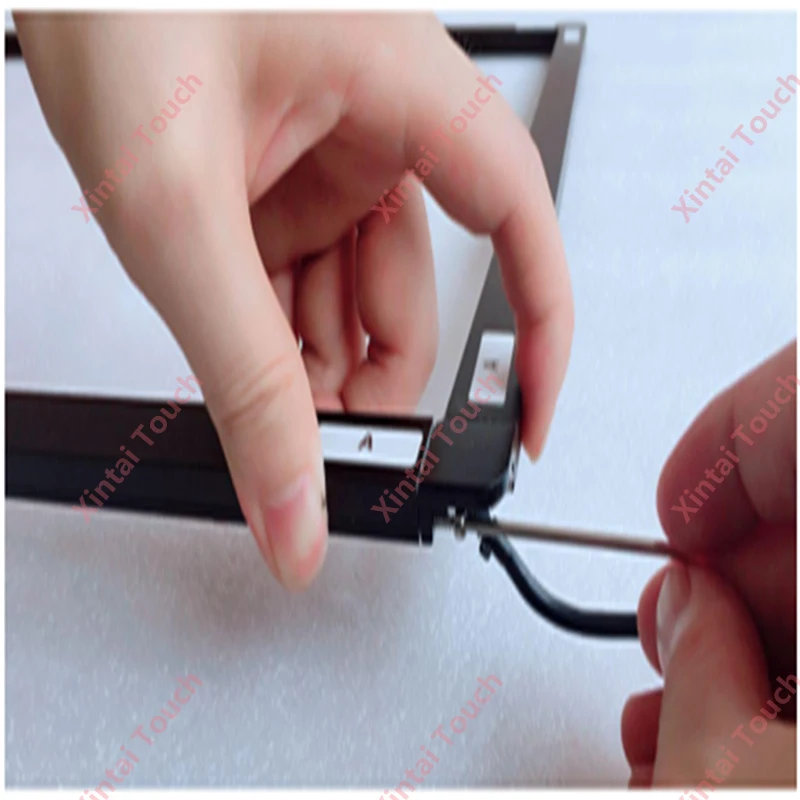

1. Disassembly

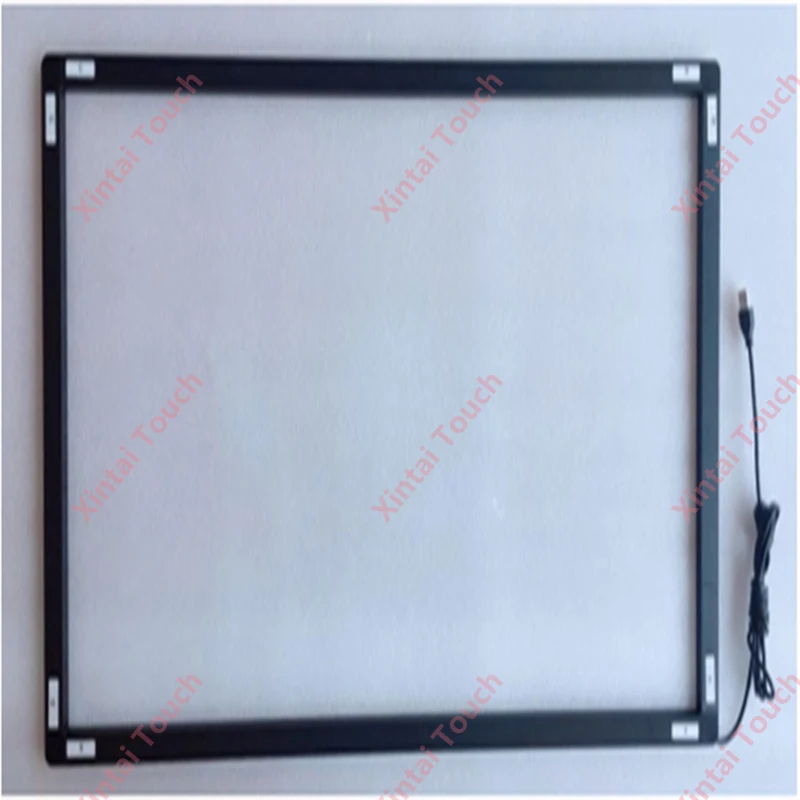

2. Without Glass



3. In tube Shipping







Facotry Produced and High Quality Guarantee
