2-КАНАЛЬНЫЙ пульт дистанционного управления для гаража, Приемник 433 МГц + дубликатор дистанционного управления 433 МГц + антенна 433 МГц

Подставка для мебели

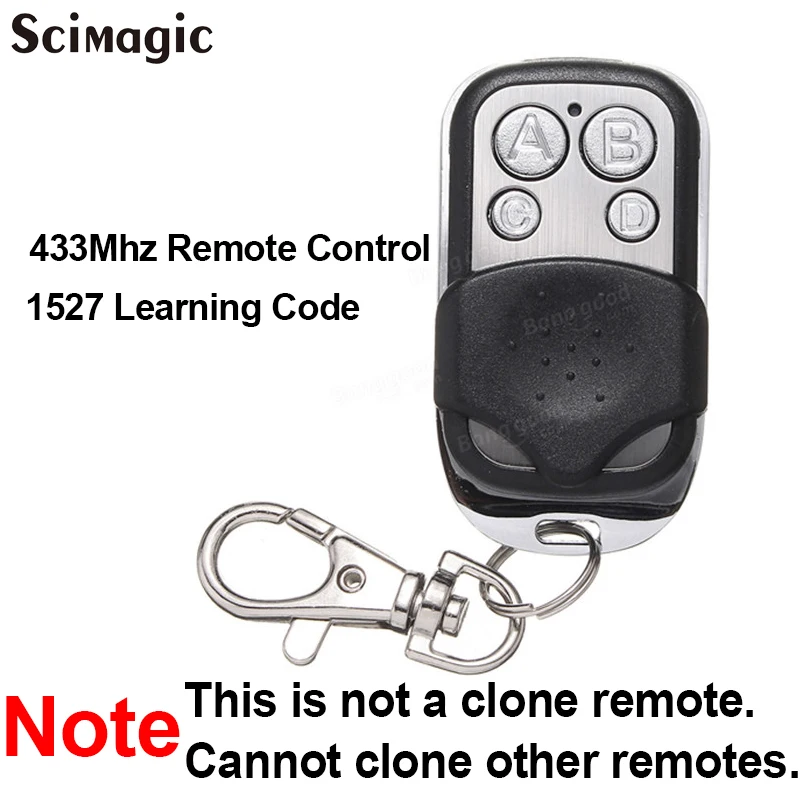

433mhz Remote control

Specifications: Material: Plastic + Metal Operating frequency: 433.92MHz Usage: For 433Mhz RF receiver 1527 decode This remote control only support the learning code (1527) of the receiver Note: This is not a clone remote. Cannot clone other remotes

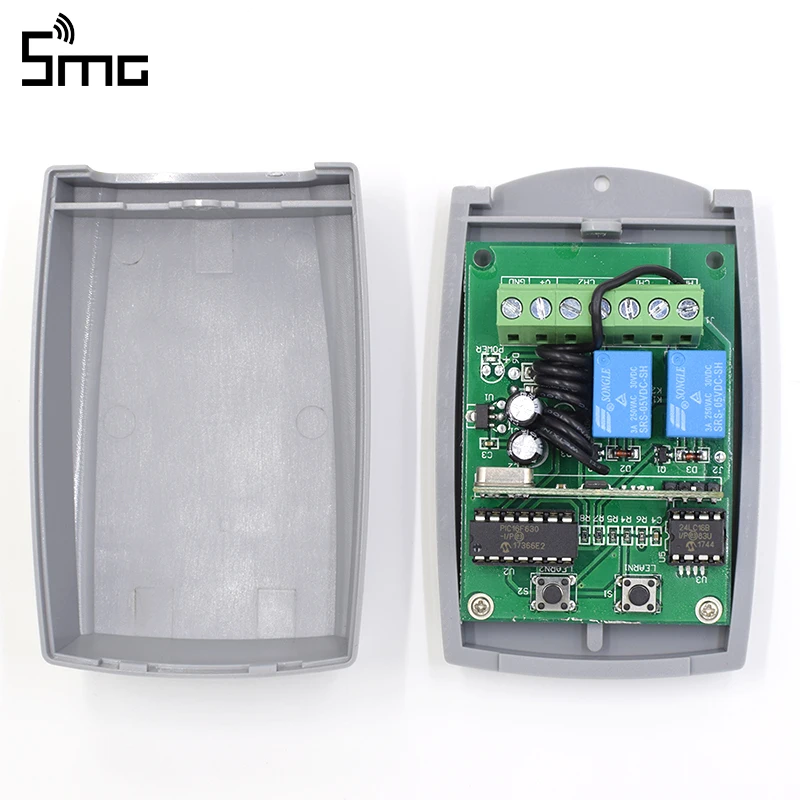

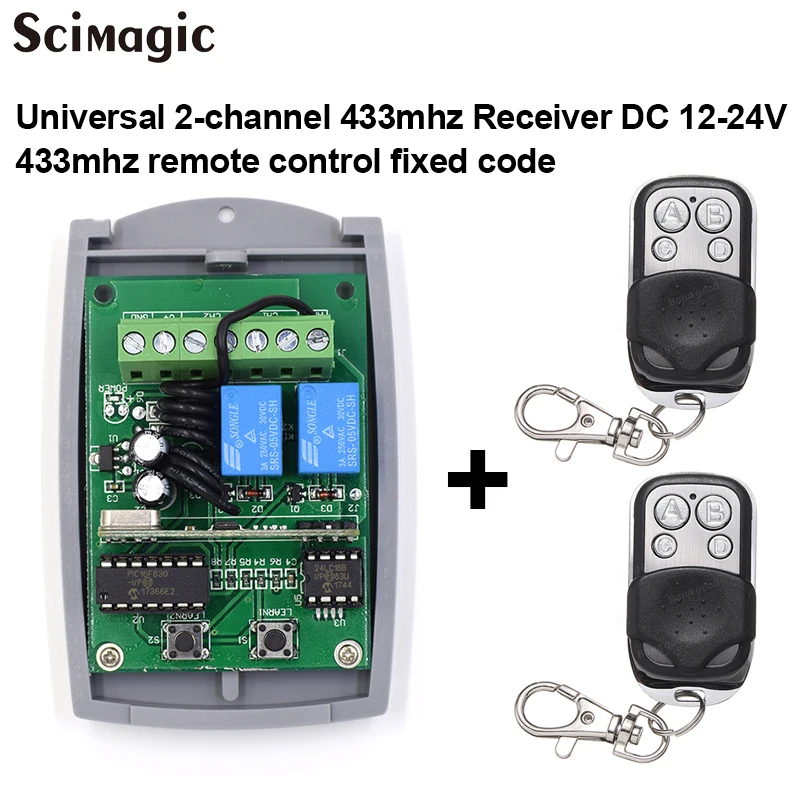

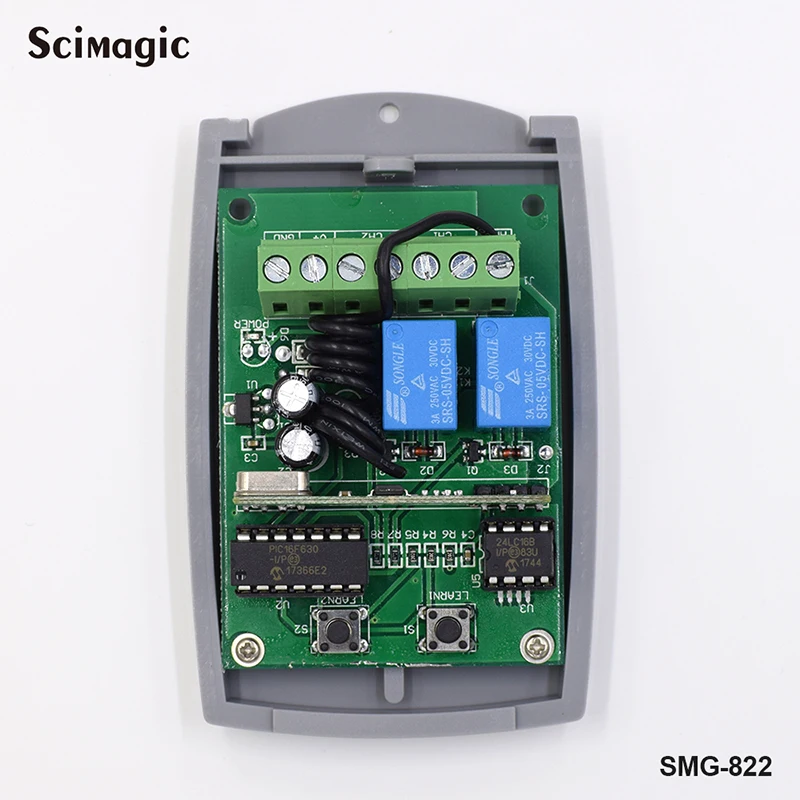

Universal 433mhz receiver

SECIFICATIONS: 1. Power supply: 12v-24v DC 2. Frequency: 433.92Mhz 3. Codes: can work with any fixed/learning/rolling codes 4. 2 channel 5. Working temperature :-40℃- + 80℃ 6.Built in Aerial antenna : Reception range 10-50m PROGRAMMING: Momentary working model: 1.Learning transmitter’s codes: Press “learn 1” or “learn 2” for 1 second, the “learn_led” light, then, press the button which you choose on the transmitter till the “learn_led” flash and go out, the transmitter’s code has been stored. • Repeat the above steps for other transmitters. 2.Erasing transmitter’s codes: Press “learn 1” or “learn2” and hold on to make the “learn_led light till go out, all codes of transmitters which had been stored are erased. ANT - Receiver Antenna CH1 - Relay Output 1 CH2 - Relay Output 2 V+ - Voltage + GND - Ground

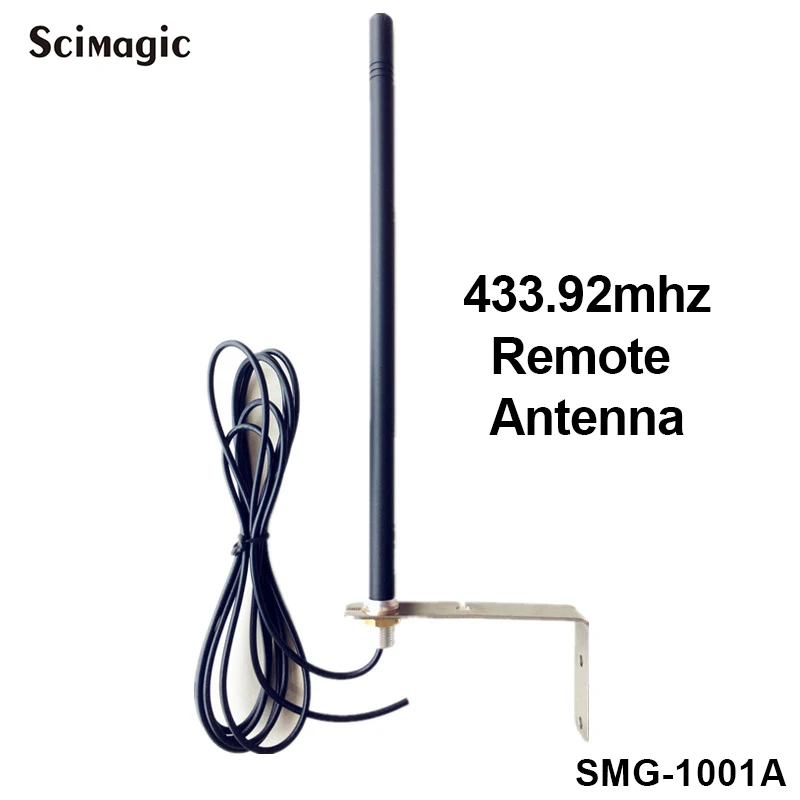

433mhz remote control antenna

Specification 1) Material : ABS & Metal 2) Color : Black 3) Frequency : 433.92MHz 4) Mounting: Screw (wall mount) 5) Cable Length (m): 2M 6) Bandwidth (MHz): 10 7) VSWR ≤1.5 8) Gain(dBi): 3 9) Max Input power (W): 20 10) Input Impedance(Ω): 50 11) Polarization: Vertical 12) Antenna Length (mm): 250 13) Cable Type: RG174 Designed for any gate automation control boards or receivers. Increasing range of transmitters with 433,92MHz up to 250m!!! Impedence: 50 Ohm Bracket made from stainless steel

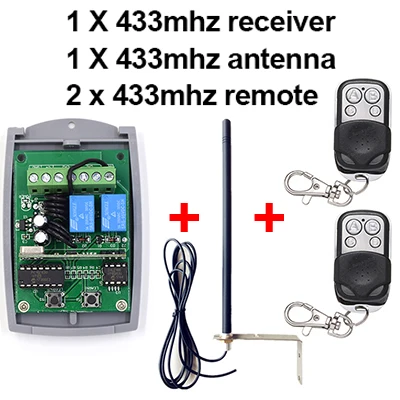

Combination A

Combination B
