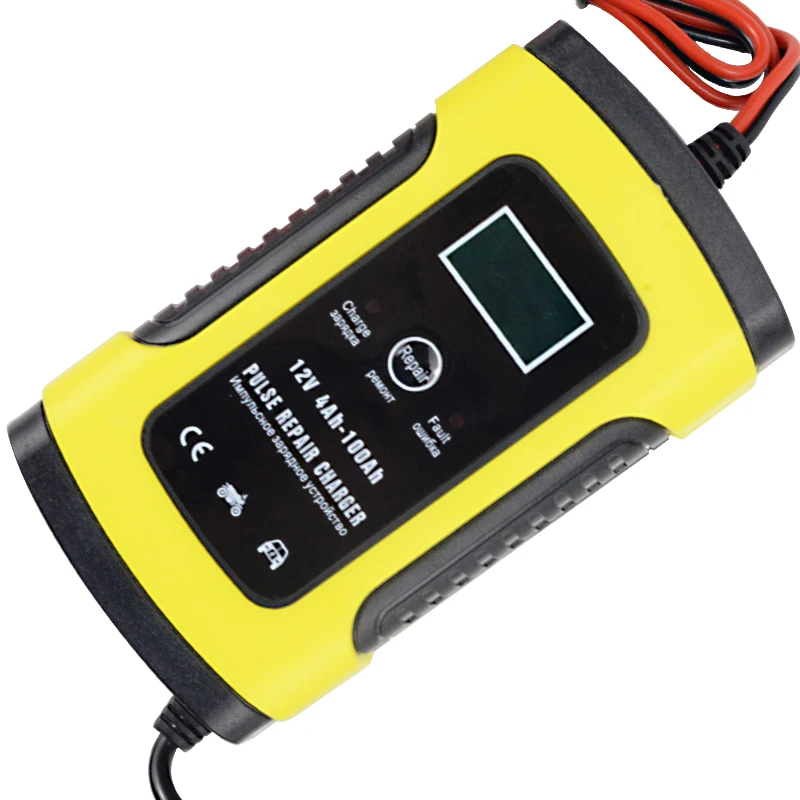

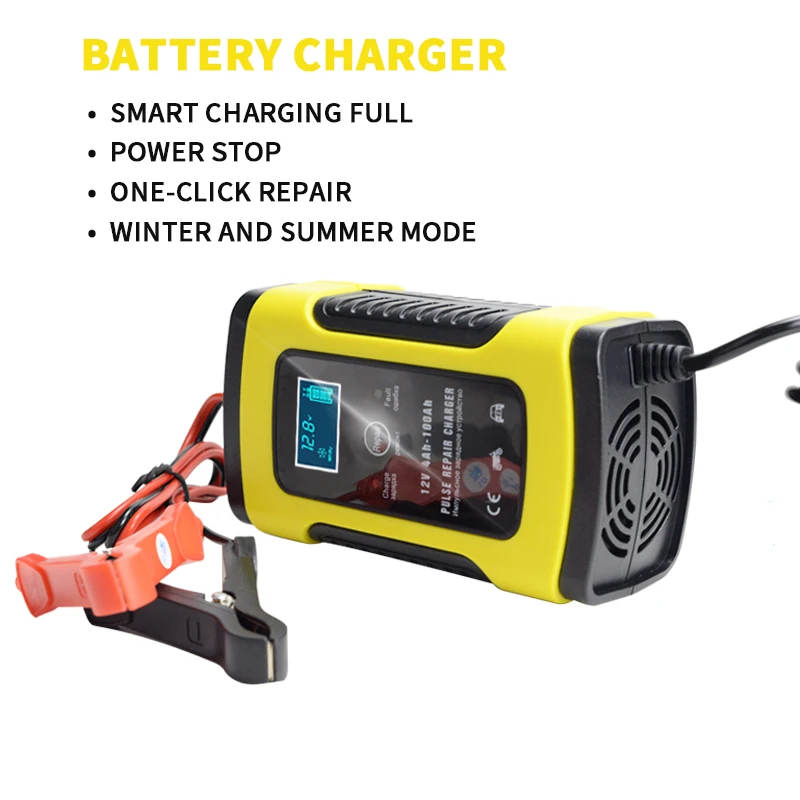

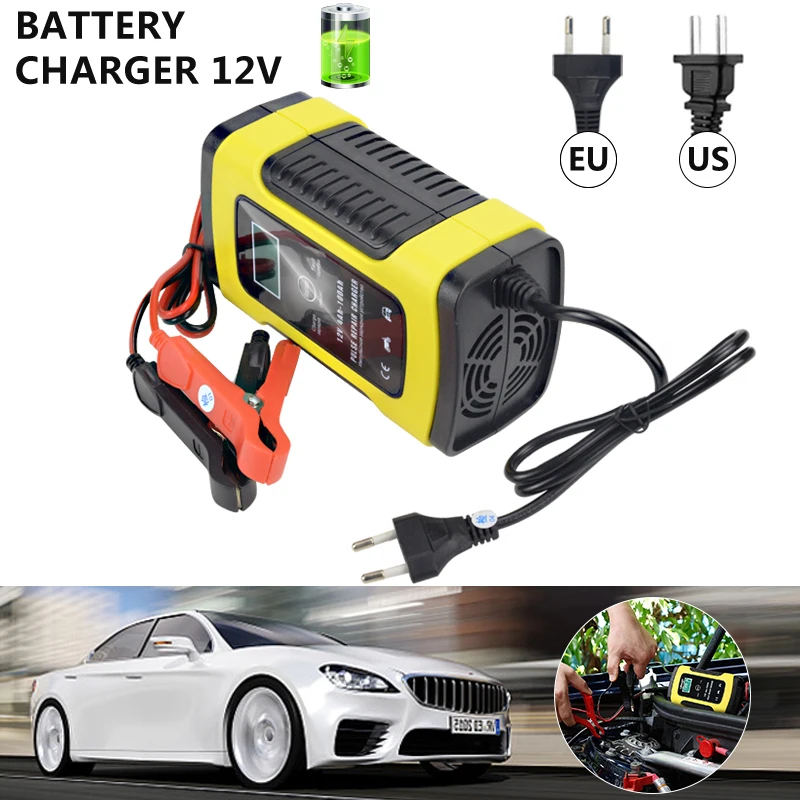

Умное зарядное устройство Maozua, 12 В, 6 А, с ЖК-дисплеем

Features:

Microprocessor Control (CPU).

3-STAGE AUTOMATIC CHARGING:

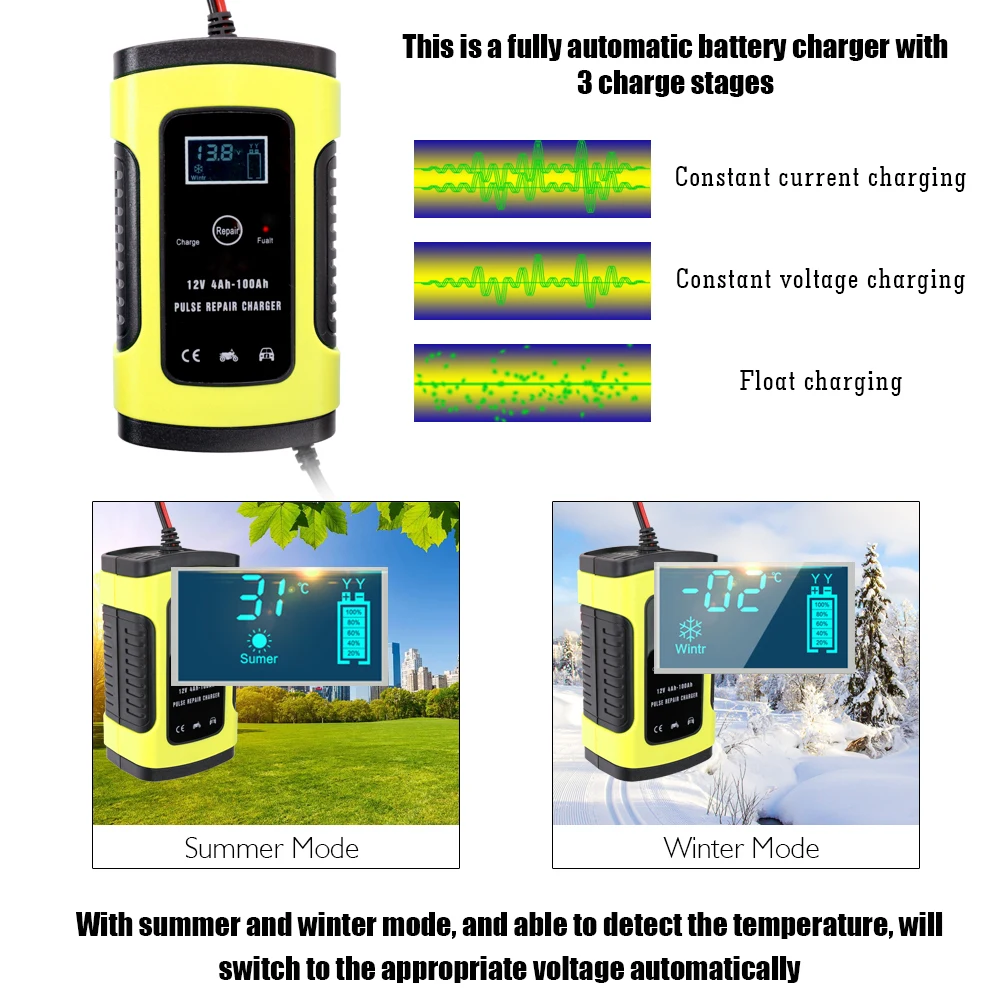

This is a fully automatic battery charger with 3 charge stages.

Automatic charging protects your battery from being overcharged. So you can leave the charger connected to the battery indefinitely.

3-stage chargers are suitable for most battery types including Calcium, Gel and AGM, Wet batteries. They may also help restore drained and sulphated batteries.

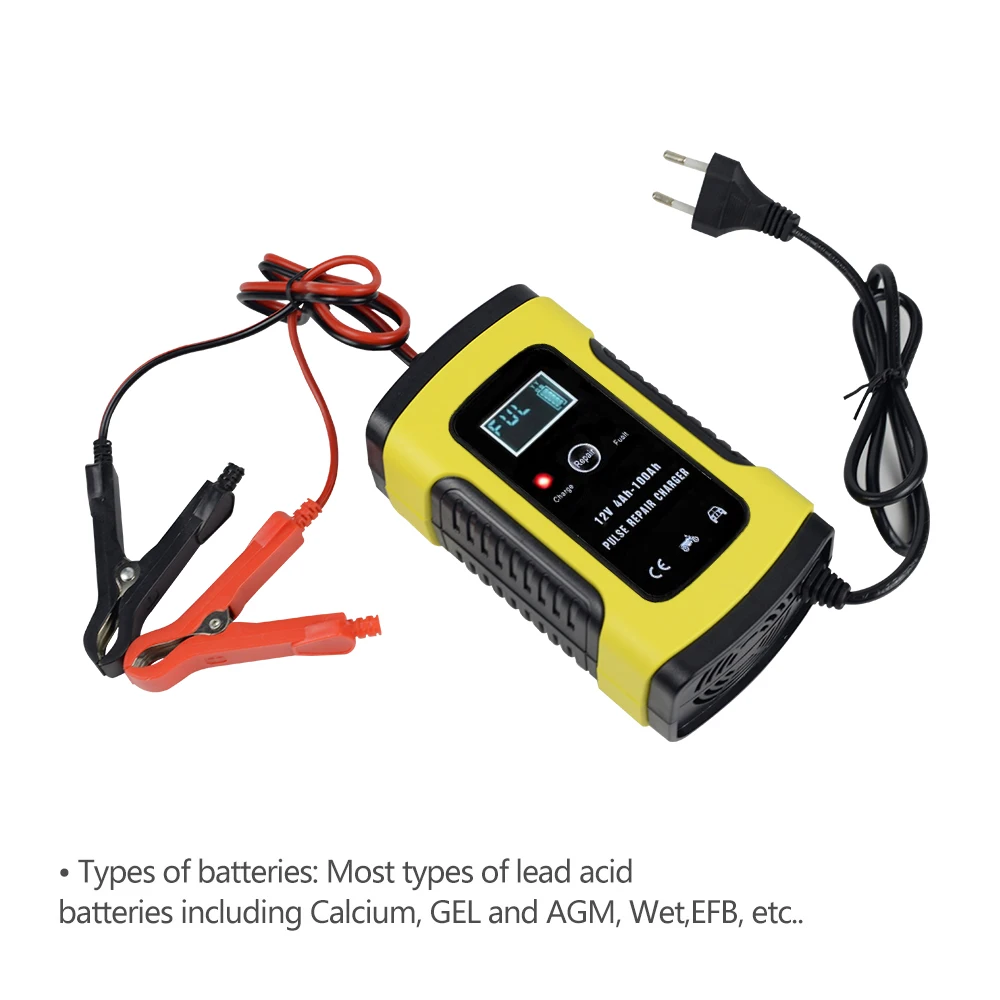

Types of batteries: Most types of lead acid batteries including Calcium, GEL and AGM, Wet,EFB, etc..

Switchmode technology: Yes

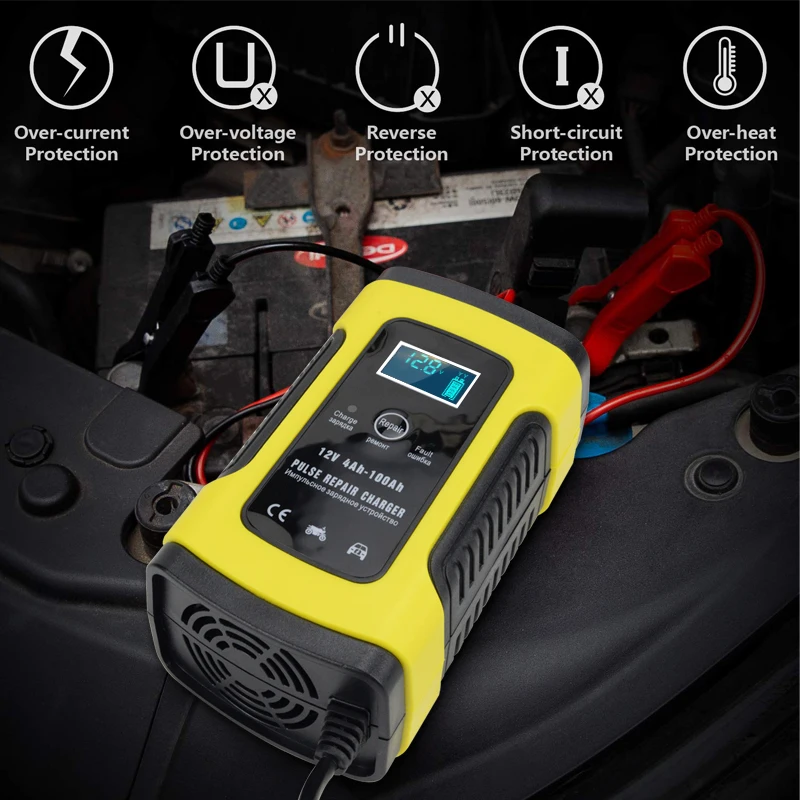

Polarity protection: Yes

Output short protection: Yes

Non battery link protection: Yes

Over voltage protection: Yes

Over temperature protection: Yes

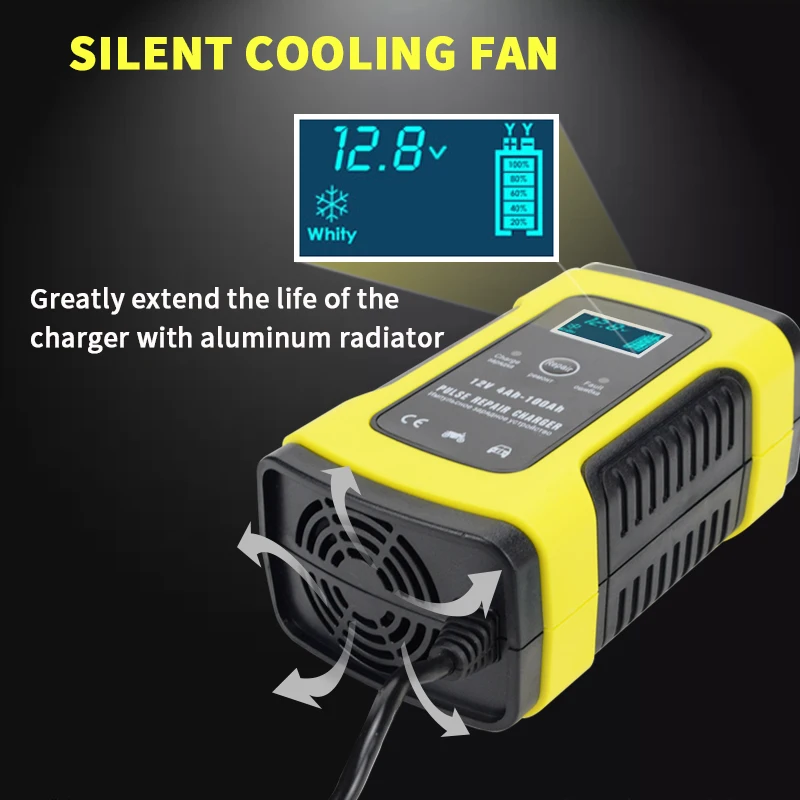

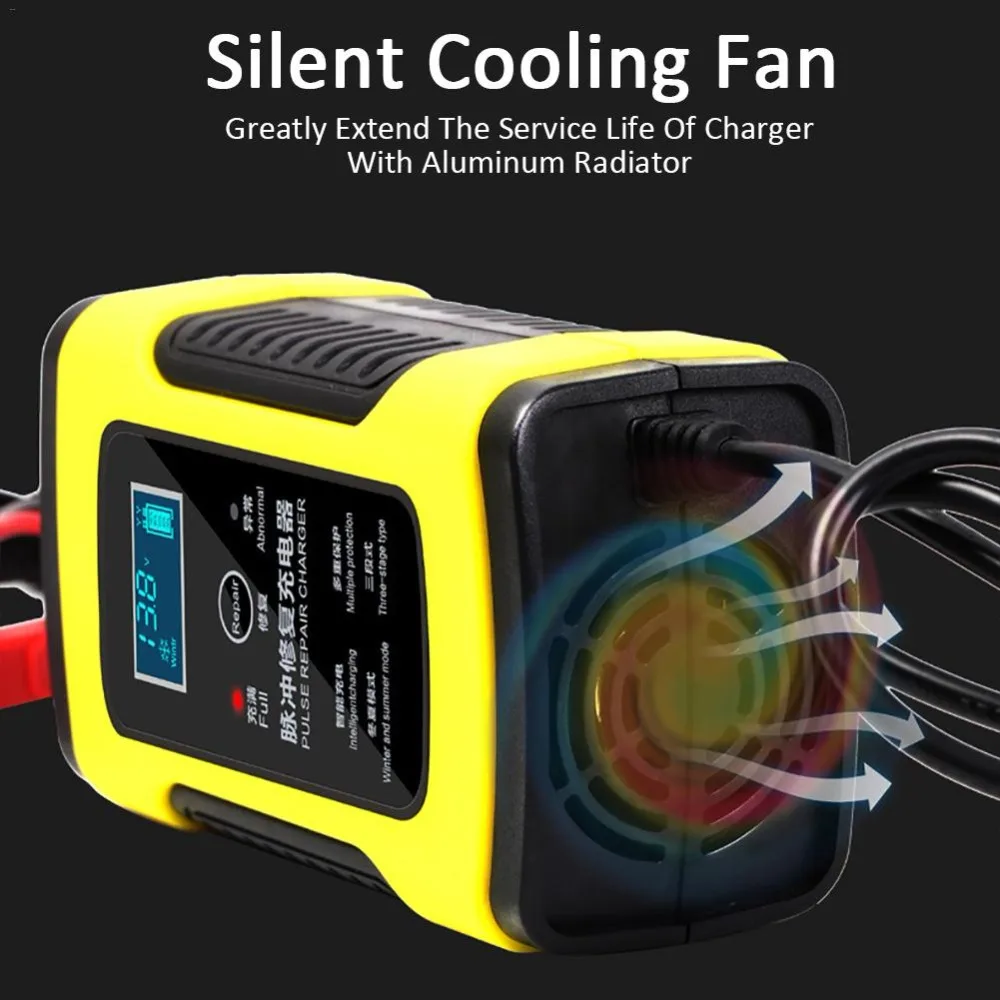

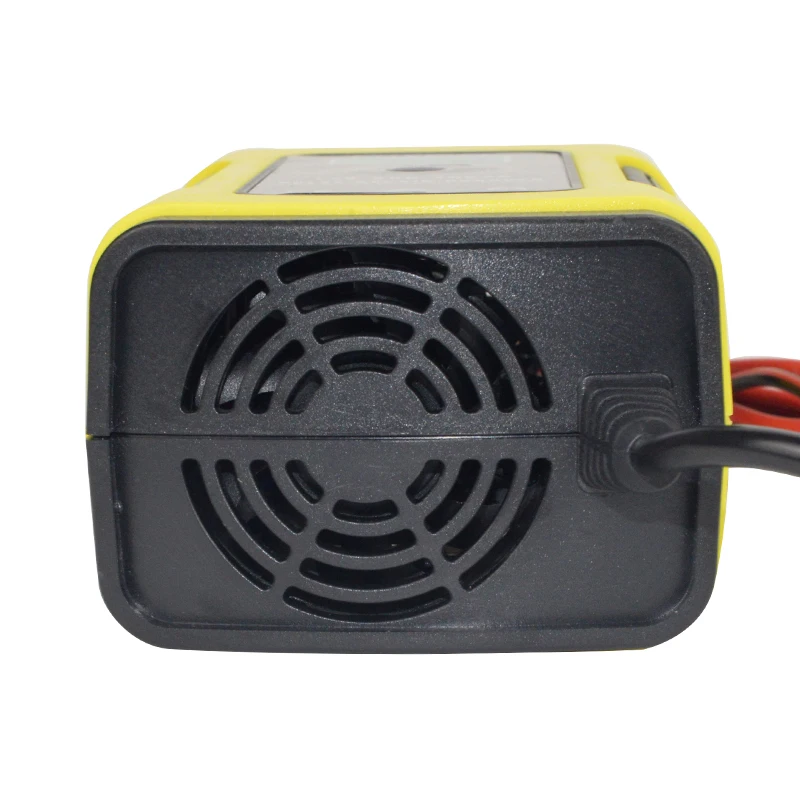

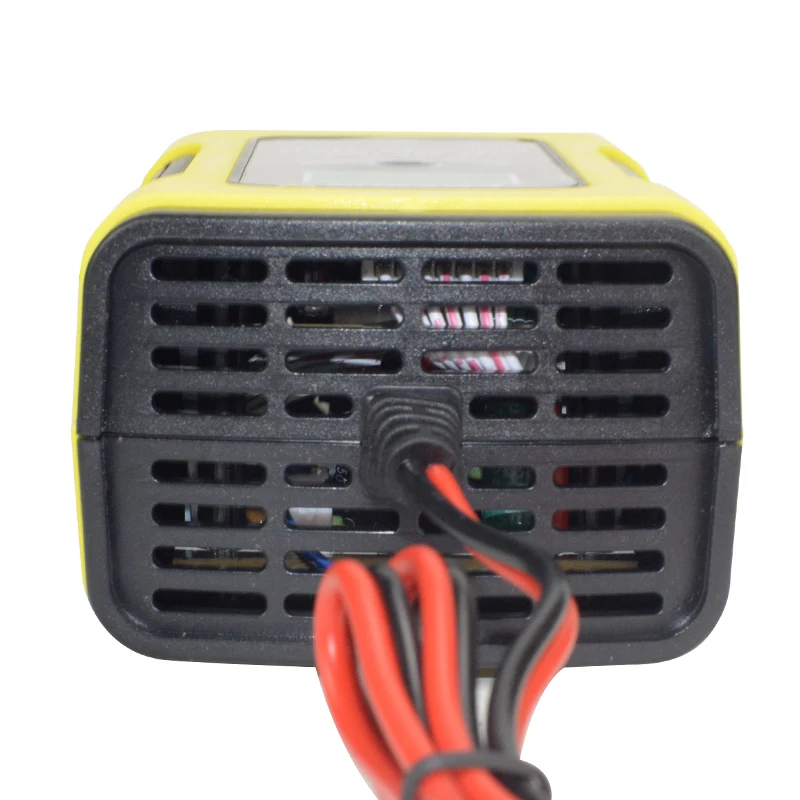

Cooling:  Fan

Product Information:

10. Winter and summer mode, voltage sub-charge: the charger automatically detects the outdoor temperature, automatically starts the winter and summer mode； automatically selects the appropriate charging voltage according to the temperature without adjustment.​

How to Use:

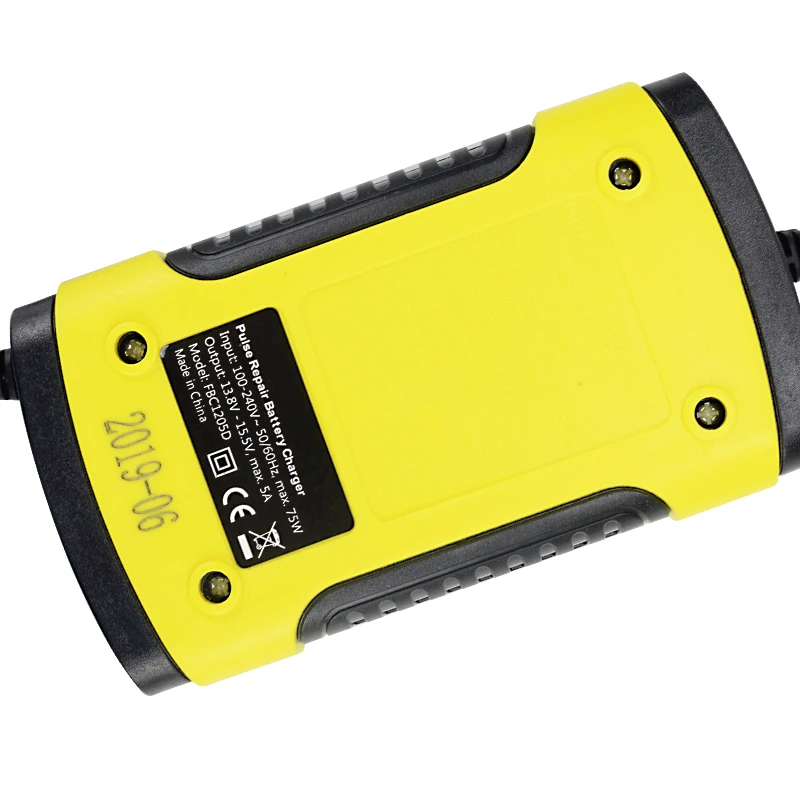

1. Check your battery parameters is compatible to the charger (at the back of the charger)

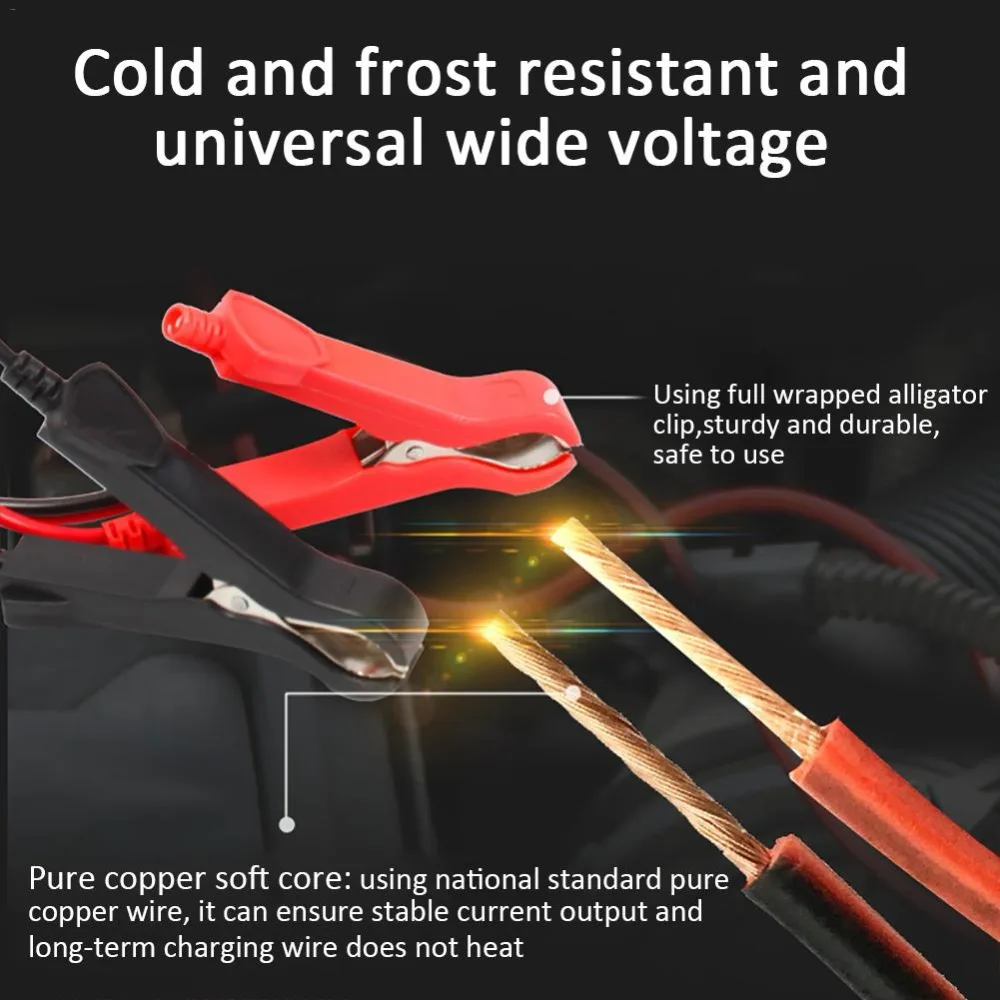

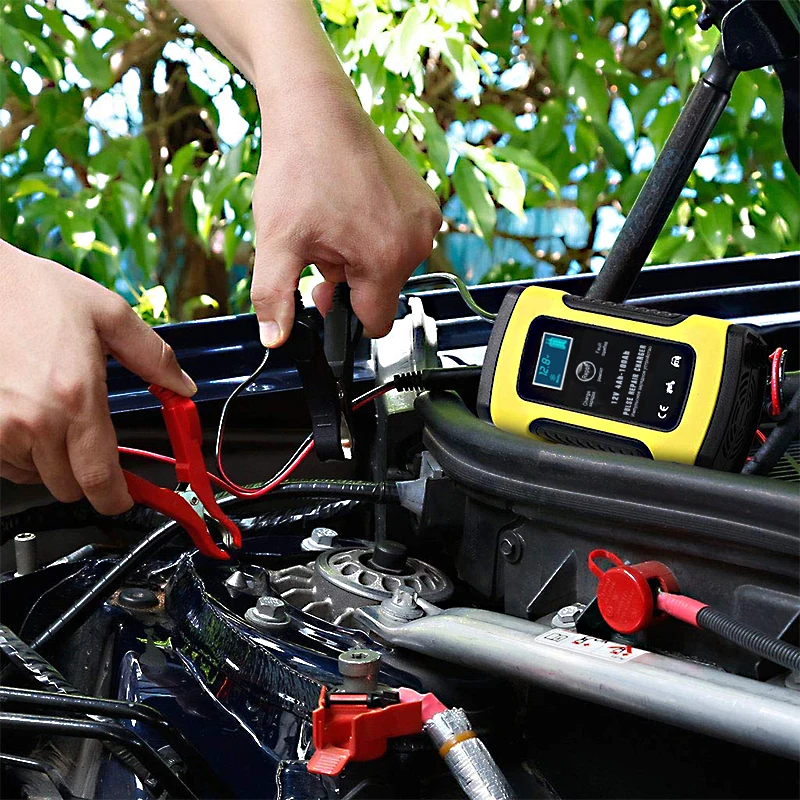

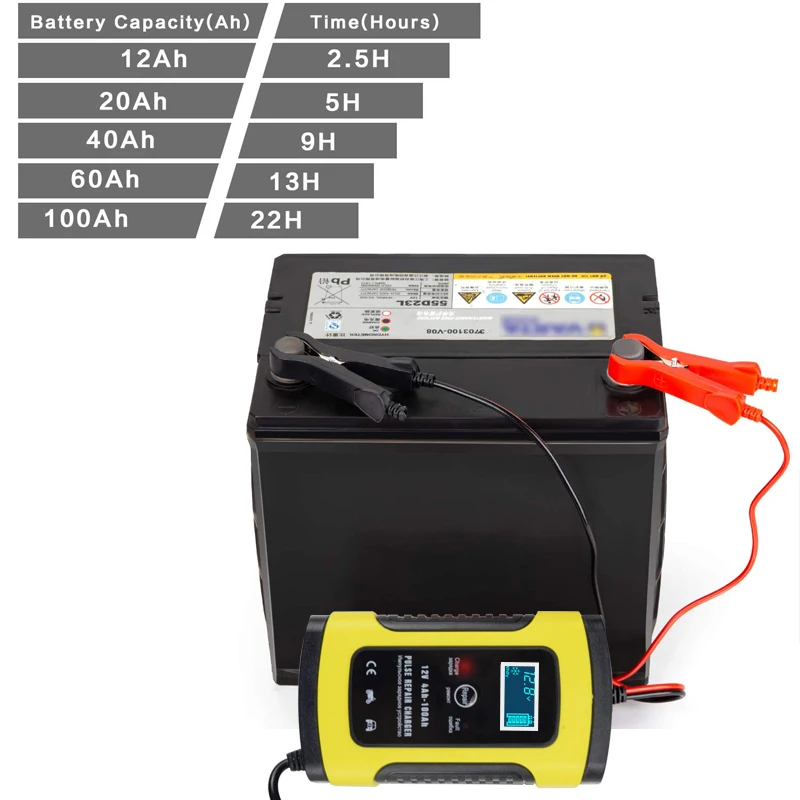

2. Connect the red clamp to the positive pole(+), black clamp to the negative pole(-)

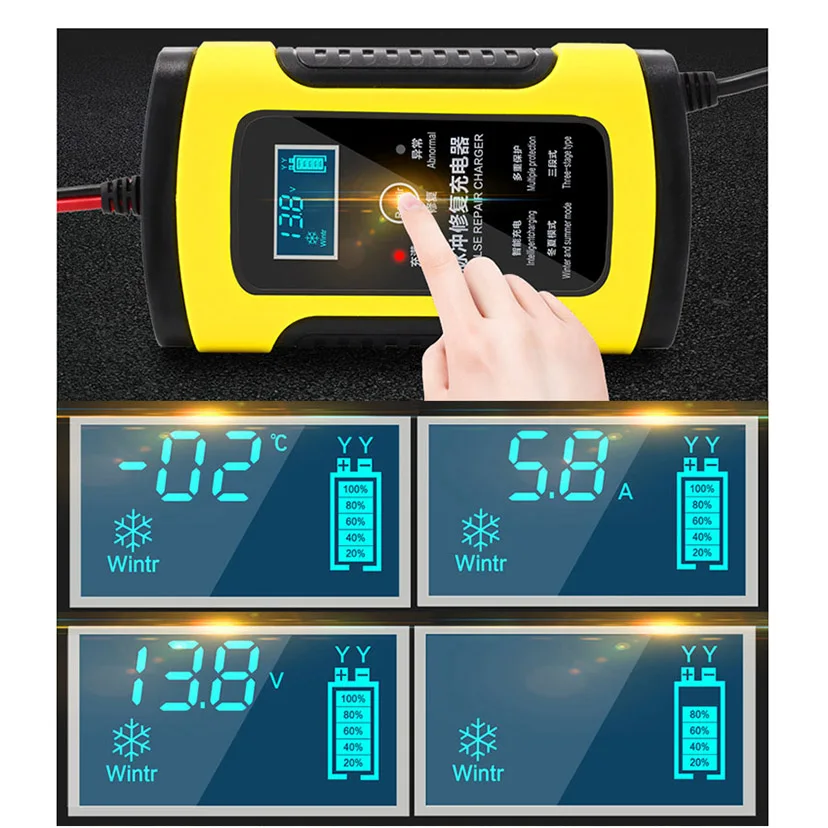

3. The LCD display will show battery voltage, charge current and inside temperature (Temperature is for reference only, allowed tolerance).

4. Wrong battery connection: "El-I-" will displayed on screen, the indicating lamp will flash.

5. Connect the charger with AC power source, the charger will start to operate (the Charge-lamp will start to flash in red).

6. Once the battery is fully charged, the battery bar on screen will in FUL" Status, meanwhile, the charge indicating lamp will keeps on. Keep the charged status in 1-2 hours is highly recommended.

7. Charging completed, remove the charger.

​

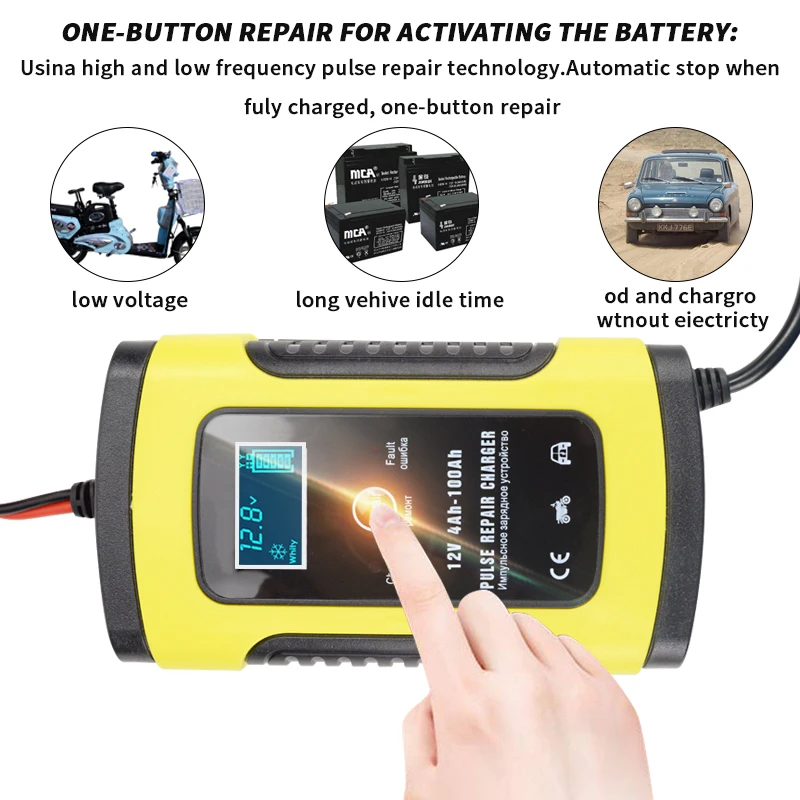

How to Pulse Repair Battery:

1.Connect the battery with the Charger and switch on AC mains, then press "Repair" Button. the "PUL" will display on the screen, the Charge-lamp will start to flicker in red. 2.The suggested Repair time for motorcycle battery is 5 hours, For car battery is 8 hours.

3.Press "Repair" button again; the battery will automatically switch to normal charging mode.

4. Check the battery temperature while Repair, stop to Repair the battery when the battery temperature too hot.The longest repair time is 24 hours and will automatically switch into normal charging mode when reach the maximum repair time.

5. The battery will be charging even the battery is in Repair-mode, the battery will be fully charged if the repair takes long hours. One more hour charging is recommended when the battery screen shows "FUL". Double check whether or not the battery is fuly charged when charging completed.

Frequently Asked Questions:

1. The LCD display "FUL", but the battery is yet fully charged.Reason: As the Battery inside resistance is too large or the capacity of battery is reduced for Feeder Battery, vulcanized Battery, Low voltage/Long-idle time Battery.the voltage of battery will immediately soar, causing the "FUL" status occurs when the attery is yet fully chargedSolutions: Press "repair" button, activate the battery.

2. Battery voltage is normal, however the charger does not work: Reason: There is no AC power input.Solutions: Check the AC-power source are working or not, changing the socket and re try it.

3.Unable to reach "FUL" status after charging in long time.The battery has been vulcanized, or feeder, or water depletion in the battery. The battery voltage will keep low status, causing the battery unable to get fully charged.Solutions: Stop to charge when the battery is heating, check the battery is in shortage of liquid or Not. please charge cycle 1-2 times (Discharge-Charge, Discharge-Charge)
