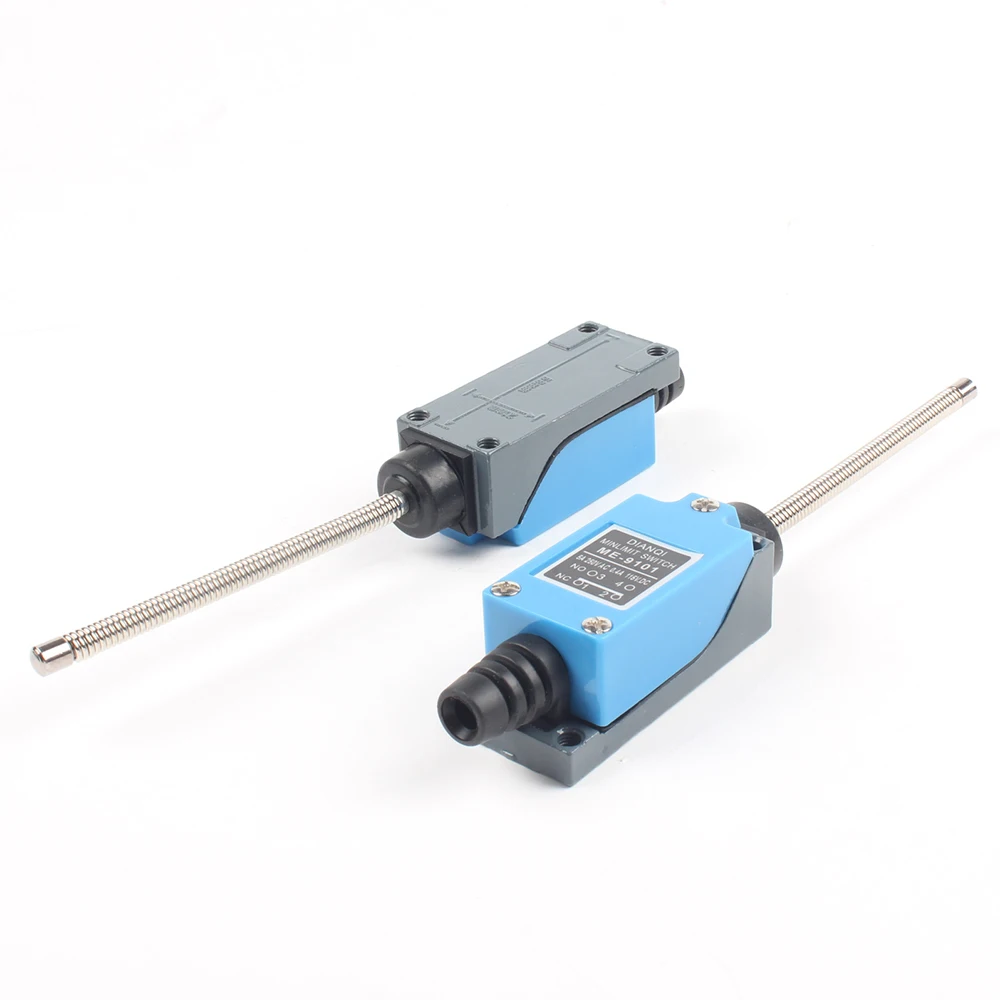

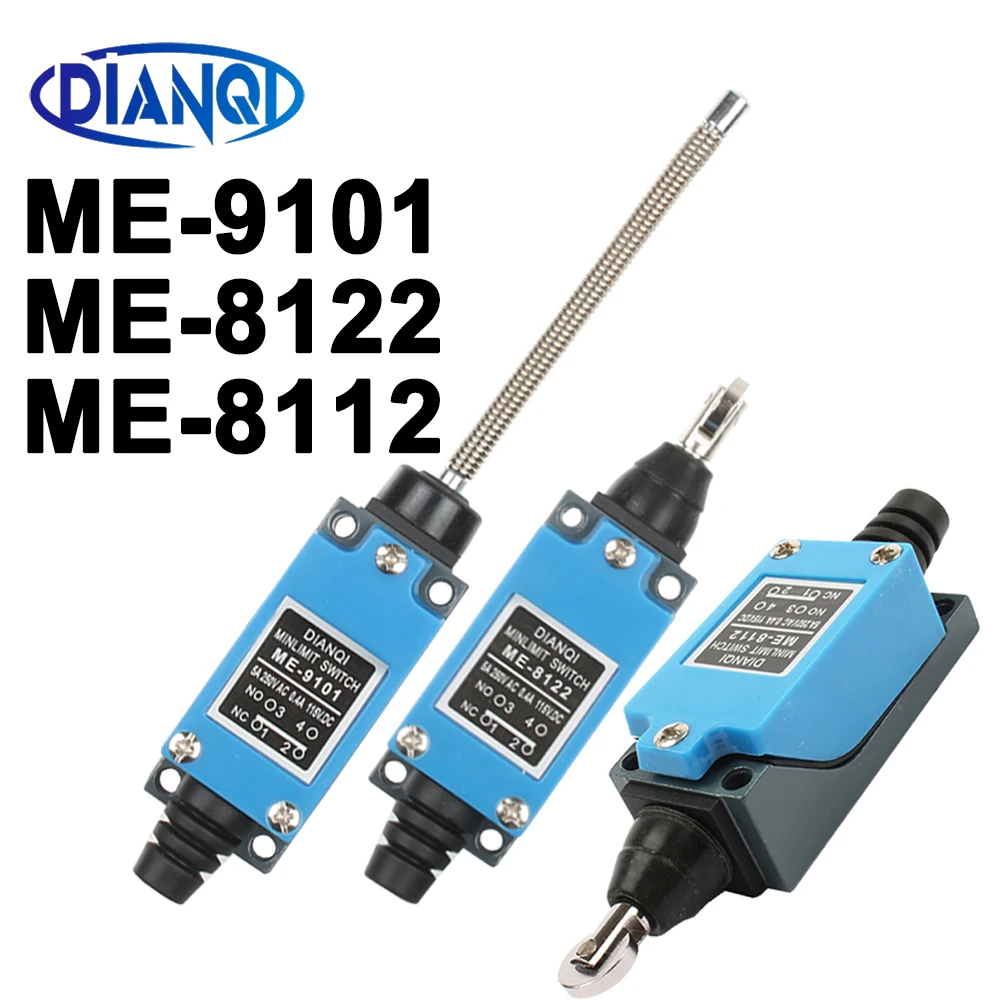

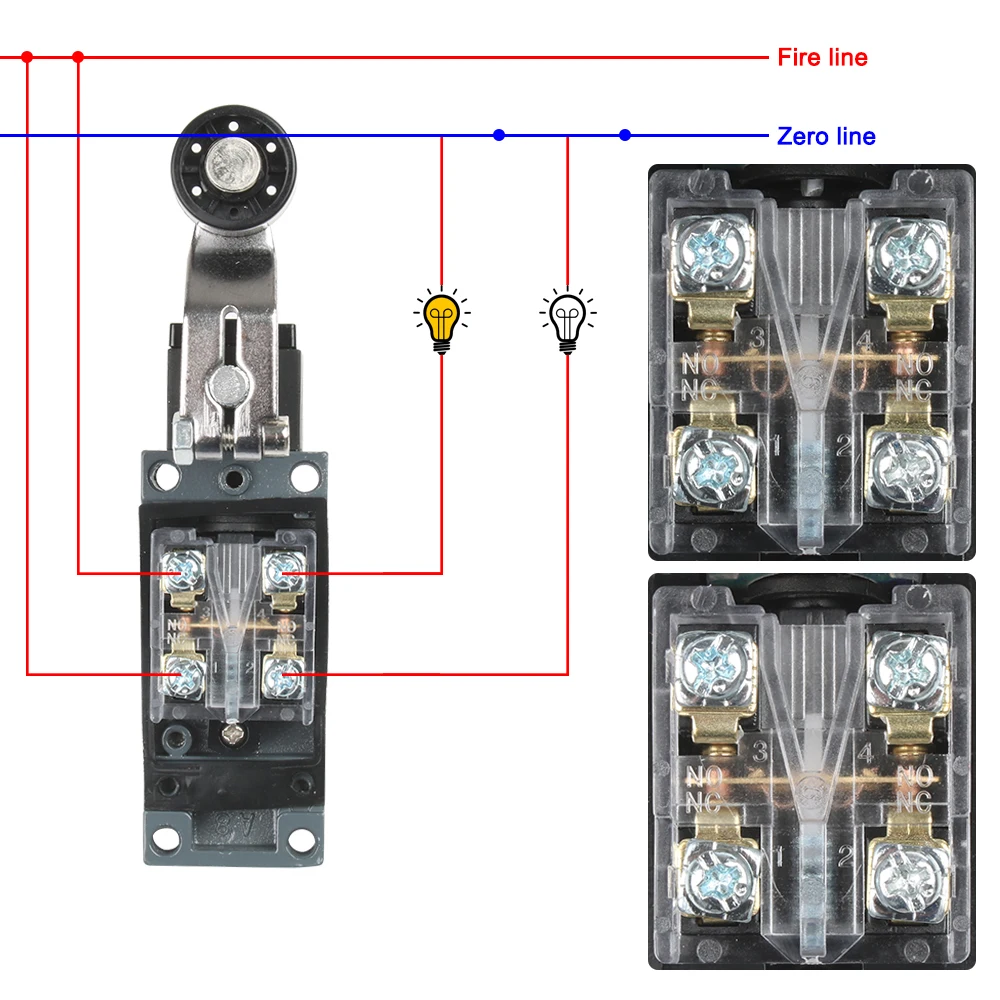

1.Description:
Limit switch ,compact design,long mechanicatical life.
Easy wiring with full open terminals.High precision, high reliabilityDust proof ,water proof ,oil proof construction (IP64)
Double circuit type.5A load current
Strong body with combination of reinforced plastic and aluminium Die Casting compaonents.
Build in basic switch with doule spring mechanism.

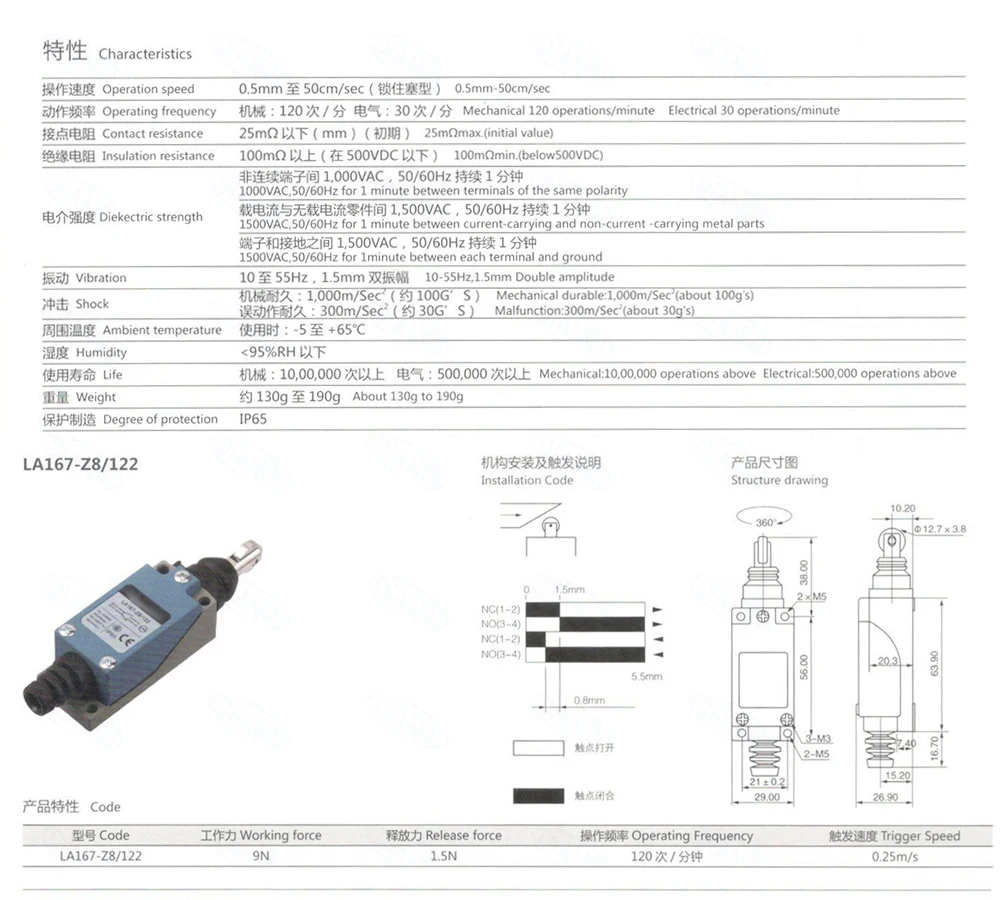

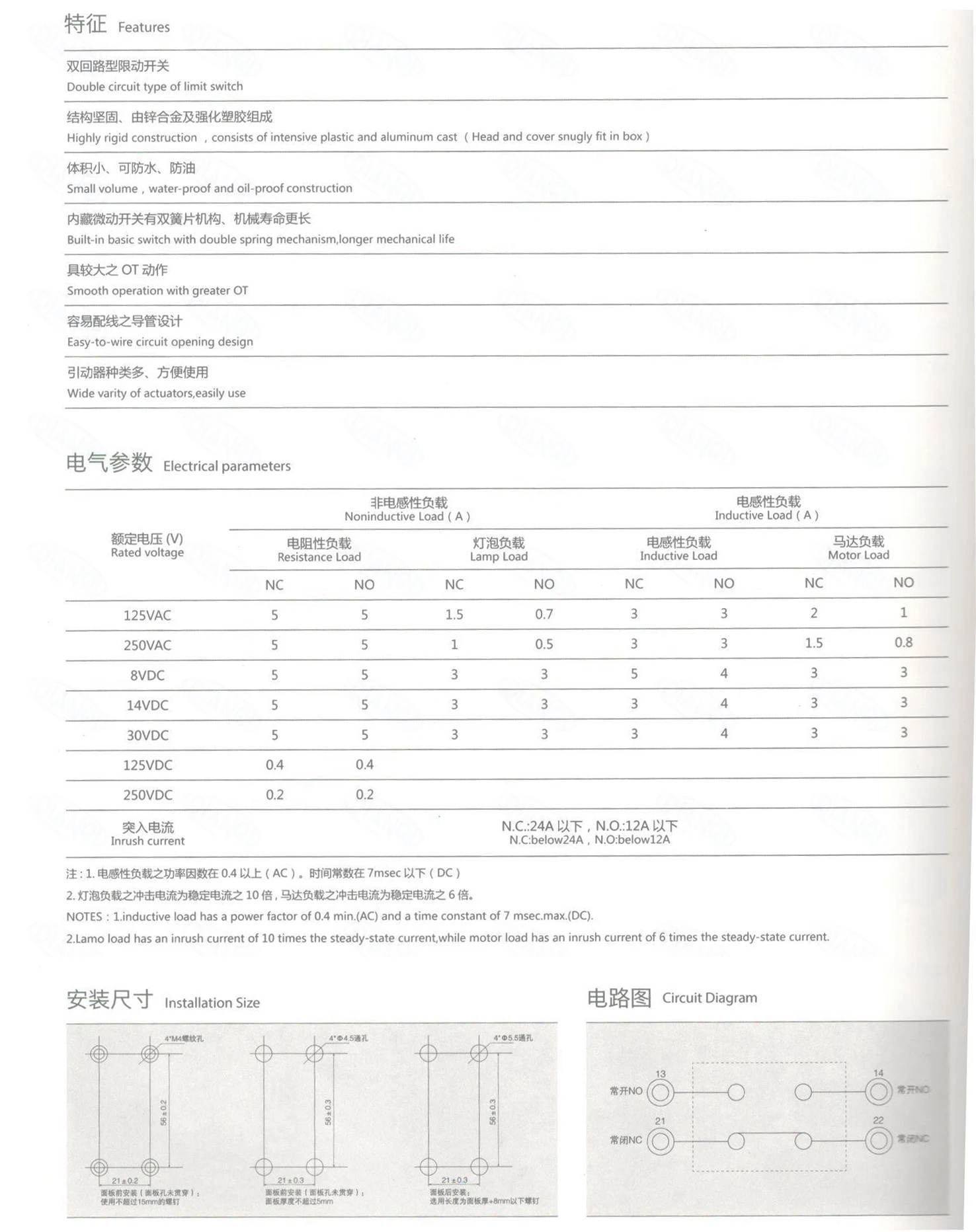

2.Characteristics:

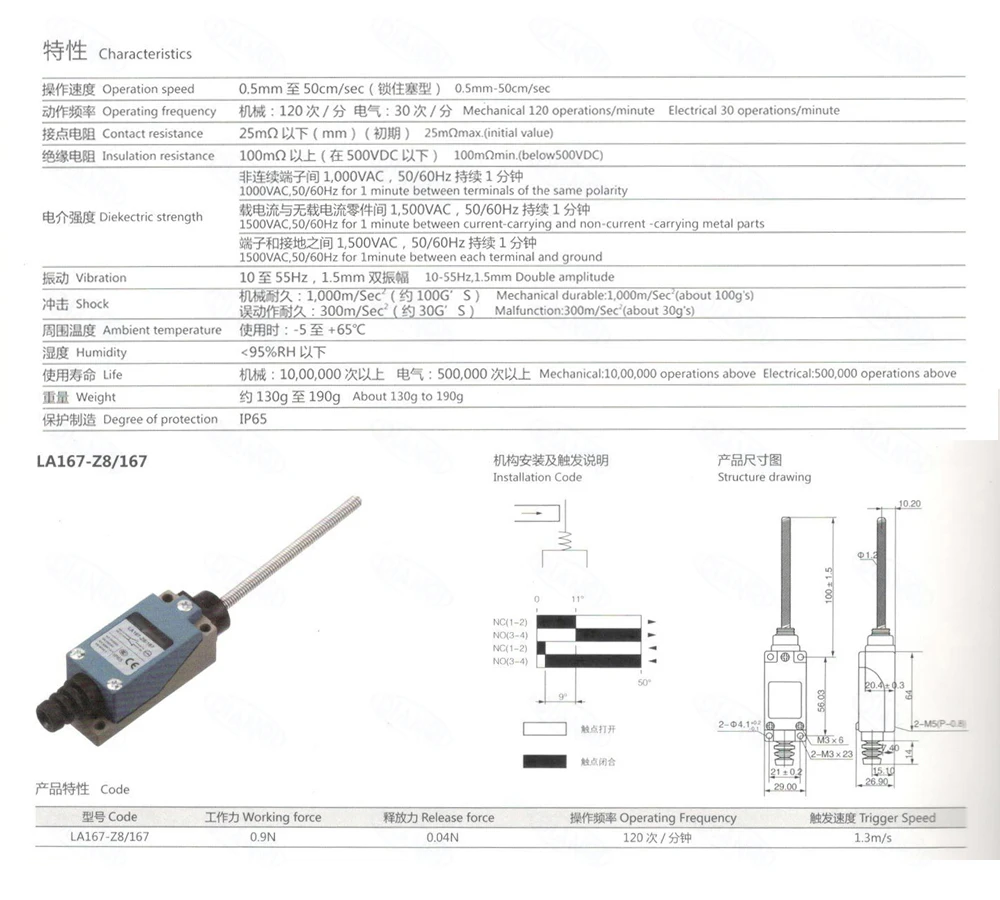

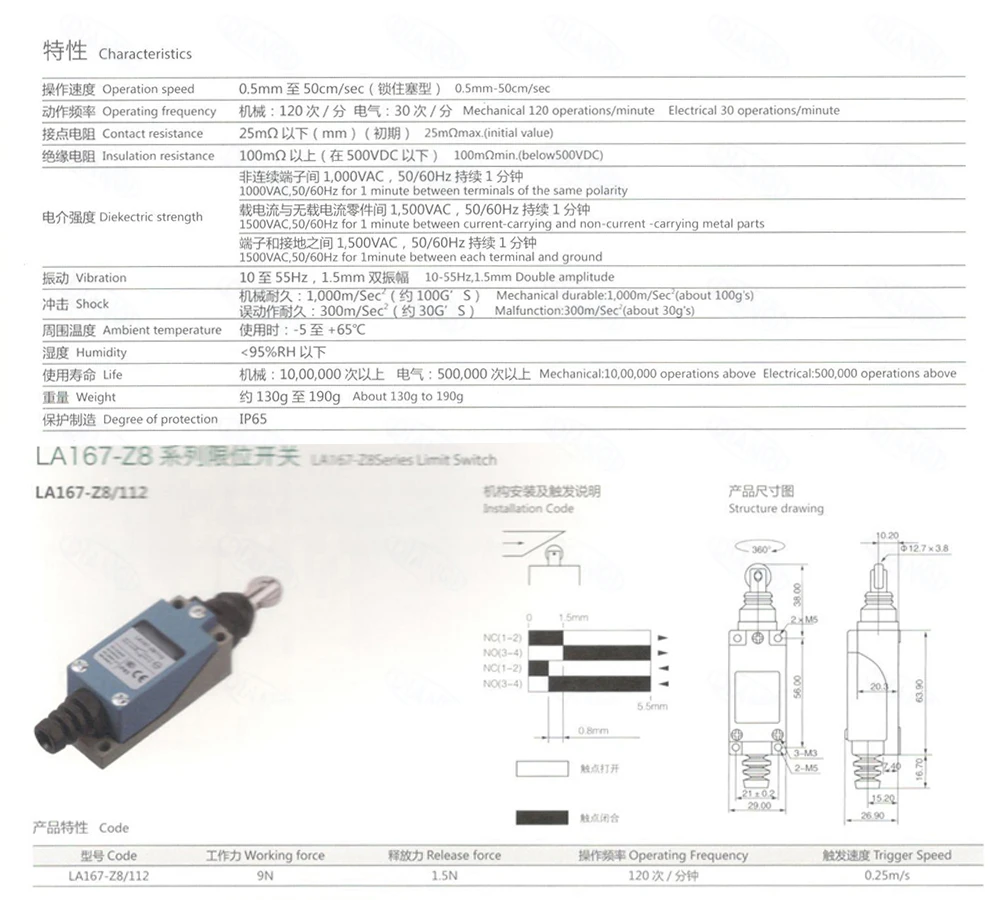

Operation speed0.5mm-50cm/secOperating frequencyMechanical: 120 operations/minute, Electrical: 30 operations/minuteContact resistance25mΩ max. (initial value)Insulation resistance100mΩ min. (at 500VDC)Dielectric strength1000VAC, 50/60HZ for 1 minute between terminals of the same polarity
1500VAC, 50/60 HZ for 1 minute between currentcarrying
and non-current-carrying metal parts
1500VAC, 50/60 HZ for 1 minute between each terminal and groundVibration10-55HZ,1.5mm double amplitudeShockMechanical durable: 1, 000m/Sec2 (about 100GS)
Malfunction: 300m/Sec2 (about 30GS)
Ambient temperature-5°C to +65°CHumidity<95% RHLifeMechanical: 10,000,000 operations above
Electrical: 500,000 operations above
WeightAbout 130 to 190gDegree of protectionIP65

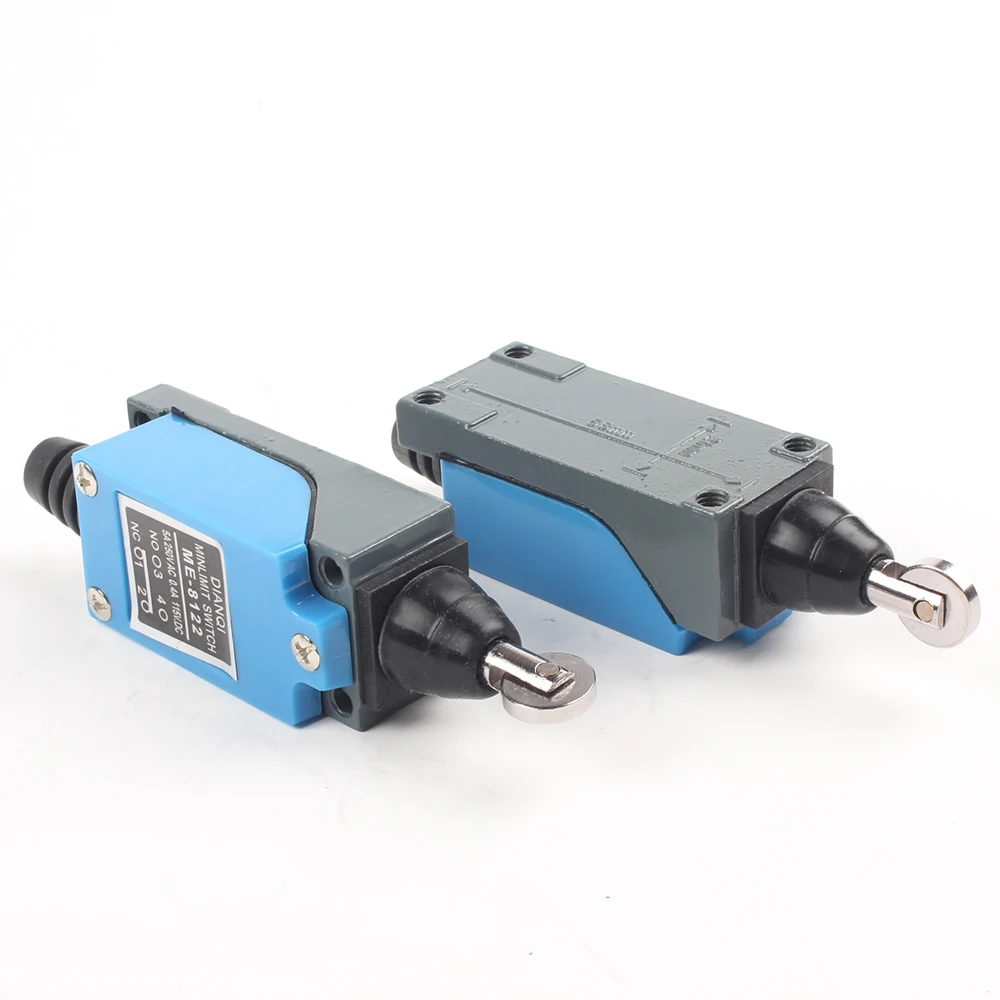

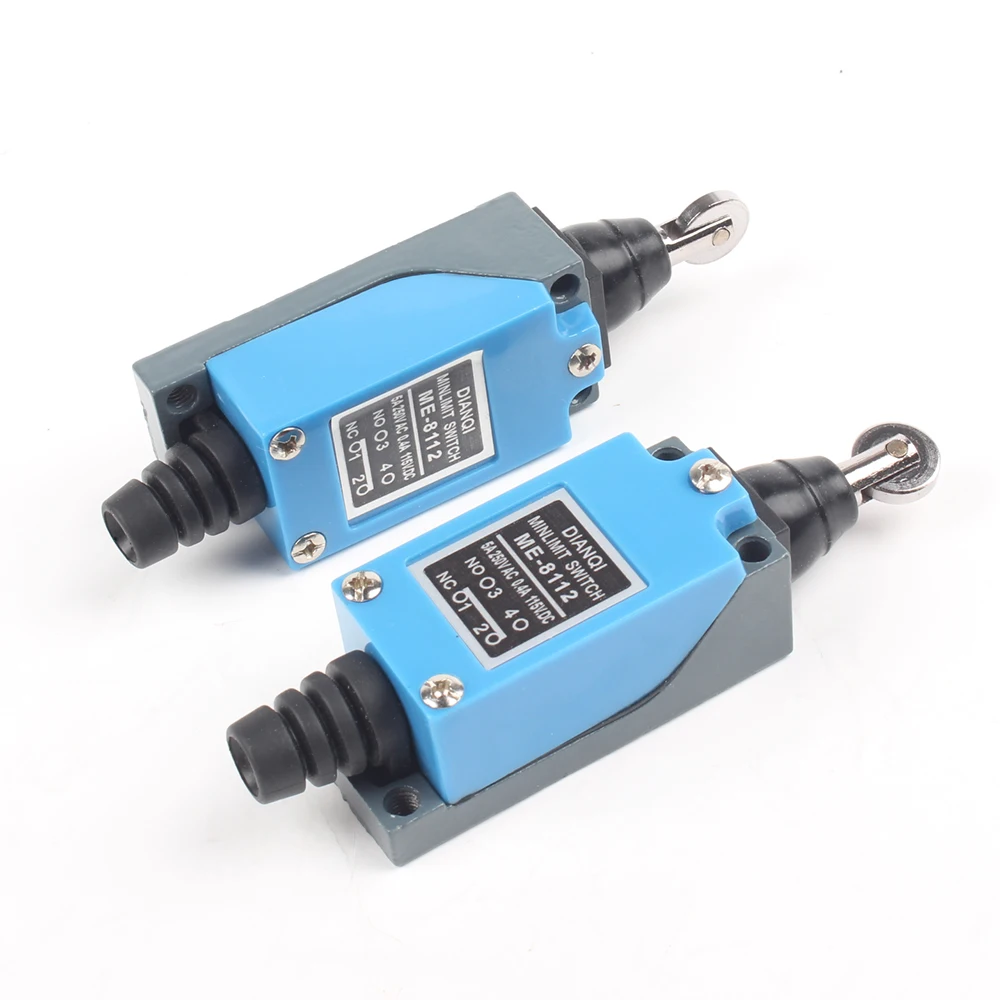

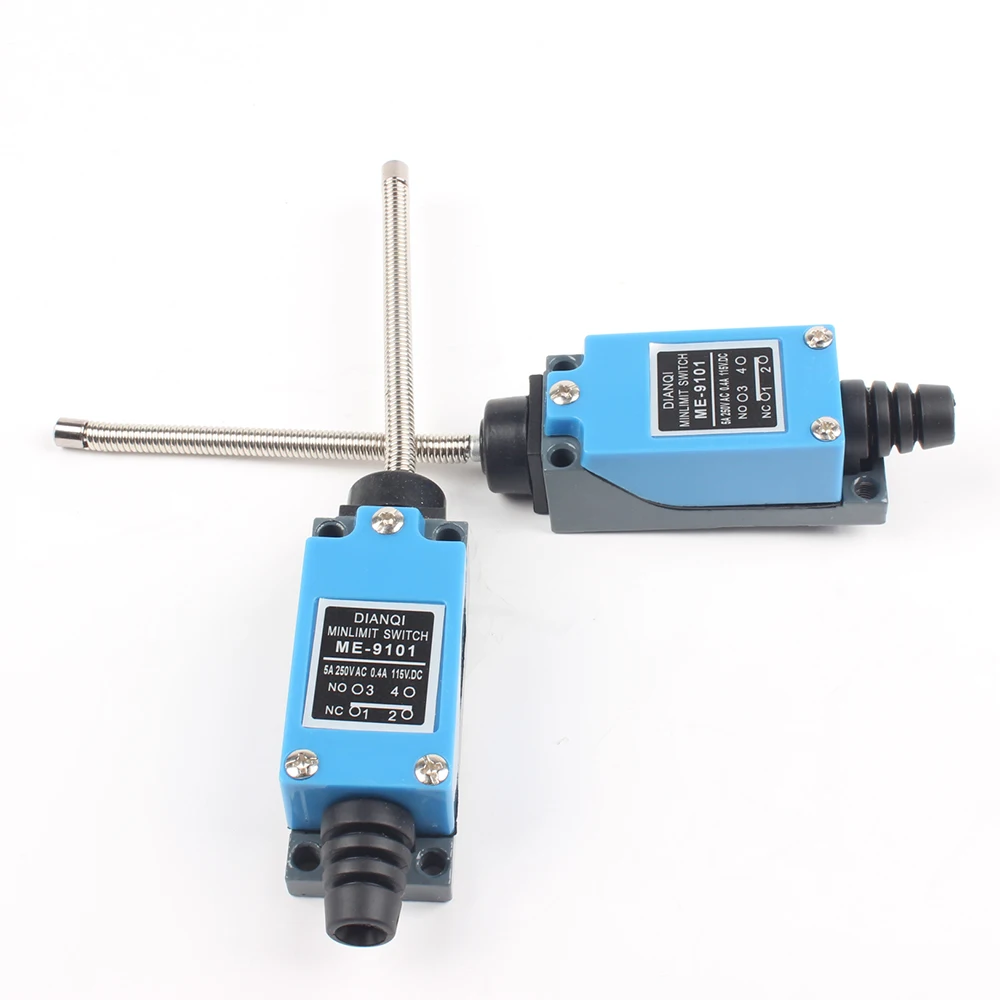

3.Operating characteristics:
Models
TZ-8104
TZ-8108
TZ-8107
TZ-8111
TZ-8112/8122
TZ-8166/8167/8168/8169
OF Max.
750g
750g
750g
900g
900g
150g
RF Min.
100g
100g
100g
150g
150g
-
PT Max.
20º
20 º
20 º
1.5mm
1.5mm
30mm
OT Min.
50 º
50 º
50 º
4mm
4mm
-
MD Max.
12 º
12 º
12 º
1mm
1mm
-
OP
-
-
-
26 ± 0.8mm
37 ± 0.8mm
-
