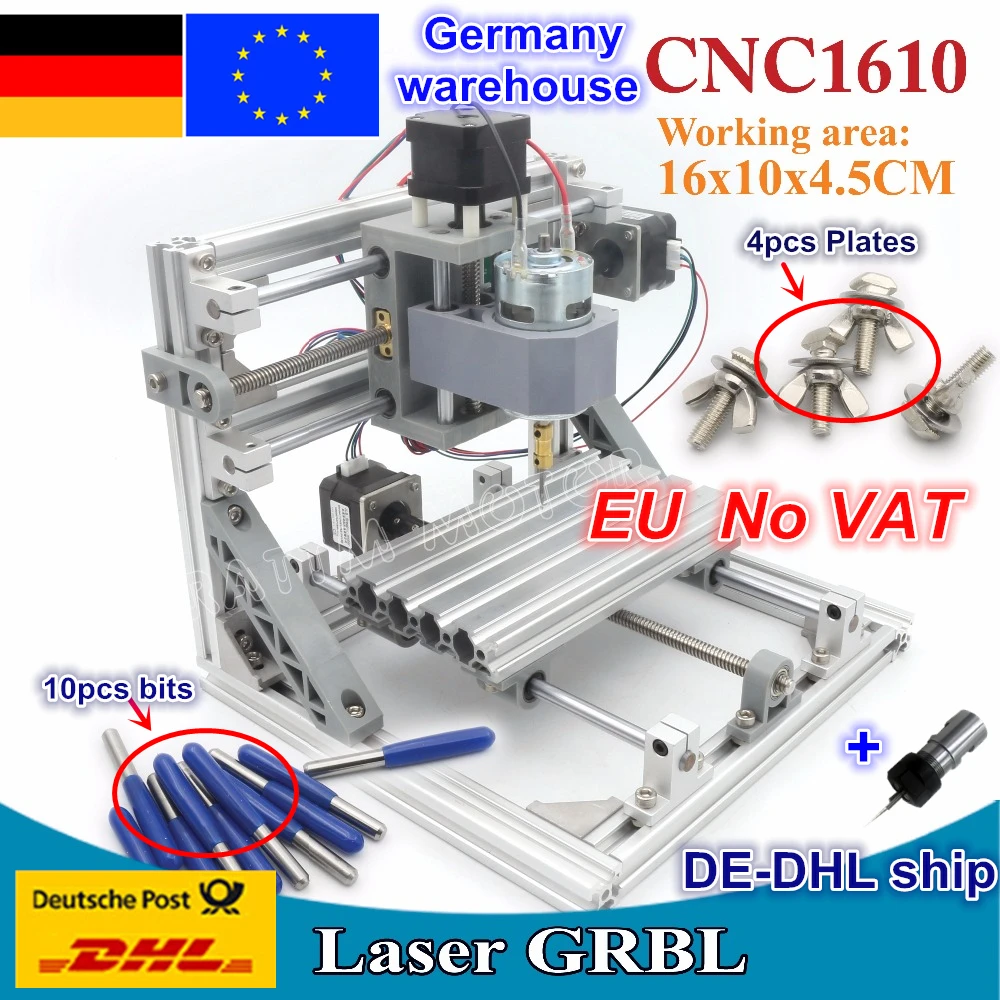

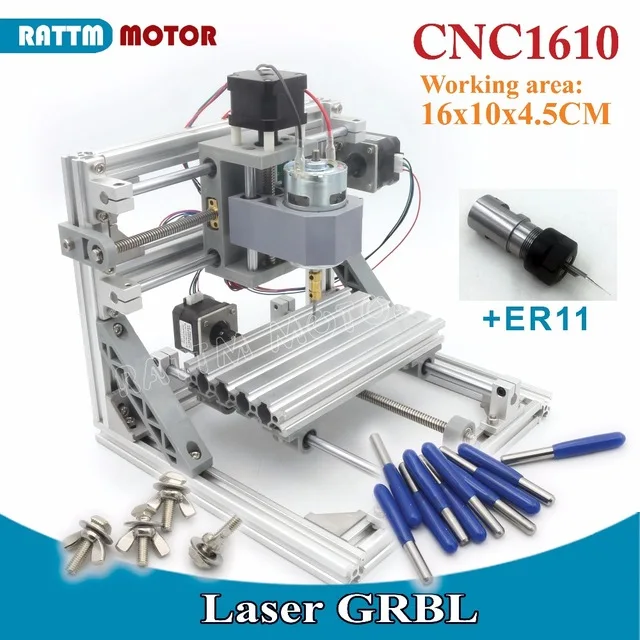

DE free ват CNC 1610 с ER11,DIY GRBL CNC гравировальный станок, мини Pcb фрезерный станок, станок для резьбы по дереву, фрезерный станок с ЧПУ
RATTMMOTOR CNC- POWACE Store - Надежность 94.5%
Более 4389 подписчиков, дата открытия магазина 21.06.2012
- Положительные оценки: 96% (227)
- Соответствие описанию: 94%
- Отвечает на сообщения: 94%
- Скорость отправки: 94%
Последнее обновление: 01.06.2022
We don't have any 1610 CNC router in our EU warehouse, Because AlIExpress system limit, we can't offline this item,
Notice:
The free ship and free VAT Europe countries area:
Austria, Belgium, Bulgaria,Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain ( without Canary Islands) ,Sweden, United Kingdom.

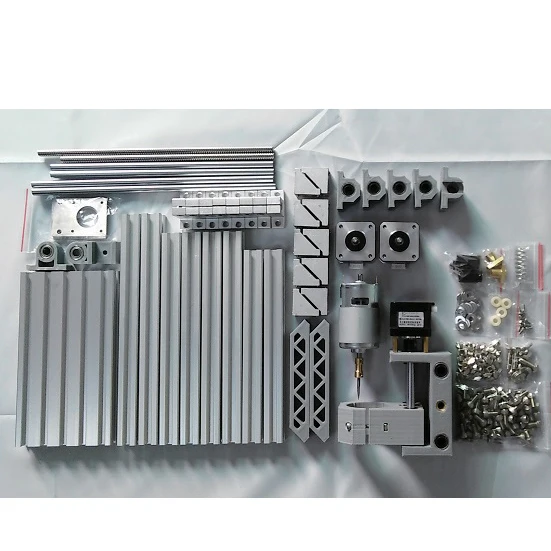

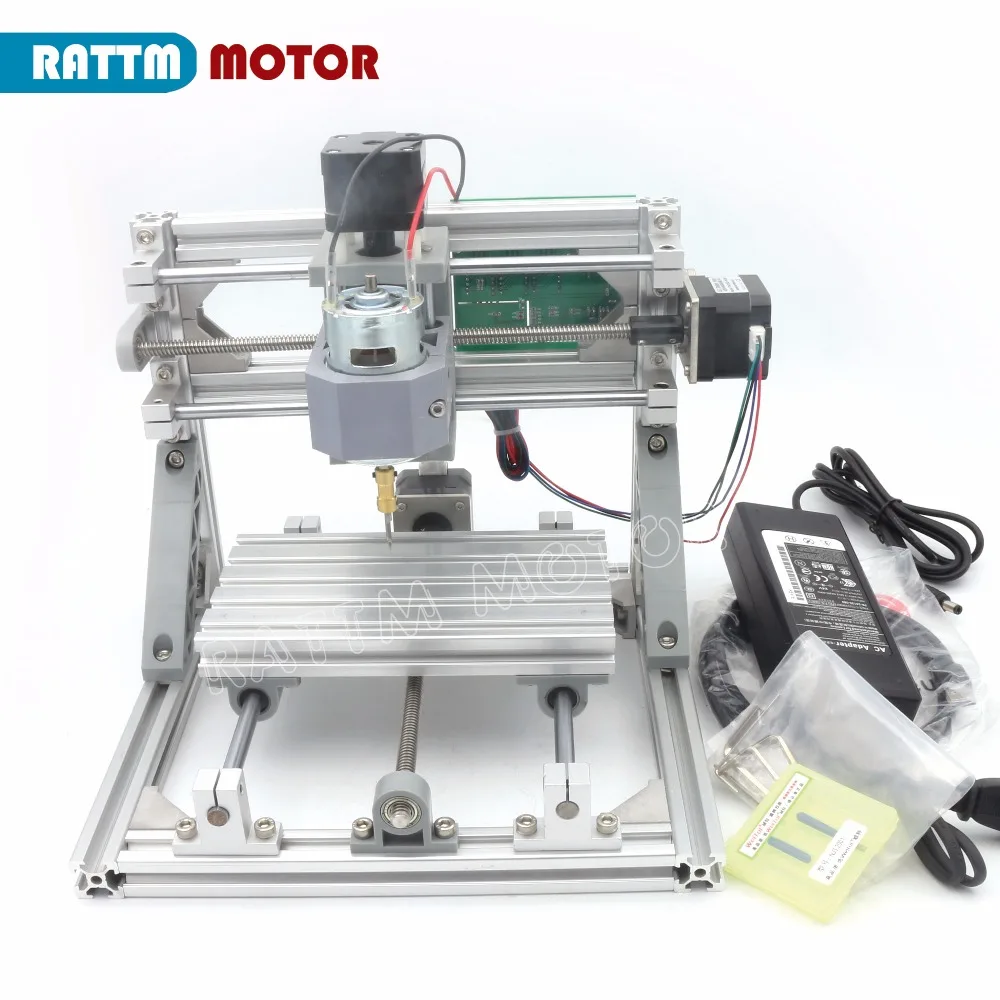

Package include:

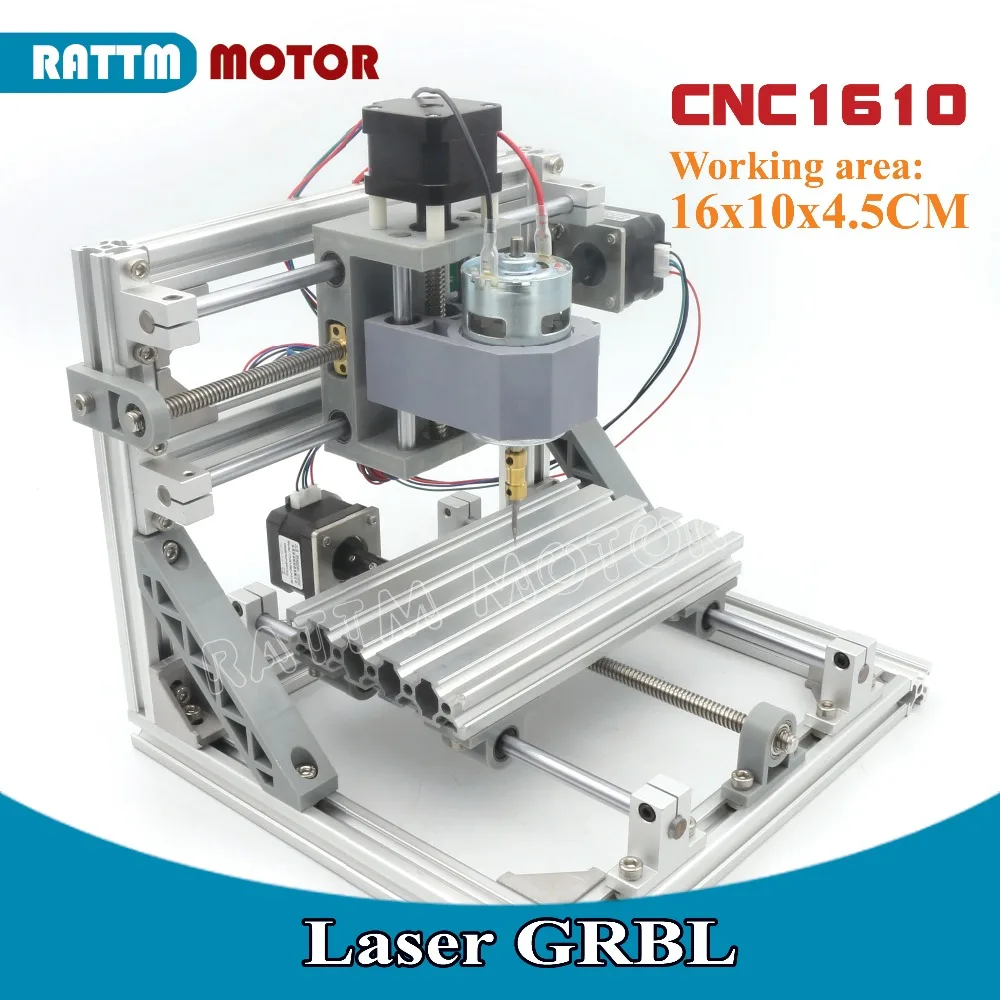

Introduction:
Body used profiles and plastic, small size, light weight, USB interface, GRBL control system, learning, entry preferred. Can use carving knife, but also can use laser engraving.
Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.
Specification:
Profile Dimensions: 260x240x220mm
Travel (engraving range): 160x100x45mm
Table size: 180x100mm
Screw: Professional T8 screw, lead 4mm, double copper nuts eliminate the poor back
Stepper motor: 42 stepper motor
Voltage: 12V, phase current 1.3A, phase resistance 2.1 ohms, torque 0.25N.m
Spindle: 775 spindle motor (12-36V) 24V: 7000r / min, 36V: 9000r / min
Power: 24V 5A power adapter (input voltage 110-240V), simple and convenient
Gray Part Material: Plastic

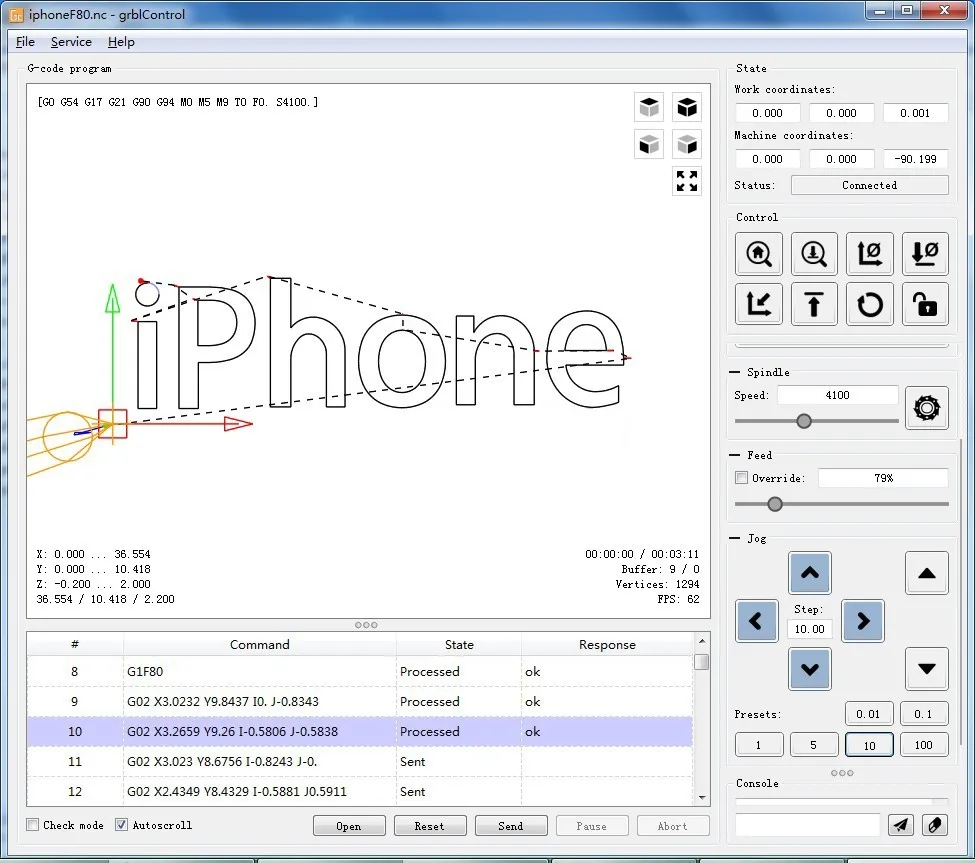

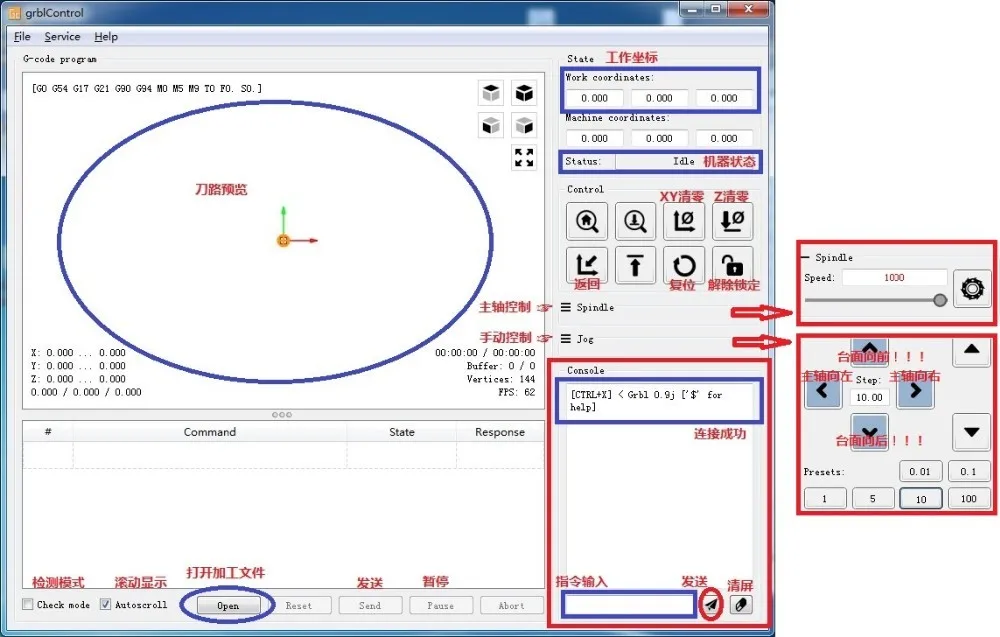

Control software: GrblControl
Design software: All CAM (computer aided manufacturing) software can be
System requirements: windows XP SP3, win7 (32/64 can be). Linux
Interface: USB
Lead screw with T8 trapezoidal lead. Double-headed lead 4mm, double nut spring back to eliminate poor

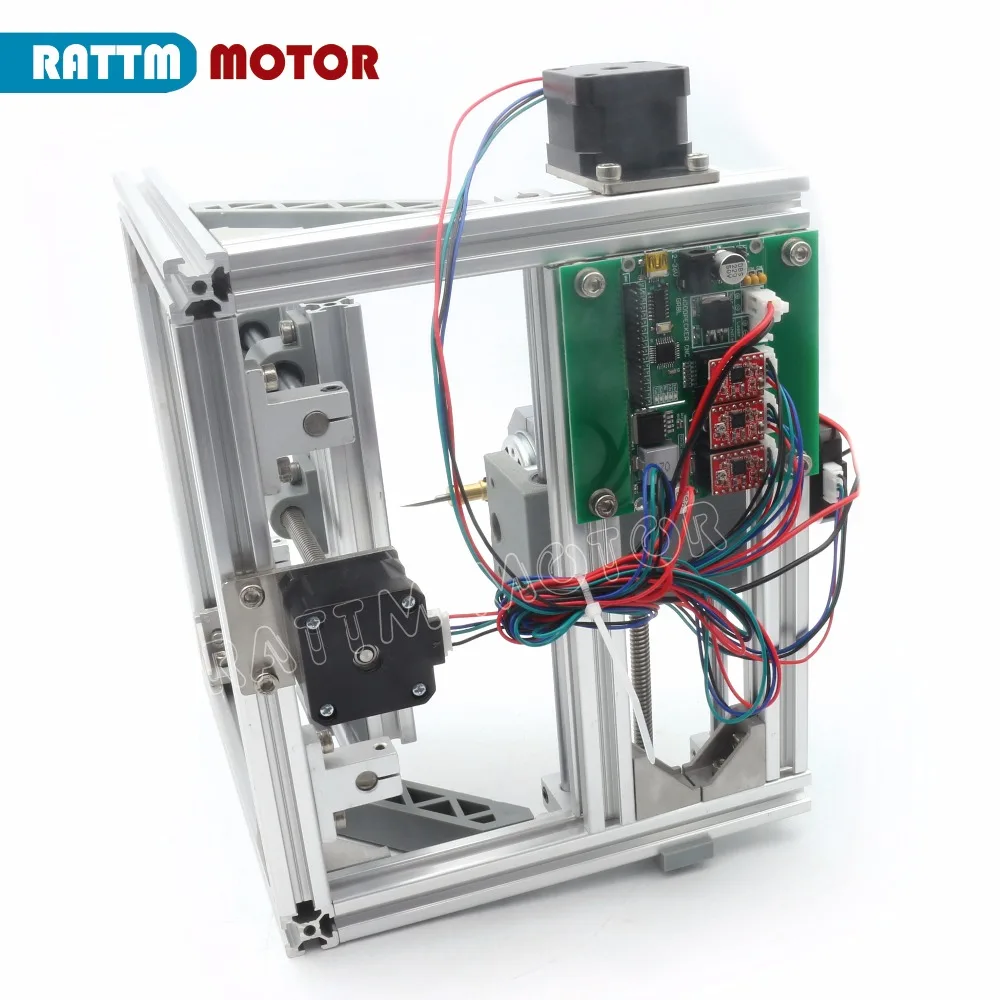

I. GRBL 0.9J,USB port cnc engraving machine control board, 3 axis control
Specification:
Connection: USB (USB-CH340)
Software: GRBL controller, UniversalGcodeSender
Input voltage: 12-36V
Master chip: atmel 328P (arduino nano)
Stepper motor driver: A4988
Spindle drive chip: MOSFET (recommendation 12~36V, current : within 10A )
Spindle PWM speed: Support
Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)
Laser engraving: Support
Power Interface: 5.5-2.5mm DC interface
Main application:
Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.
Shipping
===================================================================
This Item will ship within 1-2 business days by DHL Paket on payment received .
We are not responsible for wrong or undeliverable address,please
Double check your address when you write in AliExpress, if you want change before we ship out.pls notice us the new address.
Delivery time :
By "DHL Paket" delivery 4-15 working days,
tracking web: www.dhl.de/en/paket/information/sendungsverfolgung.html
If the order is during the weekends,it will take 2 days longer,we are not responsible for any delay of order if we have shipped out,because the speed of shipping is out our control, thanks for your understanding.
Payment
===================================================================
1.Free VAT and free import duty (TAX ) within EU counties.
2.Before purchasing, pls confirm with us whether in stock.
3.Pls make payment within 3 days of the order if possible.
4.Alipay(escrow),Credit Card,Western Union,Bank TT, paypal etc are accepted.
Problem & Feedback
===================================================================
We appreciate your positive feedback and 5 stars,this item is for getting feedback rating only without any profit
If you give us the feedback after receive the goods within 3 days,will be presented the next time you purchase a beautiful gift.
1.)we care about our valued customers,and will always try to help you,hope to establish long business with you.
2.)Pls give us the opportunity to resolve any problem, we understand the concerns and frustrations you might have,and will try our best to resolve the issues.
3.)Pls contact us by Trademanager or email before leaving any negative feedback or opening any dispute on the site,we will help you to resolve the problem,
Refund
===================================================================
Any reason required for all refund. Item must be in it's original condition and no physical damage,buyer responsible for all shipping cost.
When you have the parcel,and not satisfied the goods or it is other problem like as broken,pls tell us the detail reason and provide the photos.
Contact us
===================================================================
Welcome worldwide customer inquire and questions,we will try to do our best to feedback customer’s email within 1-2 business days,if not pls check the mail box again.
Customer’s satisfaction is very important to us.
DE ship 1610 GRBL control DIY mini CNC machine working area 160x100x45mm 3 Axis Pcb Milling machine,Wood Router,cnc router v2.4
-
Control softwareGrbl Control
-
DriveNEMA17 Stepper motor
-
Gray Part MaterialPlastic
-
PortUSB port
-
Profile Dimensions260x240x220mm
-
Spindle775spindle motor(12-36V) 24V:7000r/min 36V:9000r/min
-
System requirementswindows XP SP3, win7 (32/64 can be). Linux
-
Table size180x100mm
-
Travel (engraving range)Travel (engraving range)
-
TypeDesktop cnc router
-
VAT and TAXEU,RU free VAT and free import duty
-
Voltage220VAC
-
Вес логистики5.950
-
Каждая упаковка1
-
Минимальная единица измерения100000015
-
Название брендаНет
-
Наличие ЧПУCNC
-
Номер модели1610
-
Продано Вsell_by_piece
-
Размер логистики - высота (см)10
-
Размер логистики - длина (см)25
-
Размер логистики - ширина (см)20
-
СостояниеНовый
