AFI VS-3SD Stabilizer For Camera Gimbal Video Dslr Mobile Stabilizer Dslr Soporte Handheld 3-Axle Gimbal Brushless Stabilizers

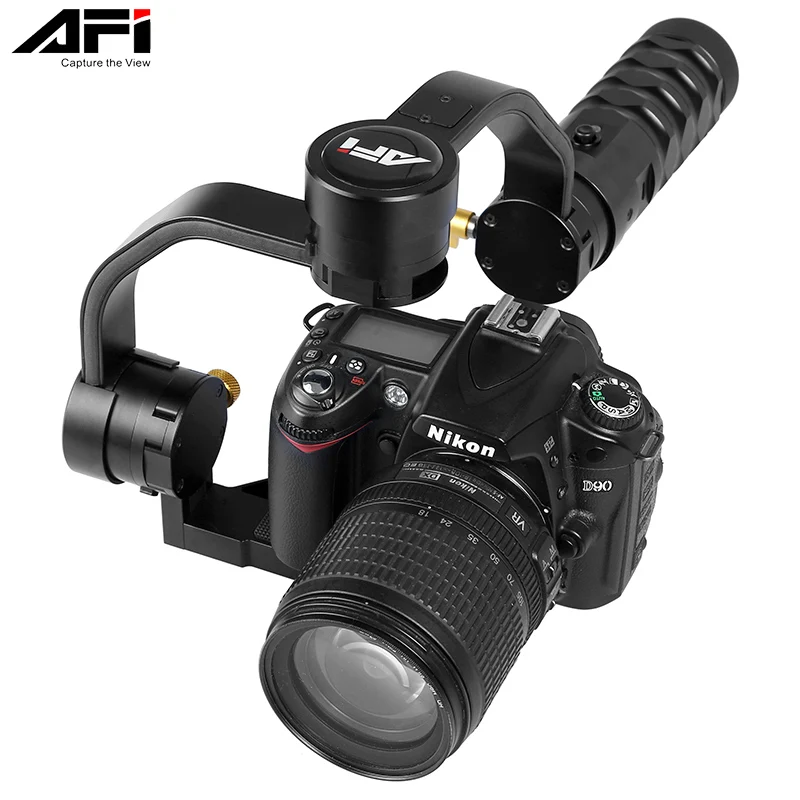

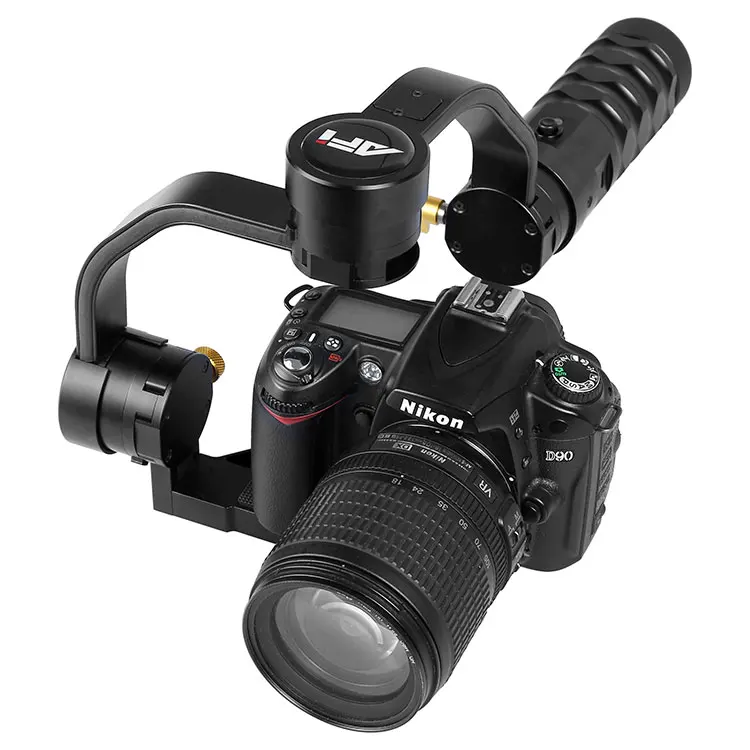

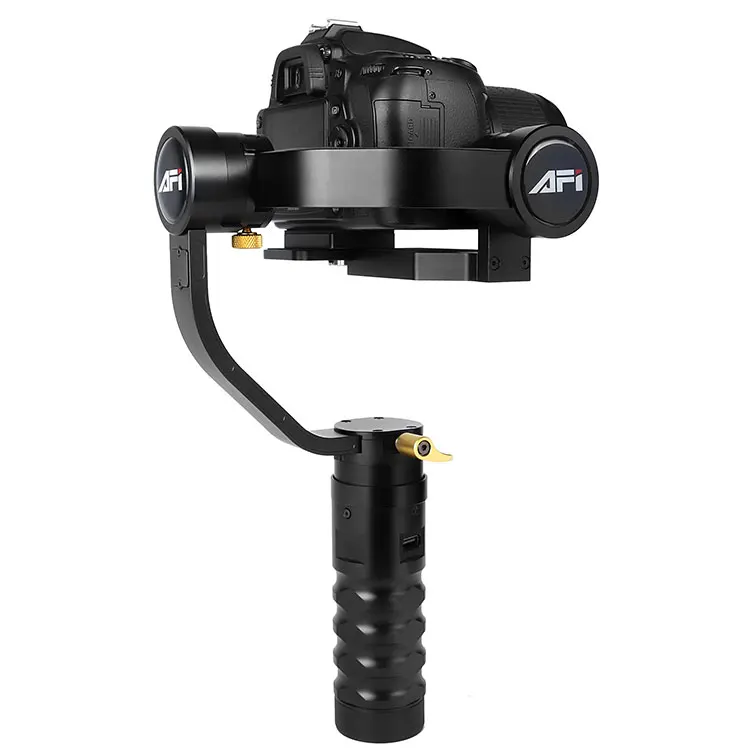

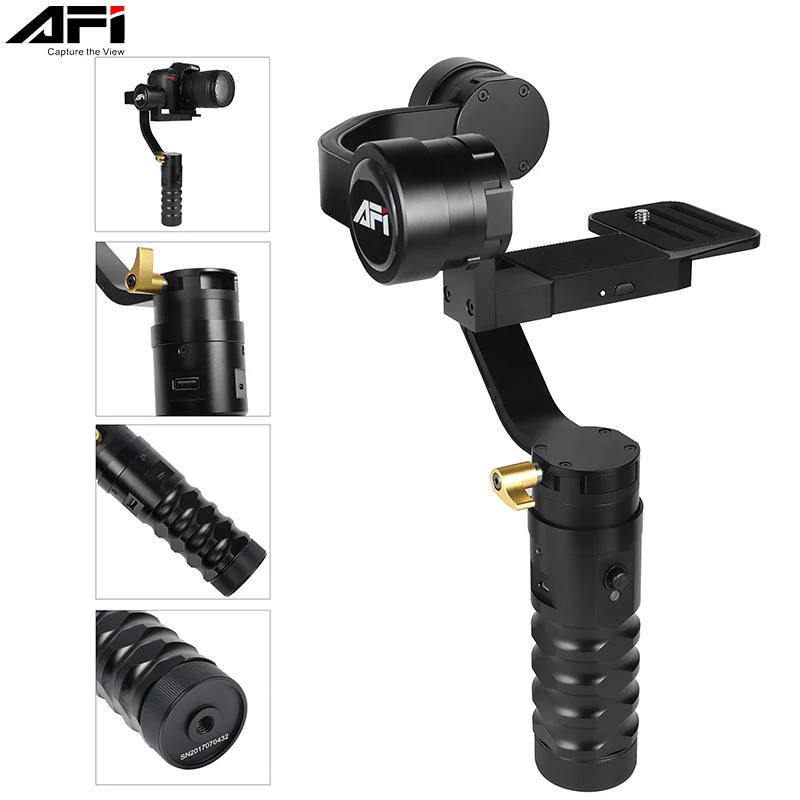

AFI VS-3SD Handheld 3-Axle Brushless Handheld Steady Gimbal Stabilizer for DSLR Cameras

Features: A portable handheld gimbal designed for photographers. Suitable for Canon 5D 6D 7D with 16-35mm f4.0 lens for Sony  A7 A7II A7R A7R2 A7S A7SII with 24-70/16-35mm lens for GH4 12-35mm/14-40mm/7-14mm lens DSLR. Load capacity: 1.7KG. Support for external remote control(wired or wireless remote control). 32-bit controller enables multi-mode switch, no need to change the software manually. Dual sensors provide your videos with more stability and accuracy. Can be booted from any angle, more convenient for you to operate. Arbitrary system offers faster response. Bottom with 3/8" screw hole to mount with other devices, such as tripod, monopod, etc.

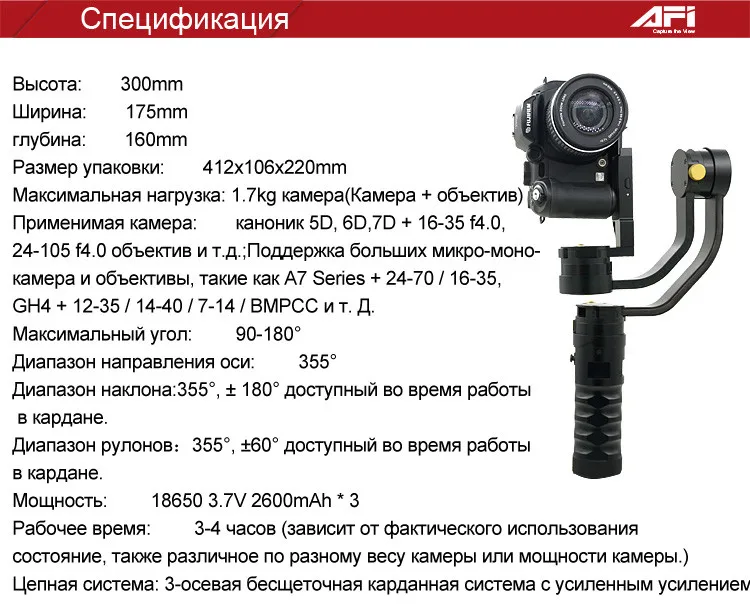

Specifications: Height: 30cm Width: 17.5cm Depth: 16.0cm Load Capacity: 1.7KG Applicable Camera: for Canon 5D 6D 7D with 16-35mm f4.0 lens for Sony  A7 A7II A7R A7R2 A7S A7SII with 24-70/16-35mm lens for GH4 12-35mm/14-40mm/7-14mm lens DSLR Max Angle Range: 90-180° Range of Direction Axis: 355° Tilt Range: 355 °, ± 180 °is the available range use under gimbal operation. Roll Range:355°, ±60°is the available range use under gimbal operation. Power Supply: 6 * 18650 Output: 5V 2A Input: 100-240V Battery: 3.7V 2600mAh Item Size: 35 * 16.5 * 7cm / 13.8 * 6.5 * 2.8in Item Weight: 972g / 34.3oz Package Size: 41 * 22 * 11cm / 16.2 * 8.7 * 4.3in Package Weight: 2160g / 4.8lb

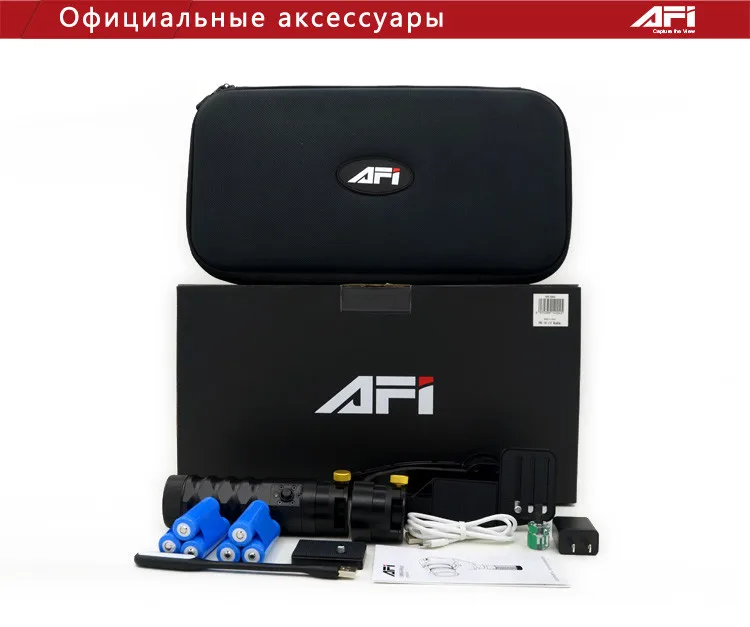

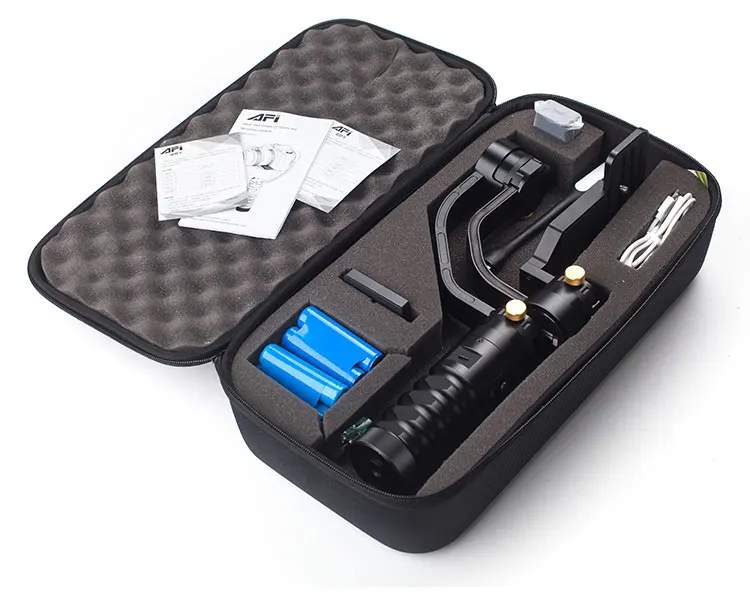

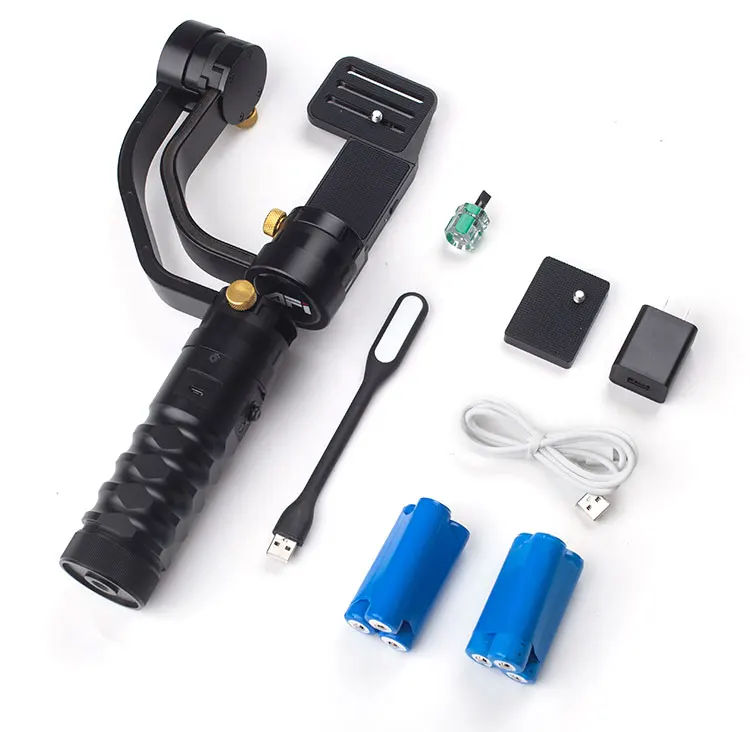

Package List: 1 * Gimbal 1 * Battery Holder 3 * 18650 Battery 1 * Micro USB Cable 1 * Quick Release Plate 1 * LED USB Light 1 * Carrying Bag 1 * Charger Plug(US) 1 * User Manual(Chinese & English)

Note:not include camera.

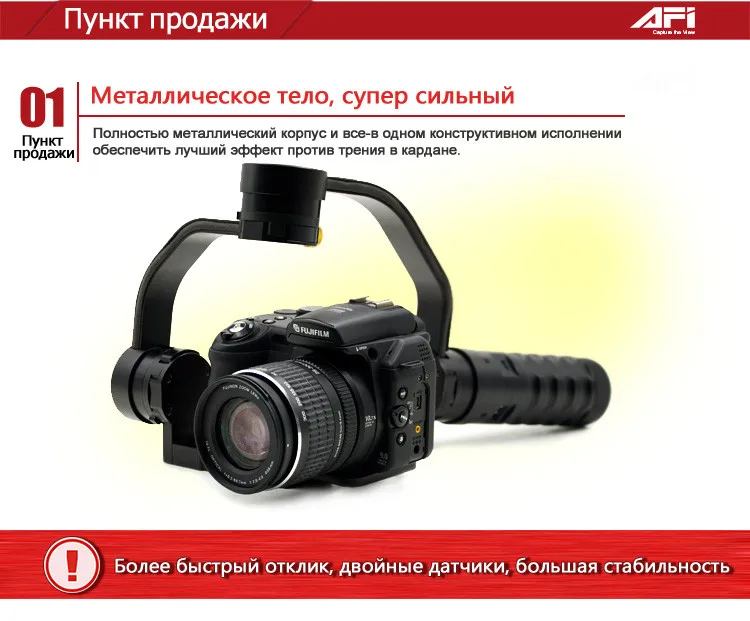

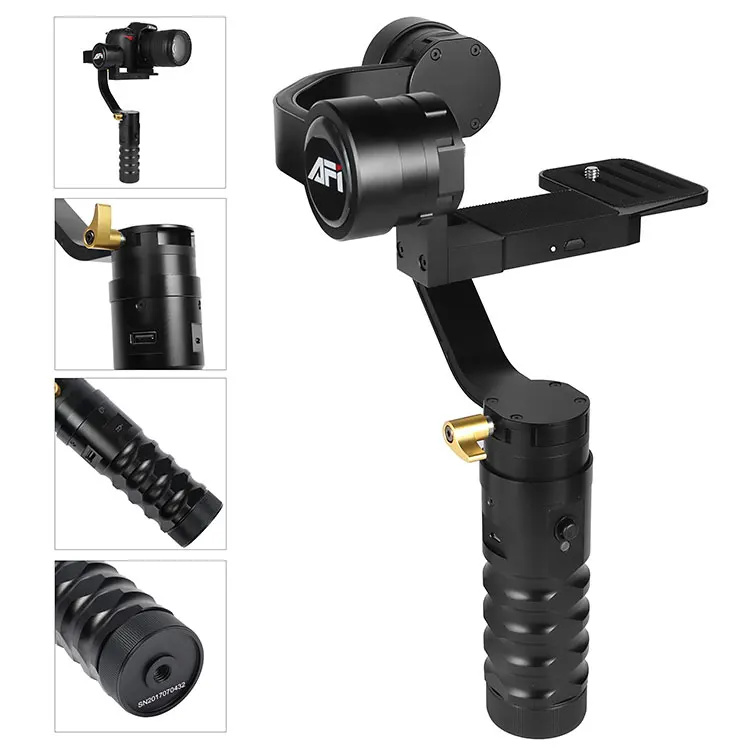

01 Metal Body,super rigidity

All-metal body and integrated structure bring super rigidity,which can ensure the least shaking effect.

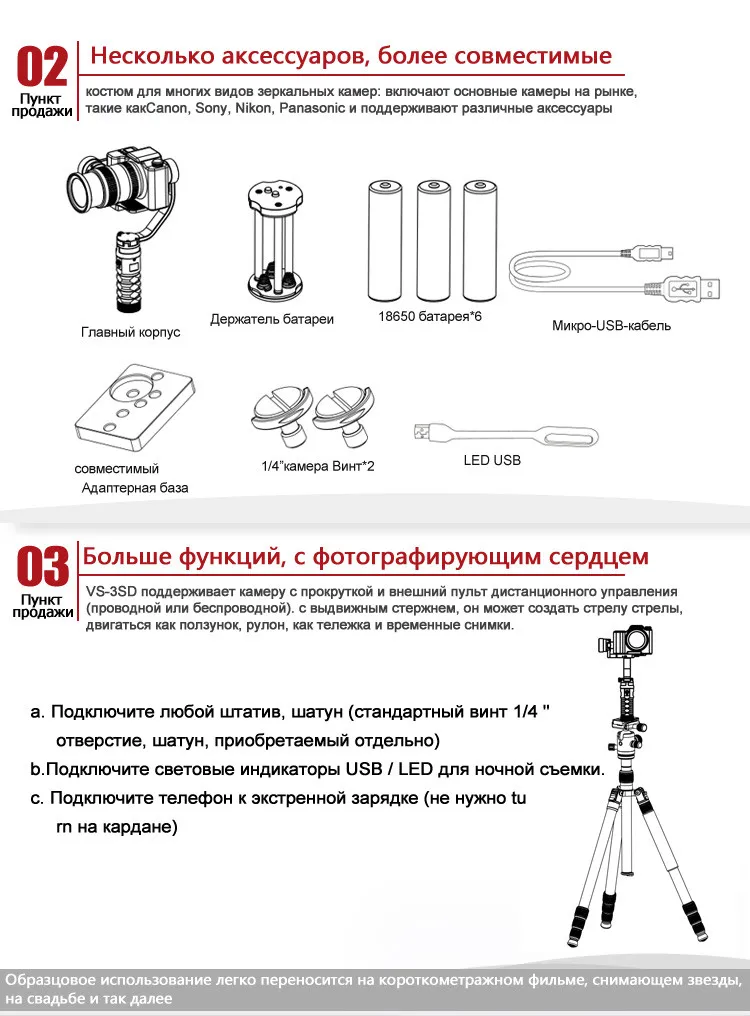

02 Multiple accessories,more compatible

Suit for many knids SLR cameras:Include the mainstream cameras on the market,like Canon,Sony,Nikon,Panasonic and support a variety of accessories

03 More functions,with a photographing heart

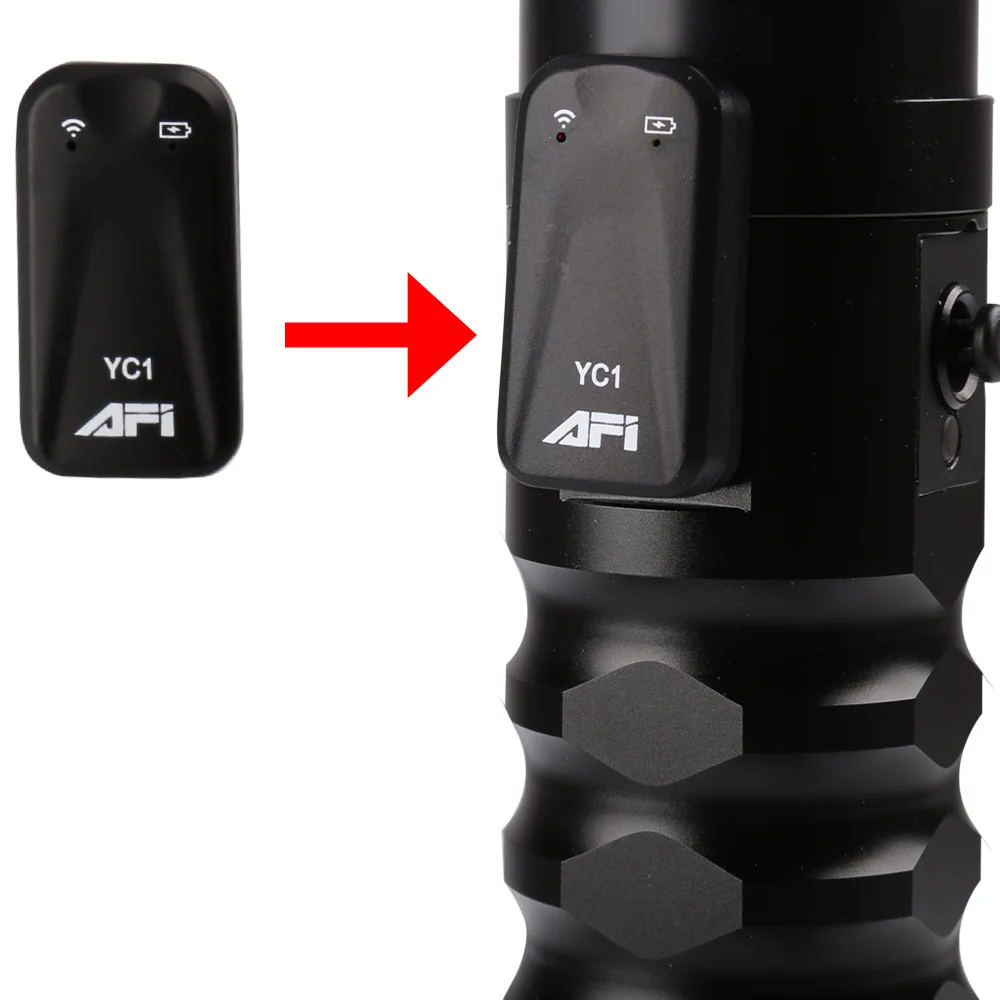

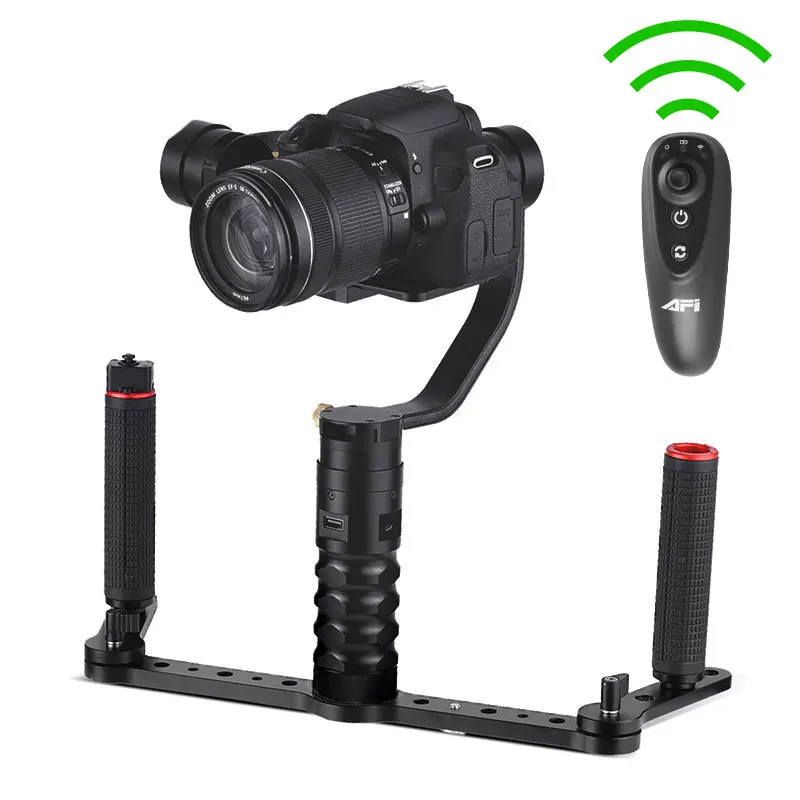

VS-3SD supports scroll series camera and external remote controller(wired or wireless).

With an extendable rod,it cna create a jib shot,move like a slider,roll like a dolly and time lapse shots.

a.Attach to any tripod or an extension rod(1/4"standard crew hold,the extension rod to be purchased separately)

b.Attach to USB-LED light for night shots.

c.Charge the phone for emergency charging(no need to activate the gimbal)

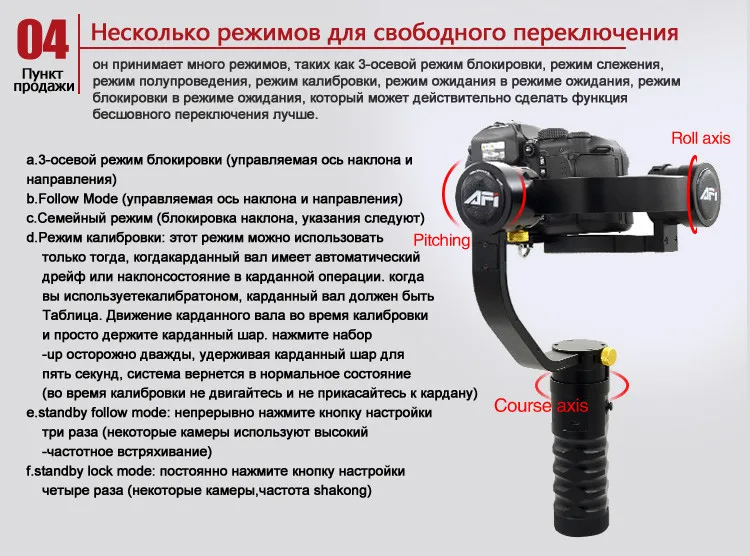

04 Multiple modes,seamless switching

It adopts many modes like 3-axis lock mode,standby lock mode,which can truely make seamless awitcjing function better

a.3-axis lock mode (controllable tilt and direction axis)

b.Follow Mode(controllable tilt and direction axis)

c.Semi-follow mode(tilt lock,directions follow)

d.Calibration mode:This mode can only be used when the gimbal has the automatic drift or inclination condition in the gimbal operation.

When you use calibration mode,the gimbal operation.When you use calibraton mode,the gimbal must be kept flat on the table.

Do not move the gimbal during the calibration process and just keep the gimbal still.Press the set-up button gently twice,holding the gimbal still.

Press the set-up button gently twice,holding the gimbal still for five seconds,the system will resume to normal(during calibration do not move or touch the gimbal)

e.Standby follow mode:continuously press the set-up button three times(some using a high-frequency shaking)

f.Standby lock mode:continuously press the set-up button four times(some camera using a high-frequency shaking)

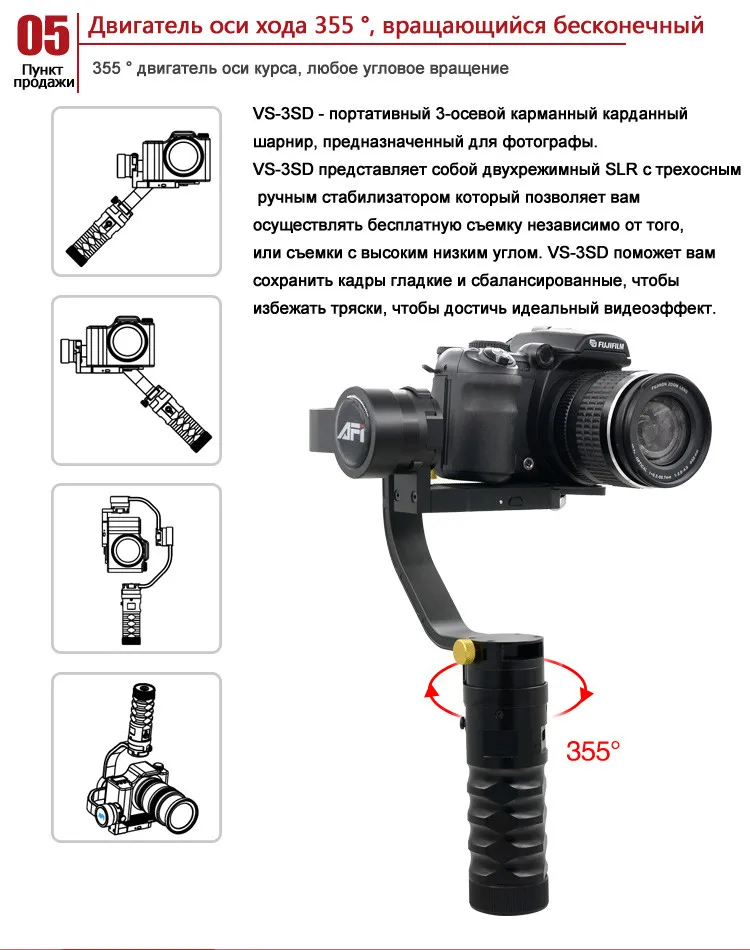

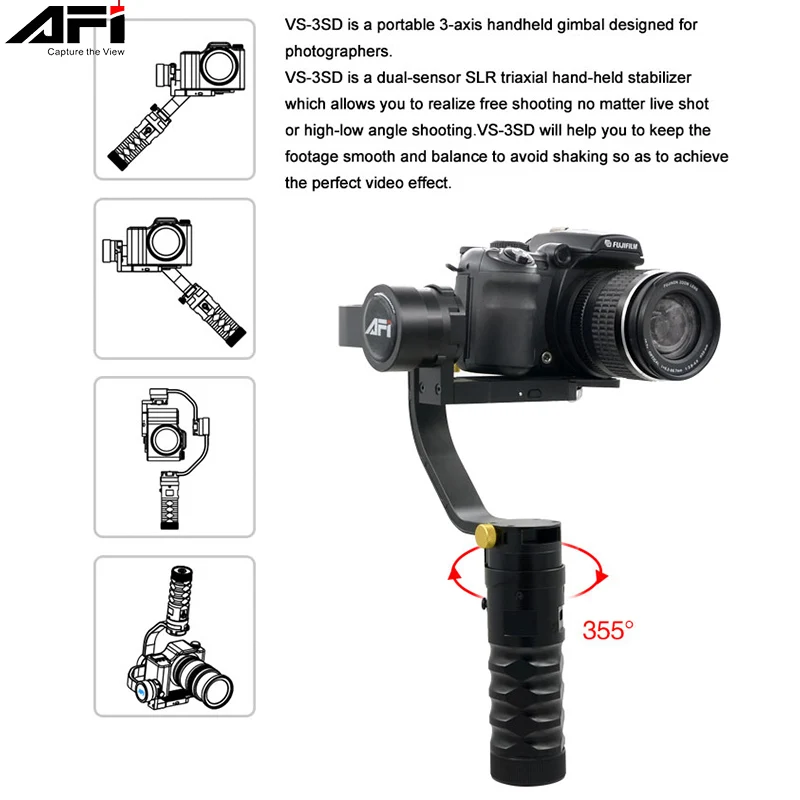

05 Course axis motor,any angle rotation,rotating infinite

355 course axis motor,any angle rotation

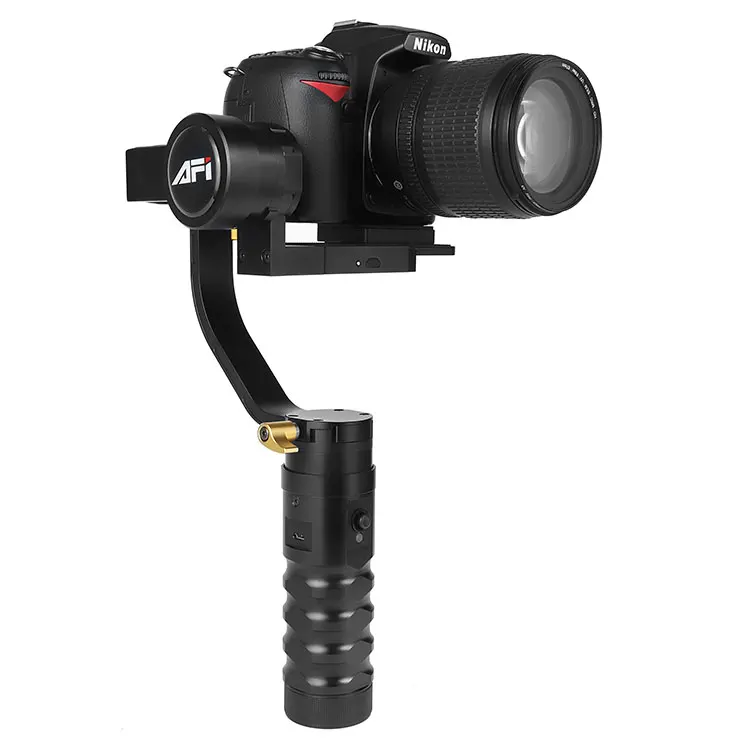

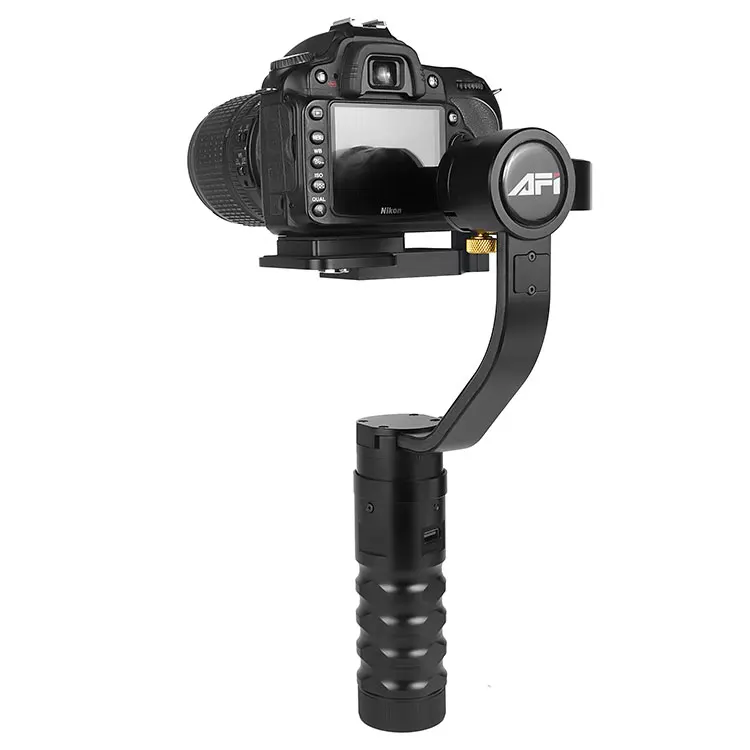

VS-3SD is a portable 3-axis handheld gimbel designed for photographers.

VS-3SD is a dual-sensor SLR triaxial hand-held stabilizer which allows you to realize free shooting no matter live shot or high-low angle shooting.VS-3SD will help you to keep the footage smooth and balance to avoid shaking so as to achieve the perfect vodeo effect.

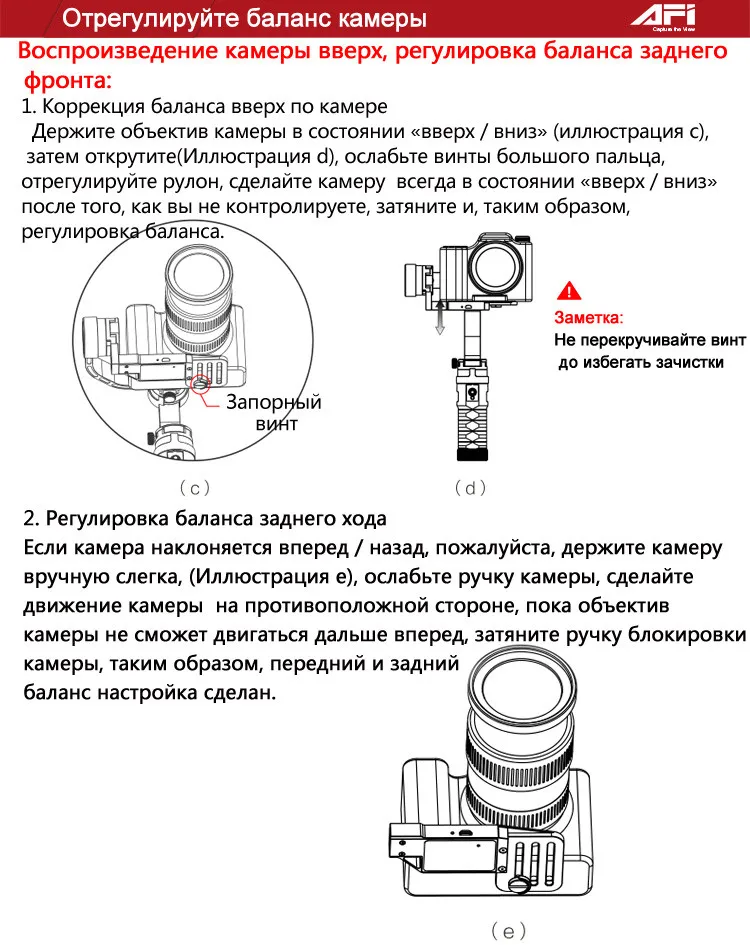

Adjust the camera balance

Camera up-down,front-back balance asjustment

1.Camera up-down balance adjustment

Keep the camera lens in up/down condition,then unscrewing,loosen the thumb screws,adjust the roll,make the camera always in up/down condition after out of hand controlling,tighten the thumb screws,thus the balance adjustment done.

2.Front and back balance adjustment

If the camera tilts towards front/back,please hold the camera by hand slightly,

loosen the camera knob,make the camera moving on the contrary side slightly,until the camera lens can move upon forward,tighten the camera locking knob,thus the front and back balance adjustment done.

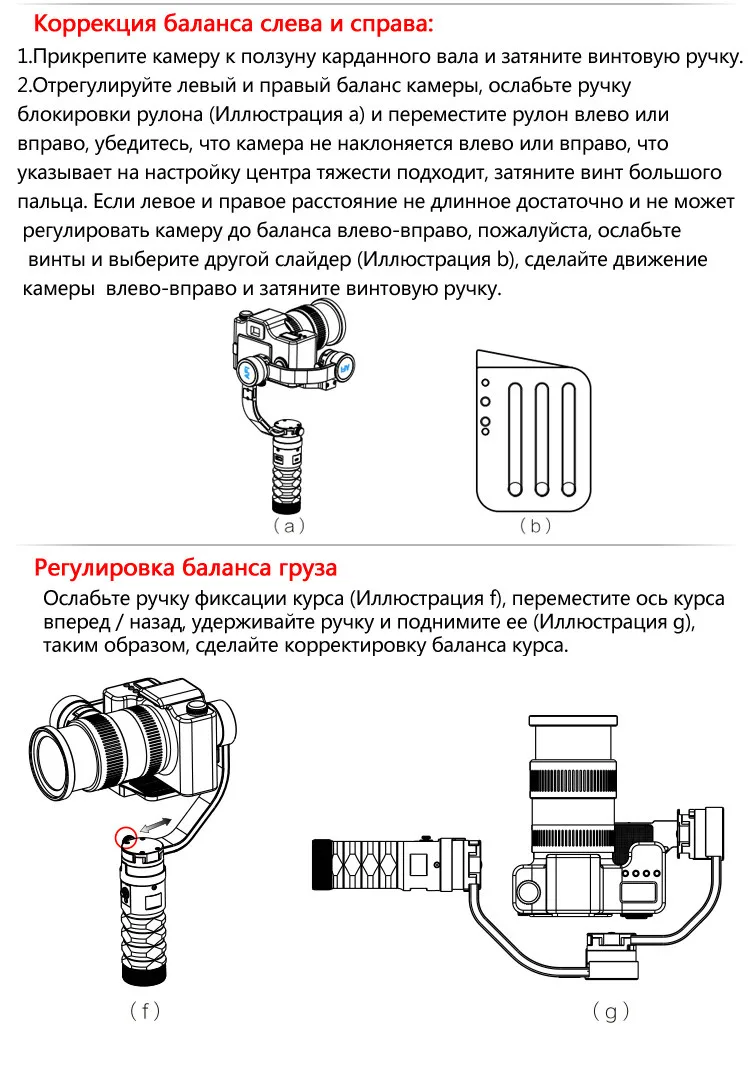

Cmera balance adjustment

1.Attach the camera onto the slider of the gimbal and tighten the screw knob.

2.Adjust the camera left and right balance,loosen the roll locking knob and move the roll to left or right,make sure the camera does not tilt to the left or right,which indicates the center of gravity adjustment is appropriate,tighten the thumb screws.

If the left-right distance is not long enough and can't adjust the camera till left-right balance,please loosen the screws and select the different slider,make the camera moving in left-right balance.

Heading balance adjustment

Loosen the heading locking knob,move the heading axis towards front/back,hold the handle and pick it up,thus the heading balance adjustment done.

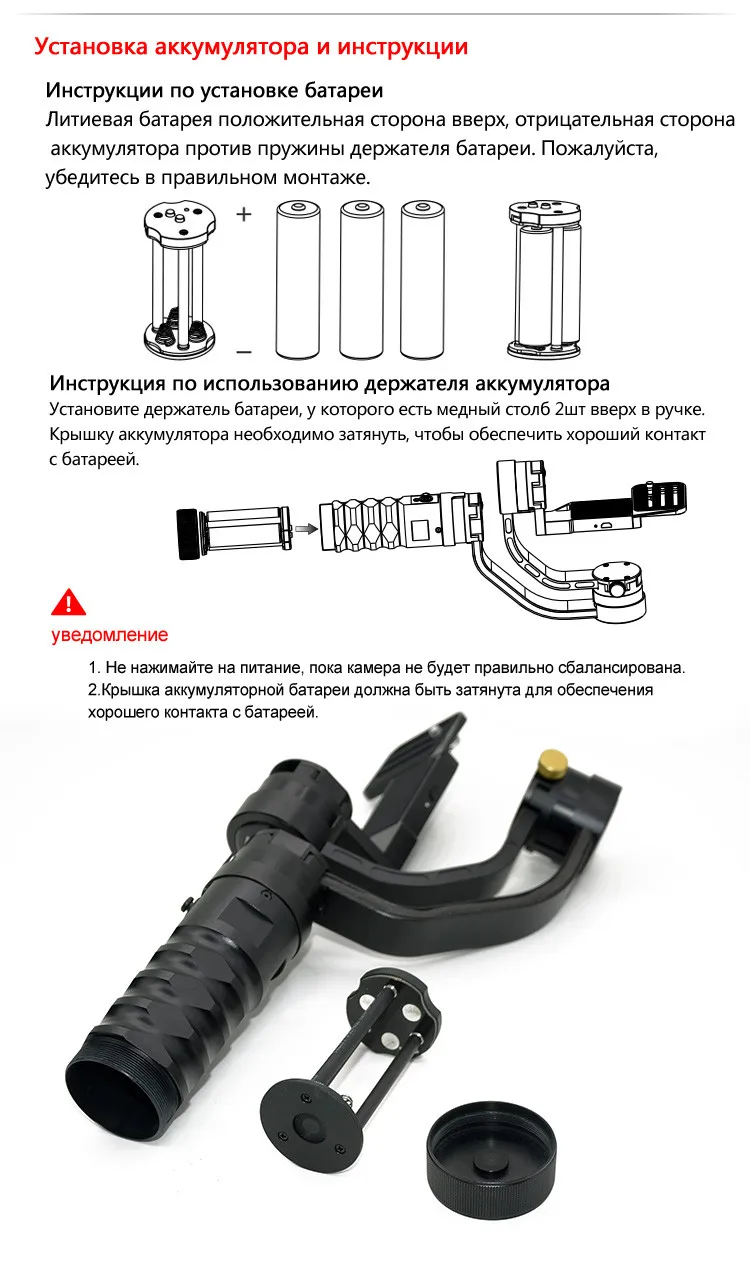

Battery Installation Instructions

lithium battery positive side up,the battery negative side against the spring of battery holder.Please assure right mounting.

Battery Holder Usage Instruction

Install the battery holder which has 2pcs copper post upward in the handle bar.The battery cap must be tightened to ensure good contact with the battery.
