Безвентиляторный мини-ПК Intel Celeron J4125, двойной гигабитный Ethernet RS232, промышленные микрокомпьютеры HDMI VGA WiFi 4xusb Windows Linux

Processors

Intel Celeron N2830, 2 cores 2 threads, 2.16GHz, up to 2.41GHz

Intel Celeron 2955U, 2 cores 2 threads, 1.40GHz

Intel Celeron 3205U, 2 cores 2 threads, 1.50GHz

Intel Celeron J1800, 2cores 2 threads, 2.41GHz, up to 2.58GHz

Intel Pentium N3520, 4 Cores 4 threads, 2.17GHz, up to 2.42GHz

Intel Pentium 3805U, 2 Cores 2 threads, 1.90GHz

Intel Celeron N4100, 4 cores 4 threads, 1.10GHz, up to 2.40GHz

Intel Celeron J4125, 4 cores 4 threads, 2.0GHz, up to 2.70GHz

Memory

N4100/J4125 models use DDR4 RAM 2133/2666MHz

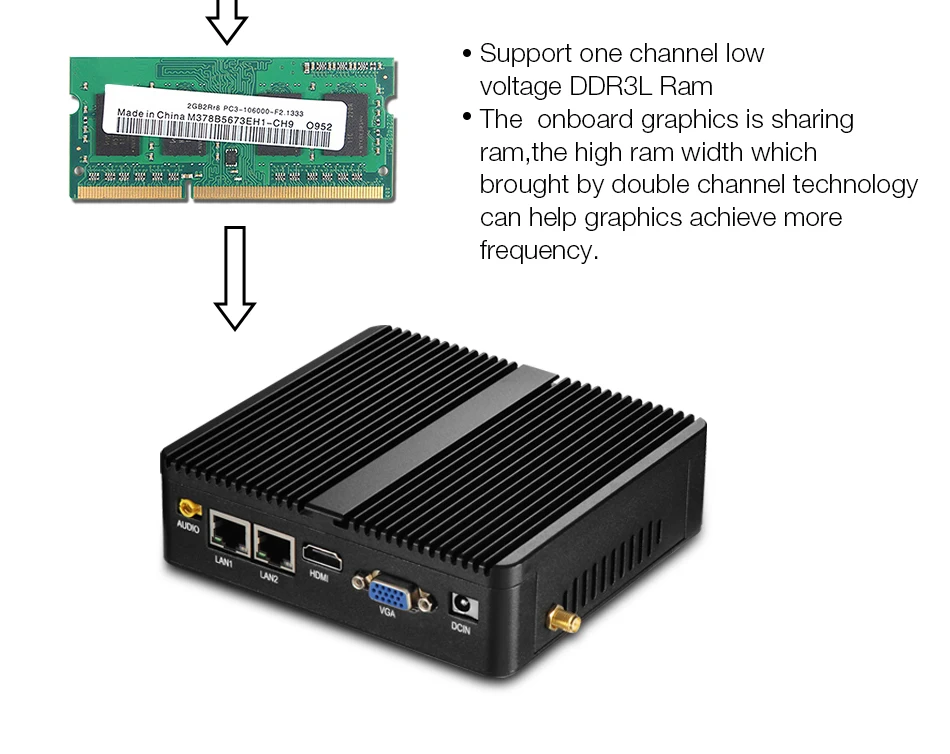

N2830/N3520/J1800/2955U/3205U/3805U models use DDR3L RAM 1333/1600MHz

max support to 8GB

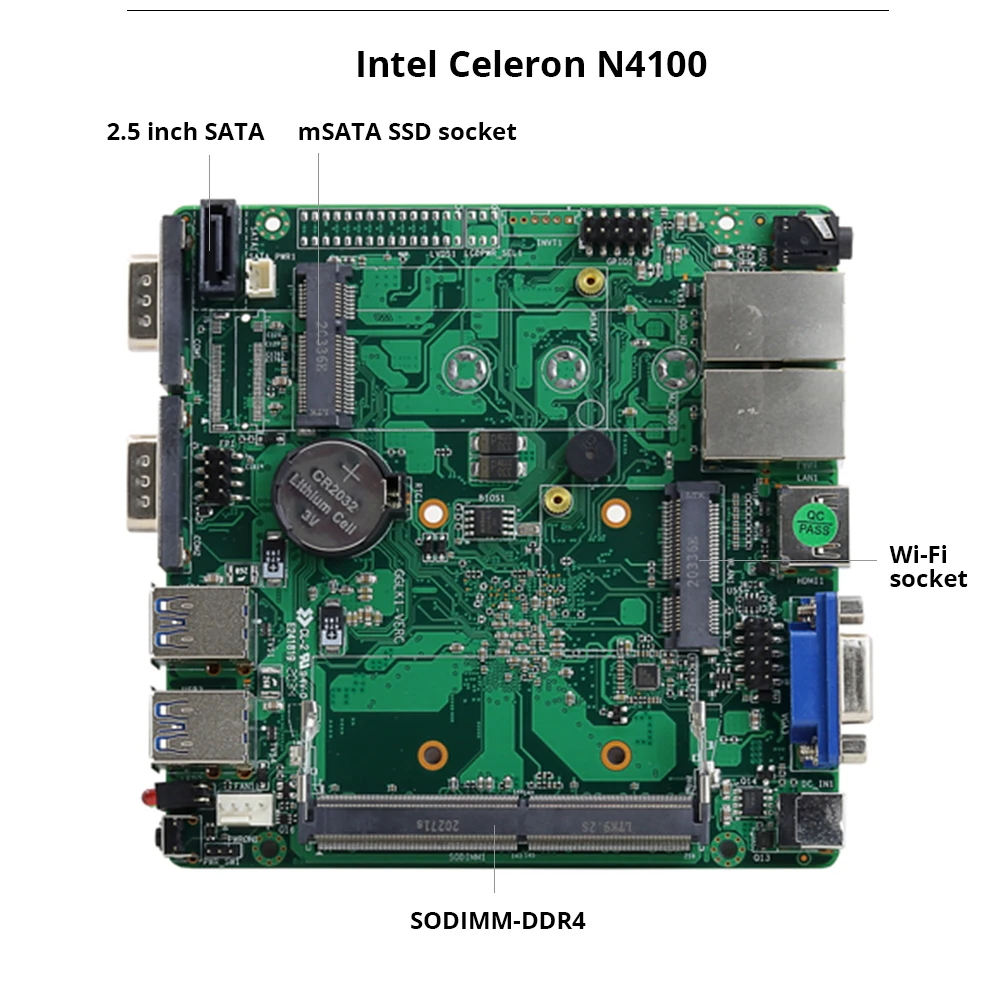

Storage

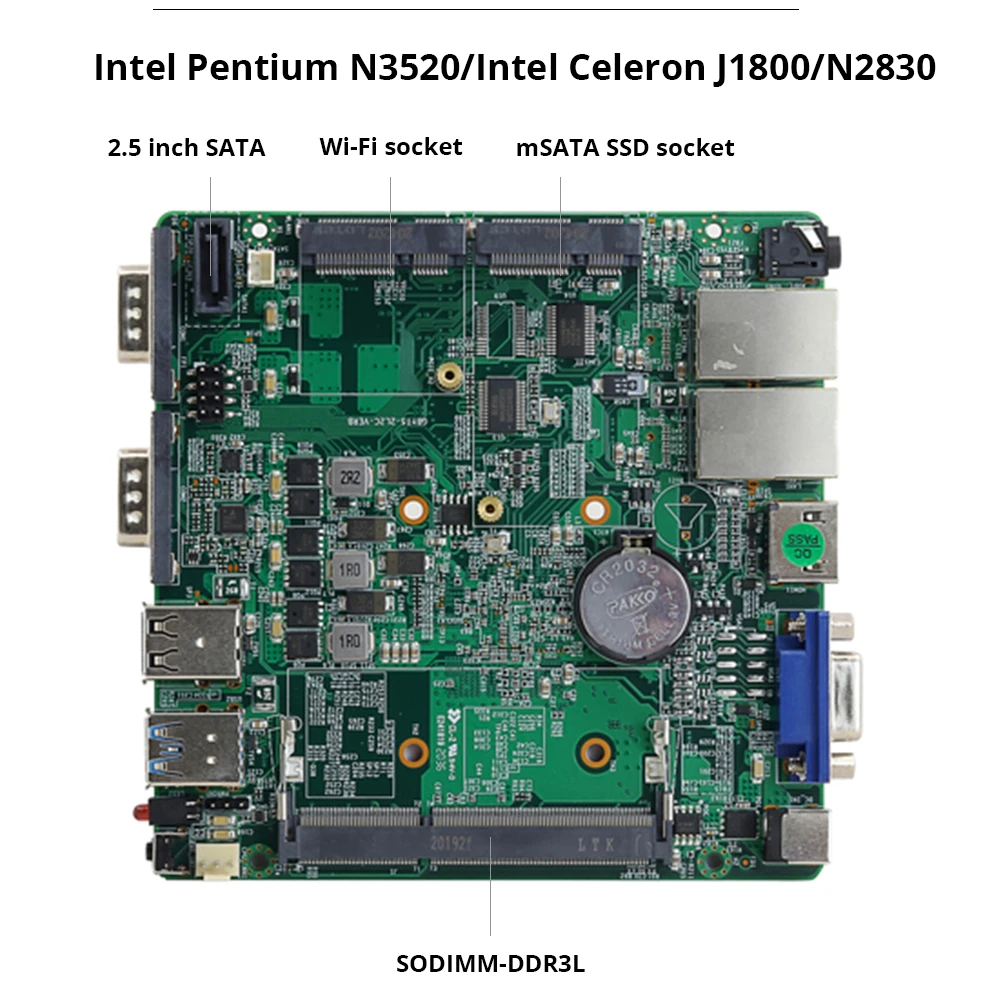

N3520/N4100/N2830/J1800/2955U/3205U/3805U support 1x mSATA SSD and 1x 2.5 inch HDD

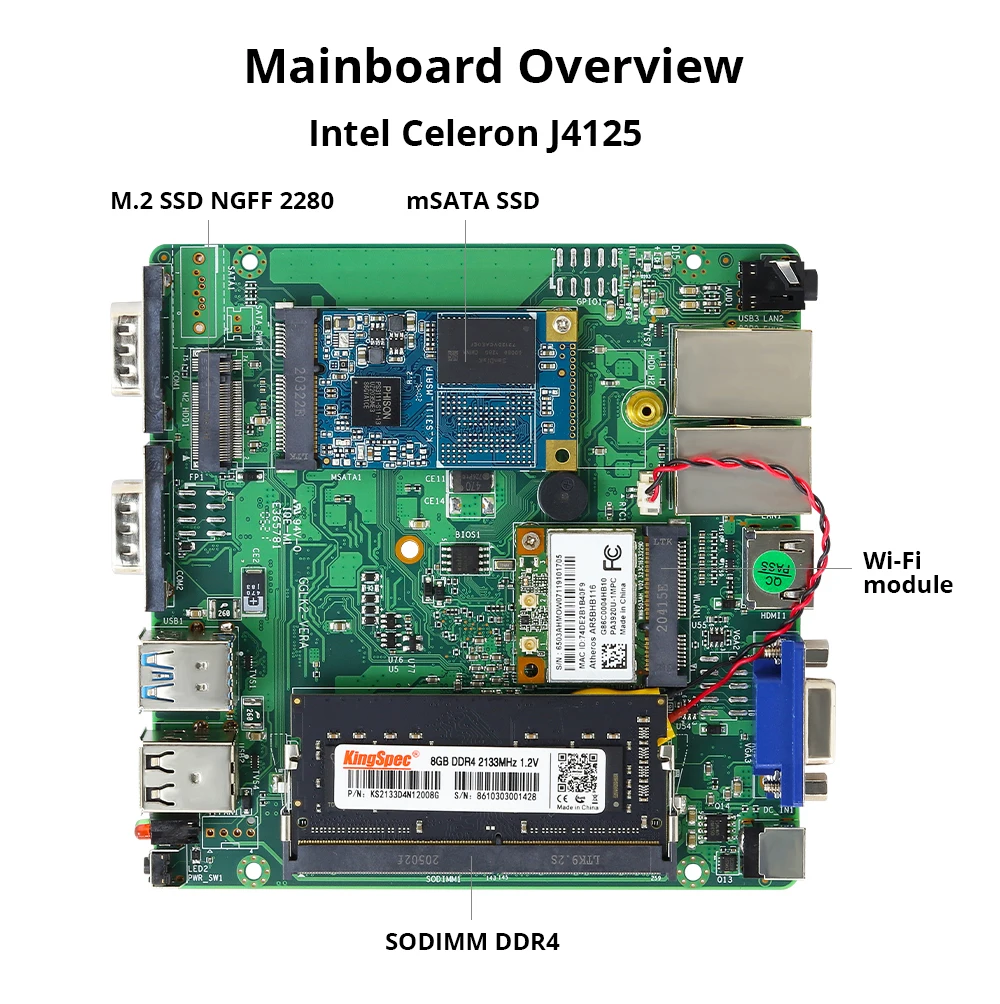

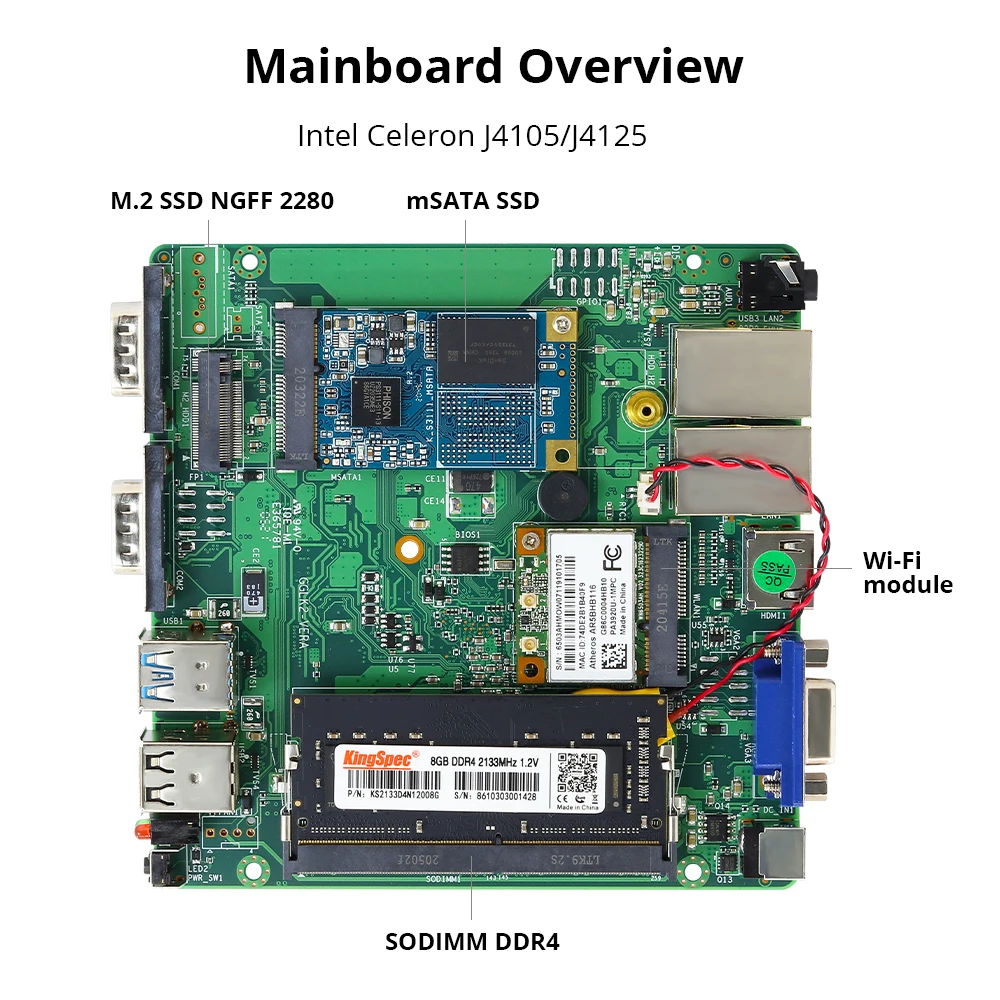

J4125 mode support 1x mSATA SSD and 1x M.2 SSD NFGG 2280

Pre-installed hard drive is mSATA SSD

Graphics

Intel HD Graphics

Network Interfaces

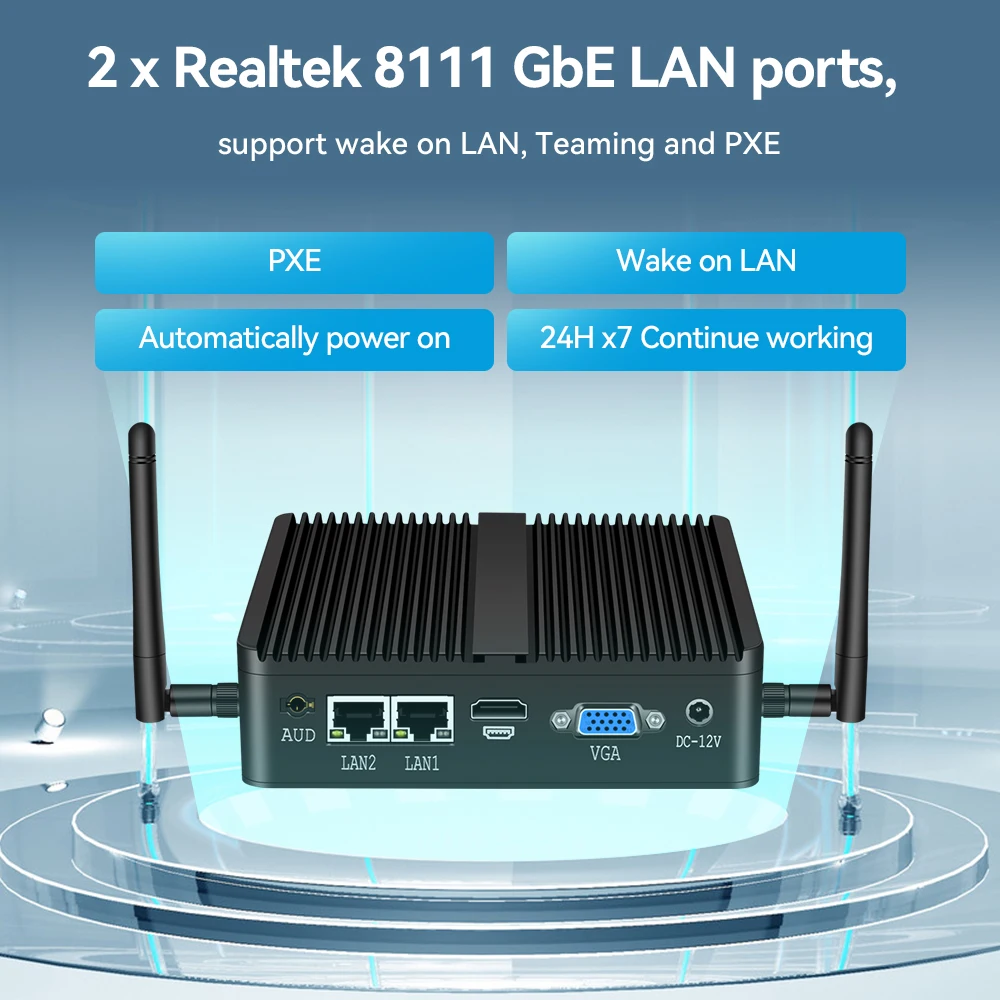

2x GbE RJ45 Realtek 8111E

Expansion

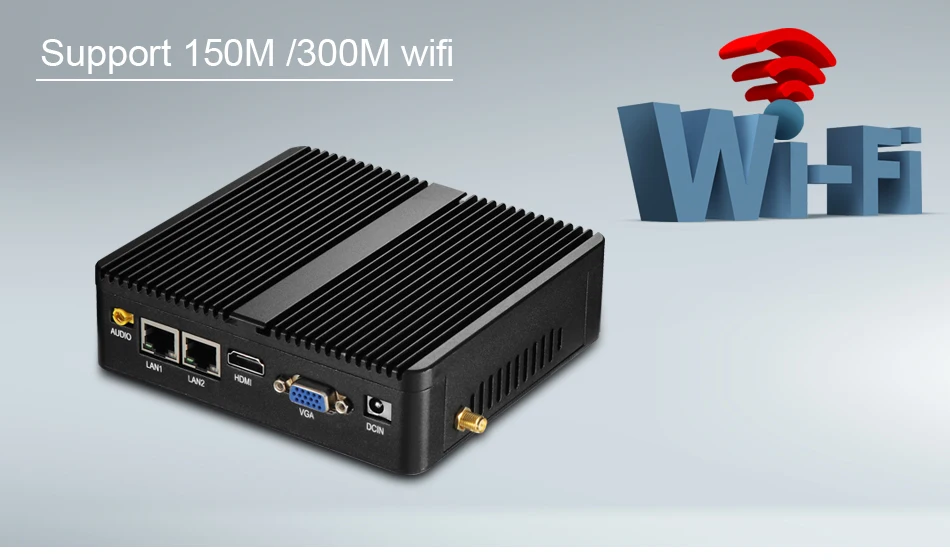

1x Mini PCI-E for WiFi/Bluetooth module ( half height size )

OS Support

Windows 7/8/10, Linux, Ubuntu, CENTOS, Vxworks, WES7 WES8

N4100/J4105 models can not support windows 7 OS

USB Ports

J4125/N3520/N2830/J1800/3205U/3805U/2955U: 2x USB3.0, 2x USB2.0N4100: 4x USB3.0

Wake on LAN

Yes support

Restore AC power loss

J4125/N3520/N2830/J1800/2955U/3205U/3805U models support, N4100 model don’t support

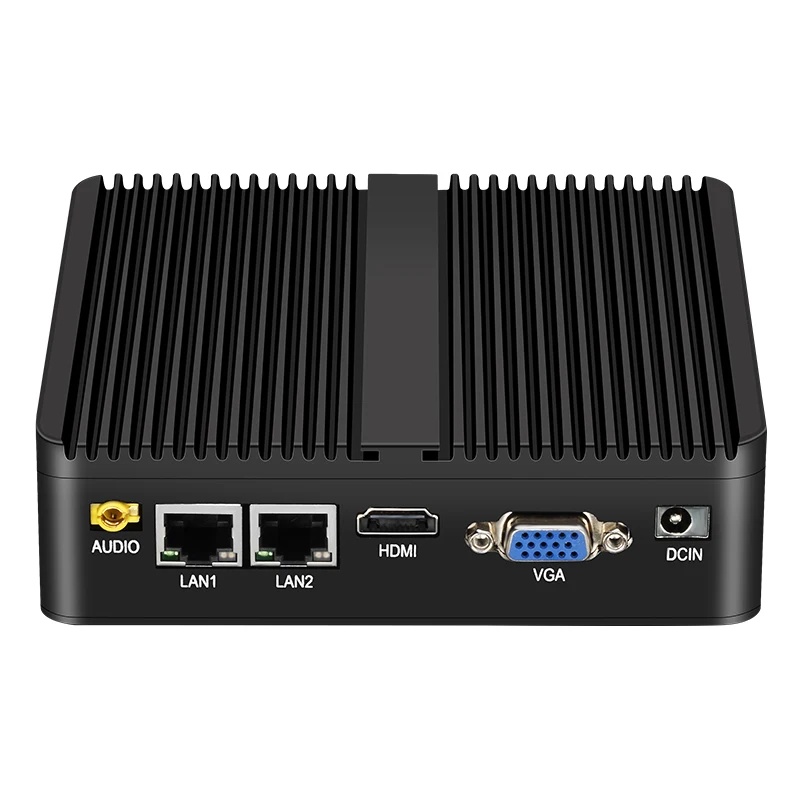

Display Port

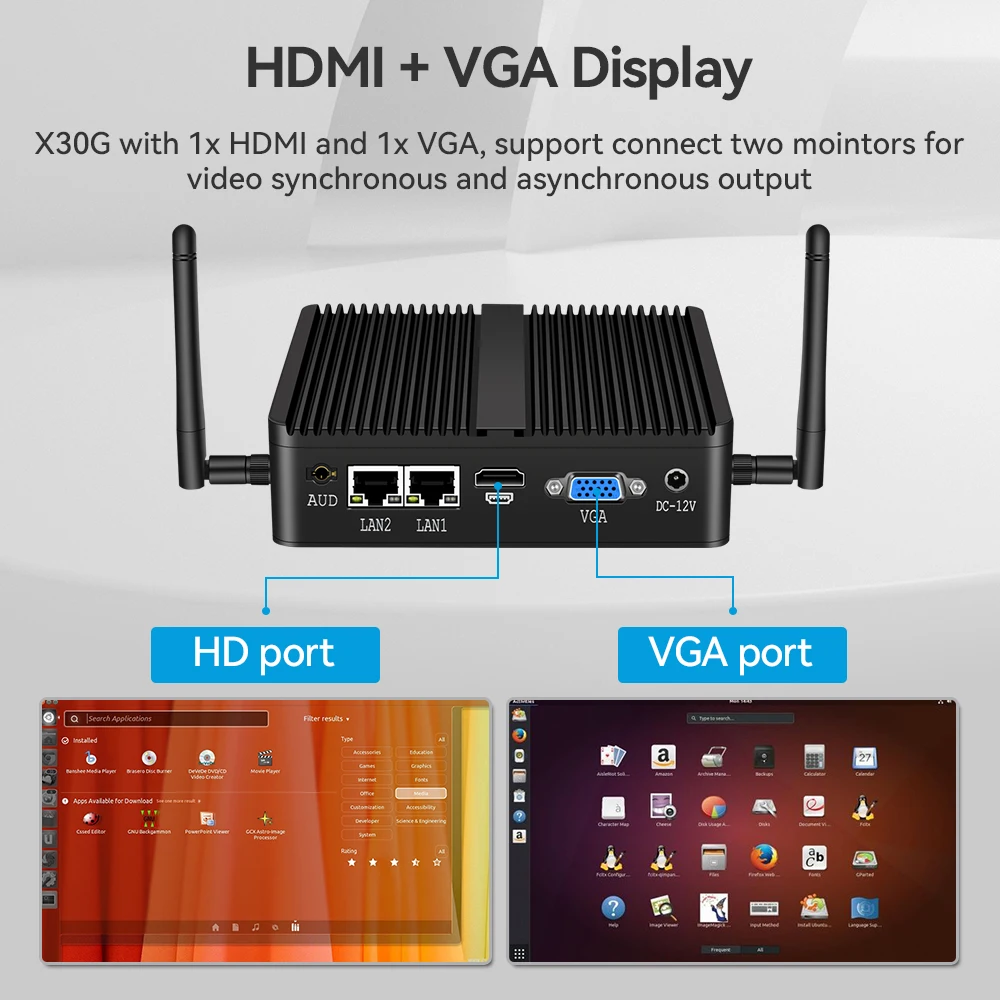

1x VGA, 1x HDMI

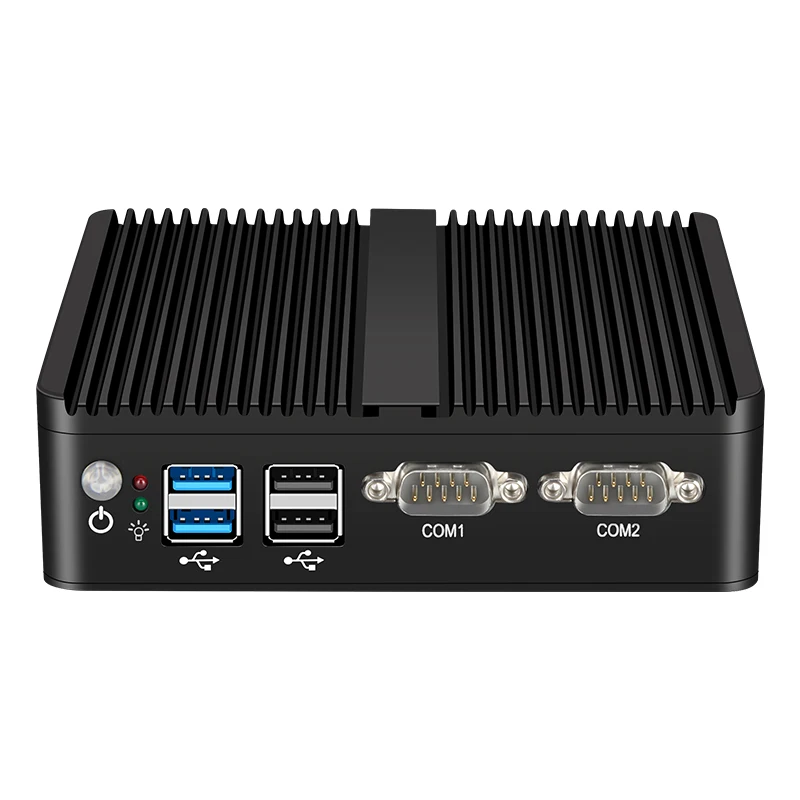

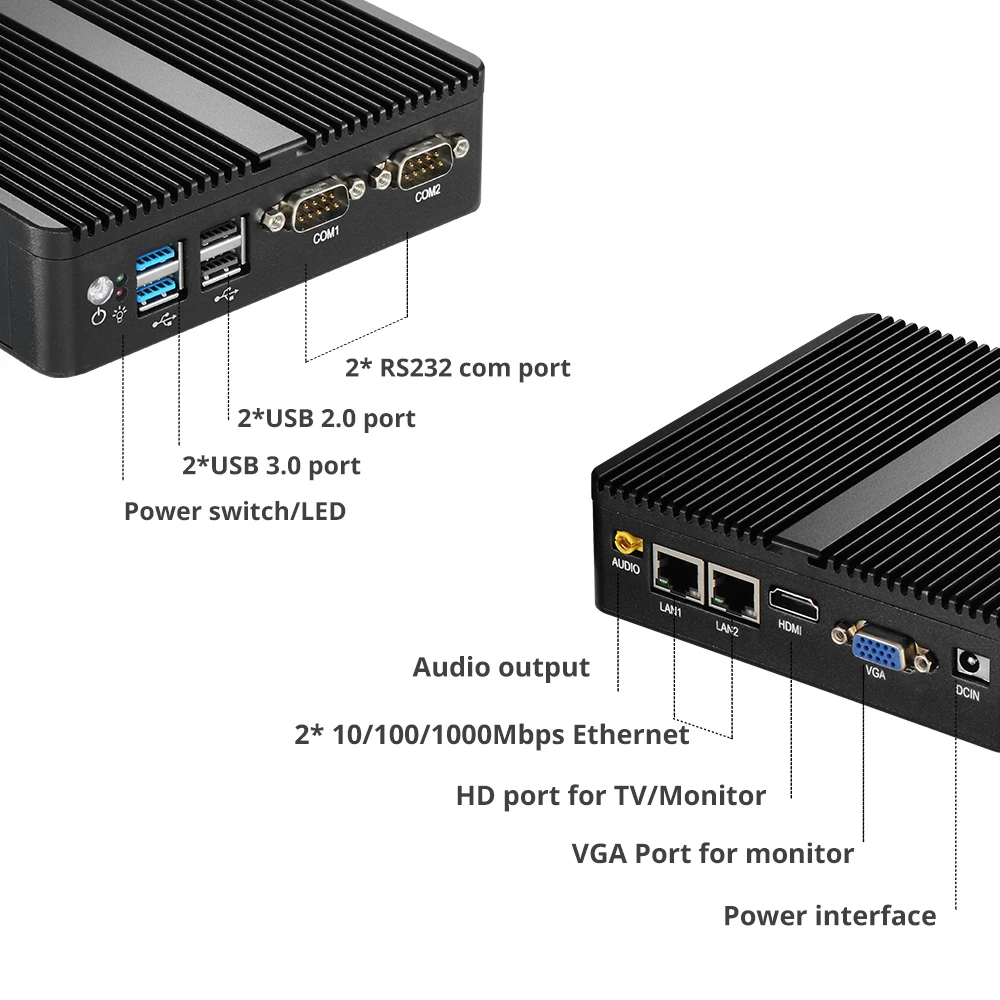

COM Ports

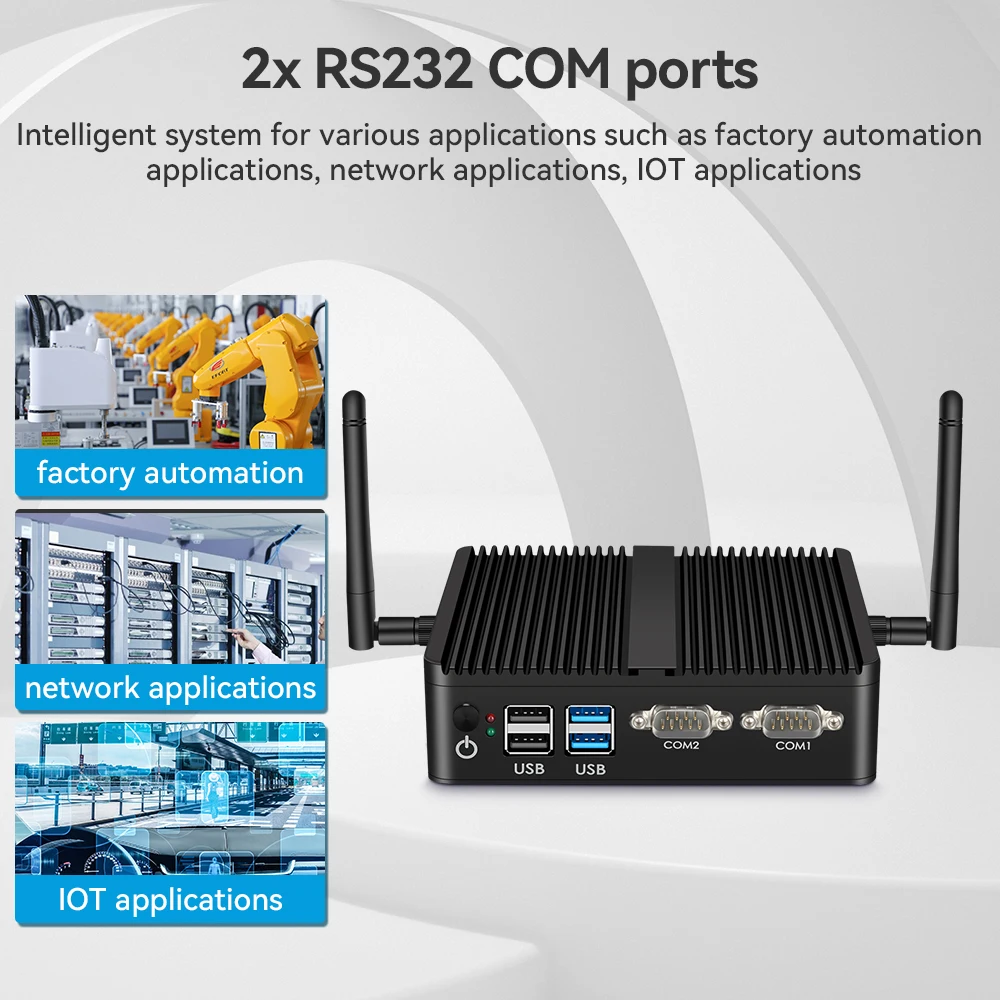

2x RS232

Indicators

1x HDD LED, 1x Power LED

Audio Ports

3.5mm combo audio jack

Construction

Fanless passive cooling

Case

Aluminum Case

Dimension

135x124x40mm

Netweight

0.8Kg

Operating

-20℃ to +60℃

Temperature

RH

5%~90% @30℃，Non-condensing

Power Adapter

Input AC100-240V, Ouput DC12V-5A

Package List

1x Mini PC X30G

1x AC Adapter

1x Power cord ( EU AU US UK type plug shipped according to buyer’s address )

1x SATA cable

1x VESA bracket

1x User manual
