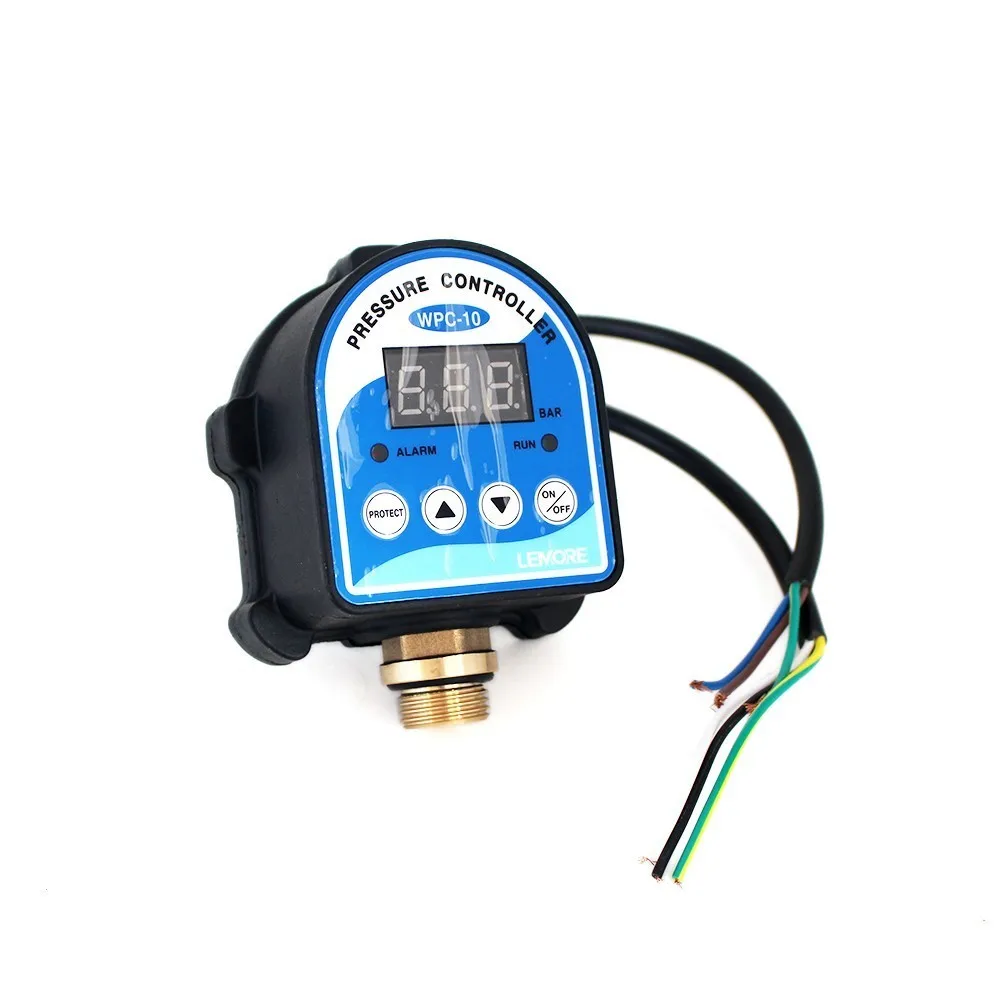

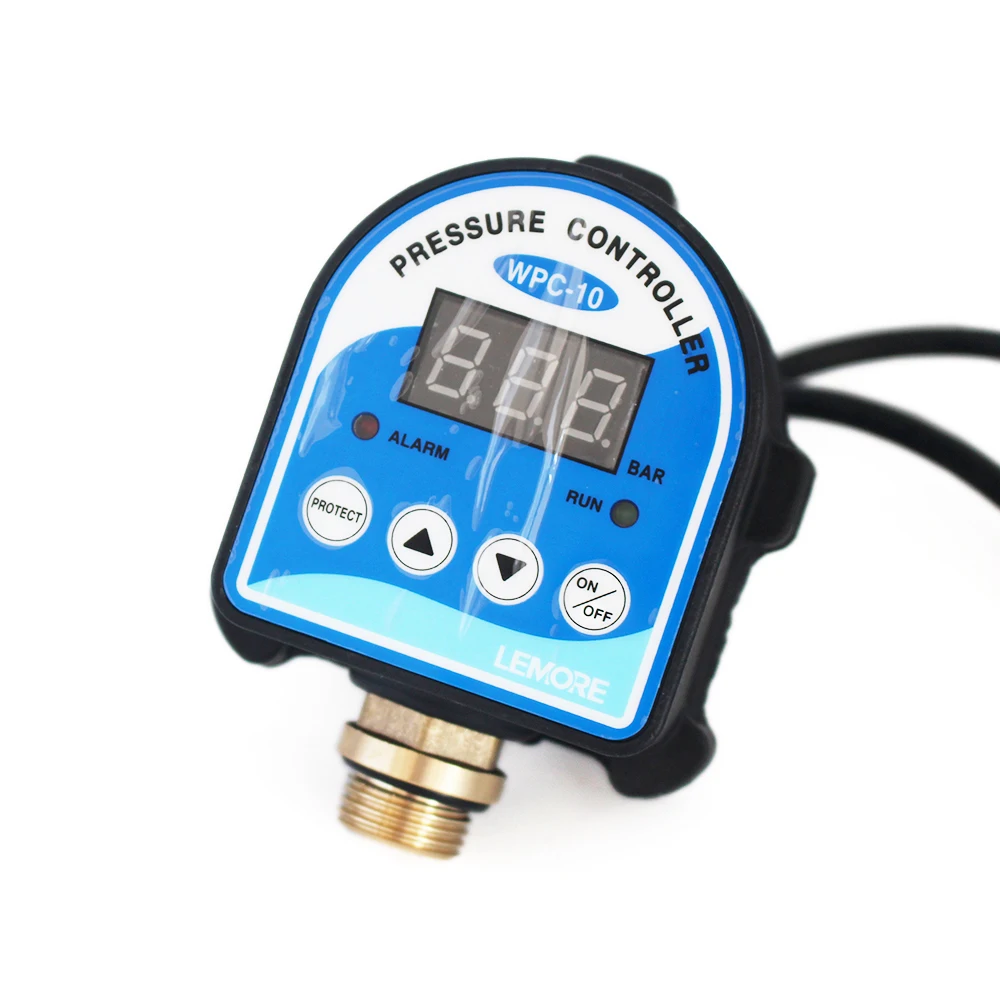

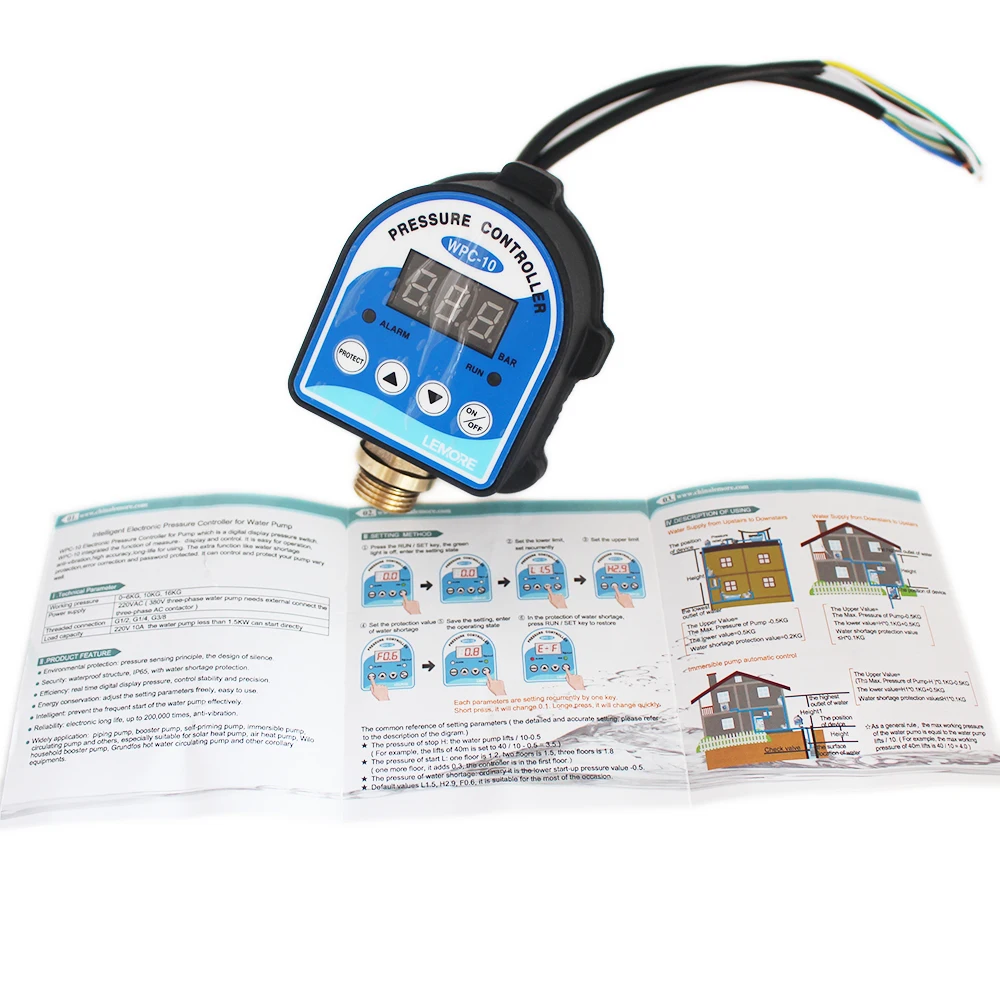

Digital Pressure Control Switch WPC-10 Digital Display WPC 10 Eletronic Pressure Controller for Water Pump With G12" Adapter

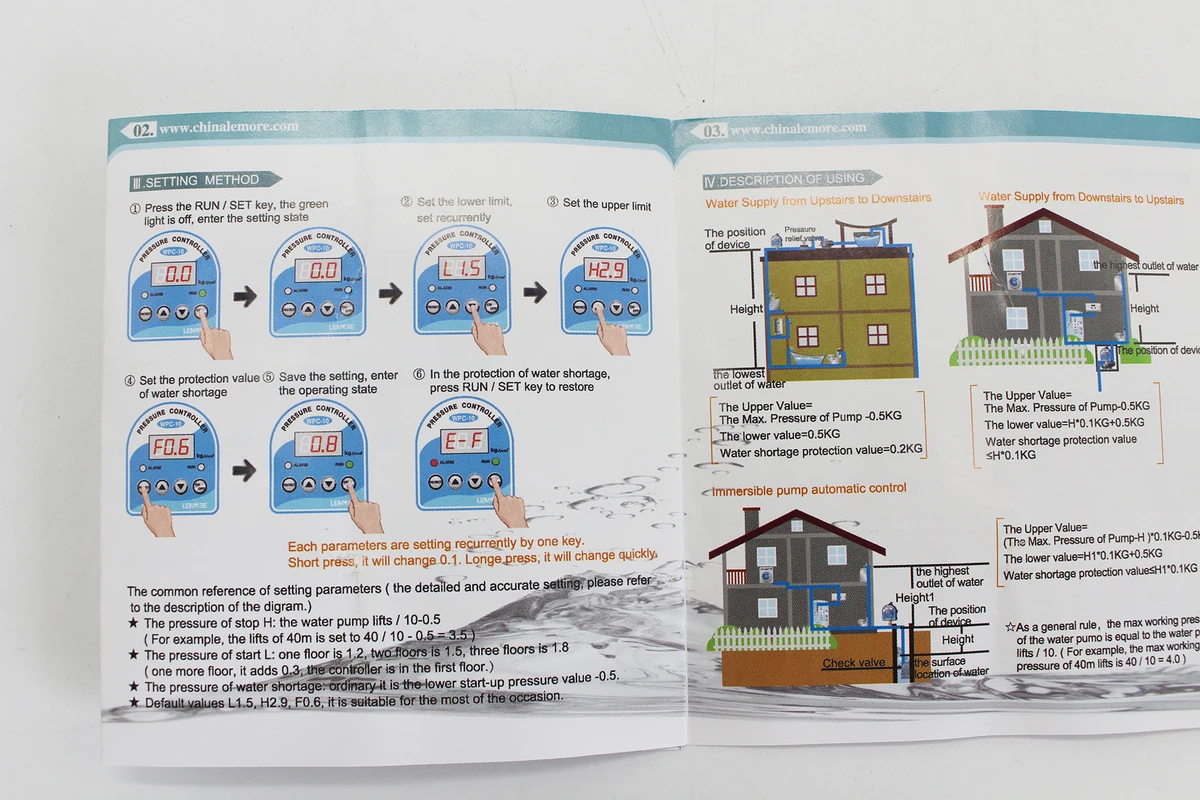

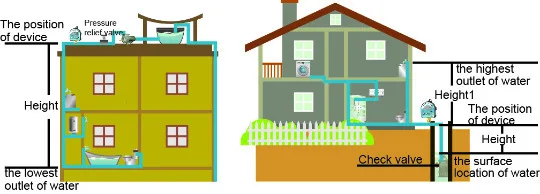

Water Supply from Upstairs to Downstairs    Immersible pump automatic control

The Upper Value=                           The Upper Value=

The Max. Pressure of Pump -0.5KG            (The Max. Pressure of Pump-H )*0.1KG-0.5KG

The lower value=0.5KG                       The lower value=H1*0.1KG+0.5KG

Water shortage protection value=0.2KG         Water shortage protection value≤H1*0.1KG

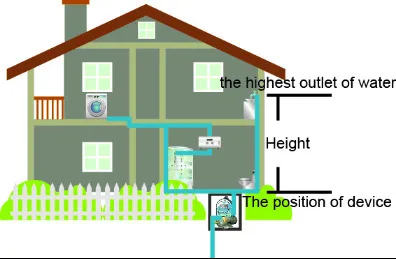

Water Supply from Downstairs to Upstairs

The Upper Value=The Max. Pressure of Pump-0.5KG

The lower value=H*0.1KG+0.5KG

Water shortage protection value≤H*0.1KG

Technical Parameter

Pressure Range

0-10KG f/CM

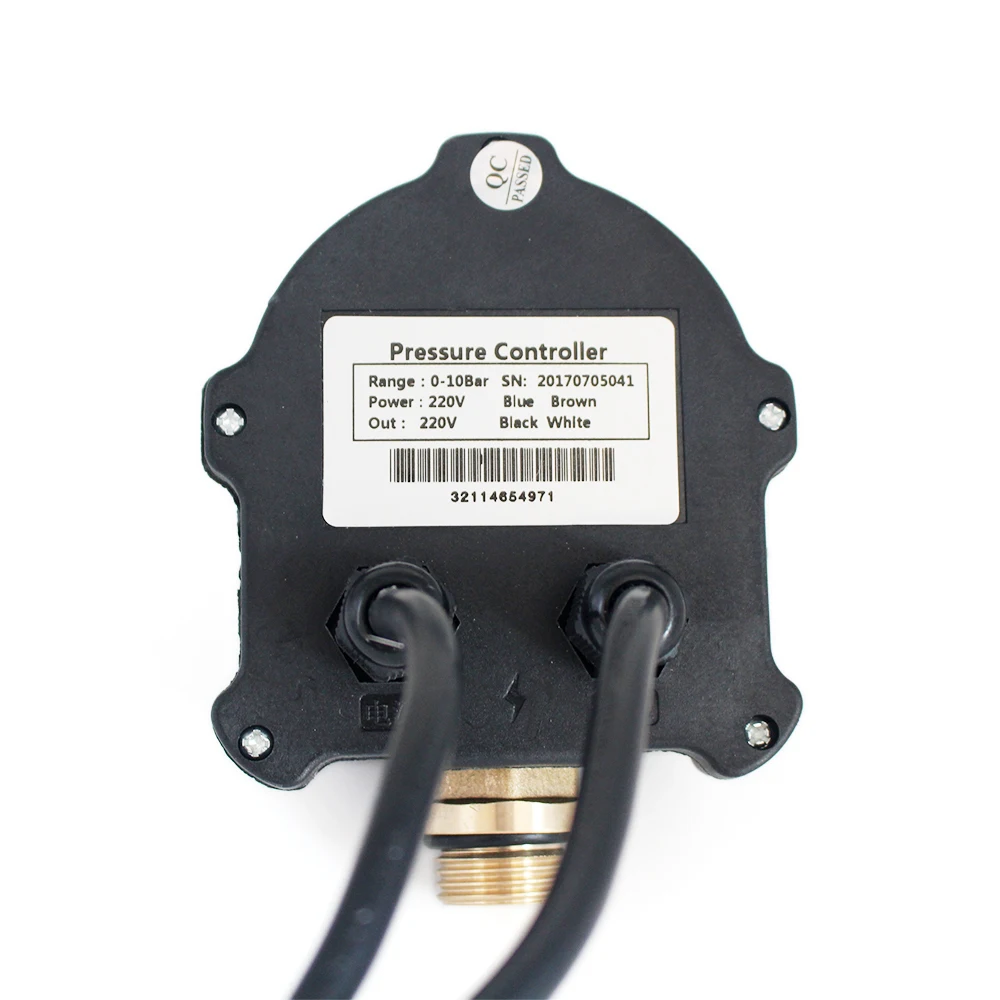

Voltage Supply

220Vac(You require a 3 phase AC contactor with 380V pump)

Connection

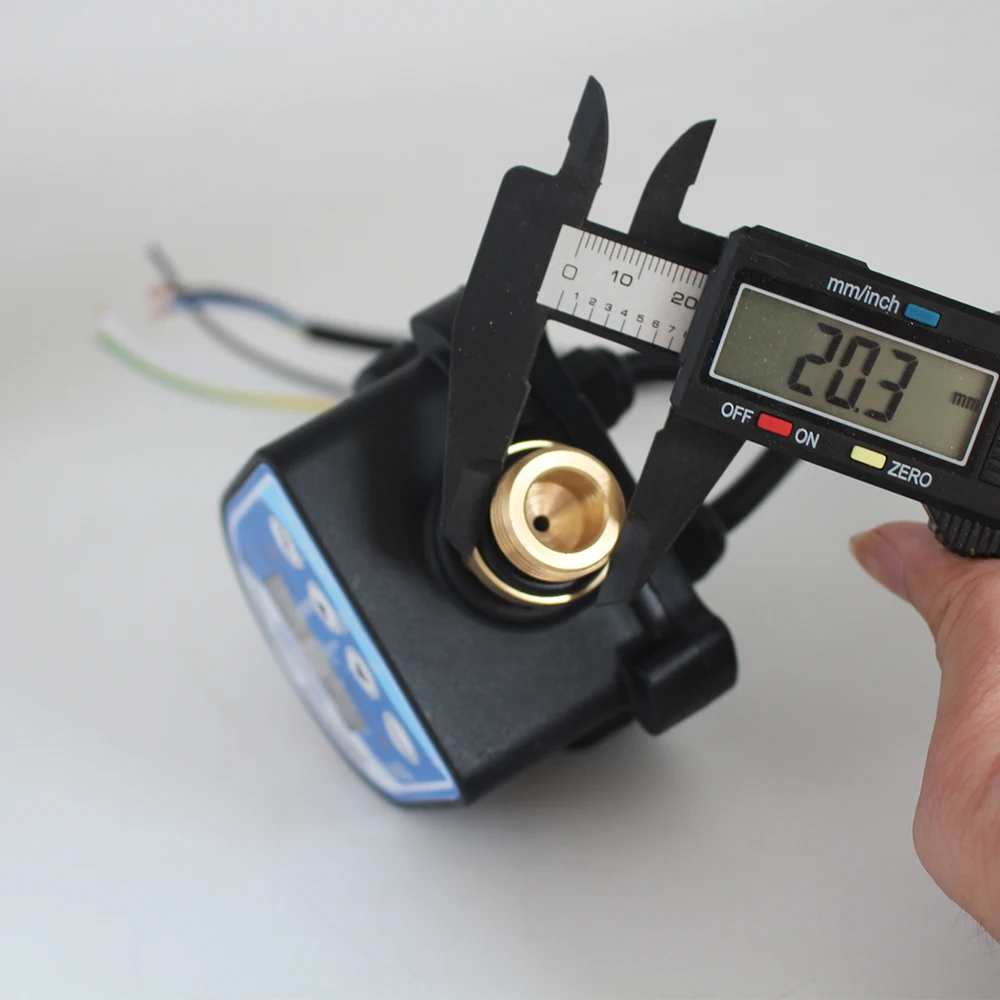

G1/2(Standard),it also can be customized

Overload Capacity

220V,10A; Pump(≤1.5KW) can be started directly

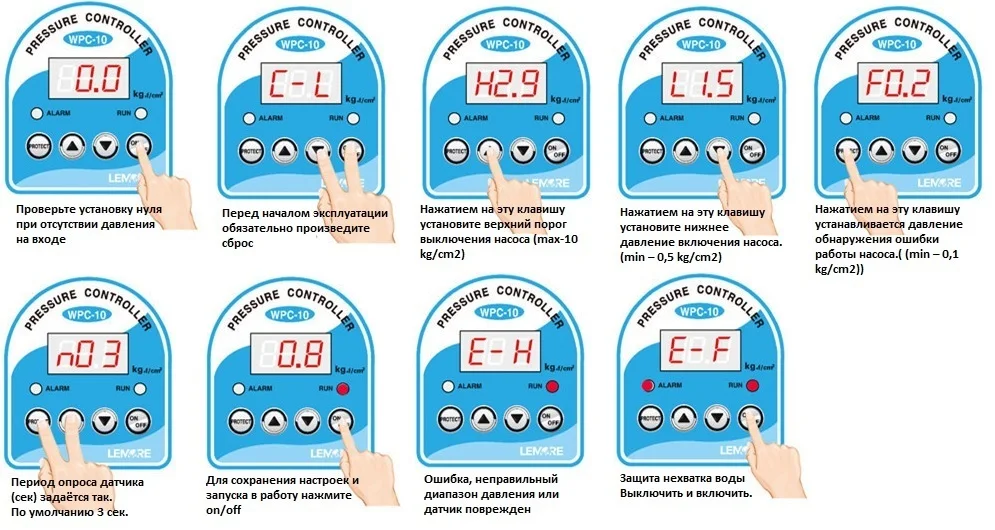

Read The Code

Code

Meaning

How To Use

H2.9

Upper value,stop2.9KG

You can set it as instruction

L1.5

Lower Value,stop1.5KG

You can set it as instruction

F0.2

Water shortage protection  0.2KG

You can set it as instruction

E-F

Water shortage protection

Press ON/OFF to restart or waiting for restart automatically

E-H

Error,over the pressure range

Check the pressure source
