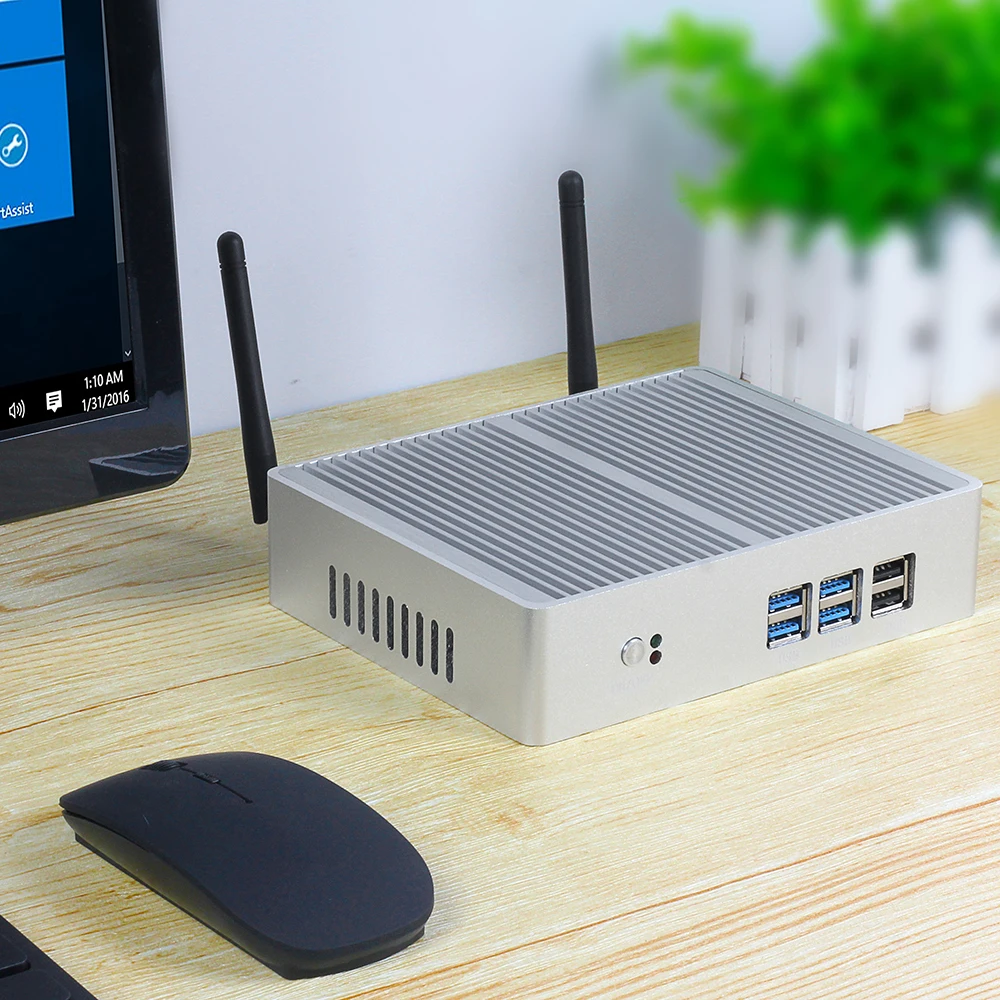

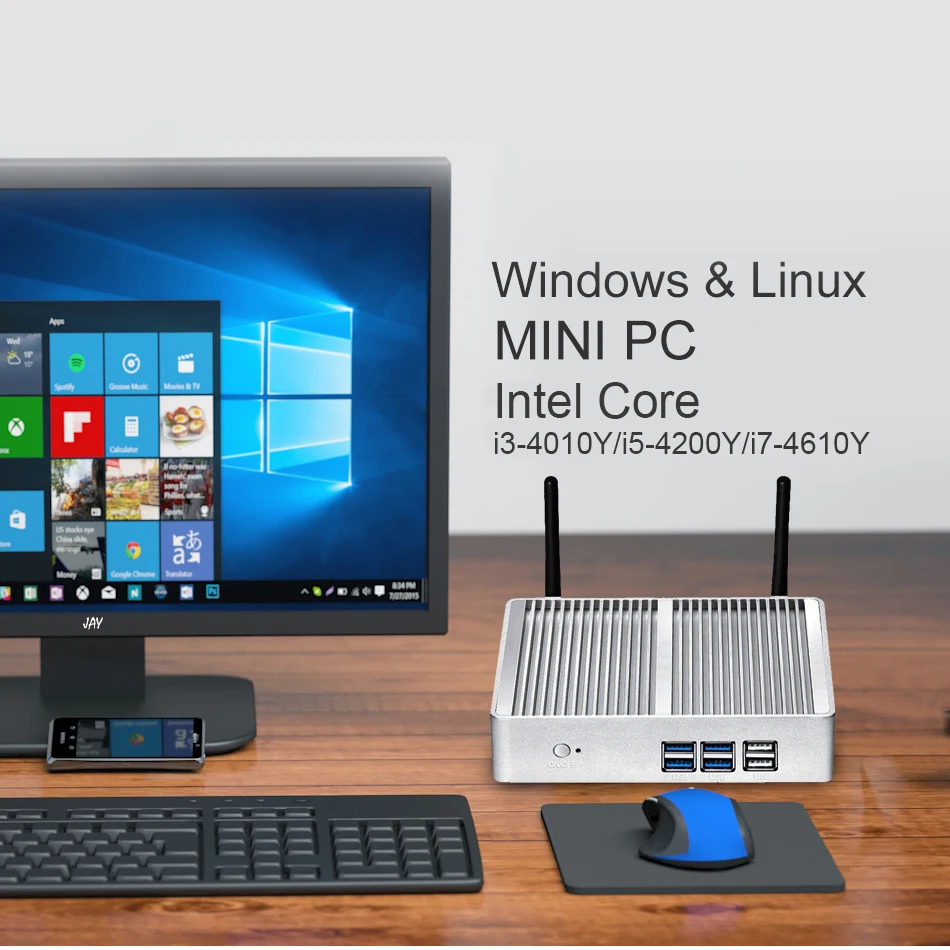

Мини-ПК XCY, без вентилятора, Intel Core i7 4500U i5 4200U i3 4010U, Windows 10, HDMI, VGA дисплей, 300 Мбитс, Wi-Fi Gigabit Ethernet, Linux HTPC

Processors

Intel Core i7-4500U, 2 cores 4 threads, 4M cache, 1.80GHz, up to 3.0GHz

Intel Core i5-4200U, 2 cores 4 threads, 3M cache, 1.60GHz, up to 2.60GHz

Intel Core i3-4010U, 2 cores 4 threads, 3M cache, 1.70GHz

Intel Core i3-4010Y, 2 cores 4 threads, 3M cache, 1.30GHz

Intel Core i3-5005U, 2 cores 4 threads, 3M Cache, 2.0GHz

Intel Pentium 4415U, 2 cores 4 threads, 2M cache, 2.30GHz

Intel Celeron 3855U, 2 cores 2 threads, 2M cache, 1.60GHz

Intel Celeron 2955U, 2 cores 4 threads, 2M cache, 1.40GHz

Memory

SODIMM DDR3L 1333/1600MHz, max support to 8GB

Pentimu 4415 use SODIMM DDR4 2133/2400/2666MHz,max support 8GB RAM

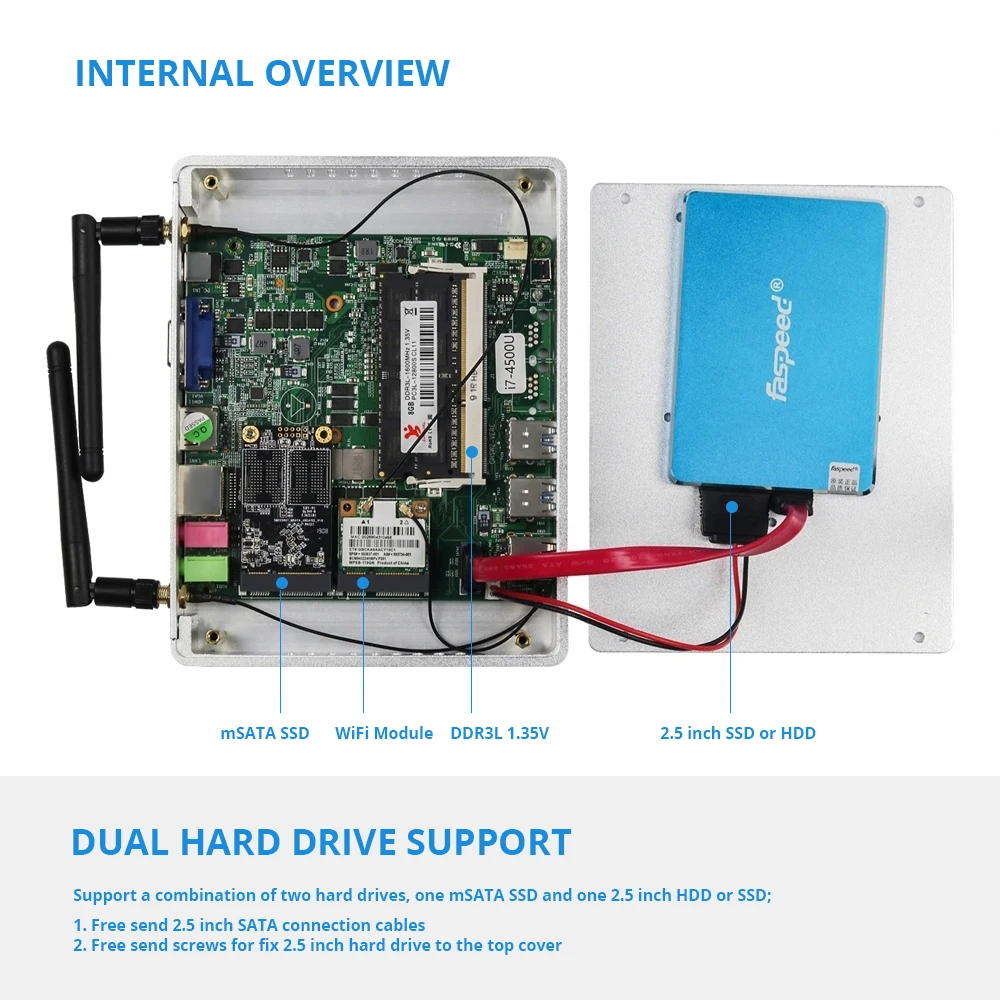

Storage

Support 1x mSATA SSD ( we pre-install this type hard drive in mini PC )

Support 1x 2.5 inch HDD

Graphics

Integrated graphics

i7-4500U /i5-4200U/i3-4010U: Intel HD Graphics 4400

i3-4010Y: Intel HD Graphics 4000

i3-5005U: Intel HD Graphics 5500

Pentium 4415u: Intel HD Graphics 610

Celeron 3855U/2955U: Intel HD Graphics

Network Interfaces

GbE RJ45 Realtek 8111E

Expansion

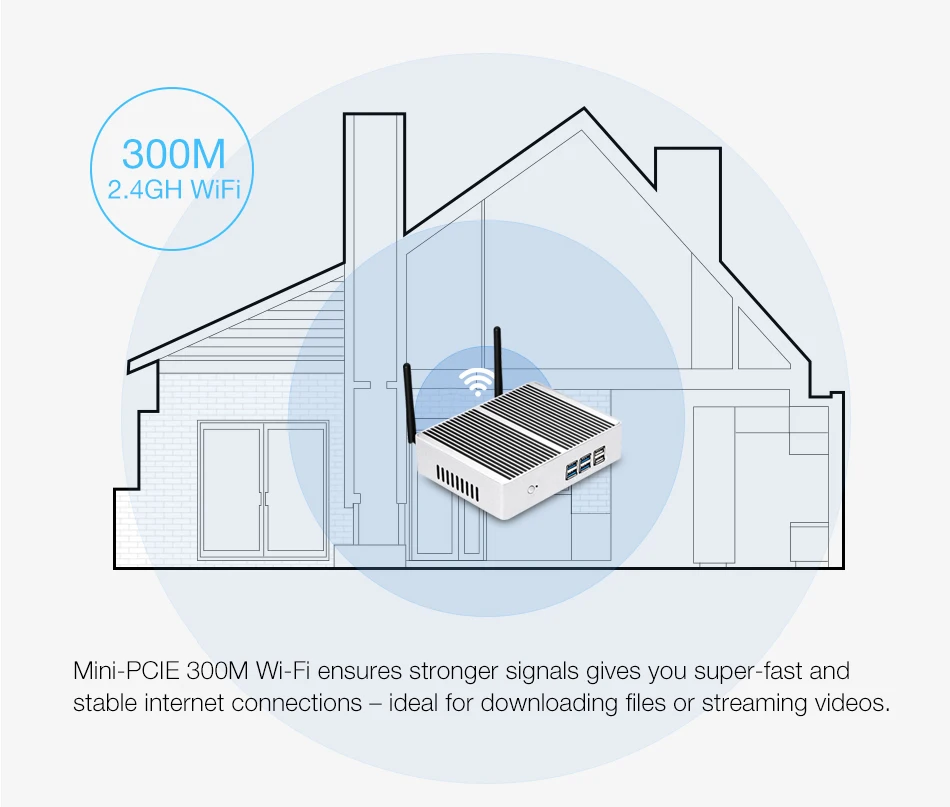

1x Mini PCI-E for WiFi/Bluetooth module ( half height size )

OS Support

Windows 7/8/8.1/10, Linux, Ubuntu

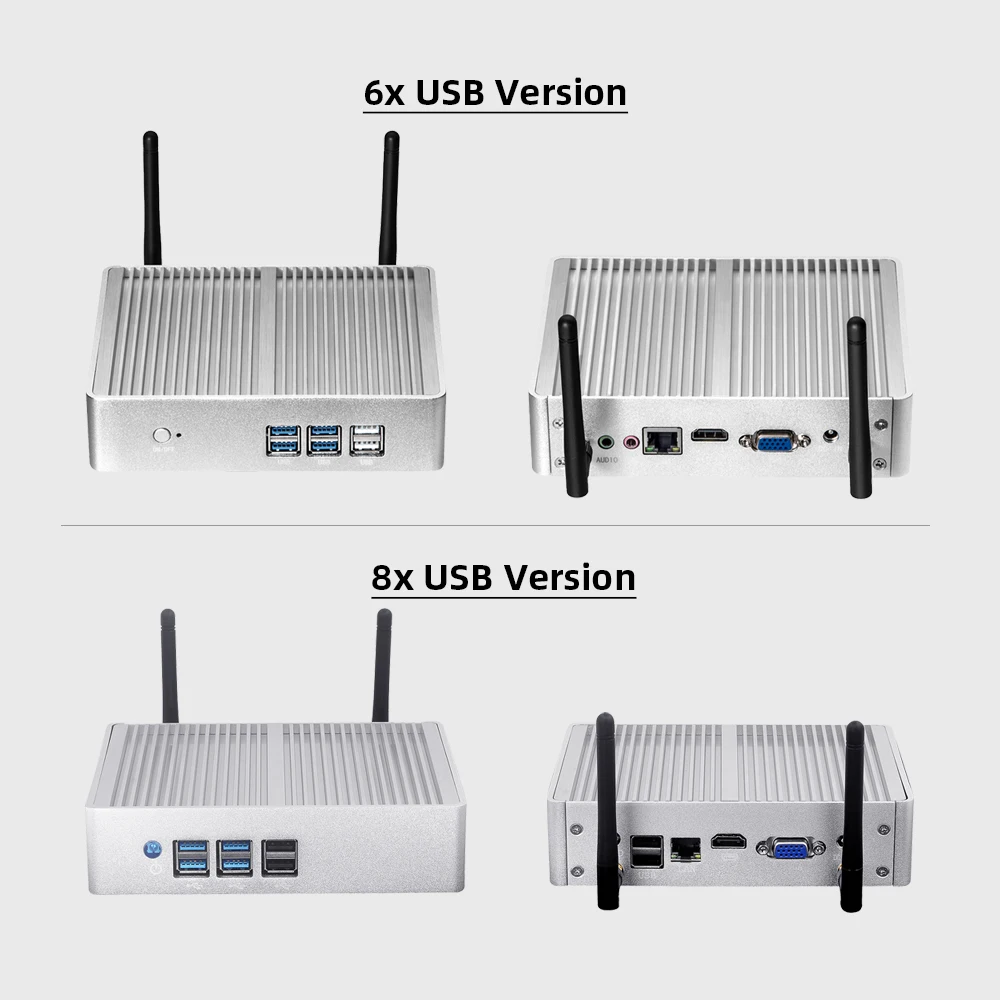

USB Ports

4x USB3.0, 2x USB2.0

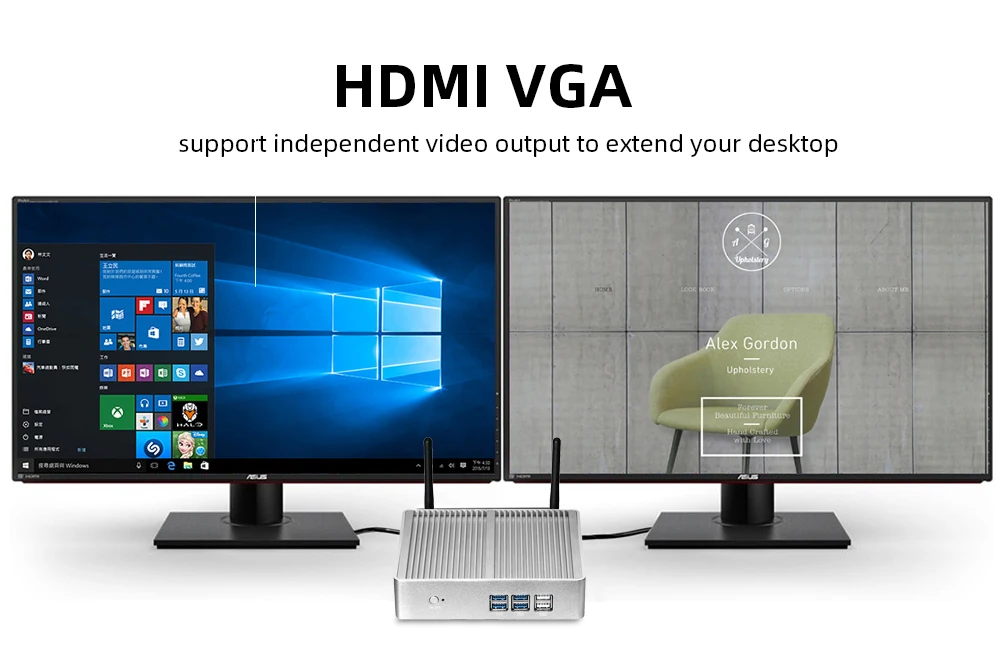

Display Port

1x VGA max resolution 1920x1080P@60Hz,

1x HDMI max resolution2560x1600@@60Hz

Features

Support WOL,Automatically power on when power restored after a sudden power loss

Audio Ports

1x SPK, 1x MIC audio jack

Construction

Fanless passive cooling

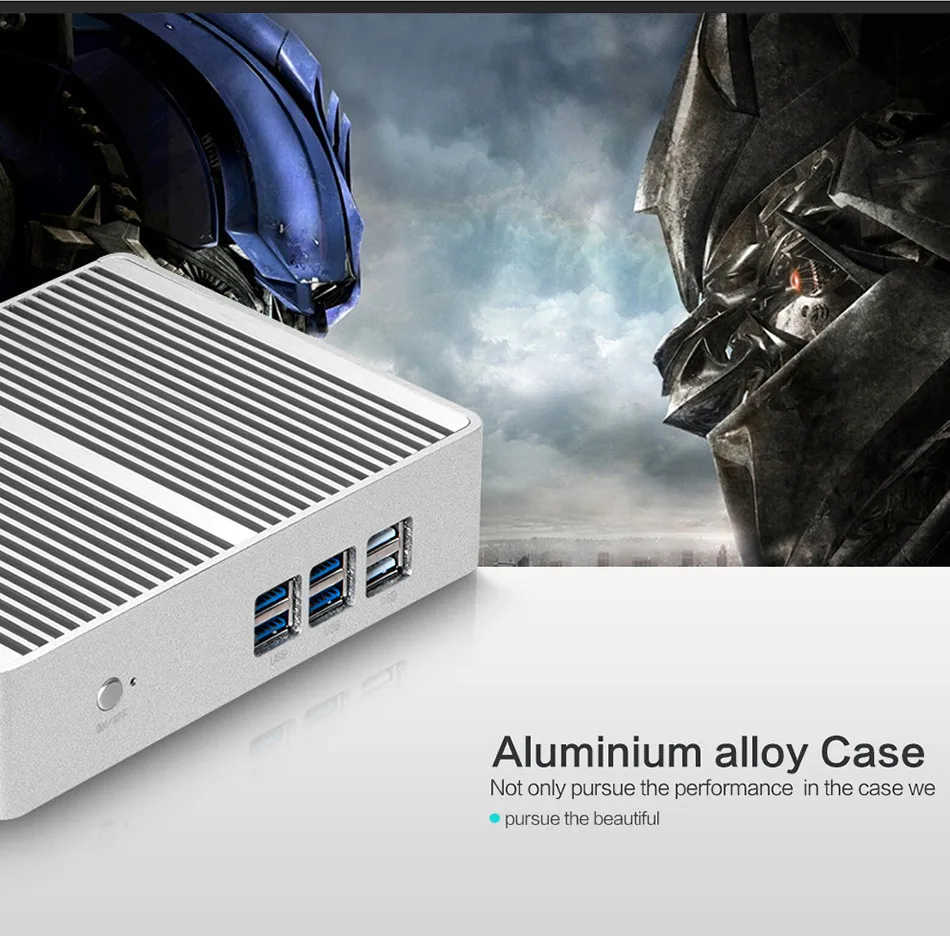

Case

Aluminum Case

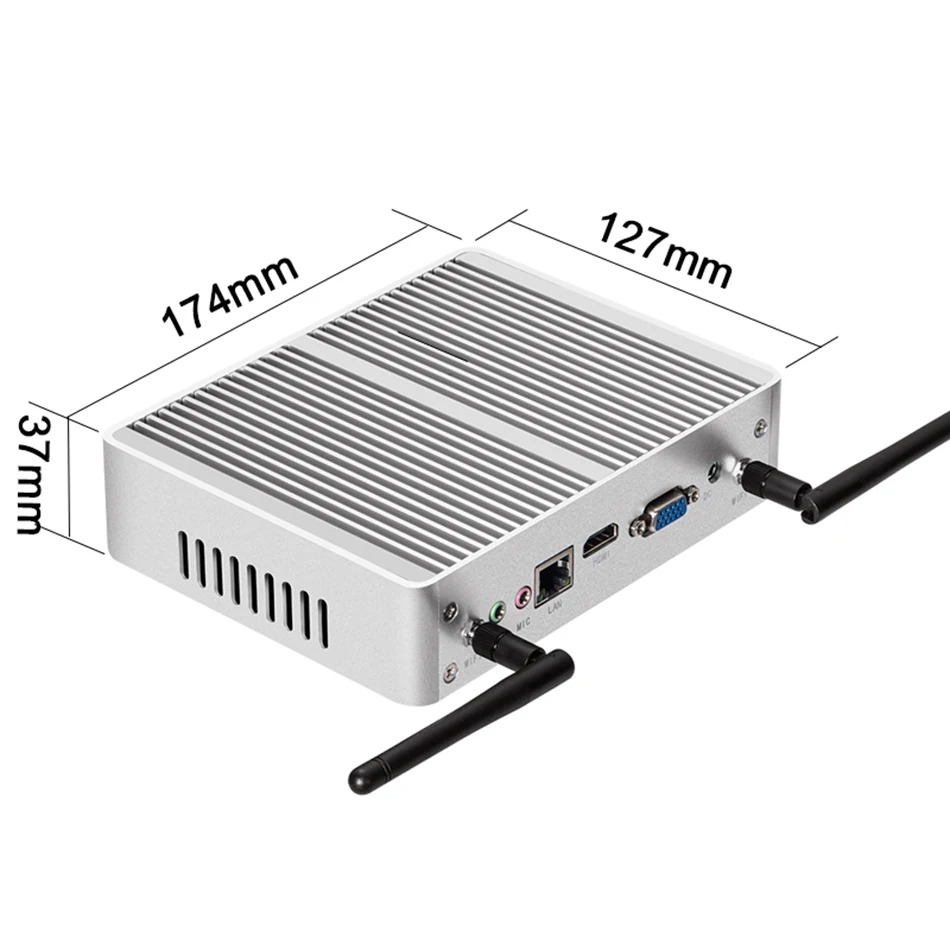

Dimension

174x127x35mm

Netweight

0.85Kg

Operating Temperature

-20℃ to +60℃

RH

5%~90% @30℃，Non-condensing

Power Adapter

Input AC100-240V, Output DC12V-5A

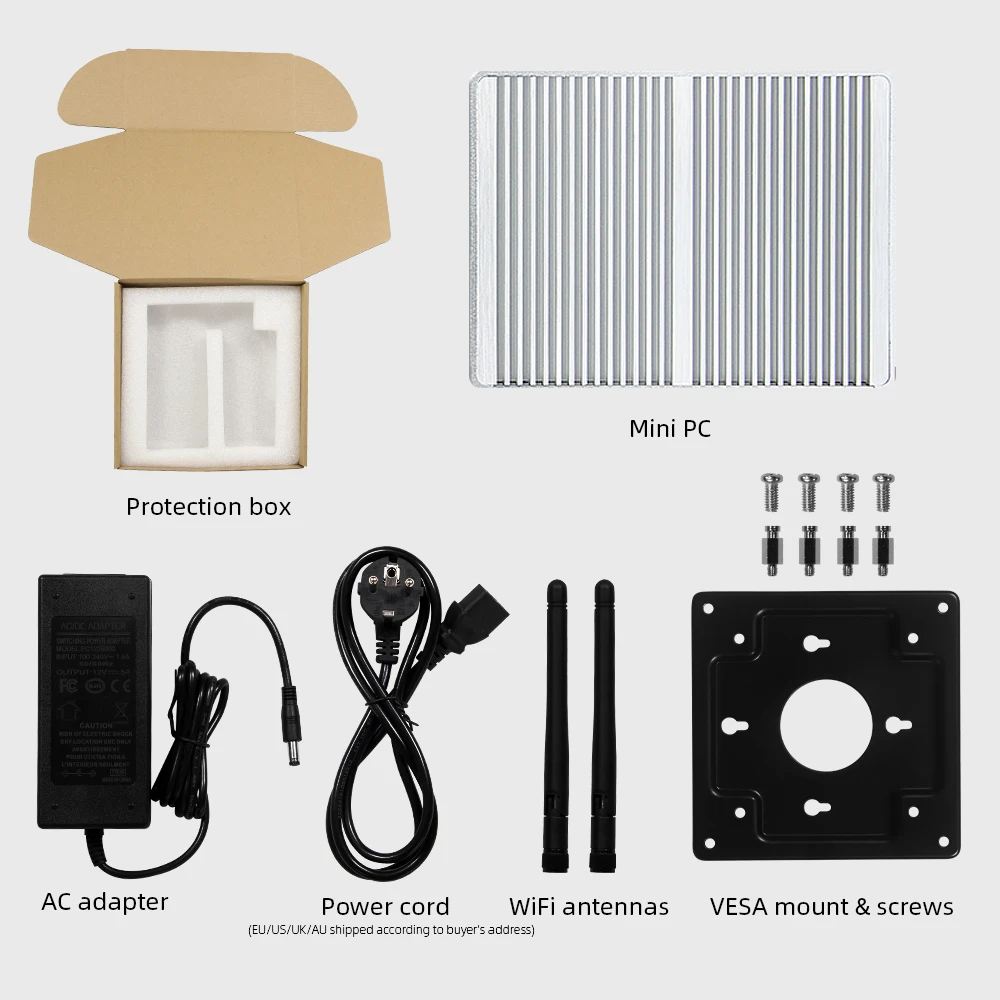

Package List

1x Mini PC

1x AC Adapter

1x Power cord ( EU AU US UK type plug shipped according to buyer’s address )

1x SATA cable

1x VESA mount

1x User manual
