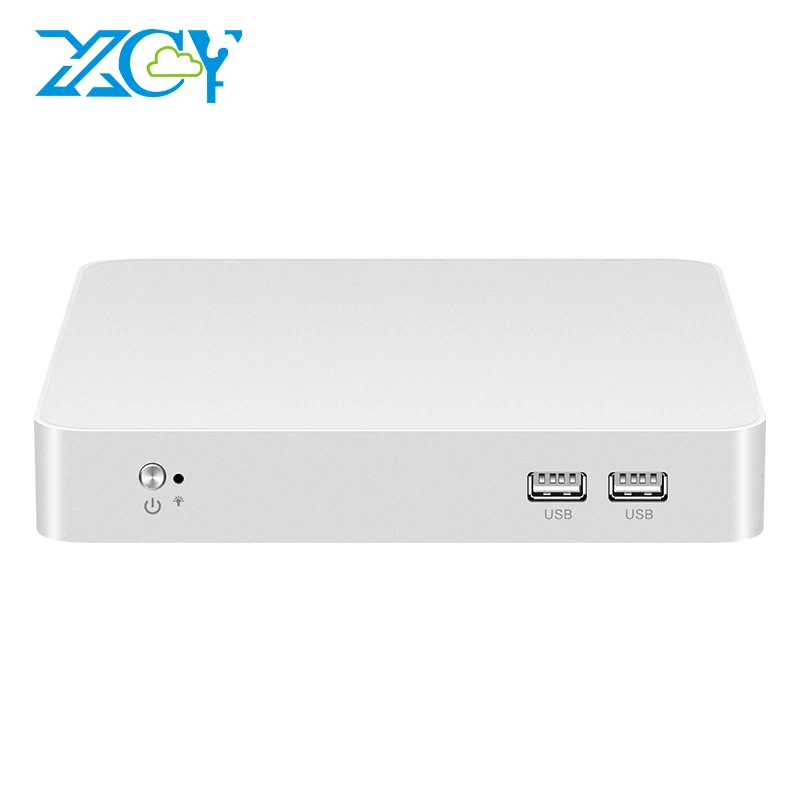

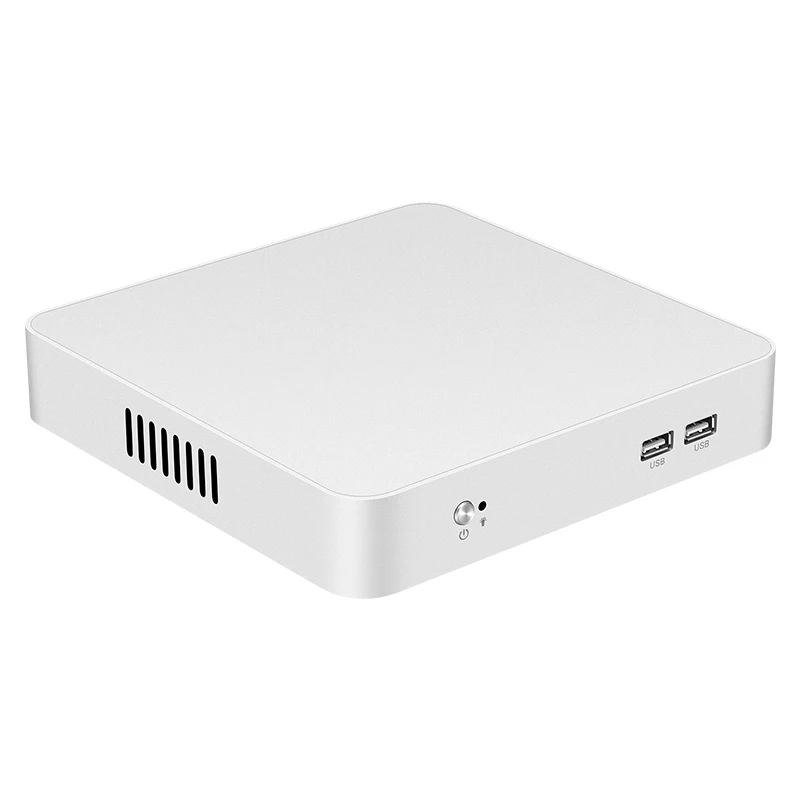

Мини-ПК XCY, Intel Core i5 6287U i3 6157U 4 ГБ 8 ГБ DDR4 128-512 ГБ SSD Windows 10 Linux HTPC HDMI VGA WiFi Gigabit Ethernet

Processors

Intel Core i7-7500U, 2 cores 4 threads, 4M cache, 2.70GHz, up to 3.50GHz

Intel Core i7-6500U, 2 cores 4 threads, 4M cache, 2.50GHz, up to 3.10GHz

Intel Core i5-7360U, 2 cores 4 threads, 3M cache, 2.30GHz, up to 3.60GHz

Intel Core i5-6200U, 2 cores 4 threads, 3M cache, 2.30GHz, up to 2.80GHz

Intel Core i5-6300U, 2 cores 4 threads, 3M cache, 2.40GHz, up to 3.0GHz

Intel Core i7-4500U, 2 cores 4 threads, 3M cache, 1.80GHz, up to 3.0GHz

Intel Core i5-4200U, 2 cores 4 threads, 3M cache, 1.60GHz, up to 2.60GHz

Memory

DDR3L 1333/1600MHz (i5-4200U/6200U/7360U,i7-4500U/6500U/6567U / 6657U/7500U)

DDR4 RAM 2133MHz (i5-6300U/i7-6500U)

max support to 16GB (i5-4200U i7-4500U max support 8GB RAM )

Storage

mSATA SSD

Graphics

Integrated graphics

Network Interfaces

GbE RJ45 Realtek 8111E

Expansion

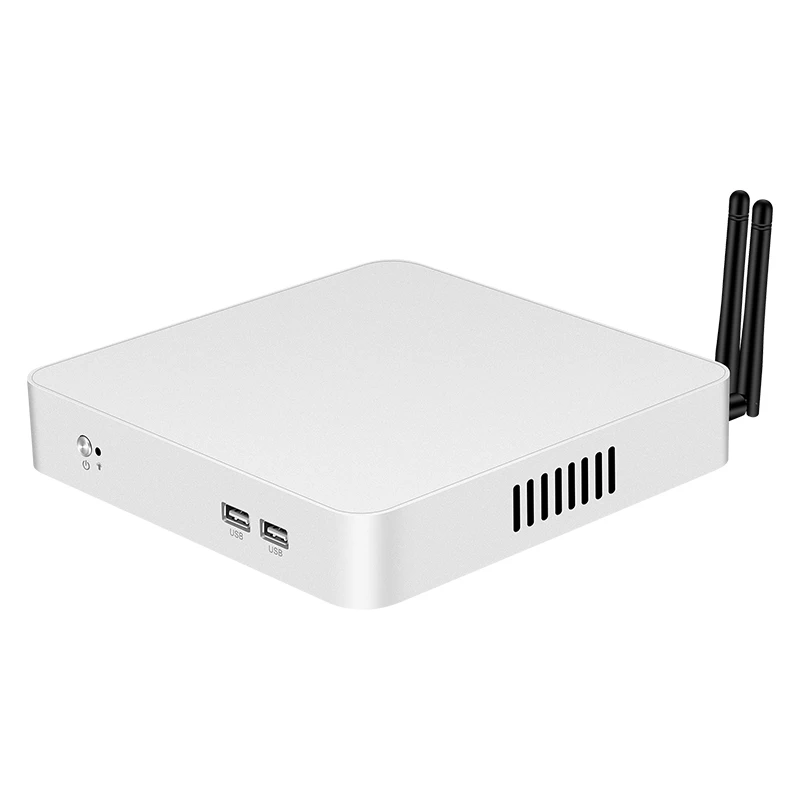

1x Mini PCI-E for WiFi/Bluetooth module ( half height size )

OS Support

Windows 8/8.1/10, Linux, Ubuntu

i5-4200U/i7-4500U support Windows 7 /8/10, linux/Ubuntu

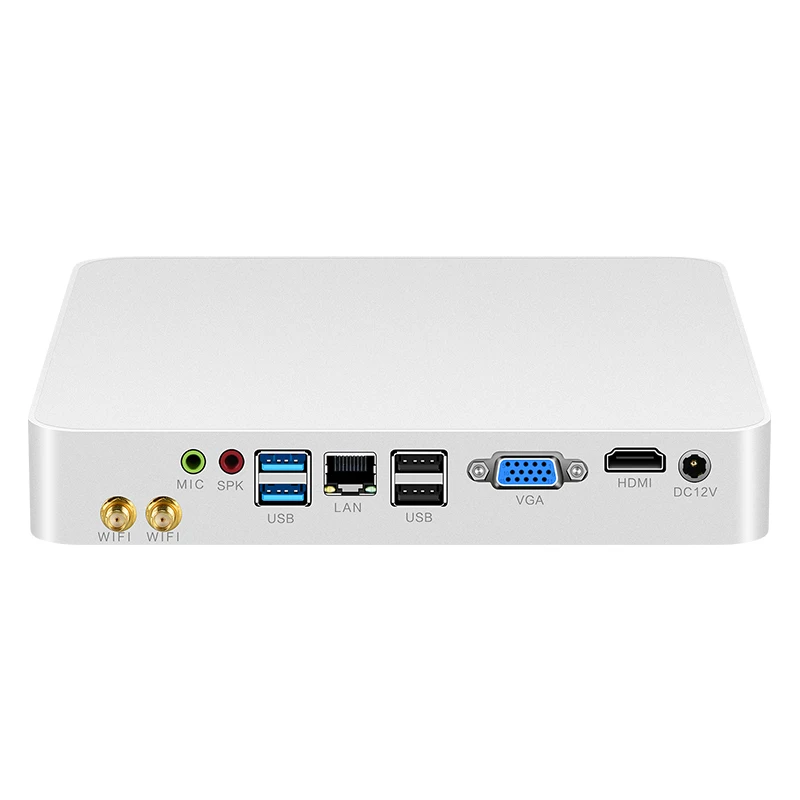

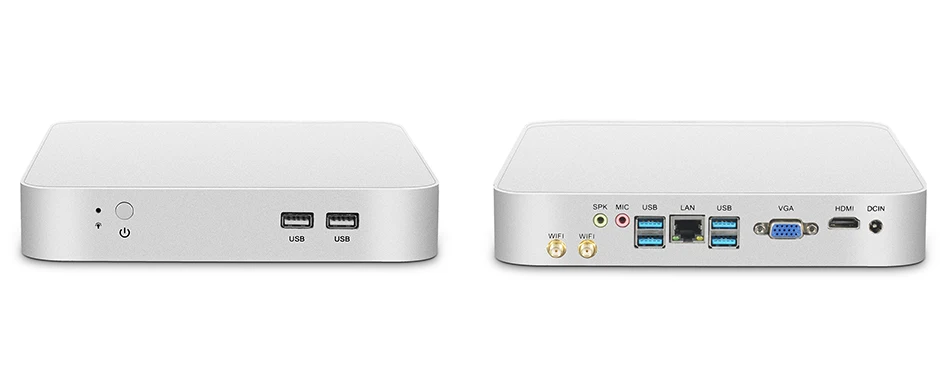

USB Ports

2x USB3.0, 4x USB2.0

Display Port

1x VGA, 1x HDMI

Features

Support WOL,automatically power on when power restored after a sudden power loss

Audio Ports

1x SPK, 1x MIC audio jack

Construction

On-board fan cooling

Case

Aluminum Case

Dimension

197x197x40mm

Netweight

0.8Kg

OperatingTemperature

-20℃ to +60℃

RH

5%~90% @30℃，Non-condensing

Power Adapter

Input AC100-240V, Ouput DC12V-5A

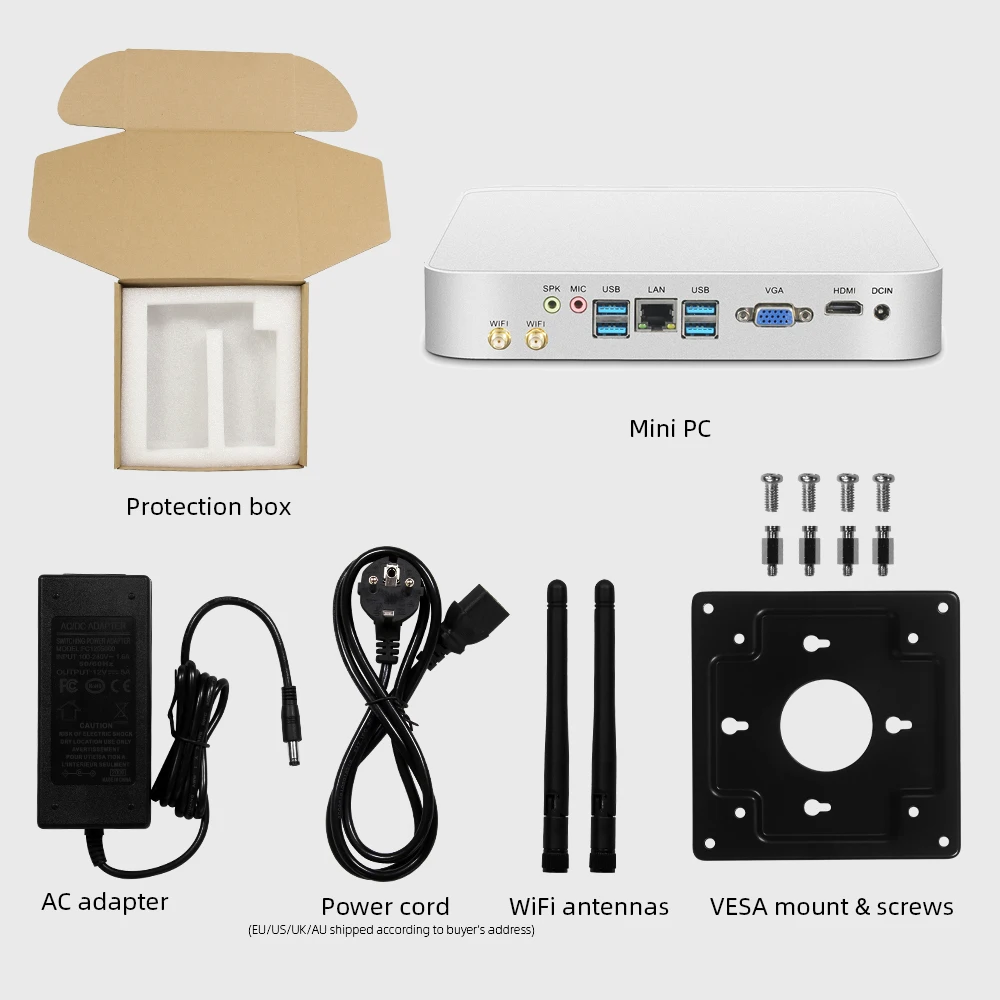

Package List

1x Mini PC

1x AC Adapter

1x Power cord ( EU AU US UK type plug shipped according to buyer’s address )

1x SATA cable

1x VESA bracket

1x User manual

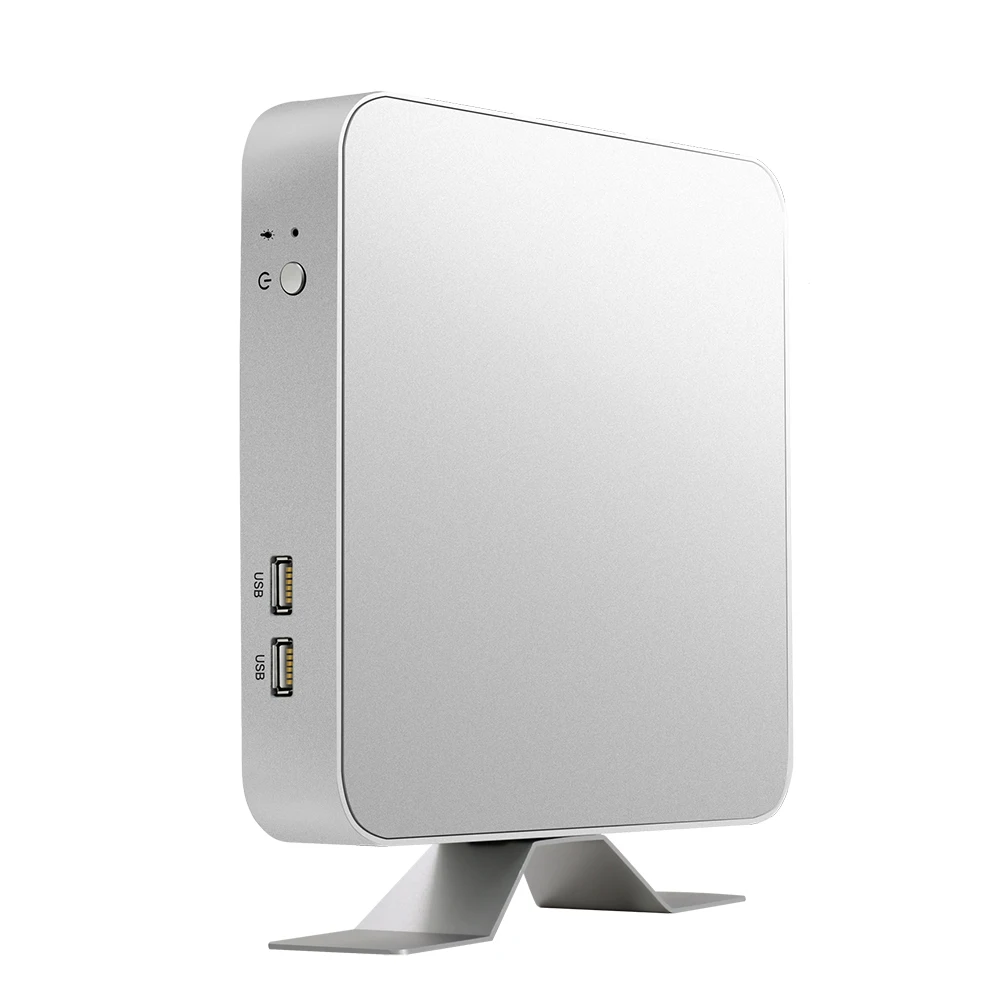

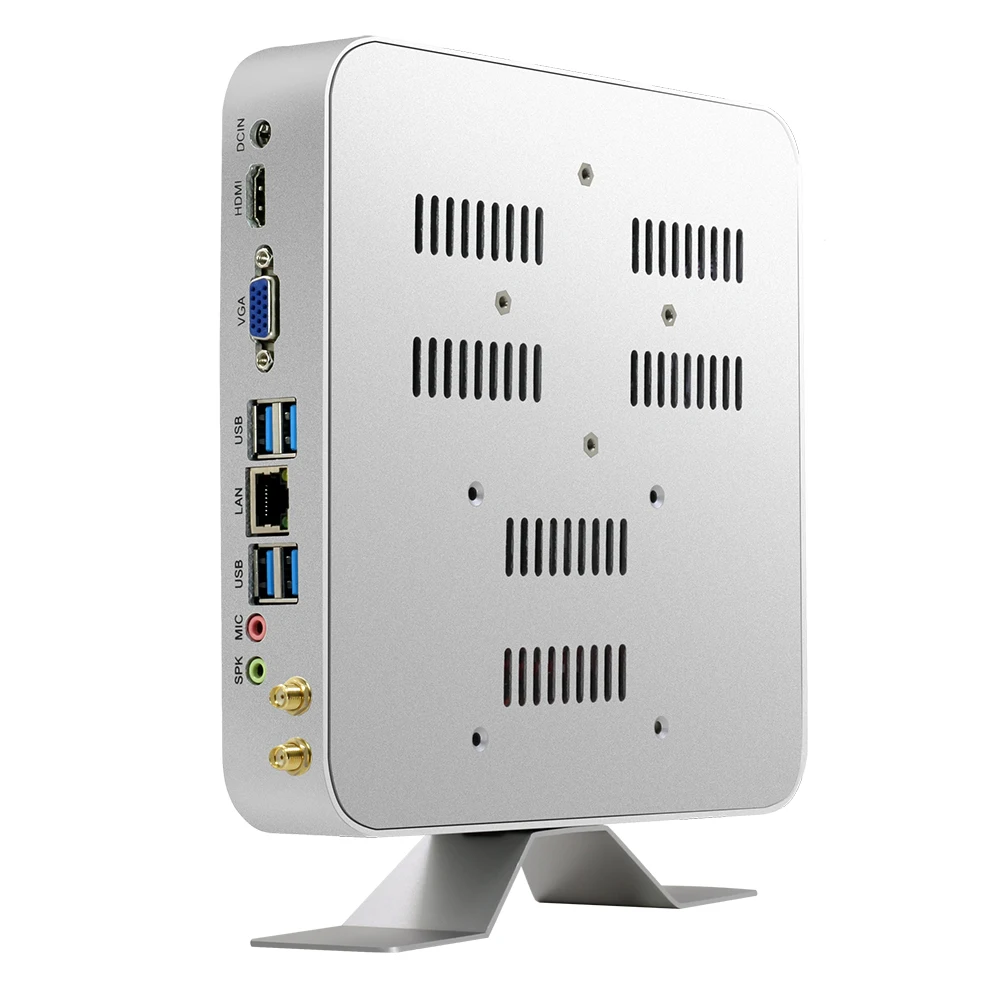

Если вы предпочитаете Вертикальное Крепление, оставьте нам сообщение при оформлении заказов
