Description:

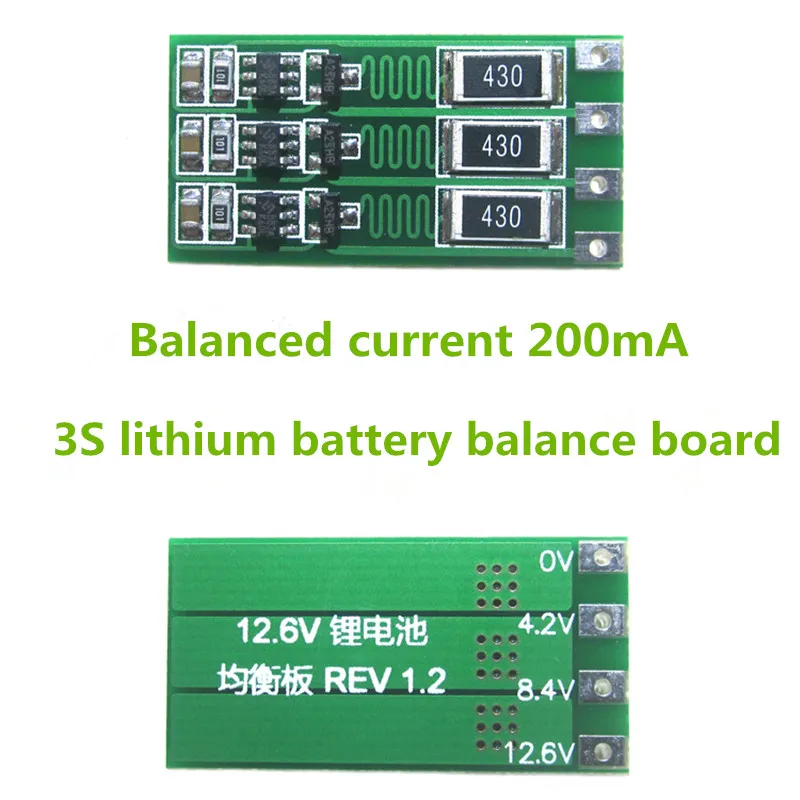

3S 12.6V lithium battery balancer board
Scope: Nominal voltage of 3.7V, full of voltage of 4.2V lithium battery (including 18650,26650, polymer lithium battery)
Product Size: 15 * 30 (40,50) * 2.4mm
Applicable voltage: 12.6V

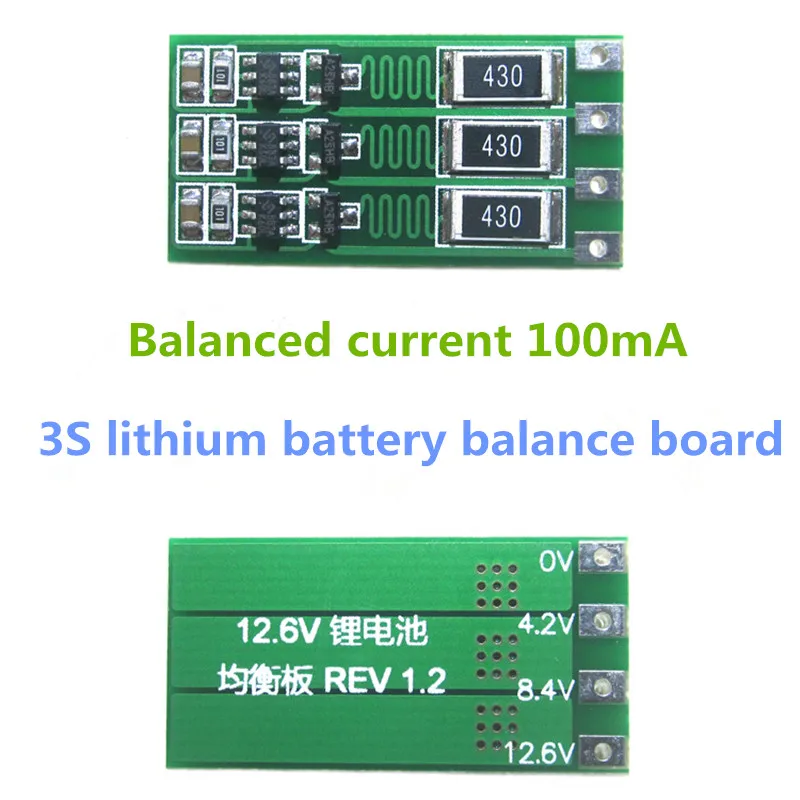

Balancer current: 100mA, suitable for 2000-4000mAh battery pack
Balancer current: 200mA for 4000-8000mAh battery pack
Balancer current: 300mA, suitable for 8000-12000mAh battery pack
Note:We send it 100mA balancer current by default. If you need other,please email us.
Note 1: This product can not replace the use of lithium battery protection board
(no overcharge protection and over discharge protection)
; works is: the first full of a single battery discharge, waiting for other batteries filled.

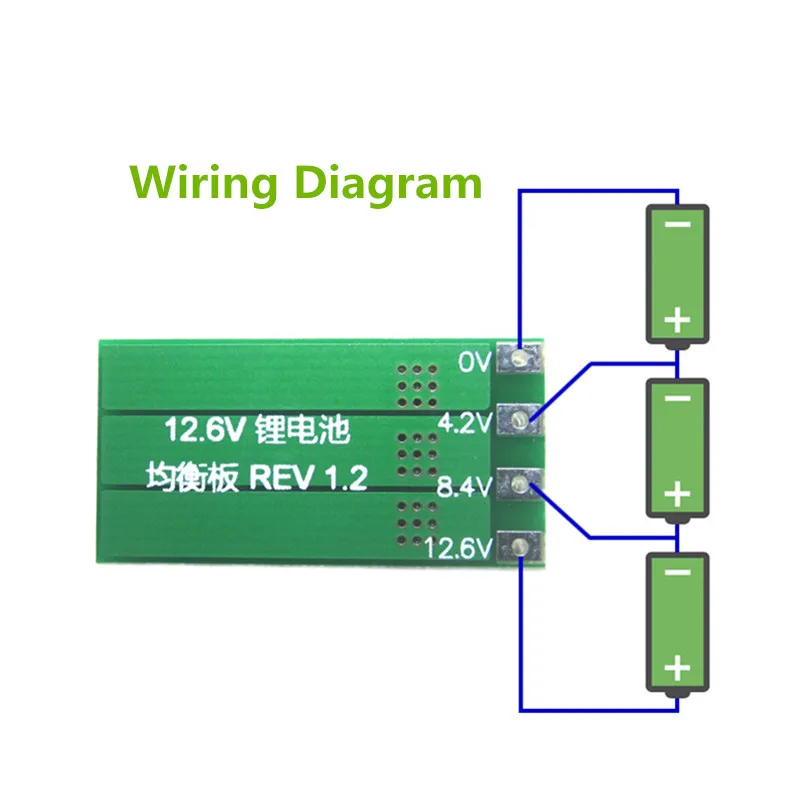

Note 2: strictly according to map wiring, then the wrong line may lead to burning board; balance plate work when the heat is large, please isolate the battery pack.
Note 3: This product is used in parallel with the common lithium battery protection board, can achieve balanced charging function.
Note 4: If the battery capacity internal resistance difference is too large, there will be a long time to balance or can not complete the balance of the situation, it is recommended to re-match the battery pack.
