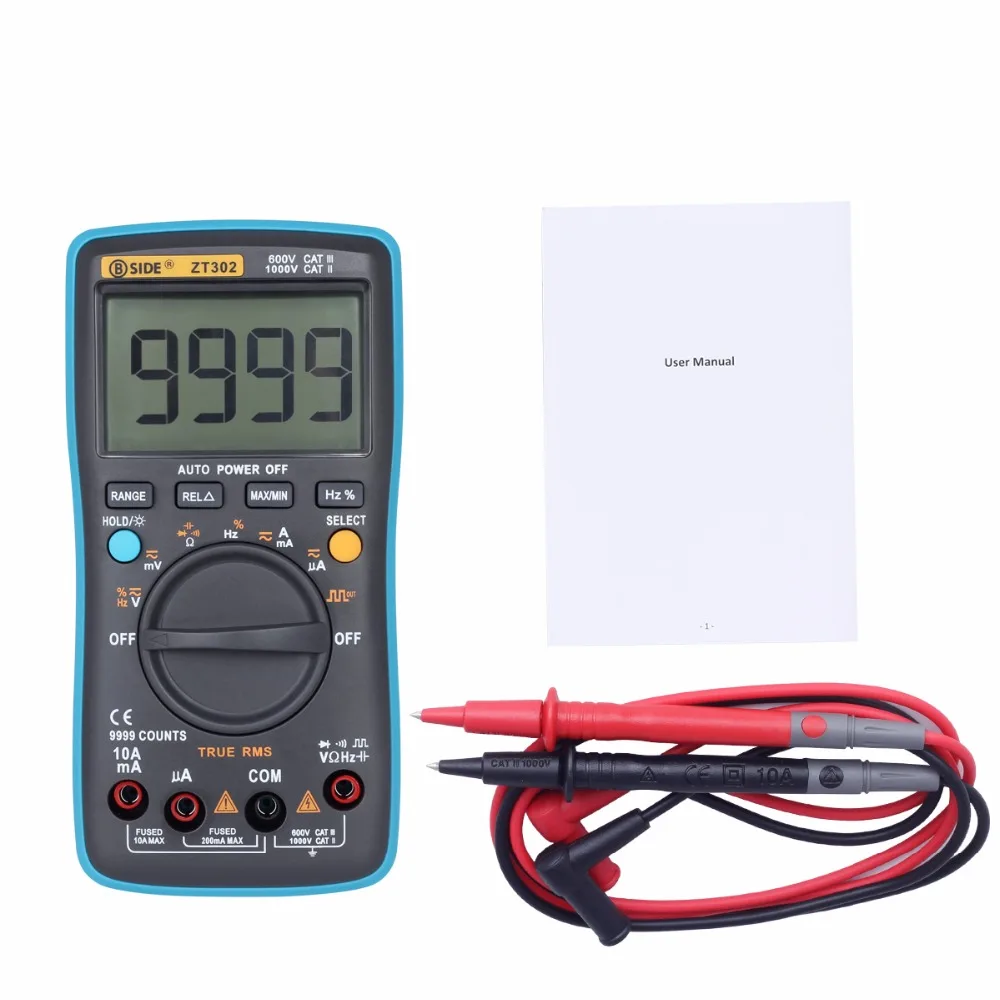

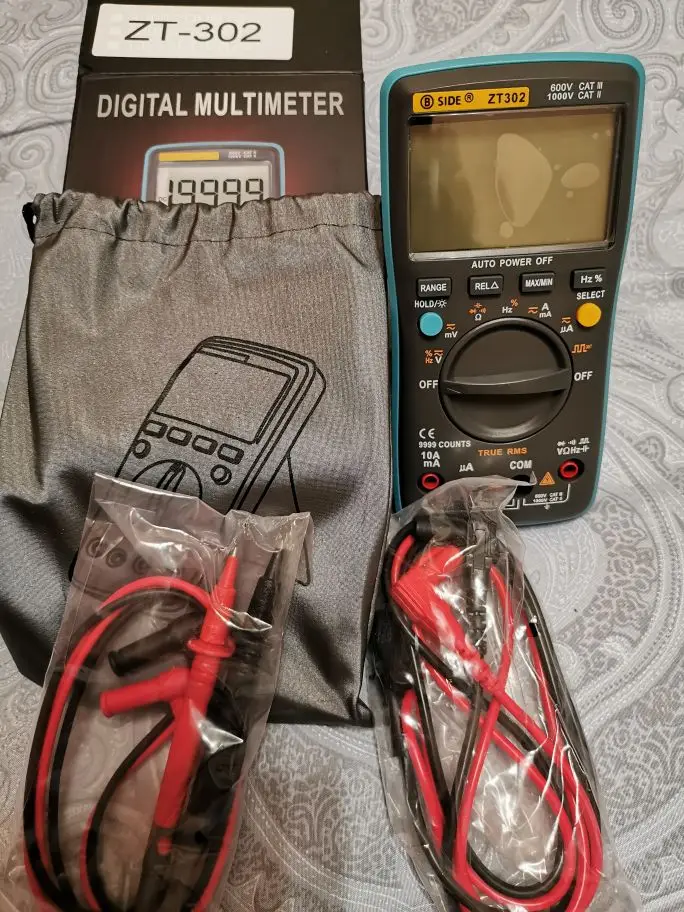

Официальный BSIDE 9999 отсчетов туры RMS цифровой мультиметр ZT301ZT302 Многофункциональный ACDC Напряжение Температура Емкость Тестер

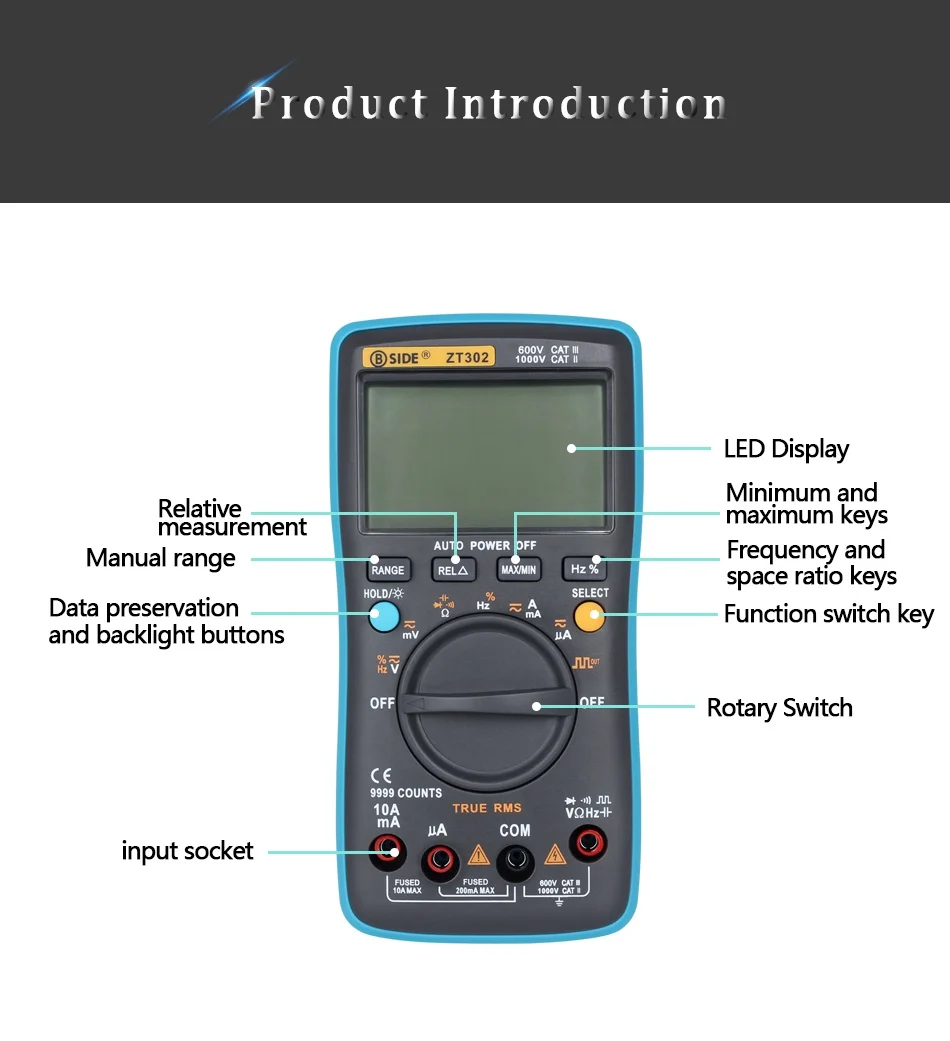

Product Introduction

It is a Auto-ranging digital multimeter using double-integral style A/D transform as the core,

Can be used to measures AC/DC Voltage,AC/DC Current,Resistance,Capacitance,Diode and Continuity testing,temperature,Frequency and Etc.

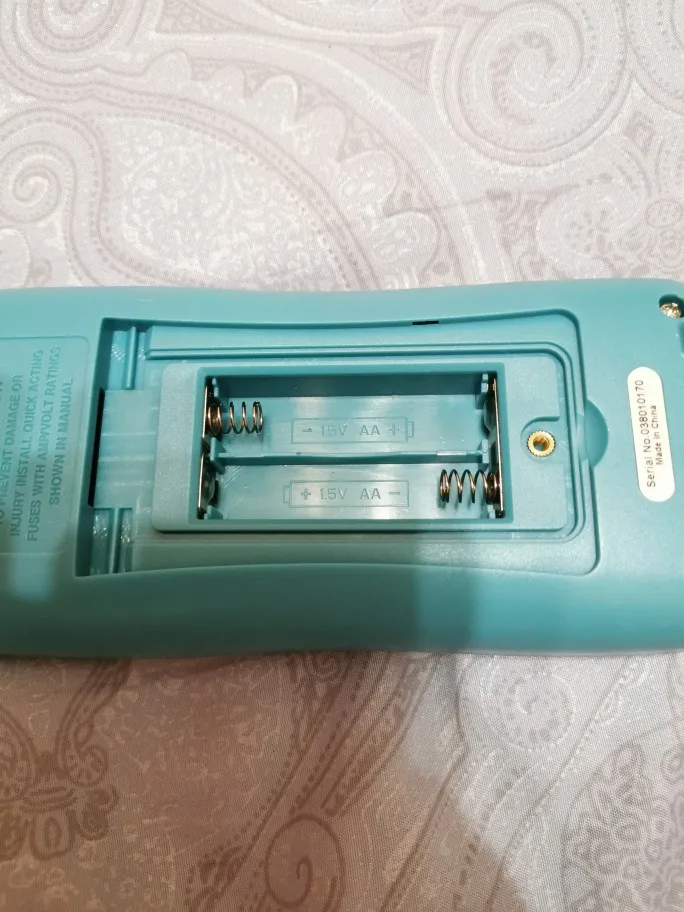

The products are battery powered.they are characterized by stable function and high reliability, with the features of overload protection and LCD display for clear reading,are an ideal tools for lav,factory,radio fans and family use.

General Characteristic

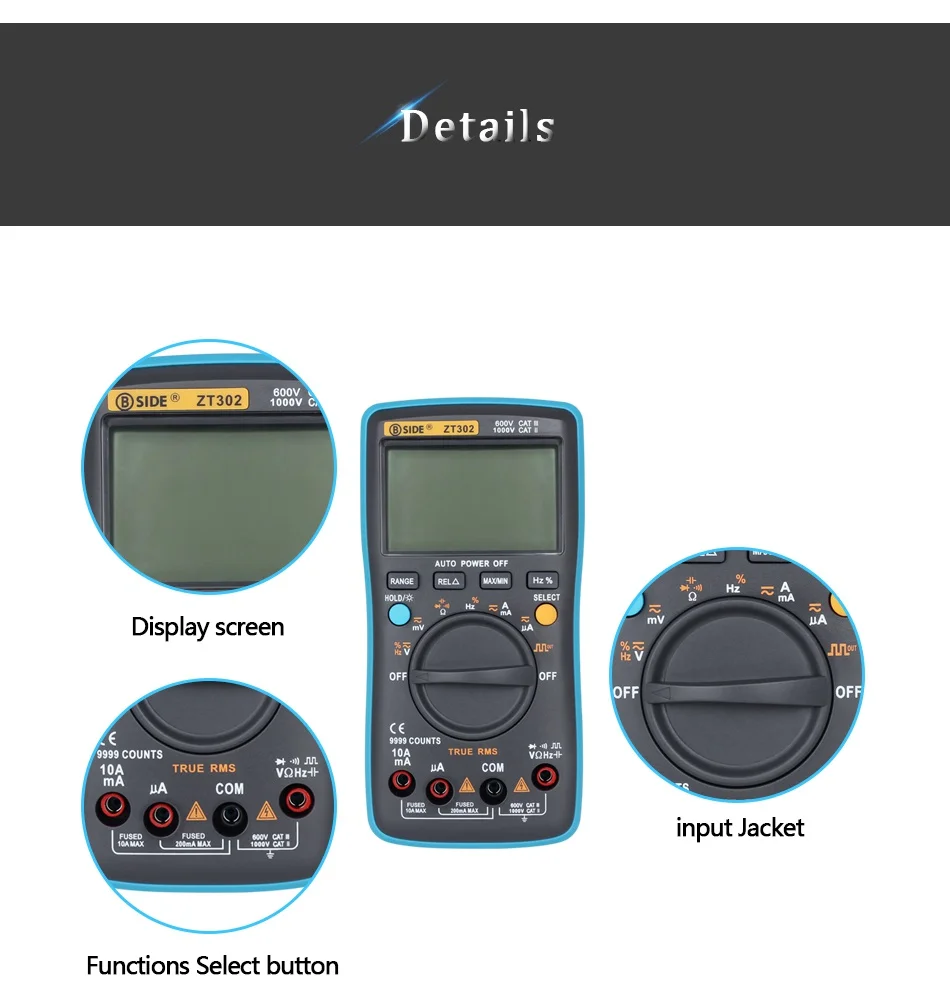

· LCD display

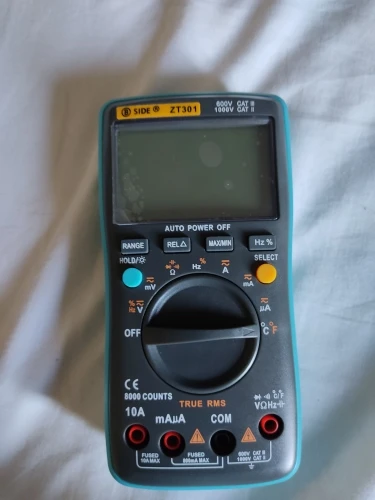

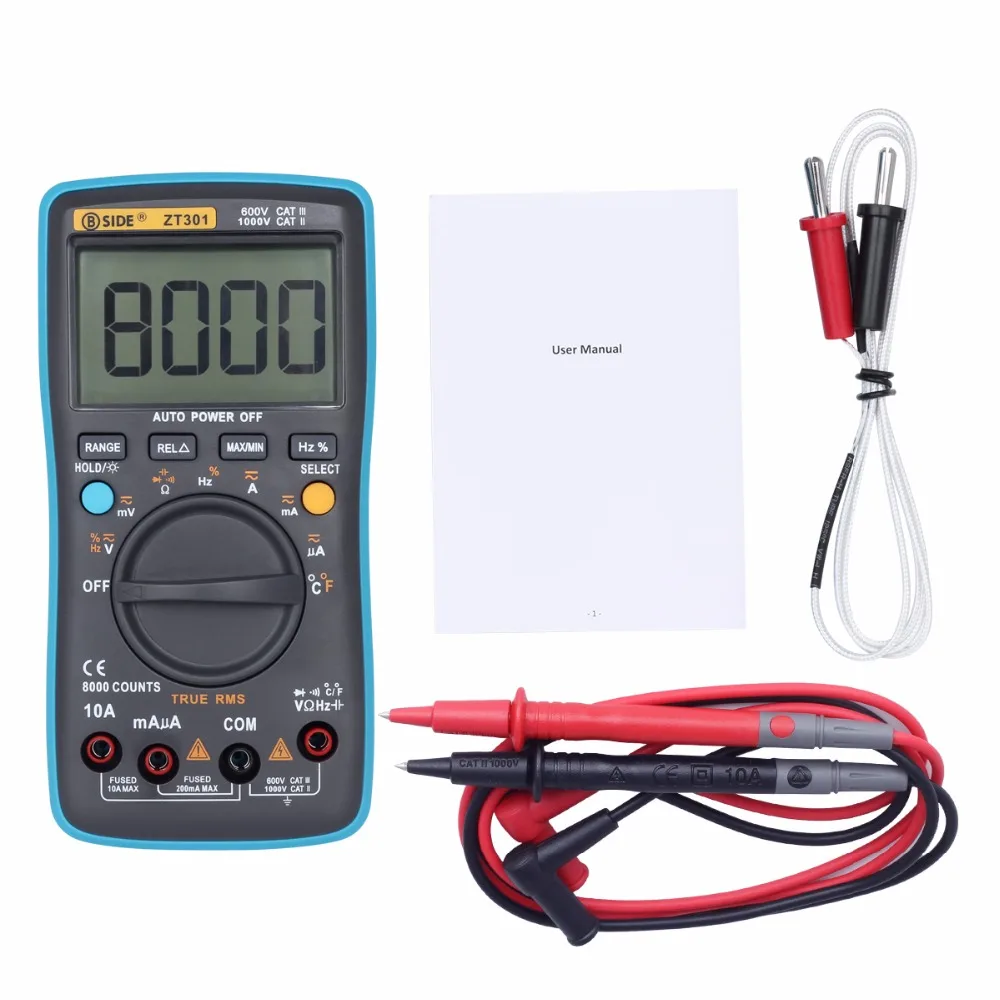

· Max display:8000 counts(ZT301)/9999  Counts(ZT302)

· Polarity identification

· Measurement mode:double-integral style A/D transform

· Sample  rate:3 times per second

· Over range indication:OL

· Low voltage indication

· Working Environment:0-40 degrees,relative humidity <80%

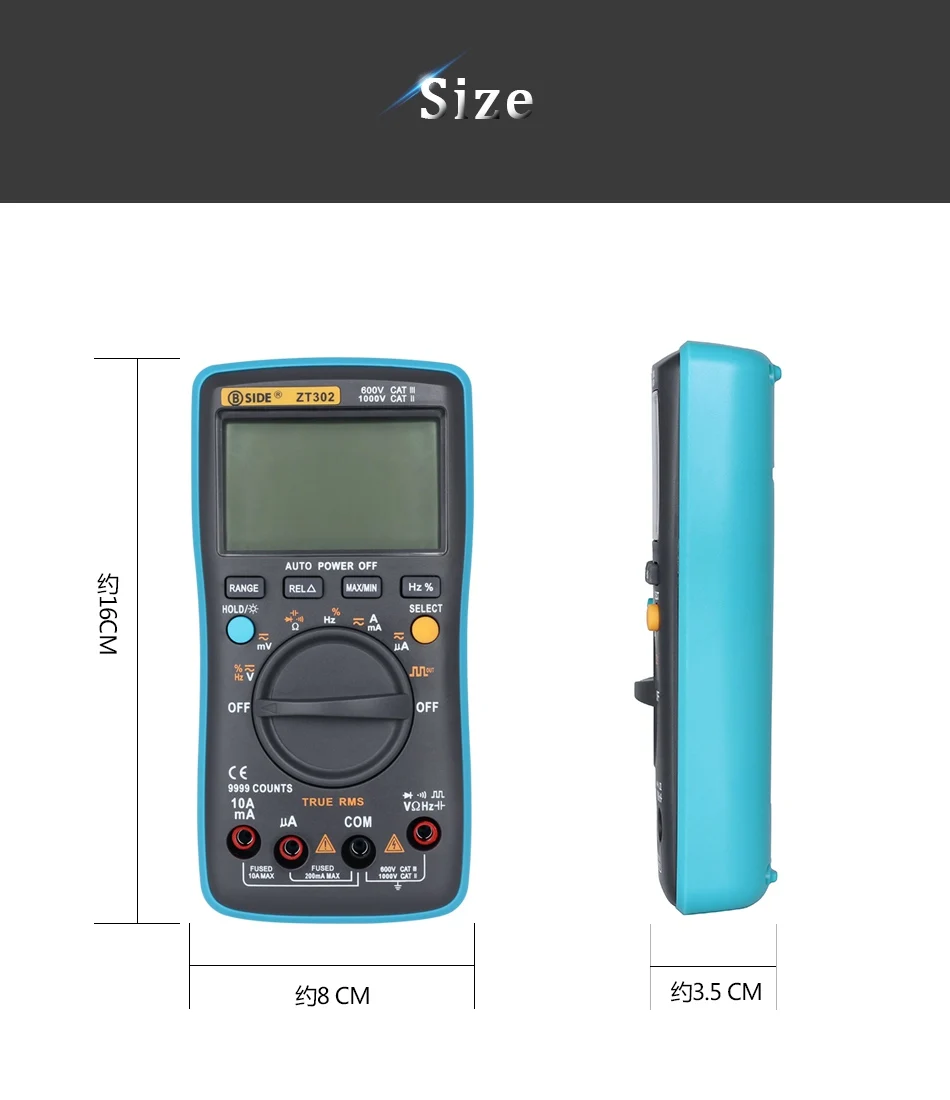

· Size:85x160x32 mm

· Auto Range

· True RMS measurement

· Backlight display

· Data retention

· Polarity automatic recognition

· Low voltage display

· 10A large current measurement, mA level small current measurement

· Automatic shutdown

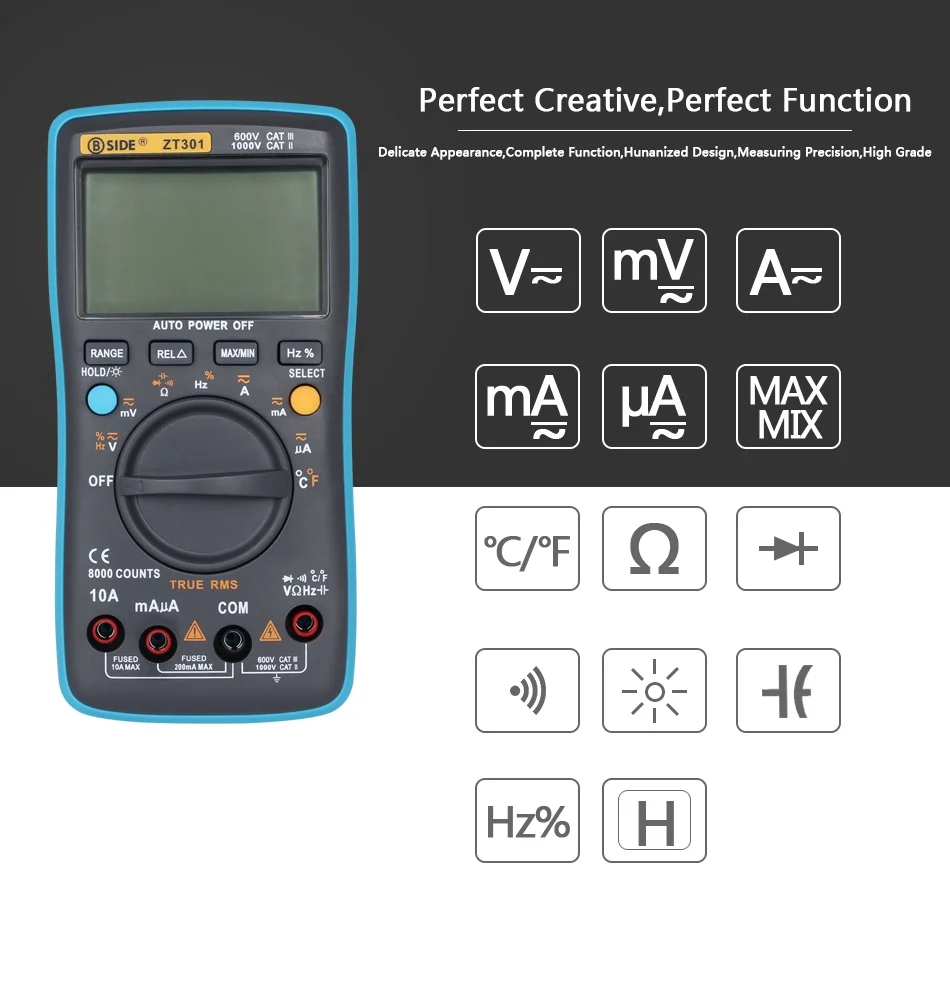

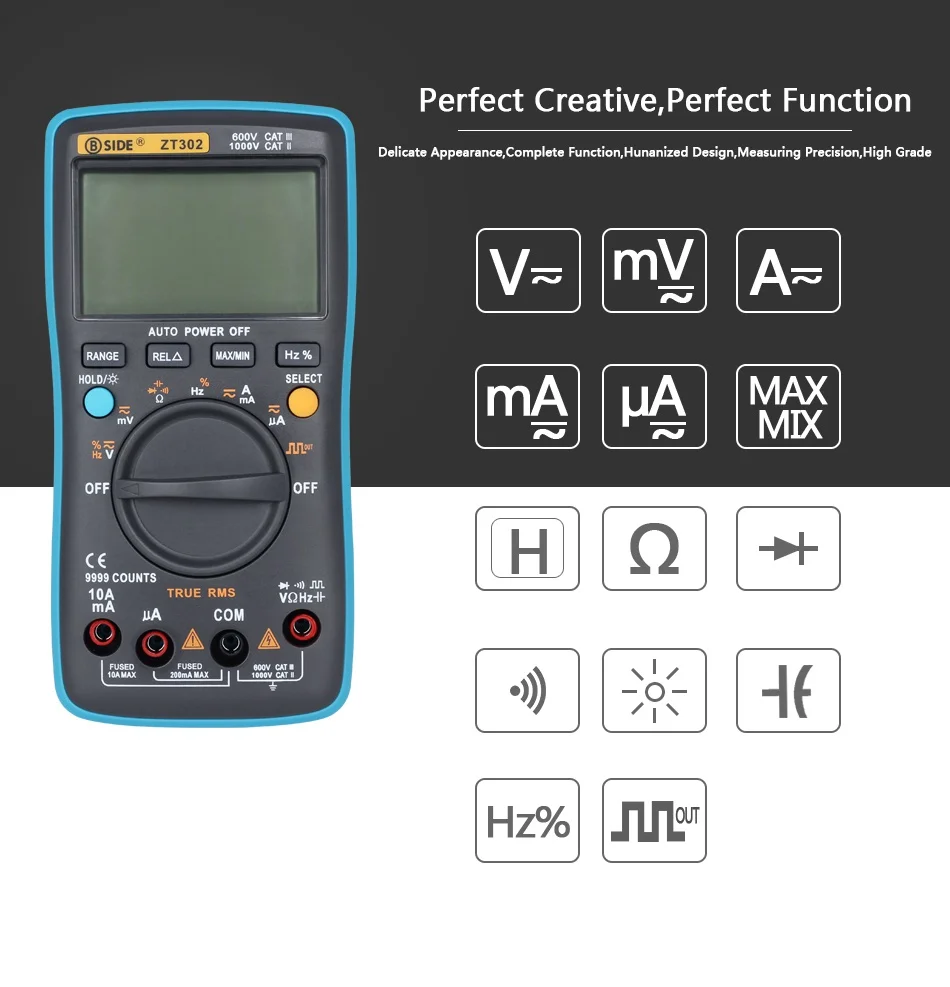

· Main measurement: AC / DC voltage, AC / DC current, resistance, capacitance,

· Diode / off measurement, frequency and duty ratio measurement.

Specification parameter:

(1) Frequency: 100/1000/10K/100k/10M (±0.1% ±2)

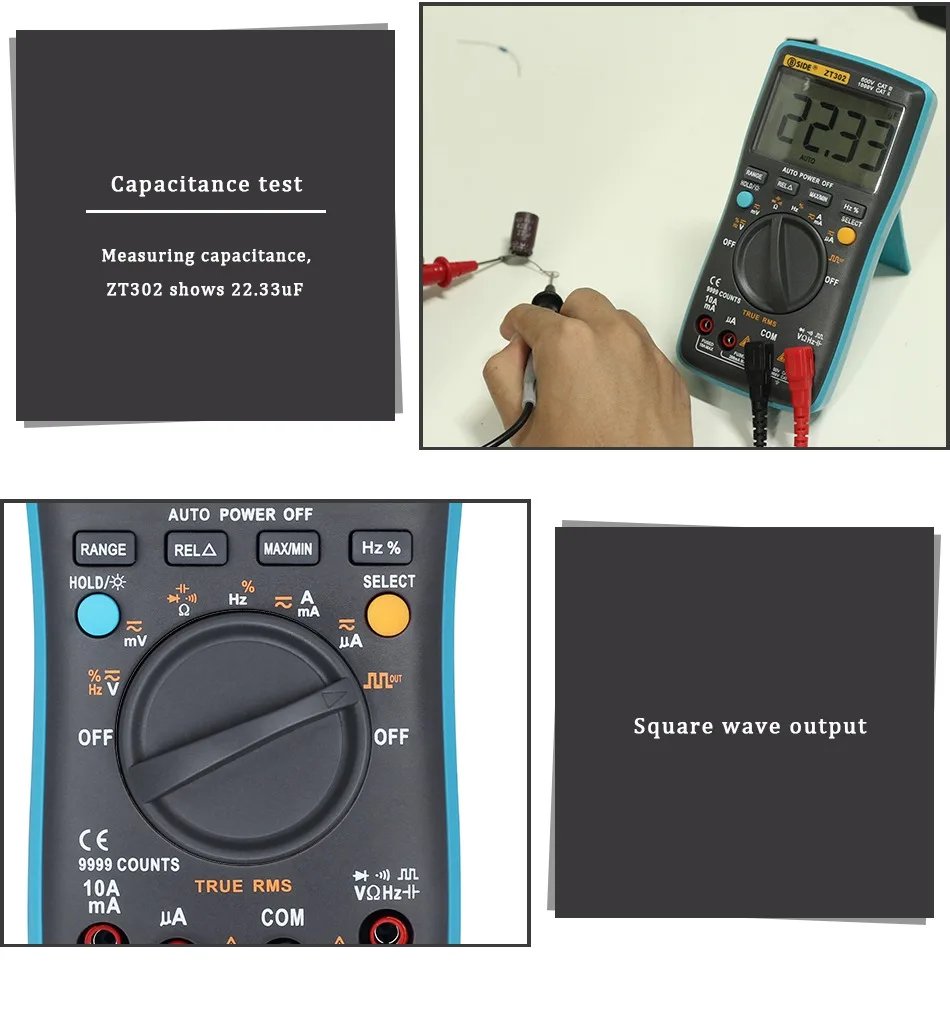

(2) Capacitance: 10nF (±5.0%±20), 100nF/1uF/10uF/100uF/1000uF (±2.0%±5), 10MF (±5.0%±5)

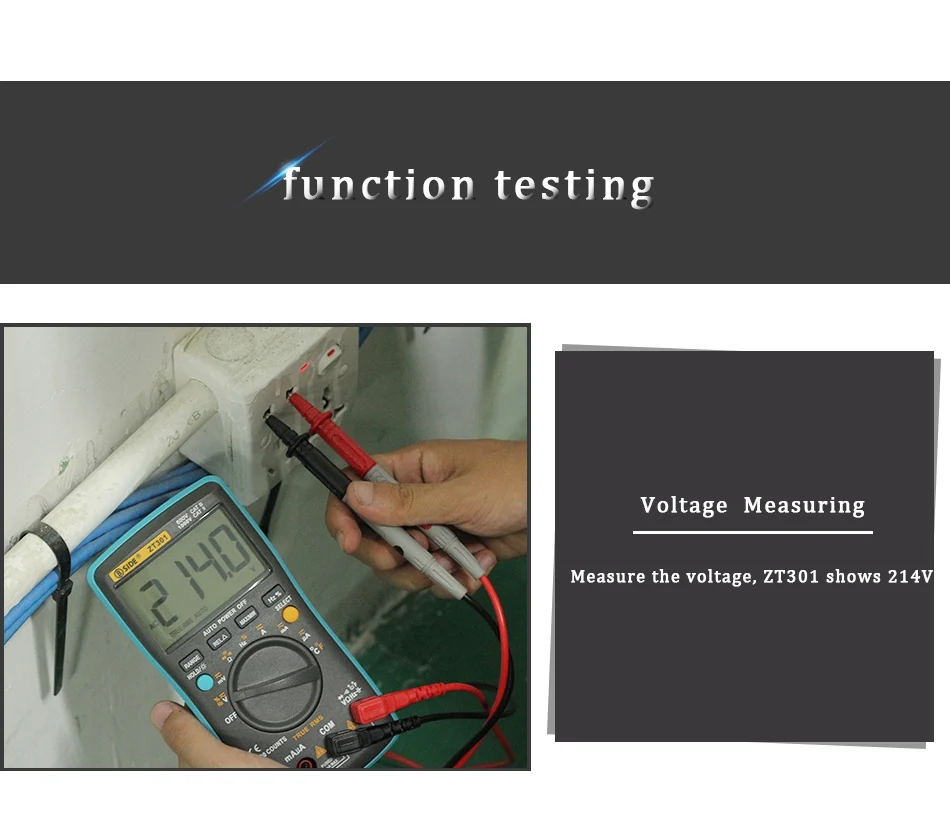

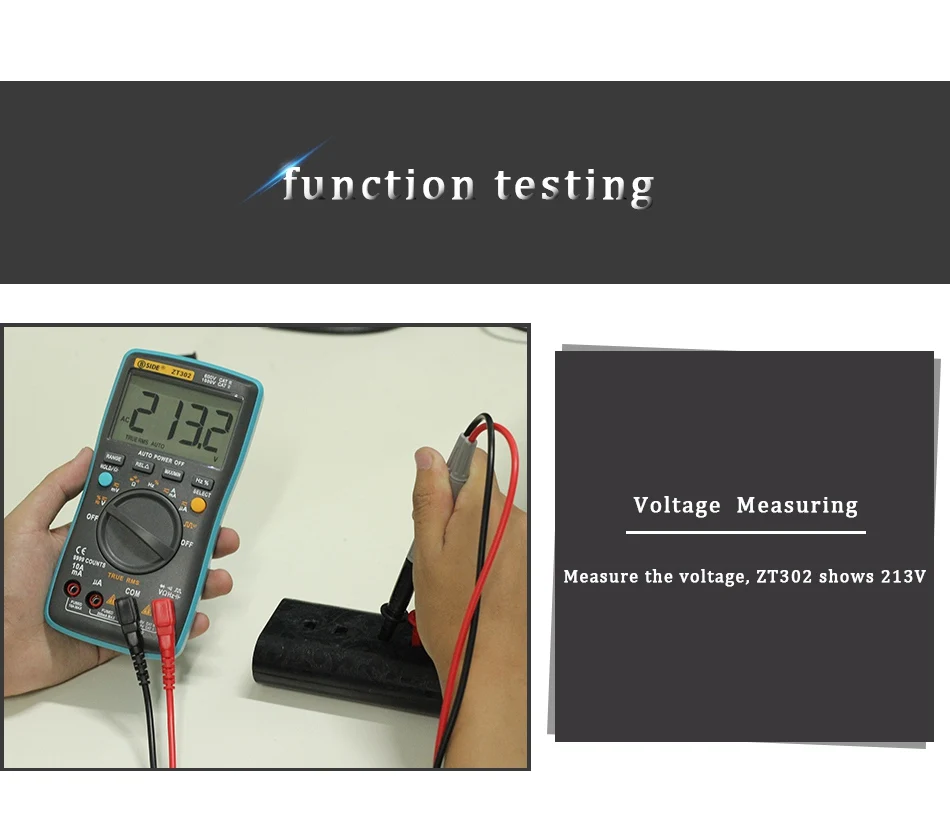

(3) DC voltage: 800mV (± 1.0%±10), 8V/80V/800V/1000V (± 0.5%±3)

(4) AC voltage: 800mV (± 3.0%±3), 8V/80V/800V/750V (± 1.0%±3)

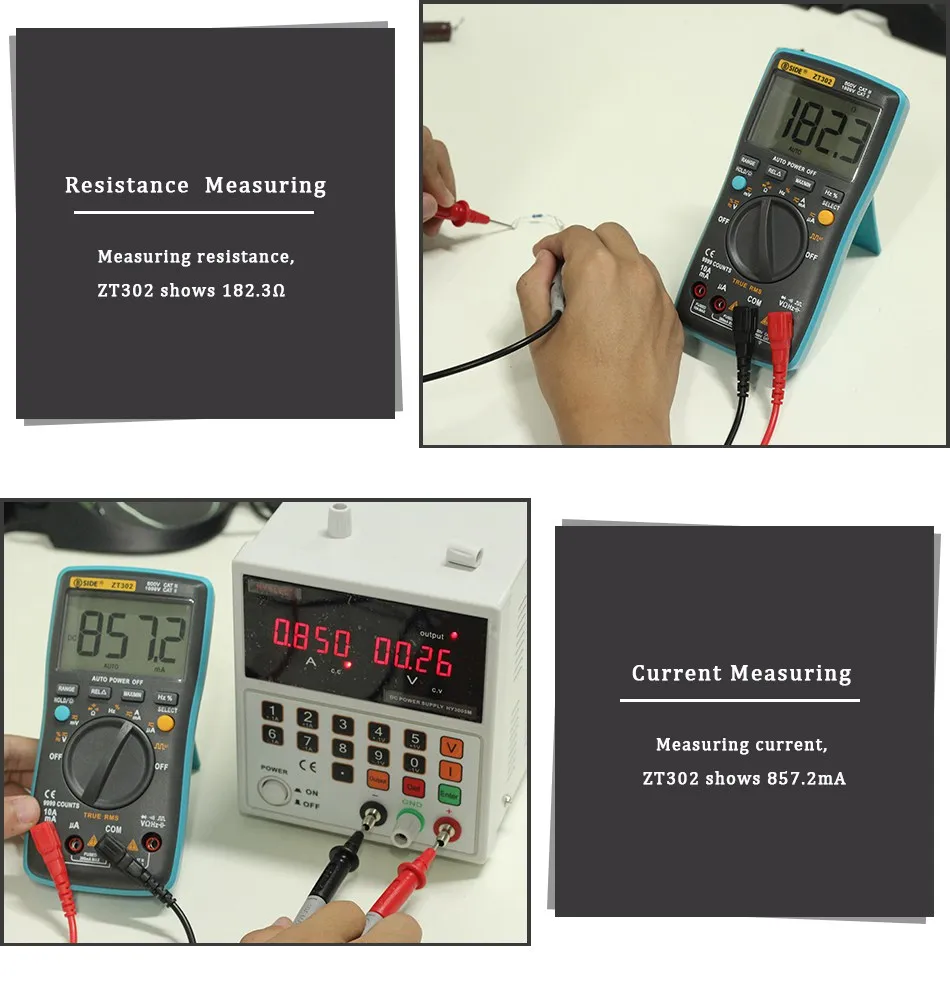

(5) DC current ：800uA/8000uA (± 1.5%±3), 80mA/800mA (± 1.5%±3), 10A (± 1.5%±3)

(6) AC current ：800uA/8000uA (± 1.5%±3), 80mA/800mA (± 1.5%±3), 10A (± 1.5%±3)

(7) Resistance: 800 (± 0.5%±3), 8K/80K/800K/8M (± 0.5%±2), 80M (± 1.5%±3)

(8) Temperature: < 400 ± C (1.0%±5), more than 400 DEG C ± (1.5%±15)

< 752 ± (1.0%±5), more than 752 degrees Fahrenheit (1.5%±15).

(9) share ratio: 1% to 99% (± 1%)

(8) measurement methods: double integral A/D converter

(9) ultra range display: OL

(10) working environment: 0~40 C, relative humidity < 80%
