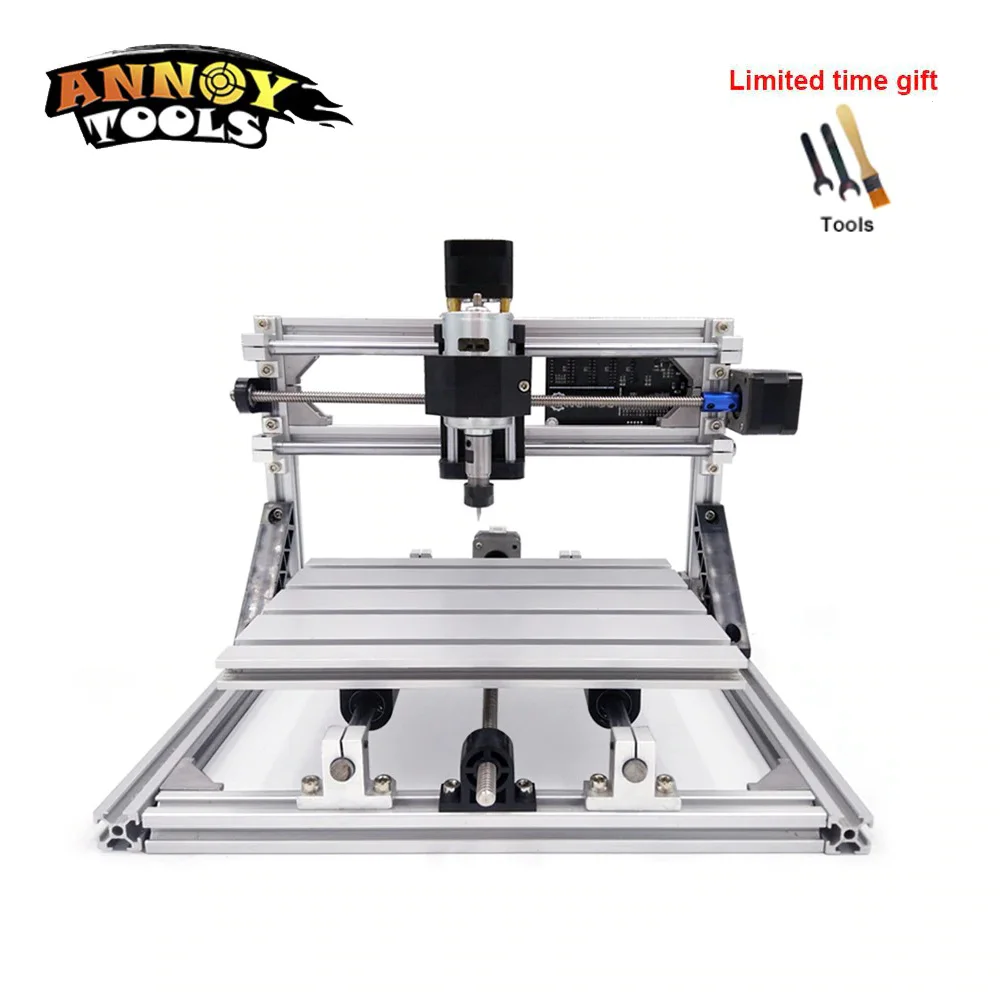

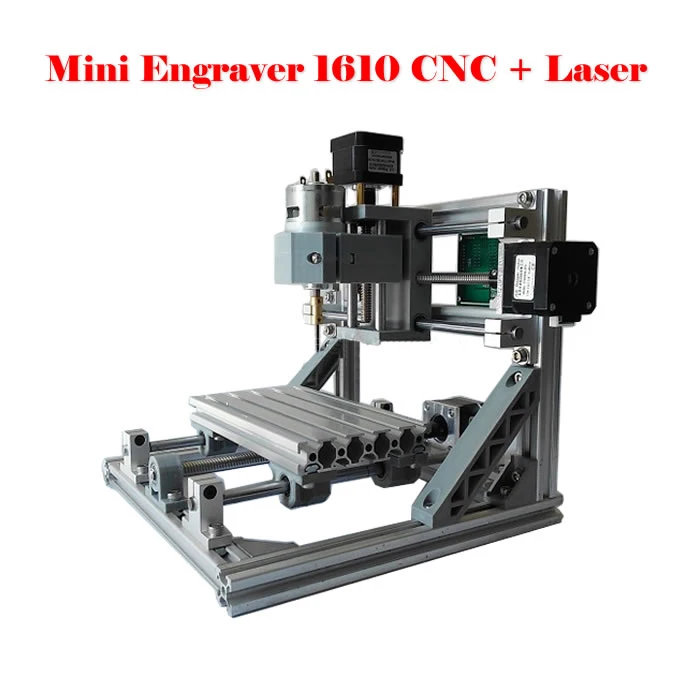

Гравировальный станок CNC16 * 10 GRBL1.1, 5500 МВт, 15000 МВт, лазерный резак, фрезерный станок с ЧПУ, резьба по дереву, гравировальный станок для металла

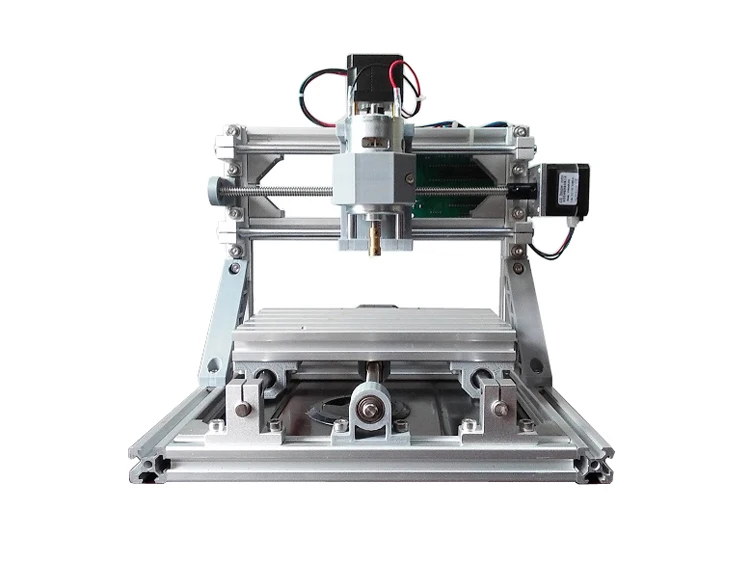

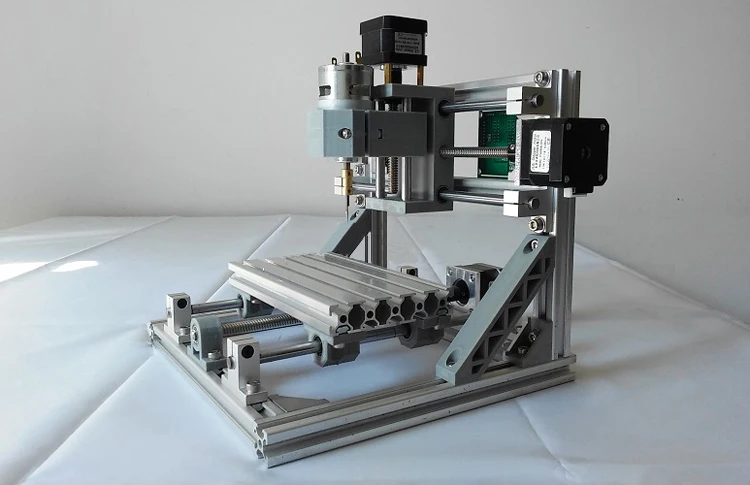

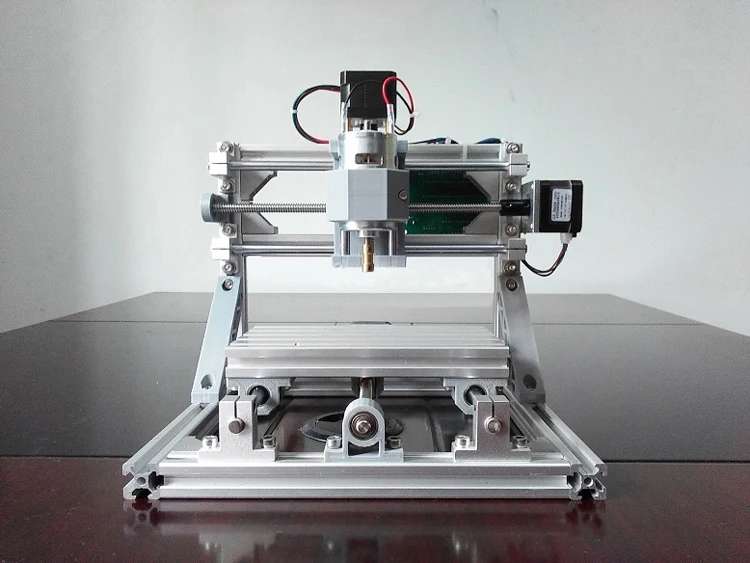

Body with aluminum and plastic, small size, light weight, USB interface, GRBL control system, simple and suitable for beginners.

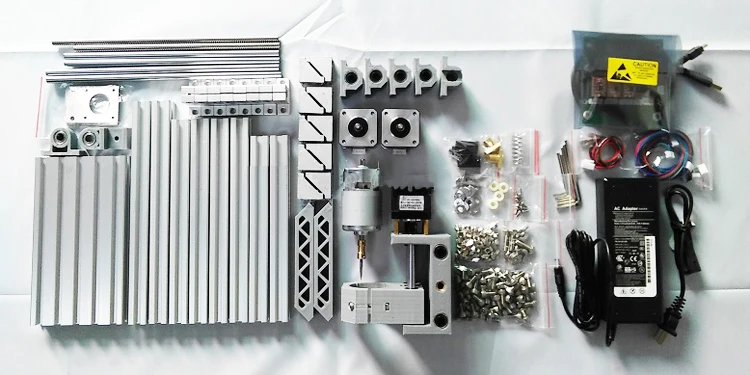

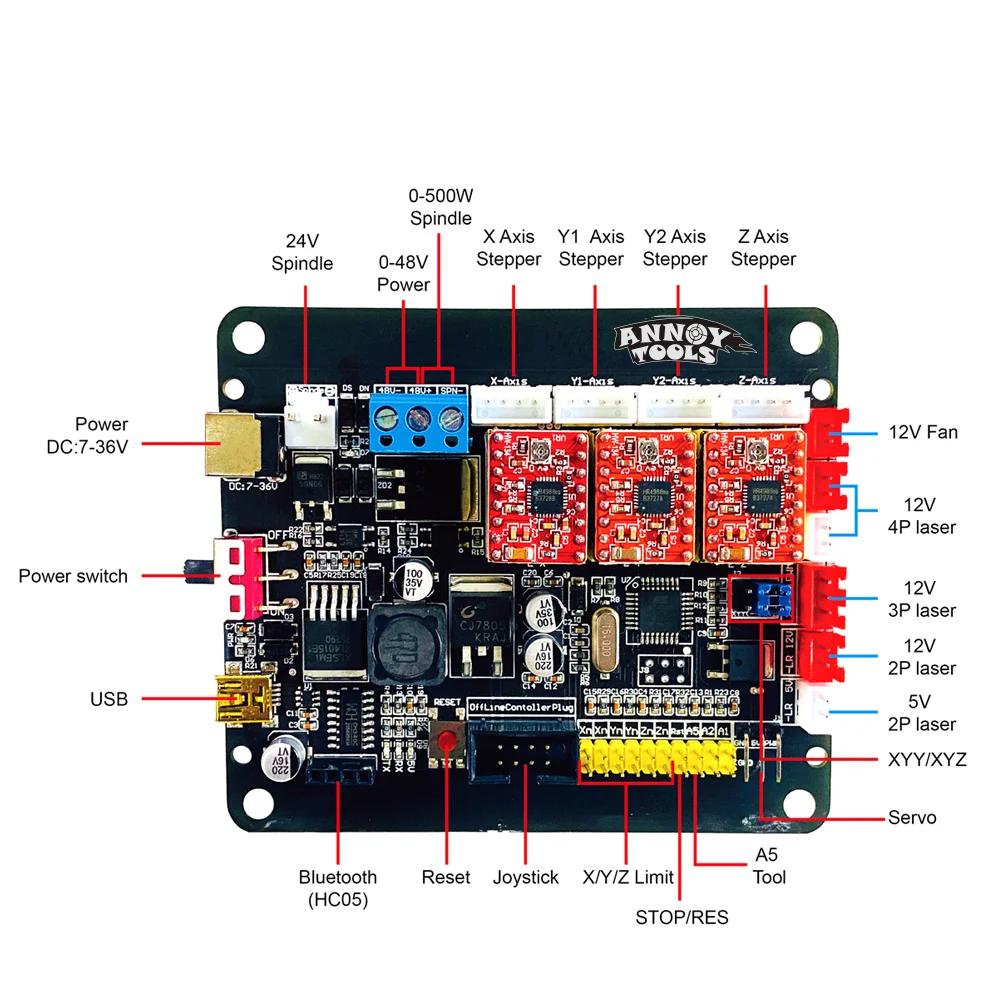

Some components and core components have been assembled, the customer only need to assemble the rack according to the installation instructions, the control board wiring is basically a connector, also easy and simple.

Can use carving knife, and also can use laser engraving.

Can be carved plastic, wood, acrylic, pvc, pcb, and the similar materials

Specification:

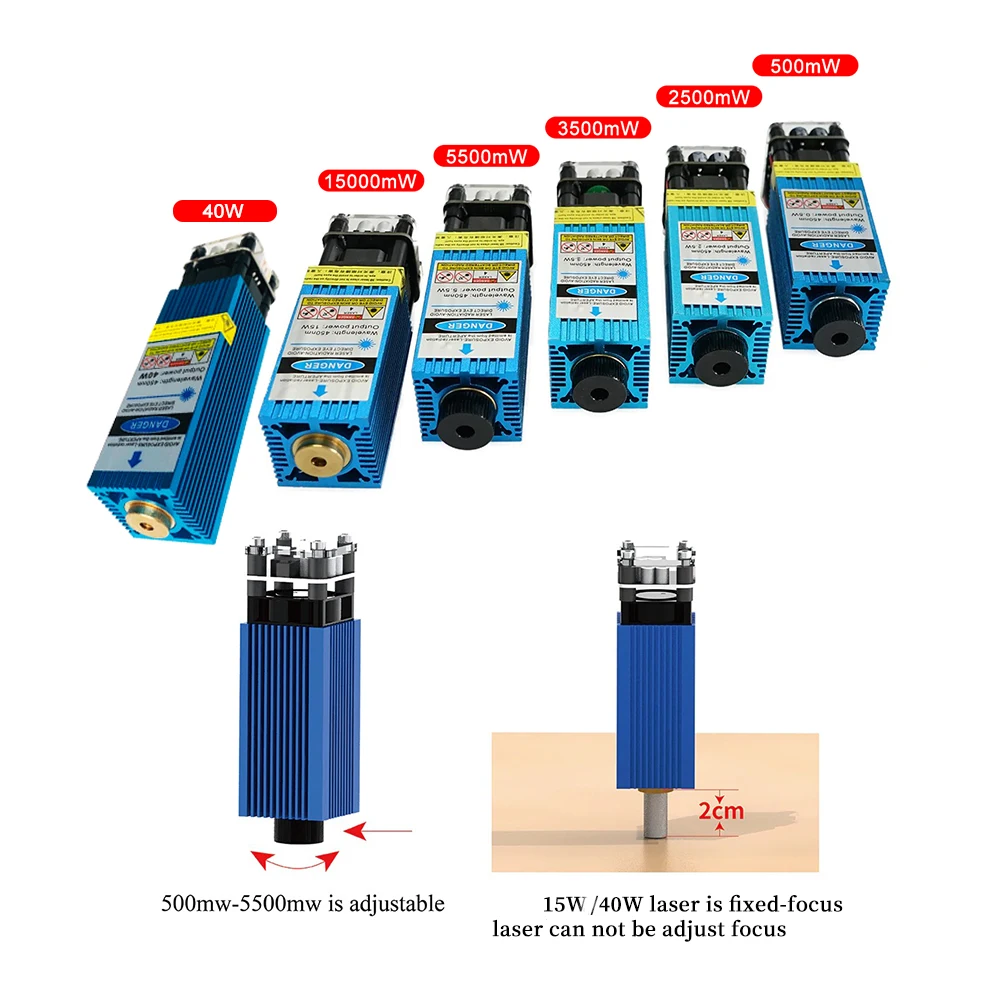

Dimensions: 260x240x220mm (excluding motor protrusions) Engraving area: 160x100x45mm Screw: Professional T8 screw, lead 4mm, double copper nuts eliminate the poor back Stepping Motor: The new 42 stepper motor, reliable quality Voltage: 12V, phase current 1.3A, phase resistance 2.1 ohms, torque 0.25N.m Spindle:  775 spindle motor (12-36V) 24V: 7000r / min, 36V: 9000r / min Laser head: 500MW/2500MW Power: 24V 5A power adapter (input voltage 110-240V), simple and convenient Countertops: 20100 aluminum (table size: 180x100mm) Rack: 2020 profiles Gray Part Material: Plastic Control software: Grbl Control Design software: All CAM (computer aided manufacturing) software is ok System requirements:    windows XP SP3, win7, win8, win10. (32/64 can be). Linux Interface: USB
