ANENG AN8000 цифровой мультиметр, 4000 отсчетов, профессиональный конденсатор, тестер esr, измеритель уровня индуктивности, цифровой тестер

start

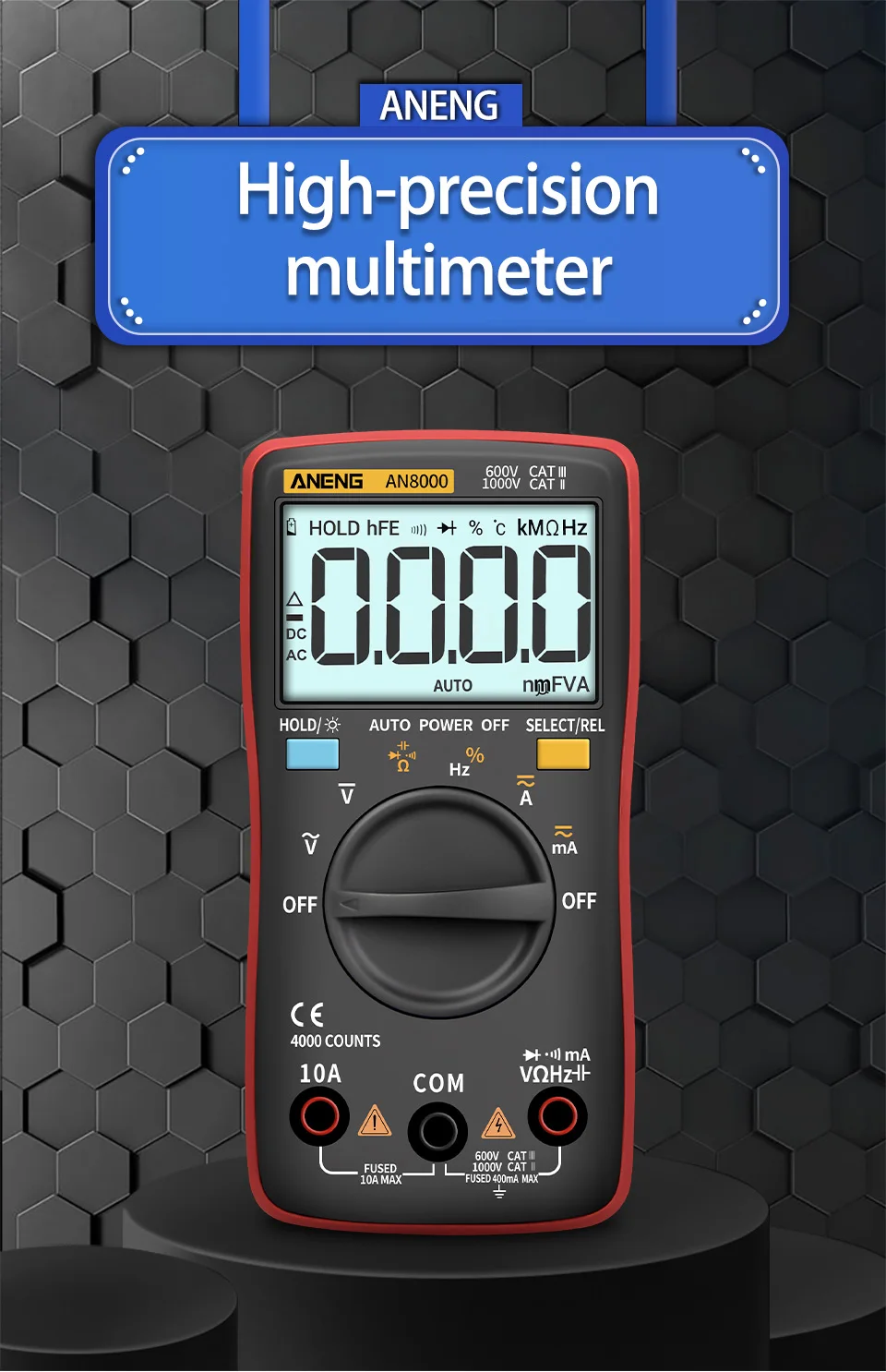

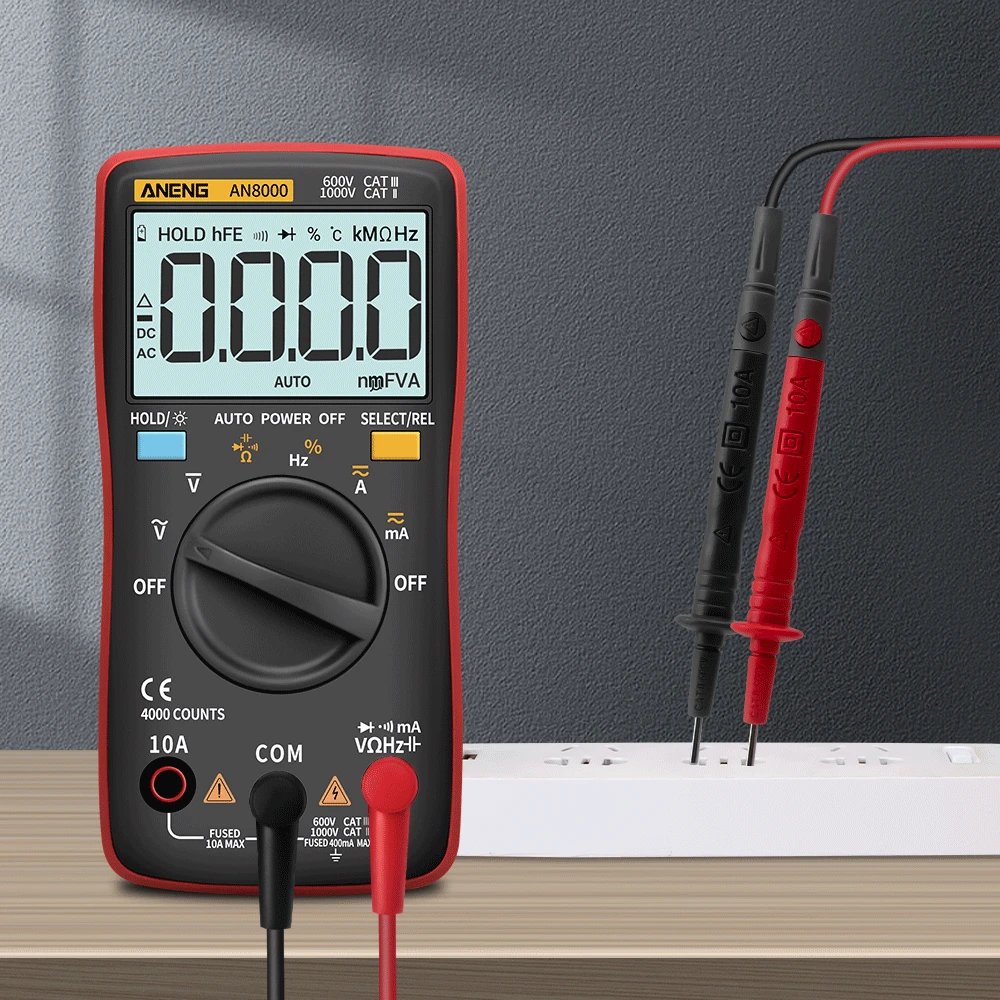

AN8000 Digital Multimeter DC AC Voltage Current Resistance Diode Capacitance Temperature Tester Digital Multimeter

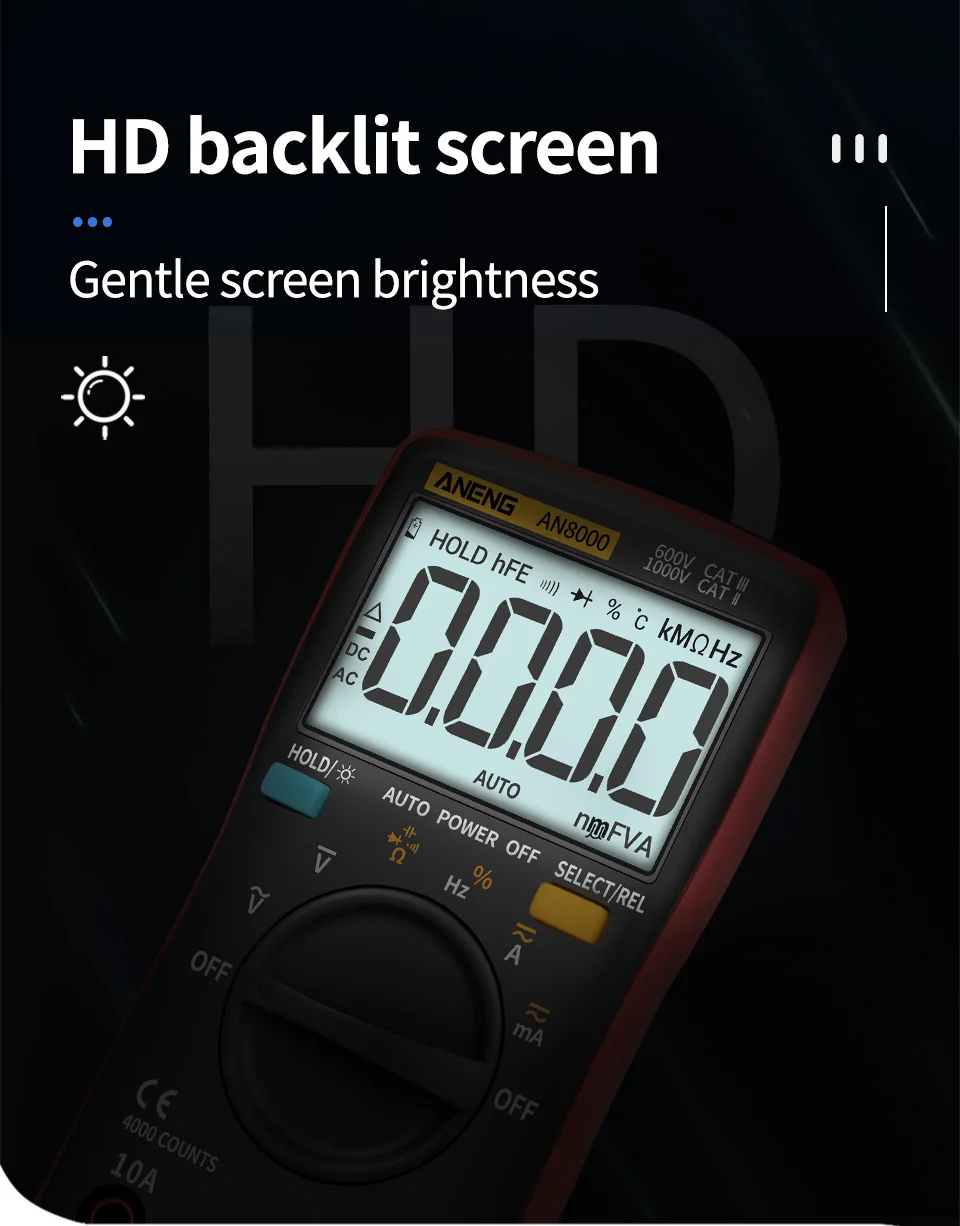

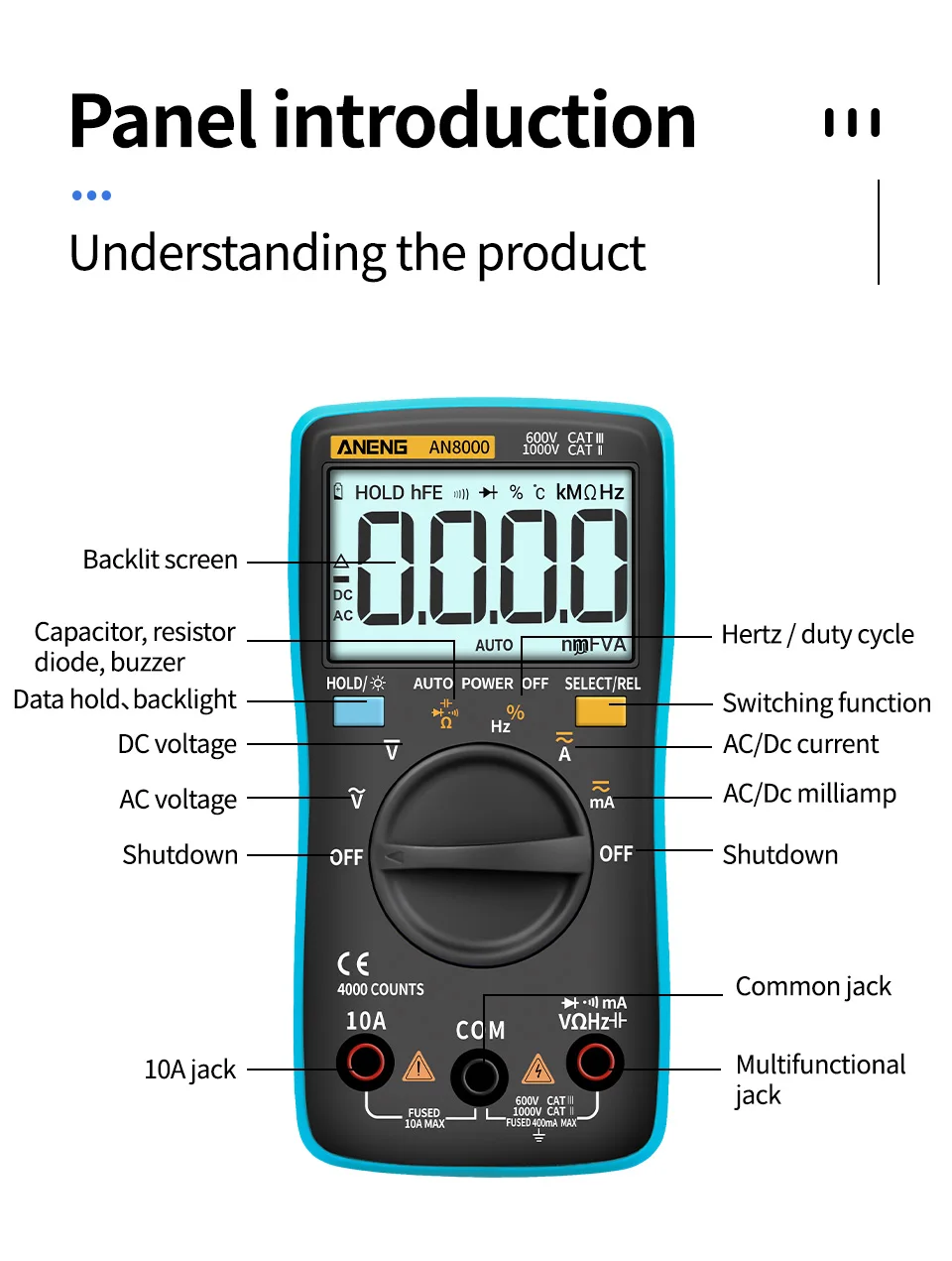

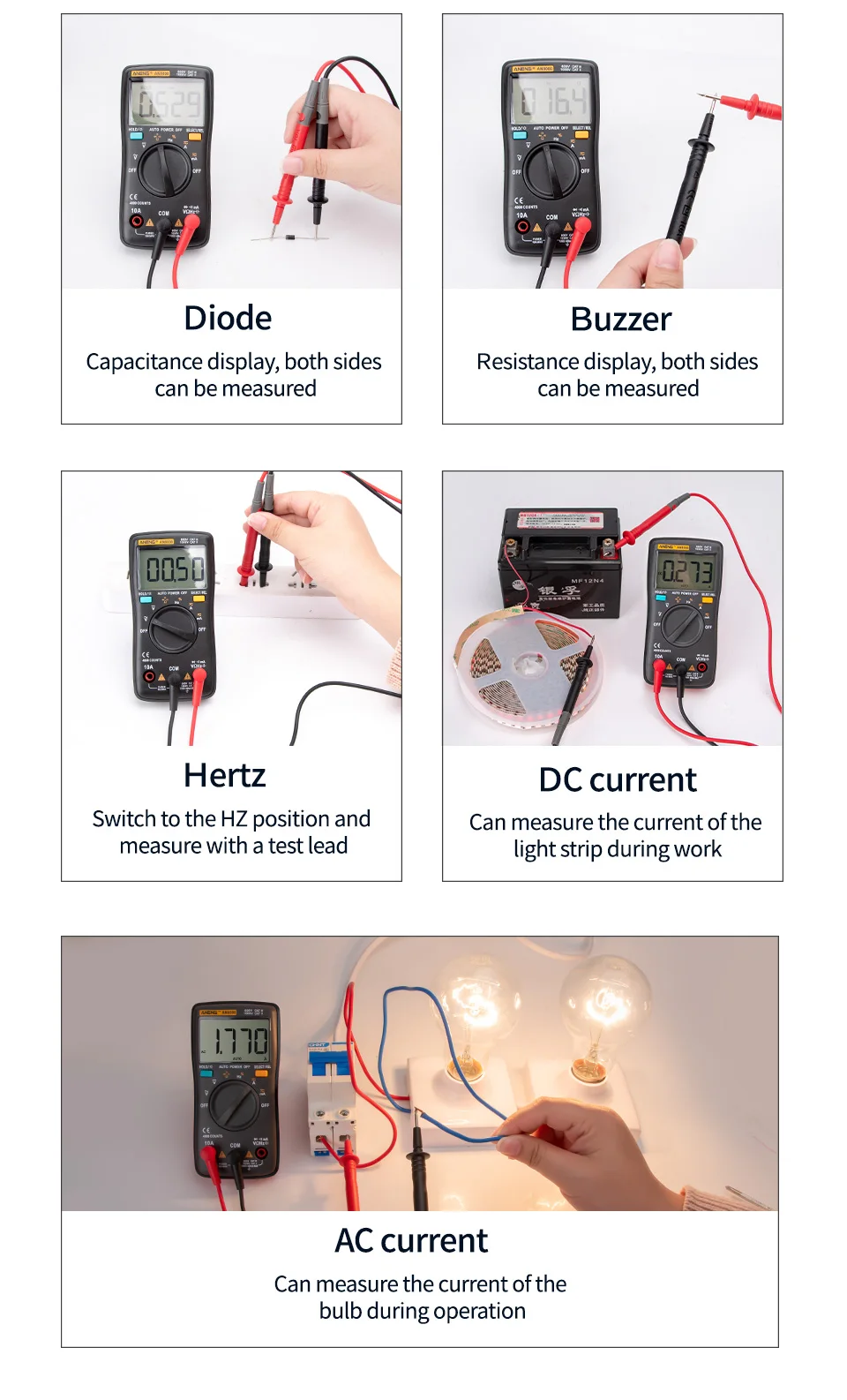

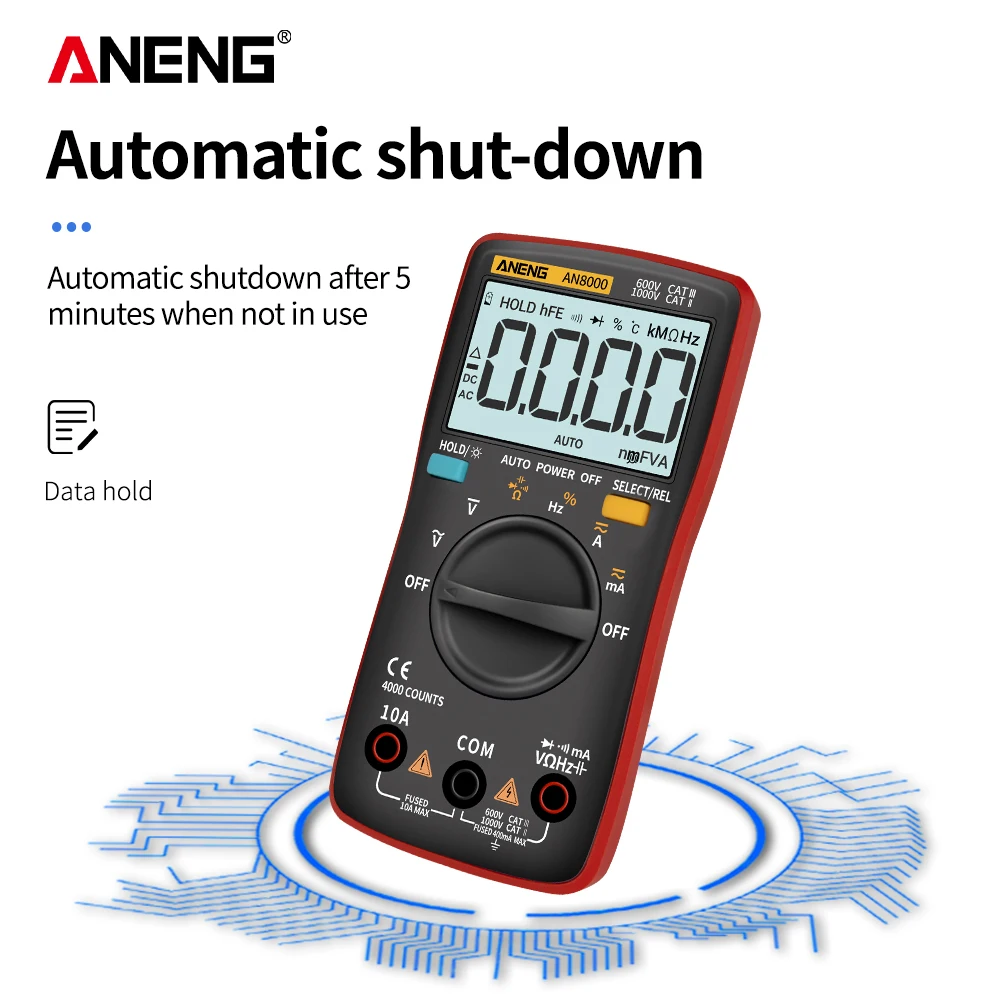

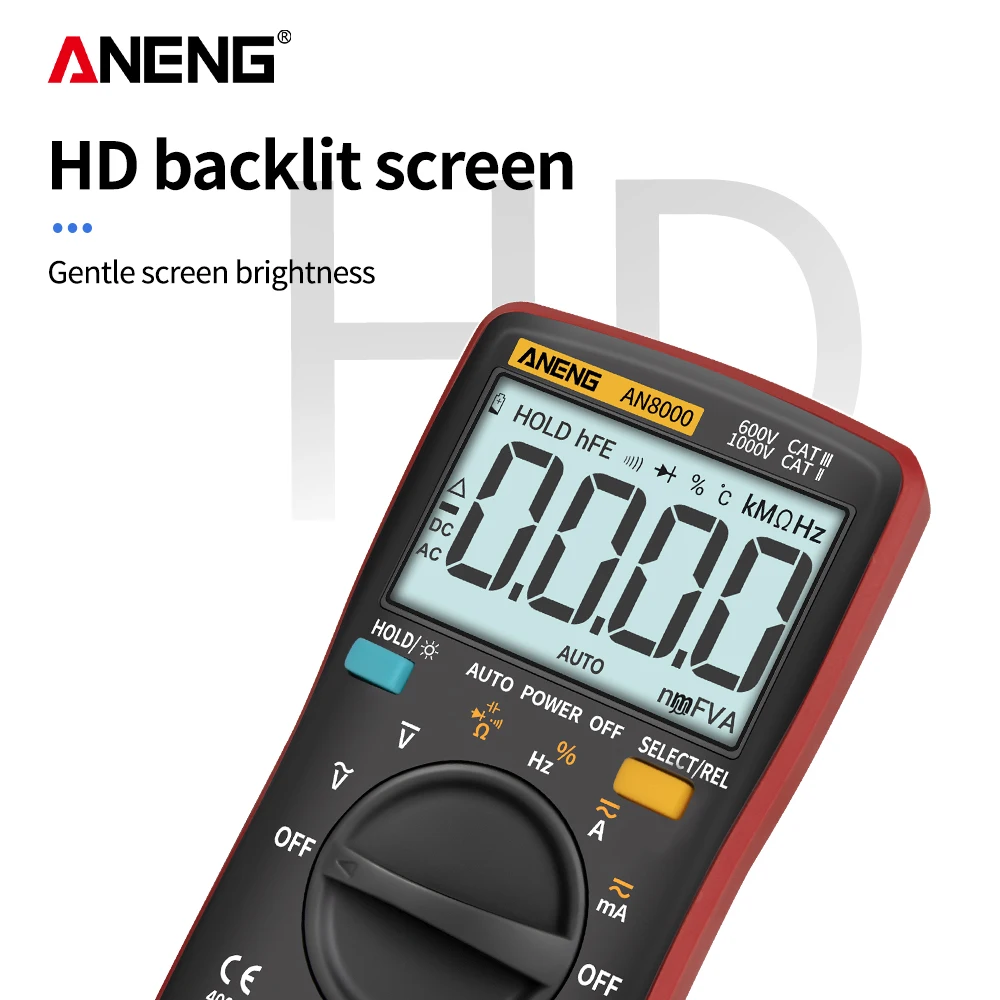

Features:Auto ranges550V protection in Resistance.Capacitance and Frequency rangesLarge LCD display,MAX display 4000 counts Sample rate: 3 times per secondbacklight/Data hold/Relative measurement/Polarity identification/Low voltage indication/Auto power off Main measurements:AC/DC Voltage, AC/DC Current,Resistance,Capacitance,Diode and Continuity Testing,Frequency and duty cycle. * Frequency:1Hz to 10MHz* Capacitance :0.004nF to 200uF

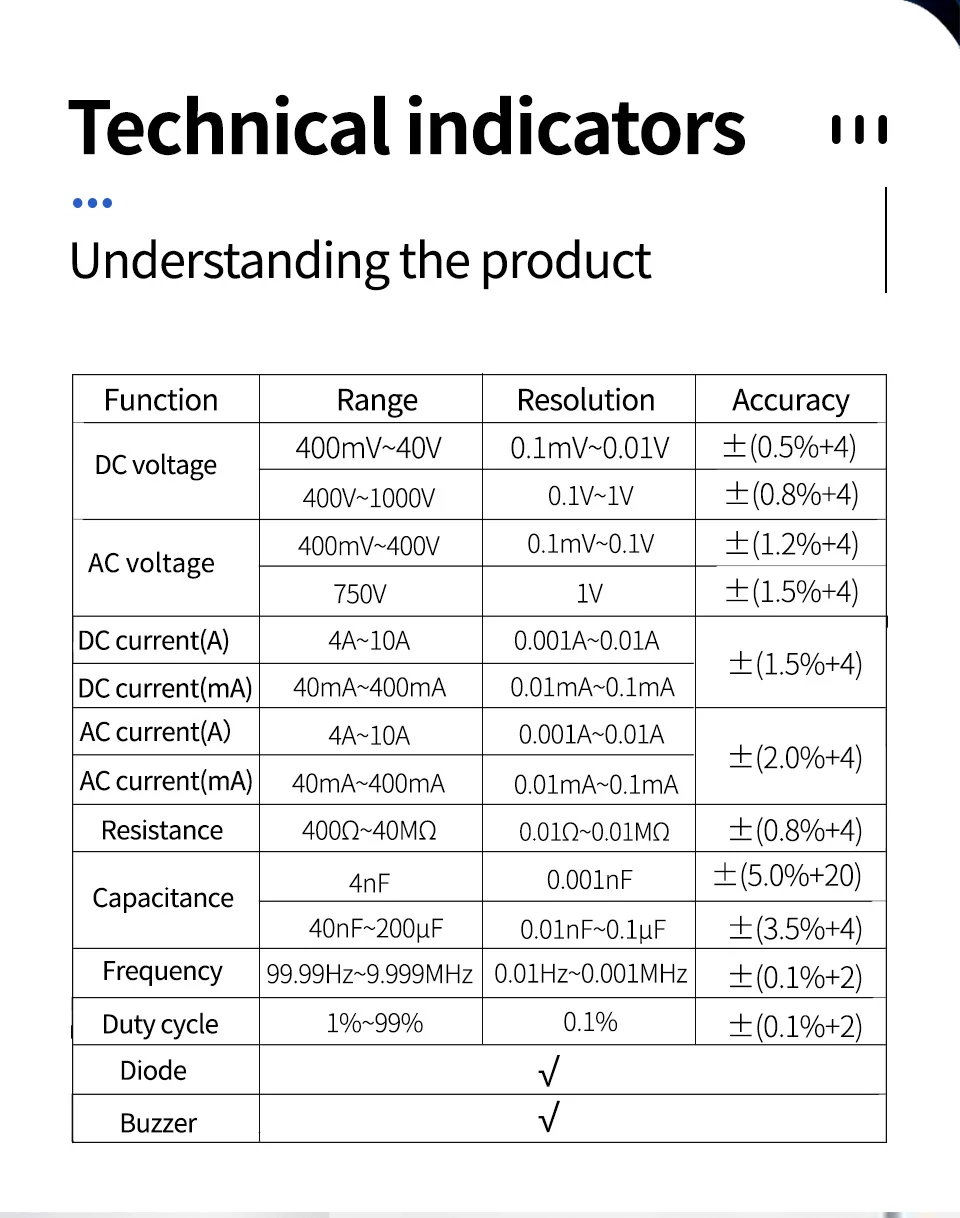

Specifications: Capacitance :0.004nF-200uF(±3.5%+4) DC volts:400mV/4V/40V(±0.5%+4),400V/600V(±0.8%+4) AC volts: 400mV(±1.5%+4), 4V/40V/400V(±1.2%+4),600V(±1.5%+4) DC current:40mA/400mA(±1.0%+4),10A(±1.5%+4) AC current:40mA/400mA/10A(±2.0%+4 ,50-200Hz) Resistance :400Ω/4K/40K/400K/4M(±0.8%+4),40MΩ(±2.0%+4) Frequency:99.5/999.5/9.999k/99.99k/999.9k/9.999MHz (±0.08%+2) Duty cycle:0.1% to 99.9%(±0.08%+2) Measurement mode: △Σmode Over range indication: OL Working environment: 0~40°, relative humidity < 80% Power supply voltage: 3V (AAA x2 Pcs 1.5V) (Battery not included)

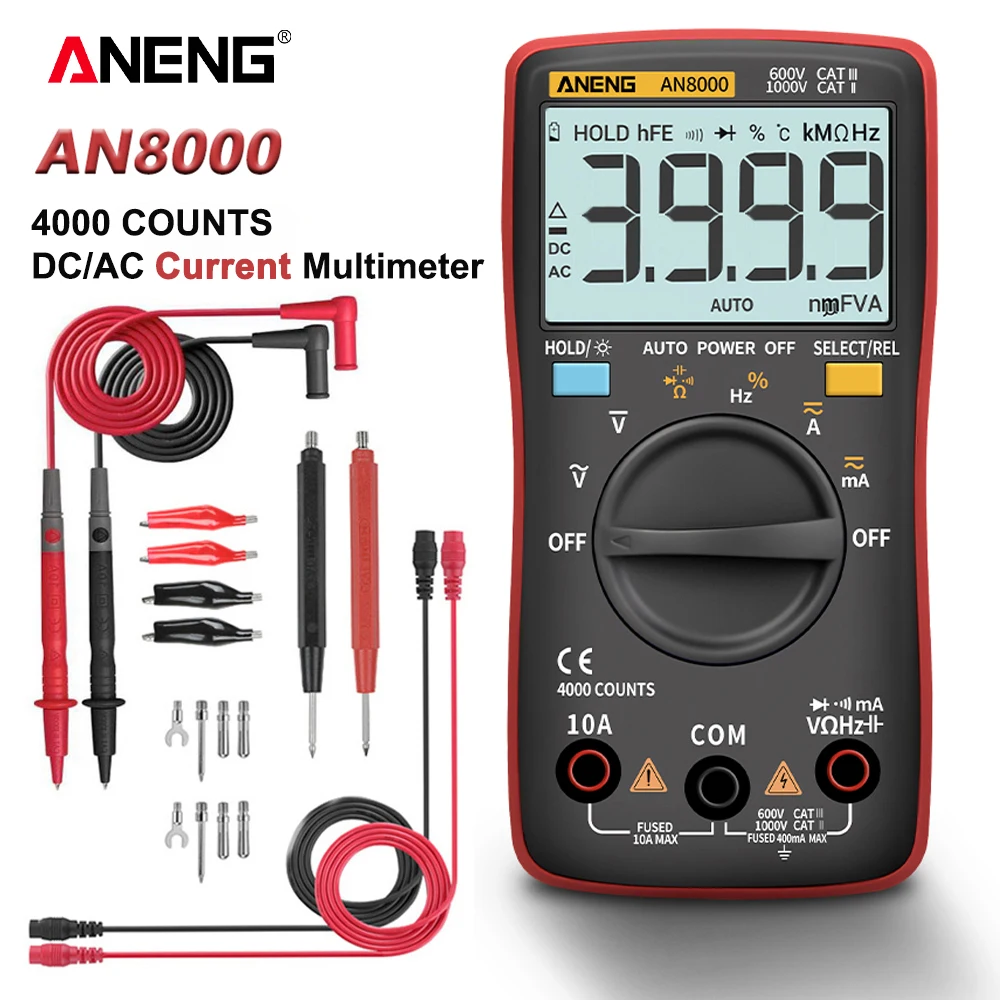

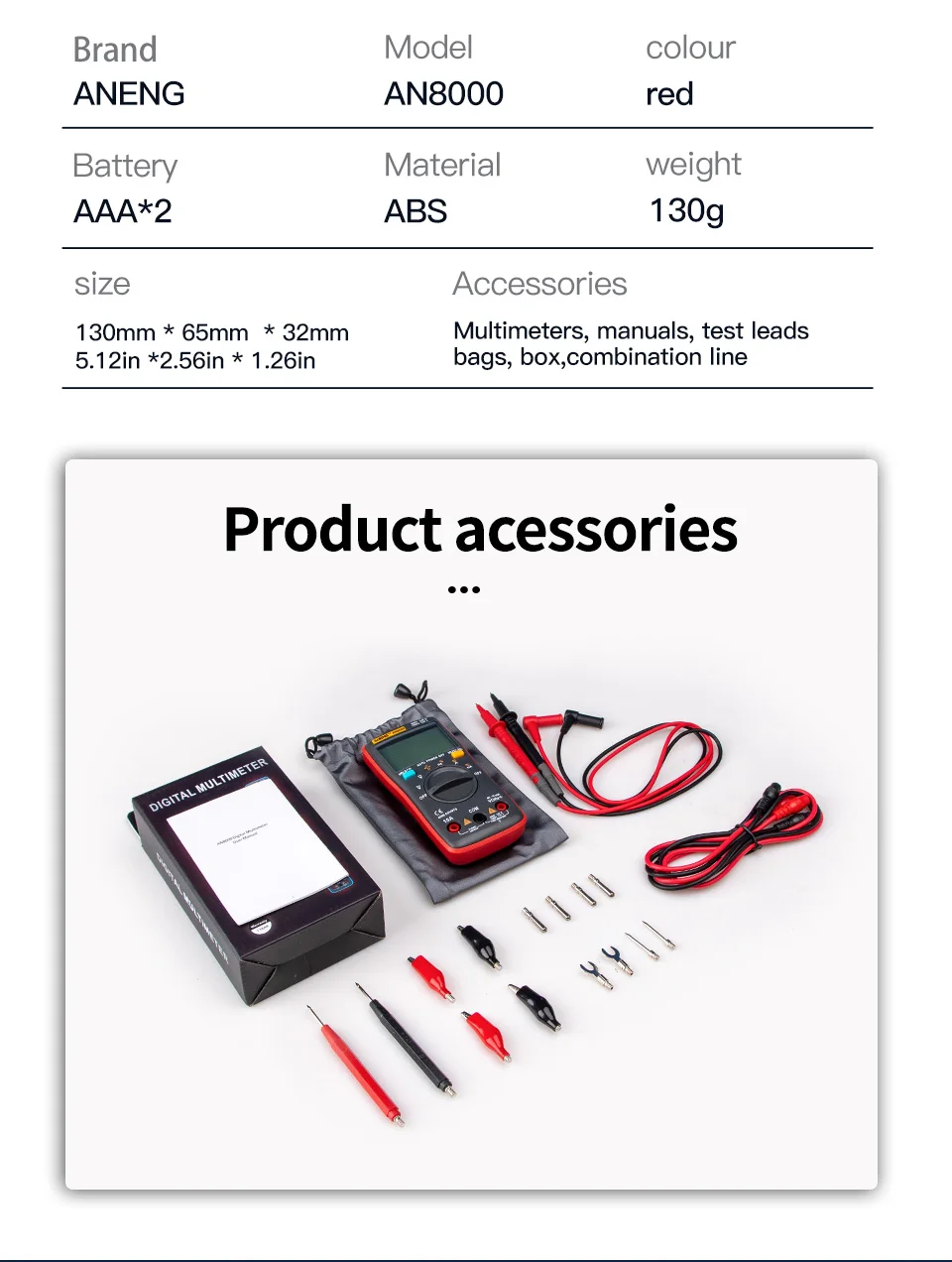

Package included:1* combination line1* manual1* standard wiring1* bag
