Многоцелевой тестер сети телефонной линии сетевой тестер кабельный тестер Система видеонаблюдения линии тестер RJ11 RJ45 BNC разъем
1 316,31₽
1 352,58₽ -2.68%
В наличии!
Professional 3C Digital and Cabling Store - Надежность 97.25%
Более 2087 подписчиков, дата открытия магазина 27.05.2015
- Положительные оценки: 99% (516)
- Соответствие описанию: 98%
- Отвечает на сообщения: 96%
- Скорость отправки: 96%
Последнее обновление: 08.09.2024

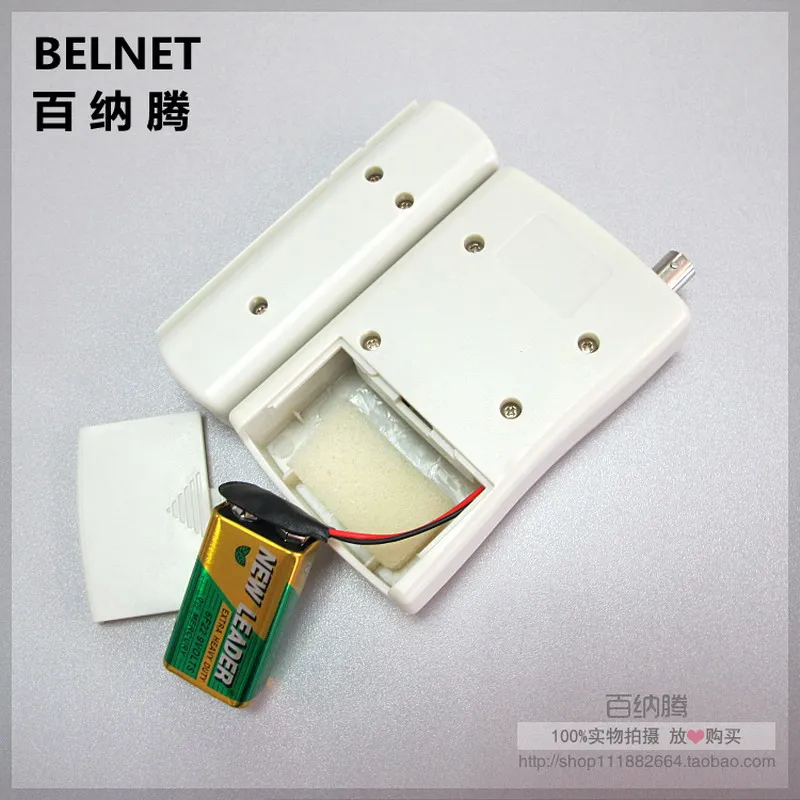

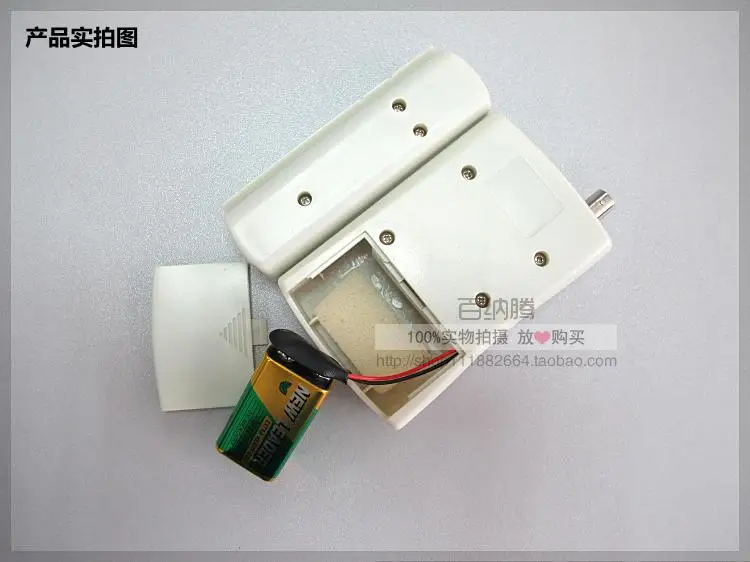

Buy It Now,Save more! If you need more bulk purchasing, after place order please do not rush to pay, we will give you more discount Product Name: Multi-purpose network tester telephone line tester (Without batteries) Product features Product Pictures and Graphic Instruction
Test operation:

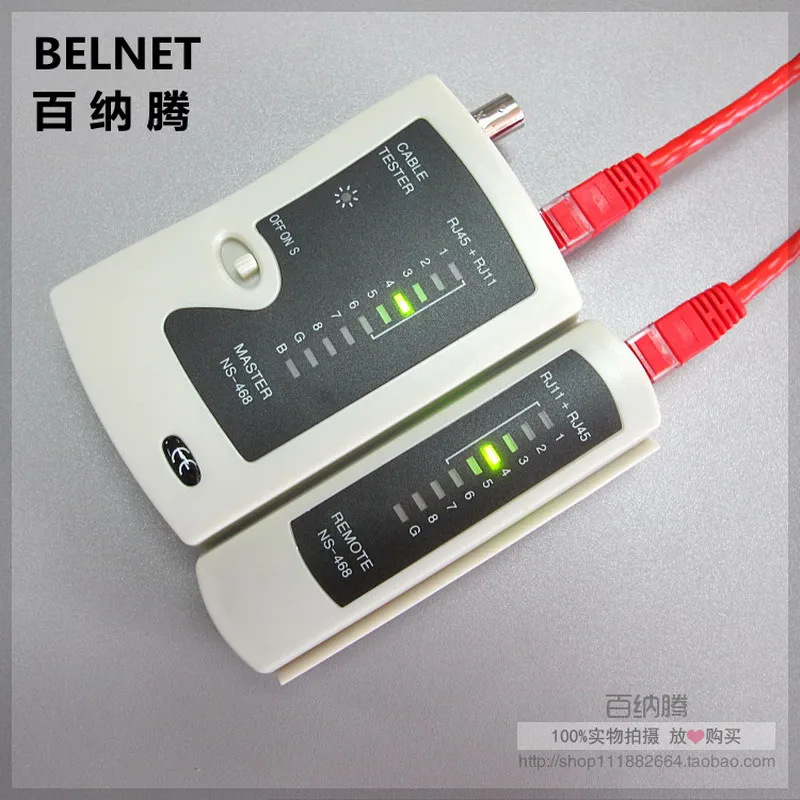

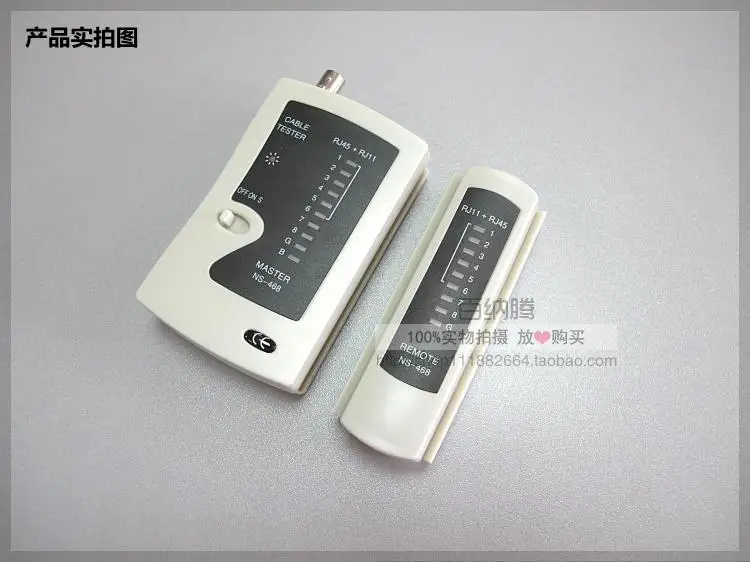

Turn on the power, the network cable plugs were inserted into both main tester and remote tester, the host from 1 to G-by LED flashing sequence, under the legend:

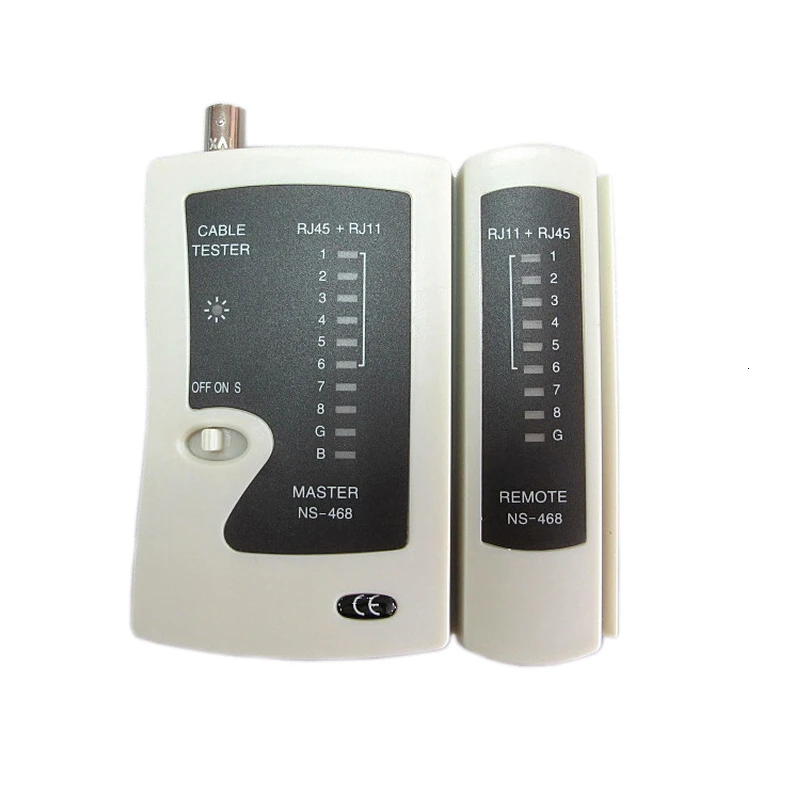

Main tester: 1-2-3-4-5-6-7-8
Remote tester: 1-2-3-4-5-6-7-8 (RJ45)
If the wiring is not normal, according to the following cases show:
1. When there is a network cable, such as the 3rd line circuit, the main tester and remote tester 3 lights are not bright.
2. When there are several lines unreasonable, then a few lines are off, when the cable is less than 2 wire communication, the lights are not bright.
3. When the two lines out of order, for example, 2,4 lines out of order, the display is as follows:
Main tester unchanged: 1-2-3-4-5-6-7-8
Remote tester is: 1-4-3-2-5-6-7-8
Test monitoring line when:

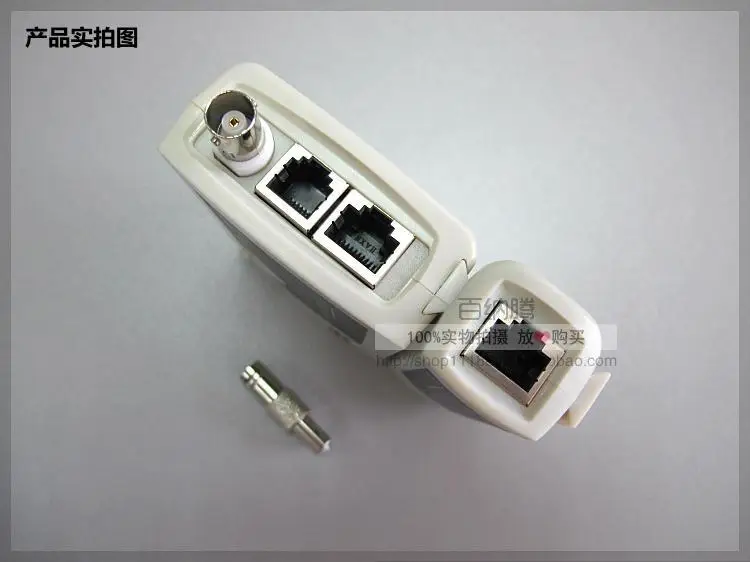

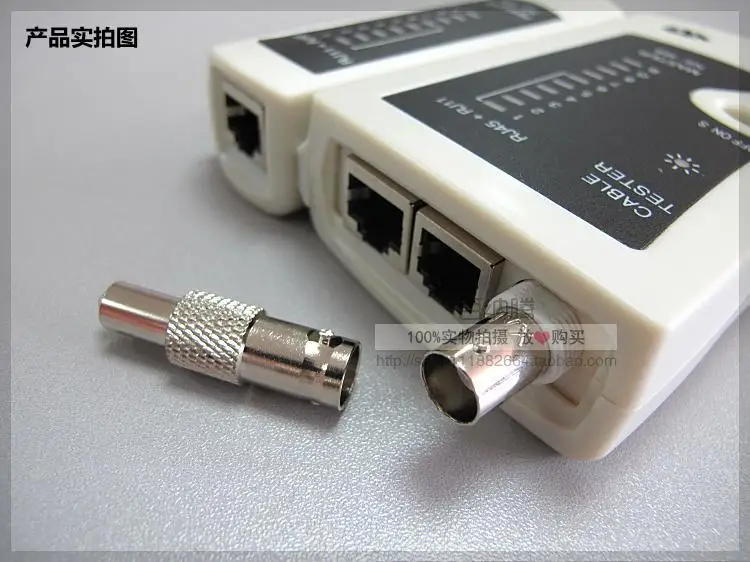

Monitor cable into the BNC connector, connect the camcorder (with BNC female), wait a few seconds, the main tester "B" lights up, indicating that the cable is a pathway.
