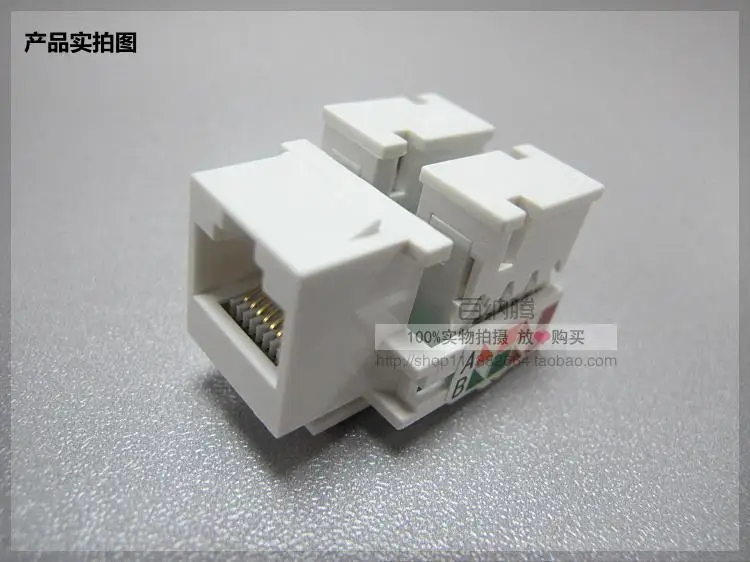

If you need more bulk purchasing, after place order please do not rush to pay, we will give you more discount. This product can be customized Product Name: RJ45 CAT5e network module Product feature Product Name: UTP network modul
This module can be used with any brand AMP panel, AMP interfaces with stent combination used in wall plate panels, ground socket and desktop socket above!

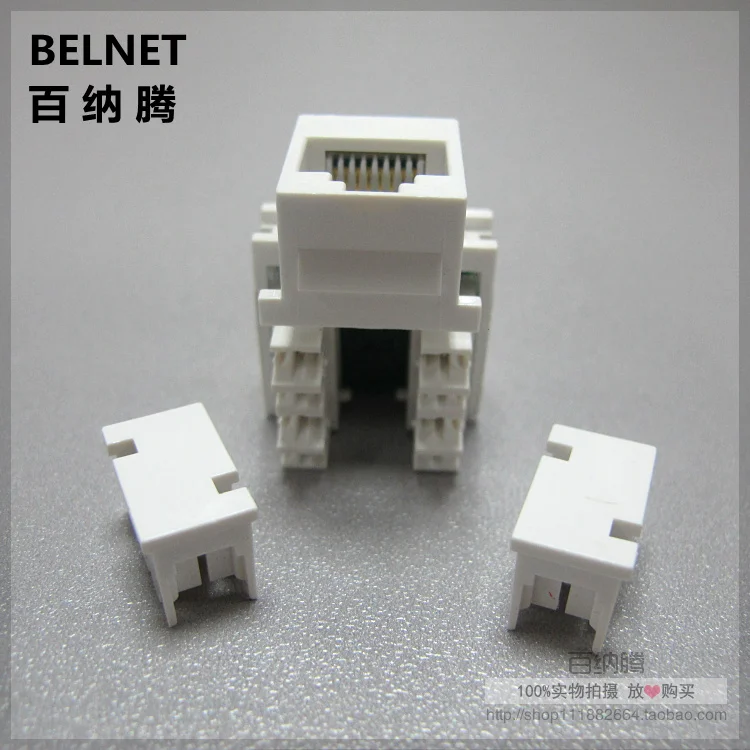

The module is equipped with two shields, with matching dust cover direct pressure line or pressure line card line knife can be easy to install. Support wholesale, large price better!
Product Features:
1, in line with TIA / EIA 568B.2-1 and ISO / IEC 11801 standard
2, through continuous impedance lilies, terminals, printed circuit analysis, optimal impedance matching relationship
3, gilded lilies, prevent surface oxidation, improve the contact performance, to ensure performance and service life
4, using high-quality fire-retardant polycarbonate material, flame retardant UL94V-0 level reached
5, support for mainstream termination methods to ensure versatility and reliability of connection methods
6, compact form factor designed to ensure the end of the cable box to accommodate more relaxed space
Technical Specifications:
1, the DC resistance: ≤300mΩ
2, the contact resistance: ≤20mΩ
3, compressive strength: 1000V (AC750V) 1min, no breakdown and arcing
4, insulation resistance: ≥1000mΩ
5, lilies: phosphor bronze, gold-plated

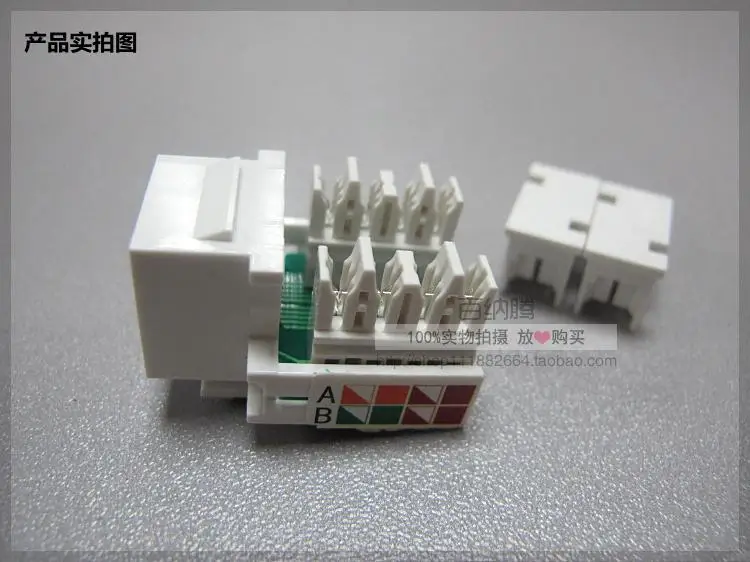

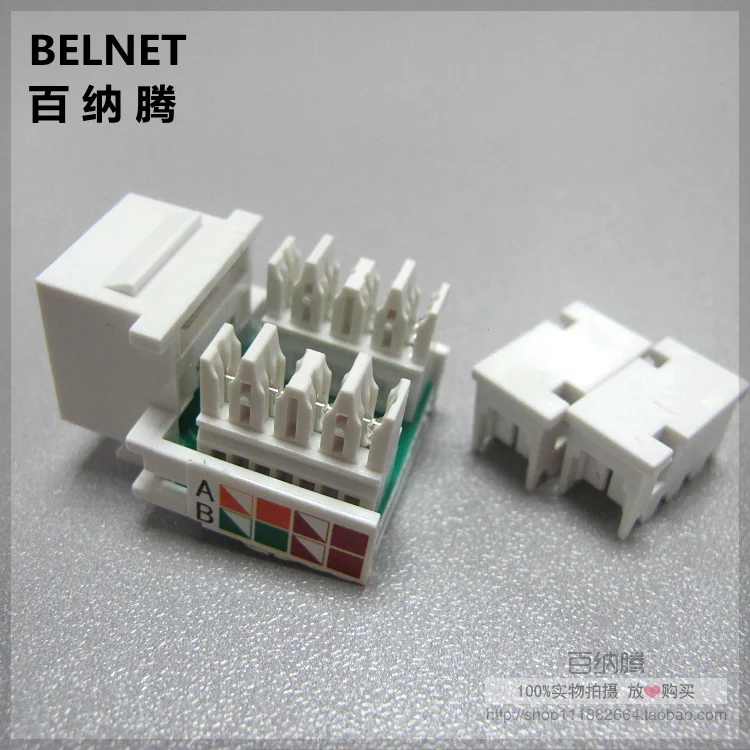

6, IDC Terminal: Phosphor bronze, card access 22-26AWG conductor
7, the number of mating plug and socket ≥750 times
8, storage temperature: -40 degrees Celsius to 70 degrees Celsius
9, the installation temperature: -10 degrees Celsius to 60 degrees Celsius
10. Operating temperature: -10 degrees Celsius to 60 degrees Celsius

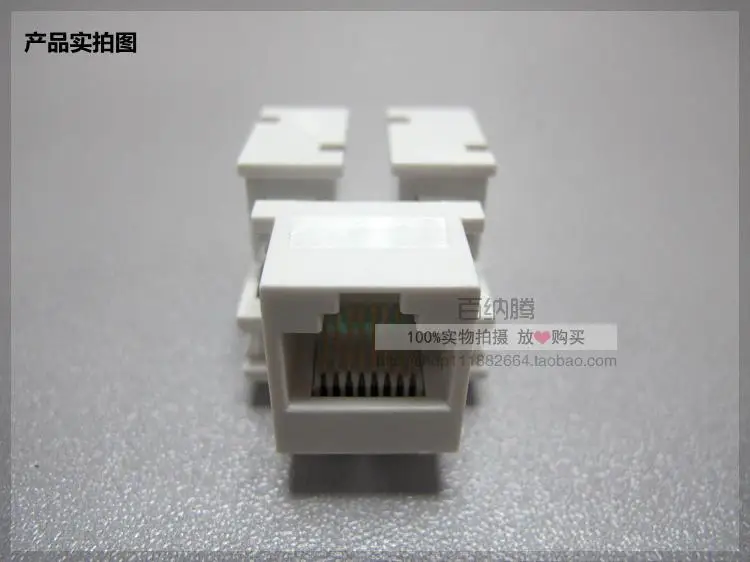

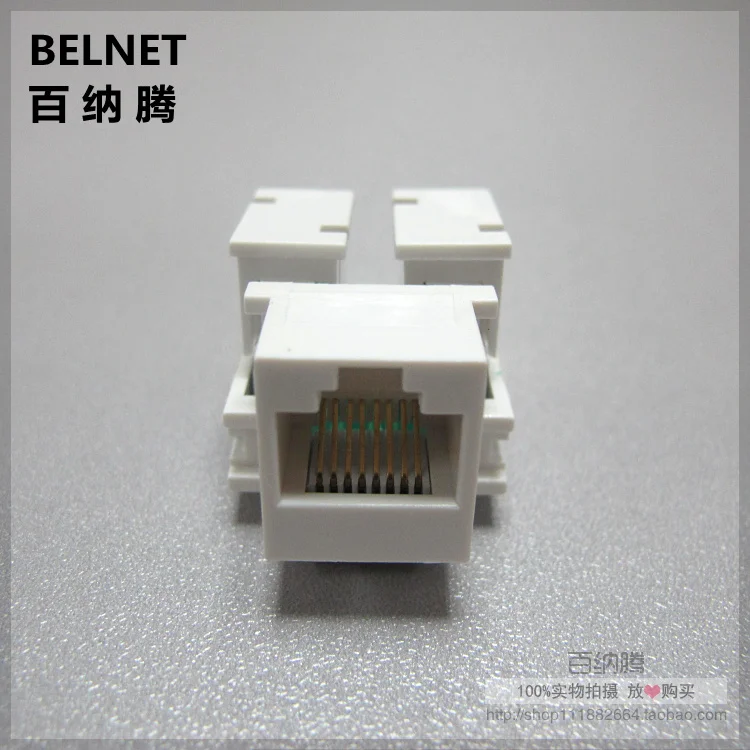

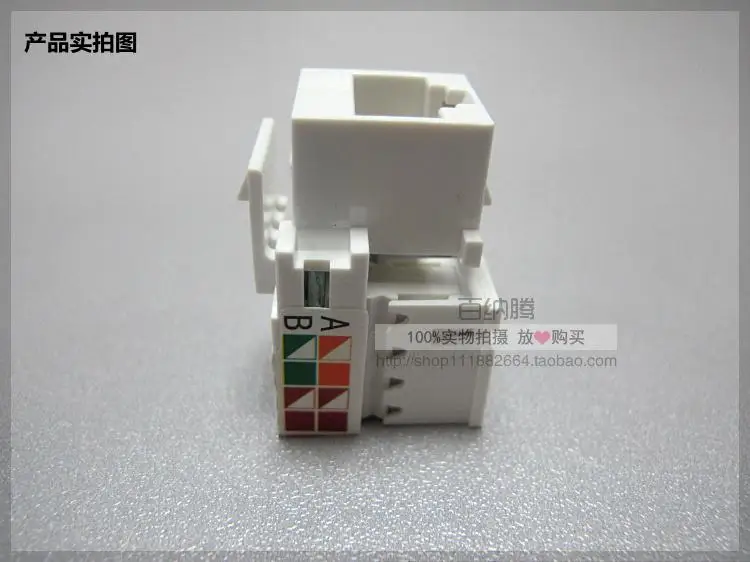

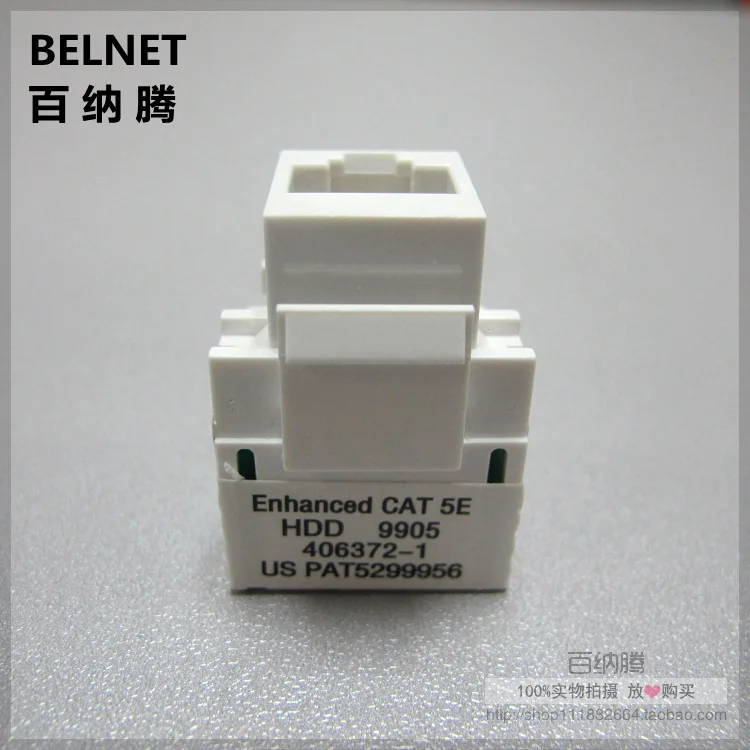

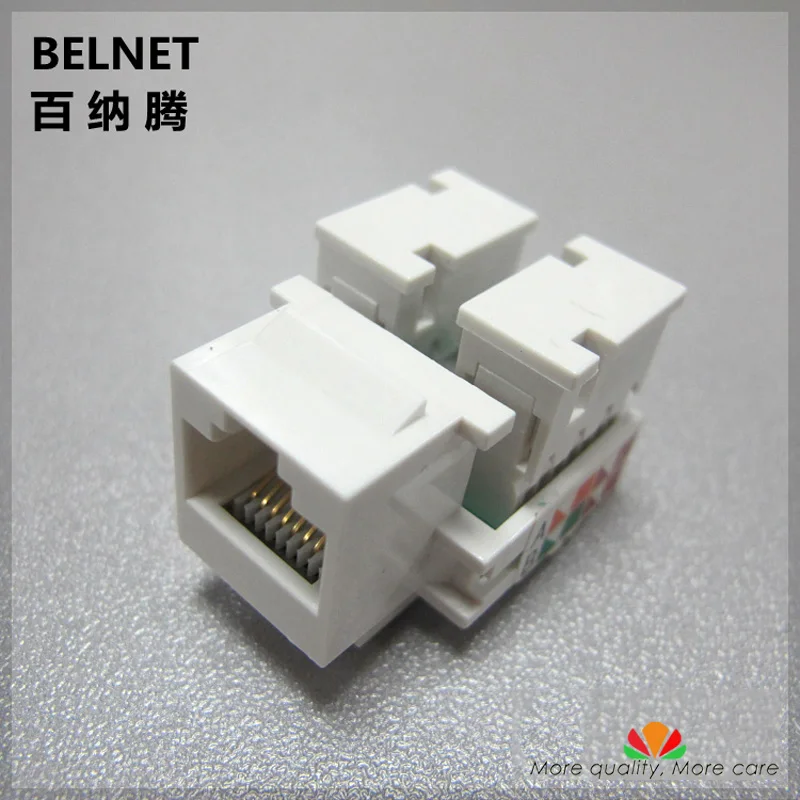

Product details
